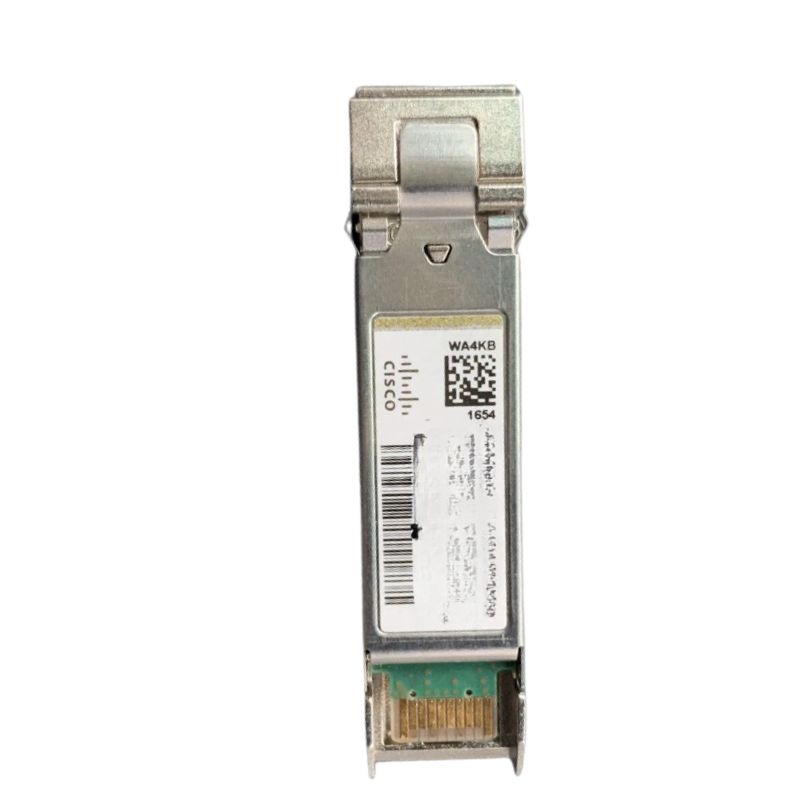

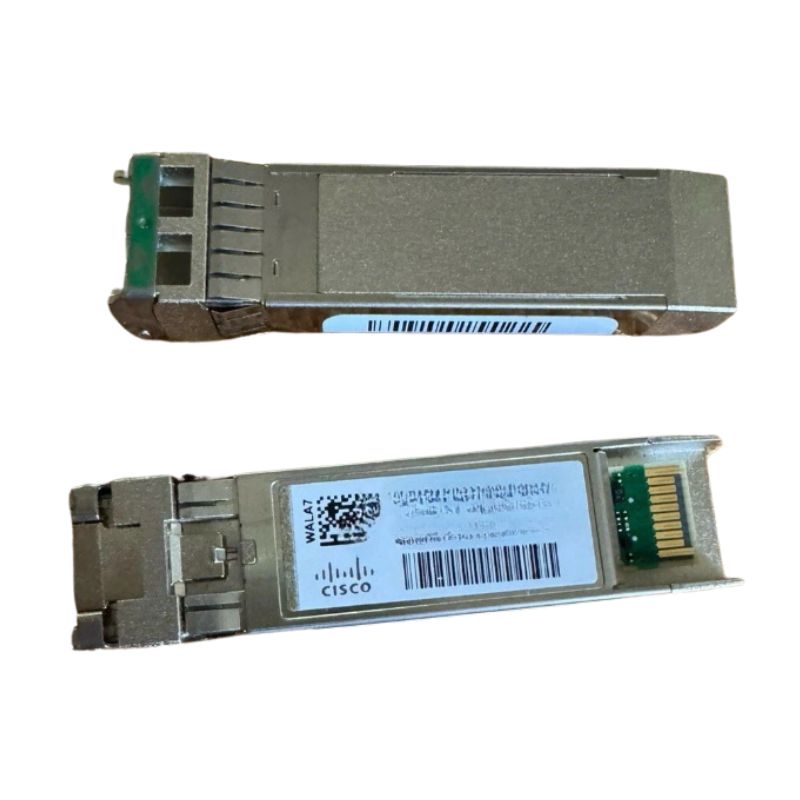

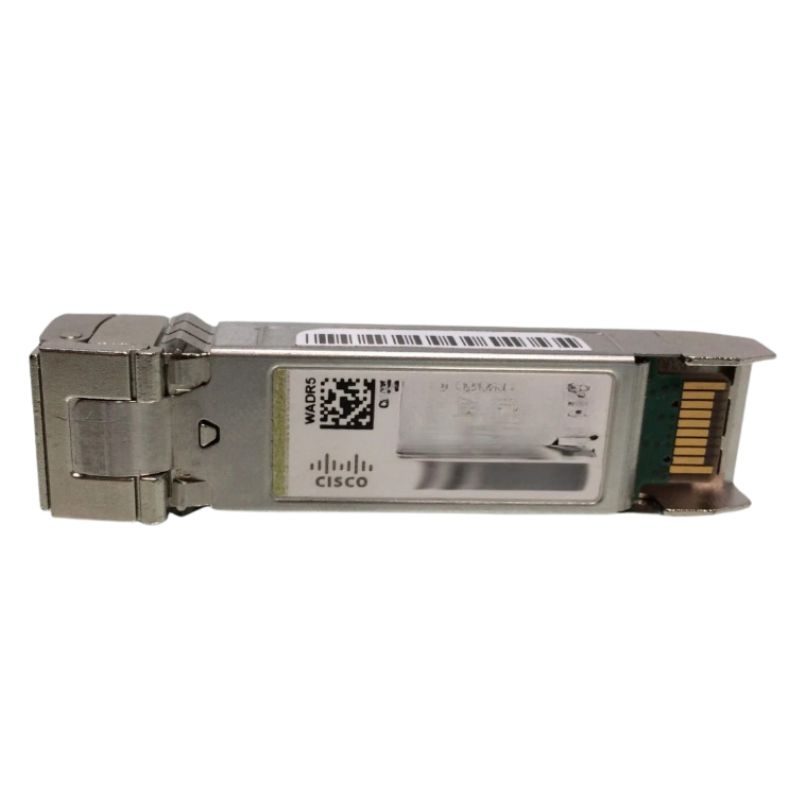

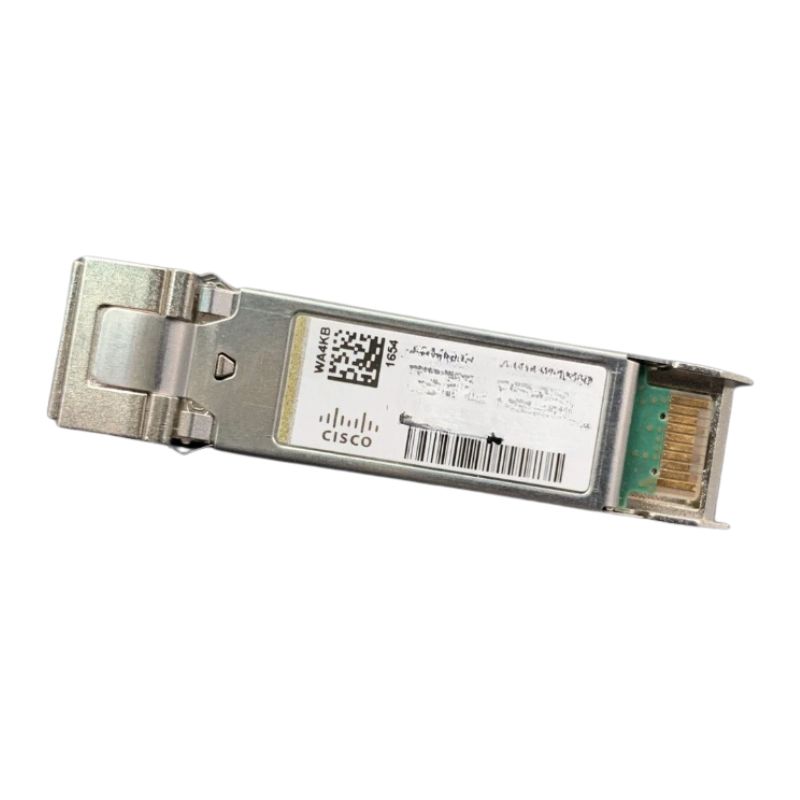

DWDM-SFP-3977 Cisco 1Gbps 1000Base Single-mode SFP Transceiver Module

Cisco DWDM-SFP-3977 1GBPS SFP Transceiver Module

The DWDM-SFP-3977 1Gbps 1000Base-DWDM single-mode fiber transceiver module is engineered for high-performance optical networking environments that demand long-distance data transmission with high spectral efficiency. Designed under Dense Wavelength Division Multiplexing (DWDM) standards, this SFP module operates at a precise wavelength of 1539.77nm, enabling it to function within tightly controlled optical frequency grids that maximize fiber utilization and minimize signal interference across backbone and metro network infrastructures.

As part of the 1000Base-DWDM SFP transceiver category, this module is optimized for Gigabit Ethernet applications where long-haul connectivity up to 80km is required without signal regeneration. Its duplex LC connector interface ensures stable bi-directional optical communication over single-mode fiber (SMF), making it suitable for carrier-grade telecommunication networks, enterprise WAN links, and metropolitan area network (MAN) deployments.

Optical Performance Characteristics

Precision Wavelength Engineering at 1539.77nm

The defining characteristic of the Cisco DWDM-SFP-3977 is its precise center wavelength of 1539.77nm, which falls within the ITU-T DWDM grid. This level of wavelength precision ensures compatibility with multiplexing systems that combine multiple optical channels over a single fiber strand. By assigning each channel a narrowly defined spectral band, the module enables dense channel stacking without cross-channel interference, significantly increasing fiber capacity.

DWDM Channel Stability and Spectral Efficiency

The module maintains high wavelength stability through temperature compensation and internal laser control mechanisms. This ensures minimal drift across environmental variations, which is critical in dense optical networks where even minor deviations can lead to signal degradation. The spectral efficiency achieved allows network operators to scale bandwidth without laying additional fiber infrastructure.

1000Base-DWDM Gigabit Ethernet Compatibility

The transceiver supports 1000Base-DWDM Gigabit Ethernet standards, enabling seamless integration into existing Layer 2 and Layer 3 network architectures. This compatibility ensures that enterprise and service provider environments can deploy the module without requiring extensive network redesign or protocol conversion. It is particularly valuable in backbone networks where consistent 1Gbps throughput is required over extended distances.

Signal Integrity and Data Transmission Quality

Advanced optical modulation techniques ensure that the transmitted signal retains integrity over distances up to 80 kilometers. The module is engineered to minimize chromatic dispersion and attenuation, which are common challenges in long-haul fiber deployments. This results in stable, low-latency data transmission suitable for mission-critical applications such as data center interconnects and telecom aggregation networks.

Physical and Mechanical Design of the SFP Module

Duplex LC Connector Architecture

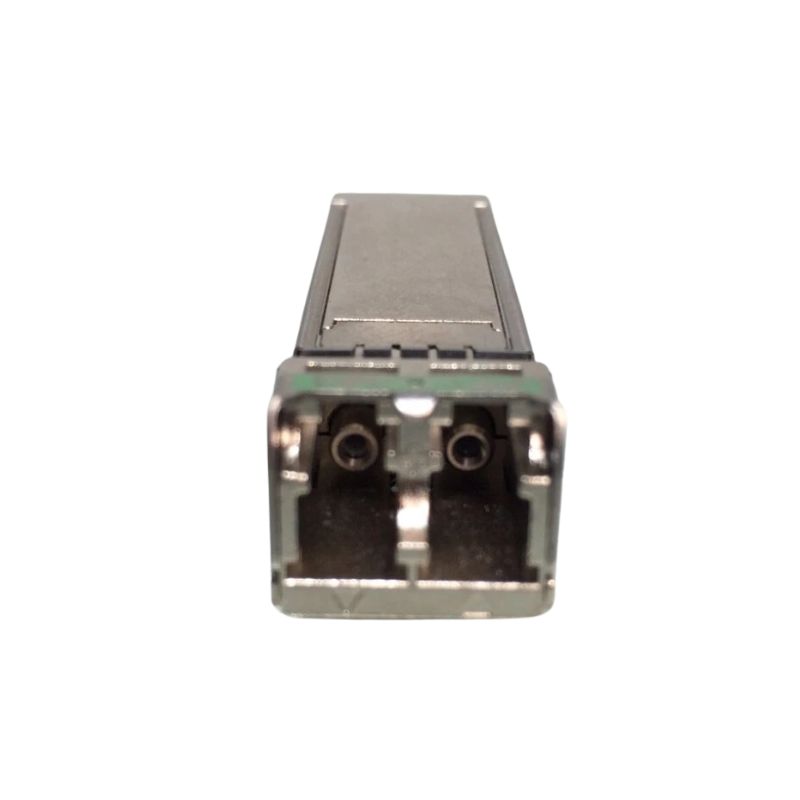

The Cisco DWDM-SFP-3977 utilizes a duplex LC connector interface, which is widely adopted in high-density optical networking due to its compact form factor and reliable insertion mechanism. The dual-fiber design supports separate transmit and receive paths, ensuring full-duplex communication with minimal crosstalk.

Connector Reliability in High-Density Environments

The LC interface is engineered for repeated insertion cycles without performance degradation. Its latch-based locking mechanism ensures secure physical connection, reducing the risk of accidental disconnection in high-vibration or high-density rack environments. This makes it ideal for data center switch fabrics and telecom aggregation nodes.

Hot-Swappable Small Form-Factor Pluggable Design

As a standard SFP module, the DWDM-SFP-3977 supports hot-swappable installation, allowing network administrators to deploy or replace modules without powering down networking equipment. This feature is essential in maintaining network uptime in enterprise and carrier-grade environments where service continuity is critical.

Power Efficiency

The module is designed with low power consumption optics, reducing thermal output and contributing to overall system efficiency. Efficient heat dissipation ensures stable operation within densely populated switch chassis where multiple optical modules operate simultaneously.

Transmission Distance and Network Reach

80km Long-Distance Optical Transmission Capability

The DWDM-SFP-3977 supports transmission distances up to 80 kilometers over single-mode fiber without the need for intermediate optical amplification or regeneration under ideal network conditions. This makes it suitable for metropolitan area networks and regional backbone links where extended reach is essential.

Attenuation Management and Link Budget Optimization

The module is designed to operate within defined optical power budgets, ensuring that signal strength remains within acceptable thresholds throughout the transmission path. Proper link budget planning allows operators to maximize distance while maintaining bit error rates within industry standards.

Integration with Optical Amplifiers and DWDM Systems

In extended network architectures, the module can be integrated with erbium-doped fiber amplifiers (EDFAs) and DWDM multiplexers to further extend transmission distance and increase channel capacity. This makes it a flexible component in scalable optical transport systems.

DWDM Network Integration and Scalability

Dense Wavelength Division Multiplexing Architecture

DWDM technology enables multiple optical signals to be transmitted simultaneously over a single fiber strand by assigning each signal a unique wavelength. The DWDM-SFP-3977 is designed to function as a single channel within this architecture, contributing to highly scalable optical transport networks.

Channel Isolation and Crosstalk Reduction

High channel isolation is achieved through precise laser calibration and optical filtering techniques. This ensures minimal interference between adjacent wavelengths, preserving signal clarity even in high-capacity DWDM systems.

Metro and Core Network Deployment Scenarios

The module is widely deployed in metropolitan backbone networks, where it supports aggregation of traffic from multiple access networks into centralized core systems. It is also used in core network infrastructures where high reliability and predictable latency are essential.

Enterprise WAN Connectivity Applications

Enterprise environments utilize the DWDM-SFP-3977 to establish long-distance connections between geographically separated data centers. This enables centralized computing architectures, disaster recovery systems, and distributed storage replication strategies.

Optical Engineering and Signal Processing

Laser Transmitter Technology

The module incorporates a precision laser diode optimized for DWDM channel spacing. This laser is designed to maintain narrow linewidth emission, ensuring accurate wavelength alignment within the ITU grid. Such precision is critical in avoiding spectral overlap in multi-channel systems.

Receiver Sensitivity and Signal Detection

The optical receiver component is engineered for high sensitivity, allowing it to accurately detect low-power signals after long-distance transmission. This enhances overall link reliability and reduces the need for intermediate signal amplification.

Dispersion Compensation Considerations

In long-haul fiber systems, chromatic dispersion can distort optical signals. The DWDM-SFP-3977 is optimized to operate within networks that incorporate dispersion compensation strategies, ensuring signal integrity across the full 80km range.

Industrial-Grade Reliability Standards

Built for continuous operation, the transceiver adheres to stringent reliability requirements expected in carrier-grade networks. This includes resistance to signal degradation, mechanical stress, and long-term operational wear.

Deployment in Modern Optical Transport Networks

Carrier-Grade Backbone Infrastructure Usage

Telecommunication providers deploy the Cisco DWDM-SFP-3977 in backbone infrastructure where high-capacity, long-distance optical links are required. Its DWDM capability ensures efficient utilization of fiber assets in densely populated network environments.

Integration with Optical Transport Platforms

The module integrates seamlessly with optical transport switches and DWDM multiplexing platforms, enabling scalable deployment across multi-layer network architectures. This supports both legacy and next-generation transport systems.

Data Center Interconnect (DCI) Applications

In modern cloud computing architectures, the module is frequently used for data center interconnect solutions, enabling high-speed replication and synchronization between geographically distributed facilities.

Low-Latency Interconnect Performance

Optimized for minimal transmission delay, the DWDM-SFP-3977 ensures that inter-data center communications remain fast and efficient, supporting real-time applications and distributed computing workloads.
