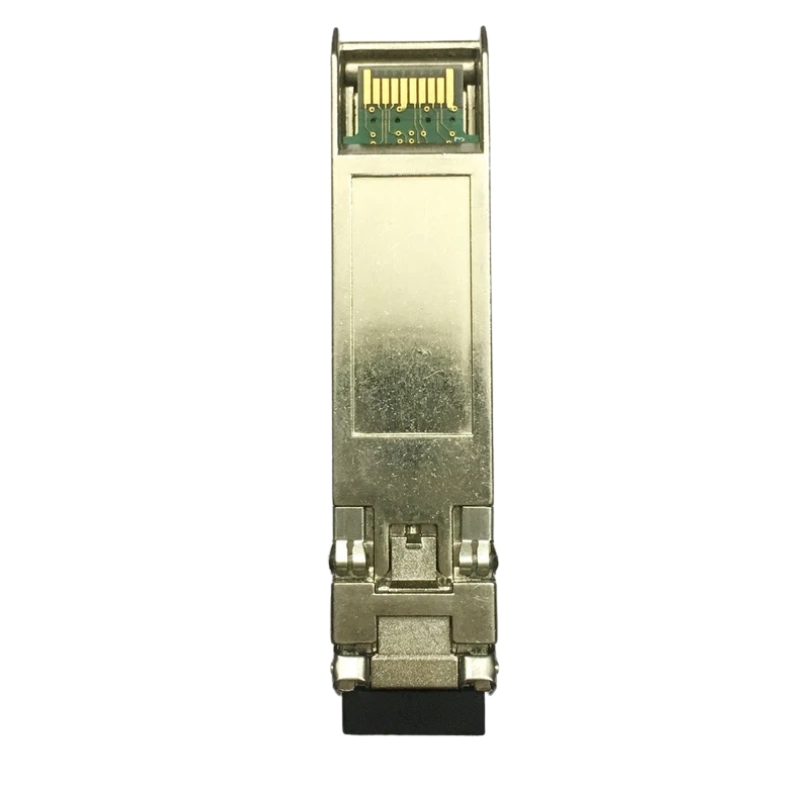

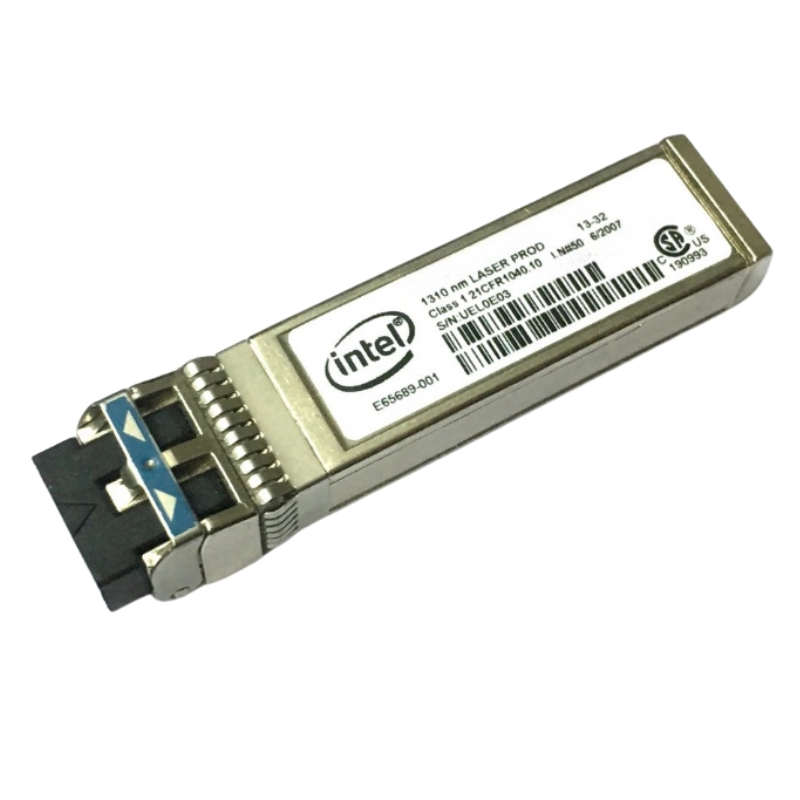

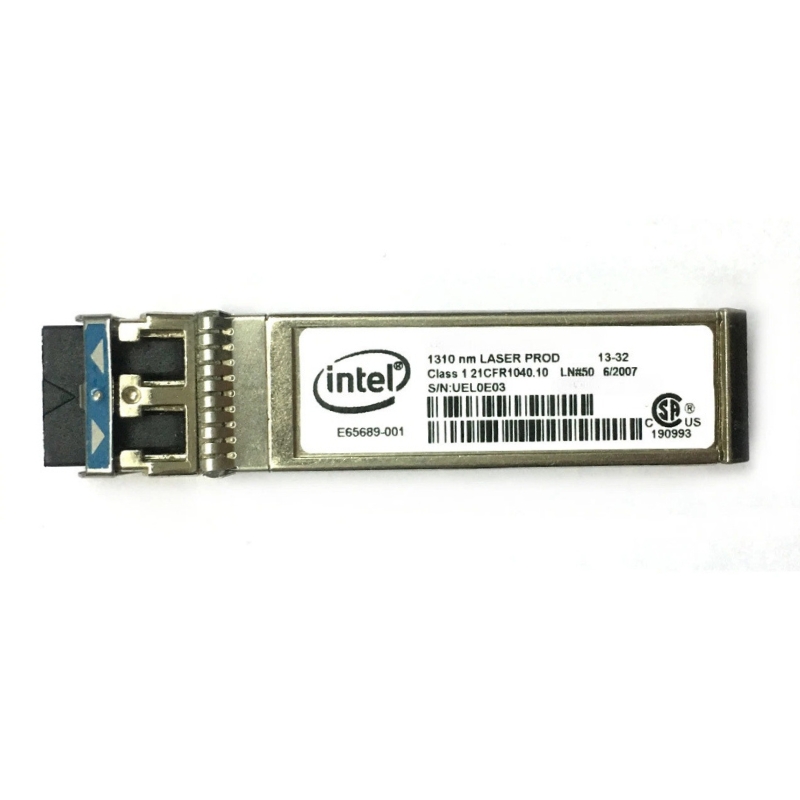

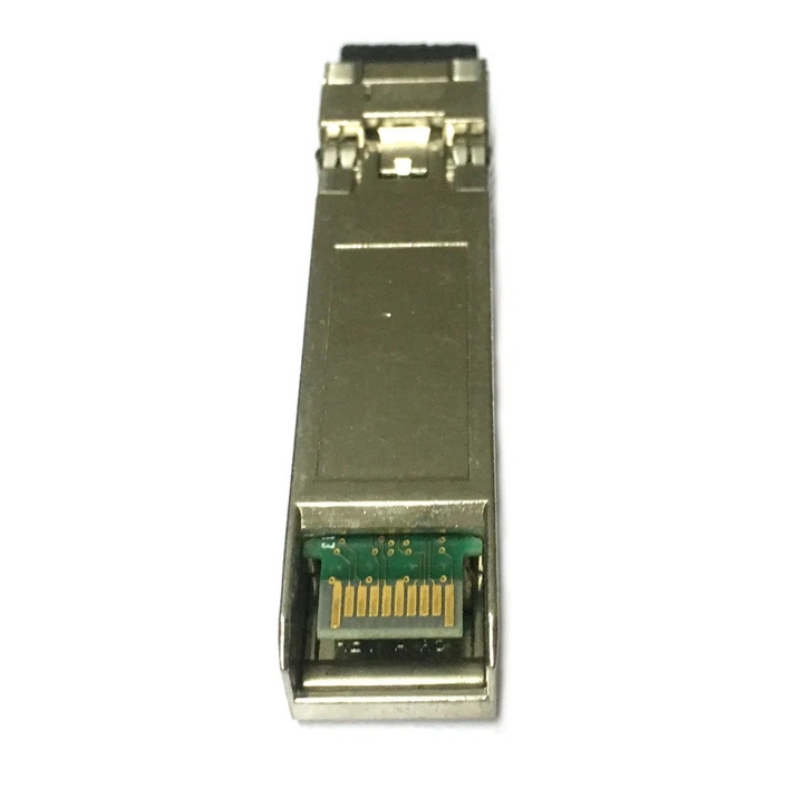

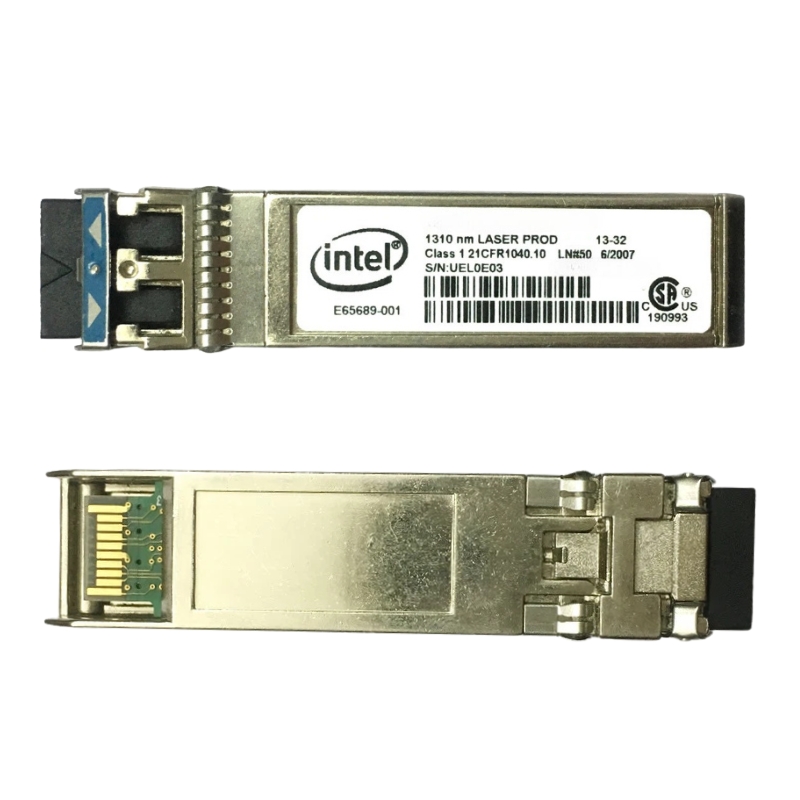

E10GSFPLR Intel SFP 10GBase LR 1000Base LX 1310nm Transceiver Module

Overview of Intel E10GSFPLR SFP 10GB Transceiver Module

The  E10GSFPLR SFP transceiver module represents a high-performance optical networking component engineered for enterprise-grade and data center environments that demand reliable long-distance connectivity. Designed to support both 10 Gigabit Ethernet (10GbE) via 10GBase-LR and Gigabit Ethernet via 1000Base-LX compatibility modes, this transceiver is built around 1310nm wavelength laser technology optimized for single-mode fiber transmission. Its engineering focus centers on achieving stable throughput, minimal latency, and high signal integrity across extended distances, making it a crucial element in modern network infrastructure deployments.

Role in Modern Data Center and Enterprise Networks

In high-density computing environments, optical transceivers such as the E10GSFPLR serve as the bridge between physical fiber infrastructure and networking hardware like switches, routers, and server NICs. This module is widely used in aggregation layers, core switching fabrics, and inter-rack or inter-building connectivity scenarios. Its dual compatibility with both 10G and 1G standards allows organizations to maintain operational flexibility while upgrading network segments incrementally without requiring complete infrastructure replacement.

Technical Architecture and Design Principles

1310nm Wavelength Optimization

The 1310nm wavelength used in this transceiver is a standard for long-range optical communication over single-mode fiber. This wavelength provides a balance between attenuation and dispersion, ensuring that signals can travel several kilometers without requiring regeneration. In enterprise deployments, this enables reliable communication links between geographically separated network nodes, such as campus buildings or distributed data centers.

Small Form-Factor Pluggable (SFP) Design

The SFP form factor allows the Intel E10GSFPLR module to be hot-swappable, meaning it can be inserted or removed without shutting down the host system. This design significantly reduces maintenance downtime and supports scalable network expansion. The compact footprint also allows for high port density in networking equipment, which is critical in environments where rack space efficiency is a priority.

Dual-Rate Operation Capability

One of the defining characteristics of this module is its dual-rate operation, supporting both 10Gbps and 1Gbps transmission speeds. This backward compatibility ensures that legacy network systems can coexist with newer infrastructure, providing a cost-effective upgrade path. Network administrators can deploy the same transceiver across different network segments, simplifying inventory management and reducing operational complexity.

Performance Characteristics and Operational Efficiency

Low Latency Optical Transmission

The E10GSFPLR module is optimized for minimal transmission delay, making it suitable for latency-sensitive applications such as financial trading systems, cloud computing clusters, and real-time data analytics platforms. Optical signaling inherently reduces electromagnetic interference, ensuring clean signal propagation even in electrically noisy environments.

Extended Reach Capability

When paired with single-mode fiber, this transceiver supports long-distance communication typically up to 10 kilometers depending on system configuration and fiber quality. This extended reach enables organizations to design distributed network topologies without relying on intermediate signal repeaters, thereby reducing infrastructure complexity and operational cost.

Power Efficiency and Thermal Stability

Energy efficiency is a critical design aspect of modern networking hardware. The Intel E10GSFPLR module operates with low power consumption while maintaining stable thermal performance. Efficient heat dissipation ensures that the module remains within optimal operating conditions even in densely populated switch environments where multiple transceivers operate simultaneously.

Compatibility and Integration Scenarios

Enterprise Switch and Router Integration

This transceiver is widely compatible with a variety of enterprise-grade switches and routers that support SFP-based optical interfaces. Its standardized interface ensures seamless integration into multi-vendor environments, allowing IT departments to deploy it across heterogeneous network infrastructures without compatibility concerns.

Data Center Spine-Leaf Architecture

In modern spine-leaf network architectures, high-speed interconnects are essential for maintaining low-latency communication between leaf switches and spine layers. The E10GSFPLR module is commonly deployed in these environments to provide reliable uplinks and cross-connectivity between distributed switching nodes.

Legacy System Migration Support

Organizations transitioning from 1GbE to 10GbE infrastructure benefit significantly from the dual-speed capability of this module. It allows gradual migration without disrupting existing services, ensuring continuity while upgrading backbone performance. This makes it particularly valuable in environments with strict uptime requirements.

Fiber Optic Infrastructure Considerations

Single-Mode Fiber Requirements

The module is designed specifically for single-mode fiber (SMF) applications. SMF provides a narrow core that allows light to travel in a single propagation mode, reducing modal dispersion and enabling long-distance transmission. Proper fiber selection is essential to achieving the rated performance of the transceiver.

Connector Standards and Physical Interface

Typically utilizing LC duplex connectors, the E10GSFPLR ensures a secure and standardized optical interface. The LC connector design provides high precision alignment and low insertion loss, which is essential for maintaining signal integrity in high-speed networks.

Link Budget and Signal Integrity

A key factor in optical network design is the link budget, which accounts for total signal loss across fiber length, connectors, and splices. The E10GSFPLR is engineered with sufficient optical power output and receiver sensitivity to maintain stable communication across extended distances, provided that the link budget is properly calculated and maintained.

Error Reduction and Signal Accuracy

High-quality optical transceivers play a crucial role in minimizing packet loss and transmission errors. By maintaining tight signal tolerances, this module supports reliable data delivery even under heavy network loads, which is essential for mission-critical applications such as virtualization clusters and storage area networks.

Deployment Scenarios in Enterprise Environments

Cloud Infrastructure Connectivity

Cloud computing environments rely heavily on high-bandwidth interconnects between compute nodes, storage systems, and networking fabric layers. The E10GSFPLR module provides the necessary bandwidth and reliability to support these environments, ensuring seamless data flow between distributed resources.

High-Performance Computing Clusters

In HPC environments, where large datasets are processed across multiple nodes, low-latency and high-throughput communication is essential. Optical transceivers such as this one help maintain synchronization and data integrity across compute clusters, improving overall processing efficiency.

Telecommunications and Backbone Networks

Telecommunications providers often deploy long-range optical modules to connect central offices, switching centers, and aggregation points. The 1310nm wavelength and single-mode compatibility of this transceiver make it suitable for backbone infrastructure where reliability and distance are key requirements.

Proper Fiber Handling Techniques

Careful handling of fiber connectors is essential to prevent contamination and signal degradation. Dust caps, proper cleaning tools, and controlled installation environments help maintain optimal performance of the transceiver module.

Scalability and Future Network Evolution

Support for Network Expansion

As organizations grow, network infrastructure must scale accordingly. The flexibility of this transceiver allows it to be used across multiple generations of network hardware, reducing the need for frequent hardware replacement.

Alignment with Emerging Network Standards

While newer Ethernet standards continue to evolve, the E10GSFPLR remains relevant due to its dual compatibility and proven optical design. It continues to serve as a reliable solution for hybrid environments combining legacy and modern systems.
