Product Overview
FORTINET FG-80F-POE FortiGate - Network Security/Firewall Appliance
The FORTINET FG-80F-POE is an advanced network security appliance designed to provide robust firewall protection and threat management for your digital infrastructure.
Key Features
- Device Type: Security Appliance
- Bundled Services: 3 Years of 24/7 FortiCare and FortiGuard Unified Threat Management (UTM) Protection
Processor and Memory
This appliance is powered by cutting-edge hardware:
- Installed Processor: 1 x FORTINET FortiASIC SOC4
Networking Specifications
The FG-80F-POE offers comprehensive networking features:
- Form Factor: Desktop
- Connectivity Type: Wired
- Data Link Protocols:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Network/Transport Protocol: IPSec
Performance Capabilities
Exceptional performance metrics include:
- VPN Throughput (512-bit IPSec): 6.5 Gbps
- Next-Generation Firewall (NGFW) Throughput: 1 Gbps
- SSL Inspection Throughput: 715 Mbps
- Intrusion Prevention System (IPS) Throughput: 1.4 Gbps
- CAPWAP Throughput: 9 Gbps
- Threat Protection Throughput: 900 Mbps
- Firewall Throughput:
- 10 Gbps (1518-byte UDP)
- 10 Gbps (512-byte UDP)
- 7 Gbps (64-byte UDP)
- 10.5 Mpps
- Application Control (AVC) Throughput: 1.8 Gbps
- SSL VPN Throughput: 950 Mbps
Capacity Details
Designed for high capacity and performance, this device features:
- Latency: 4 ms
- Concurrent Sessions: 1,500,000
- New Sessions: 45,000
- Firewall Policies: 5,000
- Gateway to Gateway IPSec VPN Tunnels: 200
- Virtual Domains: 10
- Number of FortiSwitches: 16
- Number of FortiToken Devices: 500
- Client to Gateway IPSec VPN Tunnels: 2,500
- Number of FortiAP Devices: 32
- Concurrent SSL VPN Users: 200
- SSL Inspection Concurrent Sessions: 100,000
- Number of FortiAP Devices (Tunnel Mode): 16
- SSL Inspection Concurrent Sessions: 700
Security Features
The FG-80F-POE includes vital security functionalities:
- Comprehensive Firewall Protection
- Antivirus Scanning
- Intrusion Prevention System (IPS)
- IPSec Virtual Private Network (VPN) Capabilities
- Fanless Design for Quiet Operation
- Web Threat Protection
- Encryption Algorithms: SSL, TLS 1.3
Expansion and Connectivity Options

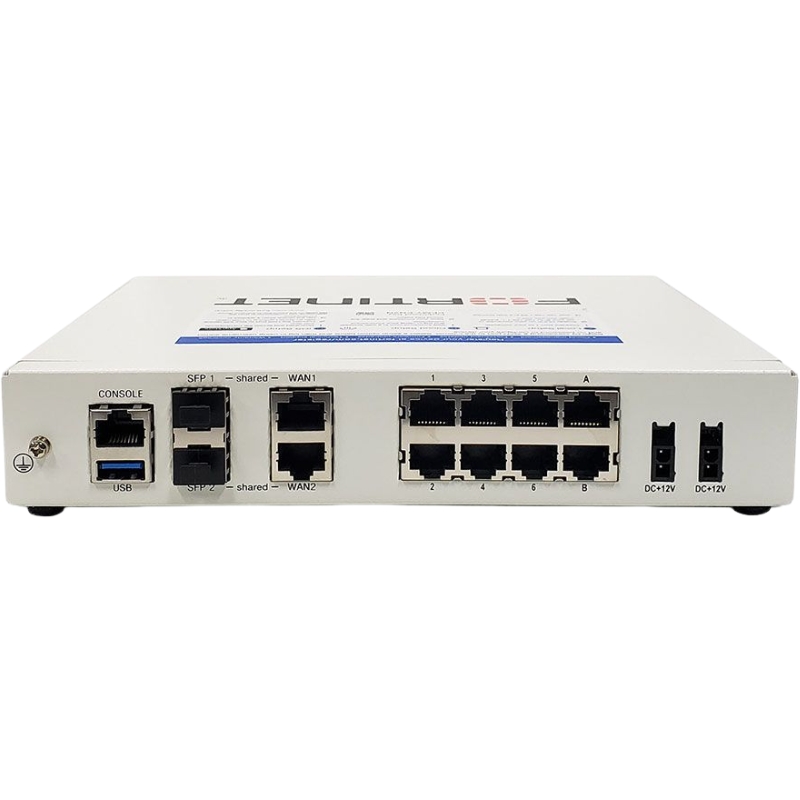

Interface Specifications
The FG-80F-POE provides various connectivity interfaces:
- 8 x 1000Base-T RJ-45 Ports
- 2 x Ethernet 1000 RJ-45/SFP (Mini-GBIC)
- 1 x USB 3.0 Type A Port
- 1 x Console RJ-45 Port
Power Specifications
Power Device Details
Efficient power management is ensured with:
- Power Device: External Power Adapter
- Installed Quantity: 2
- Operational Power Consumption: 15.8 Watts
POE Feature
Introduction
The Fortinet FG-80F Security Firewall Appliance is a powerful and reliable network security solution that offers a wide range of features to protect your network from cyber threats. One of the standout features of this appliance is its Power over Ethernet (POE) capability, which provides several benefits in terms of convenience, flexibility, and cost-effectiveness.
Convenience and Flexibility
What is Power over Ethernet?
Power over Ethernet (POE) is a technology that allows both power and data to be transmitted over a single Ethernet cable. This eliminates the need for separate power cables, making it easier to install and manage devices in your network infrastructure.
POE Ports
The Fortinet FG-80F Security Firewall Appliance includes multiple POE ports, which can power compatible devices such as IP phones, wireless access points, and IP cameras directly from the appliance. This eliminates the need for additional power sources or adapters, simplifying the deployment and management of these devices.
Device Placement Flexibility
With the POE feature, you have greater flexibility in terms of device placement within your network. Since POE eliminates the need for power outlets near each device, you can place them in locations that are more convenient for your network design. This flexibility enables you to optimize your network layout without being restricted by power source availability.
Cost-Effectiveness
Reduced Infrastructure Costs
By utilizing the POE feature of the Fortinet FG-80F Security Firewall Appliance, you can significantly reduce infrastructure costs. With traditional setups, deploying devices like IP phones or wireless access points would require additional electrical outlets and wiring. However, with POE, you can power these devices directly from the appliance, eliminating the need for extra power infrastructure and reducing overall installation costs.
Lower Maintenance Costs
Maintaining separate power sources for devices in your network can be time-consuming and costly. With POE, you only need to manage a single power source, which simplifies maintenance and reduces the time and effort spent on troubleshooting power-related issues. This not only saves your IT team valuable time but also helps reduce maintenance costs in the long run.
Scalability and Future-Proofing
The POE feature of the Fortinet FG-80F Security Firewall Appliance supports the latest POE standard, ensuring compatibility with a wide range of devices. This future-proofs your network infrastructure, allowing you to easily add or upgrade devices as your business needs evolve. With POE, you can scale your network without worrying about power constraints, providing a cost-effective solution for long-term growth.
Conclusion
In conclusion, the Power over Ethernet (POE) feature of the Fortinet FG-80F Security Firewall Appliance offers numerous benefits to users. It provides convenience and flexibility by eliminating the need for separate power cables and allowing for flexible device placement within your network. Additionally, it offers cost-effectiveness by reducing infrastructure and maintenance costs while ensuring scalability and future-proofing. By choosing an appliance with POE capability like the Fortinet FG-80F Security Firewall Appliance, you can enhance the efficiency, reliability, and security of your network infrastructure.
