FG-80F Fortinet Security Appliance 10 Ports 80F 8x GE RJ45 Ports 2 x RJ45 SFP

Overview of Fortinet FG-80F Network Security Appliance

The Fortinet FG-80F is a high-performance, compact network security appliance designed to deliver advanced unified threat protection, secure connectivity, and enterprise-grade firewall capabilities for modern business environments. Built for efficiency and reliability, it integrates cutting-edge FortiASIC SOC4 technology to ensure optimized security processing, low latency, and consistent network performance across demanding workloads. Featuring 10 ports with a combination of 8 x Gigabit Ethernet RJ45 interfaces and 2 x RJ45/SFP combo ports, this device provides flexible wired connectivity for scalable network architectures, making it ideal for branch offices, distributed enterprises, and small to mid-sized organizations requiring robust cybersecurity infrastructure.

General Information

• Manufacturer: FORTINET
• Model Number: FG-80F
• Product Category: Network Security Appliance

Technical Specifications

Processor, Memory & Storage

• Processor: 1 x Fortinet FortiASIC SoC4 integrated processor

Networking Capabilities

• Form Factor: Desktop
• Connectivity: Wired Ethernet architecture
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Transport Protocol: IPsec VPN tunneling

Security & Performance Metrics

• VPN Throughput (512-bit IPsec): 6.5 Gbps
• NGFW Throughput: 1 Gbps
• SSL Inspection Throughput: 715 Mbps
• IPS Throughput: 1.4 Gbps
• Threat Protection Throughput: 900 Mbps
• Firewall Throughput: up to 10.5 Mpps
• Application Control Throughput: 1.8 Gbps
• SSL VPN Throughput: 950 Mbps
• CAPWAP Throughput: 9 Gbps

Capacity & Scalability

• Concurrent Sessions: 1,500,000
• New Sessions: 45,000 per second
• Firewall Policies: up to 5,000
• IPsec VPN Tunnels (Gateway-to-Gateway): 200
• Client-to-Gateway IPsec VPN Users: up to 2,500
• Virtual Domains (VDOMs): 10
• FortiSwitch Support: up to 16 units
• FortiToken Support: up to 500 users
• FortiAP Support: up to 32 devices
• SSL Inspection Concurrent Sessions: up to 100,000

Core Security Features

• Advanced Firewall Protection
• Integrated Antivirus Scanning
• Intrusion Prevention System (IPS)
• IPsec & SSL VPN Security
• Web Filtering and Threat Protection
• Fanless Silent Operation Design

Encryption Standards

• SSL Encryption
• TLS 1.3 Secure Communication Protocol

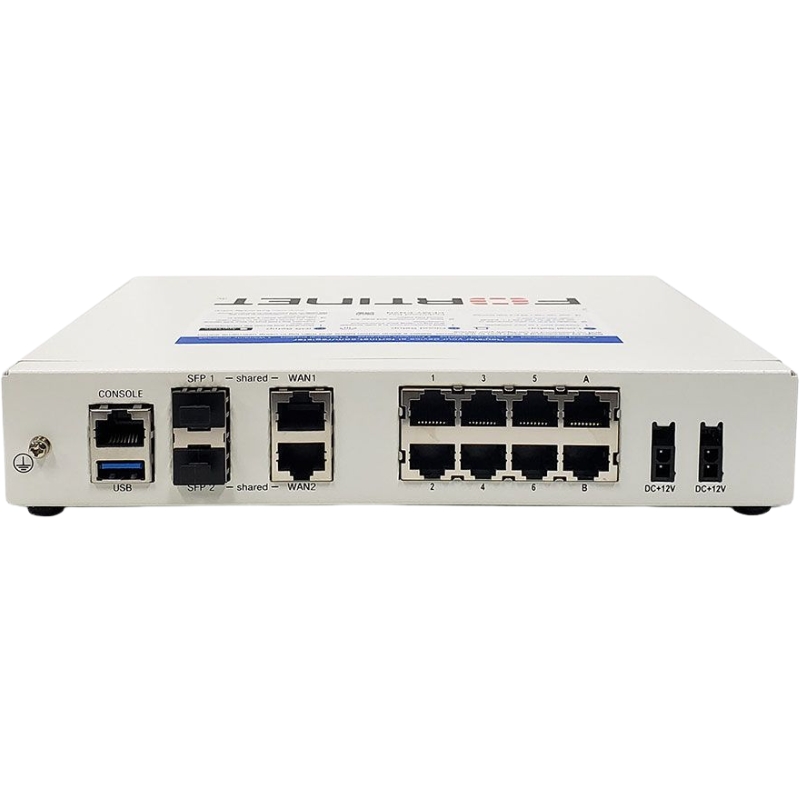

Interfaces & Connectivity

• 8 x 10/100/1000 Base-T RJ-45 Ethernet Ports
• 2 x RJ-45/SFP Combo Gigabit Ethernet Ports
• 1 x USB 3.0 Type-A Port
• 1 x RJ-45 Console Management Port

Power Information

• Power Supply: External Power Adapter
• Power Units: 2 Included
• Operational Power Consumption: Approximately 15.8 Watts

Compatibility

• Fully compatible with Fortinet Security Fabric ecosystem including FortiSwitch and FortiAP devices
• Supports integration with FortiAnalyzer for centralized logging and analytics
• Works with FortiManager for unified device configuration and policy management
• Compatible with IPsec and SSL VPN clients for remote secure access
• Supports SD-WAN deployments for optimized traffic routing and performance balancing
• Interoperable with multi-tenant virtual domain (VDOM) network environments
• Suitable for enterprise branch networking, SMB infrastructure, and distributed office security systems

Fortinet FG-80F 10 Ports Security Appliance

The Fortinet FG-80F Security Appliance 10 Ports 80F 8x GE RJ45 Ports 2 x RJ45 SFP represents a high-performance network security solution designed for modern enterprise branch environments, distributed organizations, and digitally transformed business infrastructures. Built on advanced hardware acceleration and integrated security processing capabilities, this appliance is part of a next-generation firewall family engineered to handle increasing demands for encrypted traffic inspection, application control, and secure connectivity across hybrid networks.

In contemporary networking environments, organizations require security platforms capable of handling complex traffic patterns, cloud connectivity, remote workforce integration, and continuously evolving cyber threats. The Fortinet FG-80F category addresses these requirements by combining integrated security services with optimized hardware architecture. It is widely deployed in enterprise branch offices, mid-sized organizations, retail networks, educational institutions, healthcare facilities, and service provider edge environments where reliability and performance are critical.

Advanced Security Processing Architecture

The Fortinet FG-80F Security Appliance is engineered with specialized processing components designed to accelerate security functions such as firewall inspection, intrusion prevention, application filtering, and secure tunneling. This architecture reduces dependency on general-purpose CPU resources, allowing the device to maintain high throughput even under heavy inspection workloads.

The integration of security and networking functions within a unified platform enables efficient traffic handling without compromising protection depth. This makes the appliance suitable for environments where encrypted traffic volume is high and performance consistency is essential for business operations.

The security processing architecture supports continuous inspection of network traffic flows, ensuring that threats are identified and mitigated in real time while maintaining stable application performance across connected users and services.

Enterprise Branch Network Optimization

Branch networks are increasingly becoming critical operational hubs for modern enterprises. The FG-80F security appliance is designed to support distributed environments where multiple branch locations require centralized policy enforcement, secure connectivity, and reliable access to cloud and data center resources.

Organizations with geographically dispersed operations benefit from consistent security policies applied across all branch environments. The appliance ensures uniform protection regardless of location, reducing complexity and improving administrative control.

Branch optimization is particularly important in industries such as retail, logistics, financial services, and healthcare where multiple remote locations must maintain secure communication with central systems and cloud-based applications.

Integrated Firewall and Threat Protection Capabilities

The Fortinet FG-80F platform integrates next-generation firewall capabilities that extend beyond traditional packet filtering. It provides deep inspection of network traffic, enabling detection of sophisticated threats that attempt to bypass conventional security mechanisms.

Threat protection mechanisms include advanced intrusion detection, application-layer inspection, and behavior-based analysis designed to identify malicious activity patterns. These capabilities help protect against ransomware, malware, phishing attempts, unauthorized access, and zero-day exploits.

The appliance continuously monitors traffic flows and applies security policies dynamically, ensuring that both known and emerging threats are addressed effectively without disrupting legitimate business operations.

Secure Connectivity and VPN Integration

Secure connectivity is a fundamental requirement for modern enterprise networking environments. The FG-80F supports encrypted communication channels that allow organizations to securely connect branch offices, remote users, cloud environments, and partner networks.

Virtual private network capabilities enable secure data transmission across public networks while maintaining confidentiality and integrity. This ensures that sensitive business information remains protected during transit between distributed network endpoints.

The appliance supports scalable VPN deployments that can accommodate growing remote workforces and expanding branch infrastructures. This makes it suitable for organizations transitioning toward hybrid work models and cloud-centric architectures.

High-Speed Network Interfaces and Port Architecture

The Fortinet FG-80F Security Appliance is equipped with multiple network interfaces including eight Gigabit Ethernet RJ45 ports and two additional RJ45 SFP-compatible interfaces. This flexible port configuration allows seamless integration into diverse network topologies.

The availability of multiple high-speed interfaces supports segmentation of network traffic, enabling administrators to isolate different types of communication such as user traffic, management traffic, and secure tunnels. This improves performance efficiency and enhances security segmentation across the network infrastructure.

The port architecture is designed to support modern enterprise networking requirements, including high-bandwidth applications, cloud connectivity, and secure inter-device communication.

SD-WAN Enablement for Distributed Enterprises

Software-defined wide area networking has become a critical component of modern enterprise connectivity strategies. The FG-80F appliance supports SD-WAN capabilities that allow organizations to optimize traffic routing across multiple WAN links based on performance, availability, and policy requirements.

SD-WAN integration enables dynamic traffic steering, ensuring that business-critical applications receive priority routing while less sensitive traffic is efficiently managed. This improves user experience and reduces latency for essential applications such as voice communication, video conferencing, and cloud services.

Organizations benefit from improved WAN efficiency, reduced operational costs, and enhanced application performance when deploying SD-WAN-enabled security appliances within their network infrastructure.

Cloud Integration and Hybrid Infrastructure

Modern enterprises increasingly rely on hybrid infrastructure models that combine on-premises systems with public and private cloud services. The FG-80F Security Appliance provides secure connectivity to cloud environments, enabling seamless integration between distributed resources.

Cloud integration capabilities support secure access to software-as-a-service platforms, infrastructure-as-a-service deployments, and enterprise cloud applications. This ensures consistent security enforcement across all environments regardless of deployment location.

The appliance helps organizations maintain visibility and control over cloud-bound traffic, ensuring compliance with internal security policies and external regulatory requirements.

Threat Intelligence and Real-Time Security Updates

Effective cybersecurity requires continuous adaptation to evolving threat landscapes. The FG-80F leverages real-time threat intelligence updates to maintain awareness of emerging vulnerabilities and attack patterns.

This intelligence-driven approach allows the appliance to update security policies dynamically, ensuring protection against newly discovered threats without requiring manual intervention.

Real-time updates enhance the overall security posture of the organization by ensuring that defenses remain aligned with the latest global threat intelligence data.

Zero Trust Network Access

Zero trust security frameworks are increasingly adopted by organizations seeking to minimize risk and improve access control mechanisms. The FG-80F supports zero trust principles by enforcing strict identity verification and continuous monitoring of network activity.

Under a zero trust model, no user or device is automatically trusted, regardless of location or network origin. The appliance enforces granular access policies that determine who can access specific resources based on identity, context, and behavior.

This approach significantly reduces the attack surface and limits the potential impact of compromised credentials or unauthorized access attempts.

Intrusion Prevention and Advanced Threat Detection

The intrusion prevention system integrated within the FG-80F provides deep packet inspection capabilities designed to identify and block malicious traffic patterns. This system analyzes network behavior in real time and applies predefined security rules to prevent unauthorized activities.

Advanced threat detection mechanisms include signature-based detection, anomaly detection, and behavioral analysis. These methods work together to identify both known and unknown threats targeting network infrastructure.

This layered approach to threat prevention enhances overall network resilience and reduces exposure to cyber risks.

Application Control and Network Visibility

Application control features within the FG-80F allow administrators to monitor and regulate application usage across the network. This ensures that business-critical applications receive appropriate bandwidth and priority while non-essential or risky applications are restricted.

Network visibility tools provide insights into traffic patterns, user behavior, and application performance. This information helps administrators make informed decisions regarding policy adjustments and network optimization strategies.

Improved visibility contributes to better security enforcement and more efficient resource allocation across enterprise networks.

Centralized Management and Policy Enforcement

The Fortinet FG-80F integrates with centralized management systems that allow administrators to configure, monitor, and enforce security policies across multiple devices and locations. Centralized control simplifies network administration and ensures consistency across distributed environments.

Policy enforcement mechanisms ensure that security rules are applied uniformly, reducing the risk of configuration inconsistencies and security gaps. This is especially important in large-scale enterprise deployments with multiple branch offices and remote locations.

Centralized management improves operational efficiency and reduces administrative overhead associated with maintaining complex network infrastructures.

Scalability and Future Network Expansion

The FG-80F Security Appliance is designed with scalability in mind, enabling organizations to expand their network infrastructure without replacing existing security hardware. This allows businesses to adapt to increasing traffic demands and evolving operational requirements.

Scalability is achieved through flexible deployment options, modular configuration capabilities, and support for evolving network architectures. This ensures long-term value and adaptability in dynamic business environments.

Organizations benefit from reduced infrastructure replacement costs and improved long-term planning capabilities when deploying scalable security appliances within their network ecosystems.

High Availability and Network Resilience

Network resilience is a critical requirement for enterprise environments that depend on continuous connectivity. The FG-80F supports high availability configurations that ensure uninterrupted security operations even in the event of hardware or network failures.

Redundancy mechanisms help maintain service continuity and minimize downtime, ensuring that business operations remain unaffected by infrastructure disruptions. This is essential for organizations that require continuous access to critical applications and services.

High availability design principles contribute to improved reliability and operational stability across enterprise network environments.

Security Compliance and Regulatory Alignment

Organizations operating in regulated industries must comply with strict security and data protection standards. The FG-80F supports compliance requirements by providing advanced logging, reporting, and monitoring capabilities.

These features help organizations demonstrate adherence to regulatory frameworks and internal security policies. Continuous monitoring ensures that security controls remain effective and aligned with compliance obligations.

Regulatory alignment enhances organizational trust and reduces the risk of compliance violations in sensitive operational environments.
