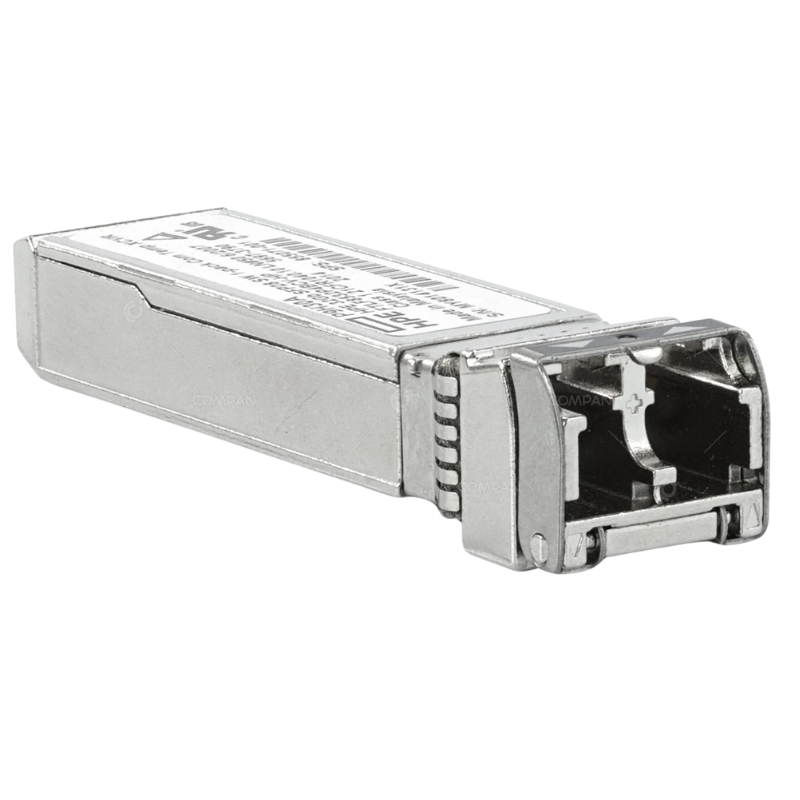

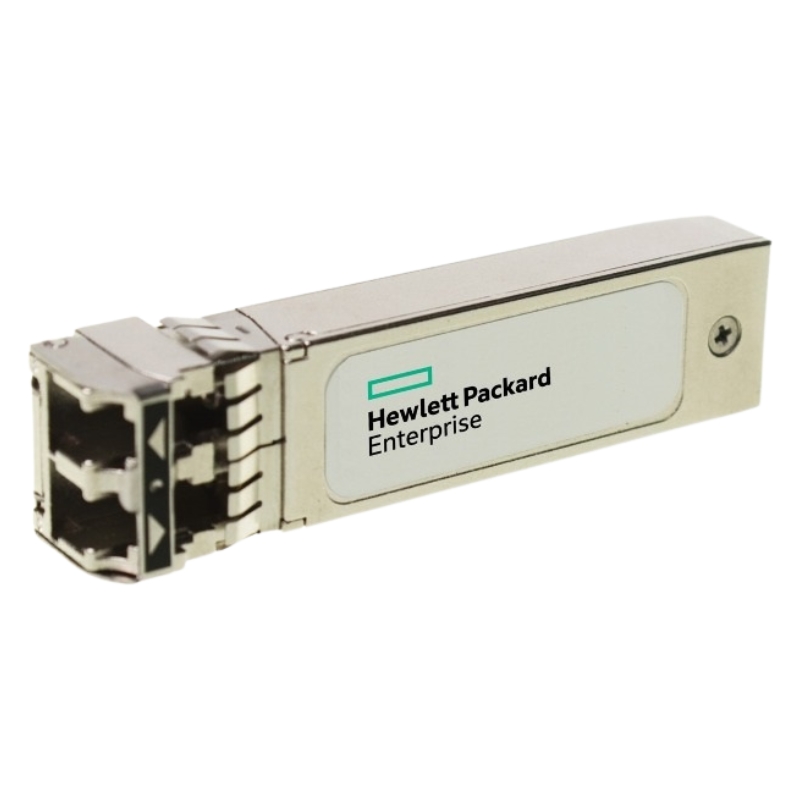

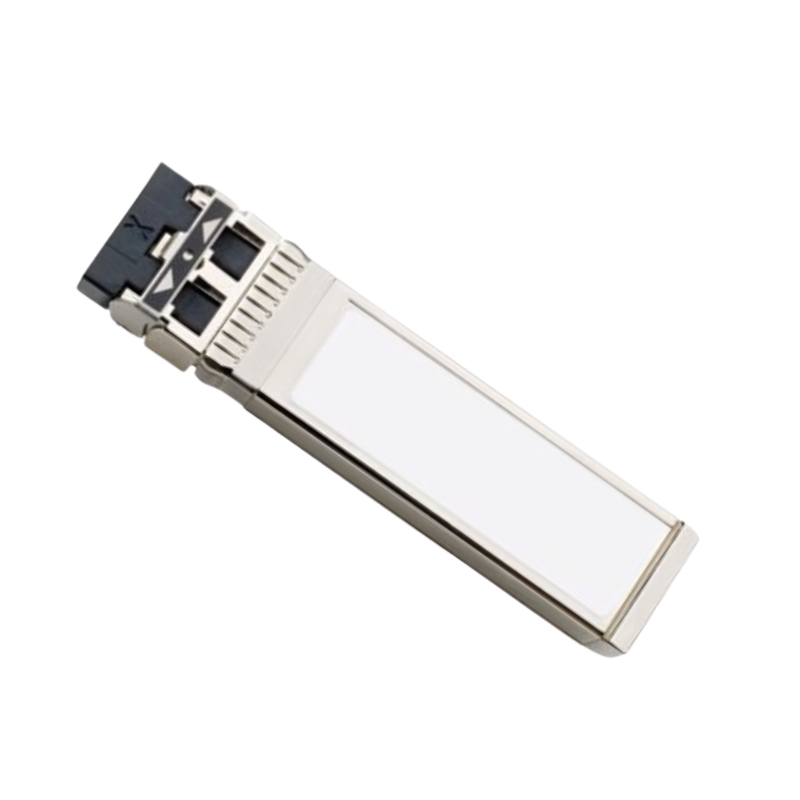

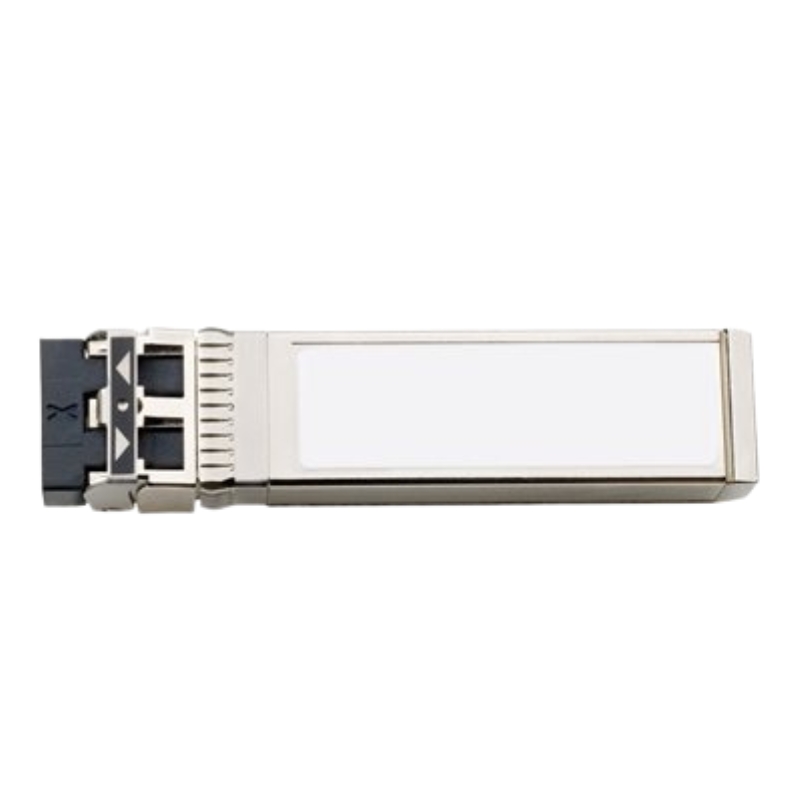

855071-001 HPE 32G SFP+ Optical Transceiver

Overview of HPE 32G Fiber Channel SFP+ Optical Transceiver

The HPE 855071-001 32G Fiber Channel (32GFC) short-wavelength SFP+ optical transceiver is engineered to deliver exceptional data transmission capabilities in modern storage networking environments. Designed to meet the increasing demand for high-speed connectivity, this advanced optical module ensures reliable, low-latency communication across enterprise infrastructures. With its compact, hot-swappable design and cutting-edge optical technology, it seamlessly integrates into Fiber Channel switches, host bus adapters, and storage arrays.

General Information

• Manufacturer: HPE
• Part Number: 855071-001
• Product Type: Transceiver Module

Technical Specifications

• Up To 28.05 Gb/s Bi-directional Data Links
• Hot-pluggable SFP+ Footprint
• 850nm Oxide Vcsel Laser Transmitter
• Duplex Lc Connector
• Rohs Compliant
• Metal Enclosure, For Lower Emi
• Single 3.3v Power Supply
• Supports quick upgrades and scalability

850nm VCSEL Laser Transmitter

• Stable optical output
• Low power consumption
• High modulation speeds
• Improved signal integrity

Supported Transmission Distances

• Up to 100 meters over OM4 (50/125 µm MMF)
• Up to 70 meters over OM3 (50/125 µm MMF)
• Up to 20 meters over OM2 (50 µm MMF)

The 32G HPE 855071-001 SFP+ Optical Transceiver

The HPE 855071-001 32 Gigabit Duplex LC Connector 32G Fiber Channel Short-Wavelength SFP+ Optical Transceiver Module represents a high-performance networking component engineered for enterprise-grade storage area networks. Designed to support ultra-fast data transmission, this category of optical transceivers plays a critical role in modern data center environments where speed, reliability, and scalability are essential. With the exponential growth of data-intensive applications, including virtualization, cloud computing, and big data analytics, 32G Fiber Channel technology delivers the bandwidth necessary to sustain demanding workloads without bottlenecks.

Short-Wavelength Optical Design

The short-wavelength design of this transceiver module leverages vertical-cavity surface-emitting laser technology to transmit data over multimode fiber cables. This architecture provides a cost-effective solution for short-distance communication while maintaining high signal fidelity and low latency. The wavelength typically operates around 850nm, ensuring compatibility with standard OM3 and OM4 fiber cabling infrastructures widely deployed in enterprise environments.

High-Speed 32G Fiber Channel

Supporting the 32 Gigabit Fiber Channel protocol, this transceiver category is optimized for high-throughput data transfers required in storage networks. The 32GFC standard offers significant improvements over previous generations, including enhanced data encoding efficiency, reduced overhead, and improved error correction mechanisms. These advancements enable consistent performance even under heavy network loads, making the module ideal for mission-critical applications.

Duplex LC Connector Interface

The duplex LC connector configuration facilitates simultaneous transmission and reception of data through separate optical fibers. This design enhances communication efficiency and reduces the risk of signal interference. The compact size of LC connectors also contributes to higher port density within network switches and storage devices, enabling more connections within limited physical space.

Performance Optimization in Enterprise Storage Networks

In high-performance computing environments, latency can significantly impact application responsiveness and overall system efficiency. The HPE 855071-001 transceiver module is engineered to minimize latency through optimized signal processing and high-speed optical transmission. This ensures rapid data delivery between servers and storage arrays, which is crucial for real-time analytics and transactional workloads.

Enhanced Signal Integrity

Maintaining signal integrity over optical connections is essential for preventing data loss and transmission errors. This category of transceivers incorporates advanced modulation techniques and error detection algorithms to ensure accurate data delivery. The use of high-quality optical components further enhances reliability, even in environments with electromagnetic interference or temperature fluctuations.

Seamless Integration with Fiber Channel Switches

The HPE 855071-001 transceiver module is designed for seamless compatibility with a wide range of Fiber Channel switches and storage devices. Its standardized SFP+ form factor ensures interoperability across various hardware platforms, simplifying deployment and reducing integration complexity. This compatibility extends to blade servers, rack-mounted systems, and modular storage arrays.

Support for Multimode Fiber Cabling

Optimized for use with multimode fiber cables, this transceiver supports OM3 and OM4 standards, providing flexibility in network design. Multimode fiber offers a balance between performance and cost, making it a preferred choice for short-distance connections within data centers. The ability to leverage existing cabling infrastructure further enhances cost efficiency.

Hot-Swappable Design

The hot-swappable capability of this SFP+ module allows it to be inserted or removed without powering down the host device. This feature is particularly valuable in enterprise environments where uptime is critical. It enables quick maintenance and upgrades, minimizing service interruptions and ensuring continuous network operation.

Optimized Power Consumption

Energy efficiency is a critical factor in large-scale data centers, where power consumption directly impacts operational costs. The HPE 855071-001 transceiver module is engineered to deliver high performance while maintaining low power usage. Advanced circuitry and efficient optical components contribute to reduced energy consumption without compromising speed or reliability.

High-Speed Bi-Directional Communication

The transceiver supports bi-directional data links with speeds of up to 28.05 Gb/s, ensuring rapid and efficient data exchange between network devices. This capability is crucial for handling large data workloads, virtualization environments, and cloud-based storage systems.

Storage Area Networks

One of the primary applications of 32G Fiber Channel transceivers is within storage area networks. These networks require high-speed, low-latency communication between servers and storage systems. The HPE 855071-001 module provides the performance necessary to support large-scale data storage and retrieval operations efficiently.
