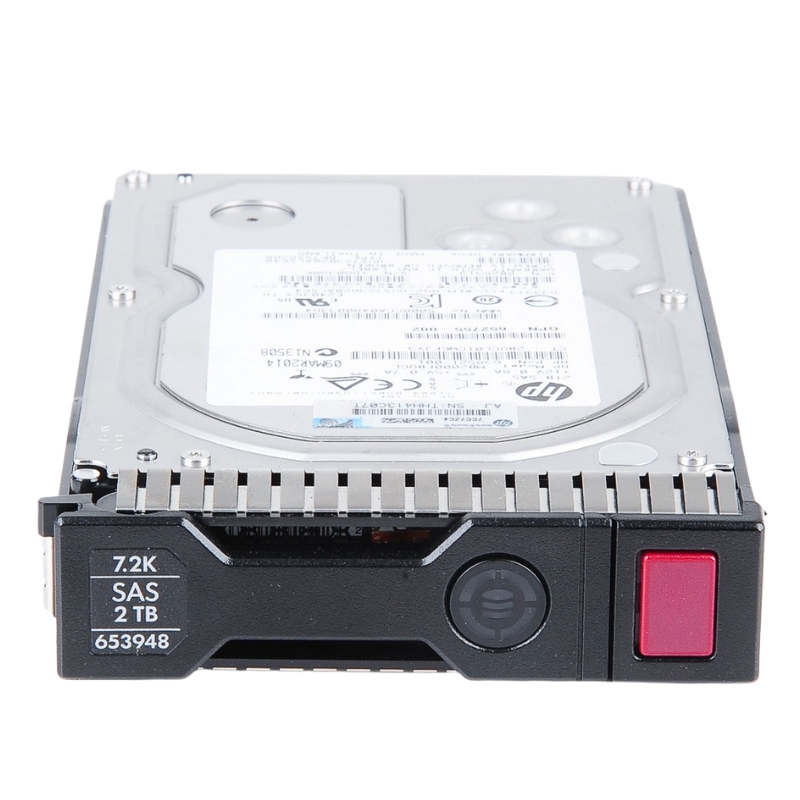

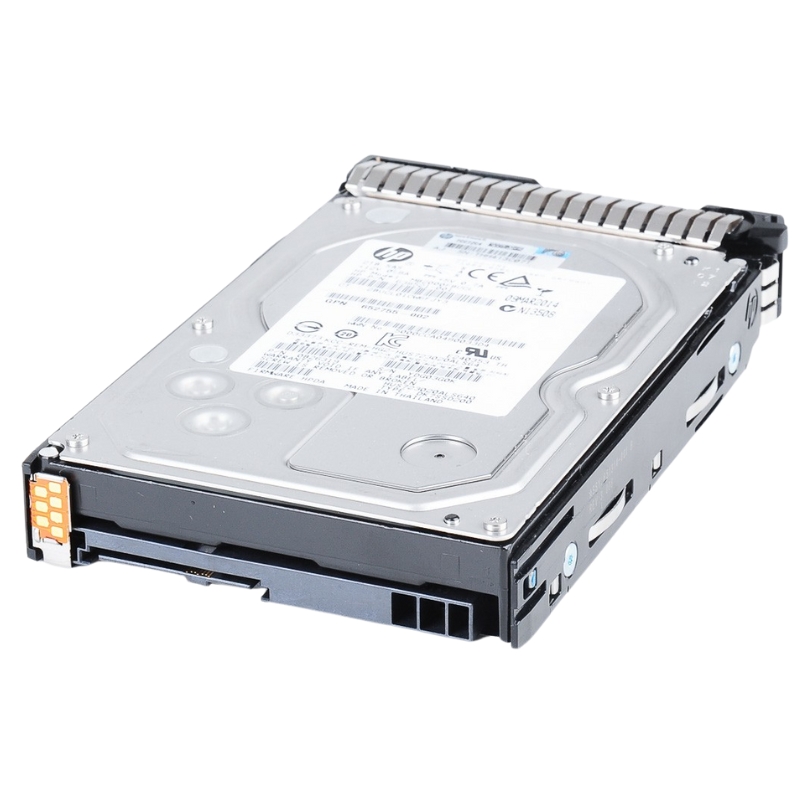

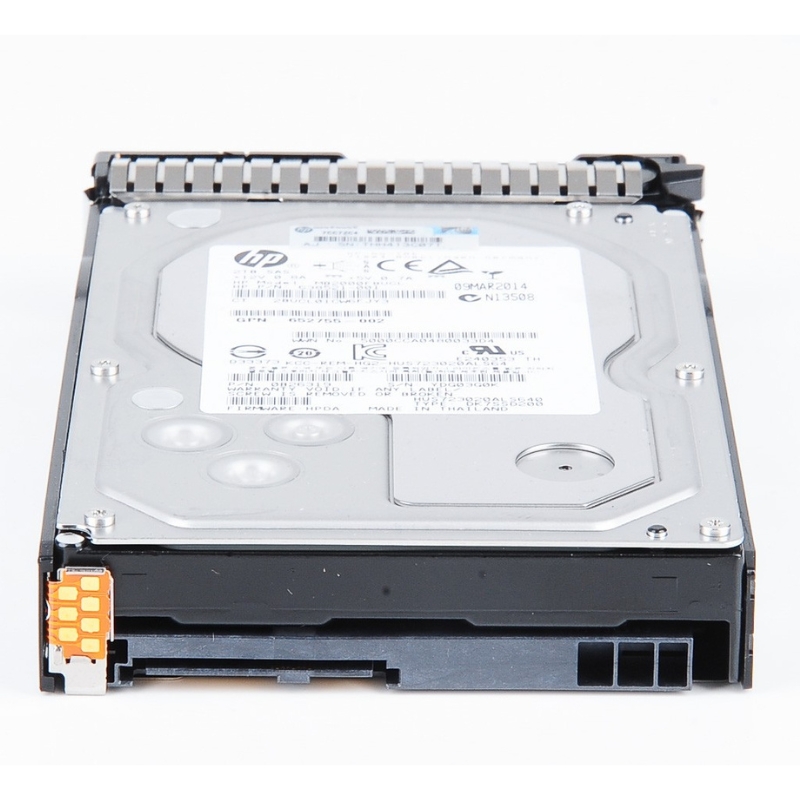

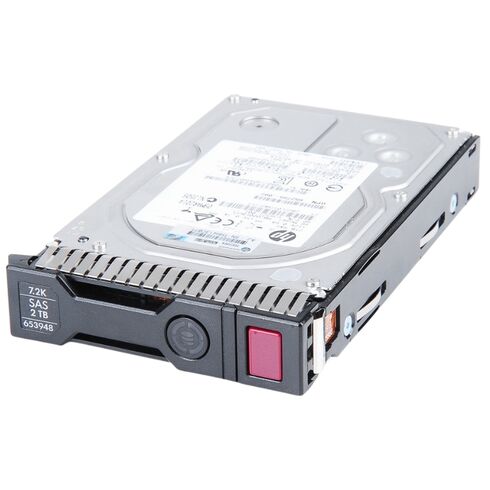

787653-001 HPE SFF SAS 12GBPS 2TB 7.2K RPM Hard Drive

The HPE 787653-001 represents a critical building block for HPE MSA storage arrays and select ProLiant Gen9/Gen10 servers requiring high-capacity, cost-optimized nearline storage. This 2TB, 7200rpm, 12Gbps SAS Small Form Factor (SFF) drive is engineered for Midline duty cycles, delivering a balance between capacity, power efficiency, and sequential performance. The factory-integrated hot-swap tray ensures seamless integration into HPE drive carriers, reducing deployment friction. Designed for 512e sector emulation, this drive bridges legacy operating environments with modern advanced format requirements, making it suitable for bulk storage, backup targets, and archival workloads within HPE MSA 2040, 2050, 2042, and 1050 series arrays, as well as HPE D3610/D3710 enclosure expansions.

Key Specifications

Capacity and Form Factor

The HPE 787653-001 provides 2 terabytes of raw unformatted capacity, ideal for environments requiring dense storage per physical slot. Using 512e (512-byte emulation) technology, the drive internally manages 4K native sectors while presenting 512-byte logical blocks to the host controller. This ensures compatibility with older operating systems, hypervisors, and applications that cannot natively address 4K sectors, without sacrificing media efficiency or error correction capabilities. For bulk sequential workloads like video surveillance, backup-to-disk, or log file repositories, the 2TB capacity per drive allows an HPE MSA 2052 (24 SFF bays) to reach up to 48TB raw before RAID overhead.

2.5-inch Small Form Factor (SFF)

The Small Form Factor (2.5-inch) physical footprint maximizes storage density in HPE MSA enclosures, which typically host 24 SFF drives in 2U of rack space. Compared to 3.5-inch LFF drives, SFF Midline drives offer improved I/O per rack unit, lower vibration susceptibility, and faster seek times due to reduced actuator travel. The HPE 787653-001’s SFF design also allows mixing with SSDs or performance SAS drives in the same enclosure, enabling tiered storage strategies within a single MSA shelf.

Performance Characteristics: 7200 RPM and 12Gbps SAS

7200 RPM Spindle Speed – Midline Optimized

Operating at 7200 revolutions per minute, the HPE 787653-001 delivers rotational latency averaging 4.17ms and seek times typically under 8.5ms (read) and 9.5ms (write). This spindle speed class is standard for Midline (MDL) drives, balancing throughput (up to ~150-200 MB/s sustained sequential) against power consumption (~6-8W active). While not suitable for transactional databases or low-latency OLTP, the 7200 RPM speed excels at streaming reads/writes, RAID rebuilds, and backup streams. For reference, a single HPE 787653-001 can sustain a full-drive backup in approximately 3-4 hours when operating at peak sequential speeds.

12Gbps SAS Dual-Port Interface

The 12 Gigabit per second Serial Attached SCSI (SAS-3) interface provides two full-duplex ports, enabling redundant path failover and load balancing in HPE MSA controllers. This dual-port design allows the drive to be accessed simultaneously by both controllers in an active-active configuration, eliminating single points of failure. The 12Gbps signaling rate delivers a theoretical bandwidth of 1200 MB/s per port, though the physical media limits actual throughput to the drive’s mechanical capabilities. Nevertheless, the SAS protocol offers superior command queuing (TCQ up to 256 commands), error detection (CRC), and hot-plug behavior compared to SATA. Backward compatibility with 6Gbps and 3Gbps SAS controllers is fully supported, making the HPE 787653-001 deployable in older HPE MSA 1040 or P2000 arrays after firmware validation.

Reliability and Endurance

Annual Workload Rating and MTBF

HPE classifies this drive as “Midline” (MDL), which typically specifies a workload rating of 180 TB/year or less – suitable for 8x5 operations with moderate read/write activity. The Mean Time Between Failures (MTBF) for the HPE 787653-001 is rated at 1.4 million hours (calculated per Telcordia SR-332), with an Annualized Failure Rate (AFR) below 0.63%. It is not intended for 24x7 high-write environments (which would require Enterprise SAS or SSD), but it excels in nearline storage, disk backup, file archives, and virtual tape libraries. The drive includes rotational vibration sensors to compensate for multi-drive harmonics in dense enclosures, reducing latent errors during intensive RAID rebuilds.

512e Advanced Format and End-to-End Protection

512e sector emulation incorporates 4K physical sectors with 512-byte logical mapping, reducing the overhead of ECC (Error Correction Code) fields by approximately 8% compared to legacy 512n drives. This yields higher effective storage density and improved error correction strength. Additionally, the HPE 787653-001 supports T10 Protection Information (PI) – also known as DIF (Data Integrity Field) – which adds 8 bytes of metadata per 512-byte block to verify data integrity from controller to media and back. When used in HPE MSA arrays with PI enabled, the drive can detect and correct latent sector errors that would otherwise cause silent data corruption.

HPE MSA SFF Midline SAS Drives with Trays

The “With Tray” Advantage – HPE 787653-001 Carrier Integration

Unlike bare drives, the HPE 787653-001 ships with a pre-installed HPE-certified hot-swap drive tray (carrier). This carrier is color-coded (typically silver or blue with HPE branding) and incorporates the exact latching mechanism, EMI shielding, and alignment pins required for HPE MSA and ProLiant Hot Plug drive bays. The tray eliminates the need for purchasing third-party caddies or risking bent pins during manual assembly. It also contains a PCB that routes the SAS signals and power, ensuring signal integrity at 12Gbps speeds – a critical factor often overlooked when using generic trays. The presence of the tray means the drive is “plug and play” into any compatible HPE storage shelf.

Compatibility Matrix: HPE MSA and ProLiant Systems

Primary Target: HPE MSA Storage Arrays

The HPE 787653-001 is explicitly qualified for the HPE MSA 2040, MSA 2050, MSA 2042, MSA 1050, and MSA 1060 series dual-controller arrays. It supports both SAS and SAS+ tiering configurations, including automated data placement when paired with SSDs. In MSA 2052 models (24 SFF bays), up to 24 drives can be mixed; however, HPE recommends homogeneous drive types (speed and sector format) within a single disk group. The drive is also compatible with MSA 1040 and P2000 G3 arrays running firmware version GL220 or later, though 12Gbps operation will fall back to 6Gbps.

Secondary Use Cases: HPE ProLiant Gen9/Gen10 Servers

While designed for MSA, the HPE 787653-001 works in HPE ProLiant DL/ML servers with 2.5-inch SAS backplanes, such as DL380 Gen9, DL360 Gen10, ML350 Gen10, and DL180 Gen9. It is supported in internal drive bays when used with HPE Smart Array controllers (e.g., P440ar, P408i, E208i) configured for HBA mode or RAID. Note that Midline drives are not recommended for OS or log partitions due to their 7200 RPM latency; they are best deployed as bulk storage volumes (RAID 5, 6, or 10). The hot-swap tray ensures compatibility with the server’s drive carrier locking mechanism.

Virtual Tape Library (VTL)

For organizations using HPE StoreOnce VTL software or third-party object storage gateways (e.g., Cloudian, Scality), the HPE 787653-001 provides cost-effective capacity for retention tiers. The 512e sector format ensures compatibility with deduplication engines that rely on 4K alignment. Additionally, the drive’s low idle power (approx. 3.5W in standby) reduces operational costs in large-scale nearline deployments. A single MSA 2052 populated with 24 of these drives yields 48TB raw – sufficient for 30 days of backup retention for a medium-sized enterprise.

Video Surveillance and Media Streaming

Continuous write workloads from IP cameras (e.g., 32 cameras each writing 10 Mbps) generate roughly 4.2 TB/day – well within the Midline rating of 180 TB/year when properly configured. The HPE 787653-001’s 7200 RPM spindle provides adequate write throughput for 4K video streams, while the 12Gbps SAS interface reduces command latency under multiple simultaneous streams. However, for write-intensive surveillance with 24x7 overwrite cycles, HPE recommends Enterprise SAS drives; the Midline drive is best for archival or lower-frame-rate retention.

HPE SmartDrive Capabilities

HPE SmartDrive Carrier Features

The HPE 787653-001 includes SmartDrive functionality, meaning its tray contains an EEPROM that stores drive-specific attributes (model, firmware version, capacity, power-on hours, and temperature logs). The HPE MSA controller reads this metadata via sideband signals, enabling proactive health monitoring through HPE Storage Management Utility (SMU) and SSH commands. Firmware updates can be applied in-band or via offline Smart Component downloads from HPE Support Center, ensuring the drive remains compatible with array-level features like SSD read cache and dynamic spares.

Hot Spare and RAID Rebuild Performance

When configured as a global or dedicated hot spare, the HPE 787653-001 rebuilds a failed 2TB drive in a RAID 5 array in approximately 4–6 hours (depending on controller load and other I/O). The 12Gbps SAS interface reduces rebuild time by 40% compared to 6Gbps SATA equivalents. HPE recommends enabling “Rebuild Priority” to high during maintenance windows to minimize exposure to dual drive failures. The drive’s rotational vibration tolerance helps maintain rebuild stability even in densely packed enclosures.

Power

Through SCSI log pages, the HPE MSA controller can read real-time power consumption (typically 5.5W idle, 8.9W active) and internal drive temperature (±2°C accuracy). The enclosure can then dynamically adjust fan speeds – reducing acoustics and power draw in low-load conditions. For data centers with strict PUE requirements, the HPE 787653-001’s Midline efficiency profile allows higher storage densities without exceeding cooling budgets.

Comparing HPE 787653-001 Other HPE Drive Options

Vs. HPE 10K RPM Performance SAS Drives

While a 10K RPM SAS drive (e.g., HPE 872475-001 1.2TB) offers lower latency (3.0ms rotational) and higher IOPS (~150-180 random read IOPS vs ~85-95 for 7.2K), the HPE 787653-001 provides double the capacity per drive at roughly 60% of the cost per TB. For sequential workloads (streaming, backup, archival), the 7.2K drive achieves 90% of the throughput of a 10K drive but with 30% less power consumption. Choose the 787653-001 for capacity-sensitive nearline storage; choose 10K drives for mixed random/sequential workloads like file servers or email stores.

Vs. HPE 7.2K LFF (3.5-inch) Midline Drives

LFF Midline drives (e.g., HPE 765452-001 4TB) offer higher raw capacity per spindle but lower density per rack unit (12 LFF in 2U vs 24 SFF in 2U). The HPE 787653-001’s SFF form factor provides twice the IOPS per rack unit due to more spindles, and shorter seek times (9ms vs 12ms average). However, LFF drives deliver lower cost per TB (typically 15-20% cheaper). For primary nearline storage requiring high throughput and moderate capacity per drive, SFF with 787653-001 is optimal; for deep archive cold storage, LFF may be more economical.

Workload Management

Do not exceed the 180 TB/year workload rating. For a drive running 24x7, this translates to an average of 20 GB/hour sustained write. Bursty writes up to 50 GB/hour are acceptable if daily average remains under 0.5 TB. Use the MSA’s “Drive Wear” report (via CLI command “show drive-statistics”) to monitor total written bytes. Exceeding the rating voids the warranty and exponentially increases AFR.

Temperature Control

Maintain ambient intake temperature between 10°C and 35°C (50°F–95°F). The HPE 787653-001 has a maximum operating temperature of 60°C at the drive’s top surface. For every 10°C above 40°C, the drive’s life expectancy halves. In dense 24-drive SFF enclosures, ensure all fan modules are functional and baffles are in place. The MSA controller will generate alerts if any drive exceeds 55°C.
