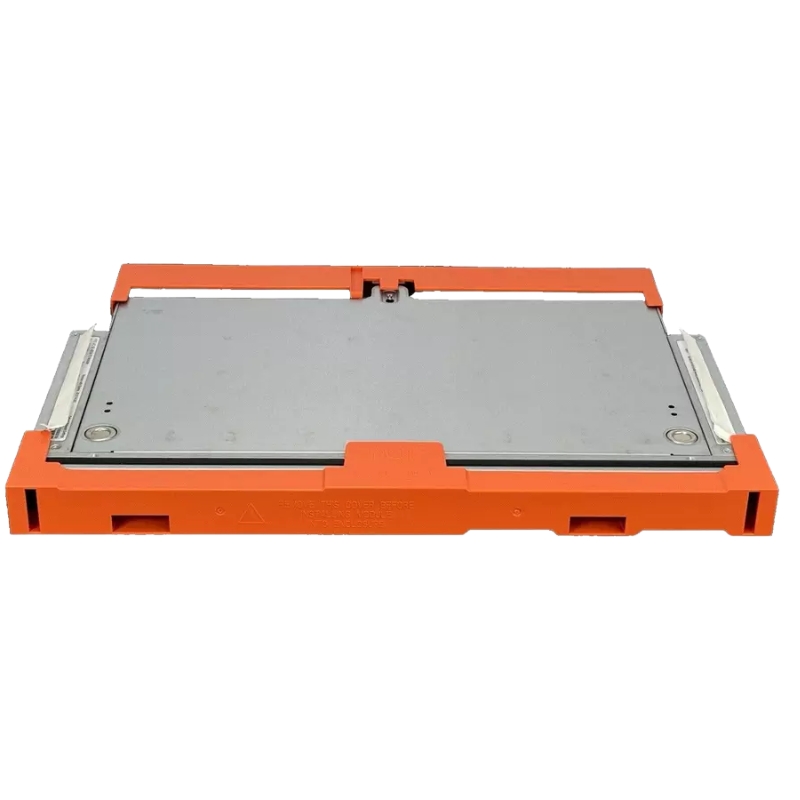

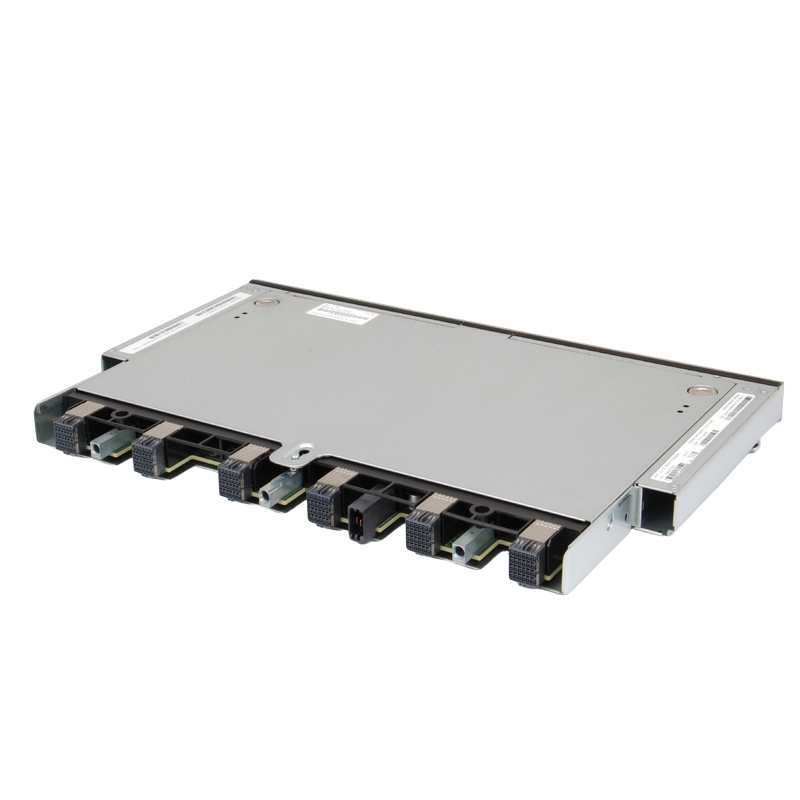

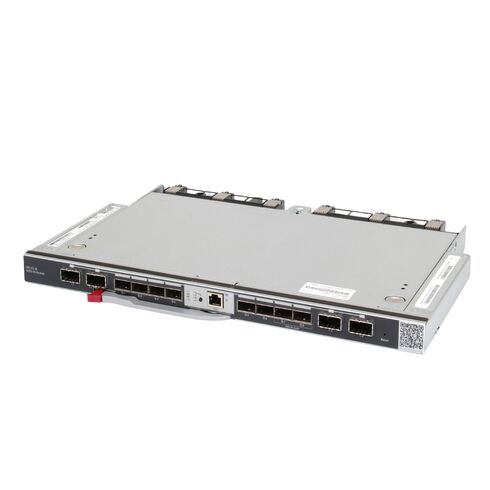

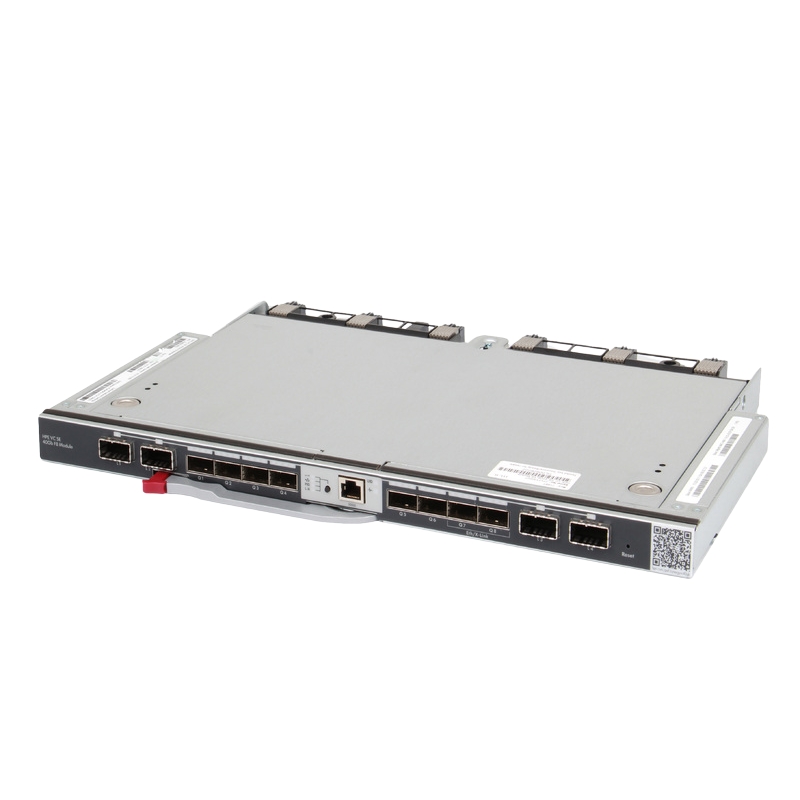

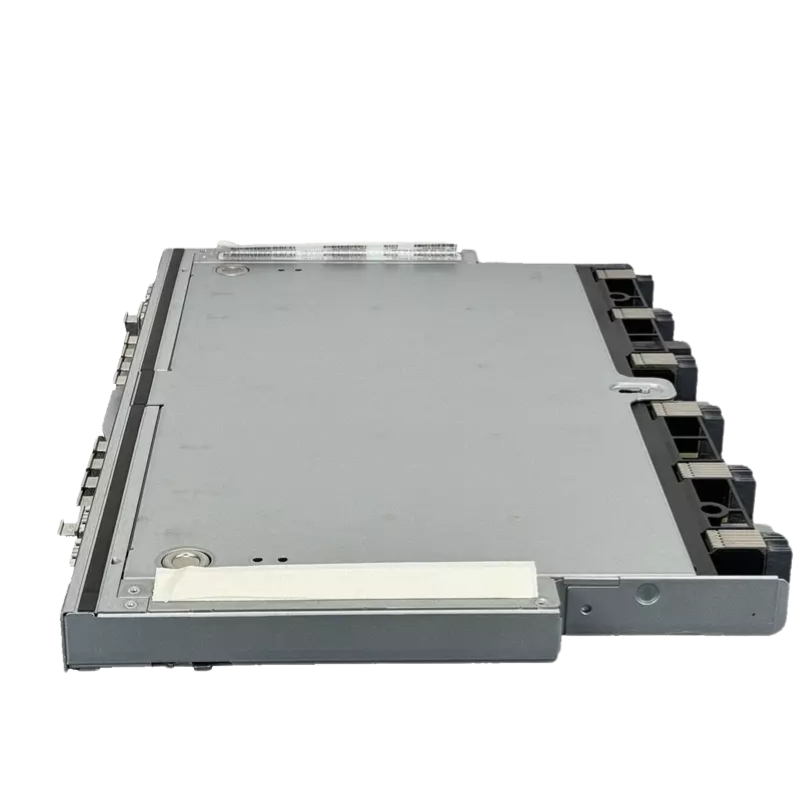

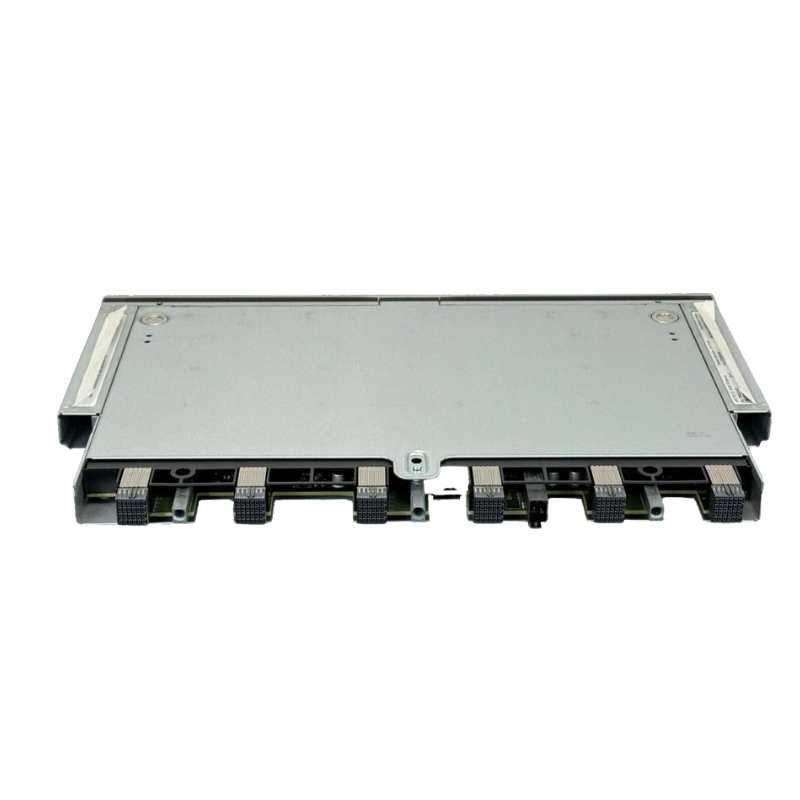

813174-001 HPE VC SE F8 QSFP+ Synergy 40Gb Expansion Module

HPE QSFP+ Synergy 40Gb Expansion Module

The HPE 813174-001 VC SE F8 QSFP+ Synergy 40Gb Expansion Module is a high-speed networking solution designed for enterprise environments, offering advanced connectivity, scalability, and efficient data transfer.

General Specifications

• Brand Name: HPE
• Model Number: 813174-001
• Device Type: Managed Switch - 24 Ports - Stackable

Technical Highlights

Enclosure Type

• Plug-in Module for seamless integration

Subtype

• 40 Gigabit Ethernet

Port Configuration

• 12 x 10/20Gb Ethernet (Midplane Downlink)
• 6 x 40Gb QSFP+ (Uplink)
• 2 x 40Gb M-LAG
• 4 x 120Gb Interconnect Link

Performance Metrics

• Fabric Throughput: 2.56 Tbps
• Latency (100 Mbps): 1 µs
• MAC Address Entries: 288,000
• Jumbo Frame Support: 9216 Bytes

Management and Features

Remote Management Protocols

• SNMP v1
• SNMP v2

Functional Features

• VLAN Support
• Status Indicators: Port Status, Module Status, Link/Activity, Interconnect Link Cable Port LED

Expansion and Connectivity

Interfaces

• 12 x 10/20Gb LAN Midplane Downlink
• 6 x 40Gb LAN QSFP+ Uplink
• 4 x 120Gb LAN Interconnect Link Uplink
• 4 x 10Gb LAN Uplink
• 1 x Management Interface

Power Specifications

• Power Provided: 240 Watt

HPE 813174-001 QSFP+ 40 Gigabit Expansion Module Overview

The HPE 813174-001 Virtual Connect SE F8 QSFP+ Synergy 40 Gigabit Expansion Module represents a high-performance, enterprise-grade networking component engineered to meet the demands of modern composable infrastructure environments. Designed specifically for HPE Synergy frames, this expansion module delivers exceptional bandwidth, low latency, and enhanced flexibility required for dynamic workloads, virtualization, and cloud-native applications. As data centers evolve toward software-defined architectures, the need for scalable, efficient, and easily manageable networking solutions becomes increasingly critical. This module addresses those needs by providing seamless integration with HPE Synergy compute modules and enabling advanced fabric connectivity.

High-Performance 40 Gigabit Ethernet Connectivity

The module is equipped with QSFP+ ports that support 40 Gigabit Ethernet connectivity, ensuring that enterprises can handle high-throughput workloads with ease. This level of performance is essential for data-intensive operations such as big data analytics, real-time processing, and high-performance computing environments. By offering 40GbE bandwidth, the module significantly reduces network bottlenecks and enhances overall system efficiency. The increased throughput ensures that applications run smoothly even under heavy loads, maintaining consistent performance across the infrastructure.

Low Latency Data Transmission

In high-performance environments, latency plays a crucial role in determining application responsiveness. The HPE 813174-001 module is optimized to deliver ultra-low latency, ensuring rapid data transmission between compute resources and storage systems. This capability is particularly beneficial for latency-sensitive applications such as financial trading platforms, AI workloads, and real-time analytics. The module’s architecture minimizes delays and ensures that data packets are transmitted efficiently across the network fabric.

Optimized for Virtualized and Cloud Environments

The increasing adoption of virtualization and cloud computing demands networking solutions that can adapt dynamically to changing workloads. This module is designed to support virtualized environments by providing flexible bandwidth allocation and seamless integration with software-defined networking frameworks. It allows administrators to create virtual networks and allocate resources efficiently, improving workload mobility and reducing operational complexity. The module supports advanced virtualization features, enabling better resource utilization and improved scalability.

Integration with HPE Synergy Composable Infrastructure

The HPE 813174-001 Virtual Connect SE F8 module is purpose-built for HPE Synergy, a composable infrastructure platform that enables organizations to dynamically compose physical and virtual resources. This integration allows for streamlined management and orchestration of compute, storage, and networking resources through a unified interface. The module plays a vital role in delivering the fabric connectivity required for Synergy frames, ensuring seamless communication between interconnected components.

Composable Fabric Architecture

The composable fabric architecture enabled by this module allows IT administrators to define and reconfigure network resources programmatically. This flexibility is crucial for modern data centers that need to respond quickly to changing business requirements. By leveraging the composable nature of HPE Synergy, organizations can deploy applications faster and adapt their infrastructure in real time without manual intervention.

Automated Network Provisioning

Automation is a critical component of modern IT operations. The HPE 813174-001 module supports automated network provisioning, allowing administrators to deploy network configurations quickly and consistently. This reduces deployment time and minimizes manual errors, ensuring reliable and repeatable network setups. Automation also enables faster scaling of infrastructure, supporting business growth and evolving workloads.

Advanced Networking Features and Capabilities

The module is equipped with a range of advanced networking features that enhance performance, security, and reliability. These capabilities make it an ideal choice for enterprise environments that require robust and scalable networking solutions.

Support for VLAN and Network Segmentation

Network segmentation is essential for maintaining security and optimizing performance. The module supports VLAN configurations, allowing administrators to segment network traffic and isolate workloads. This enhances security by preventing unauthorized access and ensures efficient traffic management. VLAN support also enables better resource allocation and improves overall network performance.

Enhanced Security Features

Security is a top priority in modern data centers. The HPE 813174-001 module incorporates advanced security features to protect sensitive data and ensure compliance with industry standards. These features include access control mechanisms, secure management interfaces, and support for encryption protocols. By implementing these security measures, organizations can safeguard their infrastructure against potential threats.

Redundancy and High Availability

To ensure uninterrupted operations, the module supports redundancy and high availability configurations. This includes failover mechanisms and redundant connections that minimize downtime in the event of hardware or network failures. High availability is critical for mission-critical applications that require continuous uptime and reliable performance. The module’s design ensures that network services remain operational even during unexpected disruptions.

Flexible Port Configuration

The QSFP+ ports offer flexibility in terms of connectivity options, allowing organizations to adapt their network configurations based on specific requirements. This flexibility ensures that the module can support a wide range of applications and workloads, making it a versatile addition to any data center environment.

Compatibility with Existing Infrastructure

Compatibility is a key consideration when deploying new networking components. The HPE 813174-001 module is designed to work seamlessly with existing HPE Synergy infrastructure, ensuring smooth integration and minimal disruption. This compatibility allows organizations to upgrade their network capabilities without the need for extensive modifications.

Key Architecture and Design Considerations

The technical architecture of the HPE 813174-001 Virtual Connect SE F8 QSFP+ Synergy 40 Gigabit Expansion Module is engineered to deliver robust, high-throughput networking within composable infrastructures. It is built to align with modern data center standards, ensuring consistent performance, interoperability, and ease of deployment across enterprise environments. The module’s design focuses on maximizing bandwidth density while maintaining efficient power utilization and thermal performance.

High-Density Port Architecture

The QSFP+ interface enables high-density port configurations, allowing organizations to achieve greater connectivity within limited physical space. This is particularly beneficial in blade environments where space optimization is critical. The high-density design reduces the need for additional hardware, simplifying infrastructure and lowering capital expenditure.

Backplane Connectivity Optimization

The module leverages optimized backplane connectivity within HPE Synergy frames, ensuring seamless communication between compute nodes and interconnect modules. This design eliminates unnecessary external cabling and reduces latency, enhancing overall system efficiency. Backplane optimization also improves reliability by minimizing potential points of failure.

Deployment and Configuration Flexibility

Flexibility in deployment and configuration is a defining characteristic of the HPE 813174-001 module. It enables organizations to tailor their network infrastructure to meet specific requirements, supporting a wide range of deployment scenarios and operational models.

Plug-and-Play Integration

The module supports plug-and-play integration within HPE Synergy frames, allowing for quick and hassle-free installation. This reduces deployment time and minimizes the need for specialized technical expertise. The ease of installation makes it an ideal choice for organizations looking to streamline their IT operations.

Customizable Network Profiles

Administrators can create customizable network profiles to define connectivity parameters for different workloads. These profiles enable consistent and repeatable configurations, ensuring that network settings are applied uniformly across the infrastructure. Customization enhances flexibility and allows organizations to optimize their network for specific applications.
