JY720-61001 HPE AP-203RP Aruba 2x2 POE Antenna

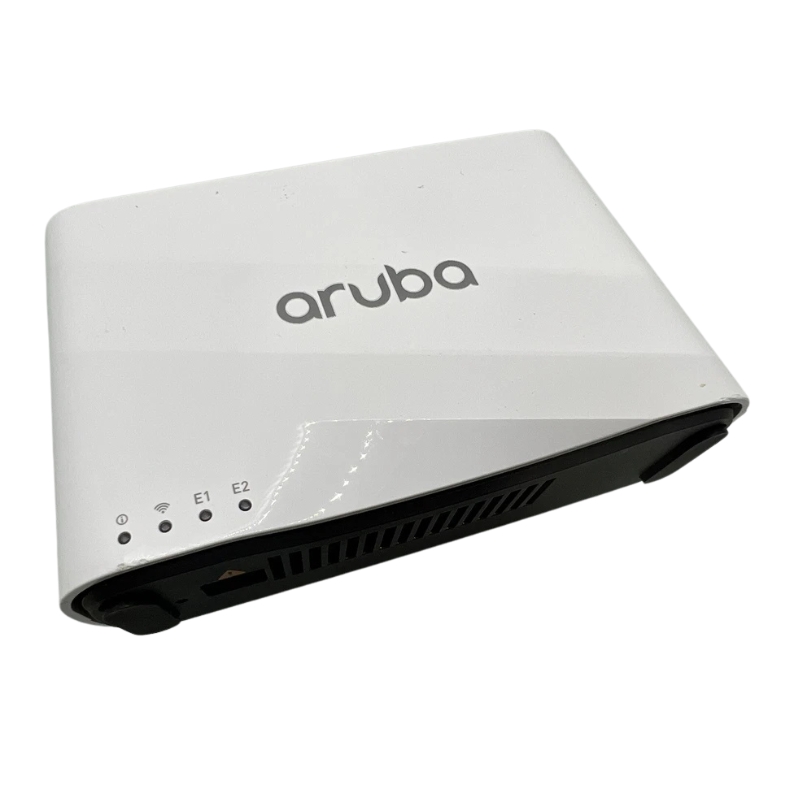

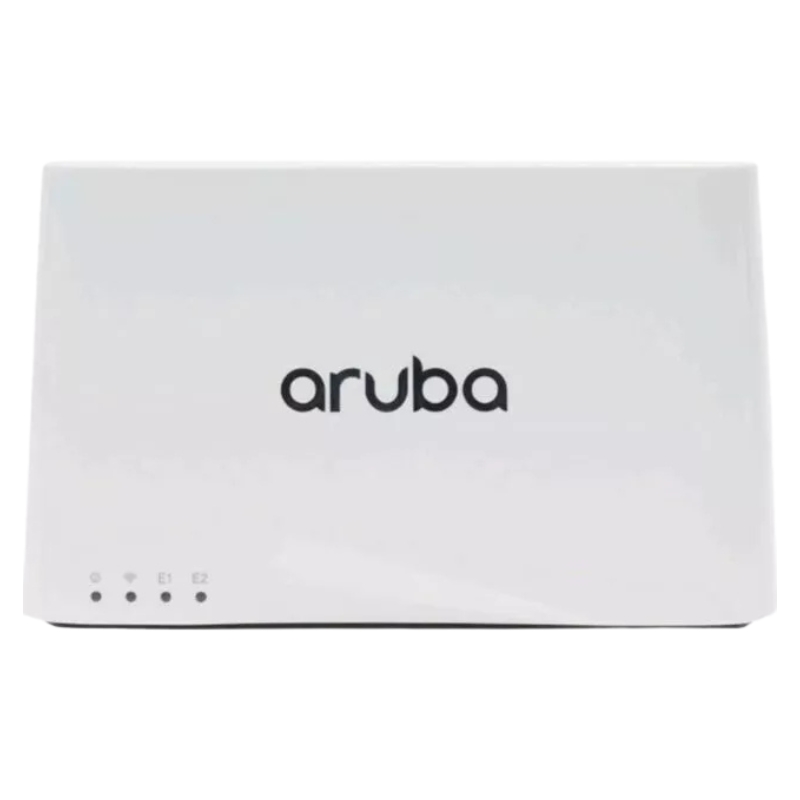

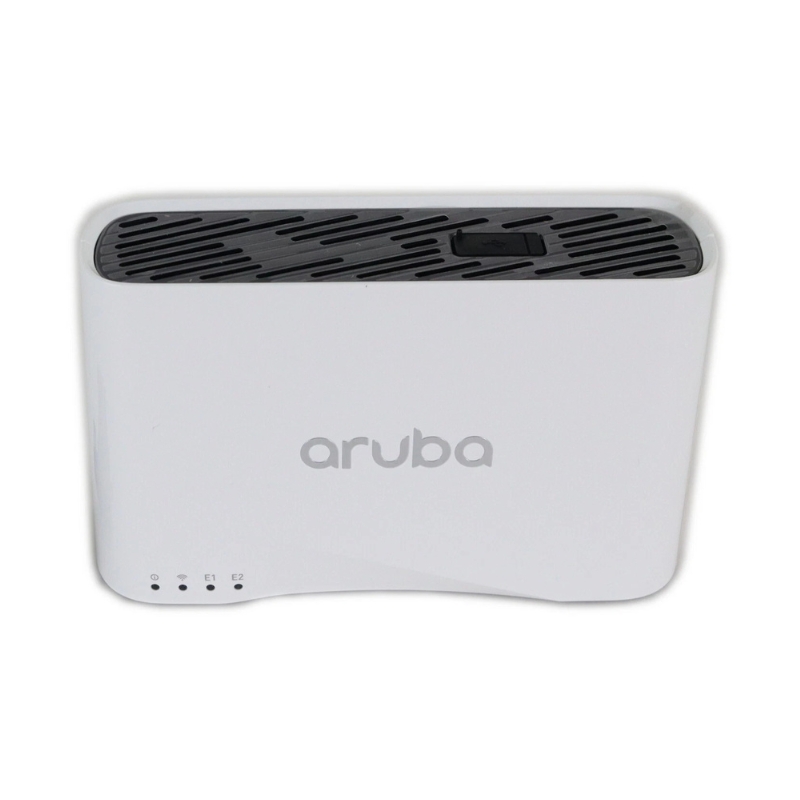

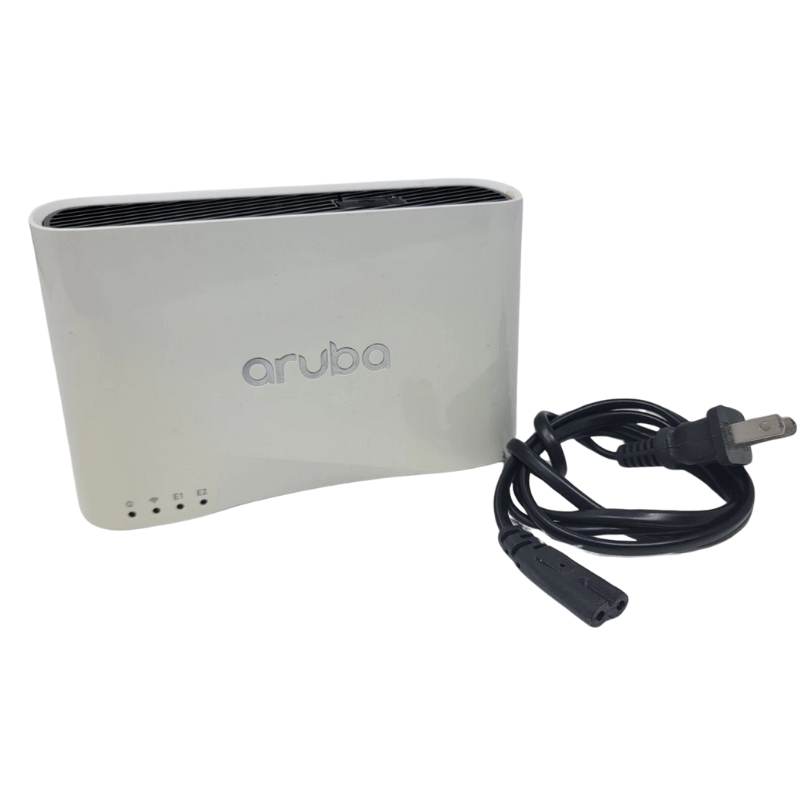

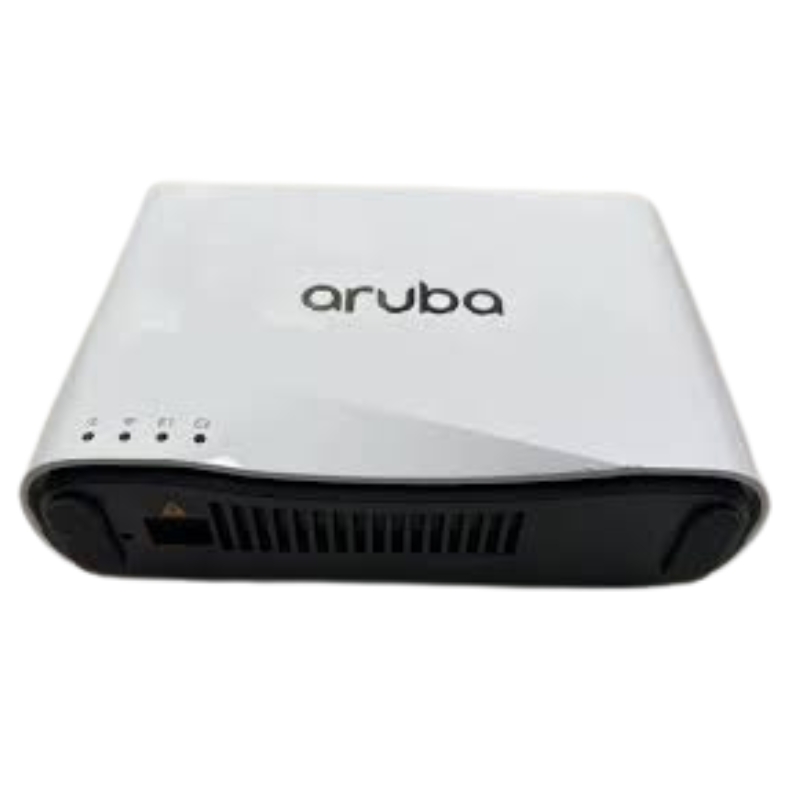

HPE Aruba AP-203RP Wireless Access Point

The JY720-61001 HPE 203R AP-203RP is a versatile wireless access point designed for remote workers and enterprise environments. It supports advanced Wi-Fi standards, flexible radio configurations, and efficient power management for seamless connectivity.

General SpecificationsJY720-61001

• Brand: HPE
• Model Number: JY720-61001
• Category: Wireless Access Point

Technical Information

• Compact design
• Desktop or wall-mountable installation
• Optimized for remote deployment
• 802.11ac Wave 1 standard
• Backward compatibility with 802.11a/b/g/n

Software-Configurable Radio

• Dual-radio mode (1x1): up to 433 Mbps on 5GHz and 200 Mbps on 2.4GHz simultaneously
• Single-radio mode (2x2): up to 867 Mbps on 5GHz or 400 Mbps on 2.4GHz

Antenna Array

• Two internal omnidirectional antennas
• Dual-band downtilt design

Interfaces & Connectivity

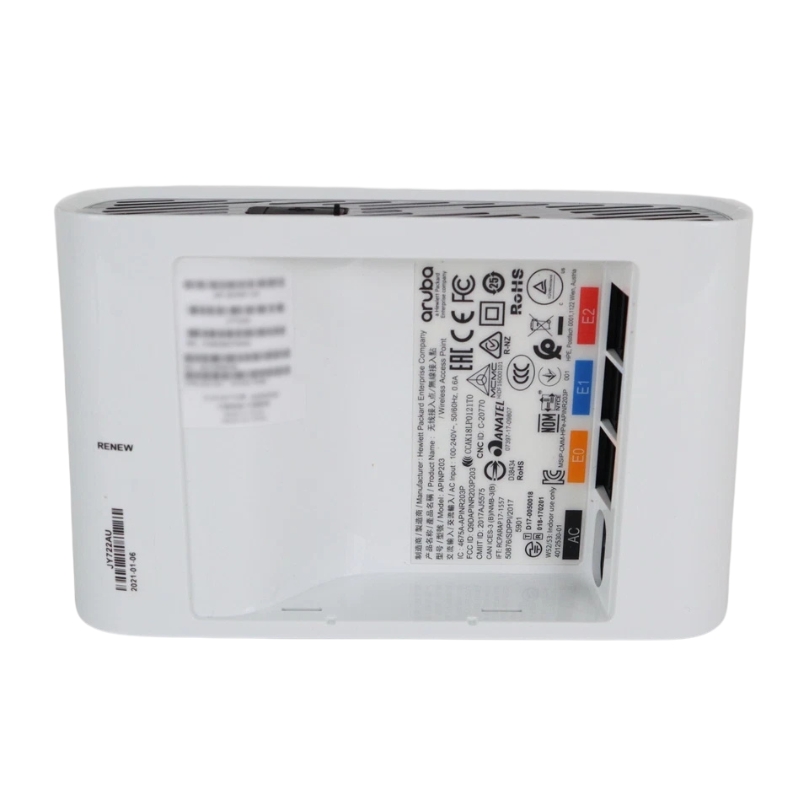

• 1 x 10/100/1000Base-T RJ-45 port (back panel)

Local LAN Ports

• 2 x 10/100/1000Base-T RJ-45 ports
• Ideal for IP phones, printers, and desktop PCs

Additional Interfaces

• 1 x USB 2.0 host port for 3G/4G modem connectivity
• WAN redundancy support

Power & Management

• Input voltage: 90–265V AC
• Maximum internal draw: 8.2 Watts
• Energy-efficient design

Unified Management

• Cloud-managed node functionality
• Edge branch extension via Aruba Networking Central
• Automated provisioning
• Role-based network isolation
• Adaptive Radio Management (ARM)

Deployment Benefits

• Quick installation for remote workers
• Reliable performance across multiple devices
• Secure and scalable enterprise networking

Overview of HPE JY720-61001 AP-203RP 2x2 Antenna Systems

The HPE JY720-61001 AP-203RP Aruba 2x2 PoE Antenna represents a highly specialized wireless networking component designed to enhance enterprise-grade connectivity within modern IT infrastructures. Developed under the ecosystem of Hewlett Packard Enterprise and its networking division Aruba Networks, this antenna system is engineered to deliver stable, high-performance wireless coverage across diverse operational environments. Built with precision RF engineering and optimized for Power over Ethernet (PoE) deployments, it serves as a critical component in scalable wireless LAN architectures where reliability, throughput, and signal consistency are essential.

This category of antenna is widely deployed in enterprise networks where dual-stream (2x2) MIMO technology is required to maintain efficient data transmission while minimizing interference and maximizing spectral efficiency. The AP-203RP classification emphasizes its role in robust wireless access scenarios where both indoor and semi-industrial environments demand consistent connectivity performance.

Core Architecture and Wireless Design Philosophy

The architectural foundation of the HPE JY720-61001 AP-203RP Aruba antenna is centered around advanced RF signal optimization and distributed wireless coverage principles. Its design prioritizes balanced radiation patterns, efficient spatial multiplexing, and seamless integration with Aruba access point systems. The antenna is developed to ensure consistent signal distribution across multiple client devices, supporting enterprise workloads such as VoIP, video conferencing, and cloud-based applications.

2x2 MIMO Implementation

The 2x2 MIMO (Multiple Input Multiple Output) configuration is a key technological feature of this antenna system, enabling simultaneous transmission and reception of multiple data streams. This design significantly enhances throughput while reducing latency in congested network environments. By leveraging spatial diversity, the system ensures that signal degradation due to multipath interference is minimized, resulting in more stable wireless communication.

In enterprise deployments, the 2x2 architecture is particularly effective for balancing performance and cost efficiency. It provides sufficient bandwidth for most business-critical applications without requiring the complexity or overhead associated with higher-order MIMO configurations. This makes it a preferred choice for medium to large-scale deployments where predictable performance is essential.

PoE Integration and Power Optimization

A defining characteristic of the HPE JY720-61001 AP-203RP Aruba antenna system is its Power over Ethernet capability, which allows both power and data to be transmitted through a single Ethernet cable. This design eliminates the need for separate power infrastructure, reducing installation complexity and improving deployment flexibility across enterprise environments.

Power efficiency in distributed environments

PoE integration contributes significantly to energy-efficient network design by centralizing power management and enabling intelligent power allocation. This allows IT administrators to monitor and optimize energy consumption across multiple access points from a centralized controller. In large-scale deployments, this results in reduced operational costs and improved sustainability metrics.

Deployment Scenarios and Environmental Adaptability

The HPE JY720-61001 AP-203RP Aruba antenna is designed to operate effectively across a wide range of deployment scenarios. Its adaptable RF characteristics make it suitable for both controlled enterprise environments and more complex industrial settings where interference and structural obstacles may impact wireless performance.

Enterprise networking environments

Within corporate environments, this antenna system is commonly integrated into office campuses, data-driven workplaces, and collaborative workspaces. Its ability to maintain stable connections across multiple floors and partitions ensures uninterrupted access to enterprise applications and cloud services. The antenna’s optimized beam patterns support high-density client environments without significant degradation in performance.

Campus-wide WiFi infrastructure

In educational institutions and large campus deployments, the antenna supports scalable wireless coverage across classrooms, lecture halls, administrative buildings, and outdoor areas. Its 2x2 MIMO configuration ensures consistent connectivity even when a large number of users are simultaneously accessing the network.

High-density user environments

High-density scenarios such as auditoriums, libraries, and event halls require antennas capable of handling significant simultaneous connections. The AP-203RP antenna addresses these demands through optimized signal distribution and interference mitigation techniques, ensuring smooth data flow even under peak usage conditions.

Industrial and semi-industrial deployments

In industrial environments, where electromagnetic interference and physical obstructions are common, the antenna’s robust RF design ensures reliable connectivity for IoT devices, monitoring systems, and automated control networks. Its durability and consistent performance make it suitable for warehouses, manufacturing facilities, and logistics centers.

Performance Optimization and Signal Engineering

Performance optimization in the HPE JY720-61001 AP-203RP Aruba antenna system is achieved through a combination of advanced RF engineering techniques and intelligent network integration. The antenna is designed to maximize signal clarity while minimizing noise and interference, ensuring efficient wireless communication across all connected devices.

Signal propagation efficiency

The antenna’s radiation pattern is engineered to provide balanced coverage, reducing dead zones and ensuring consistent signal strength across deployment areas. This is particularly important in environments with complex layouts, where walls, partitions, and structural materials can significantly impact wireless performance.

Antenna gain and spatial distribution

Antenna gain plays a critical role in determining the effective range and strength of wireless signals. The AP-203RP system is optimized to deliver controlled gain characteristics that enhance coverage without introducing excessive signal distortion. This balance ensures that both short-range and long-range devices maintain stable connectivity.

Compatibility and Integration within Aruba Ecosystem

The HPE JY720-61001 AP-203RP Aruba antenna is designed for seamless integration within the broader Aruba networking ecosystem. It works in conjunction with Aruba access points, controllers, and cloud-based management platforms to deliver a unified wireless networking experience.

Through integration with HPE networking solutions, organizations can achieve centralized visibility and control over wireless infrastructure. This enables dynamic configuration, real-time monitoring, and automated optimization of network resources.

Controller-based and cloud-managed deployments

The antenna supports both controller-based and cloud-managed deployment models, allowing organizations to choose the architecture that best aligns with their operational requirements. Controller-based systems offer granular control over local network configurations, while cloud-managed systems provide scalability and remote accessibility for distributed enterprises.

Installation and Configuration Considerations

Proper installation of the HPE JY720-61001 AP-203RP Aruba antenna is essential for achieving optimal performance. The placement of the antenna, orientation, and surrounding environmental conditions all play a significant role in determining wireless efficiency. Engineers must consider factors such as signal overlap, interference sources, and structural obstructions during deployment planning.

Configuration is typically handled through Aruba network management platforms, where administrators can fine-tune radio settings, transmission power, and channel allocation. These adjustments ensure that the antenna operates efficiently within the broader wireless ecosystem while minimizing interference and maximizing throughput.

Environmental calibration and tuning

Environmental calibration involves adjusting antenna parameters to match the physical characteristics of the deployment area. This process ensures that signal propagation aligns with architectural layouts, thereby improving overall network reliability and user experience.

Security and Network Management Capabilities

Security is a core component of the HPE JY720-61001 AP-203RP Aruba antenna ecosystem. Integrated with Aruba’s advanced security frameworks, the system supports encrypted communication, secure authentication protocols, and real-time threat detection mechanisms.

Network administrators benefit from centralized management tools that allow continuous monitoring of wireless activity. These tools provide insights into bandwidth usage, client behavior, and potential security vulnerabilities, enabling proactive network optimization and protection.

Adaptive threat response systems

Adaptive security mechanisms within the Aruba ecosystem allow the network to respond dynamically to potential threats. This includes automatic isolation of suspicious devices and real-time policy enforcement to maintain network integrity.

Use Cases across Industry Verticals

The versatility of the HPE JY720-61001 AP-203RP Aruba antenna makes it suitable for a wide range of industries. In healthcare environments, it supports secure transmission of patient data and real-time communication systems. In retail, it enables seamless point-of-sale connectivity and customer engagement platforms. In logistics, it supports tracking systems and warehouse automation technologies.

Each of these use cases benefits from the antenna’s ability to maintain stable connectivity in environments with varying levels of interference and user density. Its adaptability ensures that it can meet the demands of both mission-critical and high-traffic applications.

Advantages of Aruba Wireless Ecosystem Integration

Integration within the Aruba ecosystem provides significant advantages in terms of scalability, performance optimization, and centralized management. Organizations benefit from unified network visibility, automated configuration tools, and intelligent traffic management capabilities.

The synergy between hardware components such as the AP-203RP antenna and Aruba’s software-defined networking solutions ensures that wireless infrastructures remain adaptable to evolving business needs. This makes the system particularly suitable for enterprises undergoing digital transformation initiatives.
