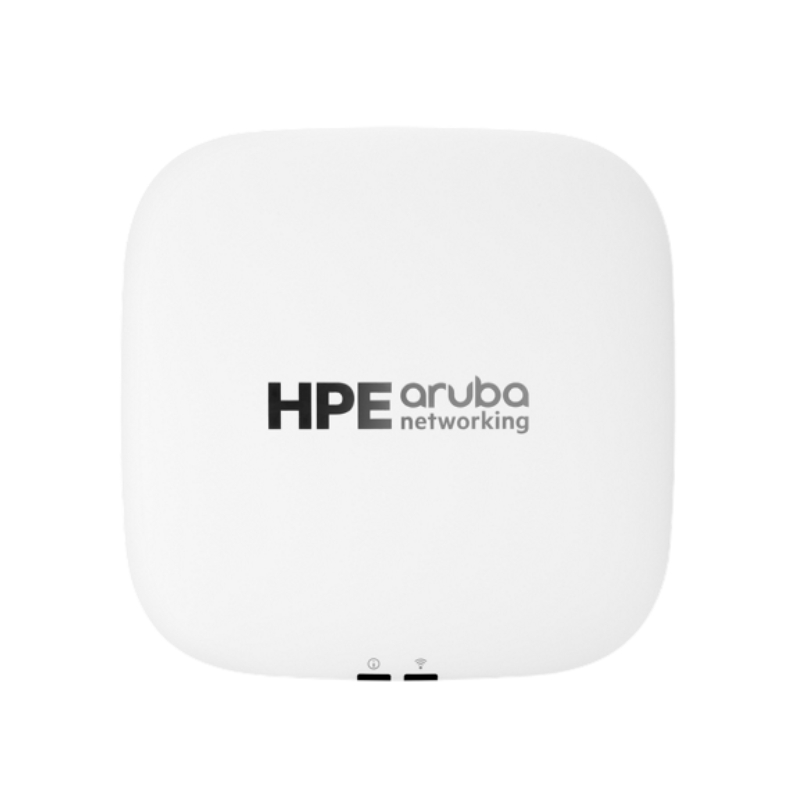

AP-503R-US HPE Aruba Networking Dual Radio 2x2 Wi-Fi 6 1+2 Ethernet USB Remote Access Point

Overview of the HPE AP-503R-US Aruba Access Point

HPE AP-503R-US from Aruba Networking is a high-performance dual-radio Wi-Fi 6 access point designed for modern enterprise and remote connectivity needs. It delivers fast, stable, and secure wireless communication with a compact design suitable for flexible indoor deployment. With support for multiple Ethernet interfaces and advanced remote management features, this access point is ideal for distributed networks, branch environments, and mobile workforce connectivity.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model / SKU: AP-503R-US
• Category: Enterprise Wireless Access Point

Technical Specifications

Power Consumption & Efficiency

• Input Power Requirement: 12V DC / 18W standard adapter
• Maximum Power Usage: Up to 15.4W under full operational load
• Idle Consumption: Approximately 4.0W for energy-saving performance

Certification & Regulatory Compliance

• FCC and ISED certified for North American standards
• CE marking with RED Directive 2014/53/EU compliance
• EMC Directive 2014/30/EU adherence for electromagnetic safety
• Low Voltage Directive 2014/35/EU approval
• Safety certifications including UL/IEC/EN 60950 and IEC/EN 62368-1

Security Standards & Wireless

• Wi-Fi Alliance certified for Wi-Fi 6 (802.11 a/b/g/n/ac/ax) compatibility
• Passpoint Release 2 support for seamless roaming experience
• WPA, WPA2, and WPA3 Enterprise-grade encryption support
• Enhanced security modes including WPA3-SAE and OWE for open networks
• WMM and WMM-PS for optimized multimedia traffic handling

Use Cases

• Enterprise remote access for hybrid and distributed workforce
• Small office and home office (SOHO) wireless infrastructure
• Temporary setups such as retail pop-up stores or branch expansion
• Field operations requiring mobile and secure connectivity
• Disaster recovery and emergency network restoration environments

Wi-Fi 6 Performance Advantages

• Dual-radio 2x2 architecture supporting simultaneous 2.4GHz and 5GHz bands
• 1024-QAM modulation for improved data throughput and efficiency
• MU-MIMO and OFDMA technologies for high-density environments
• Target Wake Time (TWT) for improved IoT and device battery efficiency
• Backward compatibility with legacy Wi-Fi standards for smooth integration

Security Capabilities

• Enterprise-grade WPA2/WPA3 encryption protocols
• 802.1X authentication via RADIUS server integration
• Role-based access control with granular user policies
• MAC address filtering and rogue access point detection
• Layer 7 firewall with Deep Packet Inspection (DPI)

Compatibility

• Fully compatible with IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) client devices
• Supports integration with Aruba Central cloud management platform
• Works with Aruba ClearPass Policy Manager for identity-based security
• Compatible with RADIUS authentication systems for enterprise networks
• Seamless operation with VPN-enabled corporate infrastructures
• Supports IoT devices, smartphones, laptops, and legacy wireless clients
• Interoperable with multi-vendor networking environments using standard protocols

Enterprise Wireless Connectivity Architecture

The HPE AP-503R-US Aruba Networking Dual Radio 2x2 Wi-Fi 6 1+2 Ethernet USB Remote Access Point represents a modern enterprise-grade wireless access solution designed to support high density environments, seamless connectivity, and flexible deployment scenarios. It is engineered for organizations that require reliable wireless communication, efficient data throughput, and advanced network management capabilities in environments such as corporate offices, hospitality infrastructures, educational campuses, healthcare facilities, and distributed branch networks.

This access point integrates advanced radio technologies and intelligent networking features that enhance wireless coverage and performance. It is designed to function as a key node within a larger managed network infrastructure, supporting both centralized and distributed deployment models. With its dual radio configuration and Wi-Fi 6 capabilities, it delivers improved bandwidth efficiency and reduced latency, ensuring consistent connectivity for modern digital applications.

Advanced Dual Radio Wireless Design

The dual radio architecture of this access point allows simultaneous operation across two frequency bands, typically 2.4 GHz and 5 GHz. This enables the device to efficiently distribute client connections and optimize network load balancing. Each radio operates independently, providing improved capacity for handling multiple connected devices without degradation in performance.

This design is particularly important in environments where numerous devices compete for wireless access. The dual radio system ensures that devices with different bandwidth requirements can be served appropriately, minimizing congestion and enhancing user experience. It also supports dynamic channel selection and adaptive radio management to reduce interference from neighboring wireless systems.

Wi-Fi 6 Technology Integration and Performance Efficiency

Wi-Fi 6 technology is a significant advancement in wireless communication standards, offering improved speed, efficiency, and scalability. The integration of Wi-Fi 6 in this access point enables better handling of dense client environments by using advanced techniques such as Orthogonal Frequency Division Multiple Access and improved modulation efficiency.

The result is enhanced network performance in scenarios where multiple users are simultaneously streaming video, accessing cloud applications, or participating in real-time communication platforms. Wi-Fi 6 also improves power efficiency for connected devices, extending battery life for mobile endpoints and IoT devices within the network ecosystem.

The access point supports advanced spatial stream processing through its 2x2 multiple input multiple output configuration. This allows simultaneous transmission and reception of multiple data streams, improving throughput and reducing latency. The combination of Wi-Fi 6 and 2x2 MIMO architecture provides a balanced performance profile suitable for both high-density and medium-density deployments.

Ethernet Connectivity and Wired Integration Capabilities

The device includes a flexible Ethernet configuration that supports one primary uplink port and additional downstream connectivity options. This allows integration with wired network infrastructure while also enabling limited switching capabilities for nearby endpoints such as IP phones, printers, or edge computing devices.

This hybrid connectivity model is especially beneficial in environments where network expansion must be efficient and cost-effective. By combining wireless access with selective wired support, the access point reduces the need for additional switching hardware, simplifying installation and reducing overall infrastructure complexity.

The Ethernet interfaces are designed to support high-speed data transfer, ensuring that backhaul traffic between the access point and core network remains stable and efficient. This contributes to consistent wireless performance even under heavy load conditions.

USB Remote Access Point and Flexible Deployment

One of the notable features of this access point is its support for USB-based remote access point functionality. This capability allows the device to extend network connectivity through supported host systems or specialized deployment configurations. It is particularly useful in distributed enterprise environments where traditional wired infrastructure may not be easily accessible.

USB remote access functionality enhances deployment flexibility by enabling temporary or portable networking solutions. This is valuable in scenarios such as remote branch setups, pop-up offices, or disaster recovery environments where rapid deployment is required.

This feature also supports modern hybrid workplace models where employees may require secure and consistent network access from non-traditional locations. By leveraging USB-based connectivity options, the access point becomes more adaptable to evolving organizational needs.

Enterprise Network Security and Data Protection

Security is a critical aspect of any enterprise networking solution, and this access point incorporates multiple layers of protection to safeguard data transmission and network access. It supports modern encryption standards that ensure wireless communications remain secure from unauthorized interception.

Authentication mechanisms are designed to integrate with enterprise identity management systems, allowing centralized control over user access permissions. This ensures that only authorized users and devices can connect to the network, reducing the risk of intrusion or data leakage.

The device also supports secure guest network segmentation, enabling organizations to provide controlled internet access to visitors without compromising internal network security. This separation of traffic helps maintain operational integrity and reduces exposure to potential threats.

High Density Environment Optimization

The access point is specifically engineered to perform efficiently in high-density environments where multiple users and devices operate simultaneously. Such environments include conference halls, universities, hotels, and large corporate campuses.

Through intelligent traffic management and adaptive radio resource allocation, the device ensures that network performance remains stable even under heavy load conditions. It minimizes packet loss and reduces latency, ensuring smooth operation of critical applications such as video conferencing and cloud-based collaboration tools.

Client balancing features distribute connected devices evenly across available radios, preventing network congestion and ensuring equitable bandwidth distribution among users.

Deployment Flexibility and Scenarios

This access point supports multiple deployment scenarios, making it suitable for both ceiling-mounted and wall-mounted installations. Its compact design allows it to blend seamlessly into various architectural environments without compromising performance.

It can be deployed as part of a standalone wireless network or integrated into a larger managed enterprise infrastructure. This flexibility allows organizations to scale their networks gradually without requiring complete system overhauls.

The device is also compatible with power over Ethernet solutions, enabling simplified installation by reducing the need for separate power sources. This makes deployment more efficient and cost-effective, especially in large-scale installations.

Performance Optimization and Signal Efficiency

Signal optimization is a key aspect of this access point’s design. It uses advanced beamforming techniques to direct wireless signals toward connected devices, improving signal strength and stability. This results in better coverage and reduced dead zones within the network environment.

The system continuously monitors environmental conditions and adjusts transmission parameters to maintain optimal performance. This adaptive behavior ensures consistent connectivity even in environments with physical obstructions or high levels of radio interference.

By combining intelligent signal management with advanced radio technology, the access point delivers a reliable and efficient wireless experience across a wide range of deployment conditions.

Support for Modern Digital Workloads

Modern enterprises rely heavily on cloud applications, real-time communication platforms, and data-intensive workloads. This access point is designed to support these demands by providing stable and high-speed wireless connectivity.

It is capable of handling multiple simultaneous high-bandwidth activities such as video conferencing, cloud storage synchronization, and virtual desktop access without performance degradation.

The improved latency characteristics of Wi-Fi 6 technology ensure that real-time applications remain responsive, enhancing productivity and user satisfaction across the network.

Scalability and Future Ready Networking

Scalability is a fundamental design principle of this access point. It is built to support expanding network environments where additional devices and users are continuously added over time.

Its modular integration capabilities allow it to function within both small-scale and large-scale enterprise deployments. This ensures that organizations can expand their network infrastructure without replacing existing hardware components.

Future-ready design elements ensure compatibility with emerging networking standards and technologies, protecting long-term investment value and reducing the need for frequent hardware upgrades.

Operational Reliability and Connectivity

Reliability is essential for enterprise networking environments, and this access point is engineered to deliver consistent performance under varying conditions. It includes mechanisms for automatic recovery and failover support to maintain connectivity in the event of network disruptions.

Continuous monitoring systems help detect anomalies in real time, allowing proactive adjustments that prevent downtime. This ensures that critical business operations remain uninterrupted even in challenging network conditions.

The combination of robust hardware design and intelligent software control contributes to long-term operational stability and dependable wireless performance.
