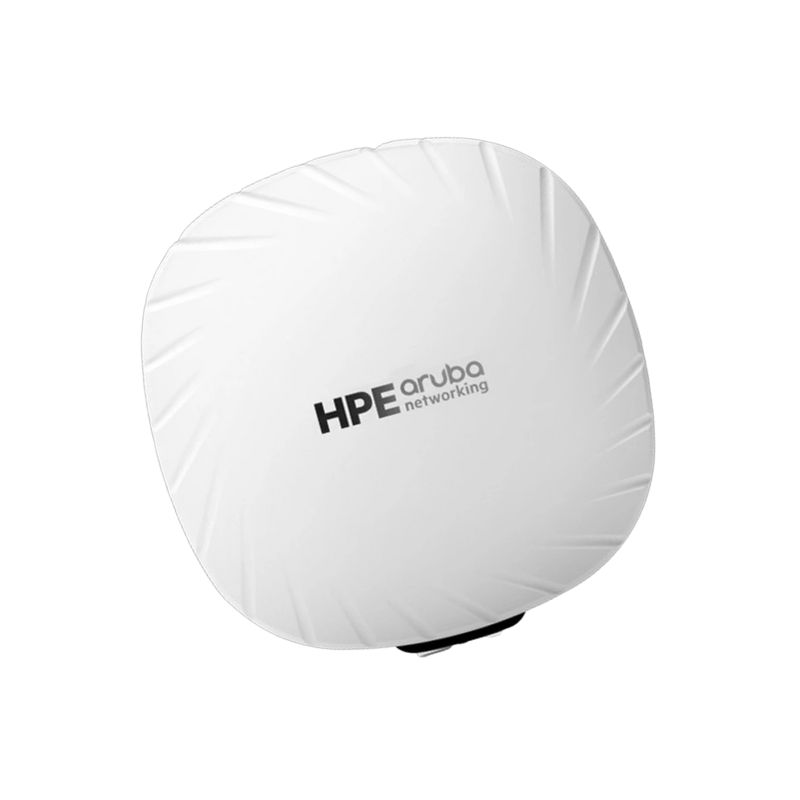

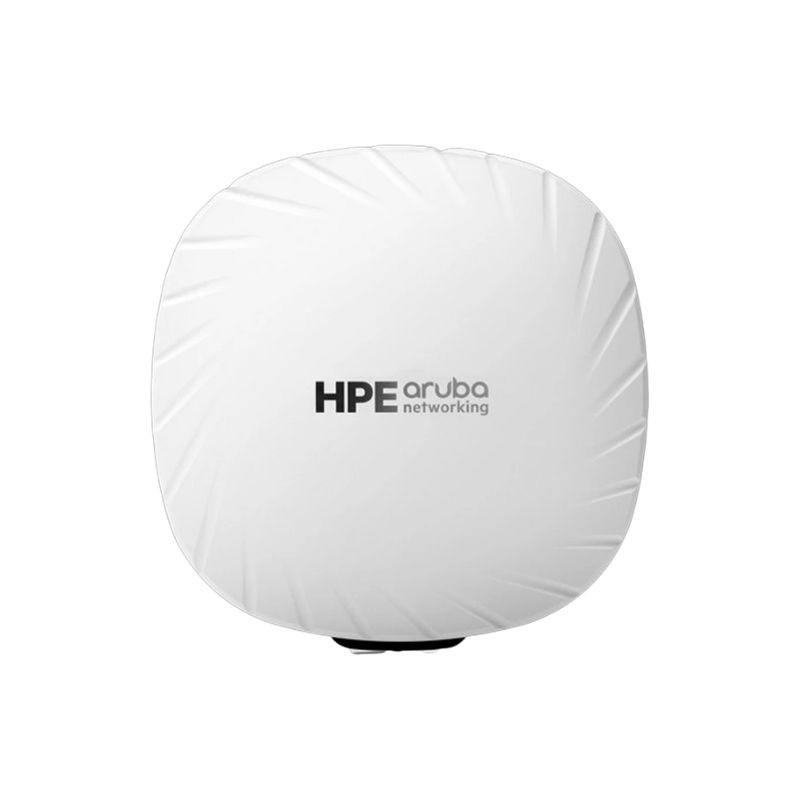

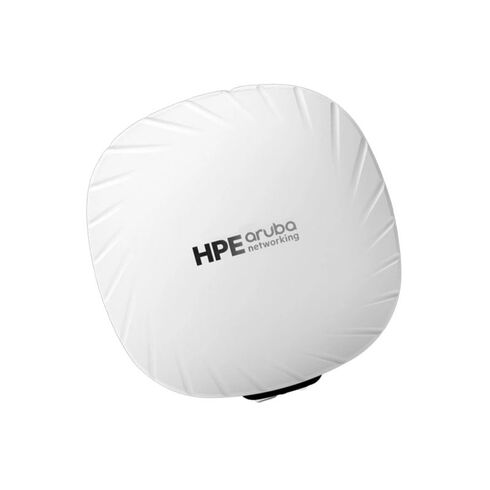

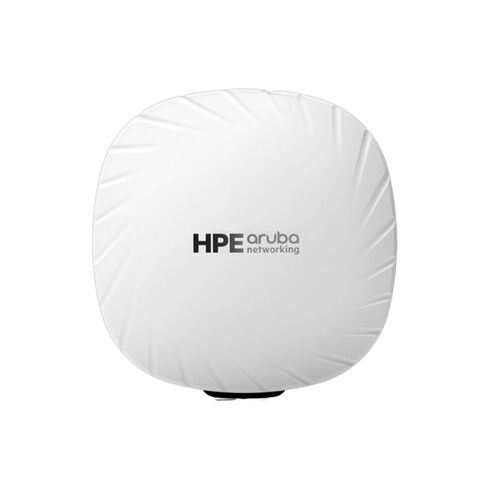

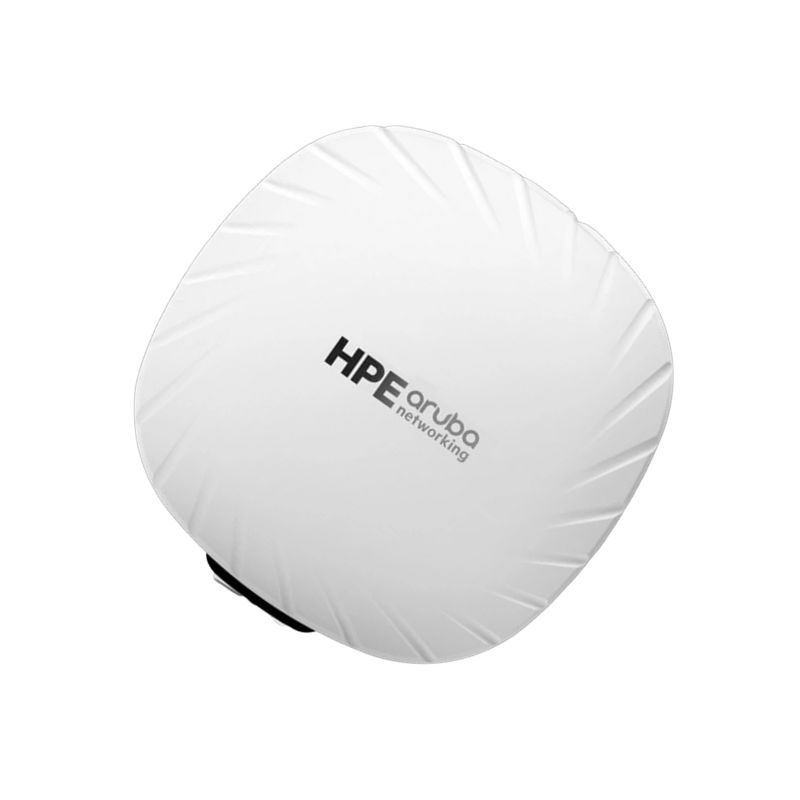

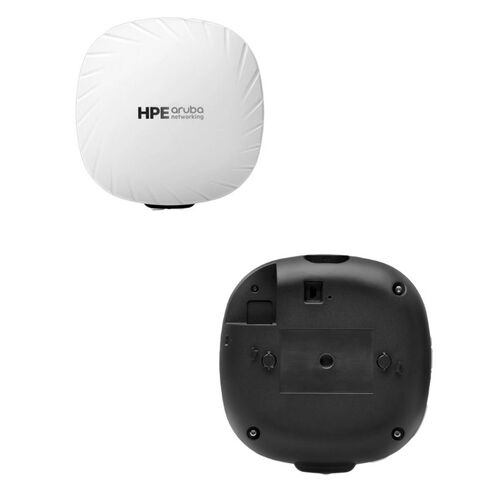

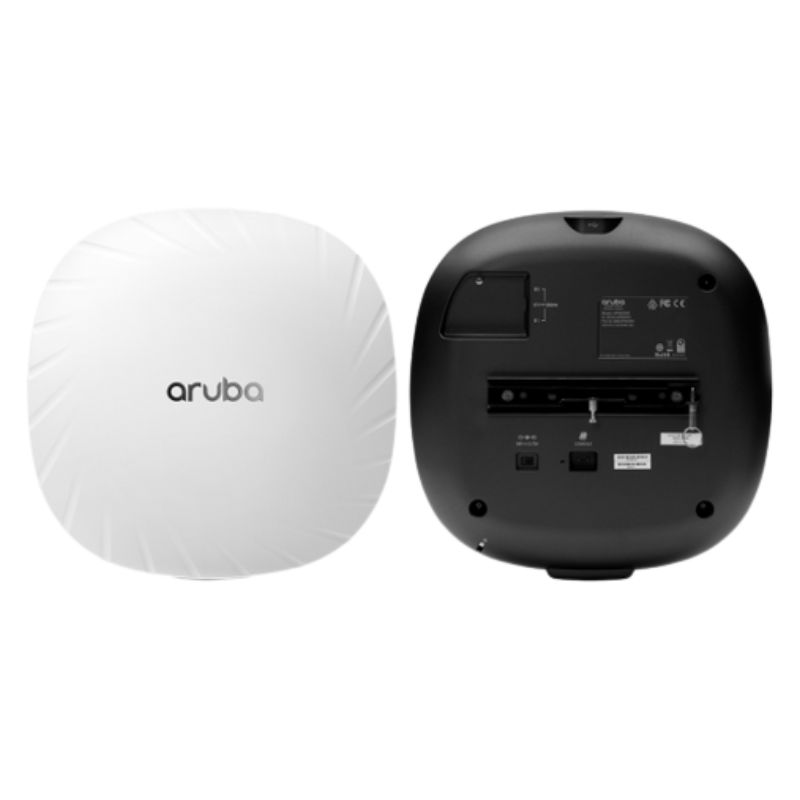

AP-555-RW HPE Aruba Networking Dual Radio 8x8/4x4 802.11ax Internal Antennas Unified Campus Wireless Access Point

HPE AP-555-RW Aruba Networking Wireless Access Point

The HPE AP-555-RW is a high-performance unified campus wireless access point, designed to deliver ultra-fast connectivity for enterprise environments. This dual-radio device supports the latest 802.11ax Wi-Fi 6 standard with integrated internal antennas optimized for indoor deployments.

General Information

• Manufacturer: HPE
• Model Number: AP-555-RW
• Device Type: Wireless Access Point

Technical Specifications

Wi-Fi and Security Standards

• Wi-Fi Certified: 802.11a, b, g, n, ac, ax
• Security Protocols: WPA, WPA2, WPA3
• Enterprise Encryption: CNSA Option
• Personal Encryption: SAE
• Open Network Support: Enhanced Open (OWE)
• Quality of Service: WMM, WMM-PS, Wi-Fi Agile Multiband

Integrated Antenna Design

• 2.4 GHz: 4x4 MIMO with downtilt omni-directional antennas, peak gain 4.3 dBi
• 5 GHz (dual-radio mode): 8x8 MIMO with peak gain 5.8 dBi
• 5 GHz (tri-radio mode): Each 4x4 radio has peak gain of 5.5 dBi (lower band) and 5.6 dBi (upper band)

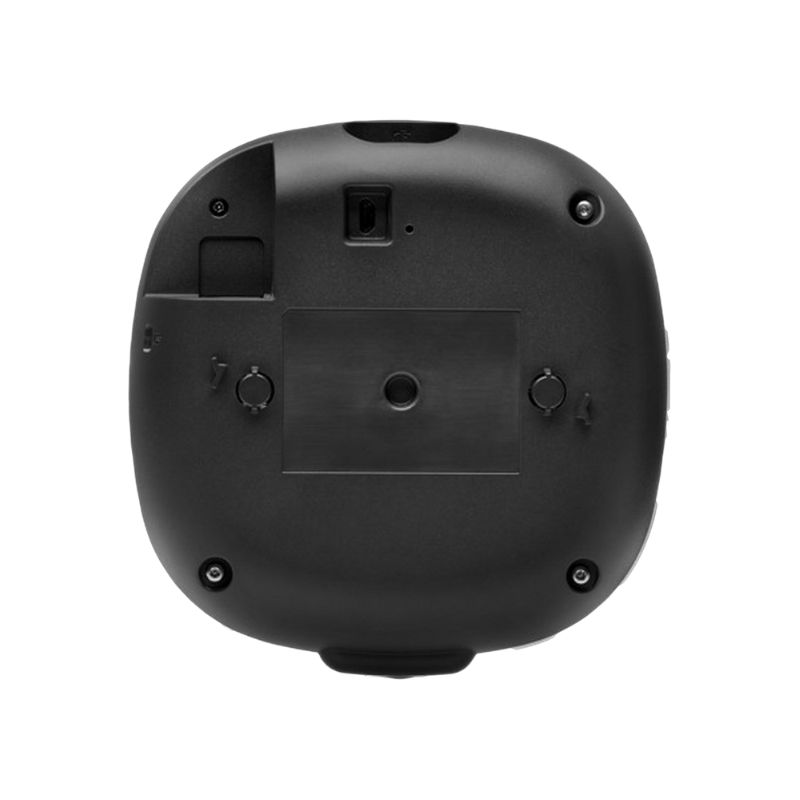

Network Ports and Interfaces

• Two HPE Smart Rate Ports (RJ-45) supporting up to 5 Gbps
• Serial console interface via proprietary micro-B USB jack
• USB 2.0 host interface (Type-A connector)

Power Consumption

• Dual-radio operation: DC: 32.6 W | PoE (802.3bt/dual 802.3at): 38.2 W | PoE (802.3at, IPM disabled): 25.1 W
• Incremental power for connected USB device: Up to 6.0 W (PoE) or 5.4 W (DC)
• Idle mode: 15.0 W (PoE) or 15.1 W (DC)
• Deep-sleep mode: 3.8 W (PoE) or 3.6 W (DC)

Radio Coverage and Performance

Indoor Deployment

The AP-555-RW is tailored for indoor campus deployments, supporting dual or tri-radio operation for optimized coverage:

5 GHz Radio (Dual-Radio Operation)

• 8 spatial streams HE80 (or 4 streams HE160)
• Maximum wireless data rate: 4.8 Gbps

5 GHz Radio (Tri-Radio Operation)

• 4 spatial streams HE80 (or 2 streams HE160)
• Maximum wireless data rate: 2.4 Gbps

2.4 GHz Radio

• 4 spatial streams HE40 (or HE20)
• Maximum wireless data rate: 1,147 Mbps (574 Mbps per stream)

Key Features for Enterprise Networks

• Supports high-density client environments
• Integrated Wi-Fi 6 features for lower latency and higher throughput
• Enhanced security with WPA3 and enterprise-grade encryption
• Optimized internal antenna design for seamless coverage
• Flexible powering options: DC, PoE, or hybrid solutions

Optimized Antenna Performance

• Downtilt omni-directional antennas provide consistent indoor coverage
• Tri-radio mode allows maximum channel utilization for high-density scenarios
• Peak antenna gains tailored for each radio band to ensure optimal signal distribution

Management and Connectivity

• Easy integration with Aruba centralized management platforms
• Supports multiple VLANs and SSIDs for segmented network deployments
• USB interface for optional peripheral devices or expansion

Energy-Efficient Design

• Idle and deep-sleep modes reduce power consumption
• Efficient PoE usage for cost-effective network operations
• Supports incremental USB device power allocation without impacting AP performance

Enterprise-Grade Wi-Fi 6 Performance for High-Density Campus

The HPE AP-555-RW Aruba Networking Dual Radio 8x8/4x4 802.11ax Internal Antennas Unified Campus Wireless Access Point represents a new class of high-performance wireless infrastructure engineered for mission-critical connectivity. this advanced access point is purpose-built for large campuses, high-density indoor venues, and organizations that demand consistent throughput, low latency, and intelligent network management. By leveraging Wi-Fi 6 (802.11ax) technology, the device significantly improves spectral efficiency, enabling more clients to connect simultaneously without performance degradation.

The dual-radio architecture combines an 8x8:8 spatial stream configuration on the 5 GHz band with a on the 2.4 GHz band, delivering exceptional aggregate throughput. This design supports bandwidth-intensive applications such as real-time collaboration, ultra-high-definition streaming, augmented reality tools, and cloud-based enterprise platforms. Internal antennas provide optimized coverage patterns while maintaining a clean aesthetic suitable for modern office environments, educational institutions, healthcare facilities, and government buildings.

Advanced 802.11ax Technologies for Superior Efficiency

Orthogonal Frequency Division Multiple Access (OFDMA)

OFDMA is a cornerstone technology of Wi-Fi 6, enabling the access point to subdivide channels into smaller resource units. Instead of serving devices sequentially, the AP-555-RW communicates with multiple clients simultaneously within a single transmission cycle. This dramatically reduces latency and improves overall network responsiveness, particularly in environments with hundreds of active devices such as lecture halls, conference centers, or open-plan offices.

Multi-User MIMO Enhancements

The 8x8 MU-MIMO capability on the 5 GHz radio allows the access point to transmit data streams to several compatible devices concurrently. This parallel communication model maximizes throughput while maintaining fairness among connected clients. Downlink and uplink MU-MIMO support ensures balanced performance for both data consumption and transmission, which is essential for cloud applications, video conferencing, and collaborative workflows.

1024-QAM Modulation

Higher-order modulation schemes increase the amount of data transmitted per signal cycle. With 1024-QAM, the AP-555-RW achieves significantly higher peak data rates compared to previous Wi-Fi standards. This capability is particularly beneficial for high-bandwidth tasks such as large file transfers, multimedia streaming, and virtual desktop infrastructure.

Internal Antenna Design and Coverage Optimization

Precision-Engineered Antenna Array

The internal antenna system is carefully calibrated to deliver uniform coverage across wide indoor spaces. Unlike external antenna solutions that may require manual alignment, the integrated design simplifies deployment while ensuring optimal signal distribution. This makes the access point ideal for ceiling-mounted installations in enterprise facilities.

Beamforming Technology

Transmit beamforming focuses wireless signals directly toward connected devices rather than broadcasting uniformly in all directions. By concentrating energy where it is needed most, the AP-555-RW enhances signal strength, reduces interference, and improves connection stability at the network edge. Users experience faster speeds and fewer dropped connections even in challenging RF environments.

Adaptive Radio Management

Automatic channel selection and power adjustment help maintain peak performance in dynamic conditions. The access point continuously monitors surrounding wireless activity and environmental factors, adjusting parameters in real time to minimize co-channel interference and maximize usable capacity.

Unified Campus Networking Capabilities

Seamless Integration with Centralized Management Platforms

The AP-555-RW operates as part of a unified network architecture, supporting centralized configuration, monitoring, and analytics. Network administrators can deploy policies, firmware updates, and performance optimizations across thousands of access points from a single management interface. This reduces operational complexity and ensures consistent security posture across the entire campus.

Controller-Based and Controllerless Operation

The device supports flexible deployment models, functioning either with dedicated mobility controllers or in a controllerless architecture using virtual control technologies. Organizations can scale their networks according to evolving requirements without replacing hardware, protecting long-term investments.

Seamless Roaming and Mobility

Fast roaming protocols enable uninterrupted connectivity as users move between coverage zones. This is particularly important for voice-over-Wi-Fi applications, mobile workforce operations, and environments where real-time data access is critical. The AP-555-RW ensures that sessions remain active without noticeable delays or reconnection events.

Security Framework for Modern Enterprise Networks

Built-In Threat Protection

Advanced intrusion detection and prevention capabilities help safeguard the wireless infrastructure against unauthorized access, rogue devices, and malicious activities. Continuous monitoring identifies anomalies and enforces security policies automatically, reducing the risk of data breaches.

WPA3 and Enhanced Encryption

Support for WPA3 provides stronger authentication and encryption mechanisms compared to earlier standards. Enhanced cryptographic protocols protect sensitive data transmissions, making the access point suitable for industries with strict compliance requirements such as finance, healthcare, and government.

Role-Based Access Control

Granular policy enforcement allows administrators to define network privileges based on user roles, device types, or authentication methods. This ensures that employees, guests, and IoT devices each receive appropriate levels of access without compromising security.

High-Density Deployment Scenarios

Large Auditoriums and Lecture Halls

Educational institutions increasingly rely on digital learning platforms, online examinations, and interactive collaboration tools. The AP-555-RW supports hundreds of simultaneous connections while maintaining consistent performance, ensuring that students and faculty experience reliable connectivity throughout the academic day.

Corporate Campuses and Headquarters

Modern enterprises depend on cloud services, unified communications, and data-driven workflows. The access point’s high capacity and low latency enable seamless operation of bandwidth-intensive applications, improving employee productivity and collaboration across departments.

Healthcare Facilities

Hospitals and clinics require dependable wireless networks for patient monitoring systems, electronic health records, and medical imaging transfers. The robust design of the AP-555-RW supports mission-critical connectivity where downtime is not acceptable.

Performance Optimization for IoT and Smart Devices

Efficient Handling of Low-Power Devices

Wi-Fi 6 introduces Target Wake Time technology, allowing IoT devices to schedule communication intervals. This reduces power consumption while minimizing channel contention. The AP-555-RW efficiently manages large populations of sensors, smart lighting systems, security cameras, and building automation devices.

Device Classification and Prioritization

Intelligent traffic management identifies device categories and application types, allocating bandwidth accordingly. Critical services receive priority, ensuring that essential operations continue smoothly even during peak usage periods.

Energy Efficiency and Sustainability Considerations

Reduced Power Consumption

Despite its high performance, the access point incorporates energy-saving features that lower operational costs. Efficient chipsets and adaptive power controls optimize consumption based on traffic levels, contributing to environmentally responsible IT practices.

Power over Ethernet

Single-cable deployment using Power over Ethernet simplifies installation while eliminating the need for separate electrical wiring. This not only reduces infrastructure complexity but also enables flexible placement options across large facilities.

Future-Ready Connectivity Infrastructure

Scalability for Growing Network Demands

As organizations adopt new digital initiatives, network requirements continue to expand. The AP-555-RW is engineered with sufficient capacity to accommodate future device growth, emerging applications, and evolving wireless standards.

Long-Term Investment Protection

Enterprises investing in high-end wireless infrastructure expect durability, reliability, and upgrade flexibility. The AP-555-RW delivers enterprise-grade components and firmware support designed to maintain optimal performance over extended deployment lifecycles, reducing total cost of ownership while maximizing return on investment.
