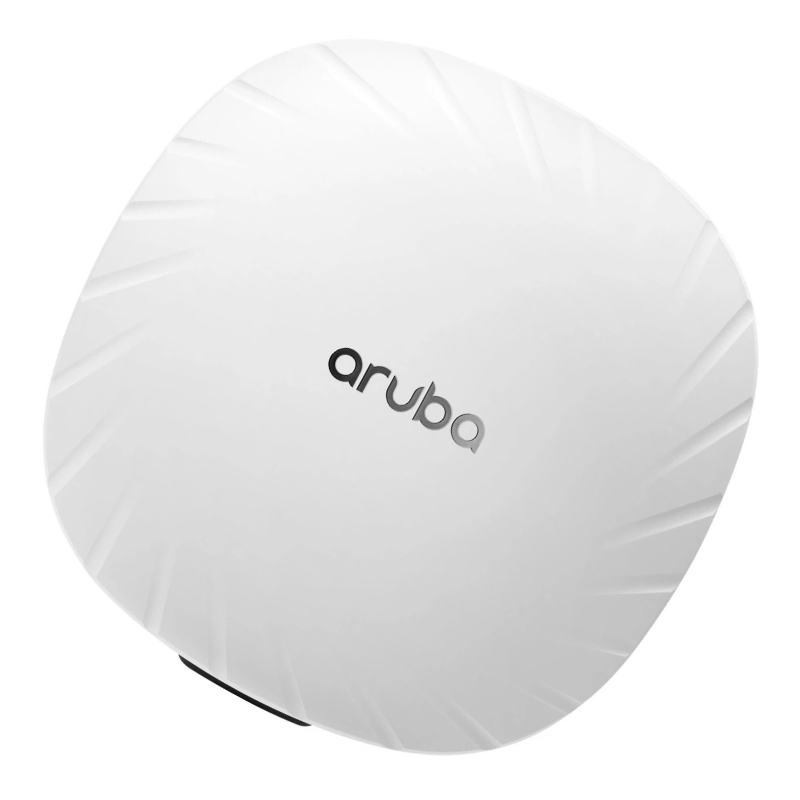

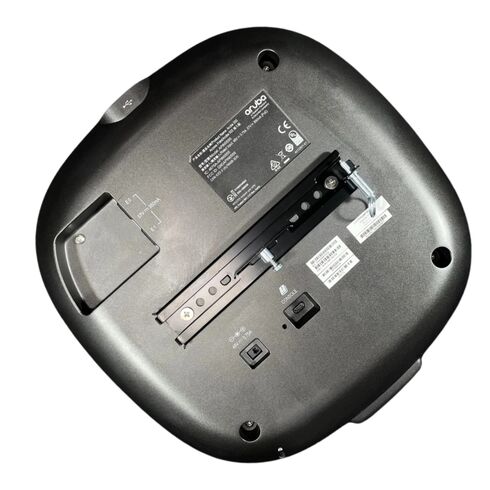

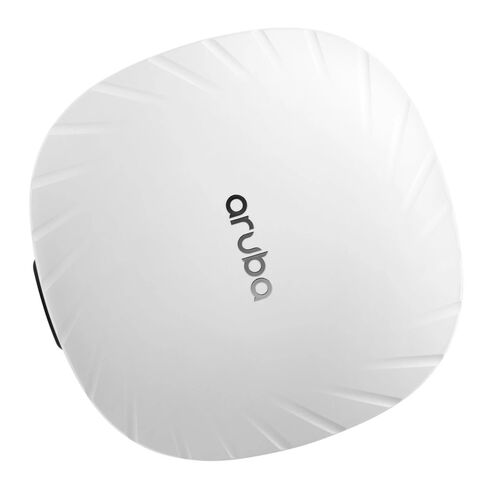

JZ357A HPE Aruba AP-555 Wireless Access Point

Details of HPE Aruba AP-555 Wireless Access Point

The HPE JZ357A Aruba AP-555 is a powerful wireless access point featuring an internal antenna and advanced 802.11AX technology, designed to deliver ultra-fast connectivity and reliable performance for enterprise networks.

General Information

• Manufacturer: HPE
• Part Number: JZ357A
• Device Type: Wireless Access Point

Technical Information

• Form Factor: In-ceiling
• Connectivity: Wireless
• Data Transfer Rate: 4.8 Gbps

Supported Coding Formats

• Cck
• 64 Qam
• 256 Qam
• Bpsk
• Qpsk
• 16 Qam
• Ofdm
• 1024 Qam
• Ofdma

Protocols & Standards

• IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
• IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
• Zigbee
• Bluetooth 5.0

Frequency Bands

• 2.4 GHz
• 5 GHz

Performance Metrics

• Maximum at 2.4 GHz: 1.150 Mbps
• Maximum at 5 GHz: 4.8 Gbps
• Aggregate Bandwidth: 5.95 Gbps

Capacity

• Wireless Clients per Radio: 1024
• OFDMA Units: 37
• BSSIDs per Radio: 16

Advanced Features

• Trusted Platform Module (TPM)
• Adaptive Radio Management (ARM)
• Secure Core Technology (SCT)
• Kensington Security Lock Compatible

Wireless Enhancements

• Transmit Beamforming (TxBF)
• MU-MIMO Technology (4x4 & 8x8)
• Dynamic Frequency Selection (DFS)
• Aruba AirMatch
• Spectrum Analyzer

Energy & Efficiency

• Energy-efficient Ethernet (EEE)
• Custom Deep-sleep Mode
• Target Wait Time (TWT)

Encryption & Compliance

• WPA
• WPA2
• WPA3

Compliant Standards

• IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
• IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
• IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt

Antenna Specifications

• Type: Internal
• Directivity: Omni-directional

IoT Compatibility

• IoT Ready: Yes
• Communications: Bluetooth & Zigbee

Expansion & Connectivity

• 1 x HPE Smart Rate RJ-45
• 1 x 5GBase-T RJ-45
• 1 x USB 2.0 Type-A
• 1 x Console Micro-USB

Overview of HPE JZ357A Aruba AP-555 Wireless Access Point

The HPE JZ357A Aruba AP-555 Wireless Access Point with Internal Antenna is designed for organizations seeking enterprise-grade wireless connectivity with exceptional performance, reliability, and security. As part of the Aruba Wi-Fi 6 portfolio, this access point is engineered to meet the increasing demands of modern workplaces, educational institutions, healthcare facilities, hospitality environments, government organizations, and high-density commercial deployments. Businesses that depend on uninterrupted wireless communication benefit from advanced technologies that maximize throughput while minimizing latency and interference.

With the growing adoption of cloud computing, unified communications, video conferencing, IoT devices, and bandwidth-intensive business applications, organizations require a wireless infrastructure capable of handling thousands of simultaneous connections efficiently. The Aruba AP-555 addresses these challenges by leveraging IEEE 802.11ax technology, intelligent radio management, advanced security mechanisms, and enterprise-class performance optimization. Its internal antenna design delivers reliable wireless coverage while maintaining an aesthetically pleasing installation suitable for offices, conference rooms, retail stores, classrooms, hospitals, and public venues.

Enterprise Wi-Fi 6 Performance for Modern Networks

Designed for High-Density Wireless Environments

Modern enterprise networks are expected to support hundreds or even thousands of connected devices simultaneously. The HPE JZ357A Aruba AP-555 is engineered specifically for these demanding environments by utilizing Wi-Fi 6 innovations that improve overall network efficiency. Instead of simply increasing raw speed, Wi-Fi 6 optimizes spectrum utilization, enabling multiple clients to communicate efficiently without creating excessive congestion.

Organizations implementing digital transformation initiatives benefit from higher wireless capacity, improved client experiences, and reduced network bottlenecks. Employees can collaborate through cloud applications, conduct HD video meetings, transfer large files, and access enterprise systems without compromising wireless performance.

Optimized Wireless Capacity

The Aruba AP-555 supports intelligent resource allocation that enables multiple wireless clients to operate simultaneously while maintaining excellent responsiveness. This enhanced efficiency is especially valuable in environments where smartphones, laptops, tablets, printers, security cameras, IoT sensors, and other wireless devices continuously compete for available bandwidth.

High-capacity wireless networking ensures every connected device receives appropriate airtime, resulting in improved application responsiveness, smoother multimedia experiences, and greater user satisfaction across the entire organization.

Internal Antenna Architecture

Professional Indoor Deployment

The integrated internal antenna configuration offers a clean appearance that blends seamlessly into professional environments. Unlike external antenna models, the internal antenna design minimizes visible hardware while still providing extensive wireless coverage suitable for enterprise indoor deployments.

This makes the HPE JZ357A Aruba AP-555 particularly suitable for executive offices, conference facilities, educational campuses, healthcare institutions, retail locations, hospitality venues, libraries, and government buildings where both aesthetics and wireless performance are important considerations.

Reliable Signal Distribution

The antenna system is engineered to provide balanced RF coverage throughout indoor spaces. Intelligent antenna optimization helps reduce dead zones while supporting stable client connections across various building layouts. Whether deployed in open office spaces or environments with multiple walls and partitions, the access point maintains consistent wireless communication.

Advanced Wi-Fi 6 Technology

Improved Network Efficiency

Wi-Fi 6 introduces numerous enhancements beyond simple throughput improvements. Technologies such as Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO), Target Wake Time (TWT), and advanced modulation techniques significantly improve wireless efficiency under heavy network loads.

These innovations allow organizations to maximize wireless infrastructure investments while supporting expanding numbers of connected devices without requiring constant hardware upgrades.

Orthogonal Frequency Division Multiple Access

OFDMA enables simultaneous communication with multiple client devices by dividing wireless channels into smaller resource units. This scheduling approach minimizes latency while increasing spectral efficiency. Applications that require real-time communication, including VoIP, collaboration software, and industrial IoT solutions, benefit from improved responsiveness.

Multi-User MIMO Technology

MU-MIMO enables the access point to communicate with several compatible devices concurrently instead of sequentially. This significantly improves network capacity and increases wireless efficiency during peak business hours when numerous employees access cloud-based resources simultaneously.

Target Wake Time

Target Wake Time allows compatible wireless devices to conserve battery power by scheduling communication intervals intelligently. This feature is especially beneficial for IoT deployments where battery-powered devices remain connected for extended periods while minimizing energy consumption.

Business-Class Wireless Reliability

Consistent Connectivity Throughout the Workday

Enterprise operations depend on uninterrupted connectivity for business-critical applications. The Aruba AP-555 is engineered to deliver dependable wireless communication throughout continuous daily operation. Intelligent RF management continuously analyzes surrounding wireless conditions and automatically adjusts operating parameters to maintain optimal performance.

This adaptive capability helps reduce interference from neighboring wireless networks while improving client connectivity across changing environmental conditions.

Support for Mission-Critical Applications

Organizations increasingly rely on cloud-hosted applications, virtual desktops, ERP platforms, CRM software, collaboration suites, voice communications, and video conferencing. The Aruba AP-555 provides the stability required to support these applications with minimal interruptions while maintaining excellent quality of service.

Enterprise Security Features

Comprehensive Wireless Protection

Wireless security remains one of the most important considerations for enterprise IT departments. The HPE JZ357A Aruba AP-555 incorporates multiple layers of security designed to protect organizational data, user credentials, and connected devices against unauthorized access.

Modern authentication protocols, encrypted communications, secure management interfaces, and advanced access control mechanisms contribute to a comprehensive security framework suitable for enterprise environments.

Secure Authentication

Organizations can implement enterprise authentication methods that integrate with existing identity management solutions. Secure authentication ensures only authorized employees, contractors, and approved devices gain access to corporate wireless resources.

Data Encryption

Advanced encryption standards protect wireless communications from interception during transmission. Sensitive corporate information remains protected while employees securely access business applications from laptops, smartphones, and tablets.

Network Segmentation

The Aruba platform supports flexible network segmentation strategies that separate employee devices, guest users, IoT equipment, and administrative systems into isolated logical networks. This segmentation reduces security risks while simplifying network administration.

Cloud and On-Premises Network Management

Flexible Deployment Options

The Aruba networking ecosystem provides organizations with multiple deployment models to accommodate various operational requirements. Businesses can manage wireless infrastructure using cloud-based platforms, centralized controllers, or controllerless architectures depending on organizational preferences and IT strategies.

This flexibility enables companies to design scalable wireless infrastructures that align with existing technology investments while supporting future growth.

Simplified Administrative Control

Centralized management significantly reduces administrative complexity. Network administrators can configure wireless policies, monitor access point health, analyze client activity, troubleshoot performance issues, and deploy firmware updates from unified management interfaces.

This streamlined administration minimizes operational overhead while improving network visibility across distributed enterprise locations.

Intelligent Radio Resource Management

Automatic RF Optimization

Wireless environments continually change as new devices connect, neighboring access points are installed, or physical layouts evolve. The Aruba AP-555 continuously evaluates RF conditions and dynamically adjusts transmit power, channel selection, and radio parameters to optimize overall wireless performance.

Automated optimization reduces manual configuration requirements while maintaining reliable wireless coverage across enterprise deployments.

Interference Reduction

Intelligent radio management minimizes the impact of co-channel interference, adjacent-channel interference, and environmental RF noise. This contributes to improved wireless stability even within densely populated office buildings containing numerous wireless networks.

Scalable Enterprise Infrastructure

Supporting Organizational Growth

As businesses expand, wireless infrastructure must scale efficiently without requiring complete network redesigns. The Aruba AP-555 integrates into larger enterprise wireless architectures, allowing organizations to add additional access points while maintaining centralized management and consistent policy enforcement.

This scalability supports branch offices, corporate campuses, educational institutions, healthcare networks, warehouses, manufacturing facilities, and retail chains.

Investment Protection

Deploying enterprise-grade networking equipment provides long-term value by supporting evolving wireless standards, expanding client populations, and increasing bandwidth requirements. Organizations investing in Aruba networking solutions gain a platform capable of adapting to changing business needs while reducing infrastructure replacement cycles.

Application Performance Optimization

Quality of Service Management

Enterprise wireless networks simultaneously transport voice, video, cloud applications, file transfers, web traffic, and IoT communications. Intelligent Quality of Service mechanisms prioritize latency-sensitive applications while ensuring fair resource allocation across all connected devices.

Voice calls remain clear, video conferences maintain stable quality, and business-critical applications receive appropriate network priority during periods of heavy utilization.

Enhanced User Experience

Employees experience faster application responsiveness, smoother roaming, quicker authentication, and more reliable connectivity throughout the workplace. These improvements contribute directly to productivity while reducing IT support requests related to wireless performance.

Industry Applications

Corporate Offices

Corporate organizations require dependable wireless connectivity to support hybrid work environments, collaboration platforms, cloud productivity suites, and enterprise applications. The Aruba AP-555 enables employees to remain productive regardless of workspace location while maintaining secure access to organizational resources.

Educational Institutions

Schools, colleges, universities, and training centers increasingly rely on digital learning platforms, online examinations, multimedia content, and collaborative educational tools. High-capacity wireless networking ensures students, faculty, and administrative staff maintain reliable connectivity throughout classrooms, libraries, lecture halls, and campus facilities.

Healthcare Facilities

Hospitals, clinics, laboratories, and medical centers require secure wireless infrastructure supporting electronic medical records, diagnostic systems, wireless medical equipment, telemedicine, and administrative operations. Reliable wireless connectivity contributes to improved patient care while supporting healthcare professionals with uninterrupted access to critical information.

Retail Businesses

Retail stores utilize wireless connectivity for point-of-sale systems, inventory management, digital signage, customer engagement platforms, mobile checkout solutions, and employee communications. Enterprise-grade wireless infrastructure supports seamless shopping experiences while improving operational efficiency.

Hospitality Industry

Hotels, conference centers, resorts, and entertainment venues benefit from dependable wireless connectivity that enhances guest satisfaction. High-performance Wi-Fi supports streaming services, mobile applications, conference technologies, and business traveler productivity while accommodating large numbers of concurrent users.

Integration with Enterprise Networking Solutions

Seamless Infrastructure Compatibility

The HPE JZ357A Aruba AP-555 integrates efficiently with enterprise switching platforms, security appliances, authentication services, network monitoring tools, and centralized management systems. Organizations can deploy comprehensive networking architectures that simplify administration while maintaining consistent security and operational policies.

Support for Hybrid IT Environments

Many organizations operate hybrid infrastructures that combine on-premises systems with cloud services. The Aruba AP-555 supports these environments by providing secure, high-performance wireless connectivity that enables users to access applications regardless of where workloads are hosted.
