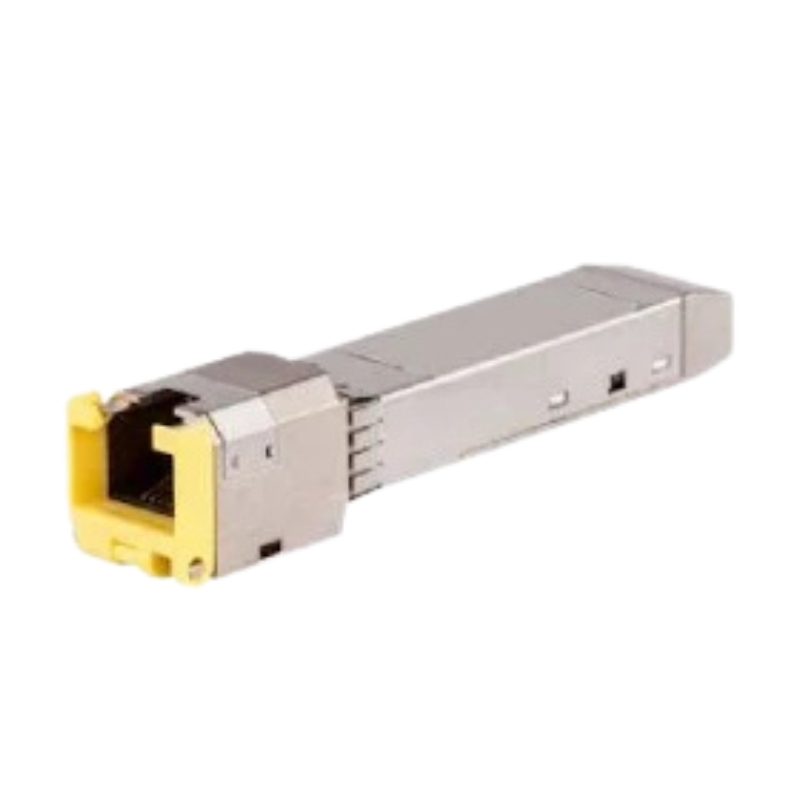

HPE Aruba Instant On 1g Sfp Rj45 T 100M Cat5e R9D17A Transceiver.

product Overview Of HPE Aruba R9D17A Transceiver

Overview of Hardware Capabilities

• Form Factor: Small Form-factor Pluggable (SFP)
• Data Rate: 1 Gbps (1GBASE-T)
• Connector: RJ45
• Transmission Distance: Up to 100 meters over Cat5e
• Hot Swappable: Yes
• Compliance: IEEE 802.3ab
• Power Consumption: Less than 1.5W

Port Specifications and Connectivity Options

The HPE R9D17A Aruba Instant On transceiver module offers robust single-port connectivity optimized for high-speed data transmission. Designed with simplicity and performance in mind, it serves as a cost-efficient solution for network expansion.

• Single Gigabit Ethernet Port: Features one 1000BASE-T LAN interface, allowing seamless integration into enterprise and SMB networking environments.
• Connector Format: Employs a standard RJ-45 interface, ensuring compatibility with widely used Cat5e cabling infrastructure.
• Transmission Range: Supports up to 100 meters, enabling reliable connectivity over extended distances within structured cabling setups.

Interface Attributes and Network Integration

This plug-and-play transceiver simplifies deployment while providing the stability needed for mission-critical operations. Its reliable throughput and minimal latency contribute to a seamless networking experience.

Key Functional Highlights:

• 1000 Mbps Data Throughput: Efficient gigabit speed enables swift data transfers with reduced bottlenecks.
• Auto-Negotiation Support: Automatically adjusts speed and duplex mode to match connected network devices.
• Full-Duplex Communication: Enables simultaneous bidirectional data flow, improving performance for modern workloads.

Installation and Compatibility Considerations

Built to adhere to IEEE standards, the HPE R9D17A SFP transceiver integrates effortlessly with compatible Aruba Instant On switches and other HPE networking gear. Its copper-based transmission makes it a reliable choice for short-distance connections.

Highlights of Compatibility:

• Plug-and-Play Functionality: Installs without the need for complex configuration or specialized tools.
• Widespread Cable Support: Optimized for use with standard Cat5e Ethernet cables.
• Broad Device Support: Compatible with Aruba Instant On switches and various HPE network infrastructures.

Application Scenarios and Use Cases

The HPE R9D17A SFP RJ45 module is ideal for environments demanding flexible and consistent wired connectivity. Whether in small offices or branch networks, it ensures uninterrupted data exchange between endpoints.

Real-World Applications:

• Connecting workstations to aggregation switches in compact business setups
• Linking access points or IP surveillance cameras to edge switches
• Temporary network expansion for project-based deployment
• Reliable LAN extension within server rooms or structured cabling closets

Durability and Design Efficiency

Engineered for durability, this SFP module provides both resilience and compact size. Its low power consumption also contributes to operational efficiency in energy-conscious installations.

Design Benefits Include:

• Compact Footprint: Occupies minimal space in switch or transceiver slots.
• Robust Construction: Engineered with long-lasting components for dependable operation.
• Efficient Energy Use: Low-power operation minimizes heat output and power draw.

Explore the HPE Aruba R9D17A Instant On 1G SFP RJ45 T 100M Cat5e Transceiver

The HPE Aruba R9D17A Instant On 1G SFP RJ45 T 100M Cat5e Transceiver is engineered for high-speed Ethernet connectivity and is designed to deliver reliable, secure, and cost-effective networking for small to medium-sized businesses. As part of the Aruba Instant On portfolio, this transceiver provides plug-and-play simplicity while meeting the rigorous demands of modern business networks. Its compatibility with standard Cat5e cabling and RJ45 connectors makes it an optimal solution for enterprises seeking efficient 1GBASE-T network expansion via SFP ports.

Key Features of the HPE Aruba R9D17A 1G SFP RJ45 Transceiver

Designed for flexibility, performance, and ease of integration, this transceiver provides crucial functionality in networking environments where space, budget, and efficiency are top priorities.

Plug-and-Play Simplicity

The HPE Aruba R9D17A supports hot-swappable functionality, allowing users to add or replace it without disrupting the existing network. This makes network upgrades and maintenance simple, fast, and non-intrusive.

RJ45 Interface with 1GBASE-T Support

The use of the RJ45 interface ensures compatibility with existing copper Ethernet cabling infrastructures. Supporting 1GBASE-T Ethernet, this transceiver enables data transfer speeds of up to 1 Gbps over standard Cat5e cables for distances up to 100 meters.

Enhanced Compatibility

Fully compatible with Aruba Instant On switches and a wide range of SFP-based equipment, the R9D17A transceiver ensures interoperability across multi-vendor environments, allowing IT administrators to scale networks without compatibility concerns.

Energy-Efficient Operation

The transceiver is designed with low power consumption in mind, helping reduce energy usage while maintaining optimal performance. This makes it a sustainable choice for long-term deployments in businesses concerned with minimizing operational costs and environmental impact.

Compliance Standards

The Aruba R9D17A transceiver adheres to the IEEE 802.3ab standard for Gigabit Ethernet over twisted-pair copper. This compliance ensures that the module delivers predictable, stable performance across different equipment types and brands.

Ideal Use Cases for the Aruba R9D17A 1G Transceiver

Businesses across various industries benefit from the capabilities of the Aruba R9D17A. Whether you operate a retail location, office branch, hospitality facility, or educational institution, this transceiver provides scalable network expansion at a fraction of the cost of fiber optic deployments.

Small and Medium Business Networking

SMBs often struggle with budget constraints when upgrading network infrastructure. The Aruba R9D17A allows seamless integration of gigabit Ethernet over existing copper cabling, delivering high throughput without major capital investment.

Flexible Switch Uplink Expansion

By using the R9D17A with compatible Aruba Instant On switches, businesses can extend their networks quickly with additional 1G uplinks. This transceiver is perfect for connecting edge switches to core switches or network aggregation points without the need for fiber optics.

Ideal for Edge Network Devices

For businesses deploying IP surveillance, VoIP systems, or other bandwidth-sensitive services, this transceiver offers low-latency and high-speed performance essential for edge applications, ensuring smooth communication and media streaming.

Compatibility with Aruba Instant On Switch Series

The R9D17A is specifically engineered to complement the Aruba Instant On switch family, including models like the 1930, 1830, and 1960 series. These switches provide affordable enterprise-grade networking solutions with scalability and performance tailored to growing business environments.

Validated Compatibility

HPE certifies the R9D17A for use in Aruba Instant On products, ensuring 100% compatibility and optimal performance. This guarantees peace of mind for IT managers deploying mission-critical applications.

Integration with Mixed Network Environments

Although optimized for Aruba products, the transceiver is also usable in mixed network environments thanks to adherence to standardized protocols. Its performance remains consistent even in diverse infrastructures.

Advantages Over Fiber Optic Transceivers

While fiber optics deliver ultra-high speeds over long distances, copper-based transceivers like the R9D17A offer compelling advantages for short-range, high-performance connections.

Lower Cost

Copper-based SFP transceivers are significantly less expensive than fiber optics and require no additional investment in costly cabling or optical connectors. This makes them perfect for budget-conscious deployments.

Simplified Infrastructure

Using existing Cat5e infrastructure eliminates the need for fiber splicing, polishing, and special handling, making installation and maintenance easier for general IT staff.

Power Efficiency

Copper transceivers consume less power than their fiber counterparts, reducing the burden on network hardware and decreasing heat output in dense data center racks or switch closets.

Security and Reliability in Business Networks

Data Integrity and Packet Handling

The HPE Aruba R9D17A is optimized for reliable packet delivery, low error rates, and minimal packet loss. Its hardware-level checks ensure high levels of data integrity during transmission, vital for voice, video, and mission-critical applications.

Reduced Downtime with Hot Swap Capability

The ability to hot-swap transceivers means less downtime during maintenance, upgrades, or failure recovery. For businesses requiring constant uptime, this feature is invaluable.

Reliable Signal Quality

Signal strength and consistency over copper cables are maintained through advanced digital signal processing (DSP) and adaptive equalization, ensuring stable network operation even in electrically noisy environments.

Installation and Deployment Best Practices

Deploying the R9D17A is straightforward, but following best practices ensures maximum performance and longevity of both the transceiver and the connected network infrastructure.

Use Quality Cat5e or Higher Cables

While Cat5e is the minimum requirement, using Cat6 or Cat6a cables provides better shielding, improved signal quality, and lower attenuation, especially over longer cable runs approaching the 100-meter limit.

Ensure Proper Insertion and Locking

Always insert the SFP module gently into the SFP port until it clicks into place. Securely locking it reduces the chance of accidental disconnections and electrical contact issues.

Monitor Transceiver Performance

Many Aruba switches support diagnostics through CLI or GUI interfaces, allowing administrators to monitor link speed, error rates, and power consumption for each transceiver. Regular monitoring ensures network health.

Common Applications for Aruba Copper SFP Modules

• Access layer switch interconnection
• Aggregation layer uplinks
• VoIP phone connectivity
• Surveillance camera deployments
• POS terminal networking
• Wi-Fi access point backhaul

Point-to-Point Ethernet Connectivity

In environments where direct switch-to-switch communication is required, using R9D17A modules provides a simple and fast point-to-point link at full gigabit speeds.

Connecting Non-PoE Devices

For network devices that do not require Power over Ethernet, this transceiver is ideal as it provides fast data transmission without additional power concerns.
