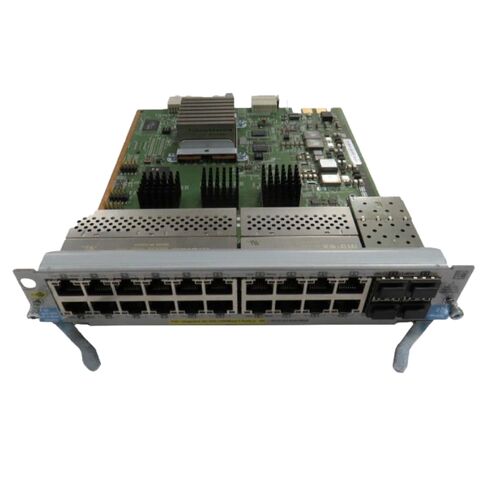

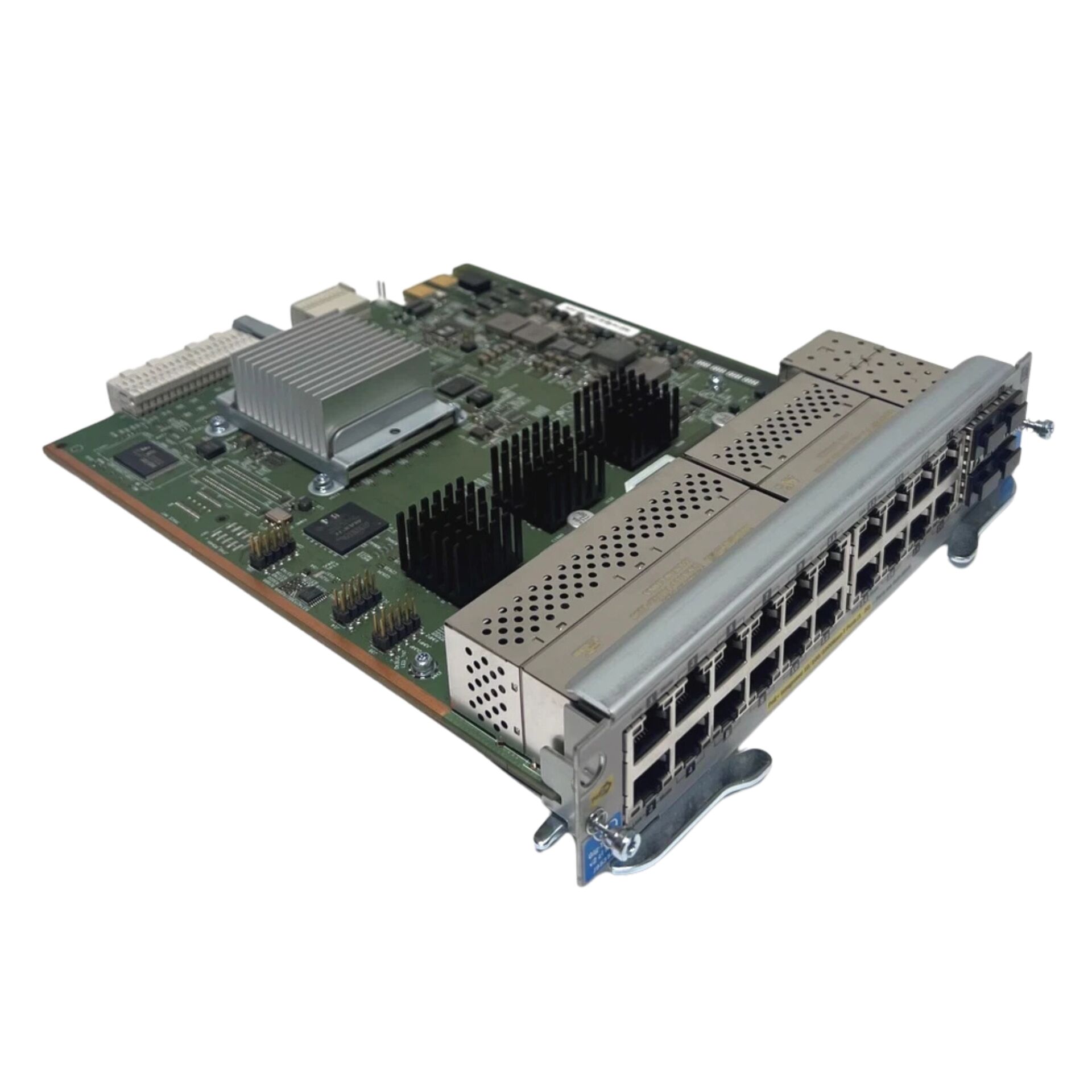

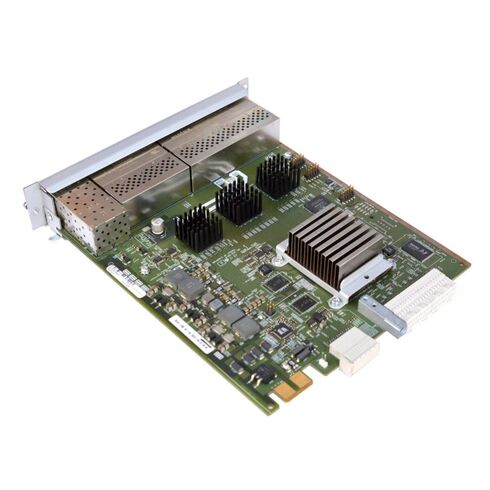

HPE J9535A ProCurve 20-Ports 4-Ports Expansion Module.

The HPE J9535A 20-Port Gig-T PoE+ / 4-Port SFP V2 ZL Module is an essential networking component designed to enhance the functionality of Hewlett Packard Enterprise (HPE) networking switches. It serves as a versatile expansion module that offers robust support for both power over Ethernet (PoE) and fiber connections. This module is engineered for use in environments that demand high performance, scalability, and the flexibility to support a wide range of devices, including VoIP phones, security cameras, and wireless access points.

Key Features of the HPE J9535A Module

The HPE J9535A module offers a wide range of features that make it a valuable addition to any enterprise network infrastructure. Its key features include:

• 20 Gigabit Ethernet (Gig-T) Ports with PoE+ Support: This module provides 20 Gigabit Ethernet ports, supporting 802.3af and 802.3at PoE+ standards. This allows it to deliver both data and power to connected devices, reducing the need for separate power adapters and simplifying the network setup.
• 4 SFP Ports for Fiber Connectivity: The module includes 4 SFP (Small Form-factor Pluggable) ports that enable high-speed fiber optic connections for long-distance network communication. These ports support both 1G and 10G speeds, making them ideal for backbone connections and high-throughput applications.
• Seamless Integration with HPE Networking Switches: The HPE J9535A is fully compatible with a variety of HPE networking switches, including the HPE 2920, 5400R, and 3500 series switches, ensuring seamless integration into existing network infrastructures.
• Enhanced Power Efficiency: With PoE+ support, this module can provide up to 30 watts per port, enabling the powering of a broad range of devices, including high-power equipment such as video surveillance cameras, IP phones, and wireless access points.
• High Scalability: The 20 Ethernet ports and 4 SFP ports offer significant expansion potential for growing networks. Whether for a small business or a large enterprise, the HPE J9535A can meet your network expansion needs.

Benefits of Using the HPE J9535A Module

Incorporating the HPE J9535A module into your network provides several notable benefits that can optimize network performance, reduce operational costs, and enhance overall reliability:

• Reduced Cable Clutter: With PoE+ capability, you can eliminate the need for additional power cables and adapters, simplifying the installation process and reducing cable clutter.
• Cost Savings: The integration of power and data transmission into a single cable helps reduce costs associated with deploying network infrastructure, particularly for devices that require both power and data connections.
• Flexible and Future-Proof: The HPE J9535A supports both copper (Gig-T) and fiber (SFP) connections, providing the flexibility to use different types of cables and media based on the specific needs of your network. It is also designed to support future networking demands, with 10G SFP+ ports ensuring that the module remains relevant in high-speed network environments.
• Improved Network Resilience: The module supports features such as load balancing and fault tolerance, helping to ensure that your network remains operational even in the event of a failure. This enhances overall network resilience and uptime.
• Centralized Power Management: The HPE J9535A allows centralized power management of connected devices, making it easier to monitor and control power usage across the network.

Applications of the HPE J9535A Module

The HPE J9535A 20-Port Gig-T PoE+ / 4-Port SFP V2 ZL Module is ideal for a wide range of applications across different industries. Below are some of the most common use cases for this module:

Enterprise Networking

In enterprise networking, the HPE J9535A module is used to create robust, high-speed, and scalable networks that support a wide variety of connected devices. Whether for a corporate office or a large campus, this module can provide the necessary connectivity and power support to enable smooth, uninterrupted business operations.

IP Surveillance Systems

The PoE+ functionality of the HPE J9535A module makes it perfect for deploying IP cameras and other surveillance equipment. With 20 PoE+ ports, you can power numerous cameras simultaneously while providing reliable network connections, making it ideal for security applications in large facilities or critical infrastructure.

VoIP and Unified Communications

The HPE J9535A module is an excellent choice for supporting Voice over IP (VoIP) devices such as IP phones, conference systems, and unified communication platforms. By providing both data and power through a single Ethernet cable, this module streamlines the deployment of VoIP solutions, reducing setup complexity and improving operational efficiency.

Wireless Access Points (WAPs)

For businesses or campuses with wireless networks, the HPE J9535A module can provide the necessary power to wireless access points (WAPs). The PoE+ functionality enables a streamlined deployment of WAPs without the need for separate power sources, ensuring consistent and reliable wireless coverage across the network.

Technical Specifications

The technical specifications of the HPE J9535A 20-Port Gig-T PoE+ / 4-Port SFP V2 ZL Module ensure that it meets the high standards required for enterprise-class networking. Below are some key details:

Physical Characteristics

• Form Factor: The HPE J9535A module is designed to fit into HPE networking switches that support ZL (Z series) modules, ensuring easy installation and compatibility with various models.
• Dimensions: The module's dimensions are compact, making it ideal for high-density installations where space is limited.
• Weight: The module is lightweight, allowing for easy handling and installation within the network rack.

Port Configuration

• 20 Gigabit Ethernet (Gig-T) Ports: These ports support 10/100/1000Mbps speeds and are capable of delivering both data and power (PoE+).
• 4 SFP Ports: These ports provide support for fiber-optic connectivity, enabling high-speed data transmission over long distances. The SFP ports are compatible with both 1G and 10G SFP modules, providing flexibility for various network requirements.

Power and Performance

• Power over Ethernet (PoE+): Each of the 20 Ethernet ports can deliver up to 30 watts of power, ensuring that connected devices receive the necessary power for optimal operation.
• Link Speed: The SFP ports support a variety of speeds, ranging from 1G to 10G, depending on the specific SFP module used. This flexibility enables the module to scale with your network's performance needs.
• Power Consumption: The module is designed to operate efficiently with minimal power consumption, making it suitable for both small and large-scale deployments.

Compatibility

The HPE J9535A module is compatible with various HPE networking switches, including the HPE 2920, 5400R, and 3500 series. This ensures that the module can be easily integrated into existing network infrastructures with minimal configuration effort.

Installation and Management

Installing the HPE J9535A module is straightforward, and it can be seamlessly integrated into your existing HPE networking switches. Once installed, the module can be managed through HPE’s powerful network management tools, such as HPE Intelligent Management Center (IMC) or HPE ProVision. These tools allow network administrators to monitor the module's performance, configure settings, and troubleshoot potential issues remotely, ensuring optimal network operation.

Easy Installation

The module's plug-and-play design allows for quick and easy installation. Simply insert the module into a compatible HPE switch, and the system will automatically detect and configure it for optimal performance. This simplicity minimizes downtime and reduces the complexity of network expansion.

Remote Monitoring and Management

Using HPE’s network management solutions, administrators can remotely monitor the module’s performance, adjust settings, and track power consumption, helping to ensure that the module is functioning as expected and that any issues are detected early.
