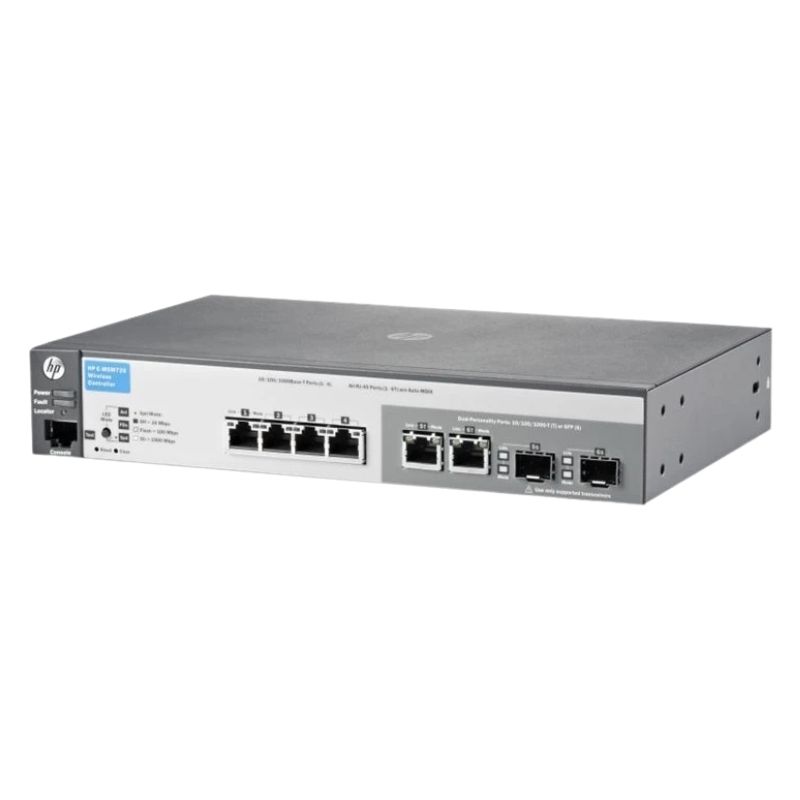

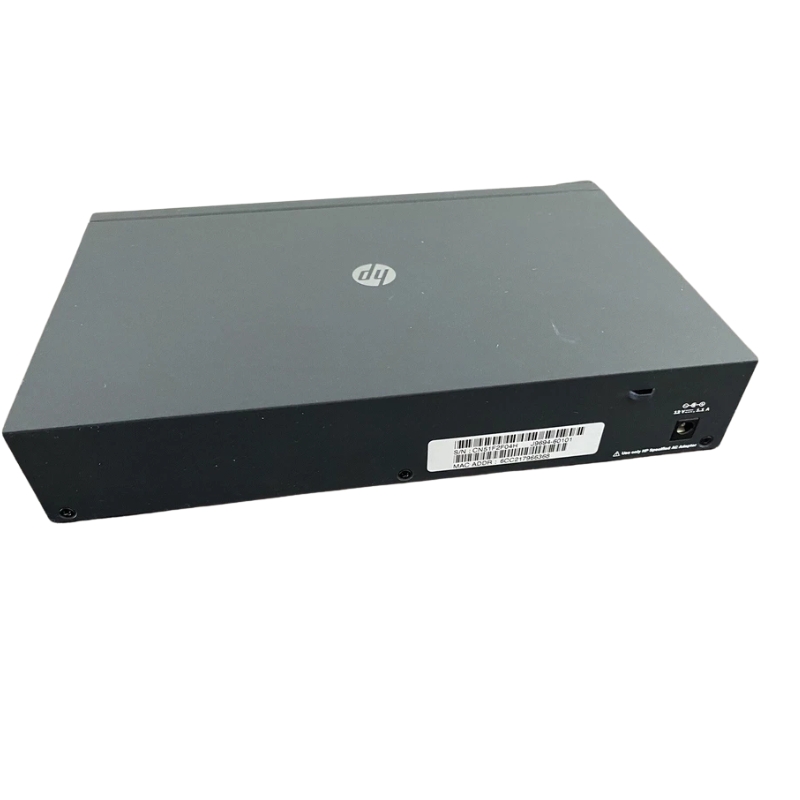

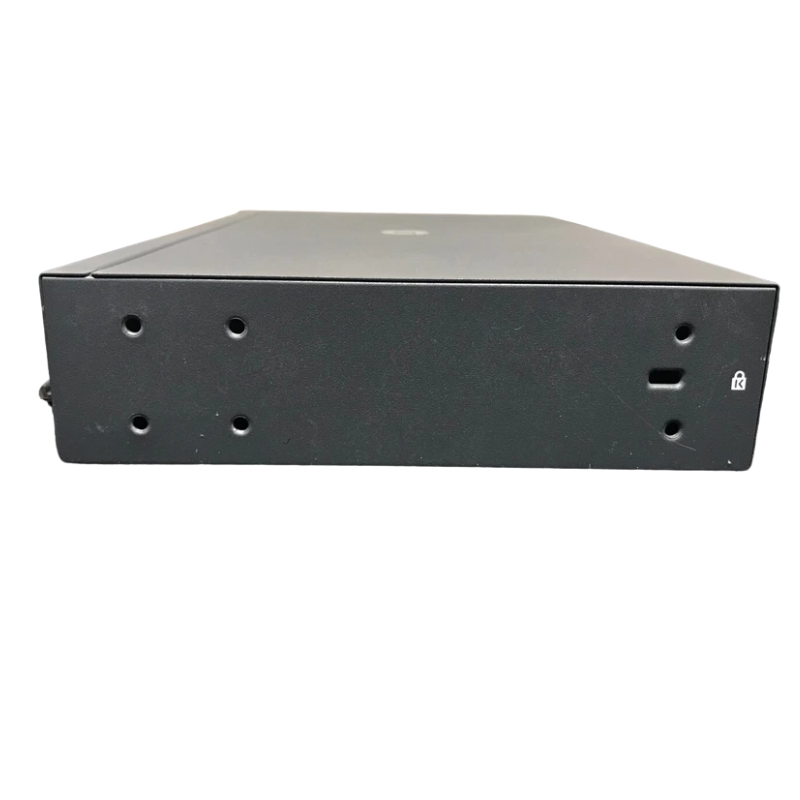

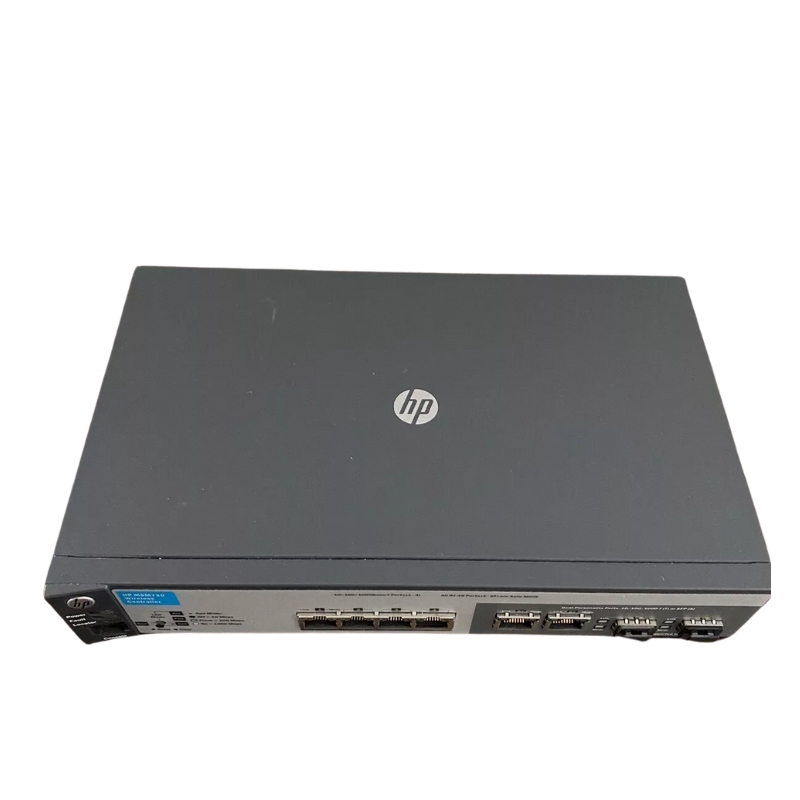

J9694A HPE Msm720 Premium Mobility Controller Network Management Card, 6 Ports

Overview of HPE J9694A MSM720 6-Ports Mobility Controller

The HPE J9694A MSM720 Premium Mobility Controller is an enterprise-grade wireless network management solution designed to simplify centralized WLAN administration. Featuring six Gigabit Ethernet ports, advanced security capabilities, support for IEEE 802.11a/b/g/n/ac access points, and scalable licensing, this mobility controller is ideal for organizations seeking secure, high-performance wireless networking across offices, educational institutions, healthcare facilities, and enterprise environments.

General Product Information

• Manufacturer: HPE
• Part Number: J9694A
• Product Series: MSM720 Premium
• Product Type: Mobility Controller

Technical Specifications

• Interface: MSM720 6 Ports
• Processor: Freescale Dual-Core 800 MHz
• Cache Memory: 256 KB
• System Memory: 1 GB DDR3 RAM
• Form Factor: 1U Rack-Mount, Wall-Mount, or Desktop

Network Interfaces

• RJ-45 Ports: 4 × Autosensing 10/100/1000 Gigabit Ethernet
• Dual-Personality Ports: 2 × 10/100/1000 Gigabit Combo Ports
• Console Port: 1 × RJ-45 Serial Console
• Total Ethernet Ports: 6 Gigabit Ethernet Ports

Wireless Capabilities

• Supported Standards: IEEE 802.11a/b/g/n/ac
• Access Point Capacity: 10 to 40 APs (License Upgrade in Increments of 10)
• Concurrent Users: Up to 250 Users
• Maximum VLAN Interfaces: 80
• Virtual Service Community Profiles: Up to 64 VSCs

Performance Specifications

• Maximum Throughput: Up to 8.9 Million Packets Per Second (PPS)
• 100 Mbps Latency: Less Than 20.4 µs
• 1000 Mbps Latency: Less Than 6.3 µs

Physical Specifications

• Dimensions: 6.28 × 10 × 1.75 Inches (15.95 × 25.4 × 4.45 cm)
• Rack Height: 1U
• Weight: 3.62 lbs (1.64 kg)

Power & Environmental Specifications

• Input Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Current: 0.2 / 0.1 A
• Maximum Power Consumption: 20 Watts
• Maximum Heat Dissipation: 70 BTU/hr (73.85 kJ/hr)

Operating Environment

• Operating Temperature: 41°F to 113°F (5°C to 45°C)
• Storage Temperature: -40°F to 158°F (-40°C to 70°C)
• Operating Humidity: 15% to 95% @ 40°C
• Storage Humidity: 15% to 95% @ 65°C

The HPE J9694A Network Management Card Mobility Controller

The HPE J9694A MSM720 Premium Network Management Card with 6 Ports Mobility Controller is engineered to deliver enterprise-class wireless management and mobility control for modular switch platforms. With six dedicated ports, advanced mobility features, and premium network management capabilities, this card ensures scalable throughput, reliable integration, and seamless deployment in dense infrastructures. Its architecture supports modern workloads, delivering consistent bandwidth, optimized traffic management, and enhanced flexibility for mission-critical applications across diverse industries.

Six-Port Mobility Controller Functionality

The inclusion of six dedicated ports allows the HPE J9694A MSM720 to support a wide range of wireless access points and mobility devices simultaneously. Each port delivers stable bandwidth for controllers, servers, and aggregation devices. Enterprises benefit from improved scalability, reduced congestion, and enhanced flexibility in managing diverse wireless endpoints across large-scale deployments with simplified administration and consistent performance.

Premium Network Management Features

The MSM720 Premium Network Management Card integrates advanced management features, enabling administrators to monitor, configure, and optimize wireless networks. This includes centralized control, policy enforcement, and diagnostics. Enterprises achieve reduced operational overhead, improved visibility, and enhanced control over network infrastructures with streamlined workflows and simplified management processes across complex environments.

Mobility Controller Integration

The HPE J9694A MSM720 functions as a mobility controller, providing seamless roaming and session persistence across wireless networks. This ensures uninterrupted connectivity for mobile users, reducing latency and improving user experiences. Enterprises benefit from optimized performance, reliable communication, and enhanced collaboration across distributed environments with consistent quality and seamless integration.

Advanced Mechanisms

The MSM720 incorporates advanced security mechanisms to safeguard enterprise networks. Features such as WPA2 encryption, secure boot, and access control lists protect against unauthorized access and cyber threats. Enterprises achieve compliance with industry standards, ensuring reliable protection for sensitive data and mission-critical applications with minimal risk exposure and enhanced resilience.

Wireless and Wired Performance

With support for both wireless mobility control and wired connectivity, the HPE J9694A MSM720 enables versatile communication across enterprise networks. Its architecture ensures consistent bandwidth for diverse applications. Enterprises benefit from optimized traffic flow, reduced latency, and improved scalability in hybrid environments where performance consistency is essential for mission-critical workloads and distributed infrastructures.

Traffic Management and QoS Features

Quality of Service features allow administrators to prioritize critical applications such as voice and video. The HPE J9694A MSM720 ensures that latency-sensitive workloads receive dedicated bandwidth, reducing jitter and packet loss. Enterprises achieve improved user experiences, optimized performance, and reliable communication across diverse applications with enhanced control over traffic distribution and prioritization.

Energy Efficiency and Thermal Design

Energy-efficient design minimizes power consumption while maintaining high performance. Advanced thermal management ensures safe operating temperatures, reducing the risk of overheating. Enterprises benefit from reduced cooling requirements, improved sustainability, and extended hardware lifespan in high-density environments where efficiency and reliability are critical for long-term operations.

Scalability for Enterprise Growth

The HPE J9694A MSM720 provides scalability to meet growing enterprise demands. With six dedicated ports and premium management features, businesses can expand their wireless networks without significant infrastructure changes. Enterprises achieve cost-effective scaling, ensuring that networking capabilities evolve alongside organizational growth with minimal disruption and consistent performance across diverse workloads.

Reliability for Mission-Critical Workloads

Reliability is a cornerstone of the HPE J9694A MSM720 design. Redundant architecture and robust mobility control ensure continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across distributed environments and global deployments.

Deployment Flexibility Across Environments

The HPE J9694A MSM720 offers deployment flexibility across diverse environments. Its compatibility with HPE modular switch platforms allows seamless integration into enterprise, campus, and branch networks. Enterprises can tailor configurations for redundancy, scalability, or performance optimization, ensuring adaptability to evolving business needs with simplified management and streamlined workflows.

High-Density Wireless Applications

High-density applications such as lecture halls, conference centers, and stadiums benefit from the HPE J9694A MSM720’s mobility control and premium management capabilities. Enterprises achieve simplified cabling, reduced infrastructure costs, and improved manageability in environments requiring large-scale device connectivity with consistent performance delivery and reliable throughput across critical workloads.

Future-Proof Wireless Networking Solution

The HPE J9694A MSM720 is designed as a future-proof solution, meeting evolving enterprise needs. Its compatibility, scalability, and advanced features ensure relevance as technology advances. Businesses can invest confidently, knowing the card will support networking requirements for years to come across diverse industries with minimal upgrade requirements and enhanced adaptability.

Enhanced Performance for Unified Communications

Unified communications platforms benefit from the HPE J9694A MSM720’s QoS and mobility control. Voice and video traffic receive prioritized bandwidth, ensuring clear communication and reduced latency. Enterprises achieve improved collaboration, optimized performance, and reliable connectivity for unified communication systems across global deployments with consistent quality and seamless integration.

Cloud and Edge Deployments

Cloud and edge deployments require reliable connectivity and scalability. The HPE J9694A MSM720 provides six ports for edge device connectivity and premium management for high-speed cloud integration. Enterprises benefit from seamless cloud adoption, reduced latency, and improved efficiency in distributed environments with consistent throughput and reliable performance across diverse workloads.

Comprehensive Manageability Features

Manageability features such as centralized monitoring, configuration management, and diagnostics simplify administration. The HPE J9694A MSM720 ensures that IT teams can efficiently manage large-scale deployments. Enterprises achieve reduced operational overhead, improved visibility, and enhanced control over network infrastructures with streamlined workflows and simplified management processes across complex environments.

Emerging Technologies

The HPE J9694A MSM720 supports emerging technologies such as IoT and smart devices. Its mobility control capabilities ensure reliable connectivity, while advanced traffic management provides high-speed performance. Enterprises benefit from future-ready infrastructure, enabling seamless adoption of new technologies without significant upgrades or disruptions across diverse industries and global deployments.

Enterprise Wireless Networks

The resilient architecture of the HPE J9694A MSM720 ensures consistent performance under demanding conditions. Redundant mobility control and advanced traffic management features safeguard enterprise networks. Enterprises achieve improved uptime, reduced risk, and enhanced reliability for mission-critical applications requiring continuous availability and consistent performance across distributed infrastructures.

Data-Intensive Wireless Workloads

Data-intensive workloads such as analytics and cloud applications benefit from the HPE J9694A MSM720’s mobility control and QoS features. Enterprises achieve optimized performance, reduced latency, and improved scalability for workloads requiring consistent bandwidth and reliable communication across distributed environments and mission-critical infrastructures.

Enterprise-Class Reliability and Uptime

Reliability is a key advantage of the HPE J9694A MSM720. Its robust architecture ensures continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across diverse environments and global deployments with consistent performance.
