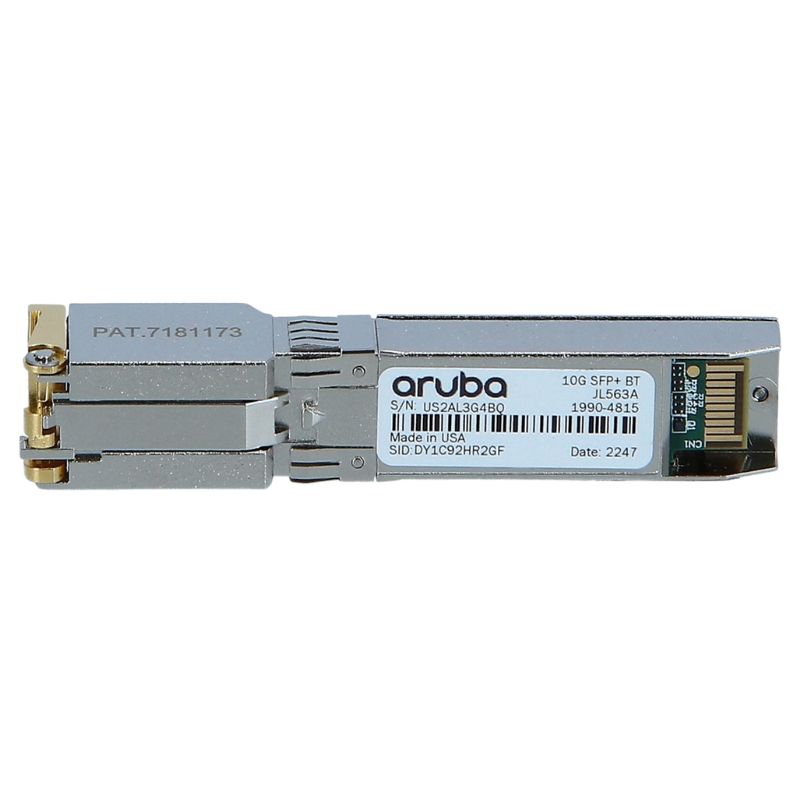

JL563A HPE Aruba 10Gbase-T SFP+ RJ45 30m Cat6A Transceiver

HPE JL563A Aruba 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver

JL563A is a high-performance network switch designed for reliable and efficient connectivity. It provides multiple Gigabit Ethernet ports, supports advanced Layer 2 switching features, and delivers stable performance for business networks. The device is easy to manage, offers strong security features, and is suitable for small to medium-sized organizations that need fast, secure, and scalable network connectivity.

General Information

• Manufacturer: HPE
• Part Number: JL563A
• Device Category: Transceiver Module

Technical Specifications

• Transceiver Type: 10GBASE-T Copper SFP+
• Form Factor: Compact SFP+ Module
• Connector Interface: RJ-45
• Transmission Speed: Up to 10 Gigabits per second
• Recommended Cabling: Cat6A Ethernet
• Supported Cabling: Cat7 Ethernet
• Maximum Reach: 30 meters (98.4 feet)
• Protocol Standard: IEEE 802.3an 10GBASE-T
• Slot Compatibility: SFP+ Port

Compliance and Certifications

• Standards: SFP+ MSA, IEEE 802.3an
• Environmental Compliance: RoHS
• Safety Certifications: CE

Compatibility and Integration

Compatibility

• Works seamlessly with HPE Aruba Networking switches featuring 10G SFP+ slots
• Optimized for Aruba CX and Aruba OS-Switch platforms

Overview HPE JL563A Aruba 10GBASE-T SFP+ RJ45 Transceiver

The HPE JL563A Aruba 10GBASE-T SFP+ RJ45 30m Cat6A Transceiver represents a highly specialized networking component engineered to deliver reliable copper-based 10 Gigabit Ethernet connectivity. This transceiver module is designed to fit seamlessly into SFP+ slots, enabling enterprises to extend high-speed data transmission over standard twisted-pair copper cabling. By supporting Cat6A cabling up to 30 meters, it provides a cost-effective alternative to fiber optic solutions while maintaining compliance with IEEE 802.3an standards. The RJ45 interface ensures compatibility with widely deployed Ethernet infrastructures, making it an ideal choice for data centers, enterprise networks, and switch-to-server connections where performance and flexibility are paramount.

Form Factor and Interface

The transceiver adopts the SFP+ form factor, which is compact and hot-pluggable, allowing easy installation and replacement without disrupting network operations. The RJ45 connector type ensures straightforward integration with copper cabling systems, eliminating the need for specialized fiber optic equipment. This design supports 10GBASE-T transmission, adhering to IEEE 802.3an standards, thereby guaranteeing interoperability across compliant devices.

Performance Metrics

With a data rate of up to 10 Gbps, the HPE JL563A Aruba transceiver delivers high throughput suitable for demanding applications such as virtualization, cloud computing, and large-scale data transfers. The maximum supported distance of 30 meters using Cat6A cabling ensures optimal performance within rack-to-rack or short-range deployments, making it particularly effective in dense data center environments. Power consumption ranges between 2.5 to 3.5 watts, balancing efficiency with performance to reduce operational costs and thermal output.

Compliance Features

Operating within a temperature range of 0°C to 70°C, the transceiver is built for resilience in typical enterprise conditions. Storage capabilities extend from -40°C to 85°C, ensuring durability during non-operational periods. Compliance with SFP+ MSA, IEEE 802.3an, RoHS, and CE certifications underscores its adherence to industry standards and environmental regulations, providing assurance of quality and sustainability.

Data Center Applications

Within data centers, the HPE JL563A Aruba transceiver facilitates high-speed copper connections between switches and servers. Its compatibility with Cat6A and Cat7 cabling simplifies deployment, reducing infrastructure costs compared to fiber optic alternatives. The module supports switch-to-switch and switch-to-server connectivity, enabling efficient traffic flow and minimizing latency in mission-critical environments.

Enterprise Networking

In enterprise settings, the transceiver enhances network scalability by providing 10GbE connectivity without requiring extensive fiber installations. It is particularly beneficial for organizations seeking to upgrade existing copper-based infrastructures to support higher bandwidth demands. The RJ45 interface ensures seamless integration with legacy systems, allowing gradual migration to advanced networking standards.

Compatibility with Aruba Platforms

The JL563A transceiver is specifically designed for HPE Aruba Networking switches featuring 10G SFP+ ports. It integrates smoothly with Aruba CX and ArubaOS-Switch platforms, ensuring optimized performance and vendor-supported compatibility. This alignment with Aruba’s ecosystem guarantees reliable operation and simplifies management within unified networking architectures.

Advantages of Copper-Based

One of the primary advantages of the HPE JL563A Aruba transceiver is its ability to deliver 10GbE connectivity over copper cabling, significantly reducing deployment costs compared to fiber optic solutions. Cat6A and Cat7 cables are more affordable and easier to install, making them accessible for enterprises with budget constraints.

Simplified Infrastructure

By utilizing standard RJ45 connectors, the transceiver eliminates the need for specialized fiber optic transceivers and patch panels. This simplification reduces complexity in network design and maintenance, allowing IT teams to focus on optimizing performance rather than managing intricate cabling systems.

Flexibility and Hot-Pluggability

The hot-pluggable nature of the SFP+ form factor ensures that modules can be replaced or upgraded without downtime. This flexibility is crucial in dynamic environments where scalability and adaptability are essential to meet evolving business requirements.

Detailed Subcategory Insights

10GBASE-T technology enables 10 Gigabit Ethernet transmission over twisted-pair copper cabling. It supports backward compatibility with lower-speed Ethernet standards, ensuring smooth transitions during network upgrades. The JL563A transceiver leverages this technology to provide high-speed connectivity while maintaining interoperability with existing infrastructures.

SFP+ Copper Transceivers

SFP+ copper transceivers like the JL563A are designed to extend the utility of SFP+ slots by enabling copper-based connections. They offer a practical alternative to fiber modules, particularly in environments where short-range, high-speed connections are sufficient. Their compact design and ease of deployment make them indispensable in modern networking solutions.

RJ45 Interface Standardization

The RJ45 interface remains a cornerstone of Ethernet connectivity, widely adopted across networking devices. By incorporating RJ45 into the SFP+ transceiver design, HPE ensures compatibility with existing copper cabling systems, facilitating seamless integration and reducing the need for specialized training or equipment.

Enhanced Reliability

The JL563A transceiver is engineered for consistent performance, minimizing packet loss and ensuring stable connections. Its compliance with industry standards guarantees interoperability, reducing the risk of compatibility issues and enhancing overall network reliability.

Energy Efficiency

With optimized power consumption, the transceiver contributes to energy-efficient operations. Lower thermal output reduces cooling requirements, further decreasing operational costs and supporting sustainable IT practices.

Scalability

As organizations expand their networking infrastructures, the JL563A transceiver provides scalable solutions by enabling incremental upgrades. Enterprises can deploy additional modules as needed, ensuring that network capacity aligns with growing demands without requiring complete overhauls.

Switch-to-Server Connectivity

In environments where servers require high-speed access to switches, the JL563A transceiver delivers reliable 10GbE connections. This capability supports applications such as virtualization, cloud services, and big data analytics, where bandwidth and low latency are critical.

Rack-to-Rack Deployments

For short-range connections within data centers, the transceiver’s 30-meter reach using Cat6A cabling is ideal. It enables efficient rack-to-rack communication, optimizing traffic flow and reducing bottlenecks in high-density environments.

Hybrid Infrastructure Integration

Organizations transitioning from copper to fiber can leverage the JL563A transceiver to maintain compatibility during migration. Its support for copper-based 10GbE ensures that legacy systems remain operational while new fiber-based solutions are gradually introduced.

Alignment with Industry Trends

As enterprises continue to demand higher bandwidth and more efficient networking solutions, the JL563A transceiver aligns with industry trends by offering cost-effective 10GbE connectivity. Its compatibility with Aruba platforms ensures that organizations remain prepared for future advancements in networking technologies.

Support for Emerging Applications

Applications such as artificial intelligence, machine learning, and real-time analytics require robust networking infrastructures. The JL563A transceiver provides the necessary bandwidth and reliability to support these emerging workloads, ensuring that enterprises can harness innovative technologies without compromising performance.

Long-Term Investment Value

By reducing infrastructure costs and simplifying deployment, the JL563A transceiver offers long-term investment value. Its durability, compliance, and compatibility with Aruba platforms ensure that organizations can rely on it for sustained performance, maximizing return on investment over time.
