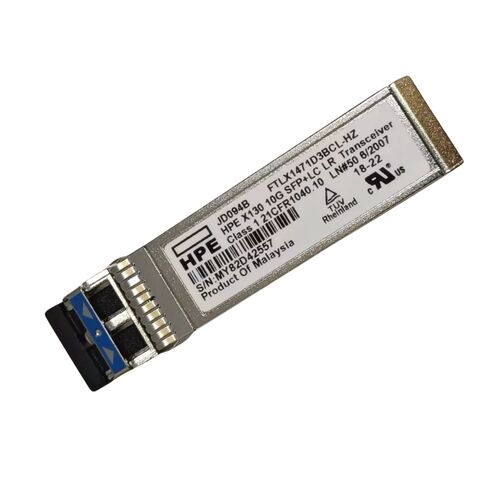

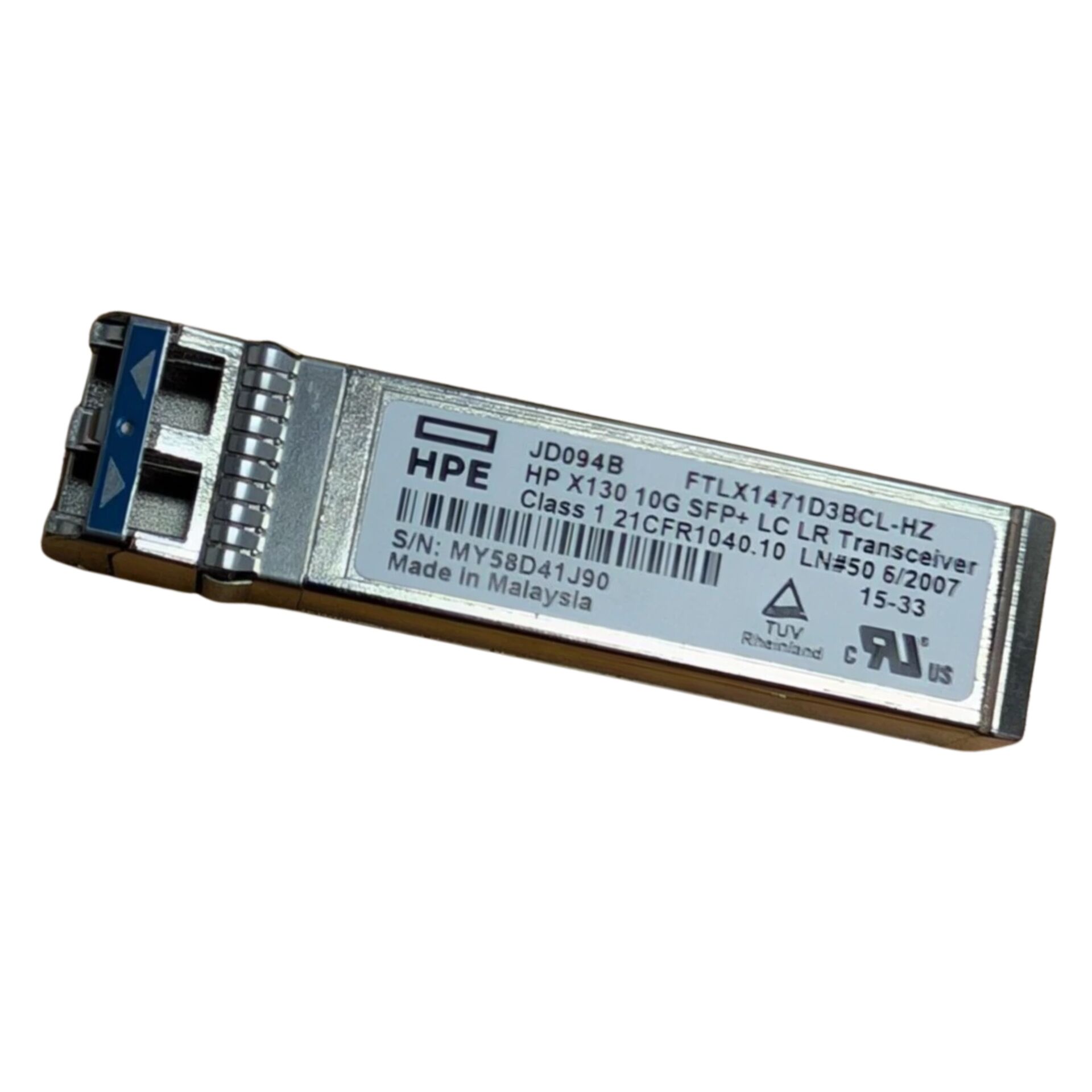

JD094-61201 HPE X130 10GBASE LR SFP Transceiver Module

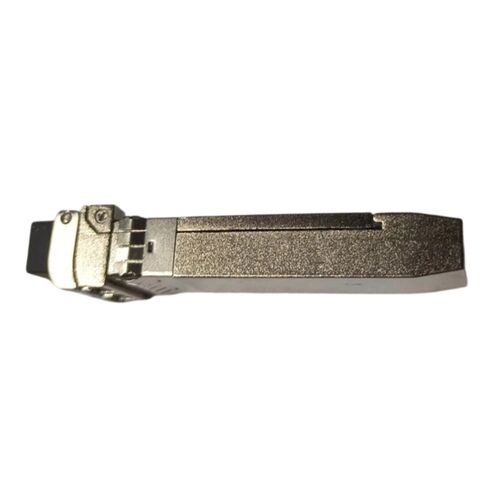

HPE JD094-61201 X130 SFP SFP+ Transceiver Module

The HPE JD094-61201 X130 SFP+ transceiver is a high-performance plug-in module engineered for stable 10 Gigabit Ethernet transmission over long-range fiber optic links. It is designed to support enterprise networking, telecom infrastructure, and backbone communication systems requiring reliable high-speed connectivity.

General Information

• Brand: HPE
• Part Number: JD094-61201
• Drive Type: Transceiver Module

Key Benefits

• Delivers consistent 10Gbps Ethernet data transfer performance
• Optimized for long-distance 10GBASE-LR fiber connectivity
• Ensures low-latency and high-integrity data communication
• Supports scalable deployment across enterprise networks

Device Type and Form Factor

• Module Type: SFP+ (Small Form-Factor Pluggable Plus)
• Design: Hot-pluggable optical transceiver unit
• Interface Standard: 10 Gigabit Ethernet compatible

10GBASE-LR Long-Reach Capability

• Supports single-mode fiber transmission for long-distance networking
• Provides stable 10Gbps throughput over extended fiber runs
• Ensures minimal signal degradation across long-haul links

LC Duplex Optical Interface

• Equipped with LC duplex connector for fiber integration
• Ensures secure and efficient optical coupling
• Compatible with standard single-mode fiber infrastructure

High-Speed Network Throughput

• Delivers up to 10Gbps data transfer rates
• Supports bandwidth-intensive enterprise applications
• Maintains stable performance under continuous load

Signal Integrity and Stability

• Reduces data loss over long-distance connections
• Ensures accurate and reliable packet transmission
• Enhances consistency in mission-critical environments

Enterprise Data Networking

• Ideal for backbone connectivity in corporate networks
• Enhances switch-to-switch and core network links
• Supports high-speed internal communication systems

Telecommunications Infrastructure

• Designed for long-range carrier-grade optical networks
• Enables stable communication across distributed systems
• Supports scalable telecom backbone architecture

Data Center and Cloud Environments

• Optimized for inter-data center connectivity
• Supports virtualization and cloud workload traffic
• Enhances high-performance computing network links

Improved Transmission Efficiency

• Ensures high data accuracy over long distances
• Reduces latency for real-time applications
• Supports uninterrupted high-speed communication

Interference Resistance and Reliability

• Immune to electromagnetic interference (EMI)
• Maintains stable performance in dense environments
• Enhances network reliability and uptime

Plug-and-Play Integration

• Enables quick installation into compatible SFP+ slots
• Supports hot-swappable deployment with minimal downtime
• Simplifies network maintenance and upgrades

Scalable Network Expansion

• Supports flexible infrastructure growth strategies
• Integrates easily into existing fiber network systems
• Reduces complexity in large-scale deployments

HPE JD094-61201 SFP Transceiver Module

The HPE JD094-61201 X130 SFP Transceiver Module 10GBASE-LR LC Plug-In Module belongs to the enterprise-grade 10 Gigabit Ethernet optical transceiver category designed for long-range fiber optic communication in high-performance networking environments. This class of Small Form-Factor Pluggable Plus (SFP+) modules is engineered to deliver stable, high-speed optical connectivity across extended distances using single-mode fiber infrastructure. It plays a critical role in modern data center interconnects, metropolitan area networks, enterprise backbone systems, and distributed cloud architectures where reliable long-distance 10GbE transmission is required.

As part of the 10GBASE-LR (Long Reach) transceiver subcategory, the HPE JD094-61201 X130 SFP Transceiver Module 10GBASE-LR LC Plug-In Module is optimized for transmission distances up to 10 kilometers over single-mode fiber. This capability makes it essential for organizations that need to connect geographically separated network sites while maintaining consistent bandwidth, low latency, and high signal integrity across fiber links. Its LC duplex connector interface ensures compatibility with widely deployed fiber optic cabling systems in enterprise and carrier-grade infrastructures.

Modular Optical Networking Standardization

The HPE JD094-61201 X130 SFP Transceiver Module is built on the SFP+ modular standard, which defines a compact, hot-swappable form factor for high-speed optical communication. This modular architecture allows network engineers to install or replace transceiver modules without interrupting system operation, significantly improving network uptime and operational efficiency.

The standardized design ensures interoperability across a wide range of HPE networking platforms and other compliant devices, enabling flexible deployment in heterogeneous network environments. This compatibility reduces vendor lock-in and allows organizations to optimize infrastructure design based on performance and cost considerations.

Hot-Swappable Integration and Continuous Network Availability

One of the key features of the JD094-61201 X130 SFP Transceiver Module 10GBASE-LR LC Plug-In Module is its hot-swappable capability, which allows installation or removal while the host device remains operational. This feature is critical in enterprise environments where downtime is unacceptable, such as financial systems, cloud data centers, and mission-critical enterprise networks.

Long-Range Single-Mode Fiber Communication

The 10GBASE-LR specification defines long-range optical transmission using single-mode fiber at a wavelength of approximately 1310nm. The HPE JD094-61201 X130 SFP Transceiver Module leverages this standard to achieve transmission distances of up to 10 kilometers, making it suitable for inter-building connectivity and metropolitan area network deployments.

Single-mode fiber provides a narrow light path that reduces modal dispersion, enabling high-quality signal transmission over long distances. This makes LR modules ideal for backbone network connections and wide-area enterprise infrastructure.

Optical Signal Conversion and Laser Transmission System

The module uses advanced laser-based transmission technology to convert electrical Ethernet signals into optical signals for long-distance fiber transmission. On the receiving end, photodiodes convert optical signals back into electrical form for processing by networking hardware.

Standardized LC Connector Design

The HPE JD094-61201 X130 SFP Transceiver Module 10GBASE-LR LC Plug-In Module uses an LC duplex connector interface, which provides separate channels for transmit and receive signals. This standardized connector is widely adopted in enterprise and telecom environments due to its compact size and reliable performance.

The LC interface ensures secure physical connections and minimizes insertion loss, contributing to improved optical performance and network reliability.

Single-Mode Fiber Infrastructure Integration

This transceiver is designed specifically for single-mode fiber (SMF) infrastructure, which is optimized for long-distance communication. Single-mode fiber enables narrow light propagation, reducing signal distortion and enabling high-bandwidth transmission over extended distances.

10 Gigabit Ethernet High-Speed Data Transmission

The module supports a data rate of 10Gbps, enabling high-performance networking for enterprise workloads such as virtualization, cloud computing, and high-speed data replication. This level of throughput ensures that modern applications can operate efficiently without network congestion.

Consistent 10GbE performance is essential for maintaining productivity in data-intensive environments where large volumes of data must be transferred quickly and reliably.

Low Latency Optical Communication

The use of direct optical transmission minimizes latency by eliminating complex intermediate signal processing. This results in near-real-time communication between connected network devices, which is critical for latency-sensitive applications.

Data Center Interconnect

The HPE JD094-61201 X130 SFP Transceiver Module 10GBASE-LR LC Plug-In Module is widely used for data center interconnect applications, where it enables high-speed communication between geographically separated data centers. Its long-range capability ensures stable connectivity across metropolitan distances.

This is particularly important for disaster recovery systems, cloud replication environments, and distributed enterprise architectures.

Enterprise Campus Backbone Connectivity

In large enterprise campuses, the module provides backbone connectivity between buildings and network aggregation points. Its ability to support long-distance fiber links ensures seamless communication across distributed infrastructure.

Metropolitan Area Network (MAN) Integration

The LR transceiver is also suitable for metropolitan area networks, where it connects multiple sites across urban regions. This enables organizations to build unified network infrastructures spanning multiple geographic locations.

Layered Network Integration Capability

The JD094-61201 module integrates seamlessly into layered network architectures including access, aggregation, and core layers. Its standardized interface ensures consistent performance across all network tiers.

This allows organizations to build scalable and hierarchical network infrastructures that can grow with business requirements.

Redundant and High-Availability Networks

The module supports redundant network configurations that enhance reliability and ensure continuous availability. Multiple optical links can be deployed to provide failover capabilities in case of link failure.

Enterprise-Grade Operational Consistency

The HPE JD094-61201 X130 SFP Transceiver Module is designed for continuous operation in enterprise environments. Its robust construction ensures stable performance even under sustained high-load conditions.

Thermal Efficiency and Power Optimization

The module is engineered for low power consumption, reducing heat generation and improving overall system efficiency. This contributes to better thermal management in high-density networking environments.

Optimized Energy Usage in Optical Transmission

Efficient laser operation ensures minimal energy consumption while maintaining high-performance optical transmission over long distances.

Digital Diagnostics Monitoring (DDM) Support

The JD094-61201 X130 SFP Transceiver Module supports digital diagnostics monitoring capabilities that provide real-time visibility into optical power levels, temperature, and signal quality. This enables proactive network management and maintenance.

Predictive Maintenance and Fault Detection

Continuous monitoring of optical parameters allows administrators to detect potential issues before they impact network performance, reducing downtime and improving reliability.

Secure Optical Transmission Characteristics

Fiber optic transmission provides inherent security advantages due to its resistance to electromagnetic interference and difficulty of passive interception. This makes the module suitable for secure enterprise and government applications.

Isolated Communication Channels

Each optical link provides isolated communication channels that reduce the risk of external intrusion and improve data confidentiality in network environments.

Compliance with Enterprise Security Architectures

The module integrates into secure network architectures that comply with enterprise security standards and regulatory requirements.

Incremental Expansion of Optical Networks

The modular design of the HPE JD094-61201 X130 SFP Transceiver Module enables incremental network expansion without requiring infrastructure redesign, supporting scalable growth strategies.

Long-Term Infrastructure Compatibility

Designed for compatibility with HPE networking platforms, the module ensures long-term usability and adaptability within evolving enterprise environments.
