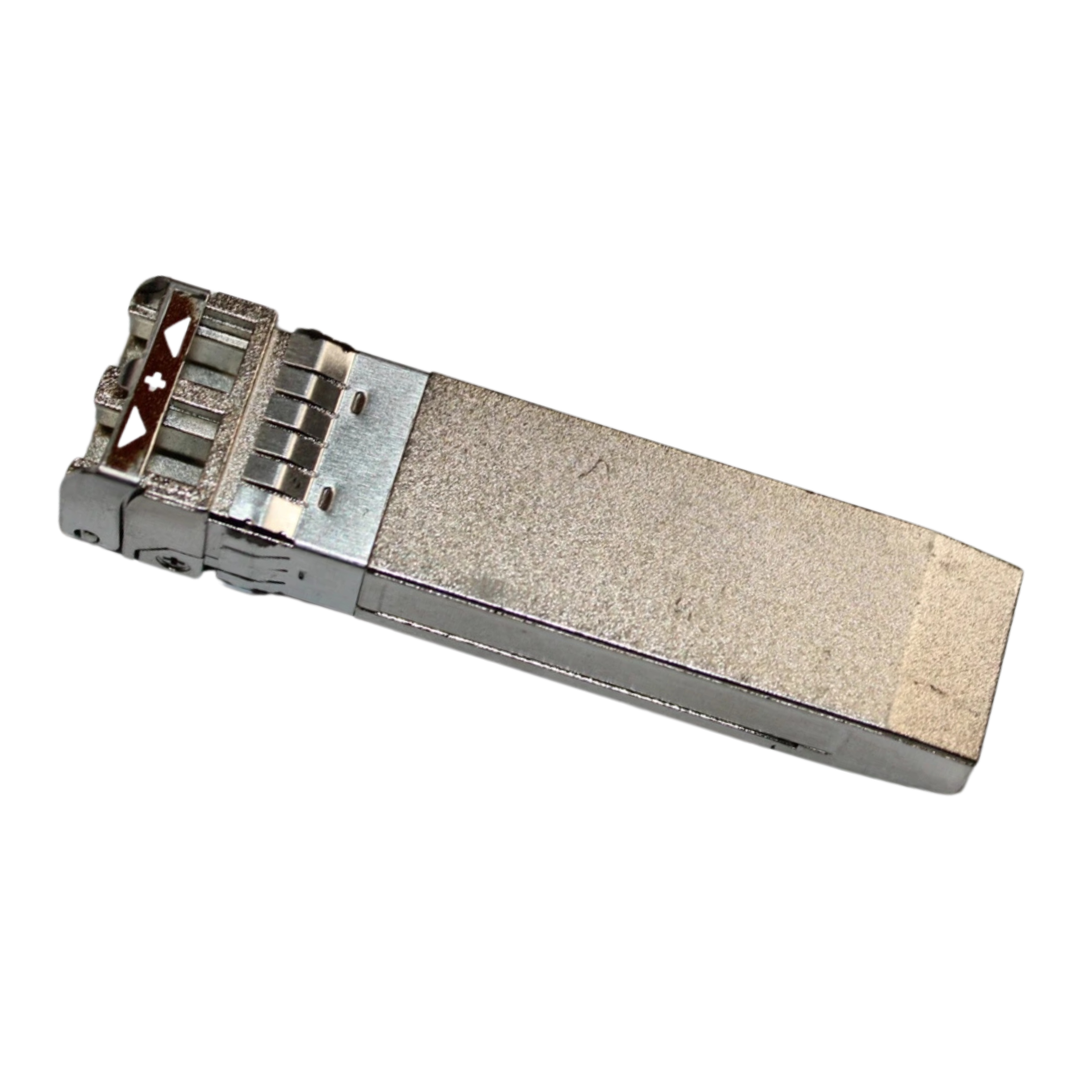

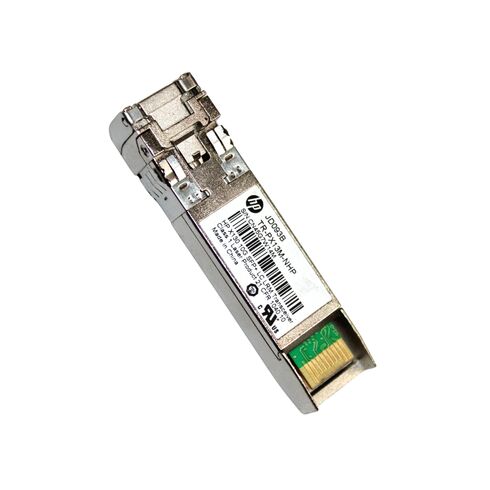

JD093B HPE X130 10GBase-Lrm SFP+ 10 Gigabit Transceiver Module

HPE JD093B X130 10GBASE-LRM SFP+ Transceiver Module

The HPE JD093B X130 10GBASE-LRM SFP+ transceiver module is a compact, high-speed networking solution designed to deliver reliable 10 Gigabit Ethernet connectivity over multimode fiber infrastructure. Built for enterprise environments, it ensures efficient data communication with stable performance and low latency.

Product Information

• Manufacturer: HPE
• Model Number: JD093B
• Product Type: SFP+ Transceiver Module

Device Specifications

• Device Category: SFP+ optical transceiver module
• Form Type: Hot-pluggable plug-in enclosure
• Installation Style: Modular insertion into SFP+ slots
• Application: Enterprise-grade wired fiber networking

Key Networking Features

• Connectivity Type: Wired optical fiber transmission
• Cabling Standard: 10GBASE-LRM compliant multimode fiber
• Protocol Support: 10 Gigabit Ethernet (10GbE)
• Maximum Data Throughput: Up to 10 Gbps transfer speed

Connectivity and Port Details

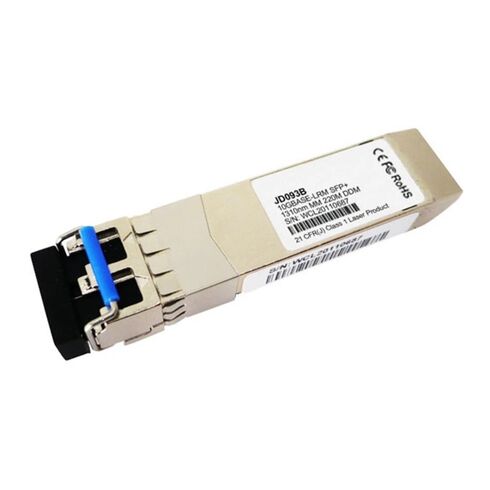

• Network Interface: 1 x 10GBASE-LRM Ethernet LC connector
• Slot Compatibility: Fits into a single SFP+ port

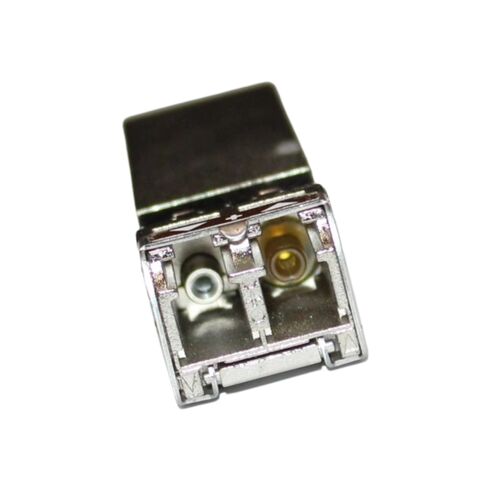

• Connector Type: LC duplex optical interface

Efficiency Advantages

• Low-latency communication for real-time data transfer
• Optimized power usage for energy-efficient operation
• Reduced heat generation for stable long-term performance
• Enhanced bandwidth utilization for heavy network traffic

Deployment Benefits

• Hot-swappable plug-in design for uninterrupted maintenance
• Quick installation with plug-and-play functionality
• Ideal for upgrading legacy networks to 10GbE speeds
• Supports flexible fiber optic architecture expansion

Transmission Enhancements

• Consistent optical signal quality over multimode fiber
• Reduced network congestion and improved data flow
• High reliability for mission-critical applications
• Efficient handling of large-scale data traffic

HPE JD093B X130 SFP+ 10 Gigabit Transceiver Module

The HPE JD093B X130 10GBase-LRM SFP+ 10 Gigabit Transceiver Module represents a specialized optical networking component designed for enterprise environments requiring stable, standardized, and medium-reach 10 Gigabit Ethernet connectivity over multimode fiber infrastructure. Built to align with IEEE 802.3aq 10GBASE-LRM specifications, this module is engineered to deliver consistent high-speed transmission across legacy and modern fiber cabling systems, making it a critical interoperability solution in heterogeneous network architectures where mixed fiber types and extended multimode distances are present.

The module belongs to the SFP+ (Small Form-Factor Pluggable Plus) category, ensuring compact integration into high-density switch environments while maintaining full 10Gbps performance capabilities. Unlike short-reach SR modules or long-range LR single-mode transceivers, the 10GBASE-LRM standard is uniquely optimized for multimode fiber links that may not meet the strict bandwidth requirements of modern OM3 or OM4 cabling, allowing enterprises to extend the life of existing fiber infrastructure without compromising performance stability.

10GBASE-LRM Standard and Signal Processing Design

The HPE JD093B X130 module is built around the 10GBASE-LRM standard, which was specifically developed to support 10 Gigabit Ethernet transmission over legacy multimode fiber cabling systems. Unlike other 10G optical standards that rely on high-bandwidth OM3 or OM4 fiber, 10GBASE-LRM is engineered to operate effectively over FDDI-grade and older multimode fibers using advanced electronic dispersion compensation techniques.

This module incorporates receiver-side equalization technology that compensates for modal dispersion, a common issue in multimode fiber transmission where different light paths travel at varying speeds, leading to signal distortion. By correcting these distortions in real time, the module ensures accurate data reconstruction at the receiving end, thereby maintaining reliable throughput even over suboptimal fiber conditions.

Wavelength Utilization and Optical Signal Behavior

The HPE JD093B X130 operates using a 1310nm wavelength laser source, which is typically associated with single-mode fiber systems. However, in the LRM architecture, this wavelength is adapted for multimode transmission using specialized optics and signal conditioning techniques. The result is improved reach capability over legacy fiber infrastructure without requiring full network rewiring or fiber replacement.

The choice of 1310nm wavelength allows for reduced chromatic dispersion and improved signal integrity across longer multimode distances compared to traditional 850nm VCSEL-based SR modules. This design decision enhances compatibility and ensures stable performance in environments where fiber quality may vary significantly between installation points.

Compact Form Factor and Switching Environment Optimization

The SFP+ form factor used in the HPE JD093B X130 module enables high-density deployment within enterprise-grade switches and routing platforms. Its compact size allows multiple transceivers to be installed side by side without compromising airflow efficiency or thermal balance within the chassis. This is particularly important in modern data centers where space utilization and port density directly influence infrastructure scalability and cost efficiency.

The module supports hot-swappable functionality, allowing network administrators to replace or install transceivers without interrupting active network traffic. This capability is essential in mission-critical environments where uptime is a priority and maintenance windows are limited or unavailable.

Electrical Interface and Signal Conversion Mechanisms

On the electrical side, the module interfaces with host systems via a standardized high-speed serial interface designed to handle 10Gbps data streams. Incoming electrical signals are converted into optical signals for transmission over fiber, and incoming optical signals are converted back into electrical form at the receiving end.

This bidirectional conversion process is optimized to minimize latency and signal degradation, ensuring that the module can support real-time applications such as virtualization, storage replication, and high-frequency transactional systems.

Multimode Fiber Support and Legacy Infrastructure Optimization

One of the most important advantages of the HPE JD093B X130 10GBASE-LRM module is its ability to operate over legacy multimode fiber infrastructure. Many enterprise environments still rely on older fiber installations that do not meet the bandwidth requirements of modern short-reach optical standards. This module bridges that gap by enabling 10Gbps performance over fiber that would otherwise be limited to lower-speed operations.

The module is typically designed to support transmission distances up to approximately 220 meters over optimized multimode fiber links when used with appropriate mode conditioning patch cords. This extended reach capability allows organizations to connect distributed networking equipment across medium-range distances without incurring the cost of fiber replacement or infrastructure overhaul.

Mode Conditioning and Signal Stabilization Techniques

Mode conditioning plays a significant role in ensuring stable performance for 10GBASE-LRM transmissions. Because legacy multimode fiber can cause modal dispersion, specialized patch cords are often used to offset the launch conditions of the optical signal. This ensures that the signal propagates more uniformly through the fiber core, reducing distortion and improving overall transmission reliability.

The HPE JD093B X130 module is designed to operate seamlessly within such conditioned environments, making it highly adaptable for mixed infrastructure deployments where both modern and legacy fiber types coexist.

10 Gigabit Throughput and Full-Duplex Communication

The module delivers a consistent 10 Gigabit per second data rate, enabling full-duplex communication where data can be transmitted and received simultaneously. This capability is essential in modern enterprise applications that rely on continuous data exchange between servers, storage arrays, and network appliances.

The high throughput capacity ensures that bandwidth-intensive workloads such as virtualization clusters, database replication systems, and cloud computing environments can operate without congestion or bottlenecks.

Latency Optimization and Real-Time Data Handling

Low latency performance is a key design consideration for the HPE JD093B X130 module. The optical-electrical conversion process is optimized to minimize processing delays, ensuring that data packets are transmitted and received with minimal temporal distortion. This is particularly important for applications requiring real-time responsiveness, including financial systems, distributed computing platforms, and latency-sensitive communication services.

By maintaining low and consistent latency across transmission paths, the module enhances overall network predictability and improves application-level performance.

Data Center Connectivity and Network Backbone Integration

In enterprise data centers, the HPE JD093B X130 module is commonly deployed to interconnect switches, aggregation layers, and core network devices. Its ability to function over both modern and legacy multimode fiber makes it particularly useful in environments undergoing gradual infrastructure upgrades.

The module supports stable backbone connectivity, ensuring that high-volume traffic flows smoothly between critical network segments without requiring immediate fiber modernization.

Campus Network Expansion and Building-to-Building Links

Many enterprise campuses consist of multiple buildings connected through fiber optic links. The 10GBASE-LRM standard is well-suited for such deployments where distances may exceed typical short-reach limitations but do not justify long-range single-mode fiber installation.

The HPE JD093B X130 module enables reliable 10Gbps communication between buildings, supporting unified network architecture across geographically distributed enterprise environments.

Enterprise Storage and Virtualization Environments

Storage area networks and virtualization platforms rely heavily on high-speed, low-latency interconnects. The module supports these environments by ensuring that storage replication, virtual machine migration, and distributed workload balancing can occur efficiently across networked systems.

Its ability to maintain consistent throughput under heavy loads makes it suitable for high-demand enterprise computing environments where performance stability is essential.

Energy Consumption Optimization in High-Density Systems

The HPE JD093B X130 module is engineered with energy efficiency in mind, minimizing power consumption while maintaining full 10Gbps performance. This is particularly important in densely populated switch environments where hundreds of transceivers may be operating simultaneously.

Reduced power consumption directly contributes to lower operational costs and improved overall energy efficiency within data center infrastructure.

Thermal Stability and Continuous Operation

The module is designed to maintain stable performance under continuous operation in high-temperature environments commonly found in enterprise data centers. Its thermal resilience ensures that performance degradation does not occur even under sustained network load conditions.

This stability is critical for mission-critical systems where uninterrupted operation is required around the clock.

HPE Switch Ecosystem Compatibility

The HPE JD093B X130 module is fully compatible with a wide range of HPE networking switches that support SFP+ interfaces. This ensures seamless integration into existing network infrastructures without requiring additional hardware modifications or complex configuration changes.

Its standardized design allows it to function within heterogeneous network environments where multiple generations of networking equipment may coexist.

Firmware Synchronization and System Interoperability

Proper firmware alignment between the transceiver and host switch is essential for optimal performance. The module is designed to work within HPE-managed ecosystems where firmware updates ensure compatibility, security enhancements, and performance optimization over time.

This interoperability ensures long-term usability and reduces the risk of compatibility issues during infrastructure upgrades.

Dispersion Compensation and Data Accuracy

The electronic dispersion compensation technology integrated into the module ensures that signal distortion caused by multimode fiber propagation is effectively corrected. This enhances data accuracy and reduces error rates across long-distance multimode transmissions.

By maintaining high signal fidelity, the module ensures that enterprise networks can operate reliably even under challenging fiber conditions.

Hybrid Infrastructure Support and Scalability

The HPE JD093B X130 module plays a strategic role in supporting hybrid network infrastructures that combine legacy and modern fiber systems. Its compatibility with older multimode fiber allows organizations to scale their networks without immediate infrastructure replacement, providing a cost-effective transition path toward higher-performance architectures.

This scalability is particularly valuable in large enterprise environments where phased upgrades are preferred over complete system overhauls.

Digital Transformation and High-Speed Networking Evolution

As enterprises adopt cloud computing, artificial intelligence, and big data analytics, the demand for reliable high-speed networking continues to grow. The module supports these evolving requirements by delivering consistent 10Gbps performance across flexible fiber infrastructures.

Its role in enabling digital transformation initiatives ensures that enterprises can modernize their IT ecosystems while maintaining compatibility with existing physical infrastructure investments.
