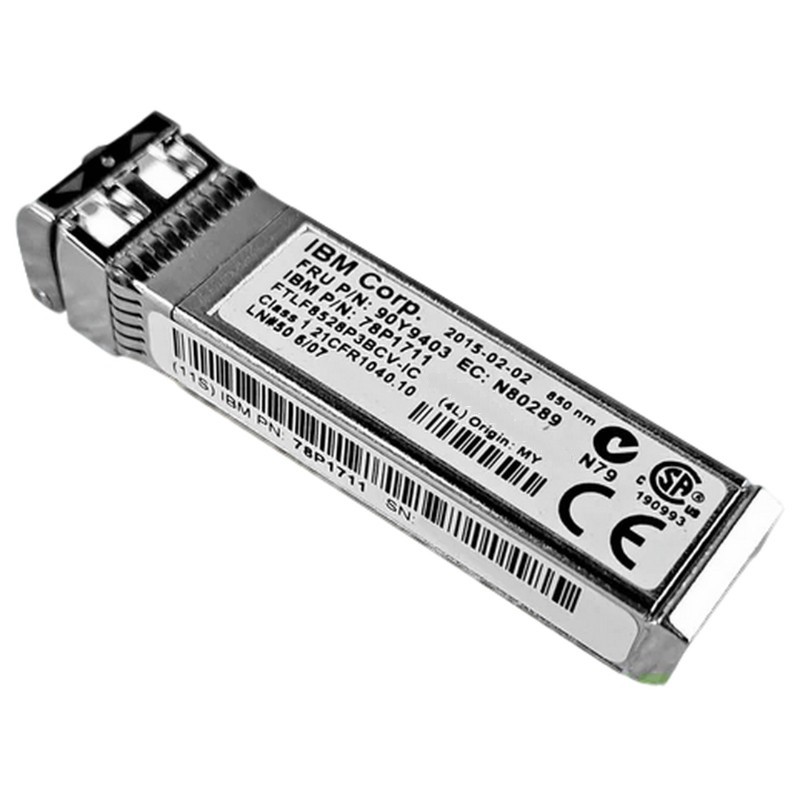

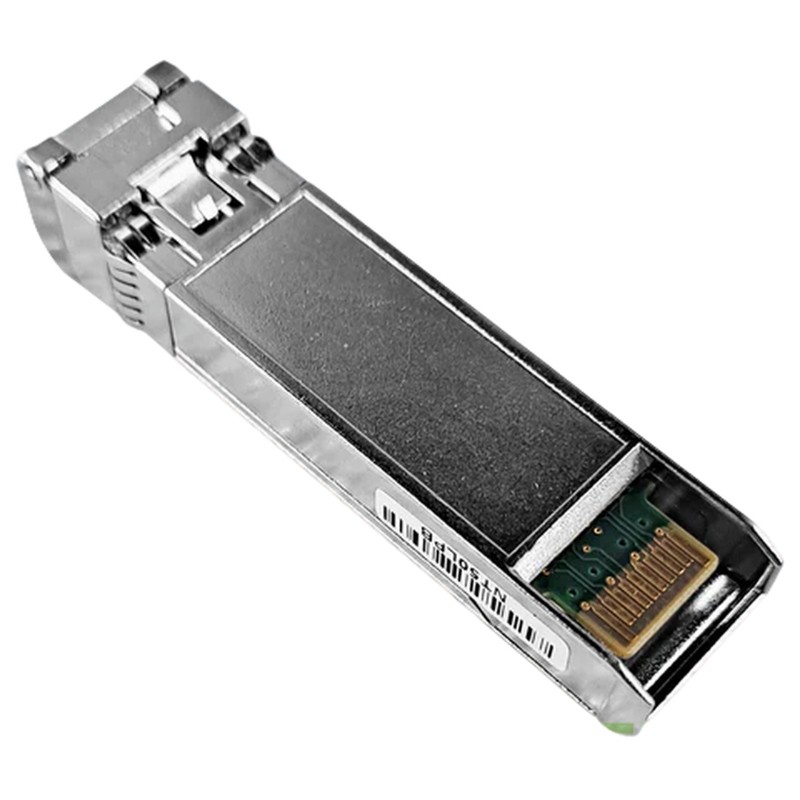

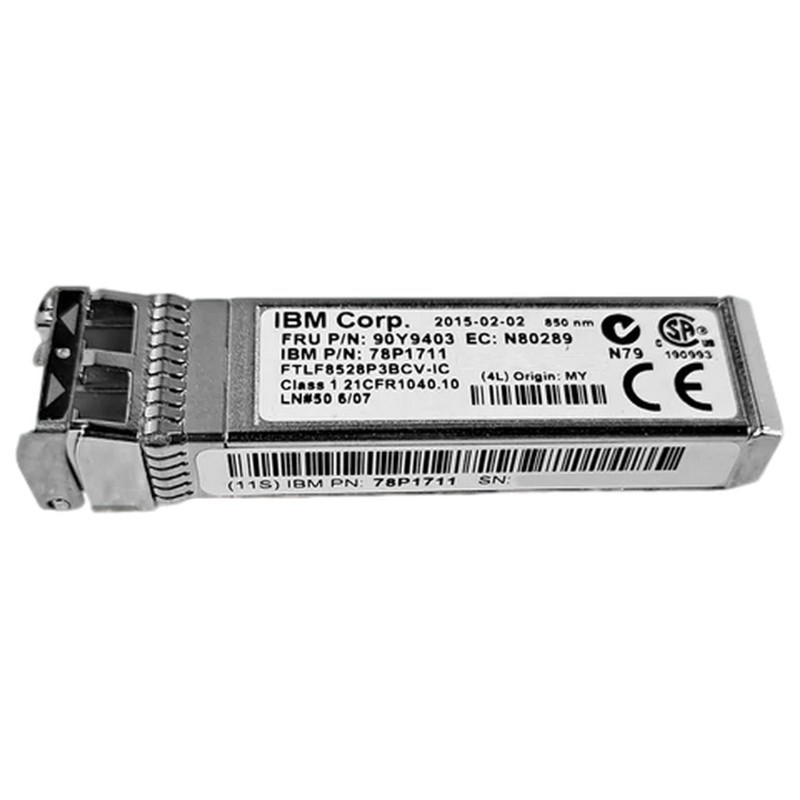

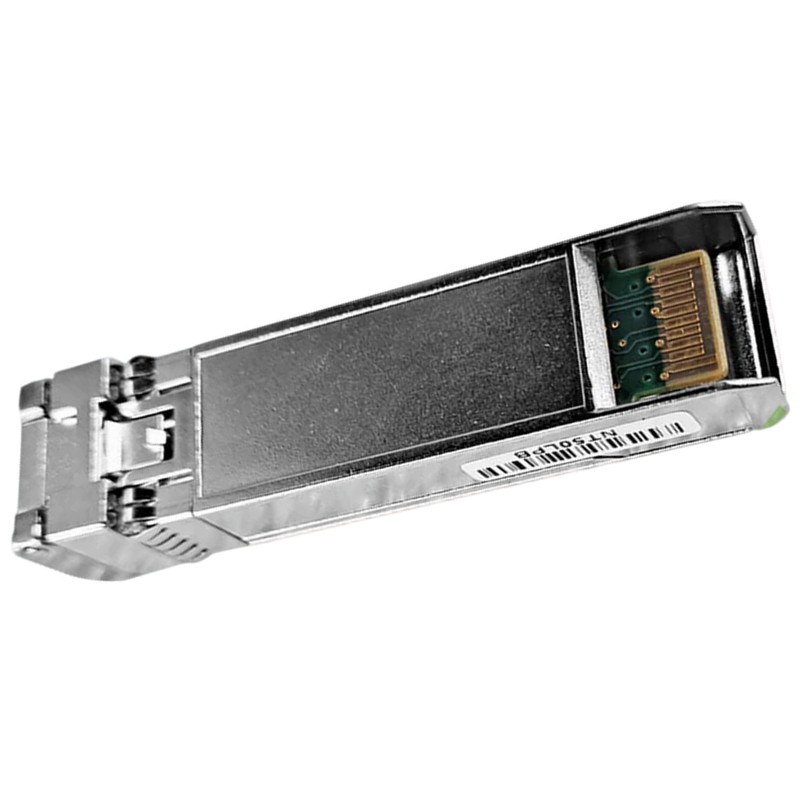

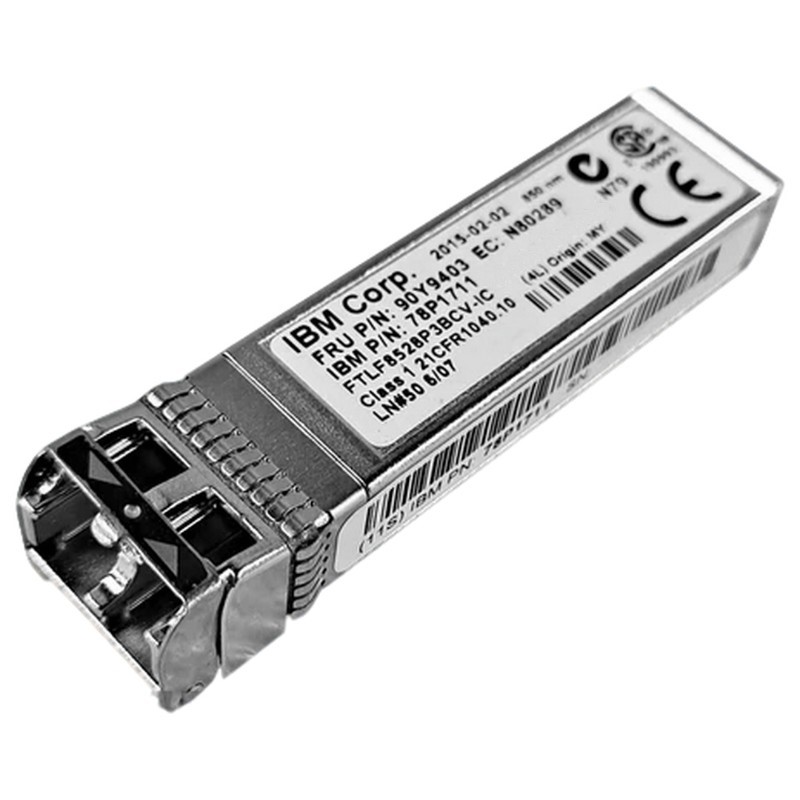

49Y4123 IBM 8GB FC SFP SW Transceiver

The IBM 49Y4123 8Gbps 8GBase-SR SFP+ Transceiver Overview

The 49Y4123 IBM 8Gbps 8GBase-SR Small Form-factor Pluggable Plus (SFP+) transceiver module represents a high-performance optical networking component engineered for enterprise-grade storage, data center switching, and high-speed server interconnect environments. Designed by IBM. This optical module supports short-range multimode fiber communication with an 850nm VCSEL transmitter wavelength, enabling stable and efficient data transmission across demanding infrastructure workloads. As a critical component in fiber channel networks, the 49Y4123 SFP+ transceiver is optimized for 8Gbps bandwidth operation and ensures reliable connectivity between switches, servers, and storage arrays. Its compact form factor, digital diagnostic capabilities, and tri-rate flexibility make it suitable for modern scalable architectures where performance, density, and energy efficiency are essential.

8Gbps 8GBase-SR High-Speed Data Standard

The module operates on the 8GBase-SR Fibre Channel standard, enabling an 8 gigabit per second data rate optimized for short-range optical transmission. This standard is widely used in storage area networks (SANs), where predictable latency and consistent throughput are essential for mission-critical applications. The architecture ensures that data frames are transmitted with minimal loss and maximum integrity across multi-mode fiber links. By adhering to the 8GBase-SR protocol, the transceiver guarantees backward compatibility with earlier Fibre Channel generations while maintaining efficient scaling for enterprise environments transitioning toward higher bandwidth infrastructures.

850nm VCSEL Transmitter Wavelength Technology

At the core of the optical subsystem is an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) transmitter. This wavelength is specifically chosen for multi-mode fiber transmission because it offers optimal propagation characteristics within short-distance data center environments. The 850nm spectrum reduces dispersion and supports stable signal integrity over OM3 and OM4 fiber types. The VCSEL design provides lower power consumption compared to traditional edge-emitting lasers while maintaining high modulation speeds. This contributes to improved thermal performance and long-term operational stability in densely populated switching environments.

Multi-Mode Fiber Compatibility and Signal Efficiency

The 49Y4123 IBM SFP+ module is fully compatible with multi-mode fiber (MMF) infrastructure, making it a cost-effective solution for intra-rack and inter-rack connectivity. Multi-mode fiber enables light to propagate through multiple pathways, supporting high bandwidth over shorter distances with reduced deployment complexity. The transceiver is optimized for OM3 and OM4 fiber types, ensuring low attenuation and high signal quality across enterprise-grade optical networks. This compatibility makes it suitable for modern data centers that prioritize flexible cabling systems and scalable optical architectures.

SFP+ Compact Hot-Swappable Architecture

The Small Form-factor Pluggable Plus (SFP+) design is a compact and modular interface that enables high-density port configurations in switches and servers. The 49Y4123 module supports hot-swapping, allowing network administrators to install or replace the transceiver without shutting down systems, thereby reducing downtime and operational disruption. This design is essential in enterprise environments where continuous uptime is critical. The modularity of SFP+ components ensures flexible network scaling without requiring full hardware replacement.

Thermal Efficiency and Port Density Optimization

The reduced footprint of the SFP+ form factor allows for higher port density on networking equipment. This contributes to efficient rack utilization, improved airflow, and reduced heat accumulation. The thermal design of the module is engineered to maintain stable performance under continuous high-load conditions.

LC Duplex Connector Interface

The transceiver utilizes an LC duplex connector system, which provides precise alignment for optical fiber coupling. This connector type is widely adopted in enterprise fiber networks due to its compact size and reliable insertion loss performance.

Stability and Signal Integrity

The LC interface ensures stable optical alignment, minimizing signal degradation caused by connector misalignment or vibration. This stability is particularly important in high-density networking environments where multiple fiber connections are deployed in close proximity.

Digital Diagnostics Monitoring (DDM) Functionality

The Digital Diagnostics Monitoring (DDM) feature integrated into the 49Y4123 IBM SFP+ transceiver provides real-time monitoring of operational parameters such as optical output power, input signal strength, temperature, laser bias current, and supply voltage. This telemetry capability enables proactive network maintenance and performance optimization. By leveraging DDM data, network administrators can identify potential issues before they impact system performance. This predictive maintenance approach reduces downtime and improves overall network reliability.

Flexible Data Rate Support Up to 8Gbps

The tri-rate functionality of the module enables compatibility with multiple Fibre Channel speeds, typically supporting 2Gbps, 4Gbps, and 8Gbps operation. This flexibility allows seamless integration into mixed-generation infrastructures without requiring immediate hardware upgrades.

Up to 150 Meter Transmission Reach

The transceiver is capable of achieving distances up to 150 meters over OM3 or OM4 multi-mode fiber, depending on system configuration and cabling quality. This range is ideal for intra-data center connectivity, including switch-to-switch and server-to-switch communication paths. Distance optimization is achieved through precise modulation control and high-quality optical components, ensuring signal integrity even at extended short-range deployments.

High-Performance Storage Area Networks (SAN)

The 49Y4123 IBM SFP+ module is widely deployed in Storage Area Networks where high-speed access to storage resources is critical. SAN environments rely on consistent low-latency communication between storage arrays and compute nodes, making 8Gbps Fibre Channel transceivers a foundational component. In such environments, the module supports data replication, backup operations, virtualization workloads, and mission-critical database transactions with predictable performance.

Server and Switch Interconnectivity

In enterprise switching architectures, the transceiver enables high-speed uplinks between top-of-rack and aggregation switches. Its low latency and stable optical performance ensure smooth data flow across distributed computing environments.

OM3 and OM4 Multi-Mode Fiber Optimization

The module is specifically optimized for OM3 and OM4 fiber standards, which are commonly deployed in modern data centers. These fiber types support high bandwidth transmission with reduced modal dispersion, making them ideal for 8Gbps operations.

Hot-Swap Replacement Capability

The hot-swappable nature of the SFP+ module reduces maintenance complexity and allows rapid replacement without system downtime. This feature is particularly valuable in environments requiring continuous uptime.
