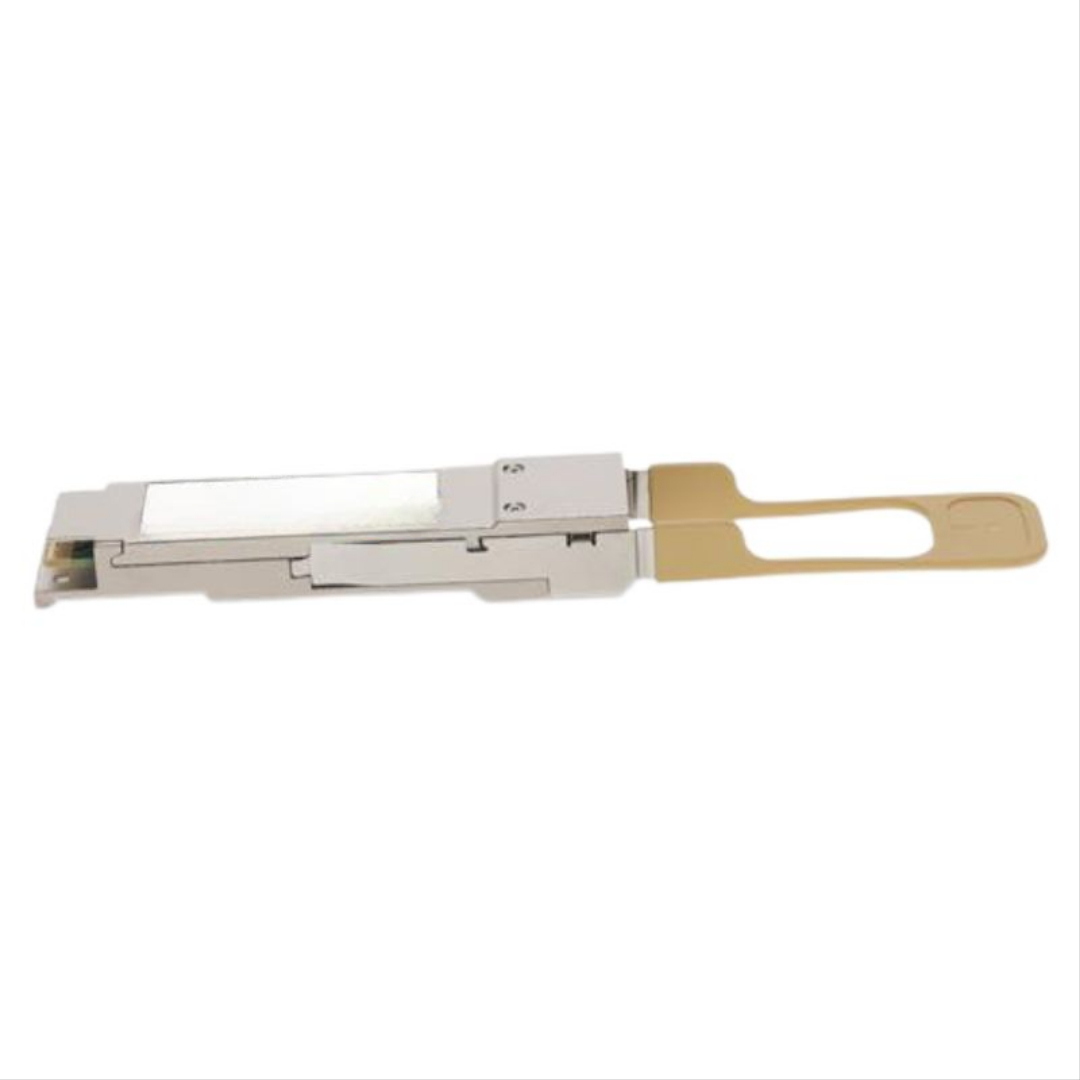

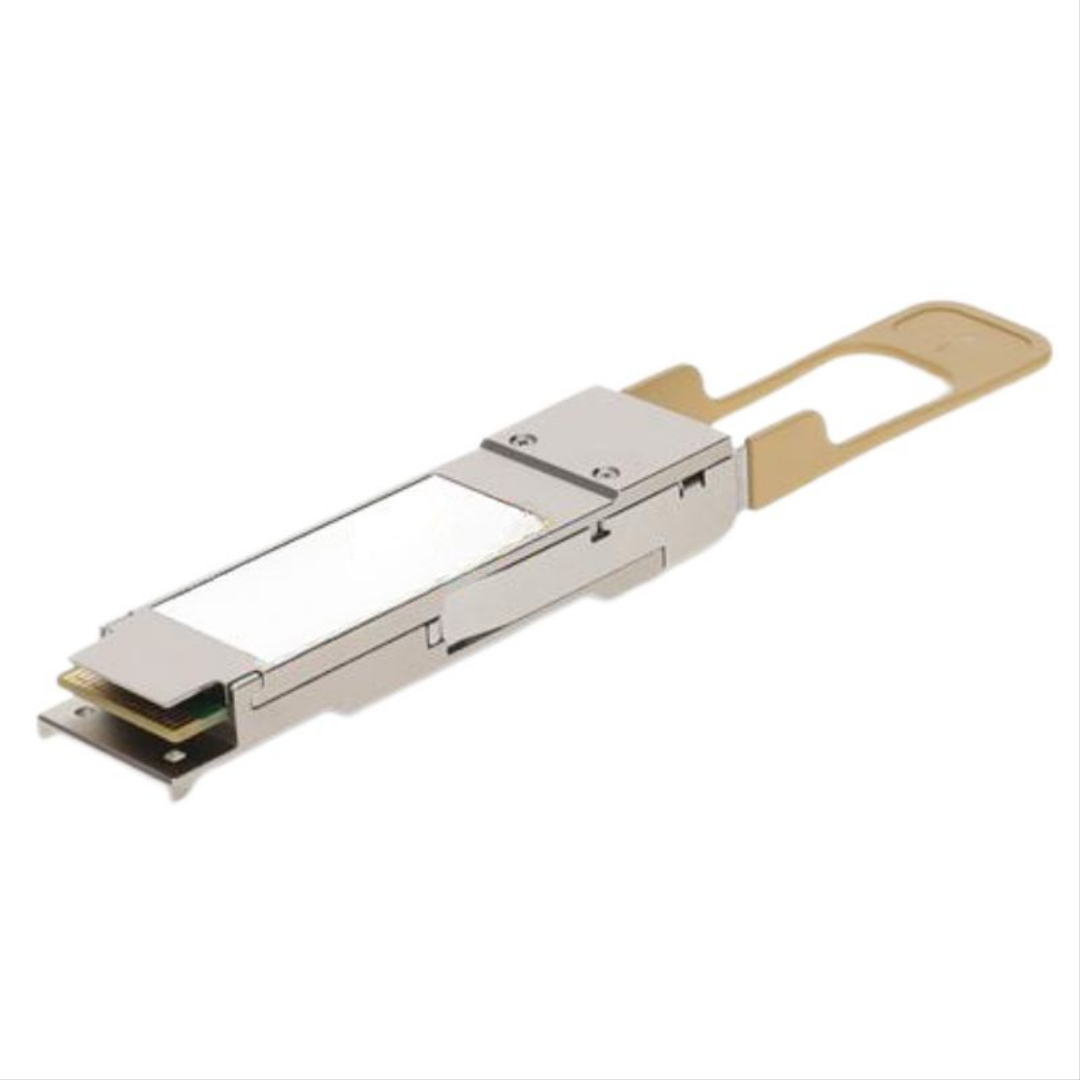

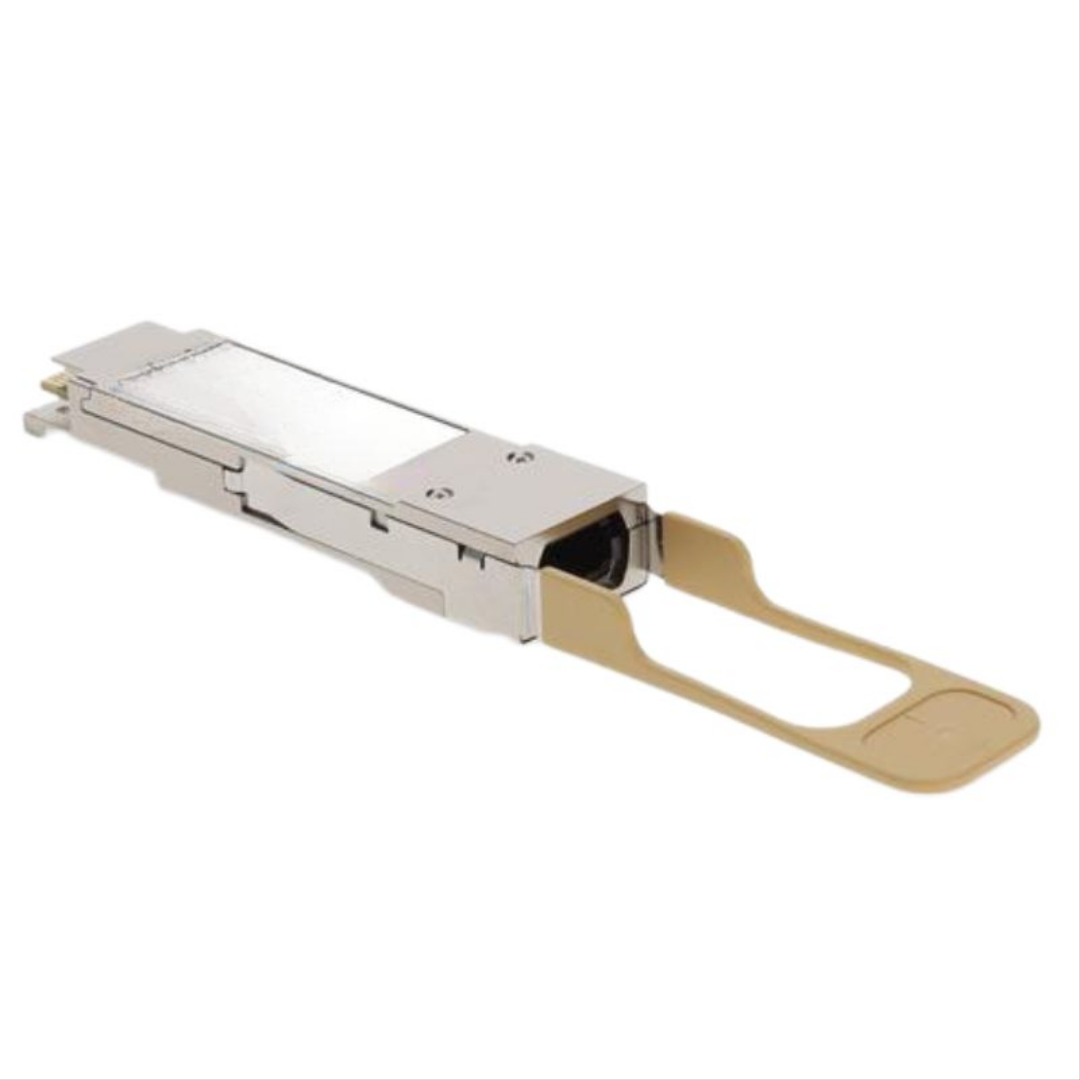

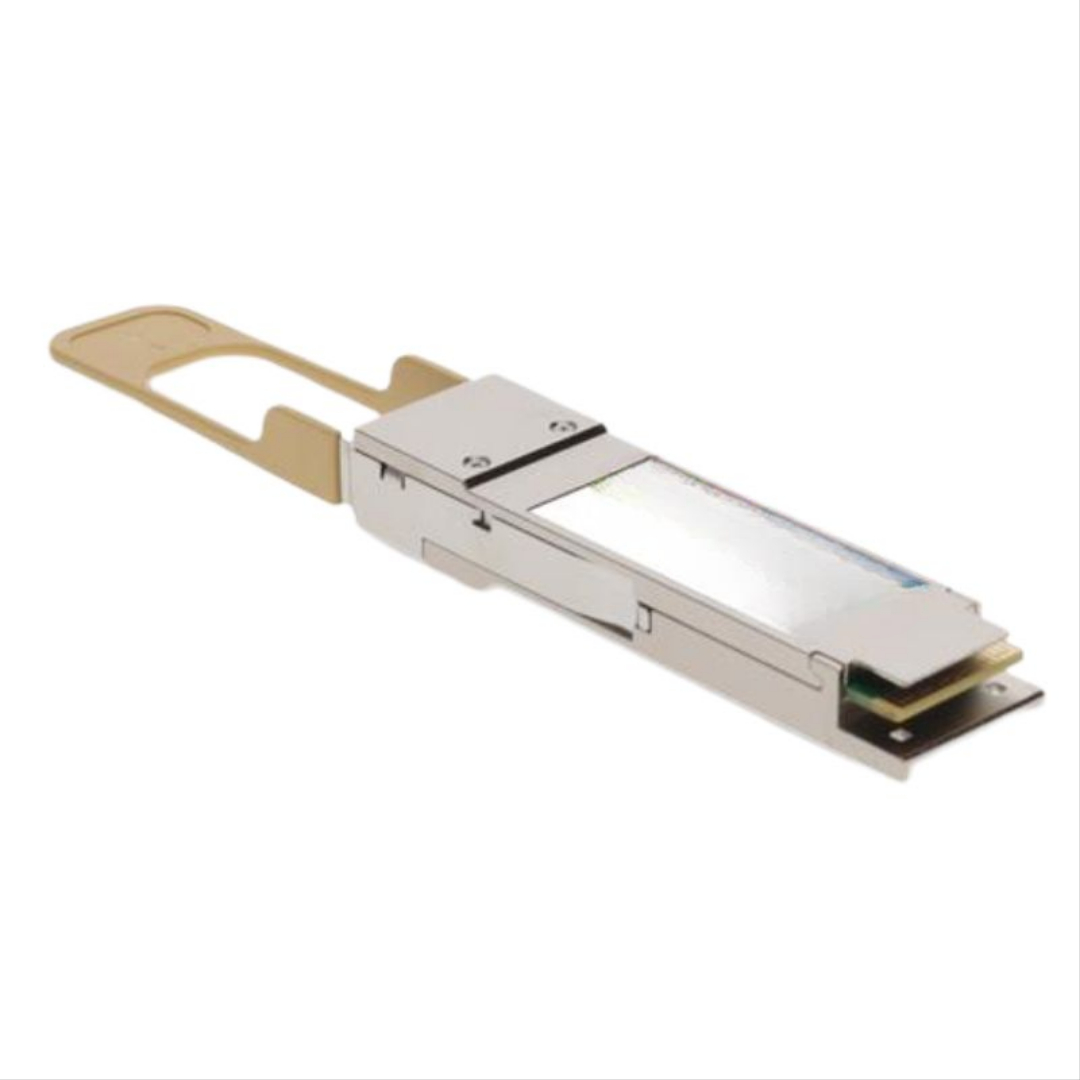

E100GQSFP28SRX Intel 100 GBE Ethernet Transceiver QSFP 28 MMF SR Transceiver Ext Temp

High-Density 100G Ethernet Optical Transceiver Module

The Intel E100GQSFP28SRX 100GBase-SR4 Multi-Mode Fibre 850nm 100m MPO/MTP QSFP28 Transceiver Module is engineered for high-throughput optical networking environments where ultra-low latency, high bandwidth density, and short-reach interconnect optimization are essential. Built for 100 Gigabit Ethernet (100GbE) applications, this QSFP28 transceiver module operates over multimode fiber infrastructure using 850nm vertical-cavity surface-emitting laser (VCSEL) technology, delivering reliable performance across parallel optical lanes in high-performance computing clusters, hyperscale cloud data centers, enterprise aggregation layers, and spine-leaf network topologies.

As a member of the SR4 (Short Range 4-lane) optical class, this module supports four parallel transmission channels, each carrying 25Gbps of data, aggregating into a total throughput of 100Gbps. The architecture is designed to support efficient parallel optics through MPO/MTP multi-fiber connectors, ensuring simplified cabling, reduced latency, and improved port density in switching environments where scalability is critical.

QSFP28 Form Factor and Electrical Interface Optimization

The QSFP28 form factor represents a compact, hot-pluggable design optimized for 100G Ethernet standards. The Intel E100GQSFP28SRX integrates a high-speed electrical interface supporting four lanes of 25Gbps PAM4 or NRZ signaling depending on host system compatibility. The module ensures efficient signal integrity through controlled impedance pathways, advanced signal conditioning, and integrated clock data recovery mechanisms that maintain stability across short-reach optical links.

Designed for compatibility with modern switch ASICs and high-speed network interface controllers, the module ensures seamless interoperability within data center ecosystems where 100G uplinks are required between top-of-rack switches, aggregation switches, and spine switches.

850nm VCSEL-Based Optical Transmission System

At the core of the Intel E100GQSFP28SRX transceiver is an 850nm VCSEL optical engine, optimized for multimode fiber transmission. VCSEL technology enables efficient short-wavelength light emission with low power consumption and high modulation speeds. This enables the module to achieve consistent 100G transmission performance over distances up to 70–100 meters depending on fiber grade, typically OM3 or OM4 multimode fiber.

The 850nm wavelength is specifically chosen for its compatibility with multimode fiber’s modal dispersion characteristics, ensuring stable transmission across short-reach data center links where cost efficiency and density are prioritized over long-distance reach.

Parallel Optics Architecture and Lane Distribution

The SR4 architecture distributes data across four independent optical lanes. Each lane transmits and receives 25Gbps of data simultaneously, enabling aggregated 100Gbps full-duplex communication. This parallelization significantly reduces the complexity of signal modulation while maintaining high throughput efficiency. The module internally aligns these lanes using advanced gearbox ICs and lane alignment logic, ensuring deterministic latency and synchronized transmission.

Signal Integrity and Error Reduction Mechanisms

To maintain high signal integrity across multimode fiber, the module incorporates advanced error detection and correction support at the host system level. The optical engine is designed with tight jitter control, ensuring minimal bit error rates even in dense switching environments. Built-in digital diagnostics monitoring (DDM) allows real-time tracking of optical power, temperature, voltage, and laser bias current, supporting proactive network maintenance.

MPO/MTP Connectivity

High-Density MPO/MTP Connector System

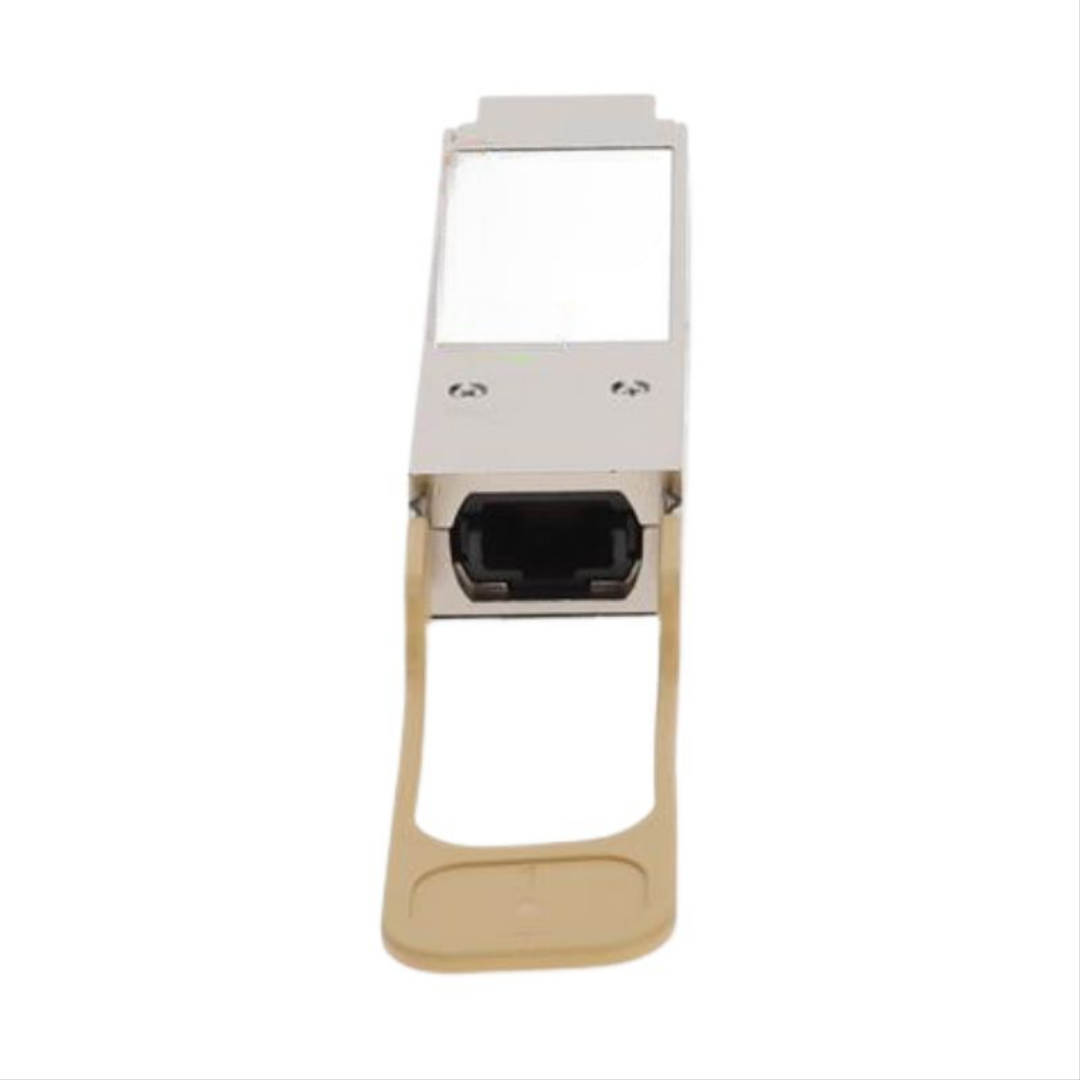

The Intel E100GQSFP28SRX utilizes an MPO/MTP connector interface, a key enabler of high-density fiber deployment in modern data centers. The MPO/MTP connector supports multiple fiber strands within a single ferrule, enabling compact cable routing for 100G SR4 transmission. This reduces cable clutter and simplifies structured cabling systems in environments where hundreds or thousands of optical links are deployed.

The connector is designed for precise alignment of optical fibers, ensuring minimal insertion loss and optimized return loss performance. The push-pull locking mechanism provides secure installation and fast hot-swappable maintenance capabilities.

Polarity Management and Fiber Mapping Efficiency

Proper polarity alignment is essential for SR4 transceivers, and the Intel E100GQSFP28SRX is designed to support standardized Type-B or Type-A polarity configurations depending on deployment requirements. The fiber mapping ensures that transmit and receive lanes are correctly aligned across multi-fiber trunks, preventing signal mismatch and ensuring deterministic connectivity.

Compatibility with OM3 and OM4 Multimode Fiber

This transceiver is optimized for use with OM3 and OM4 multimode fiber cabling. OM3 fiber supports up to approximately 70 meters of reach at 100G SR4 speeds, while OM4 fiber extends reach capability to approximately 100 meters under optimal conditions. These specifications make the module ideal for intra-data center connectivity where short-distance, high-bandwidth links are required.

Thermal Efficiency

Low Power Consumption QSFP28 Architecture

The Intel E100GQSFP28SRX is engineered with power efficiency in mind, typically operating within a low power envelope suitable for high-density switch environments. The module minimizes heat dissipation through optimized VCSEL driver circuitry and integrated power management ICs. This ensures reduced cooling overhead in data center racks, improving overall operational efficiency.

Thermal Dissipation and Heat Control Mechanisms

Thermal stability is maintained through an advanced metal housing design that facilitates passive heat dissipation. The QSFP28 cage interface within host switches further supports thermal conduction pathways, ensuring that heat generated during high-speed operation is efficiently transferred away from sensitive optical components.

Adaptive Performance Control

Built-in temperature sensors provide continuous monitoring of internal module conditions. If thermal thresholds are approached, system-level controls can adjust performance parameters to maintain stable operation. This ensures long-term reliability in high-density deployments where airflow may vary across rack positions.

Data Center Application Scenarios and Network Topologies

Spine-Leaf Architecture Deployment

The Intel E100GQSFP28SRX QSFP28 SR4 module is widely deployed in spine-leaf network architectures, where high-bandwidth, low-latency interconnects are required between switching layers. Leaf switches connect to servers, while spine switches aggregate traffic using 100G uplinks enabled by SR4 transceivers.

This architecture benefits from the module’s ability to deliver consistent throughput across short-reach fiber links, reducing oversubscription ratios and improving east-west traffic performance in cloud data centers.

High-Performance Computing (HPC) Clusters

In HPC environments, where distributed computing workloads require rapid data exchange between compute nodes, the Intel E100GQSFP28SRX provides the necessary interconnect performance. Its low latency and parallel optical lanes support tightly coupled computational workloads such as scientific simulations, machine learning training clusters, and financial modeling systems.

Enterprise Core and Aggregation Layer Connectivity

Enterprise networks use the Intel E100GQSFP28SRX in core switching layers to aggregate traffic from multiple access networks. The module provides a cost-effective upgrade path from 40G to 100G Ethernet, enabling scalable infrastructure expansion without requiring complete fiber overhauls.

Hot-Pluggable

The QSFP28 hot-pluggable design allows network operators to install or replace modules without powering down network equipment. This capability is essential in large-scale data centers where uptime is critical. The Intel E100GQSFP28SRX supports seamless integration into live systems, minimizing service interruptions during upgrades or replacements.

Standards Compliance and Interoperability

IEEE 802.3bm 100GBASE-SR4 Compliance

The Intel E100GQSFP28SRX adheres to IEEE 802.3bm standards for 100G Ethernet transmission over multimode fiber. This ensures interoperability across a wide range of networking equipment vendors and guarantees consistent performance in standardized network environments.

Multi-Vendor Network Ecosystem Compatibility

Designed for broad compatibility, the module integrates seamlessly with leading data center switch platforms, routing systems, and optical transport infrastructure. Its standardized QSFP28 interface ensures plug-and-play functionality in compliant systems, reducing deployment complexity and vendor lock-in concerns.

Performance Optimization in High-Bandwidth Networks

Latency Reduction Through Parallel Optical Transmission

By distributing data across four parallel lanes, the module significantly reduces serialization latency compared to single-lane architectures. This enables faster packet forwarding and improved overall network responsiveness, which is critical in real-time applications and high-frequency trading environments.

Bandwidth Scalability and Infrastructure Growth

The Intel E100GQSFP28SRX supports scalable network expansion strategies where incremental bandwidth upgrades are required. Organizations can transition from lower-speed optics to 100G SR4 modules without redesigning entire fiber infrastructures, provided multimode fiber and MPO/MTP cabling are already in place.

Future-Ready Data Center Integration

As data center architectures evolve toward higher speeds such as 200G and 400G, the SR4 100G QSFP28 module serves as a foundational building block in hybrid optical environments. It supports interoperability within mixed-speed networks and provides a transitional technology path for infrastructure modernization.
