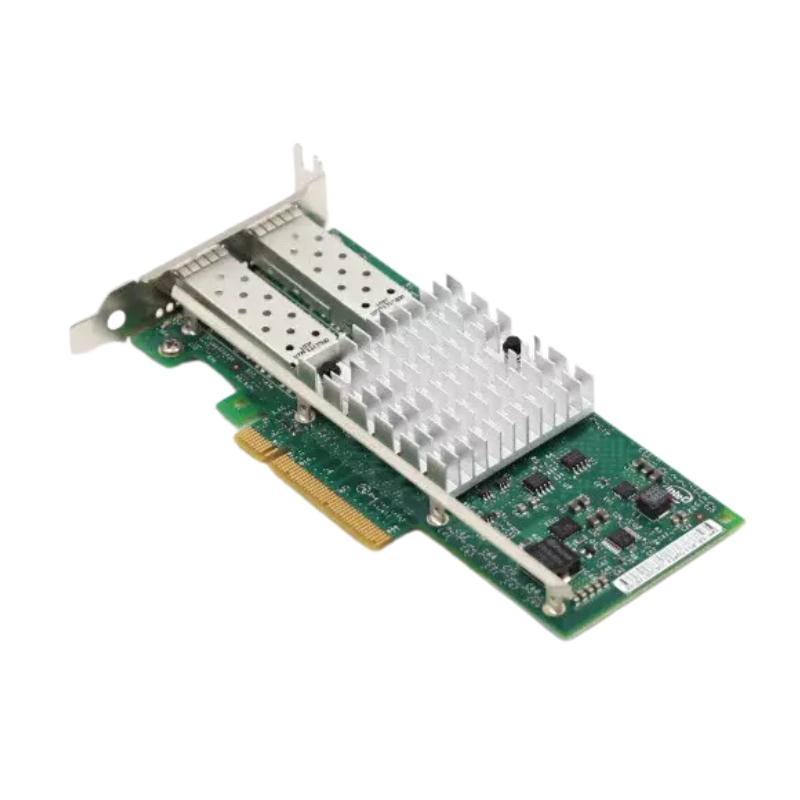

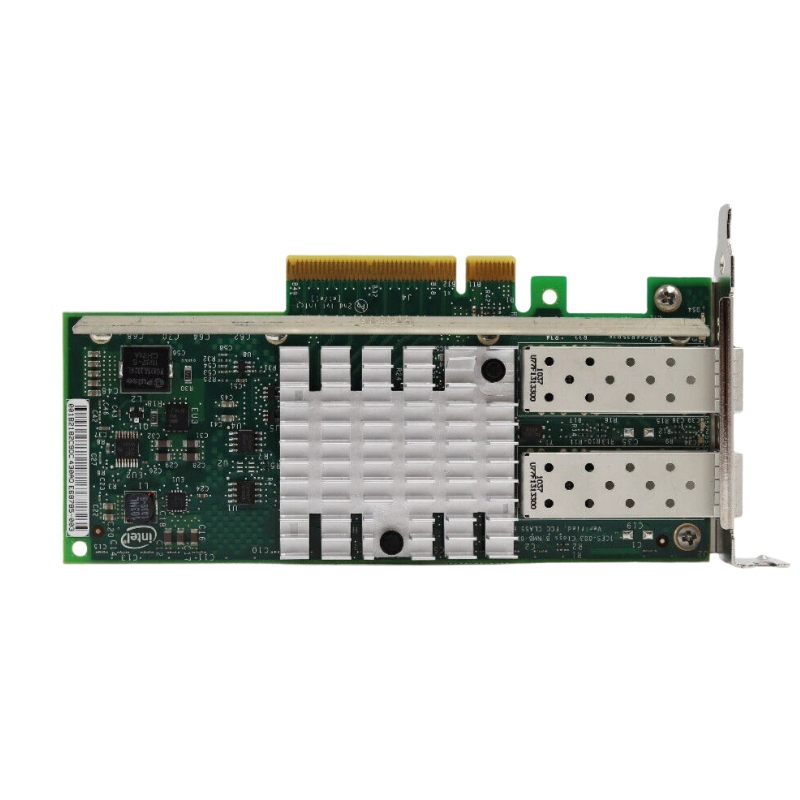

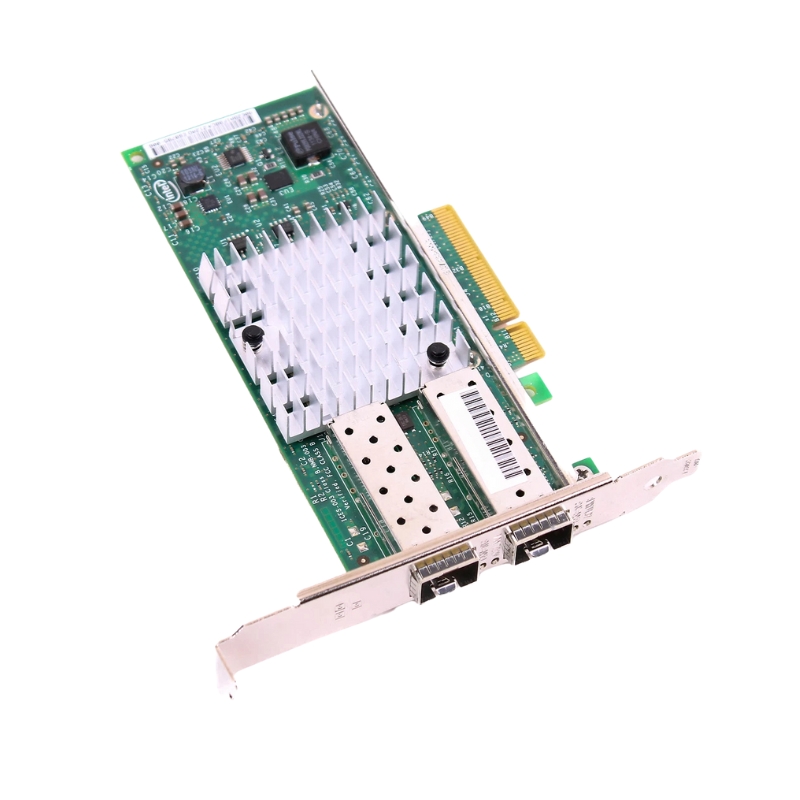

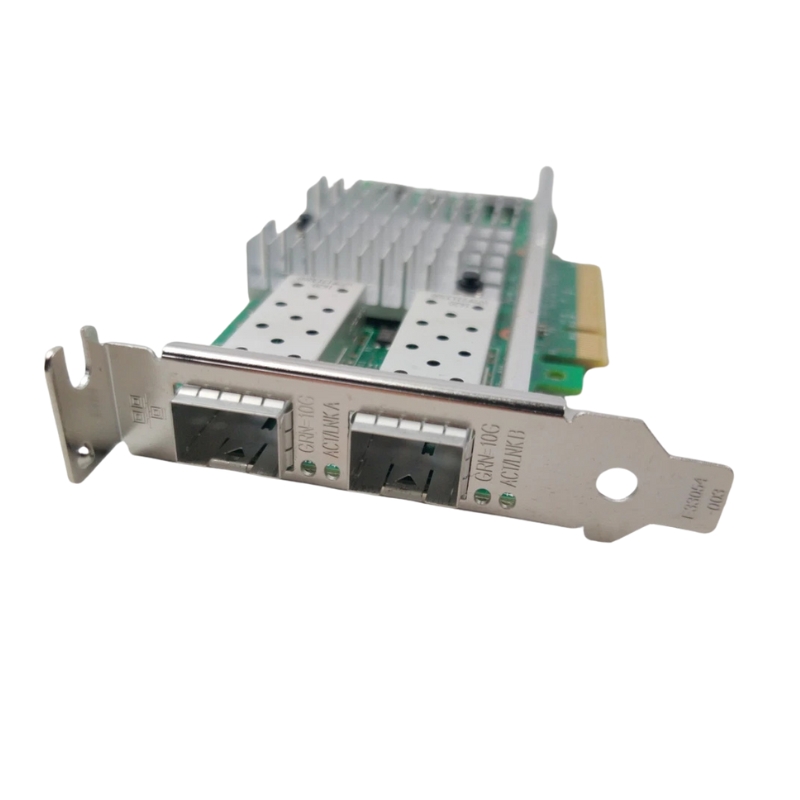

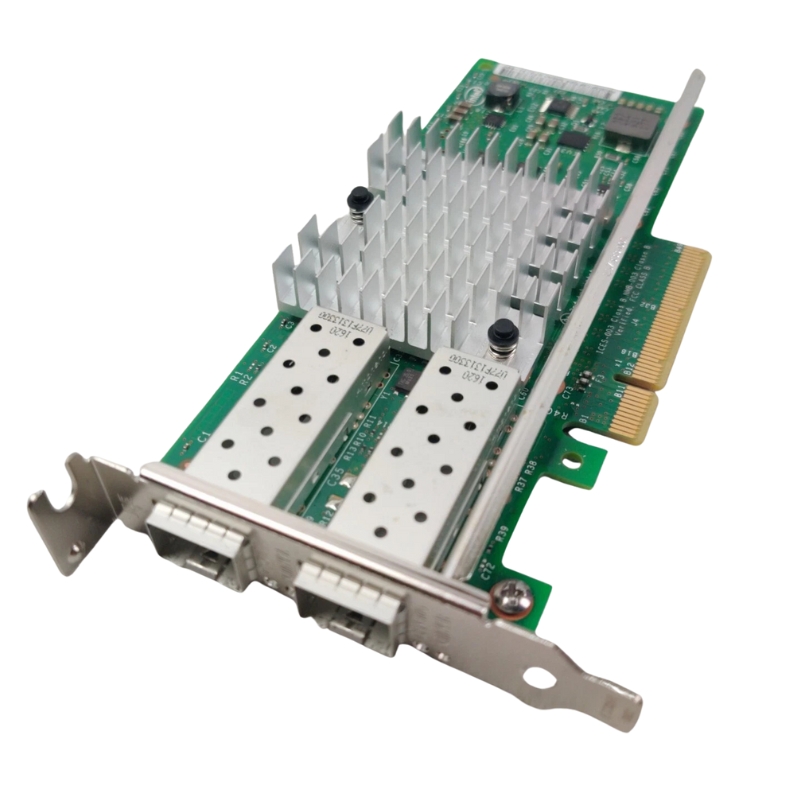

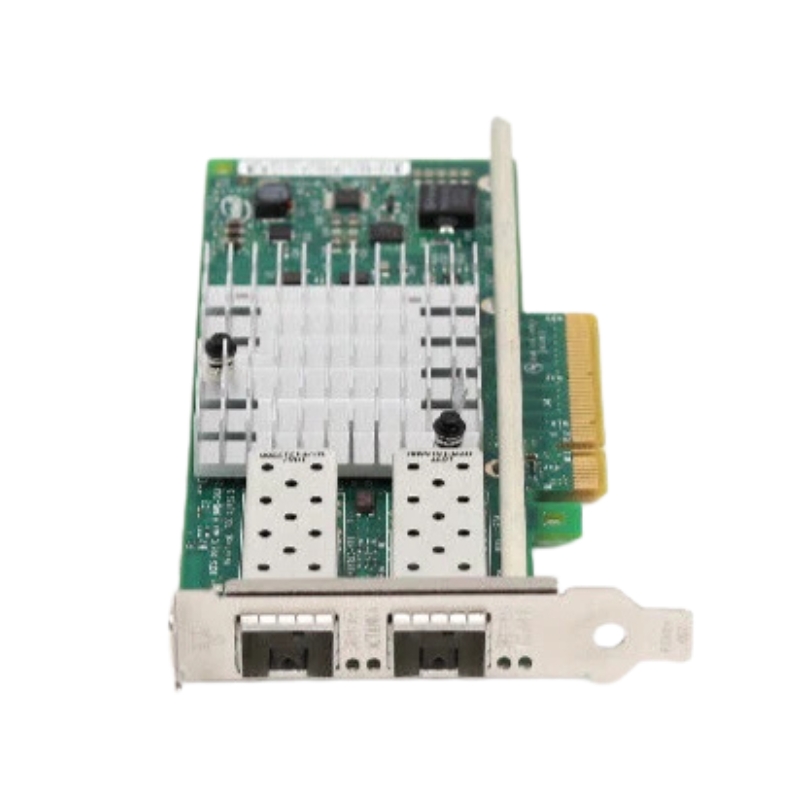

E10G42BFSR Intel X520-SR2 PCI Express 2.0 X8 Dual Port Base 10 Gigabit Server Adapter

Comprehensive Product Overview of the E10G42BFSR Adapter

The Intel E10G42BFSR X520‑SR2 PCI Express 2.0 x8 network interface card is a high‑performance solution engineered for modern data centers and enterprise‑grade connectivity. Designed to deliver exceptional throughput and reliable wired networking, this adapter supports advanced virtualization, secure transport protocols, and multi‑gigabit data transmission.

General Specifications

• Brand: Intel
• Part Number: E10G42BFSR
• Device Type: Network Adapter

Technical Specifications

• Low‑profile plug‑in card design
• Optimized for compact and full‑size server chassis
• Fits into a PCI Express 2.0 x8 expansion slot

Connectivity Technology

• Wired Ethernet communication
• Supports 10GBASE‑SR fiber‑optic cabling
• LC multi‑mode fiber connectors for dual‑port operation

Supported Protocols & Standards

• Data Link: Gigabit Ethernet & 10‑Gigabit Ethernet
• Transport: TCP/IP, UDP/IP, IPsec
• Remote Management: SNMP, RMON
• Compliance: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ad (LACP)

Advanced Networking Features

• VLAN stacking for enhanced traffic segmentation
• Virtual Machine Device Queues (VMDq) for optimized virtualization
• Status indicators for link activity and port speed

Expansion & Connectivity Options

Available Interfaces

• Two Ethernet 10GBASE‑SR ports
• Dual LC multi‑mode fiber connectors

Slot Compatibility

• Designed for systems with a PCI Express 2.0 x8 slot

Overview of Intel E10G42BFSR X520-SR2 PCI Express 2.0 x8

The Intel E10G42BFSR X520-SR2 PCI Express 2.0 x8 Dual Port Base 10 Gigabit Server Adapter represents a high-performance networking solution designed for modern enterprise data centers requiring ultra-fast, reliable, and scalable connectivity. Built on Intel’s advanced Ethernet controller architecture, this dual-port 10GbE SFP+ server adapter delivers consistent throughput for virtualization, cloud computing, storage networking, and high-bandwidth enterprise workloads. As part of Intel’s X520 series, it is engineered to meet the growing demand for low-latency, high-efficiency network communication in mission-critical environments where performance and stability are essential.

This adapter is widely adopted in server infrastructures that require seamless integration with fiber optic networking systems. The Intel E10G42BFSR X520-SR2 leverages PCI Express 2.0 x8 lanes, ensuring sufficient bandwidth between the network interface and the host system. With dual-port SFP+ connectivity, it enables redundancy, load balancing, and improved network traffic management, making it ideal for enterprise-grade deployments where downtime and packet loss are not acceptable.

Architecture and Design of the X520-SR2 Server Adapter

Advanced Ethernet Controller Architecture

At the core of the Intel E10G42BFSR X520-SR2 lies the Intel 82599 Ethernet controller, a widely recognized chipset known for its robust performance and efficient packet processing capabilities. This controller is designed to handle intensive network workloads, including virtualization traffic segmentation, large data transfers, and high-speed packet routing. Its architecture supports offloading features that reduce CPU utilization, allowing server resources to be allocated more effectively toward application processing rather than network overhead.

PCI Express 2.0 x8 Interface Design

The PCI Express 2.0 x8 interface ensures that the adapter can fully utilize high-speed data transfer between the network card and the motherboard. This interface provides sufficient bandwidth to support dual 10 Gigabit Ethernet ports operating simultaneously without bottlenecking. The design enhances scalability in server environments where multiple virtual machines and high-throughput applications operate concurrently. The PCIe 2.0 architecture also ensures compatibility with a wide range of server platforms, making the adapter highly versatile across enterprise hardware configurations.

Signal Efficiency and Data Lane Optimization

The x8 lane configuration optimizes signal efficiency, ensuring stable communication between the adapter and system chipset. This reduces latency and improves packet delivery consistency, particularly in environments where real-time data transmission is crucial. The architecture minimizes congestion by distributing network traffic efficiently across available lanes, ensuring smooth operation even under heavy loads.

Dual Port SFP+ Optical Connectivity

The dual-port SFP+ interface is one of the defining features of the Intel E10G42BFSR X520-SR2 server adapter. It supports 10 Gigabit Ethernet connections through optical fiber transceivers, typically using SR (Short Range) modules for short-distance high-speed communication. This design is ideal for intra-data center connectivity, where high bandwidth and low latency are essential for server clusters and storage systems.

Redundancy and Failover Capabilities

With two independent ports, the adapter supports network redundancy configurations that help maintain continuous connectivity in case one link fails. This ensures business continuity in mission-critical applications, minimizing downtime and maintaining service availability even during hardware or network interruptions.

Performance Capabilities of Intel E10G42BFSR X520-SR2

High-Speed 10 Gigabit Ethernet Throughput

The Intel E10G42BFSR X520-SR2 delivers full 10 Gigabit per second throughput per port, providing a combined potential bandwidth of 20Gbps in dual-port operation. This makes it suitable for data-intensive operations such as database replication, virtualization migration, large-scale backup operations, and high-performance computing tasks. The adapter ensures consistent packet delivery with minimal jitter, which is essential for latency-sensitive workloads.

Low Latency Network Communication

Latency reduction is a critical performance aspect of the X520-SR2 adapter. By leveraging hardware-based offloading and optimized packet processing, the adapter minimizes delays in data transmission. This is particularly important in environments such as financial trading systems, cloud computing platforms, and distributed storage networks where microsecond-level performance differences can significantly impact outcomes.

Hardware Offloading Features

The adapter supports multiple offloading technologies, including TCP segmentation offload, checksum offload, and large send offload. These features reduce the workload on the CPU by delegating repetitive network processing tasks to the adapter hardware. As a result, server systems experience improved overall efficiency and higher application performance under heavy network load conditions.

Enterprise Data Center Applications

Virtualization and Cloud Infrastructure

The Intel E10G42BFSR X520-SR2 is extensively used in virtualization environments such as VMware, Hyper-V, and KVM-based systems. Its ability to handle multiple virtual machine network interfaces simultaneously makes it an essential component in cloud data centers. The adapter supports efficient virtual machine traffic separation, ensuring secure and optimized communication between virtualized workloads.

Storage Area Networks and Data Replication

In storage environments, the adapter supports high-speed data transfer between storage arrays and servers. It is commonly deployed in iSCSI and NAS architectures where fast and reliable data replication is required. The dual-port configuration ensures continuous data availability and supports failover mechanisms in enterprise storage systems.

High Availability Storage Connectivity

High availability is achieved through redundant network paths enabled by the adapter’s dual ports. This ensures that storage systems remain accessible even in the event of network disruption. The adapter’s stability and throughput make it a preferred choice for enterprise storage infrastructure.

Technical Specifications and Engineering Excellence

Intel 82599 Controller Integration

The integration of the Intel 82599 controller ensures that the E10G42BFSR X520-SR2 delivers enterprise-grade reliability and performance. This controller is designed for scalability and supports advanced network features that enhance efficiency in high-density server environments. It is optimized for multi-core processors and distributed computing workloads, making it suitable for modern data centers.

SFP+ Optical Module Compatibility

The adapter supports SFP+ SR optical transceivers, enabling short-range fiber optic communication typically used within data center racks or adjacent server rooms. This compatibility ensures flexible deployment options and easy integration into existing fiber network infrastructures. The use of optical modules also reduces electromagnetic interference, improving signal integrity.

Signal Integrity and Transmission Quality

The use of fiber optic connectivity ensures high signal integrity over short distances. This is particularly important in dense server environments where copper-based connections may suffer from interference. The adapter ensures consistent and reliable data transmission across all supported ports.

Deployment and Compatibility Considerations

Operating System Support

The Intel E10G42BFSR X520-SR2 is compatible with a wide range of operating systems including Windows Server editions, Linux distributions, and virtualization platforms. This broad compatibility ensures that the adapter can be deployed across diverse IT infrastructures without requiring specialized configurations. Intel provides stable driver support to ensure seamless integration and performance optimization.

Server Hardware Integration

The adapter is designed for standard PCI Express slots and is compatible with most enterprise server motherboards. Its low-profile design allows installation in rack-mounted servers where space optimization is critical. The adapter is engineered to operate efficiently within high-density server configurations without compromising airflow or thermal performance.

Thermal Efficiency and Power Management

Efficient power consumption and thermal management are key design considerations of the X520-SR2 adapter. The device is optimized to operate under sustained workloads without excessive heat generation. This ensures long-term reliability and reduces the need for additional cooling infrastructure within server environments.

Reliability and Enterprise-Grade Stability

Built for Continuous Operation

The Intel E10G42BFSR X520-SR2 is engineered for 24/7 operation in mission-critical environments. Its robust hardware design ensures long-term durability and consistent performance under continuous network load. The adapter is tested for enterprise reliability standards, making it suitable for large-scale deployments where uptime is a priority.

Error Handling and Data Integrity

Advanced error handling mechanisms ensure that data integrity is maintained throughout transmission. The adapter includes features that detect and correct packet-level errors, reducing the risk of data corruption in high-speed network environments. This enhances overall system reliability and ensures consistent network performance.

Use Cases and Industry Applications

Enterprise Cloud Data Centers

In cloud data centers, the Intel E10G42BFSR X520-SR2 is used to support high-density virtual machine workloads and distributed computing systems. Its ability to handle large-scale network traffic makes it essential for cloud service providers and enterprise IT infrastructures.

High-Performance Computing Environments

High-performance computing systems rely on fast and reliable network communication to process large datasets efficiently. The adapter’s low latency and high throughput capabilities make it suitable for scientific computing, simulation systems, and AI-based workloads.

Big Data and Analytics Processing

In big data environments, the adapter supports rapid data movement between processing nodes and storage clusters. This enables faster analytics processing and improved system responsiveness in data-driven applications.
