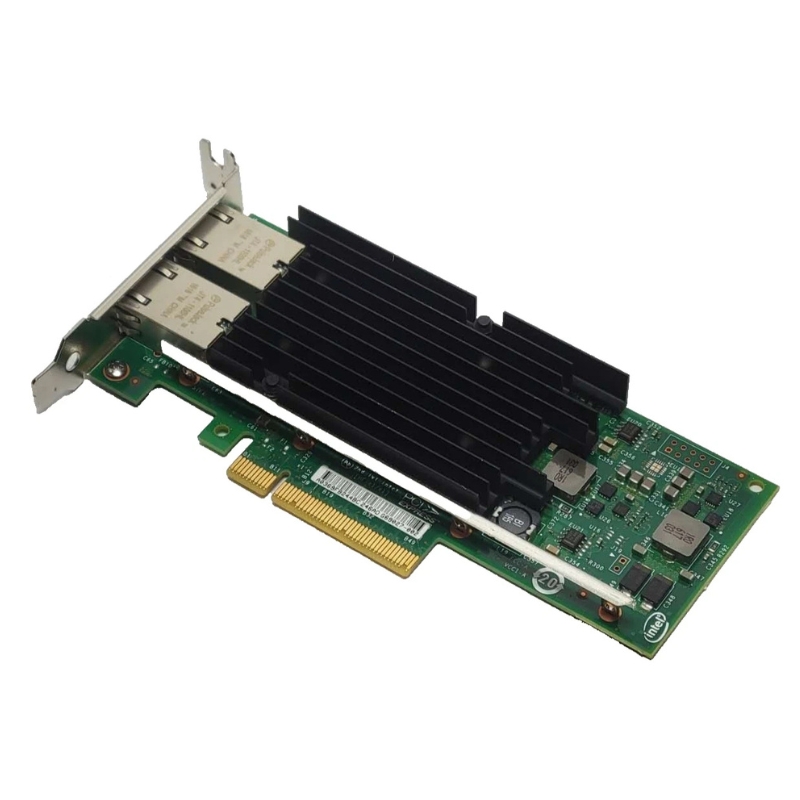

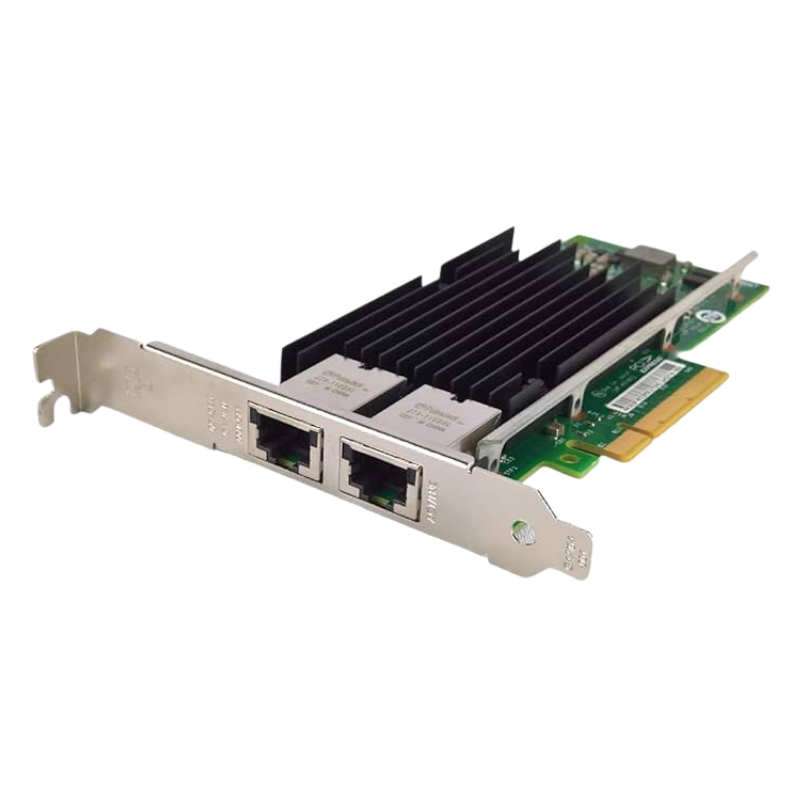

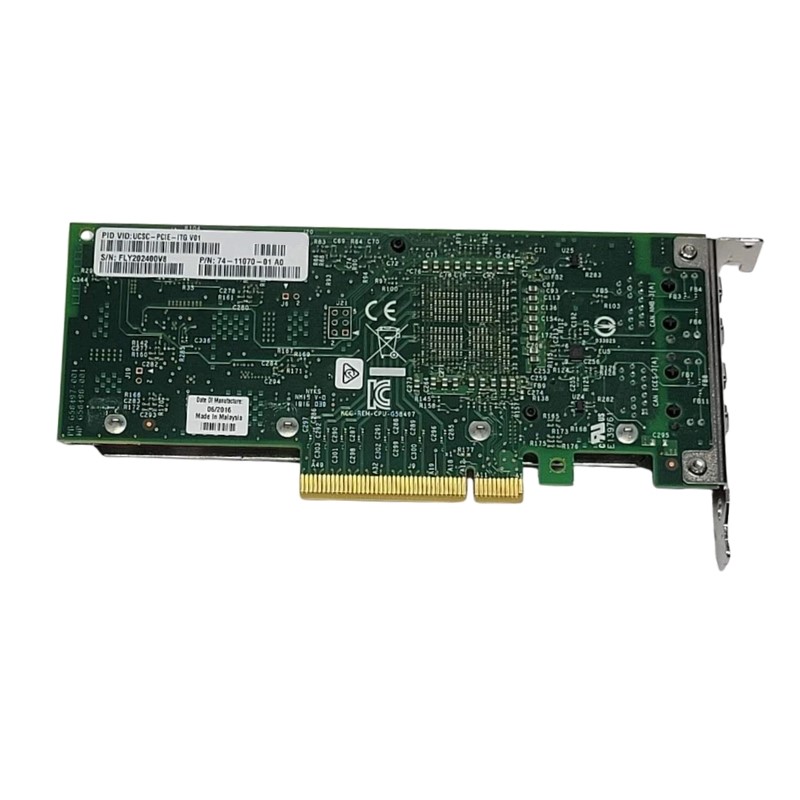

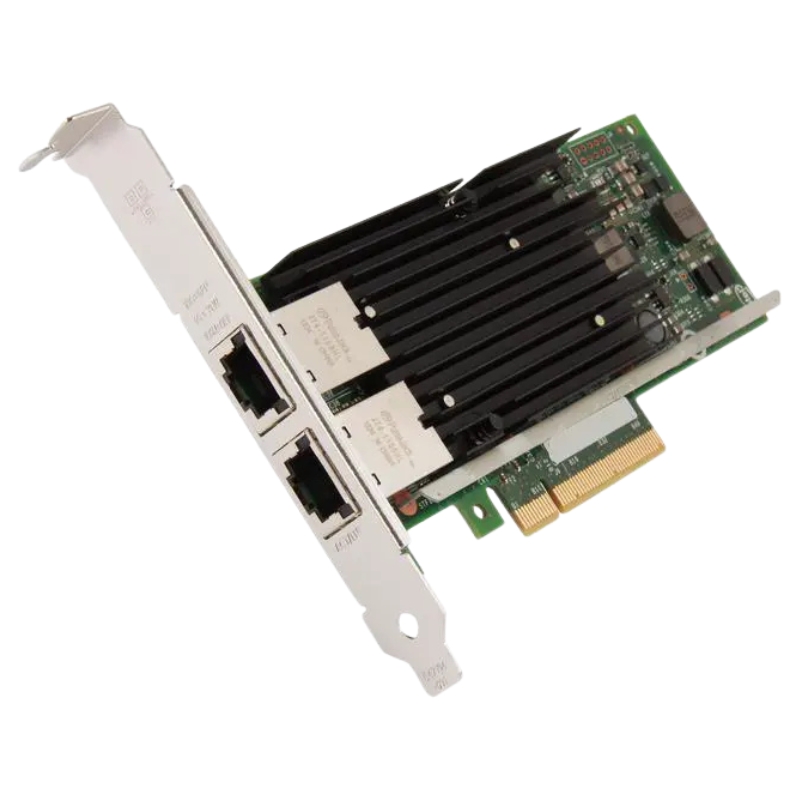

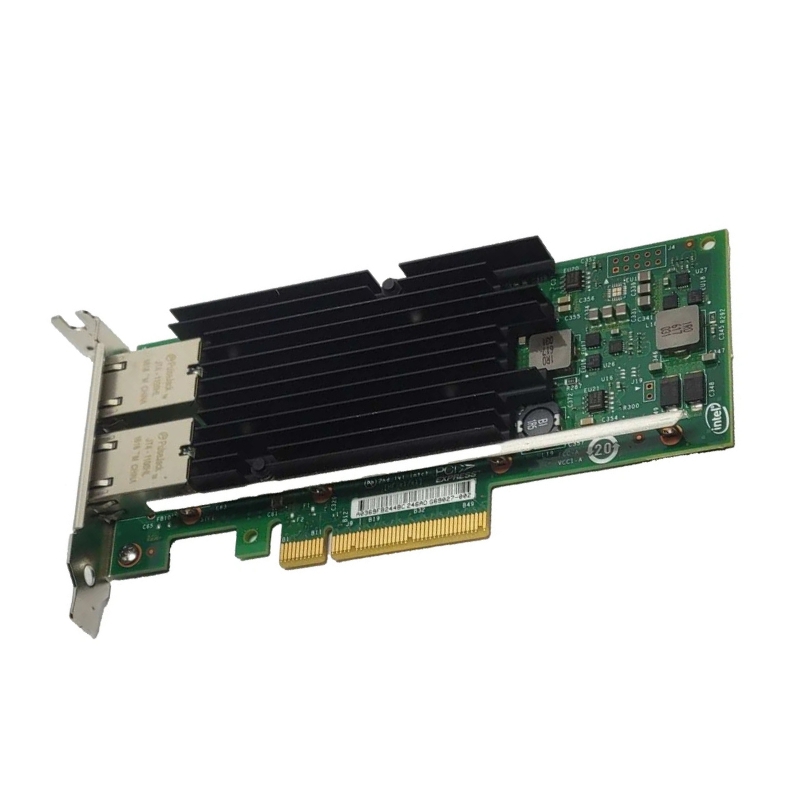

X540T2BLK Intel 10GbE Dual Port Low Profile PCIe CNAs

Overview of Intel X540T2BLK Dual Port Network Adapter

The Intel X540T2BLK Dual Port Converged Network Adapter is a high-performance networking solution engineered for enterprise-grade data transmission, virtualization environments, and bandwidth-intensive workloads. Designed to deliver reliable 10 Gigabit Ethernet connectivity, this adapter enhances server communication efficiency while maintaining low latency and stable throughput across demanding infrastructures.

General Specification

• Manufacturer: Intel
• Part Number: X540T2BLK
• Device Type: Network Adapter

High-Speed Dual Interface Design

• Supports two dedicated 10G Ethernet ports for parallel data streams
• Improves system reliability through network redundancy
• Enhances throughput in virtualization and cloud workloads
• Reduces network congestion in high-density server environments

PCI Express Interface and System Integration

• PCI Express 2.0 x8 bus architecture for enhanced throughput
• Low-profile plug-in card form factor for flexible installation
• Backward compatibility with supported PCIe slots
• Stable integration with enterprise server systems

Performance Characteristics

• Supports up to 10 Gbps data transfer rate per port
• Full-duplex communication for simultaneous send/receive operations
• Stable copper-based Ethernet connectivity
• Efficient handling of high-volume network traffic

Connectivity Features

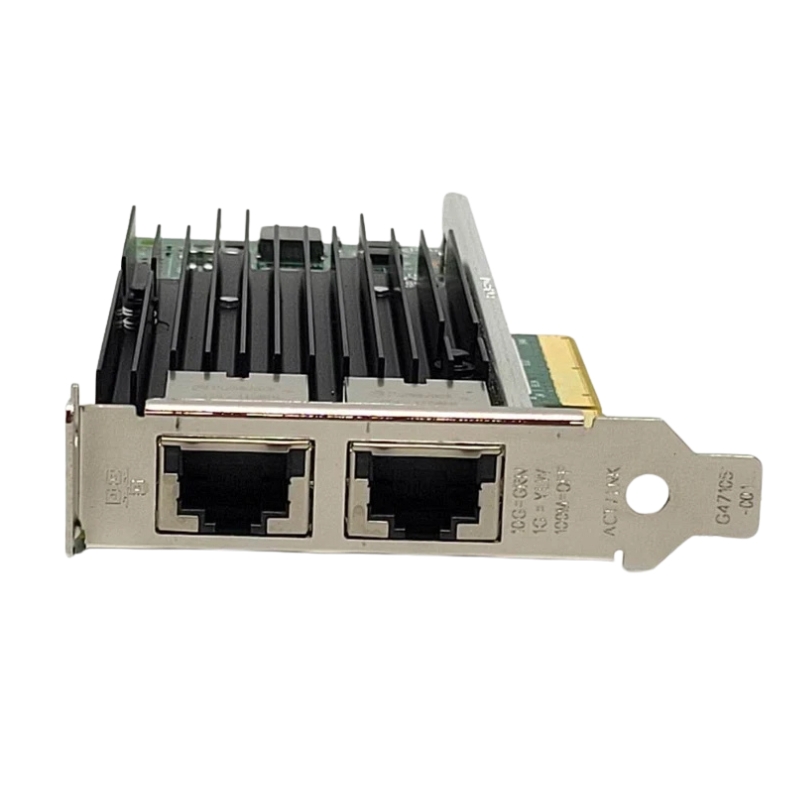

• 2 x Ethernet 10GBASE-T RJ-45 ports
• Supports standard copper Ethernet cabling systems
• Flexible deployment in existing network setups
• Seamless integration with enterprise switches and routers

Operational Advantages

• Improved virtualization performance for cloud systems
• Reduced latency in high-demand applications
• Optimized network resource utilization
• Better scalability for expanding infrastructures

Design Highlights

• Optimized chipset for high-speed Ethernet processing
• Reduced power consumption under heavy workloads
• Efficient thermal design for server environments
• Stable performance under continuous operation

Common Applications

• Virtual server hosting environments
• High-performance computing clusters
• Storage area network connectivity
• Enterprise backup and replication systems

Integration Benefits

• Easy installation into PCIe 2.0 x8 slots
• Minimal configuration required for deployment
• Compatible with major enterprise server platforms
• Supports scalable network upgrades

Outline of Intel X540T2BLK 10G Converged Network Adapter

The Intel X540T2BLK Dual Port 10 Gigabit Ethernet Low Profile PCI-Express Converged Network Adapter represents a high-performance networking solution engineered for enterprise servers, data centers, virtualization environments, and high-throughput computing infrastructures. Designed to deliver consistent 10GbE connectivity across dual ports, this adapter enables scalable network performance, reduced latency, and improved bandwidth utilization for mission-critical workloads. As part of the advanced Intel Ethernet controller family, this adapter integrates robust hardware offloading capabilities and support for modern networking standards, ensuring optimized data flow across complex IT environments.

Built on Intel’s proven silicon architecture, the adapter is widely used in environments where network efficiency and reliability are essential. Its PCI-Express interface ensures high-speed communication between the network card and the host system, while the low-profile form factor allows deployment in compact rack servers and blade systems where space efficiency is a priority. The dual-port configuration also enhances redundancy and load balancing, making it suitable for enterprise-grade deployments requiring continuous uptime.

High-Performance Networking Architecture and Design

Advanced 10 Gigabit Ethernet Controller Integration

The Intel X540T2BLK integrates a sophisticated dual-port 10 Gigabit Ethernet controller designed to maximize throughput while minimizing CPU overhead. By leveraging hardware-based packet processing, the adapter reduces dependency on system resources and ensures smooth data transmission even under heavy network loads. This makes it particularly valuable for virtualization clusters, cloud environments, and storage-intensive applications.

Hardware Offloading Capabilities

The adapter includes advanced offloading features such as TCP segmentation offload, checksum offload, and large send offload. These capabilities allow the network adapter to handle repetitive processing tasks internally, freeing CPU cycles for application-level workloads. This improves overall system efficiency and supports higher virtual machine density in server environments.

Optimized Packet Processing Efficiency

By shifting packet processing responsibilities away from the host CPU, the Intel X540T2BLK ensures reduced latency and improved throughput consistency. This is essential in environments where microsecond-level performance variations can impact application responsiveness and service quality.

PCI-Express Interface Performance Optimization

The adapter utilizes a PCI-Express interface that provides a high-bandwidth communication pathway between the network card and the motherboard. This ensures that the dual 10GbE ports can operate at full capacity without bottlenecks. The architecture supports efficient lane utilization and is compatible with modern server motherboards designed for high-speed expansion cards.

Low Latency Data Transfer Design

The PCIe architecture reduces data transfer delays and enhances responsiveness for latency-sensitive applications. This is particularly important in financial trading systems, cloud computing platforms, and real-time analytics workloads where performance timing is critical.

Dual Port Architecture and Network Redundancy

Load Balancing Capabilities Across Dual Interfaces

The dual-port configuration of the Intel X540T2BLK enables efficient load distribution across two independent 10GbE interfaces. This allows network traffic to be balanced dynamically, reducing congestion and improving throughput consistency. In high-demand environments, this ensures that no single port becomes a performance bottleneck.

Seamless Traffic Distribution

Traffic distribution mechanisms within the adapter intelligently allocate network packets across both ports. This enhances bandwidth utilization and ensures that enterprise workloads maintain consistent performance even during peak usage periods.

Improved Application Responsiveness

Applications that rely on continuous data streaming, such as virtualization platforms and distributed databases, benefit significantly from the adapter’s dual-port architecture. By balancing network traffic effectively, response times are improved and latency is minimized.

Network Failover and High Availability Support

High availability is a critical requirement in modern IT infrastructures. The Intel X540T2BLK supports failover functionality, ensuring uninterrupted network connectivity in the event of a port or link failure. This redundancy is essential for mission-critical systems that require continuous uptime.

Automatic Link Recovery

In case of a network disruption, the adapter automatically redirects traffic to the secondary port. This ensures minimal service interruption and maintains operational continuity for enterprise applications.

Virtualization and Cloud Infrastructure Optimization

Support for Virtual Machine Environments

The Intel X540T2BLK is optimized for virtualization platforms such as VMware, Hyper-V, and KVM. It supports advanced virtualization features that enhance virtual machine networking performance and allow efficient allocation of bandwidth across multiple virtual instances.

Virtual Machine Device Queues (VMDq)

The adapter incorporates Virtual Machine Device Queues technology, which improves network efficiency by distributing traffic directly to virtual machines. This reduces hypervisor overhead and enhances VM performance consistency.

Scalable Virtual Infrastructure Support

In large-scale cloud deployments, scalability is essential. The adapter ensures that additional virtual machines can be added without degrading network performance, making it suitable for dynamic cloud environments.

SR-IOV Capability for Direct Hardware Access

Single Root I/O Virtualization (SR-IOV) support allows virtual machines to bypass the hypervisor and communicate directly with the network hardware. This reduces latency and improves throughput, making it ideal for performance-critical workloads such as database clusters and high-frequency trading systems.

Enterprise Data Center Integration

High Bandwidth Data Center Connectivity

The Intel X540T2BLK is engineered to meet the demands of modern data centers that require high bandwidth and low latency connectivity. With dual 10GbE ports, it supports rapid data transfer between servers, storage systems, and network appliances.

Efficient Server-to-Server Communication

In distributed computing environments, fast server-to-server communication is essential. This adapter ensures that large datasets can be transferred efficiently across nodes, improving cluster performance and reducing processing delays.

Storage Area Network Compatibility

The adapter is commonly used in storage area network configurations where high-speed access to shared storage is required. Its reliable throughput ensures smooth data replication and backup operations.

Energy Efficient Ethernet Technology

Energy efficiency is an important consideration in large-scale deployments. The Intel X540T2BLK incorporates energy-efficient Ethernet capabilities that reduce power consumption during periods of low network activity. This helps organizations reduce operational costs while maintaining high performance.

Reliability, Stability, and Long-Term Performance

Industrial-Grade Network Stability

Designed for continuous operation, the adapter provides stable performance even under sustained high workloads. Its hardware design ensures minimal packet loss and consistent throughput across demanding network conditions.

Error Correction and Data Integrity

Advanced error detection mechanisms ensure that data integrity is maintained throughout transmission. This is essential for applications that require precise and reliable data delivery, such as financial systems and enterprise databases.

Consistent Throughput Under Load

Even under heavy network traffic, the adapter maintains consistent throughput levels. This ensures that enterprise applications continue to operate efficiently without performance degradation.

Thermal Efficiency and Hardware Longevity

The low-profile design of the adapter contributes to efficient heat dissipation within server environments. Proper thermal management extends hardware lifespan and ensures stable long-term operation in high-density deployments.

Compatibility and System Integration

Wide Operating System Support

The Intel X540T2BLK is compatible with a broad range of operating systems, including enterprise Linux distributions, Windows Server environments, and virtualization hypervisors. This ensures seamless integration into diverse IT infrastructures.

Driver Optimization and Firmware Support

Intel provides optimized drivers and firmware updates that enhance performance and ensure compatibility with evolving network standards. This guarantees long-term usability in enterprise environments.

Server Hardware Compatibility

The adapter is designed for compatibility with a wide range of server hardware platforms. Its low-profile bracket allows installation in compact systems, while its PCIe interface ensures support for modern server motherboards.

Security and Network Protection Features

Secure Data Transmission Architecture

The adapter supports secure data handling mechanisms that help protect against network vulnerabilities. By enabling secure offloading and controlled packet processing, it contributes to a more secure network infrastructure.

Traffic Isolation for Virtual Environments

In virtualized deployments, traffic isolation ensures that virtual machines remain separated at the network level. This reduces the risk of unauthorized access and enhances security compliance.

Enterprise Security Compliance Support

The adapter supports enterprise-grade security requirements, making it suitable for industries that demand strict data protection standards such as healthcare, finance, and government sectors.

Scalability for Modern IT Infrastructure

Flexible Deployment in Expanding Networks

The Intel X540T2BLK is designed to scale with growing IT infrastructures. As organizations expand their network requirements, additional adapters can be deployed to increase bandwidth capacity without redesigning existing systems.

Support for Hybrid Cloud Environments

Hybrid cloud architectures benefit from the adapter’s ability to handle both on-premises and cloud-based traffic efficiently. This ensures smooth data movement across distributed environments.

Future-Proof Networking Capability

With support for established 10GbE standards and Intel’s ongoing driver support, the adapter remains relevant in evolving IT ecosystems, ensuring long-term investment value.
