JNP-QSFP-40G-LR4 Juniper Networks 40GBase-LR4 Ethernet Optics Transceiver

Overview Networks JNP-QSFP-40G-LR4 Optical Transceiver

The Juniper Networks JNP-QSFP-40G-LR4 QSFP+ 40GBase-LR4 transceiver is a high-performance optical module engineered to deliver reliable 40 Gigabit Ethernet connectivity across long-reach single-mode fiber infrastructures. Designed for data centers, enterprise backbones, and carrier-grade networks, this transceiver ensures seamless integration with Juniper platforms while adhering to industry standards for interoperability and efficiency.

Form Factor and Interface

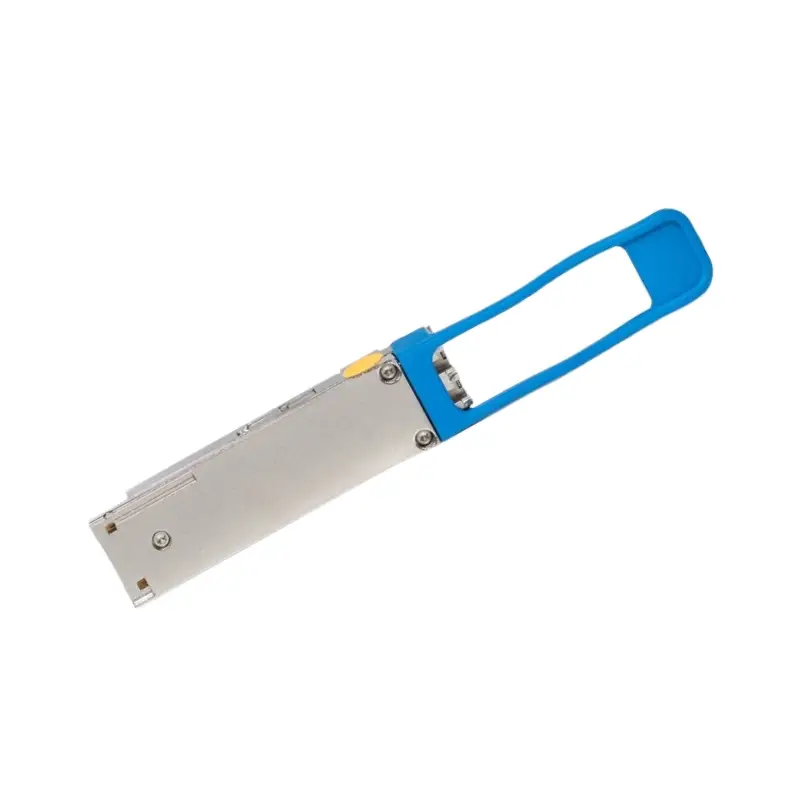

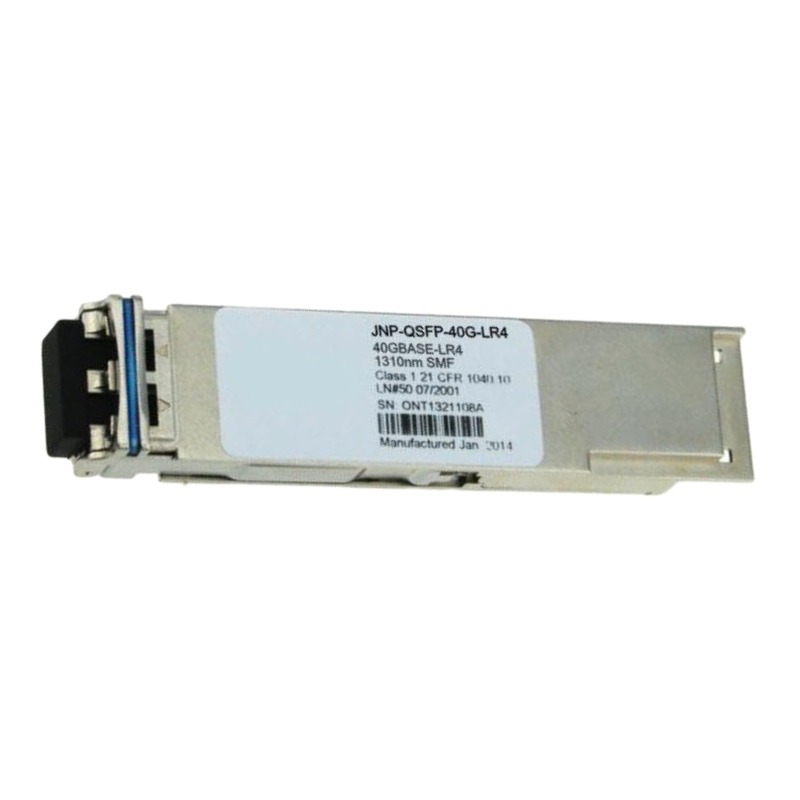

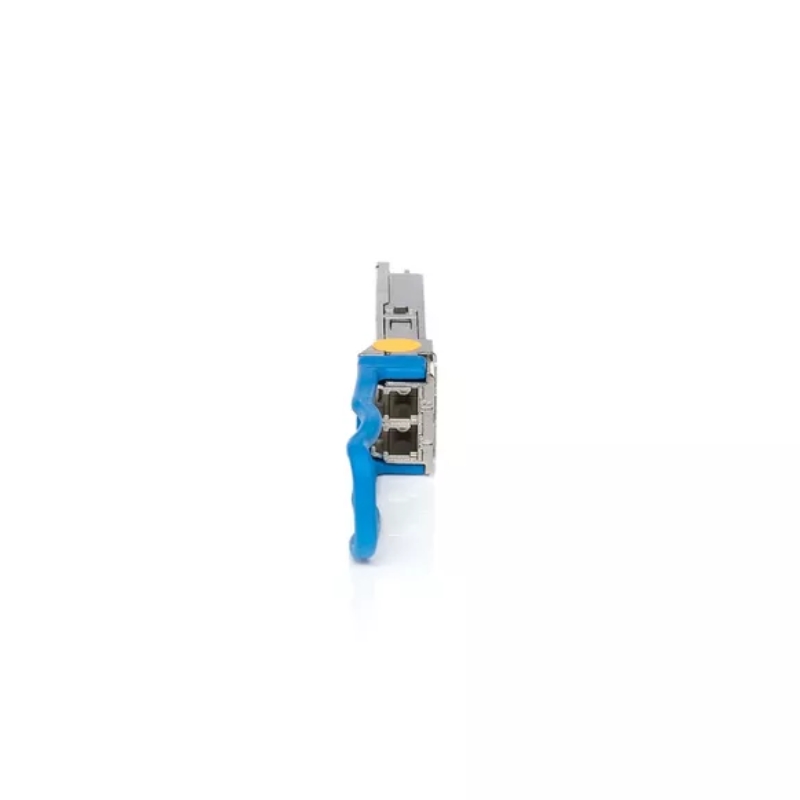

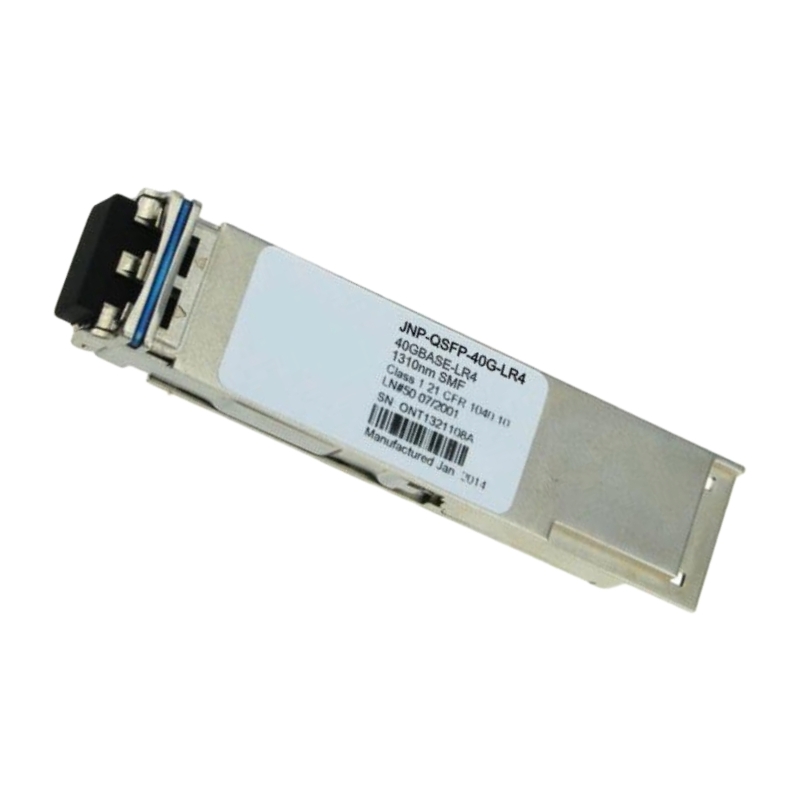

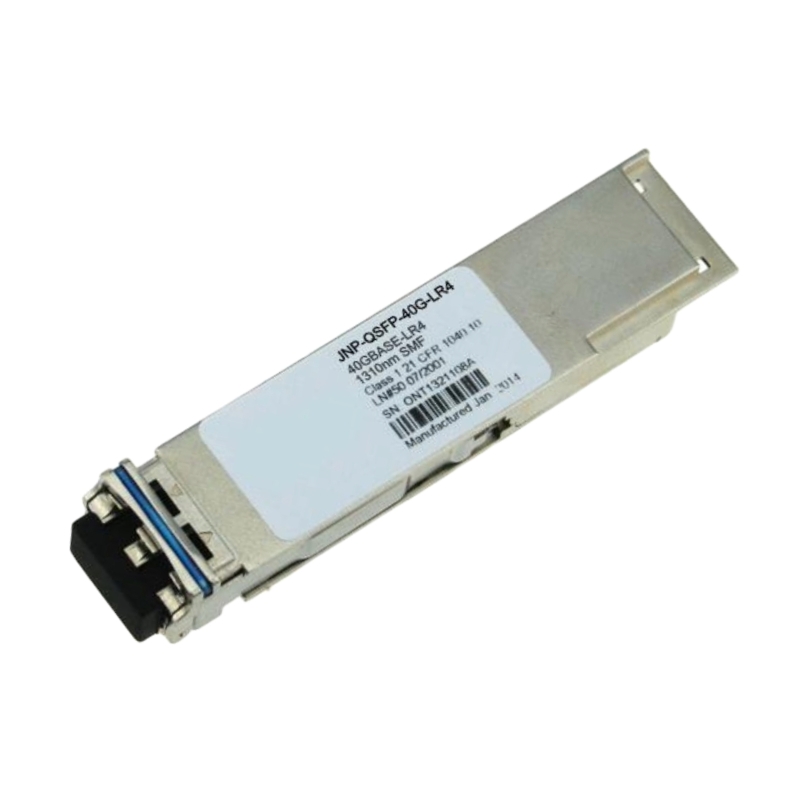

The device adopts the QSFP+ form factor, a compact hot-pluggable design that supports high-density port configurations. It connects via LC duplex connectors, enabling straightforward deployment in structured cabling environments. The module is compliant with IEEE 802.3ba standards and QSFP+ MSA specifications, ensuring compatibility across diverse networking ecosystems.

Transmission Characteristics

The JNP-QSFP-40G-LR4 operates over single-mode fiber and supports a maximum reach of up to 10 kilometers. It utilizes four separate wavelengths in the 1310 nm range, multiplexed to deliver 40GbE traffic efficiently. This wavelength division multiplexing approach enhances bandwidth utilization while maintaining signal integrity across extended distances.

Performance Metrics

The transceiver supports a line rate of 41.25 Gbps, aligning with the 40GBASE-LR4 Ethernet standard. It integrates advanced digital diagnostics monitoring allowing administrators to track parameters such as optical power, temperature, and voltage in real time. With typical power consumption below 3.5W, the module balances high throughput with energy efficiency.

Data Center Connectivity

Within modern data centers, the JNP-QSFP-40G-LR4 facilitates spine-leaf architectures, enabling rapid east-west traffic flow between servers and switches. Its long-reach capability supports inter-rack and inter-building connections, ensuring scalability for hyperscale environments.

Enterprise Core Networks

Enterprises deploying high-capacity backbones benefit from the module’s ability to extend 40GbE links across campuses. It supports mission-critical applications, unified communications, and virtualization workloads that demand consistent low-latency performance.

Carrier and Service Provider Infrastructure

Telecommunications operators leverage the JNP-QSFP-40G-LR4 for metro and regional transport networks. Its compliance with stringent optical standards ensures reliable delivery of broadband services, cloud interconnects, and mobile backhaul traffic.

Switching Platforms

The transceiver integrates seamlessly with Juniper QFX Series switches, including QFX5100, QFX5200, and QFX10000 models. These platforms rely on 40GbE optics to deliver scalable fabrics for cloud and enterprise deployments.

Routing Platforms

Juniper MX Series routers and PTX Series packet transport routers support the JNP-QSFP-40G-LR4, enabling high-capacity routing across WAN and core infrastructures. This compatibility ensures consistent performance across diverse networking layers.

Industry Certifications

The module adheres to IEEE 802.3ba 40GBASE-LR4 specifications, QSFP+ MSA, and SFF-8636 standards. It is fully RoHS compliant, ensuring environmentally responsible design and manufacturing practices.

Reliability and Monitoring

Digital diagnostics monitoring enhances operational reliability by providing visibility into optical parameters. This proactive monitoring reduces downtime and simplifies troubleshooting, ensuring optimal performance across deployments.

High Bandwidth Efficiency

By multiplexing four wavelengths, the transceiver maximizes fiber utilization, delivering 40GbE connectivity without requiring parallel fiber infrastructures. This efficiency reduces cabling complexity and operational costs.

Extended Reach

Supporting up to 10 km over single-mode fiber, the module enables long-distance interconnects across campuses, metropolitan areas, and regional networks. This reach is critical for organizations requiring seamless connectivity between distributed facilities.

Energy Efficiency

With power consumption optimized below 3.5W, the transceiver balances high-speed performance with reduced energy usage. This efficiency contributes to sustainable data center operations and lowers total cost of ownership.

Spine-Leaf Architectures

In spine-leaf topologies, the JNP-QSFP-40G-LR4 provides high-capacity uplinks between spine and leaf switches. This architecture supports predictable latency and scalable bandwidth, essential for cloud-native applications.

Campus Interconnects

Enterprises with multiple buildings benefit from the transceiver’s ability to extend 40GbE links across long distances. It ensures consistent performance for applications such as video conferencing, ERP systems, and unified communications.

Carrier Transport Networks

Service providers deploy the JNP-QSFP-40G-LR4 in metro and regional transport layers, supporting broadband aggregation and cloud interconnect services. Its compliance with optical standards ensures interoperability across diverse vendor ecosystems.

Scalability

The JNP-QSFP-40G-LR4 provides a scalable pathway for organizations transitioning from 10GbE to 40GbE infrastructures. Its compatibility with existing Juniper platforms ensures seamless upgrades without disruptive overhauls.

Interoperability

By adhering to industry standards, the transceiver ensures interoperability with third-party optics and networking equipment. This flexibility supports heterogeneous environments and multi-vendor strategies.

Investment Protection

Deploying the JNP-QSFP-40G-LR4 safeguards investments by enabling long-term use across evolving network architectures. Its extended reach and monitoring capabilities ensure sustained performance as bandwidth demands grow.

Wavelength Allocation

The transceiver operates across four distinct wavelengths in the 1310 nm range, multiplexed to deliver aggregate 40GbE traffic. This allocation ensures efficient transmission while minimizing crosstalk and signal degradation.

Laser and Receiver Technology

It employs distributed feedback lasers for stable wavelength emission and PIN photodiodes for precise signal reception. This combination ensures high optical performance across extended distances.

Monitoring Parameters

Digital diagnostics provide visibility into transmit and receive optical power, module temperature, and supply voltage. These parameters enable proactive maintenance and enhance network reliability.

Strategic Value

Organizations deploying this transceiver benefit from enhanced scalability, energy efficiency, and investment protection. Its role in data centers, enterprise backbones, and carrier networks underscores its versatility and reliability in meeting evolving bandwidth demands.
