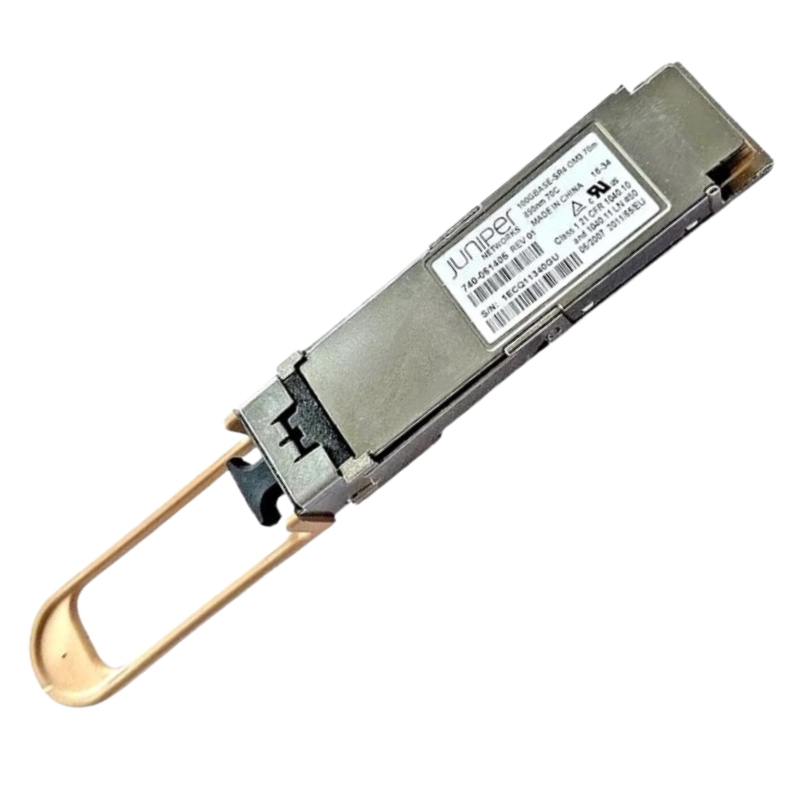

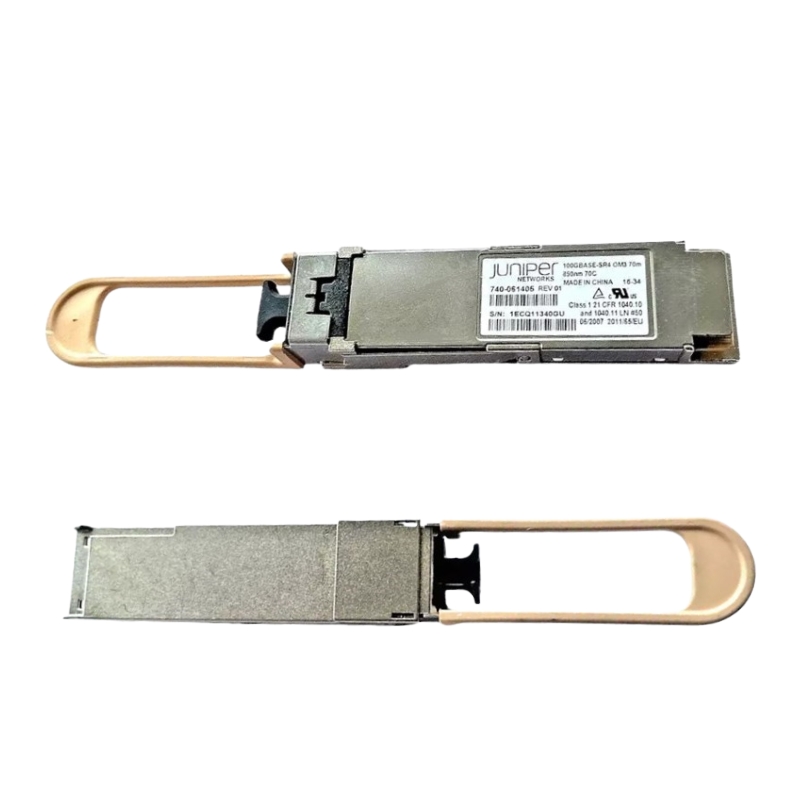

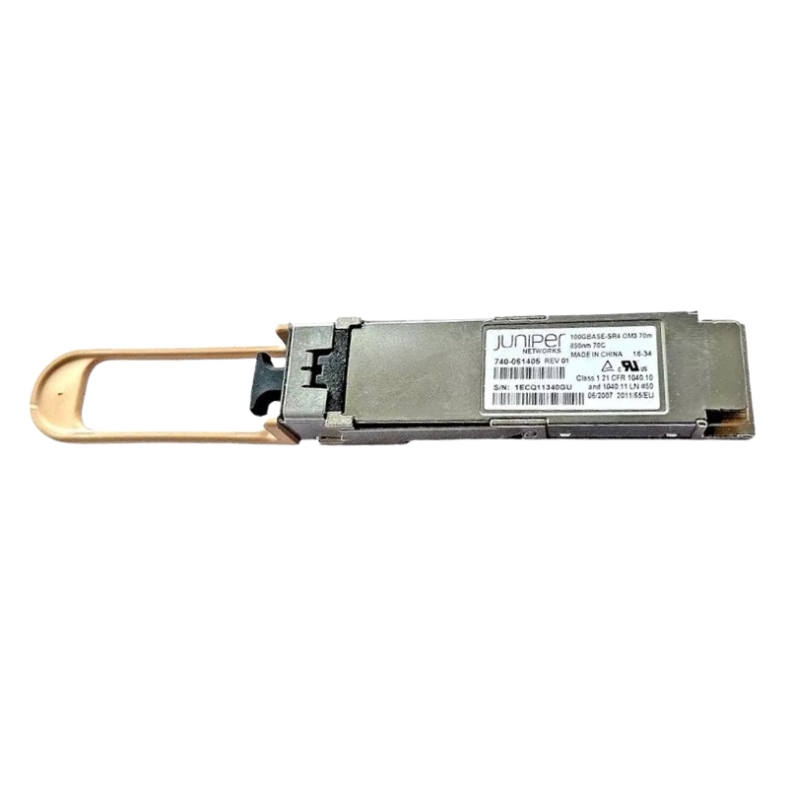

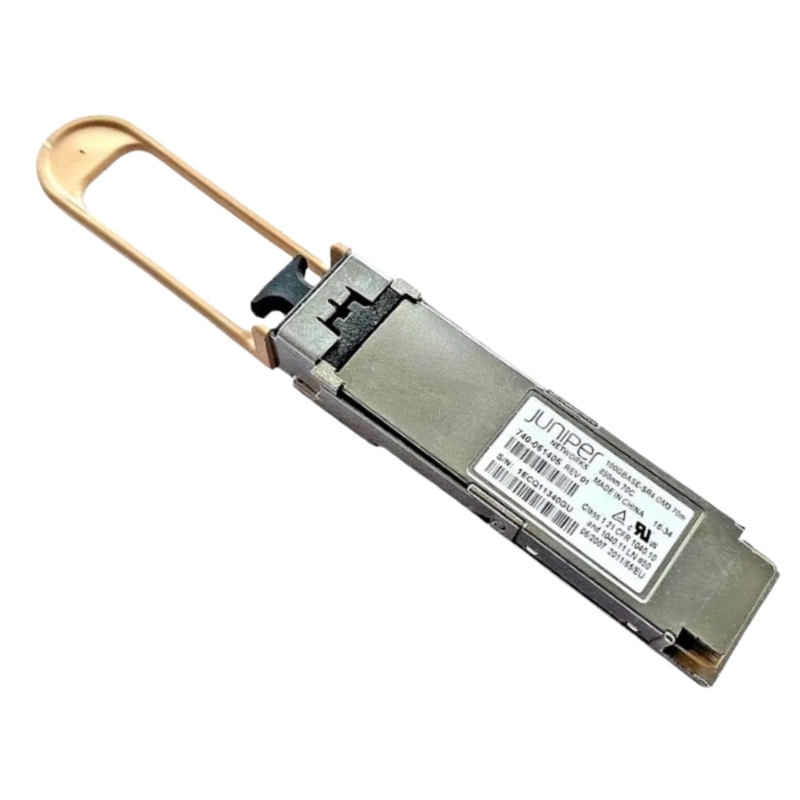

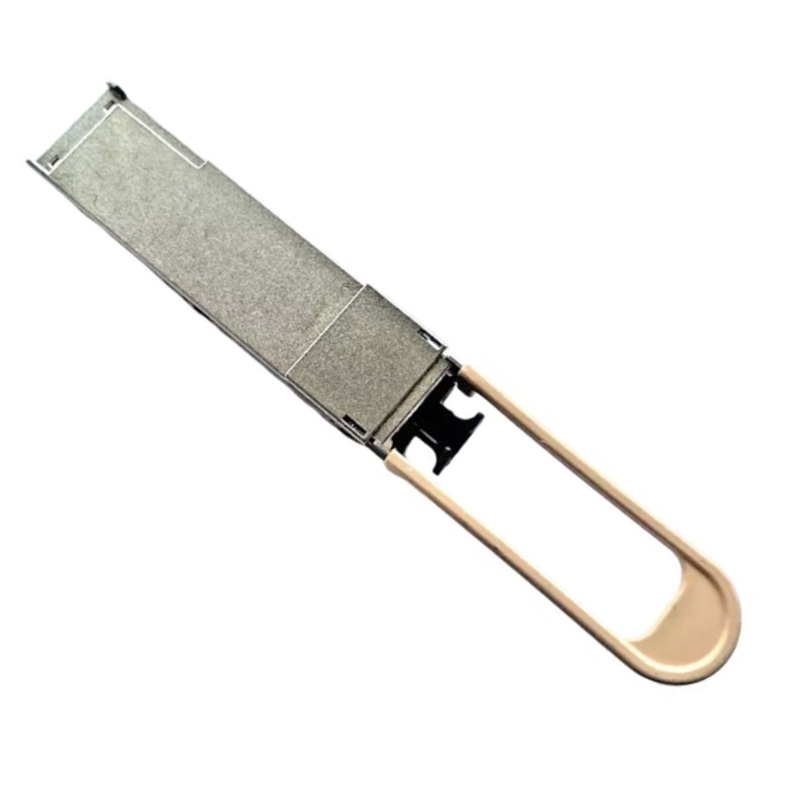

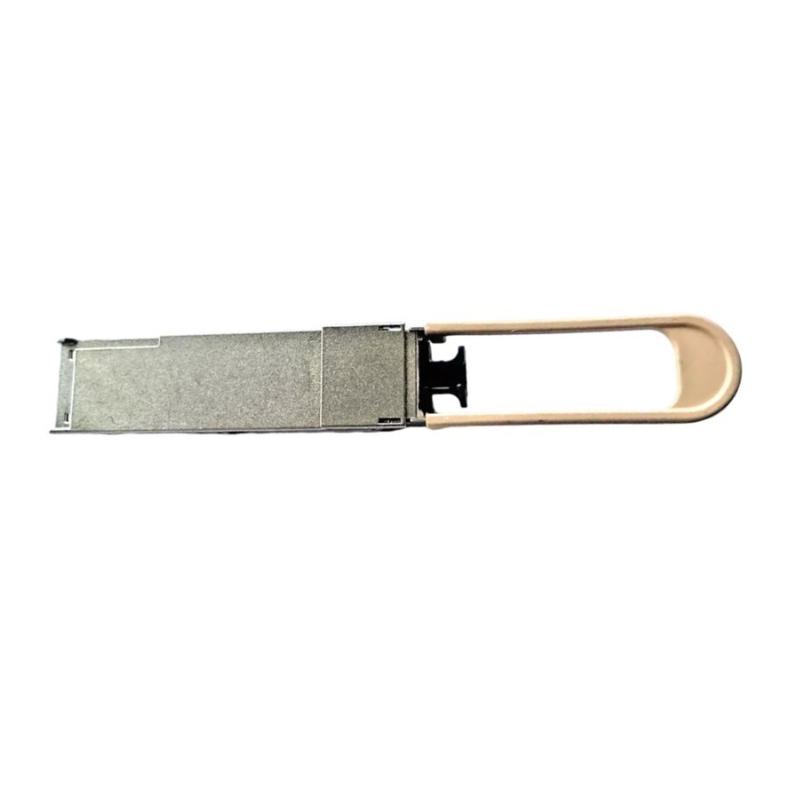

740-061405 Juniper Networks 100 Gigabit Ethernet QSFP-28 Transceiver.

Highlights of Juniper 740-061405 QSFP28 100GB Transceiver

The Juniper Networks 740-061405 QSFP28 100 Gigabit Ethernet optical transceiver is engineered for high-speed data transmission in modern data centers and enterprise networks. Designed with SR4 technology, this module ensures reliable short-range connectivity over multimode fiber with exceptional performance and scalability.

General Information

• Manufacturer: Juniper Networks
• Part Number: 740-061405
• Product Type: Optical Transceiver Module
• Sub-Type: 100GBASE-SR4 QSFP28

Technical Specifications

• Transceiver Type: QSFP28
• Connector: MPO-12
• Fiber Type: Multimode Fiber (MMF)
• Core Size: 50/125 µm

Wavelength & Signaling Details

• Wavelength range: 840 nm – 860 nm
• Signaling rate per lane: 25.78125 Gbd

Optical Power & Signal Quality

Reliable Data Transmission Performance

• Transmit Power (Min): -8.4 dBm
• Transmit Power (Max): 2.4 dBm
• Receive Power (Min): -10.3 dBm
• Receive Power (Max): 2.4 dBm

Fiber Compatibility & Transmission Distance

Supported Fiber Types

• Fiber Grade: OM3 and OM4
• Effective Modal Bandwidth:
  • OM3: 2000 MHz·km
  • OM4: 4700 MHz·km

Maximum Transmission Distance

• Up to 70 meters on OM3 fiber
• Up to 100 meters on OM4 fiber

Monitoring & Diagnostic Capabilities

Digital Optical Monitoring (DOM)

Monitoring Features

• Transmit and receive optical power tracking
• Temperature and voltage monitoring
• Advanced diagnostic support for network stability

Standards Compliance & Efficiency

Industry Standard Support

• Compliant with IEEE 802.3ba-2010
• Supports modern Ethernet and optical networking standards

Power & Environmental Specifications

• Maximum Power Consumption: 3.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Overview of Juniper 740-061405 QSFP-28 100G-SR4 Transceiver

The Juniper Networks 740-061405 100 Gigabit Ethernet QSFP-28 100G-SR4 Optical Transceiver Module is a high performance networking solution designed to support the evolving demands of modern data centers, enterprise infrastructures, and cloud computing environments that require ultra fast data transmission and scalable bandwidth capabilities. This advanced QSFP-28 module leverages SR4 multimode optical technology to deliver reliable 100 Gigabit Ethernet connectivity across short range fiber links, making it ideal for high density interconnect scenarios.

100 Gigabit Ethernet Performance for High Bandwidth Network Infrastructure

The Juniper 740-061405 QSFP-28 module delivers 100 Gigabit Ethernet performance, enabling ultra fast data transfer across networks that require maximum throughput and minimal latency. This level of performance is essential for hyperscale data centers, enterprise core networks, and service provider infrastructures handling massive volumes of data traffic. The module ensures efficient communication between network devices, reducing congestion and improving overall system performance in high density deployments where multiple high speed connections operate simultaneously.

Throughput for Cloud Computing and Environments

The transceiver is optimized for cloud computing and virtualized environments, providing consistent throughput that supports distributed workloads, storage systems, and large scale application processing. This ensures smooth operation of mission critical systems without performance degradation. It enhances scalability and supports the continuous growth of enterprise network infrastructure.

Ultra Low Latency Transmission for Real Time Data Processing Applications

The module provides ultra low latency optical transmission, enabling rapid data exchange across high speed links. This is crucial for real time applications such as financial analytics, AI processing, video streaming, and cloud based services that demand immediate responsiveness. It ensures stable and predictable performance across mission critical environments.

100G-SR4 Optical Technology for Short Range High Density Connectivity

The Juniper 740-061405 module utilizes 100G-SR4 optical technology, which is specifically designed for short range data transmission over multimode fiber. This technology uses parallel optical lanes to deliver high bandwidth connectivity between closely located devices in data center environments. SR4 technology is widely used for high density interconnects, ensuring efficient communication between switches, servers, and storage arrays.

Parallel Optical Transmission for Enhanced Bandwidth

The module employs parallel optical transmission, allowing multiple data streams to be transmitted simultaneously across separate fiber channels. This maximizes bandwidth efficiency and supports high performance networking requirements. It enhances network efficiency and ensures optimal utilization of fiber infrastructure.

Reliable Signal Integrity for Stable Short Range Optical Links

The transceiver ensures reliable signal integrity across multimode fiber links, minimizing data loss and maintaining consistent transmission quality. This is essential for maintaining performance in high density networking environments. It supports stable and dependable communication across enterprise infrastructure.

QSFP-28 Form Factor for High Density Deployment and Scalability

The QSFP-28 form factor of the Juniper 740-061405 module is designed for high density networking environments, enabling multiple transceivers to be installed within a single networking device. This compact architecture significantly increases port density while reducing physical space requirements in data center racks and network cabinets. The pluggable design allows easy installation, replacement, and upgrade, providing flexibility for network administrators managing large scale infrastructures.

Continuous Network Availability

The module supports hot swappable functionality, allowing it to be installed or removed without interrupting network operations. This ensures continuous service availability and minimizes downtime during maintenance or upgrades. It enhances operational efficiency and supports high availability network environments.

Compact Design for Data Center Space Utilization

The compact QSFP-28 design enables efficient deployment in hyperscale data centers where maximizing port density and minimizing space usage are critical requirements. This supports scalable infrastructure growth without increasing physical footprint. It improves hardware efficiency and supports long term network expansion.

Multimode Fiber for High Speed Networking

The Juniper 740-061405 transceiver operates over multimode fiber, providing a cost effective solution for high speed optical networking in short range environments. Multimode fiber is widely used in data centers due to its affordability and ease of deployment compared to single mode fiber. This makes the module suitable for intra rack and inter rack connectivity within data center environments where high bandwidth and cost efficiency are required.

Data Center Interconnect for High Performance Applications

The module enables efficient interconnect between switches, servers, and storage devices within the same data center. This supports high speed communication across infrastructure components and enhances overall system performance. It ensures smooth operation of data intensive applications and services.

Reduced Infrastructure Cost While Maintaining High Performance Connectivity

The use of multimode fiber reduces overall infrastructure costs while maintaining high performance networking capabilities. This allows organizations to deploy advanced networking solutions without significant investment in fiber infrastructure. It supports cost effective scalability in enterprise environments.

Juniper Networking Platforms for Seamless Integration

The Juniper 740-061405 QSFP-28 module is fully compatible with a wide range of Juniper networking devices, ensuring seamless integration into existing infrastructure. This compatibility simplifies deployment and ensures consistent performance across supported systems. The plug and play design allows quick installation and immediate operational readiness without complex configuration requirements.

Plug and Play Deployment for Simplified Network Expansion

The module supports plug and play functionality, allowing automatic recognition by compatible systems. This reduces deployment time and simplifies network expansion processes for IT teams managing large scale environments. It improves operational efficiency and reduces configuration complexity.

Stable Performance Across Switching and Routing Platforms

The transceiver delivers stable performance across supported networking platforms, ensuring reliable connectivity in diverse deployment scenarios. This ensures consistent communication quality and predictable network behavior. It supports dependable operation in enterprise and service provider environments.

Integration with Enterprise Networking and WAN Technologies Including HWIC-4SHDSL

The Juniper 740-061405 module integrates effectively with enterprise networking systems and WAN technologies such as HWIC-4SHDSL, enabling comprehensive networking solutions that combine high speed optical connectivity with wide area network capabilities. This integration supports unified communication across distributed enterprise infrastructures. It ensures efficient data flow across multiple network layers and supports advanced networking architectures.

End to End Network for Data Center and Remote Connectivity

The combination of optical transceivers and WAN technologies ensures optimized data flow between data centers and remote sites, improving overall network performance and reducing latency. This enhances communication efficiency and supports business critical operations. It ensures consistent performance across enterprise infrastructure environments.

Scalable Infrastructure for Growing Enterprise Networking Requirements

The integration of optical networking modules with WAN solutions provides a scalable infrastructure that allows organizations to expand their capabilities as business needs evolve. This ensures long term adaptability and supports continuous improvement in network performance. It provides a future ready foundation for digital transformation initiatives.

Enterprise Grade Reliability and High Availability

The Juniper Networks 740-061405 100 Gigabit Ethernet QSFP-28 Optical Transceiver Module is built to deliver enterprise grade reliability, ensuring consistent performance in environments where uptime is critical. Its robust design minimizes downtime and supports continuous operation under heavy workloads and demanding traffic conditions. The module is suitable for data centers, enterprise networks, and service provider infrastructures that require dependable high speed connectivity.

High Availability Design for Continuous Network Operation

The module supports high availability network design by ensuring stable optical connections that maintain continuous data transmission even under demanding conditions. This enhances network resilience and supports uninterrupted business operations. It ensures reliable performance for critical enterprise applications and services.
