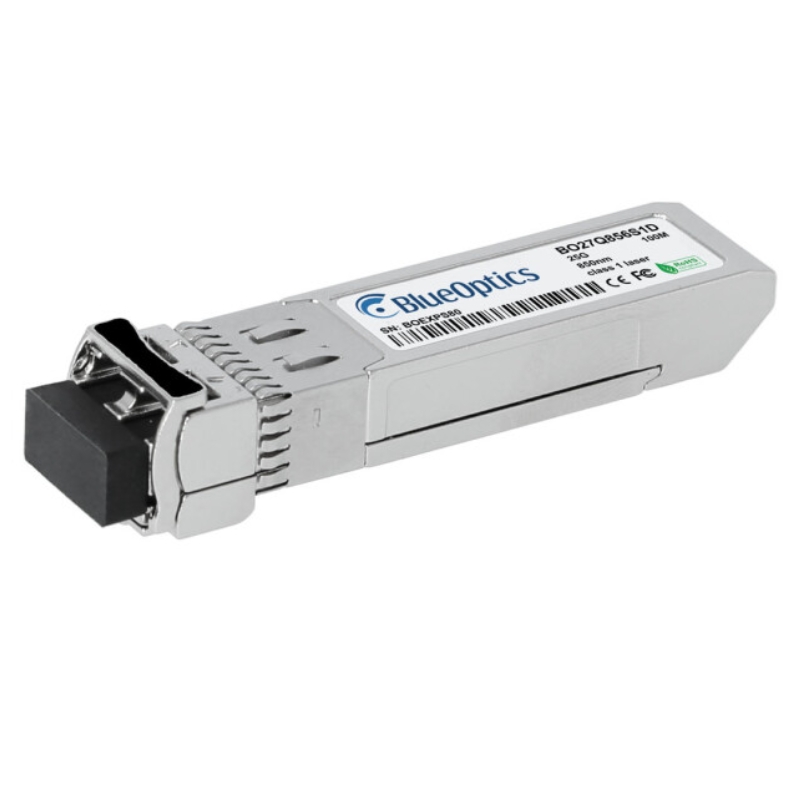

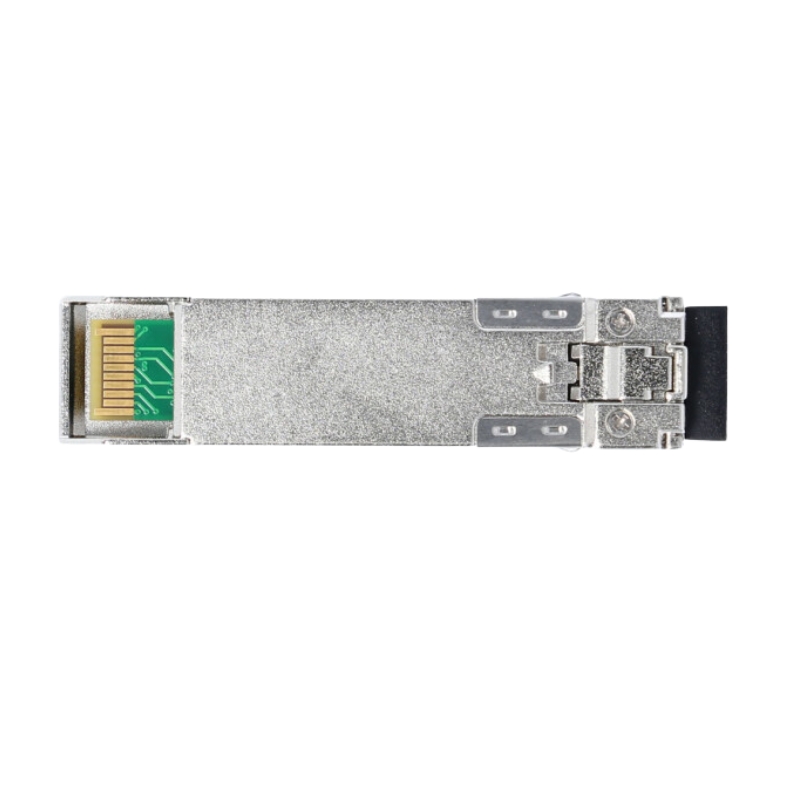

740-068639 Juniper Networks SFP-28 25GB-SR Transceiver

Overview of Juniper Networks 740-068639 Optical Transceiver

The Juniper Networks 740-068639 SFP-28 transceiver is a high-speed Ethernet optical module engineered for short-range connectivity. With 25 Gigabit Ethernet support, advanced monitoring, and compact design, it is ideal for enterprise and data center deployments.

General Information

• Manufacturer: Juniper Networks
• Part Number: 740-068639
• Device Type: Ethernet Optical Transceiver

Technical Information

Performance & Speed

• Data Rate: 25 Gigabit Ethernet
• Breakout Capability: Not supported
• Form Factor: SFP-28
• Connector Type: Duplex LC
• Monitoring: Digital Optical Monitoring available

Compliance & Standards

• MSA Compliance: SFF-8402
• Optic Grade: Commercial
• Signaling Rate: 25.78125 Gbd ± 100 ppm

Optical Specifications

• Transmitter Fibers: 1
• Transmitter Wavelength Range: 840 nm – 860 nm
• Receiver Wavelength Range: 840 nm – 860 nm
• Spectral Width (max): 0.6 nm
• Transmitter Output Power: Min –8.4 dBm, Max 2.4 dBm
• Receiver Input Power: Min –10.3 dBm, Max 2.4 dBm
• Stressed Receiver Sensitivity: –5.2 dBm

Cabling & Fiber

Supported Fiber Types

• Cable Type: SMF (Single-Mode Fiber)
• Core/Cladding: 50/125 µm
• Fiber Grades: OM3 and OM4
• Effective Modal Bandwidth: 2000 MHz·km (OM3), 4700 MHz·km (OM4)
• Distance: 70 m (OM3), 100 m (OM4)

Power & Environmental Specifications

Power Consumption

• Maximum Consumption: 1.5 W

Temperature Range

• Operating: 0° C to 70° C
• Storage: –40° C to 85° C

Physical Dimensions & Weight

• Weight: 0.15 kg
• Height: 8.55 mm
• Width: 13.55 mm
• Depth: 57.5 mm

High-Performance 25GbE Optical Connectivity Modern Networks

The Juniper Networks 740-068639 SFP-28 25Gigabit-SR Transceiver represents a critical component within high-speed data networking environments where performance, reliability, and scalability are paramount. Designed to support 25 Gigabit Ethernet applications, this SFP28 optical module enables seamless data transmission across short-range fiber connections, delivering low latency and high throughput for enterprise, data center, and cloud infrastructures. As network architectures continue to evolve toward higher bandwidth demands, 25GbE technology has become a standard for efficient data handling, making this transceiver an essential element in next-generation networking deployments.

Advanced Optical Technology for Short-Range Transmission

This 25GbE SFP28 SR transceiver is optimized for short-range communication over multimode fiber, typically supporting distances up to 100 meters using OM4 fiber. It utilizes advanced vertical-cavity surface-emitting laser (VCSEL) technology to ensure consistent signal integrity and efficient energy consumption. The implementation of this optical technology enables high-speed data transfer while minimizing signal degradation, making it ideal for dense data center environments where reliability is crucial.

Enhanced Signal Integrity and Performance Stability

Signal integrity is a fundamental requirement in high-speed networking, and this module delivers exceptional performance through precise optical alignment and robust electronic design. The transceiver supports high data rates with minimal bit error rates, ensuring consistent data delivery even in high-density environments. This level of stability is critical for applications such as virtualization, cloud computing, and high-performance computing where uninterrupted connectivity is essential.

Low Latency Data Transmission for Critical Applications

The transceiver is engineered to provide ultra-low latency, enabling real-time data processing and rapid communication between network nodes. This feature is especially beneficial in environments where timing and responsiveness are critical, including financial trading platforms, real-time analytics, and large-scale distributed systems.

Compatibility with Juniper Networking Ecosystems

The Juniper Networks 740-068639 SFP-28 module is designed to integrate seamlessly with a wide range of Juniper switches and routers. Its compatibility ensures that network administrators can deploy it within existing infrastructures without requiring extensive configuration or additional hardware adjustments. This plug-and-play capability simplifies installation and reduces downtime during upgrades or expansions.

Seamless Integration with Data Center Switches

Modern data centers rely on high-performance switches to manage vast volumes of traffic efficiently. This transceiver is fully compatible with Juniper’s data center switching platforms, enabling high-speed uplinks and interconnects. Its integration enhances overall network performance while maintaining consistent communication across multiple layers of the infrastructure.

Support for High-Density Network Deployments

High-density environments require compact and efficient hardware solutions. The SFP28 form factor allows for a greater number of ports within a single switch, maximizing space utilization while delivering high-speed connectivity. This design is particularly beneficial in large-scale deployments where maximizing rack space is a priority.

Plug-and-Play Deployment Efficiency

Ease of installation is a key advantage of this transceiver. Its hot-swappable design allows administrators to install or replace modules without powering down the network equipment. This capability minimizes service interruptions and ensures continuous network operation.

Optimized for Data Center and Enterprise Applications

The increasing demand for high-speed connectivity in data centers and enterprise networks has driven the adoption of 25GbE solutions. This transceiver is specifically designed to meet these requirements, offering a balance of performance, cost-efficiency, and scalability. It supports various use cases, including server-to-switch connections, storage networking, and aggregation layers within data centers.

Efficient Server Connectivity

In server environments, high-speed connections are essential for handling large volumes of data. The 25GbE capability of this transceiver enables faster communication between servers and network switches, improving overall system performance and reducing bottlenecks. This efficiency is particularly important for virtualization and cloud-based workloads.

Scalable Infrastructure Expansion

Scalability is a key consideration in modern network design. This transceiver supports incremental upgrades, allowing organizations to expand their network capacity without significant infrastructure changes. Its compatibility with existing systems ensures a smooth transition to higher-speed networking.

Cost-Effective Performance Enhancement

Compared to traditional 10GbE solutions, 25GbE offers a more efficient cost-per-bit ratio, making it an attractive option for organizations seeking to enhance performance without incurring excessive costs. This transceiver provides a practical solution for achieving higher bandwidth while maintaining budget efficiency.

Energy Efficiency

Energy efficiency is a critical factor in modern networking equipment, particularly in large-scale data centers where power consumption directly impacts operational costs. The Juniper Networks 740-068639 transceiver is designed with energy-efficient components that reduce power usage while maintaining high performance. Its optimized thermal design ensures effective heat dissipation, preventing overheating and extending the lifespan of the module.

Reduced Power Consumption

The transceiver operates with low power requirements, making it suitable for environments where energy efficiency is a priority. This feature contributes to lower operational costs and supports sustainability initiatives within organizations.

Advanced Heat Dissipation Design

Efficient thermal management is achieved through a carefully engineered design that allows for proper airflow and heat distribution. This ensures stable operation even under heavy workloads and in high-temperature environments.

Reliable Operation in Demanding Conditions

The robust construction of this module ensures consistent performance in demanding environments. It is built to withstand varying temperature conditions, making it suitable for both controlled data centers and more challenging deployment scenarios.

Compliance with Industry Standards

The transceiver adheres to established industry standards, ensuring interoperability with a wide range of networking equipment. Compliance with IEEE 802.3 standards guarantees reliable performance and compatibility across different platforms. This adherence to standards simplifies network design and ensures consistent operation in multi-vendor environments.

IEEE 802.3 Compliance for 25GbE

Support for IEEE 802.3 standards ensures that the transceiver meets the requirements for 25 Gigabit Ethernet communication. This compliance guarantees reliable data transmission and interoperability with other compliant devices.

MSA Compatibility for Flexibility

The module follows Multi-Source Agreement specifications, allowing it to be used across a variety of compatible networking devices. This flexibility provides greater freedom in network design and equipment selection.

Quality Assurance and Testing Standards

Each transceiver undergoes rigorous testing to ensure it meets performance and reliability standards. This quality assurance process ensures that the module delivers consistent results in real-world applications.

Applications Across Diverse Networking Environments

The versatility of the Juniper Networks 740-068639 SFP-28 transceiver makes it suitable for a wide range of applications. From enterprise networks to cloud infrastructures, it provides reliable high-speed connectivity for various use cases. Its ability to support short-range high-bandwidth communication makes it an ideal choice for environments that require efficient data transfer within confined spaces.

Cloud Computing and Virtualization

Cloud environments rely on high-speed networking to deliver services efficiently. This transceiver enables rapid data exchange between virtual machines and storage systems, ensuring optimal performance for cloud-based applications.

High-Performance Computing Clusters

In high-performance computing environments, data must be transferred and accurately. The low latency and high throughput of this module make it suitable for connecting nodes within computing clusters, supporting complex computations and data analysis.

Enterprise Network Backbone

Within enterprise networks, the transceiver can be used to establish high-speed backbone connections, ensuring efficient communication between different departments and systems. Its reliability supports mission-critical operations and enhances overall network performance.

Future-Proof Networking with 25GbE Technology

As network demands continue to grow, adopting scalable and high-speed solutions becomes essential. The Juniper Networks 740-068639 SFP-28 transceiver provides a future-proof approach to networking by supporting 25GbE technology, which serves as a foundation for higher-speed standards such as 50GbE and 100GbE. Its deployment allows organizations to prepare for future upgrades while maintaining current performance requirements.

Foundation for Next-Generation Networks

The transition to higher-speed networking technologies requires components that can support evolving standards. This transceiver acts as a building block for next-generation infrastructures, enabling smooth upgrades and expansions.

Support for Network Virtualization Trends

Virtualized environments demand flexible and high-performance networking solutions. This module supports the dynamic nature of virtualized networks, ensuring efficient resource allocation and communication.

Long-Term Investment Value

Investing in 25GbE technology provides long-term benefits by ensuring compatibility with future networking advancements. This transceiver offers a reliable solution that remains relevant as network requirements continue to evolve.
