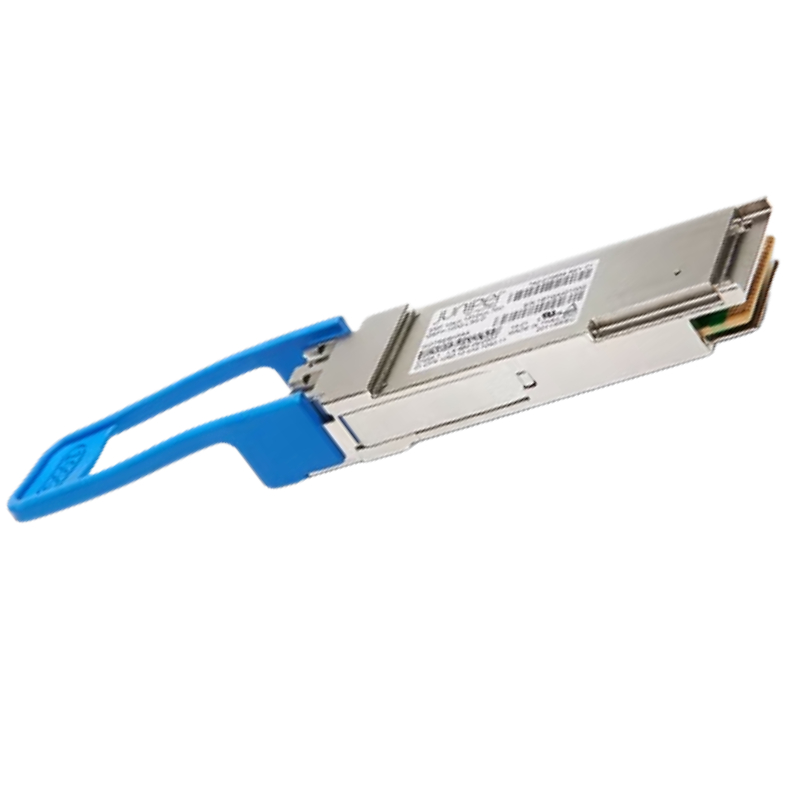

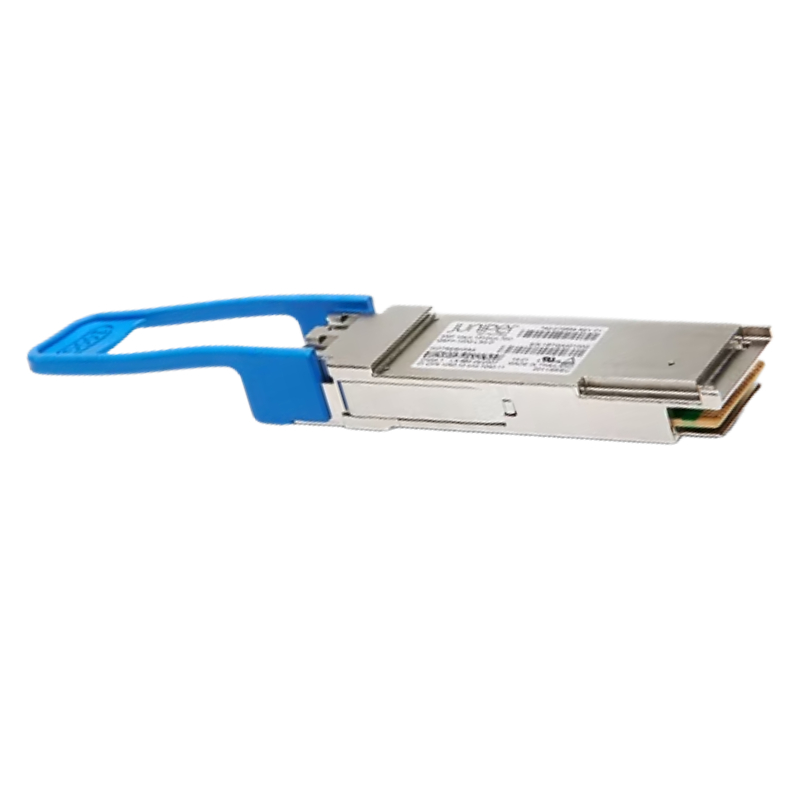

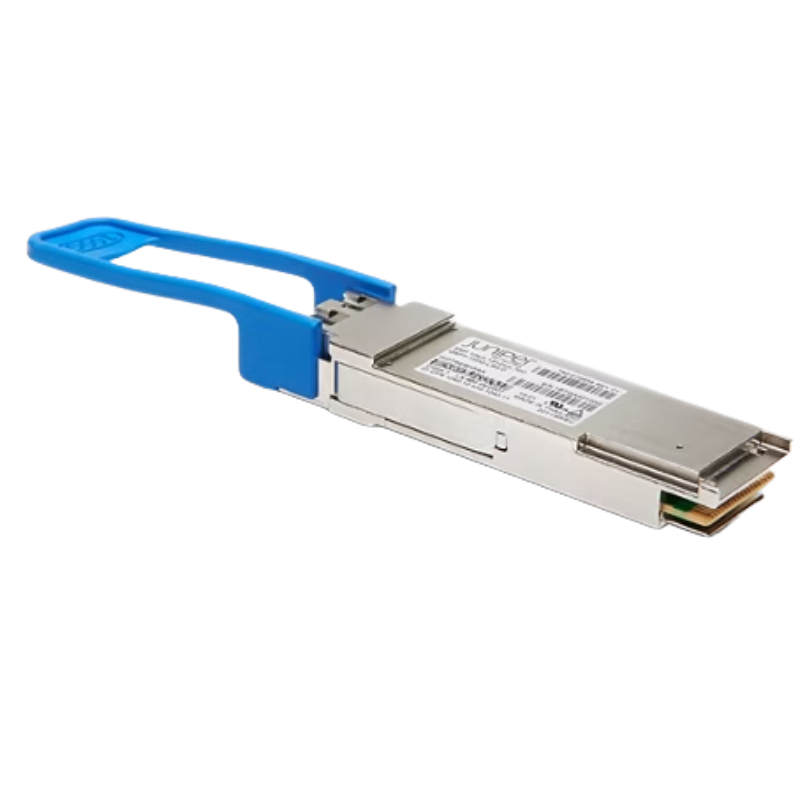

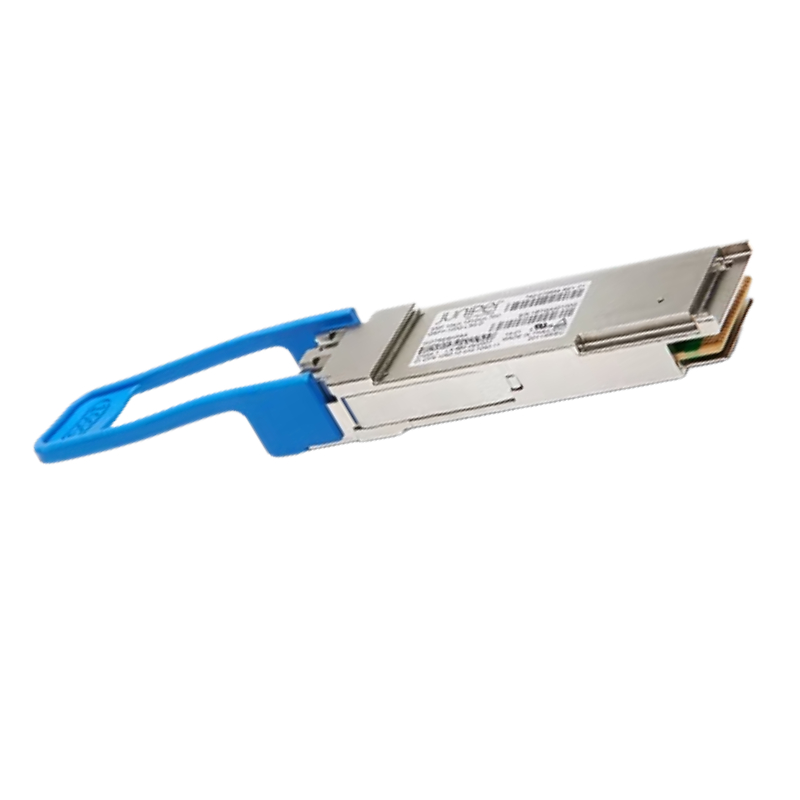

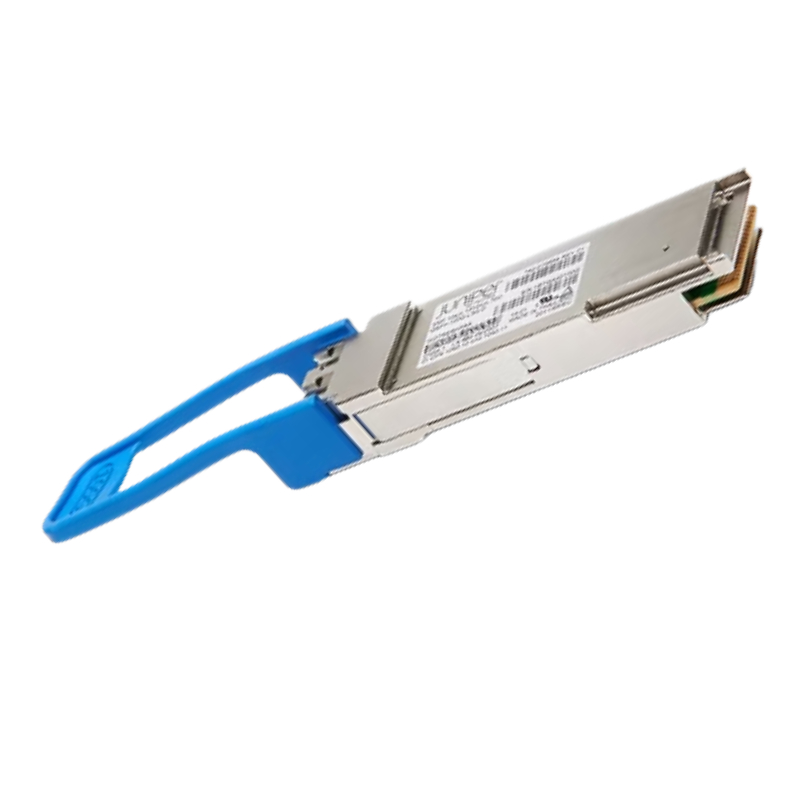

740-065054 Juniper Networks CFP2 100G Short Range Optics for Ethernet Optical Transceiver

Overview of Juniper Networks 740-065054 Transceiver

The Juniper Networks 740-065054 CFP2 module is a high-speed Ethernet optical transceiver designed for short-range connectivity. It delivers reliable 100G performance with advanced monitoring capabilities, making it ideal for enterprise and data center environments.

General Information

• Manufacturer: Juniper Networks
• Model Number: 740-065054
• Category: Ethernet Optical Transceiver

Technical Information

Performance & Speed

• Data Rate: 100 Gigabit Ethernet
• Breakout Capability: Not supported
• Form Factor: CFP2
• Connector Type: MPO-24
• Monitoring: Digital Optical Monitoring available

Standards Compliance

• IEEE 802.3ba—2010
• Ethernet/OTN standard (e.g., 100GBASE-LR4)

Optical Specifications

• Transmitter Wavelength Range: 840 nm – 860 nm
• Transmitter Output Power (per lane): Minimum –7.6 dBm, Maximum 2.4 dBm
• Receiver Input Power (per lane): Minimum –9.5 dBm (OM3), –9.1 dBm (OM4); Maximum 2.4 dBm

Cabling & Fiber

Supported Cable Types

• Fiber Type: MMF (Multimode Fiber)
• Grades: OM3 and OM4
• Distance: 100 m (OM3), 150 m (OM4)

Power & Environmental Specifications

Power Consumption

• Maximum Consumption: 6 W

Temperature Range

• Operating: 0° C to 70° C
• Storage: –40° C to 85° C

Juniper Networks 740-065054 CFP2 100G Short Range Optics

The Juniper Networks 740-065054 CFP2 100G Short Range optical transceiver represents a high-performance solution designed for modern data center and enterprise networking environments that demand ultra-fast data transmission, reliability, and energy efficiency. This CFP2 optical module supports 100 Gigabit Ethernet connectivity over short-range multimode fiber, enabling seamless communication between switches, routers, and high-capacity aggregation layers. Its compact CFP2 form factor allows network engineers to optimize port density while maintaining exceptional throughput, making it an essential component in high-speed infrastructure deployments.

High-Speed 100G Ethernet Connectivity

The CFP2 100G SR4 optical transceiver is engineered to deliver high-speed data transfer rates of up to 100 Gbps, ensuring that organizations can handle massive volumes of traffic with minimal latency. This capability is particularly important in environments such as cloud data centers, high-performance computing clusters, and enterprise core networks, where bandwidth demands continue to increase rapidly. By leveraging parallel optical lanes, the module transmits data efficiently over multimode fiber, ensuring consistent and reliable performance.

Parallel Optical Transmission Technology

The Juniper 740-065054 module utilizes parallel optics technology, where data is distributed across multiple optical channels. This approach enhances signal integrity and reduces transmission errors, making it suitable for mission-critical applications. Each lane operates at a high data rate, combining to achieve the total 100G throughput required for modern network operations.

Optimized Data Center Interconnectivity

Short-range optics such as this CFP2 module are specifically designed for intra-data center connectivity, including connections between racks, rows, and aggregation layers. The module ensures low-latency communication and efficient bandwidth utilization, supporting high-density network architectures and virtualization environments.

CFP2 Form Factor Advantages

The CFP2 form factor is a smaller and more power-efficient evolution of the original CFP standard. It offers improved scalability and flexibility for network administrators seeking to maximize port density without compromising performance. The reduced size allows more ports to be integrated into networking equipment, enabling higher capacity deployments within the same physical footprint.

Compact Design for High-Density Deployments

The reduced footprint of the CFP2 transceiver allows network hardware manufacturers to design devices with more ports per unit, which is critical in modern data centers where space efficiency is a priority. This compact design also contributes to improved airflow and thermal management within networking equipment.

Power Efficiency and Thermal Optimization

Power consumption is a critical factor in large-scale deployments, and the CFP2 module is engineered to consume less power compared to earlier form factors. Lower power usage reduces operational costs and minimizes heat generation, contributing to the overall stability and longevity of network infrastructure.

Enhanced Scalability for Growing Networks

As network requirements evolve, scalability becomes a key consideration. The CFP2 design enables easy upgrades and expansions, allowing organizations to scale their infrastructure without significant hardware changes. This adaptability makes it a future-proof investment for growing enterprises.

Technical Specifications and Performance Characteristics

The Juniper Networks 740-065054 CFP2 100G SR4 optical transceiver is built to meet stringent industry standards and deliver reliable performance across a range of operating conditions. Its specifications are optimized for short-range communication, ensuring efficient data transfer within confined network environments.

Transmission Distance and Fiber Compatibility

This optical module supports transmission distances of up to 100 meters over OM4 multimode fiber and slightly shorter distances over OM3 fiber. This makes it ideal for short-range connections within data centers, where long-distance transmission is not required. The use of multimode fiber also helps reduce deployment costs while maintaining high performance.

Wavelength and Optical Interface

The CFP2 SR4 module operates at a wavelength of 850 nm, utilizing VCSEL technology for efficient signal transmission. It typically uses an MPO/MTP connector, which supports multiple fiber strands and facilitates high-density cabling solutions. This configuration ensures reliable connectivity and simplifies cable management.

Compliance with Industry Standards

The transceiver complies with IEEE 802.3bm standards for 100GBASE-SR4, ensuring interoperability with a wide range of networking equipment. This standardization guarantees compatibility and simplifies integration into existing network infrastructures.

Applications in Modern Networking Environments

The versatility of the Juniper CFP2 100G SR4 optical transceiver makes it suitable for a wide range of applications, particularly in environments that require high-speed, short-range connectivity. Its design and performance characteristics enable it to support demanding workloads and ensure efficient data transmission.

Data Center Networking

In data center environments, the CFP2 module plays a crucial role in enabling high-speed connections between servers, switches, and storage systems. It supports east-west traffic patterns and ensures low latency, which is essential for applications such as virtualization, cloud computing, and big data analytics.

Enterprise Core and Aggregation Layers

Enterprises with large-scale networks rely on high-capacity aggregation layers to manage traffic efficiently. The CFP2 transceiver provides the bandwidth required to support these layers, ensuring seamless communication between different parts of the network.

High-Performance Computing Environments

High-performance computing environments require ultra-fast data transfer capabilities to handle complex computations and large datasets. The CFP2 module delivers the necessary throughput and reliability, making it a suitable choice for such applications.

Integration with Juniper Networking Equipment

The Juniper Networks 740-065054 CFP2 transceiver is specifically designed to integrate seamlessly with Juniper networking devices, ensuring optimal performance and compatibility. This integration simplifies deployment and enhances overall network efficiency.

Seamless Compatibility

The module is engineered to work with a range of Juniper switches and routers, providing plug-and-play functionality. This compatibility reduces the complexity of network configuration and ensures reliable operation.

Optimized Performance with Juniper Platforms

When used with Juniper equipment, the CFP2 transceiver delivers optimized performance, leveraging advanced features and capabilities. This synergy enhances network efficiency and ensures consistent data transmission.

Vendor-Specific Enhancements

Juniper-specific enhancements provide additional functionality and reliability, ensuring that the transceiver performs optimally within Juniper ecosystems. These enhancements contribute to improved network management and monitoring capabilities.

Benefits of Using CFP2 100G SR4 Optical Transceivers

The adoption of CFP2 100G SR4 optical transceivers offers numerous advantages for organizations seeking to enhance their network infrastructure. These benefits extend beyond performance, encompassing cost efficiency, scalability, and ease of deployment.

Cost-Effective High-Speed Connectivity

Short-range optical transceivers provide a cost-effective solution for high-speed connectivity within data centers. By utilizing multimode fiber and efficient transmission technology, they reduce overall deployment costs while maintaining high performance.

Future-Ready Networking Infrastructure

The ability to support 100G Ethernet ensures that networks are prepared for future demands. As data traffic continues to grow, having a high-capacity infrastructure becomes essential for maintaining performance and reliability.

Simplified Network Management

The standardized design and compatibility of CFP2 modules simplify network management, making it easier to monitor and maintain connectivity. This reduces operational complexity and enhances overall efficiency.
