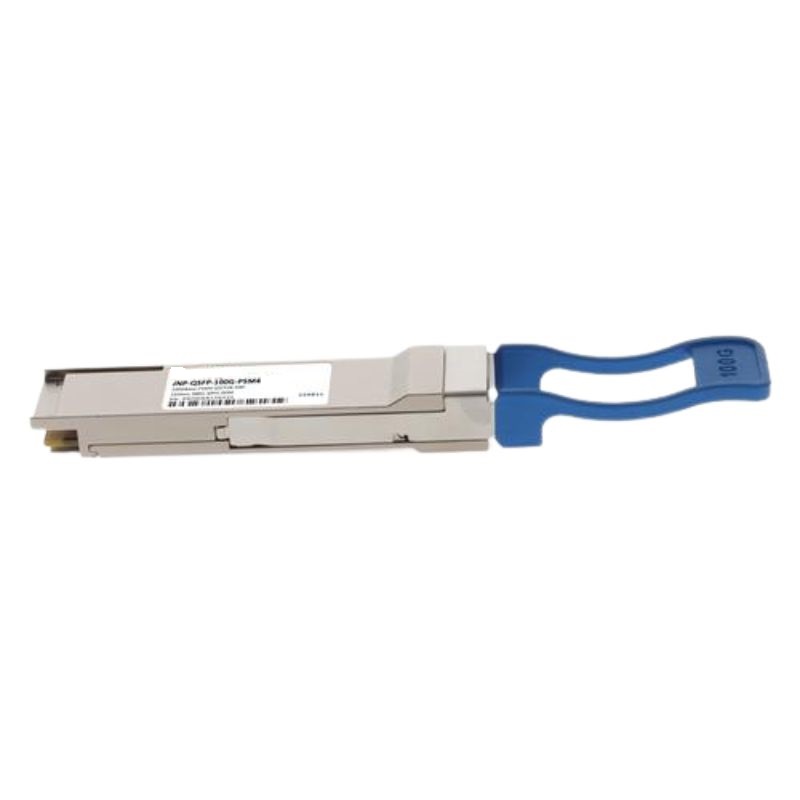

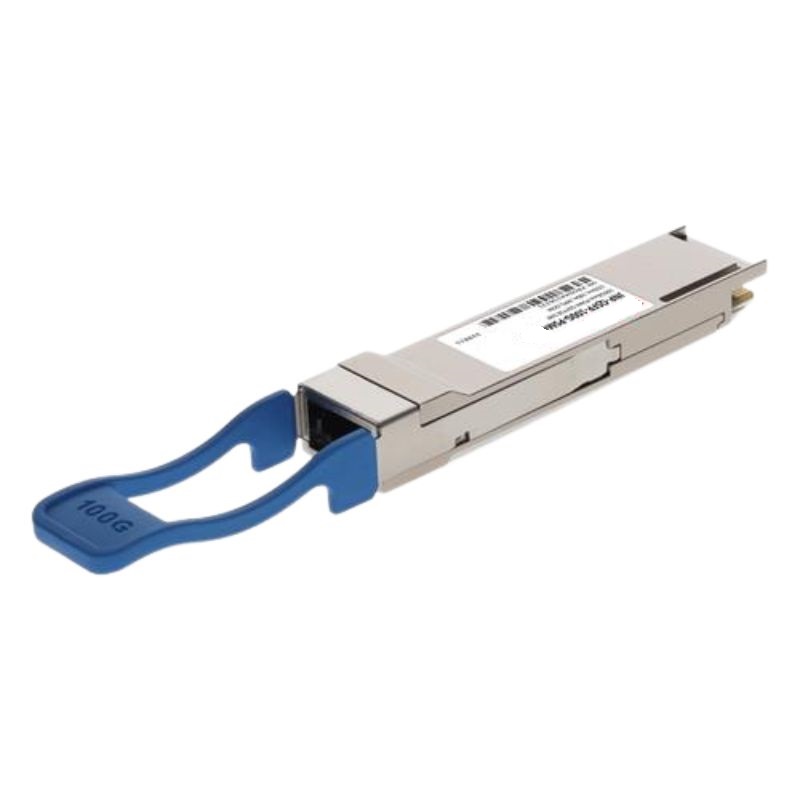

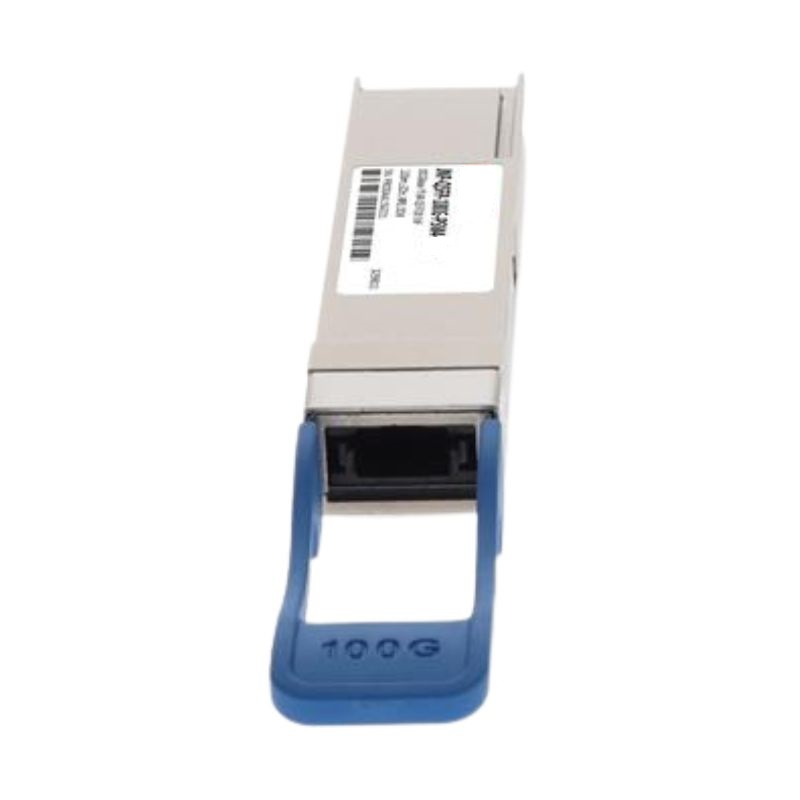

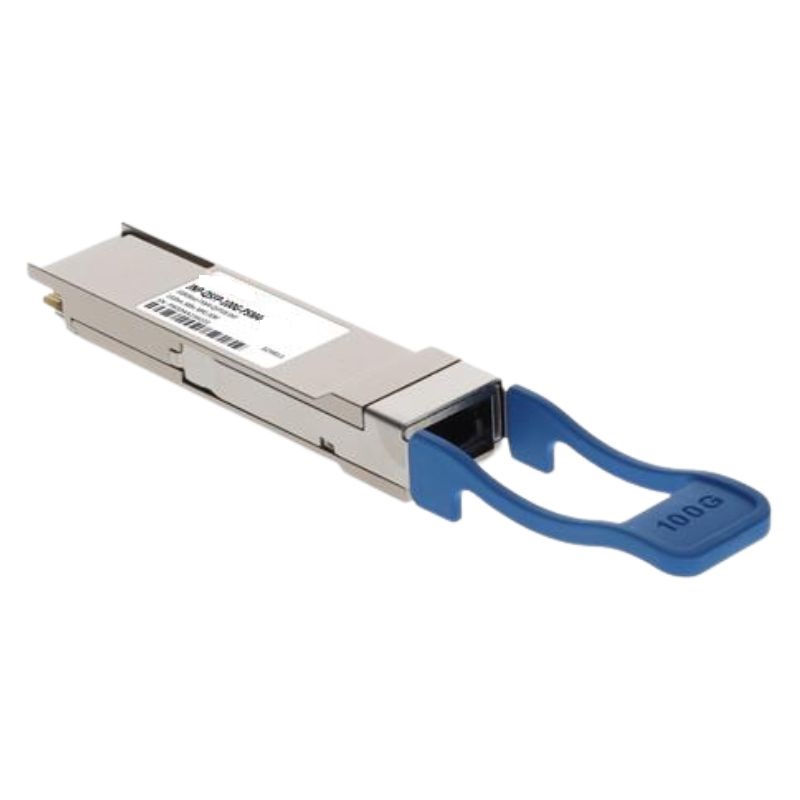

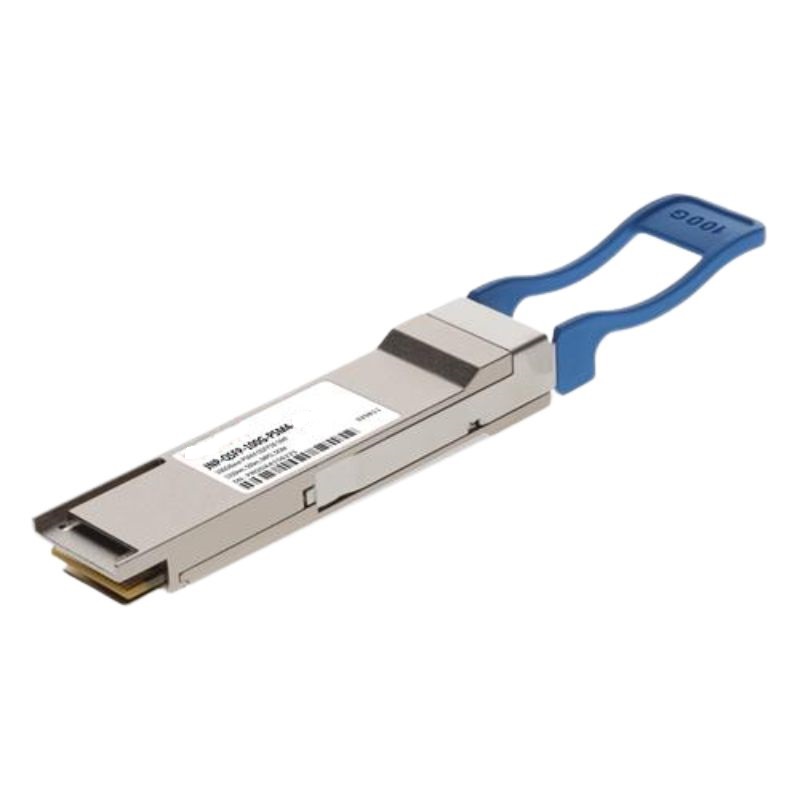

JNP-QSFP-100G-PSM4 Juniper Networks Single-mode Fiber 1310nm 100GBPS Transceiver

Overview JNP-QSFP-100G-PSM4 QSFP28 Transceiver Module

The Juniper Networks JNP-QSFP-100G-PSM4 100GBPS Single-mode Fiber 1310nm MTP/MPO Connector QSFP28 Transceiver Module is engineered to deliver high-speed connectivity across modern data center and enterprise environments. Designed with precision, this optical transceiver supports 100 Gigabit Ethernet applications, offering reliable performance and seamless integration with Juniper networking platforms. Its QSFP28 form factor ensures hot-pluggable functionality, making it a versatile solution for scalable infrastructures.

Form Factor and Interface

The JNP-QSFP-100G-PSM4 adopts the QSFP28 form factor, which is compact and efficient for high-density networking environments. The module utilizes an MTP/MPO connector interface, enabling parallel single-mode fiber transmission. This design supports streamlined cabling and optimized space utilization in data centers.

Data Rate and Transmission

Operating at a data rate of 100Gbps, the transceiver achieves high-speed connectivity through four parallel lanes, each transmitting at 25Gbps. The module uses NRZ modulation to ensure stable signal integrity across extended distances. With a maximum transmission reach of up to 500 meters on single-mode fiber, it is ideal for spine-leaf architectures and inter-rack connections.

Optical Characteristics

The JNP-QSFP-100G-PSM4 operates at a wavelength of 1310nm, a standard for single-mode fiber communication. It employs four parallel CWDM channels, ensuring efficient data transmission with minimal signal loss. The transmitter utilizes laser diodes optimized for long-distance communication, while the receiver integrates PIN photodiodes for accurate signal detection.

Power and Monitoring

The module requires a 3.3V power supply and consumes less than 3.5W, making it energy-efficient for large-scale deployments. Digital Diagnostic Monitoring is supported, enabling real-time monitoring of parameters such as optical power, temperature, and voltage. This ensures proactive maintenance and enhances network reliability.

Industry Certifications

The JNP-QSFP-100G-PSM4 complies with IEEE 802.3bm standards for 100GBASE-PSM4, ensuring interoperability with other compliant devices. It adheres to QSFP28 MSA specifications, guaranteeing compatibility across multiple vendor platforms. The module also meets RoHS requirements, reflecting Juniper’s commitment to environmentally responsible manufacturing.

Interoperability

Designed for seamless integration, the transceiver interoperates with standard 100G PSM4 modules from other vendors, provided both ends adhere to the same optical standard. This flexibility allows enterprises to build heterogeneous networks without compromising performance.

Applications Data Centers

In modern data centers, the JNP-QSFP-100G-PSM4 plays a critical role in supporting high-bandwidth applications. It enables efficient east-west traffic flow between servers and storage systems, ensuring low latency and high throughput. Its parallel single-mode fiber design is particularly suited for large-scale deployments requiring reliable interconnectivity.

Enterprise Networks

Enterprises benefit from the module’s ability to support backbone connections across campuses and distributed offices. With its high-speed capabilities, the transceiver ensures smooth communication between core switches, routers, and aggregation layers, enhancing overall network performance.

Cloud Infrastructure

Cloud service providers rely on the JNP-QSFP-100G-PSM4 for scalable and resilient infrastructure. Its compatibility with Juniper’s QFX and MX series platforms makes it a preferred choice for building cloud-ready networks that demand high availability and rapid scalability.

Spine-Leaf Architectures

The transceiver is optimized for spine-leaf topologies, a common design in hyperscale data centers. By supporting parallel single-mode fiber connections, it ensures efficient traffic distribution between spine and leaf switches, reducing bottlenecks and improving overall network efficiency.

Cross-Vendor Integration

Beyond Juniper platforms, the module’s adherence to industry standards ensures interoperability with other vendor equipment. This makes it suitable for enterprises that operate multi-vendor environments, offering investment protection and operational flexibility.

High Bandwidth Efficiency

By delivering 100Gbps over parallel single-mode fiber, the transceiver ensures maximum bandwidth utilization. This supports demanding applications such as virtualization, big data analytics, and high-performance computing.

Energy Efficiency

With a power consumption of less than 3.5W, the JNP-QSFP-100G-PSM4 reduces operational costs and minimizes heat generation. This contributes to sustainable data center operations and lowers cooling requirements.

Reliability and Monitoring

The inclusion of Digital Diagnostic Monitoring enhances reliability by allowing administrators to track performance metrics in real time. Early detection of anomalies ensures proactive troubleshooting and minimizes downtime.

Campus Backbone Networks

In campus environments, the transceiver supports high-speed backbone connections between buildings and departments. Its long-reach capability ensures consistent performance across extended distances, making it ideal for large educational and corporate campuses.

Cloud Data Centers

For cloud providers, the JNP-QSFP-100G-PSM4 supports rapid scaling of infrastructure. Its compatibility with spine-leaf architectures ensures efficient traffic management, enabling cloud services to deliver seamless user experiences.

Enterprise WAN Connectivity

Enterprises deploying wide-area networks benefit from the module’s ability to support high-speed interconnections between core routers. This ensures reliable communication across geographically distributed offices and data centers.

Scalability

The JNP-QSFP-100G-PSM4 is designed to support evolving network demands. Its modular design and compliance with industry standards make it future-ready, allowing enterprises to scale their networks without requiring extensive hardware changes.

Interoperability with Emerging Technologies

As networking technologies advance, the transceiver’s adherence to QSFP28 and IEEE standards ensures compatibility with next-generation platforms. This future-proof design protects investments and supports long-term infrastructure growth.

Final Notes on Deployment

Whether deployed in data centers, enterprise backbones, or cloud infrastructures, the JNP-QSFP-100G-PSM4 ensures seamless integration, high performance, and long-term scalability. Its design reflects Juniper’s commitment to innovation, reliability, and sustainability in networking solutions.
