M5YMJ Dell Emulex PCIe 4.0 32G/64G Single-Port Fibre Channel Host Bus Adapter.

M5YMJ
Hover on image to enlarge

Brief Overview of M5YMJ

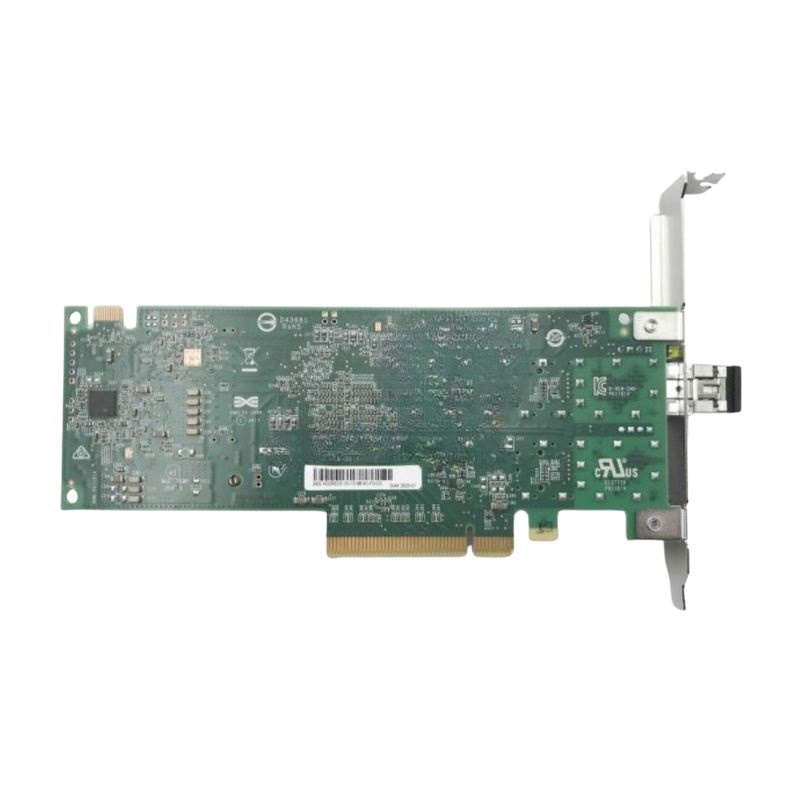

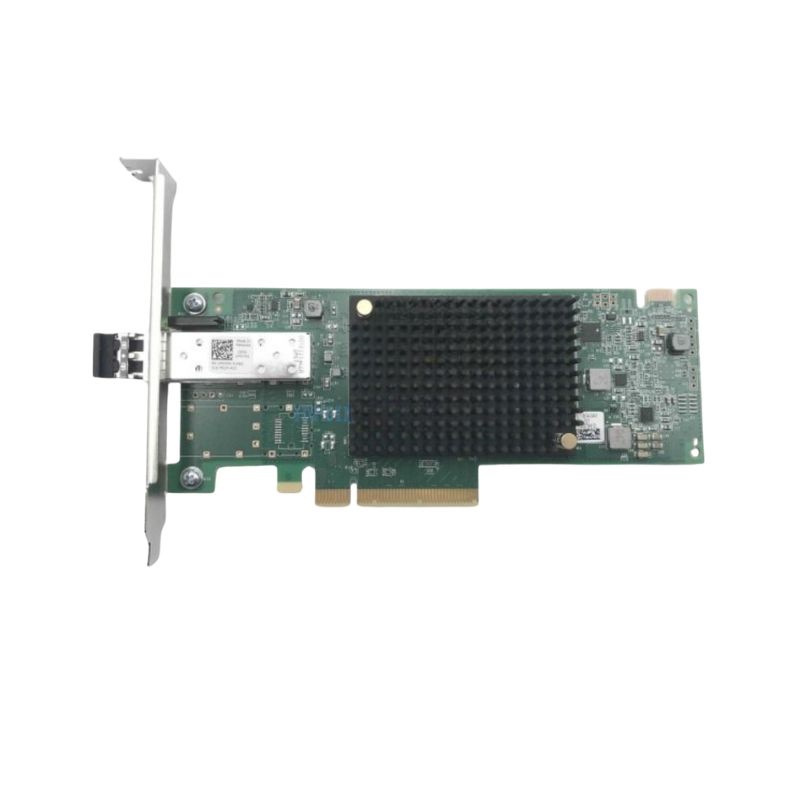

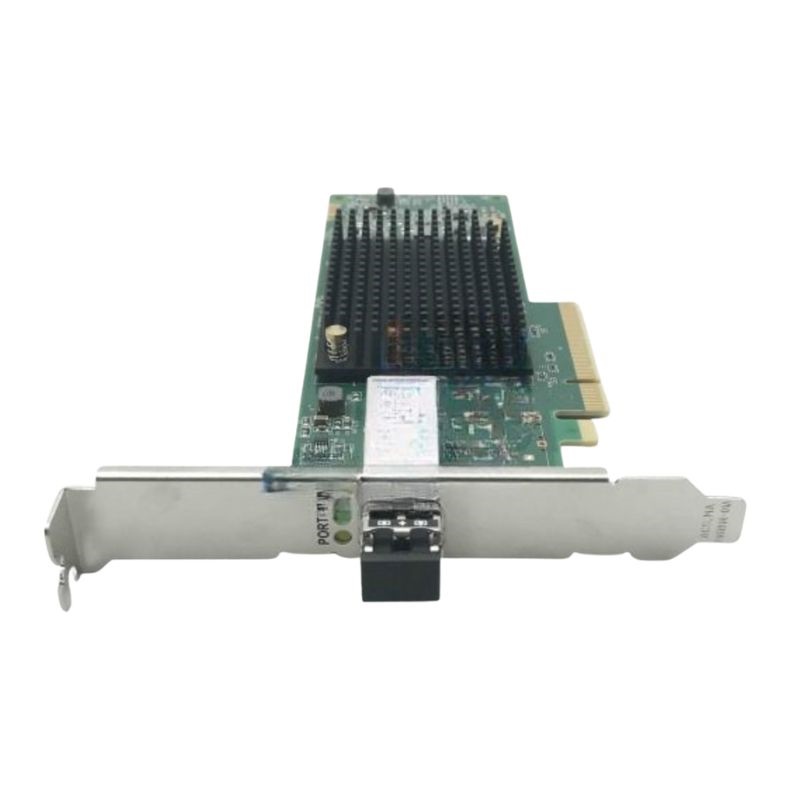

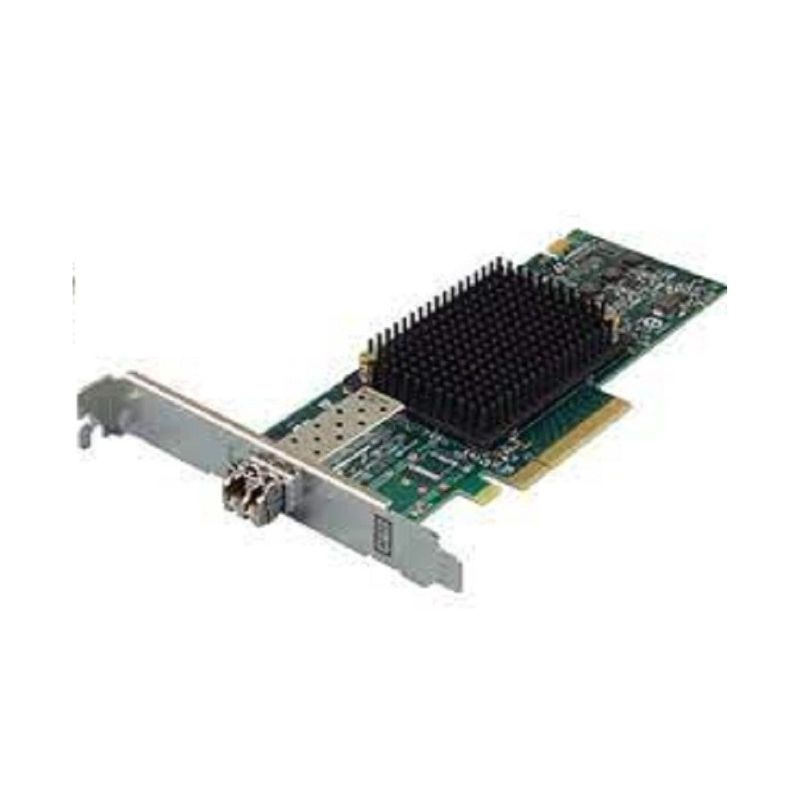

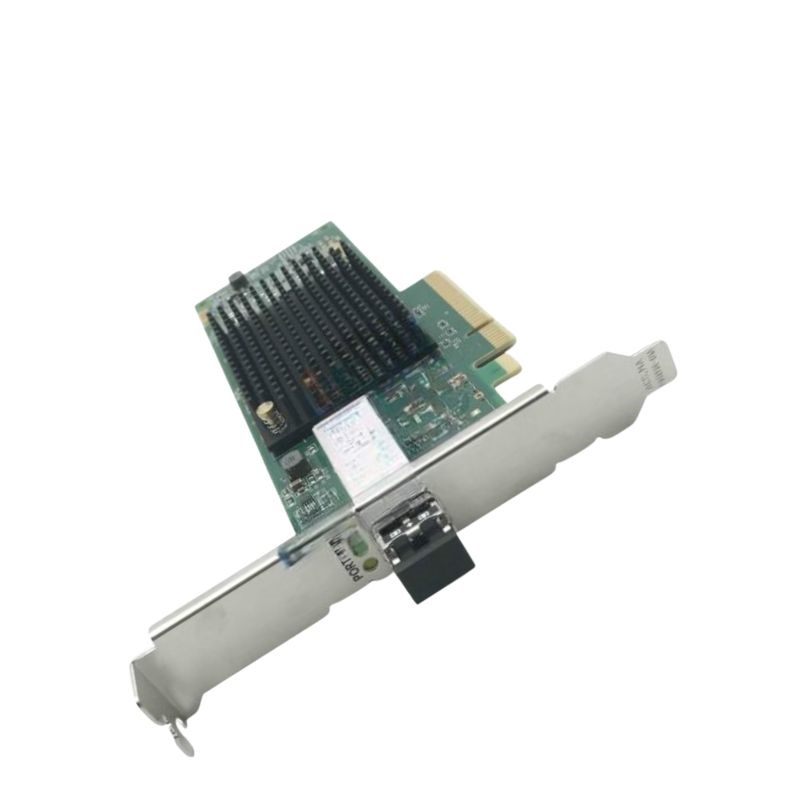

M5YMJ Dell Emulex PCIe 4.0 32G/64G Single-Port Fibre Channel Host Bus Adapter. Excellent Refurbished with 6-Month Replacement Warranty

QR Code of M5YMJ Dell Emulex PCIe 4.0 32G/64G Single-Port Fibre Channel Host Bus Adapter.
$790.00
$545.00
You save: $245.00 (31%)
Ask a question
Price in points: 545 points
+
Quote
SKU/MPNM5YMJAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Summary

The Dell M5YMJ Emulex Single-port PCIe 4.0 32G/64G Fibre Channel Host Bus Adapter is a high-performance solution designed for advanced networking and storage environments. It delivers reliable and fast data transmission for enterprise-level applications, providing seamless connectivity and compatibility.

Manufacturer Information

  • Brand: Dell
  • Model Number: M5YMJ
  • Type: Host Bus Adapter

Key Features

  • Supports PCIe Gen 4.0 x8 interface for high-speed data transfer
  • Dual data rate options (32GFC/64GFC) for versatile connectivity
  • Optimized for both Intel and PowerPC hardware platforms
  • Compact form factor with short, low-profile design for flexible installations

Detailed Specifications

Physical Dimensions
  • Length: 167.64mm (6.60")
  • Width: 68.91mm (2.71")
  • Form Factor: Low-profile PCIe card
Data Transmission Support
  • Fiber cable lengths supported: 0.5m to 100m (at 64GFC/32GFC) with OM4, OM5, and OM3 multimode fibers
  • Up to 10 km at 32GFC/16GFC with single-mode fiber and approved Emulex transceivers

Compatibility and Connectivity

Optical and Data Rates
  • Supports data rates of 28.05 Gb/s (3200 Mbps), 14.025 Gb/s (1600 Mbps), and 8.5 Gb/s (800 Mbps) with auto-detection functionality
  • Utilizes short-wave laser optics with LC-type connectors for efficient connectivity
Operating Conditions
  • Temperature Range: 0°C to 55°C (operating), -20°C to 85°C (storage)
  • Humidity: 5% to 95%, non-condensing

Performance Environment

  • Host Bus Type: PCIe Gen 4.0 x8 for high-throughput data transmission
  • IO Controller: Xe601 for superior processing capabilities

Why Choose Dell M5YMJ Emulex Fibre Channel Adapte

  • Scalable and fast data transfer speeds for high-demand applications
  • Industry-leading reliability and performance backed by Dell’s reputation
  • Advanced optical technology ensures minimal data loss and optimized transfer rates

Dell M5YMJ Emulex Single-Port Fibre Channel Host Bus Adapter

The Dell M5YMJ Emulex Single-Port PCIe 4.0 32G/64G Fibre Channel Host Bus Adapter (HBA) is an advanced solution designed for high-performance data center environments. It provides a reliable and efficient way to connect servers and storage systems using the Fibre Channel protocol. With its high-speed PCIe 4.0 interface, the adapter is optimized for seamless connectivity and low-latency data transfer. This category focuses on various Host Bus Adapters (HBAs) suitable for a wide range of enterprise storage applications, and the Dell M5YMJ Emulex is among the top choices in this segment.

Optimized for Data Center Environments

The Dell M5YMJ Emulex HBA is designed specifically for large-scale enterprise data centers, offering a seamless solution for SAN (Storage Area Network) environments. It facilitates fast and secure communication between servers and storage arrays, enabling enterprises to maximize the performance and reliability of their infrastructure. With its enhanced features, it ensures smooth data flow even during peak traffic periods, which is essential for maintaining optimal operations in mission-critical environments.

Advanced PCIe 4.0 Technology

As businesses continue to push the boundaries of data processing, the need for faster and more efficient connectivity solutions becomes evident. The Dell M5YMJ Emulex HBA takes full advantage of PCIe 4.0's higher bandwidth capabilities, supporting up to 64 Gbps speeds. This allows users to transfer large volumes of data rapidly, enhancing overall system performance. With the increased data rates offered by PCIe 4.0, organizations can manage data-intensive workloads more efficiently, improving the overall speed and productivity of their IT infrastructure.

Why Choose a Fibre Channel

In today’s highly connected world, having a reliable and fast network infrastructure is essential. Host Bus Adapters (HBAs) based on the Fibre Channel protocol are one of the most reliable solutions available for high-speed data transfers in data centers. They provide dedicated and robust links for storage networking, ensuring that data is always available and transmitted with minimal risk of interruption.

Fibre Channel vs. Other Network Connectivity Technologies

Fibre Channel offers several advantages over other networking technologies such as iSCSI or Ethernet. While iSCSI and Ethernet use IP protocols for communication, Fibre Channel is a specialized, high-speed network that is specifically designed for data storage. It offers lower latency, higher speeds, and greater reliability than these alternatives. This makes Fibre Channel a preferred choice for enterprises that require mission-critical applications to run without fail.

Key Advantages of Fibre Channel:
  • Speed: Fibre Channel supports speeds of up to 64 Gbps, significantly outperforming other protocols like iSCSI and Ethernet in terms of data transfer rates.
  • Reliability: Fibre Channel networks are designed to provide robust and stable connections, making them highly suitable for enterprise storage systems where downtime is unacceptable.
  • Scalability: Fibre Channel systems can easily scale to accommodate growing storage needs, offering a flexible infrastructure that adapts to changing business demands.

Enhanced Scalability and Flexibility

The Dell M5YMJ Emulex Single-Port HBA is built with scalability in mind. It supports both 32 Gbps and 64 Gbps speeds, allowing businesses to choose the appropriate speed based on their current workload and future requirements. This flexibility ensures that the HBA can grow with your business needs. Whether you're expanding storage capacity or upgrading to higher throughput, this HBA provides a future-proof solution to meet the demands of ever-expanding data environments.

Adaptability for Various Use Cases
  • Cloud Computing: Supports fast data transfers, making it ideal for cloud-based applications and services that require efficient data retrieval and storage operations.
  • Virtualization: Ensures high-performance connectivity for virtualized environments, supporting multiple virtual machines and virtualized storage solutions with low latency.
  • Big Data and Analytics: Handles large data sets with ease, enabling fast analytics and data processing for enterprise applications.

Emulex Technology: A Trusted Name in Fibre Channel Connectivity

Emulex is a leading provider of high-performance HBAs and storage networking solutions. Known for its robust and reliable architecture, Emulex products are trusted by enterprises worldwide for their exceptional performance and low-latency capabilities. The Dell M5YMJ HBA is powered by Emulex’s advanced technology, ensuring enterprises benefit from the latest in storage connectivity innovation.

Advanced Features of Emulex HBAs

Emulex HBAs are equipped with advanced features that optimize storage performance and simplify management. These include features like intelligent diagnostics, error correction, and automatic load balancing. With the Dell M5YMJ, users gain access to Emulex’s industry-leading management tools and analytics, allowing for enhanced system monitoring and performance tuning.

Emulex Management Tools
  • LightPulse Management Tools: Simplify setup, monitoring, and troubleshooting, providing users with insights into their network’s performance and health.
  • Diagnostics: Includes in-depth diagnostics for both hardware and software components, helping to identify and resolve issues before they impact operations.
  • Fabric Vision: Provides visibility into the entire Fibre Channel network, helping administrators optimize the storage network for efficiency and reliability.

Compatibility and Integration

Compatibility is a crucial factor when selecting the right HBA for your data center. The Dell M5YMJ Emulex Single-Port PCIe 4.0 HBA is compatible with a wide range of Dell servers, storage systems, and operating systems. It integrates seamlessly with existing infrastructure, minimizing the need for costly upgrades or downtime during installation.

Broad Server Compatibility

The HBA is supported on a variety of Dell PowerEdge servers and other enterprise-class hardware, ensuring flexibility for businesses that already use Dell infrastructure. Whether you're looking to add new storage capabilities or enhance existing systems, this HBA integrates smoothly with your current environment.

Operating System Support

The Dell M5YMJ Emulex HBA supports a wide range of operating systems, including popular platforms like Linux, Windows Server, and VMware. This versatility ensures that organizations can deploy this solution without worrying about compatibility issues, regardless of their chosen operating system or virtualization environment.

Why Upgrade to a High-Speed Fibre Channel HBA?

Upgrading to a high-performance Fibre Channel Host Bus Adapter like the Dell M5YMJ Emulex offers several benefits that are vital to maintaining a competitive edge in the data-driven world. Increased bandwidth, lower latency, and enhanced reliability make Fibre Channel HBAs the optimal choice for businesses that rely on fast and consistent data transfers.

Improved Performance for High-Demand Applications

For organizations running mission-critical applications, the speed and stability of the storage network can directly affect performance. By choosing the Dell M5YMJ HBA, you are ensuring that your systems operate at peak performance, whether it's for large database transactions, high-performance computing (HPC), or enterprise cloud storage solutions.

Future-Proof Investment

As businesses continue to generate more data and require faster storage solutions, upgrading to the Dell M5YMJ Emulex Single-Port PCIe 4.0 HBA ensures that your infrastructure is ready for future demands. With support for 64 Gbps speeds and seamless integration with next-generation servers and storage systems, this HBA provides a future-proof investment for your business.

Conclusion

The Dell M5YMJ Emulex Single-Port PCIe 4.0 32G/64G Fibre Channel Host Bus Adapter offers unmatched performance, reliability, and scalability for enterprises looking to enhance their storage infrastructure. With its advanced features, flexibility, and seamless integration capabilities, it is the ideal choice for modern data centers, helping businesses stay ahead in a fast-paced, data-intensive world.

Features
Product/Item Condition:
Excellent Refurbished
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
