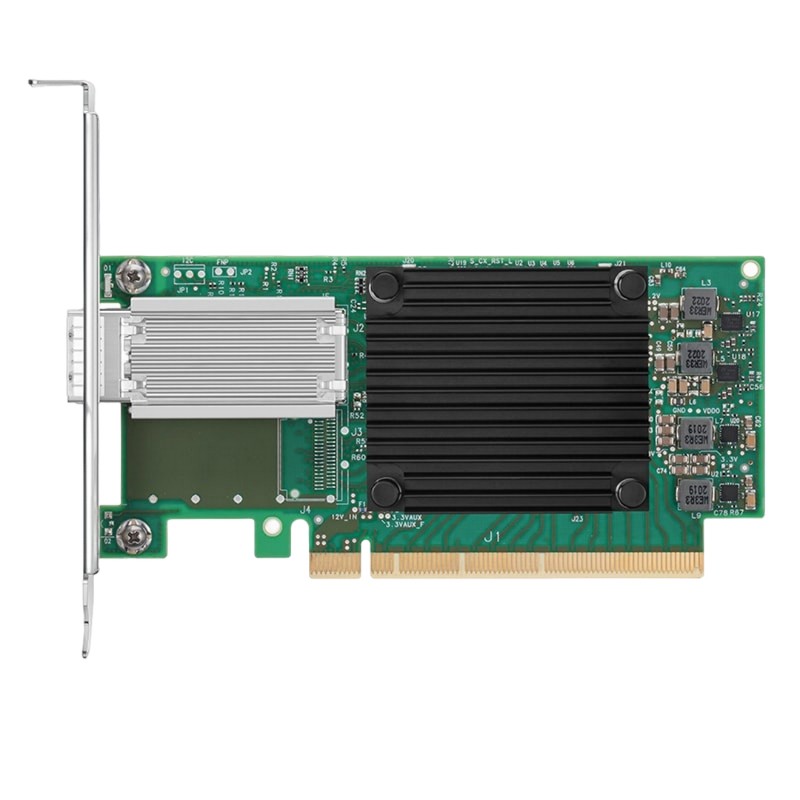

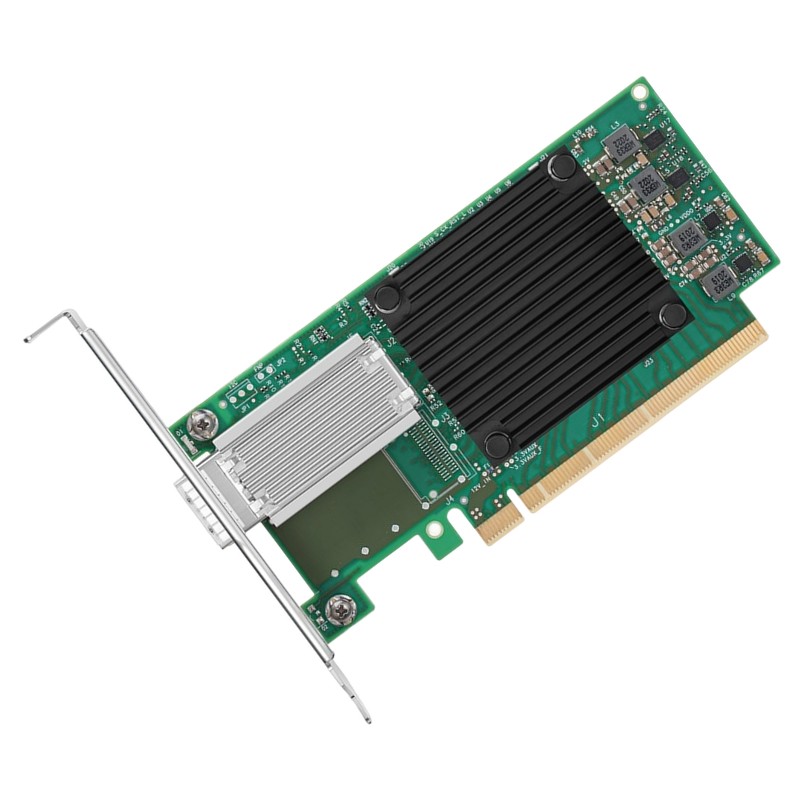

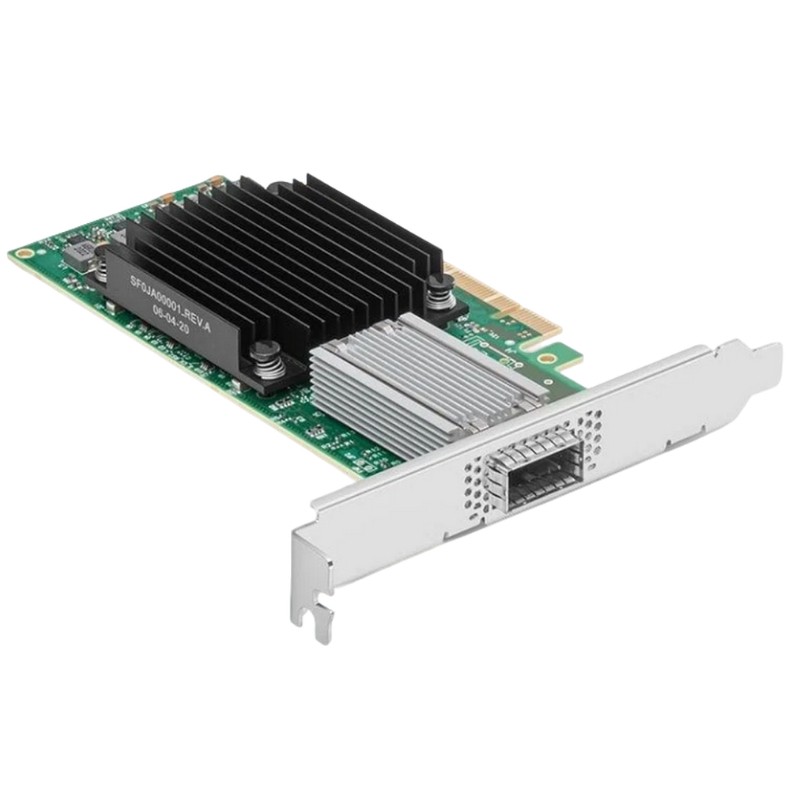

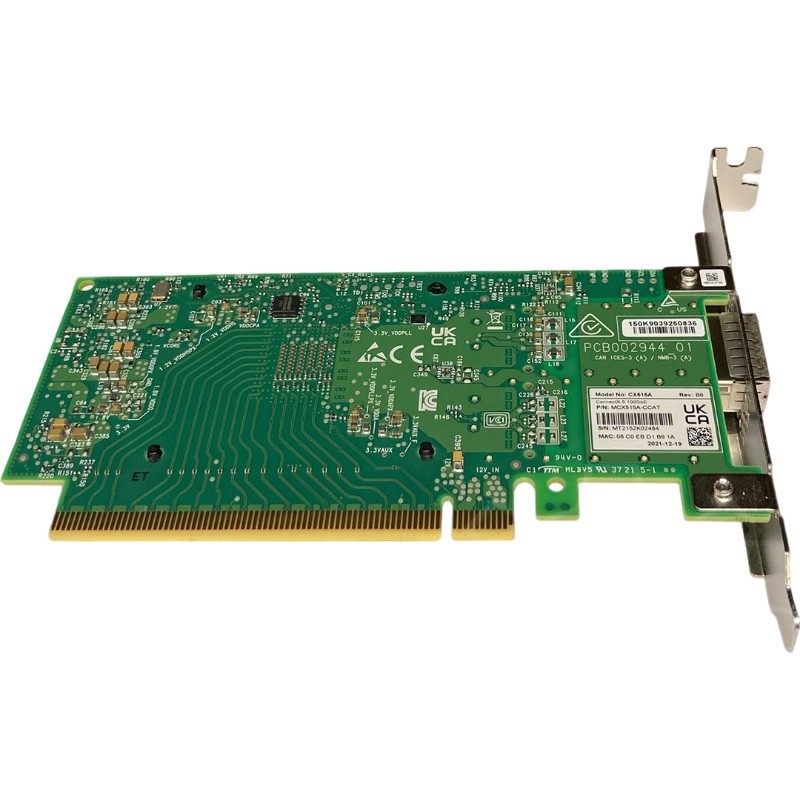

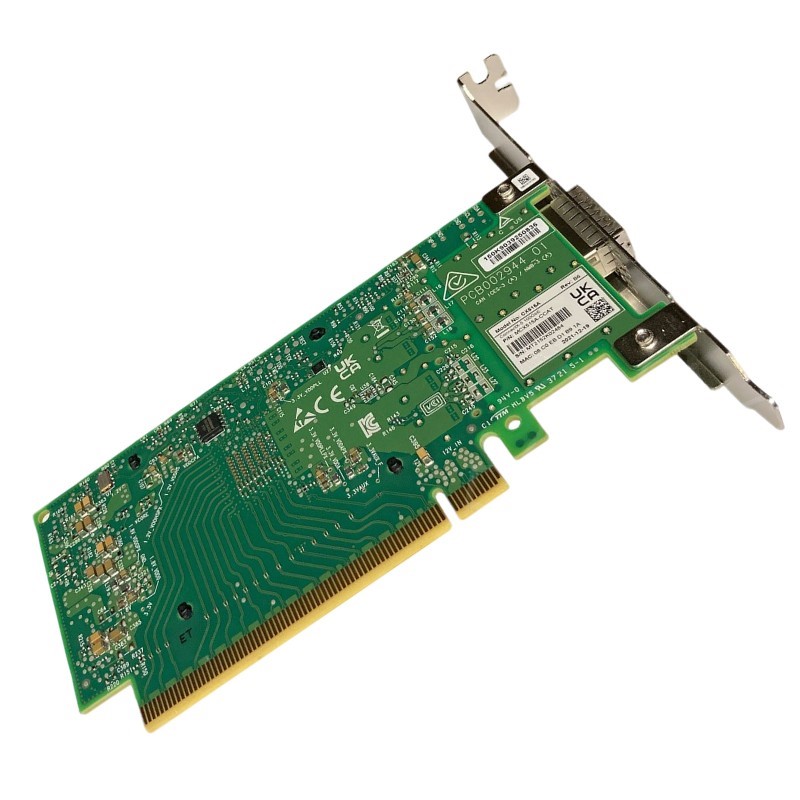

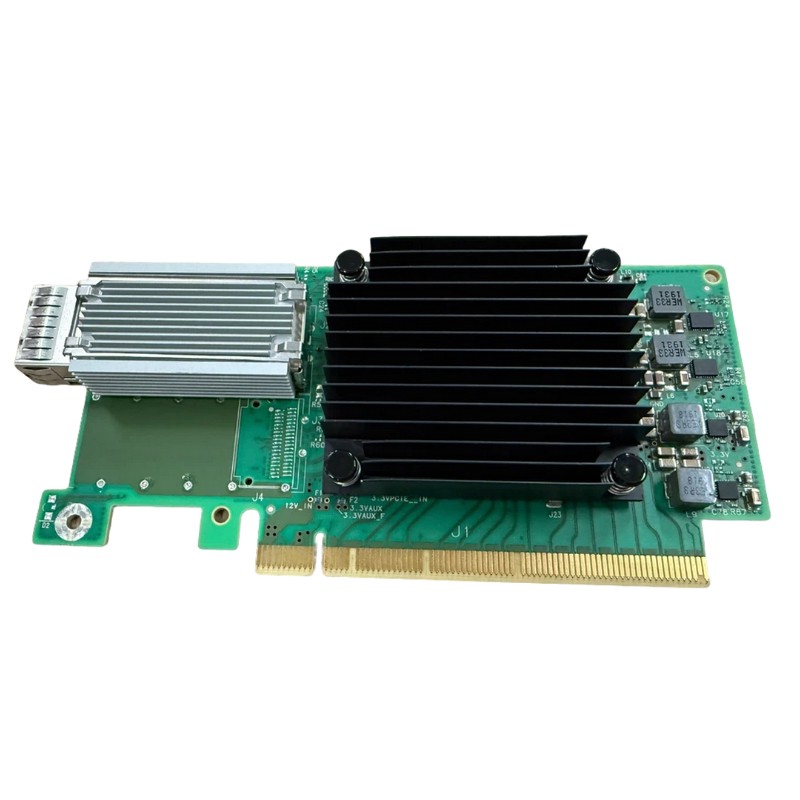

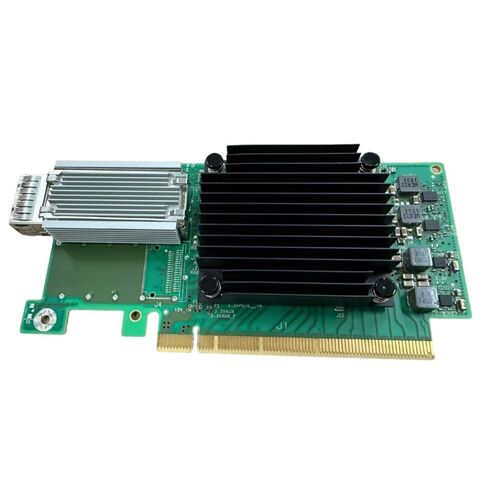

MCX515A-CCAT Mellanox ConnectX-5 Network Adapter 100GbE Adapter

Mellanox MCX515A-CCAT 100GbE PCIe Adapter Overview

The Mellanox MCX515A-CCAT ConnectX-5 Network Adapter is a high-performance PCI Express Ethernet adapter engineered for modern enterprise networking, cloud computing, virtualization, and high-performance computing (HPC) environments. Featuring a single QSFP28 100 Gigabit Ethernet port, this advanced network interface card (NIC) delivers ultra-fast throughput, low latency, and exceptional reliability for demanding data center workloads.

Built on the proven ConnectX-5 architecture, the adapter provides scalable network connectivity while maximizing bandwidth efficiency for servers, storage infrastructure, AI applications, and virtualization platforms. Its PCI Express 3.0 x16 interface ensures high-speed communication between the host system and the network, making it an ideal solution for bandwidth-intensive environments.

General Product Information

• Manufacturer: Mellanox
• Model: ConnectX-5
• Part Number: MCX515A-CCAT
• Product Category: PCI Express Ethernet Network Adapter
• Device Type: Wired Network Interface Card (NIC)

Technical Specifications

Hardware Specifications

• Product Family: ConnectX-5
• Device Type: Ethernet Network Adapter
• Form Factor: Plug-in Card
• Host Interface: PCI Express 3.0 x16
• PCI Specification: PCIe 3.0
• Port Configuration: 1 × QSFP28
• Connectivity: Wired
• Maximum Data Transfer Rate: 100 Gbps

Networking Specifications

• 1 Gigabit Ethernet
• 10 Gigabit Ethernet
• 25 Gigabit Ethernet
• 40 Gigabit Ethernet
• 50 Gigabit Ethernet
• 100 Gigabit Ethernet
• Single QSFP28 high-speed network port
• Enterprise-grade wired networking technology

PCI Express Interface Specifications

PCIe Benefits

• High-bandwidth server connectivity
• Reduced communication latency
• Improved data transfer efficiency
• Excellent compatibility with enterprise server platforms
• Reliable performance for intensive networking applications

Bus Interface Specifications

• Interface Type: PCI Express
• PCIe Generation: PCIe 3.0
• Lane Configuration: x16
• Form Factor: Plug-in Card

Advanced Networking Capabilities

Supported Network Speeds

• Gigabit Ethernet (1GbE)
• 10 Gigabit Ethernet (10GbE)
• 25 Gigabit Ethernet (25GbE)
• 40 Gigabit Ethernet (40GbE)
• 50 Gigabit Ethernet (50GbE)
• 100 Gigabit Ethernet (100GbE)

Supported Data Link Protocols

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 25 Gigabit LAN
• 40 Gigabit LAN
• 50 Gigabit LAN
• 100 Gigabit Ethernet

QSFP28 Network Interface

• Port Type: QSFP28
• Number of Ports: 1
• Maximum Network Speed: 100 Gbps
• Connectivity Technology: Wired

Enterprise Networking Applications

• Enterprise data centers
• Cloud computing infrastructure
• Virtualized server environments
• Software-defined networking (SDN)
• Hyper-converged infrastructure (HCI)
• Artificial intelligence platforms
• Machine learning clusters
• High-performance computing (HPC)
• Big data analytics
• Storage networking

Performance Advantages

• Ultra-fast 100GbE connectivity
• Low-latency network communication
• Efficient bandwidth utilization
• Reliable wired Ethernet connectivity
• Scalable infrastructure support
• Excellent compatibility with modern servers
• Optimized performance for virtualized workloads
• Enhanced productivity for data-intensive applications

Key Features of Mellanox MCX515A-CCAT

• Original Mellanox ConnectX-5 Ethernet network adapter
• Single-port 100 Gigabit Ethernet connectivity
• High-speed QSFP28 network interface
• PCI Express 3.0 x16 host interface
• Plug-in card form factor for server deployment
• Supports multiple Ethernet speed standards
• Designed for enterprise, cloud, and HPC environments
• Optimized for virtualization and software-defined networking
• Reliable wired networking solution with low latency

Mellanox MCX515A-CCAT ConnectX-5 Network Adapter

The Mellanox MCX515A-CCAT ConnectX-5 Network Adapter PCI Express 100 Gigabit Ethernet Adapter represents an advanced generation of high-performance networking hardware designed for modern enterprise data centers, cloud infrastructures, virtualization environments, storage networks, and high-performance computing platforms. Built to provide outstanding bandwidth, ultra-low latency, and exceptional packet processing capabilities, this PCI Express adapter enables organizations to maximize network efficiency while supporting the growing demand for data-intensive workloads.

As organizations continue to transition toward software-defined infrastructure, AI-driven applications, distributed storage systems, virtualization technologies, and cloud-native deployments, network adapters must deliver consistent throughput without creating bottlenecks. The Mellanox MCX515A-CCAT addresses these challenges through a combination of advanced Ethernet technologies, intelligent offloading capabilities, and optimized PCI Express connectivity that significantly improves application responsiveness and overall infrastructure performance.

The adapter is engineered to meet the requirements of enterprise administrators who require dependable network connectivity across mission-critical servers. Whether deployed within financial institutions, scientific research facilities, telecommunications providers, hyperscale cloud environments, or enterprise virtualization clusters, this adapter offers the bandwidth and processing efficiency necessary for demanding workloads while minimizing CPU utilization through intelligent hardware acceleration.

Architecture and Engineering Excellence

Advanced ConnectX-5 Controller Technology

The ConnectX-5 controller architecture provides substantial improvements over previous networking generations by incorporating sophisticated packet processing engines, hardware acceleration features, and enhanced traffic management capabilities. This architecture enables enterprises to process significantly larger volumes of network traffic while maintaining stable latency characteristics across varying workload conditions.

The intelligent controller performs numerous networking functions directly in hardware, reducing reliance on server processors. By offloading common networking operations from the CPU, server resources become available for application execution, database processing, virtualization management, and analytics workloads. This results in better server utilization, increased operational efficiency, and improved application performance.

PCI Express Integration

PCI Express connectivity serves as the communication pathway between the network adapter and the host server. The Mellanox MCX515A-CCAT utilizes a high-speed PCI Express interface that ensures sufficient bandwidth between server memory, processors, and networking hardware. This optimized communication pathway helps eliminate internal bottlenecks that could otherwise restrict network throughput.

The PCI Express architecture supports efficient direct memory access, enabling high-speed transfers between system memory and network interfaces without excessive processor intervention. This efficient communication mechanism contributes significantly to maintaining low latency under sustained workloads.

Optimized Data Flow

Efficient packet movement throughout the networking stack is critical for modern enterprise applications. The adapter incorporates intelligent queue management, multiple transmit and receive queues, scalable interrupt handling, and advanced memory optimization to maintain consistent throughput while reducing packet processing overhead.

100 Gigabit Ethernet Performance

High-Speed Network Connectivity

The primary advantage of the Mellanox MCX515A-CCAT lies in its ability to deliver 100 Gigabit Ethernet connectivity. This bandwidth enables organizations to consolidate workloads, reduce network congestion, and support multiple bandwidth-intensive applications operating simultaneously.

Modern enterprise workloads frequently involve continuous movement of large datasets between servers, storage arrays, cloud gateways, virtualization hosts, and analytics platforms. A 100 Gigabit Ethernet adapter dramatically shortens transfer times while allowing multiple concurrent operations without noticeable performance degradation.

Applications involving artificial intelligence, machine learning, deep learning model training, genomic sequencing, financial trading platforms, and scientific simulations particularly benefit from this level of network throughput because they often exchange extremely large datasets between compute nodes.

Consistent Throughput Under Heavy Loads

Enterprise networking equipment must perform consistently regardless of changing traffic patterns. The Mellanox ConnectX-5 adapter maintains reliable throughput by utilizing intelligent packet scheduling, congestion management, adaptive buffering, and efficient hardware processing. This consistency is especially valuable within environments supporting thousands of virtual machines or containers simultaneously.

Reduced Network Bottlenecks

One of the greatest challenges facing enterprise infrastructure is eliminating bottlenecks that slow application performance. High-speed Ethernet adapters help remove network limitations by ensuring data transfers occur at maximum efficiency while supporting continuous communication between distributed systems.

Virtualization and Cloud Infrastructure Support

Optimized Virtual Machine Networking

Virtualization remains one of the most important technologies in enterprise computing. Organizations routinely consolidate dozens or even hundreds of virtual machines onto individual physical servers. The Mellanox MCX515A-CCAT provides networking capabilities designed specifically to accommodate these highly consolidated environments.

Virtual machine traffic often includes communication between applications, storage systems, backup platforms, monitoring services, and management software. Hardware-based networking acceleration allows virtual environments to scale without overwhelming host processors.

Containerized Application Performance

Container orchestration platforms require extremely efficient networking because containers frequently communicate across multiple hosts within clustered environments. High-bandwidth adapters enable containerized applications to exchange information rapidly while maintaining responsive service delivery.

Microservices architectures also benefit significantly from low-latency networking because applications often consist of numerous interconnected services exchanging frequent network requests.

Cloud-Ready Infrastructure

Public cloud providers, hybrid cloud deployments, and private cloud infrastructures require networking hardware capable of supporting elastic workloads. ConnectX-5 technology enables cloud environments to achieve scalable network performance while supporting dynamic resource allocation.

Storage Networking Capabilities

Accelerating Storage Traffic

Enterprise storage environments increasingly rely on Ethernet-based communication for data access, replication, backup, disaster recovery, and distributed storage clustering. The Mellanox MCX515A-CCAT provides the bandwidth necessary to accelerate these storage operations while minimizing latency.

High-performance storage protocols depend upon reliable network infrastructure to achieve optimal input/output performance. Whether organizations utilize network-attached storage, software-defined storage, distributed object storage, or hyperconverged infrastructure, high-speed Ethernet adapters contribute directly to improved storage responsiveness.

Efficient Backup and Replication

Large-scale backup operations frequently involve transferring terabytes of information between storage systems. High-bandwidth networking reduces backup windows while improving recovery readiness. Replication processes also benefit from sustained throughput that enables near real-time synchronization between geographically distributed sites.

Storage Scalability

As storage requirements continue expanding, network adapters must accommodate increasing traffic volumes without introducing latency. The Mellanox ConnectX-5 platform supports scalable storage networking architectures capable of meeting future infrastructure growth.

Low Latency Networking for Mission-Critical Applications

Real-Time Communication

Many enterprise applications prioritize latency as much as raw bandwidth. Financial trading systems, telecommunications services, healthcare platforms, industrial automation, and research environments all require rapid packet delivery with predictable response times.

The ConnectX-5 architecture minimizes processing delays by performing numerous networking tasks directly in hardware. Intelligent packet handling ensures information reaches applications quickly while maintaining consistent performance under varying network conditions.

Efficient Packet Processing

Hardware acceleration significantly reduces software processing overhead. Features such as checksum calculation, packet classification, segmentation, and receive-side scaling improve packet handling efficiency while allowing processors to dedicate more resources to application workloads.

Stable Application Response

Consistent latency enables enterprise applications to provide reliable user experiences even during peak traffic periods. Predictable networking behavior becomes increasingly important as organizations deploy real-time analytics, collaborative applications, and distributed databases.

Security Features and Data Protection

Enterprise-Class Security Architecture

Modern networking infrastructure must incorporate security features capable of protecting valuable organizational information. The Mellanox MCX515A-CCAT includes hardware capabilities designed to support secure communications, traffic isolation, and authenticated networking environments.

Hardware-based security contributes to stronger infrastructure resilience by protecting network communications without imposing significant processor overhead. Organizations handling confidential business information, healthcare records, financial transactions, or government data benefit from these integrated security capabilities.

Secure Data Transmission

Maintaining data integrity throughout network communications is essential for enterprise operations. High-performance Ethernet adapters support secure networking frameworks that help preserve confidentiality while maintaining excellent throughput characteristics.

Scalability for Growing Enterprises

Supporting Infrastructure Expansion

Enterprise infrastructure evolves continuously as organizations expand operations, increase storage capacity, deploy additional servers, and introduce new applications. Networking hardware should accommodate this growth without requiring frequent replacement.

The Mellanox MCX515A-CCAT provides sufficient bandwidth for current enterprise requirements while supporting future infrastructure modernization initiatives. Organizations investing in digital transformation projects benefit from networking hardware capable of supporting evolving workloads.

Flexible Deployment Options

The adapter integrates easily into a wide variety of server platforms supporting compatible PCI Express expansion slots. This deployment flexibility enables organizations to standardize networking infrastructure across multiple server generations while simplifying maintenance and operational management.

Long-Term Infrastructure Investment

High-performance networking adapters often remain deployed throughout multiple server lifecycle phases. Their durability, compatibility, and advanced capabilities contribute to long-term infrastructure planning by reducing replacement frequency and improving return on investment.

Data Center Optimization

Improving Overall Efficiency

Large enterprise data centers require networking hardware capable of maximizing server utilization while minimizing operational complexity. High-bandwidth Ethernet adapters reduce congestion, accelerate communication between servers, and improve workload distribution across clustered environments.

Efficient networking also contributes to lower power consumption by reducing processor overhead associated with packet processing. Hardware acceleration enables servers to accomplish more work using fewer computational resources.

Supporting Software-Defined Infrastructure

Software-defined networking, software-defined storage, and software-defined data center architectures rely heavily upon intelligent network adapters capable of supporting automation, orchestration, and policy-driven infrastructure management. The ConnectX-5 platform integrates effectively within these modern operational models.

Reliable Enterprise Operations

Continuous business operations require networking hardware capable of maintaining stable performance over extended periods. Enterprise-grade construction, mature firmware, and comprehensive driver support contribute to dependable long-term operation within demanding production environments.

Compatibility Across Enterprise Operating Systems

Broad Platform Support

The Mellanox MCX515A-CCAT supports numerous enterprise operating systems commonly deployed within business environments. Compatibility with major server operating systems allows organizations to deploy consistent networking hardware across mixed infrastructures while simplifying administration.

Broad software support also facilitates virtualization platforms, cloud management frameworks, container orchestration environments, and enterprise monitoring solutions that depend upon standardized networking interfaces.

Simplified Deployment and Management

Enterprise administrators benefit from mature management utilities, firmware maintenance tools, diagnostic capabilities, and performance monitoring resources. These administrative functions simplify deployment while enabling proactive monitoring of network health and operational status.

Lifecycle Management

Firmware updates, driver optimization, compatibility improvements, and performance enhancements help organizations maintain networking infrastructure throughout the operational lifecycle. Regular maintenance ensures continued compatibility with evolving server platforms and enterprise software ecosystems.

Ideal Enterprise Applications

Artificial Intelligence and Machine Learning

AI and machine learning clusters generate enormous volumes of network traffic while exchanging datasets among compute nodes. The Mellanox MCX515A-CCAT provides high-speed connectivity that accelerates distributed model training, inference processing, and collaborative computational workloads.

High-Performance Computing

Scientific research institutions, engineering organizations, universities, and simulation environments require rapid communication between clustered computing nodes. High-bandwidth Ethernet networking enables efficient parallel processing while minimizing communication delays between distributed applications.

Financial Services

Financial institutions rely upon low-latency networking for transaction processing, market analysis, algorithmic trading, and customer-facing banking services. Consistent network performance helps maintain application responsiveness while supporting high transaction volumes.

Media Production and Content Delivery

Organizations involved in digital media production, video rendering, streaming platforms, and large-scale content distribution require continuous movement of large multimedia files across production environments. High-performance networking adapters reduce transfer times, improve collaborative workflows, and accelerate production pipelines while maintaining reliable connectivity throughout demanding creative environments.
