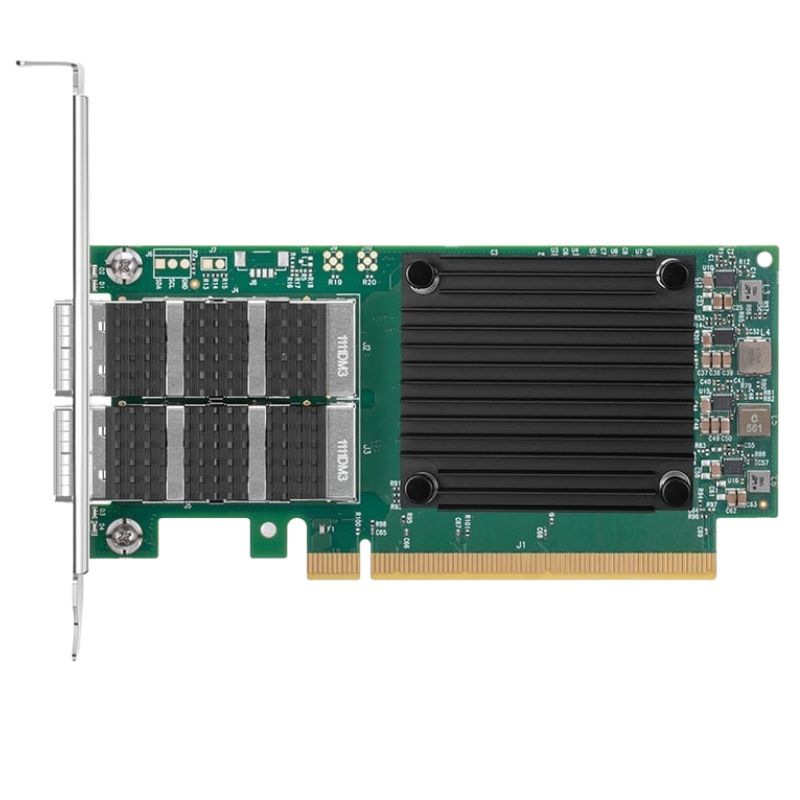

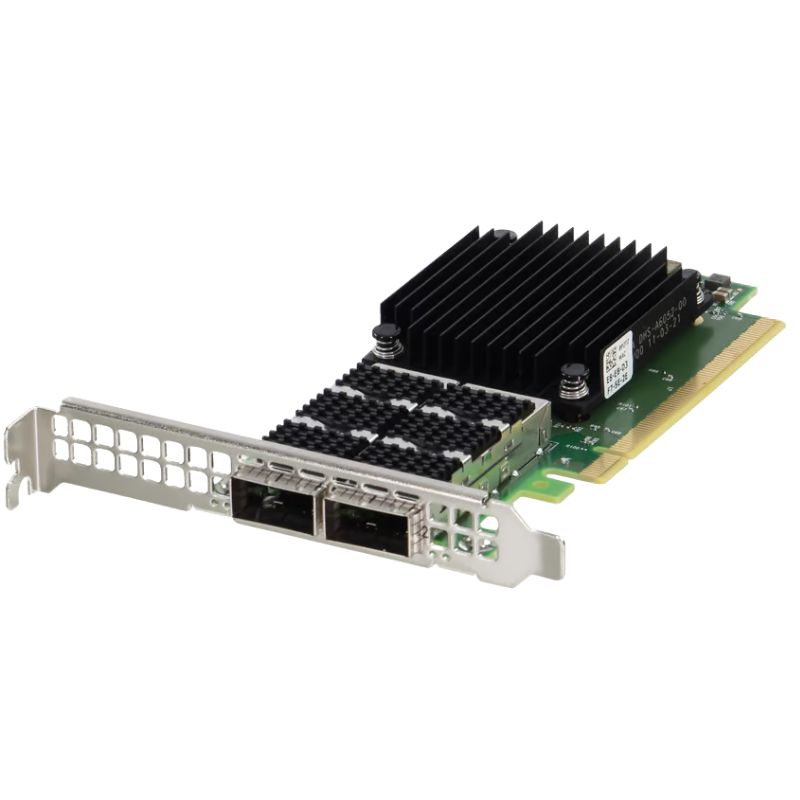

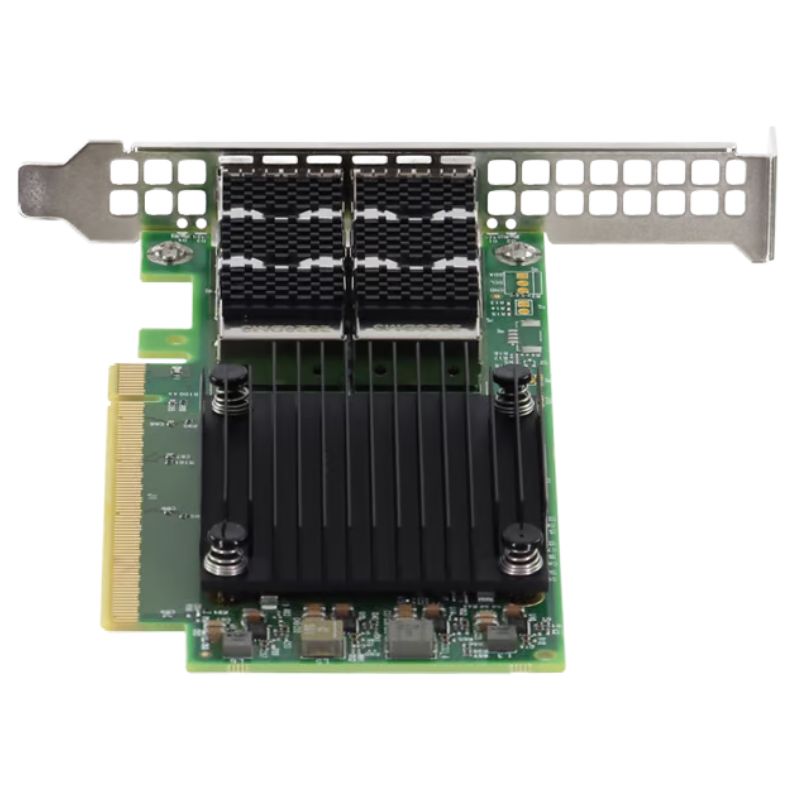

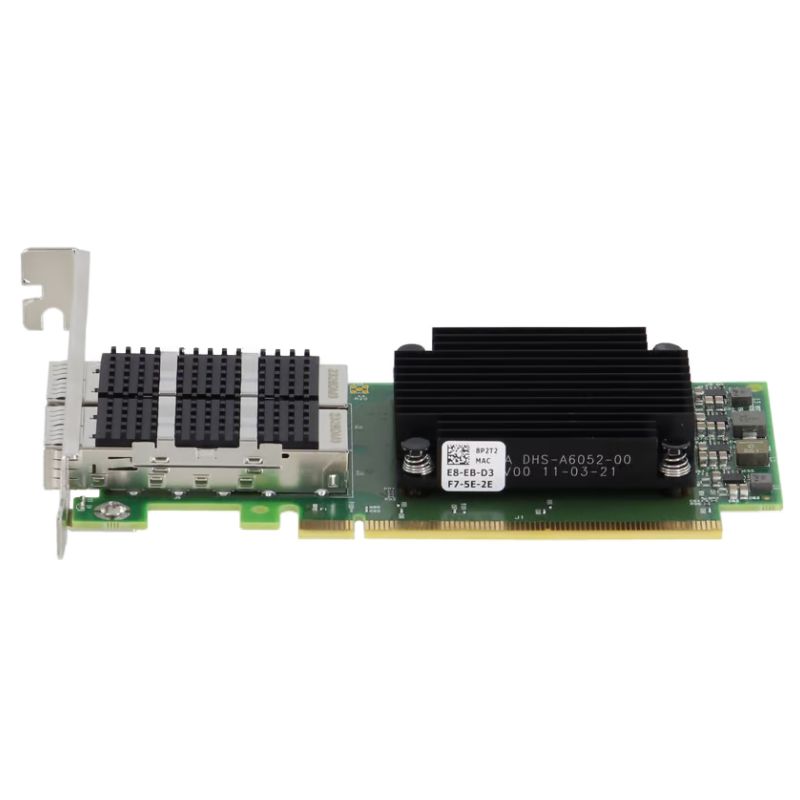

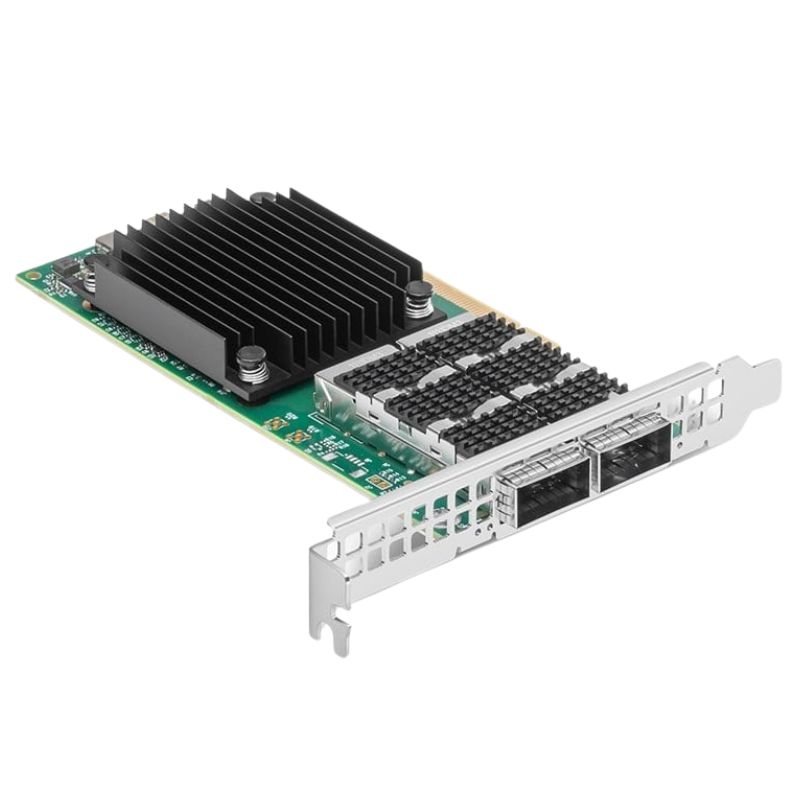

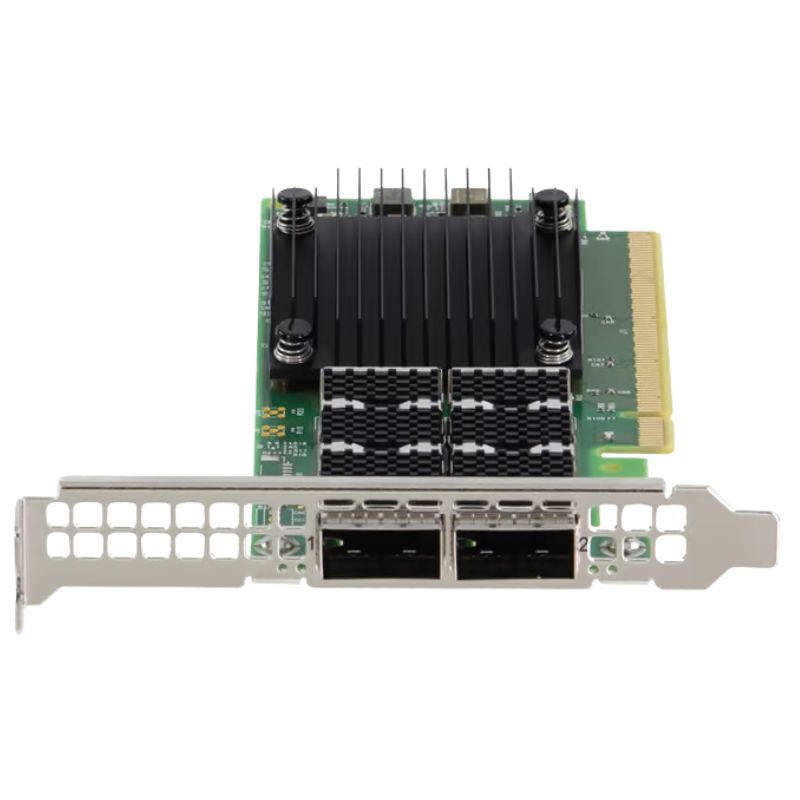

540-BCXN Dell Mellanox Connectx-6 Dx Dual Port 100GbE QSFP 56 PCI-E Adapter

Details of Dell Dual Port PCI-E Adapter

The Dell 540-BCXN Mellanox CX623106A ConnectX-6 Dx EN Dual-Port 100GbE Ethernet Card is a next-generation enterprise networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and QSFP56 ports, this adapter delivers exceptional throughput, reliability, and scalability for modern data centers and high-performance computing workloads.

Main Specification

• Manufacturer: Dell
• Model Number: 540-BCXN
• Product Type: Network Adapter

Technical Highlights

• Form Factor: Plug-in Card
• Interface: PCI Express 4.0 x16

Port Details

• Ports: Dual-port
• Port Type: QSFP56 (Quad Small Form-Factor Pluggable 56)
• Data Transfer Rate: Up to 100Gbps per port (200Gbps aggregate)
• Supported Speeds: 1/10/25/40/50/100GbE Ethernet
• Connectivity Technology: Wired

Features

• Provides PCIe 4.0 interface for maximum bandwidth
• Compact, space-saving design for efficient installation
• Ideal for high-performance networking applications

Compatibility

Rack Servers

• PowerEdge C6520 / C6525
• PowerEdge R640 / R650 / R6525
• PowerEdge R660 / R6615 / R6625
• PowerEdge R740 / R740xd / R740xd2
• PowerEdge R750 / R750xa / R7525
• PowerEdge R760 / R760xa / R760xd2
• PowerEdge R7615 / R7625
• PowerEdge R840 / R860
• PowerEdge R940 / R940xa / R960

XE Series Servers

• PowerEdge Xe8640
• PowerEdge Xe9640
• PowerEdge Xe9680

XR Rugged Servers

• PowerEdge XR12
• PowerEdge XR5610
• PowerEdge XR7620
• PowerEdge XR8610t
• PowerEdge XR8620t

Dell 540-BCXN Dual Port 100GBE QSFP PCI-E Adapter Overview

The Dell 540-BCXN Mellanox ConnectX-6 Dx Dual Port 100GbE QSFP56 PCI-E Adapter Low Profile represents a high-performance networking solution engineered for modern enterprise data centers, cloud infrastructures, and high-performance computing environments. This adapter belongs to the advanced generation of network interface cards designed to deliver ultra-low latency, high bandwidth throughput, and enhanced security acceleration capabilities. Built on Mellanox ConnectX-6 Dx architecture and integrated into Dell server ecosystems, it ensures seamless compatibility, optimized performance, and scalable deployment across mission-critical workloads.

As enterprise workloads continue to evolve toward virtualization, containerization, and real-time analytics, the need for high-speed networking components becomes essential. This adapter addresses these requirements by combining dual-port 100GbE connectivity with PCIe Gen4 architecture, enabling significant improvements in data transfer rates, packet processing efficiency, and workload isolation. Its low-profile form factor also ensures compatibility with dense server configurations where space optimization is critical.

Advanced Hardware Architecture and Engineering Design

PCI Express Gen4 High-Speed Interface

The Dell 540-BCXN adapter leverages PCI Express Gen4 technology, which provides double the bandwidth of the previous generation PCIe Gen3 interfaces. This enhancement enables the network card to fully utilize its 100GbE ports without being constrained by host bus limitations. The improved lane efficiency ensures reduced bottlenecks in high-throughput environments, particularly in applications involving distributed computing, real-time data processing, and storage-intensive workloads.

With PCIe Gen4 integration, the adapter supports higher packet-per-second rates and more efficient CPU offloading. This means that network traffic handling is partially shifted from the central processor to the NIC itself, resulting in improved system responsiveness and reduced CPU utilization. Such architecture is particularly beneficial in virtualization environments where multiple virtual machines compete for shared hardware resources.

Dual-Port QSFP56 100GbE Connectivity Design

At the core of the Dell 540-BCXN adapter lies its dual QSFP56 ports, which support 100 Gigabit Ethernet connectivity per port. QSFP56 technology enhances signal integrity and bandwidth density, allowing each port to handle extremely high-speed data transmission with minimal latency. This dual-port configuration enables both redundancy and load balancing, ensuring continuous network availability and optimized traffic distribution.

The QSFP56 interface is also backward compatible with certain QSFP28 optics, providing flexibility for gradual infrastructure upgrades. This allows enterprises to transition from lower-speed networks to 100GbE environments without requiring complete hardware overhauls. The dual-port architecture further enhances scalability, enabling organizations to segment workloads or dedicate ports to specific applications such as storage networking or compute clustering.

Signal Integrity and Transmission Efficiency

The design of the QSFP56 interface incorporates advanced signal conditioning techniques to ensure minimal data loss and interference. High-quality electrical pathways and optimized PCB layout contribute to maintaining signal integrity even at extreme data rates. This is essential for maintaining consistent performance in large-scale data center environments where electromagnetic interference and physical cabling constraints can impact network stability.

Additionally, the adapter supports advanced forward error correction mechanisms, which help maintain data accuracy during transmission. This ensures that even under heavy network loads, packet integrity remains uncompromised, supporting mission-critical applications that require deterministic performance.

Performance Capabilities and Throughput Optimization

Ultra-High Bandwidth Efficiency

The Dell 540-BCXN Mellanox ConnectX-6 Dx adapter is engineered to deliver up to 200GbE aggregate throughput across its dual ports. This high bandwidth capacity is essential for environments that handle large-scale data movement, including cloud service providers, financial analytics platforms, and artificial intelligence training clusters. The adapter ensures that network congestion is minimized, even under peak load conditions.

Its architecture supports advanced packet processing pipelines, enabling efficient handling of small and large packet sizes without compromising performance. This is particularly important for modern microservices-based architectures, where network traffic consists of numerous small, frequent communications between distributed services.

Remote Direct Memory Access Acceleration

One of the most significant features integrated into the ConnectX-6 Dx platform is support for RDMA over Converged Ethernet (RoCE). This technology enables direct memory-to-memory data transfer between servers without involving the CPU or operating system kernel. By bypassing traditional network stack processing, RDMA dramatically reduces latency and increases throughput efficiency.

This capability is essential in high-performance computing environments, distributed databases, and storage replication systems. It ensures near-instantaneous data synchronization between nodes, enabling faster computation and reduced processing delays. The adapter’s RDMA optimization also improves scalability by reducing CPU overhead across large server clusters.

Packet Processing and Smart Offload Engines

The Mellanox ConnectX-6 Dx architecture integrates advanced hardware offload engines designed to handle complex networking tasks directly on the adapter. These include tunneling protocols, encryption processing, and traffic classification. By offloading these tasks from the CPU, the system achieves higher overall efficiency and reduced processing latency.

The adapter also supports dynamic workload balancing across its two ports, ensuring optimal utilization of available bandwidth. This intelligent distribution of network traffic helps prevent congestion and improves application responsiveness in multi-tenant environments.

Enterprise Data Center and Cloud Integration

Scalability for Hyperscale Environments

The Dell 540-BCXN adapter is specifically designed to meet the demands of hyperscale data centers, where thousands of servers must communicate efficiently and reliably. Its dual-port 100GbE configuration ensures that large-scale distributed systems can maintain high-speed interconnectivity without performance degradation.

In cloud environments, where workloads are constantly shifting and scaling, the adapter provides the necessary flexibility to handle dynamic traffic patterns. Its ability to support virtualization technologies allows multiple virtual network interfaces to operate simultaneously on a single physical adapter, improving resource utilization efficiency.

Virtualization and Multi-Tenant Optimization

The adapter includes support for Single Root I/O Virtualization (SR-IOV), which allows a single physical network interface card to be divided into multiple virtual functions. This enables different virtual machines or containers to directly access dedicated network resources, reducing overhead and improving isolation.

In multi-tenant environments, this capability is essential for maintaining performance consistency across workloads. Each tenant can benefit from dedicated bandwidth allocation and reduced network contention, ensuring predictable application performance even under heavy load conditions.

Containerized Application Networking

With the growing adoption of container orchestration platforms, the Dell 540-BCXN adapter plays a critical role in enabling high-speed container networking. Its low-latency architecture ensures that container-to-container communication remains efficient, even in large-scale Kubernetes clusters or similar orchestration systems.

The adapter’s support for advanced networking protocols allows seamless integration with software-defined networking (SDN) frameworks, enabling automated traffic routing, policy enforcement, and network segmentation within containerized environments.

Security Acceleration and Data Protection Features

Hardware-Based Encryption Acceleration

The ConnectX-6 Dx platform integrates hardware acceleration for encryption and decryption processes, supporting secure data transmission without significant performance penalties. This is particularly important in environments where data security and compliance requirements are stringent, such as financial institutions, healthcare systems, and government infrastructures.

By offloading cryptographic operations to dedicated hardware, the adapter reduces CPU load and ensures that encryption processes do not become a bottleneck in high-speed data transfers. This allows secure communication channels to operate at full 100GbE speeds without compromising efficiency.

Secure Networking Protocol Support

The adapter supports multiple secure networking protocols that enhance data integrity and confidentiality across network transmissions. These include IPsec acceleration and secure tunneling mechanisms that protect data in transit across untrusted networks. Such capabilities are essential for hybrid cloud deployments where data traverses multiple environments.

Traffic Isolation and Threat Mitigation

Advanced traffic segmentation features ensure that malicious or unauthorized network activity is isolated at the hardware level. This reduces the risk of lateral movement within data center environments and enhances overall network resilience against cyber threats.

The adapter’s ability to enforce security policies at the hardware level also reduces dependency on software-based security mechanisms, which can be more vulnerable to exploitation under heavy load conditions.

Physical Design and Low Profile Form Factor Advantages

Compact PCIe Low Profile Architecture

The Dell 540-BCXN adapter features a low-profile bracket design that makes it suitable for deployment in space-constrained server environments. This compact design is essential for high-density rack configurations where multiple servers are stacked closely together.

Despite its compact form factor, the adapter does not compromise on performance or connectivity. It retains full dual-port 100GbE capability while ensuring compatibility with a wide range of Dell PowerEdge servers and enterprise-grade hardware systems.

Thermal Efficiency and Power Optimization

The engineering design of the adapter incorporates advanced thermal management techniques to ensure stable operation under sustained high-load conditions. Efficient heat dissipation mechanisms help maintain optimal operating temperatures, reducing the risk of thermal throttling and ensuring long-term reliability.

Power consumption optimization is another key aspect of its design. The adapter dynamically adjusts power usage based on workload intensity, allowing data centers to reduce energy consumption while maintaining peak performance when required.

Compatibility and Ecosystem Integration

Dell Server Ecosystem Alignment

The Dell 540-BCXN Mellanox ConnectX-6 Dx adapter is fully optimized for integration with Dell PowerEdge servers, ensuring seamless hardware and software compatibility. This alignment reduces deployment complexity and enhances system stability across enterprise environments.

Its integration within Dell’s ecosystem ensures consistent firmware updates, driver support, and lifecycle management, which are critical for maintaining long-term infrastructure reliability.

Operating System and Hypervisor Support

The adapter supports a wide range of operating systems and virtualization platforms, including major Linux distributions and enterprise hypervisors. This broad compatibility ensures that organizations can deploy the adapter across diverse IT environments without requiring extensive configuration changes.

Support for open-source networking frameworks also enhances flexibility, enabling developers and system administrators to customize network behavior according to specific workload requirements.

Workload Optimization and Real-World Deployment Scenarios

High-Performance Computing Clusters

In HPC environments, the Dell 540-BCXN adapter plays a crucial role in enabling fast inter-node communication. Its ultra-low latency characteristics ensure that compute nodes can exchange large volumes of data efficiently, accelerating scientific simulations, modeling tasks, and computational research workloads.

Big Data and Analytics Platforms

For big data infrastructures, the adapter supports high-speed ingestion and processing of massive datasets. Its ability to handle parallel data streams ensures that analytics engines can operate efficiently without network-induced delays.

Artificial Intelligence and Machine Learning Infrastructure

AI and machine learning workloads require extremely fast data movement between storage systems and compute nodes. The Dell 540-BCXN adapter ensures that training datasets can be accessed and distributed rapidly, reducing model training times and improving iteration cycles.

Its support for RDMA and hardware acceleration makes it particularly well-suited for GPU-accelerated computing environments where data transfer speed directly impacts performance outcomes.

Network Management and Optimization Capabilities

Advanced Traffic Shaping and Prioritization

The adapter includes sophisticated traffic management features that allow administrators to prioritize critical workloads over less time-sensitive traffic. This ensures that mission-critical applications maintain consistent performance even during peak network utilization periods.

Dynamic bandwidth allocation capabilities further enhance efficiency by distributing network resources based on real-time demand patterns.

Telemetry and Performance Monitoring

Built-in telemetry features provide detailed insights into network performance, enabling administrators to monitor throughput, latency, and packet loss in real time. This visibility is essential for proactive network management and performance tuning in large-scale environments.

By leveraging these monitoring capabilities, organizations can identify potential bottlenecks and optimize network configurations to maintain peak operational efficiency across distributed infrastructures.
