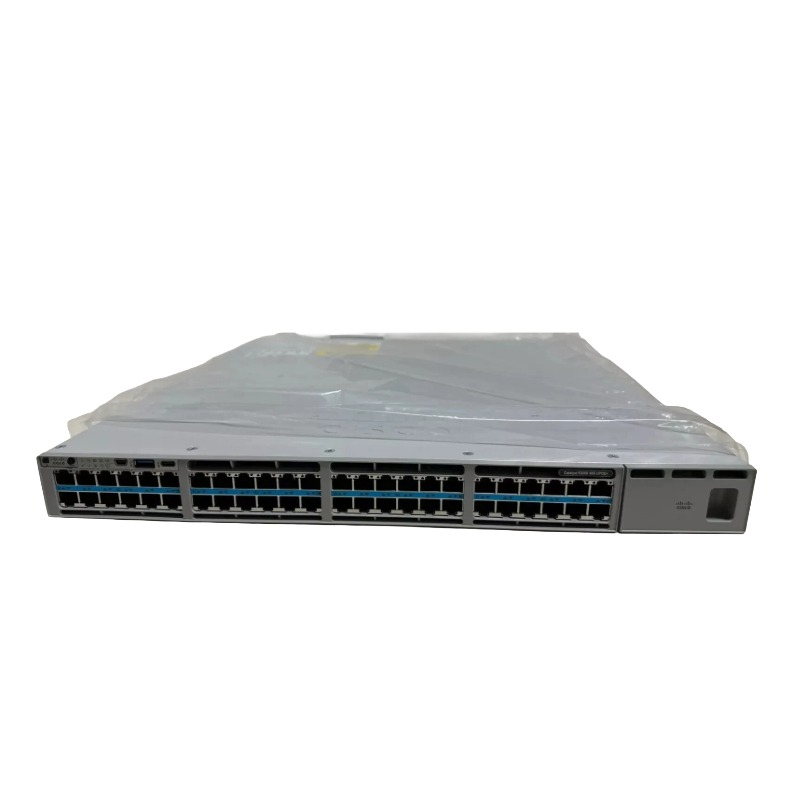

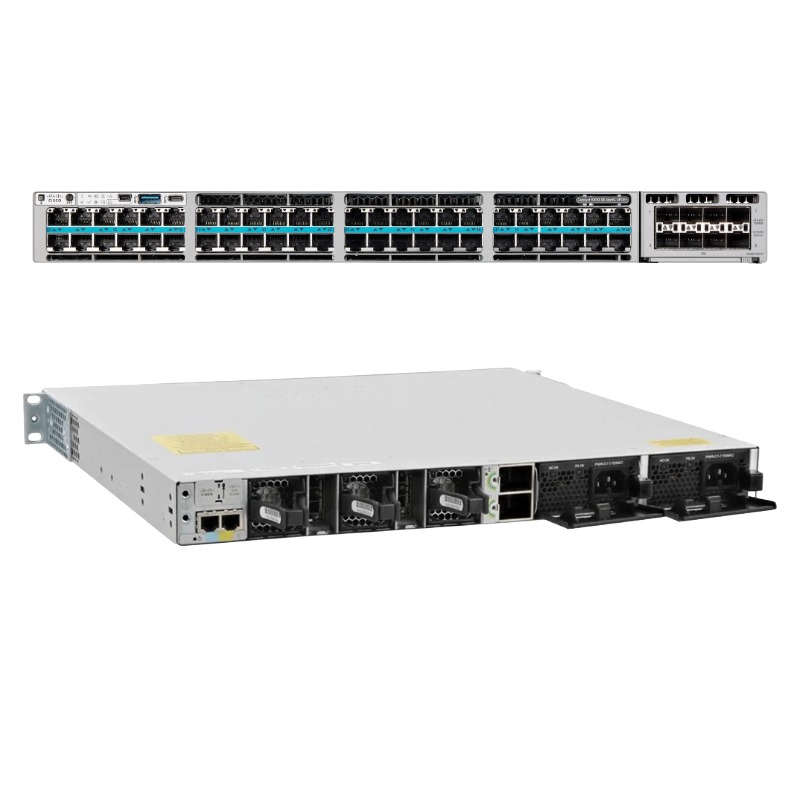

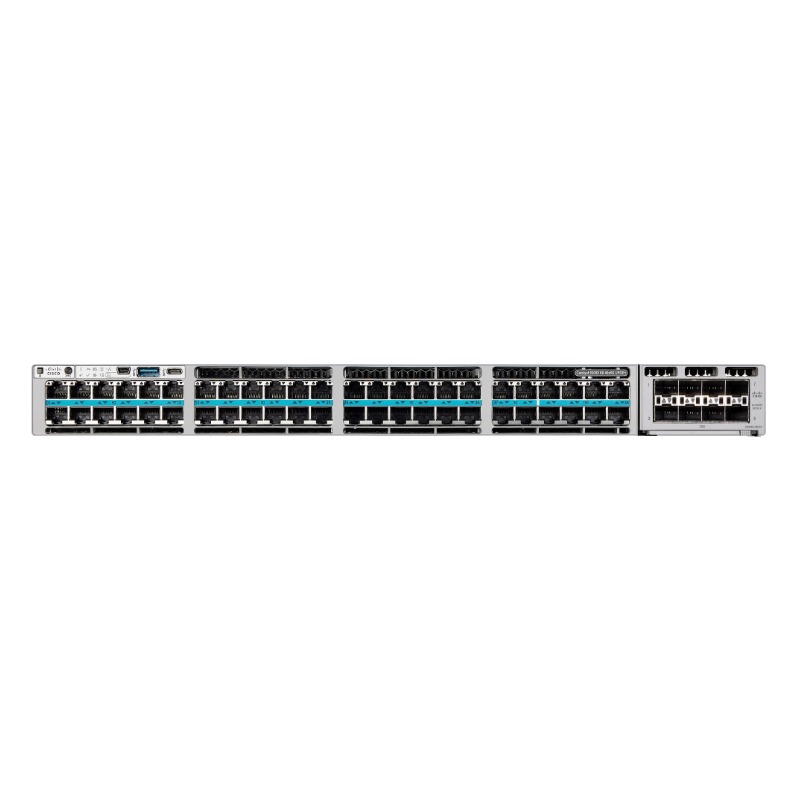

C9300X-48HX-M Meraki Cisco Catalyst 9300x 48 Ports Network Essentials Switch.

Meraki C9300X-48HX-M 48-Port Managed Switch Overview

The C9300X-48HX-M is a high-performance, enterprise-grade switching solution engineered for modern networks that demand flexibility, speed, and intelligent management. Built for scalable deployments, this rack-mounted device delivers advanced Layer 3 capabilities, high-density multi-gigabit connectivity, and robust power delivery for demanding environments.

Core Product Details

• Brand: Meraki
• Part Number or SKU: C9300X-48HX-M
• Category: Managed Network Switch
• Port Density: 48 high-speed Ethernet ports
• Form Factor: Rack-mountable chassis

Advanced Switching Capabilities

High-Speed Performance

• Delivers up to 2000 Gbps switching capacity
• Enhanced throughput of 3000 Gbps when stacked
• Forwarding performance reaching 1488 Mpps
• Scales to 2232 Mpps in stacked configurations

Multi-Gigabit Connectivity

• 48 ports supporting speeds: 100 Mbps to 10 Gigabit Ethernet
• Compatible with 100/1000/2.5G/5G/10GBASE-T
• Designed for bandwidth-intensive applications and future-ready infrastructure

Power over Ethernet (PoE) Excellence

UPoE+ Support

• Supports Universal Power over Ethernet (UPoE+)
• Each port can deliver up to 90W
• Total power budget of 1690W

Ideal Use Cases

• Powering IP cameras, wireless access points, and VoIP phones
• Supporting IoT deployments without additional power infrastructure
• Reducing cable clutter with centralized power delivery

Layer 3 Routing and Network Intelligence

Supported Routing Protocols

• Dynamic routing: RIP, RIP v1/v2, RIPng
• Multicast routing: PIM-SM, PIM-SSM
• Redundancy and failover: VRRP
• Policy-based routing (PBR) for traffic optimization
• Static IP routing and GRE tunneling support

Spanning Tree and Network Stability

• Includes MSTP, STP, and RSTP protocols
• Ensures loop prevention and efficient traffic flow

Standards Compliance and Interoperability

• Fully aligned with IEEE networking standards
• Supports protocols such as 802.3, 802.1Q VLAN, 802.1X authentication
• Advanced encryption with 802.1AE (MACsec)
• Precision timing support via IEEE 1588v2

Management and Remote Access

Flexible Control Options

• SNMP (v1, v2c, v3) for monitoring and management
• Command-line interface (CLI) for direct configuration
• Web-based access via HTTP
• Modern APIs including RESTCONF, NETCONF, gRPC, and YANG

Monitoring & Analytics

• RMON 1 and RMON 2 for traffic analysis
• Enhanced visibility into network performance

Expansion and Interface Options

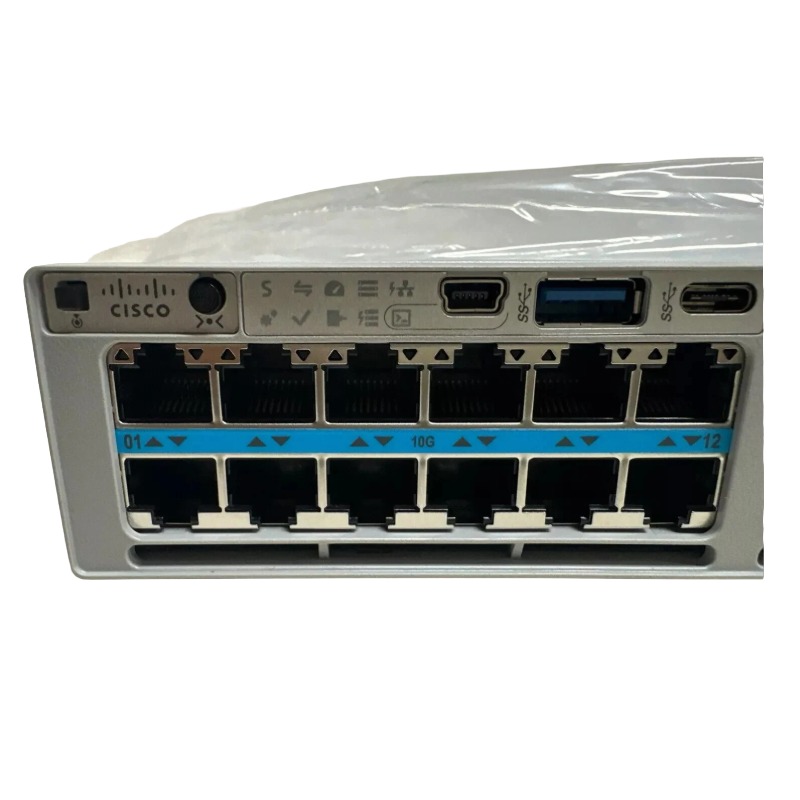

• 48 RJ-45 multi-gigabit ports with UPoE+
• USB 2.0 interface for storage or configuration
• 1 expansion slot available for future upgrades

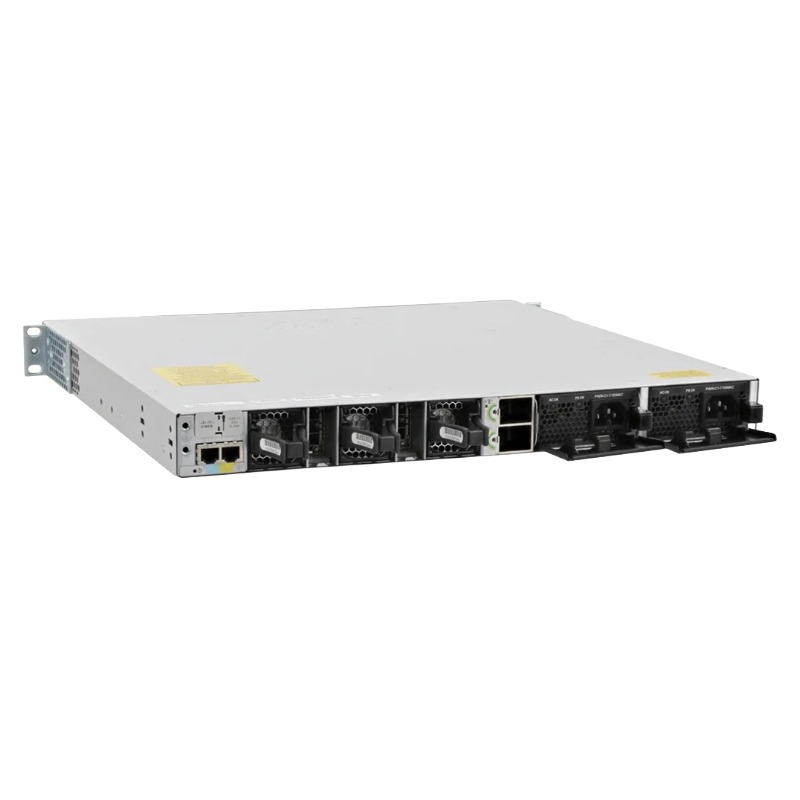

Power Supply and Redundancy

Reliable Energy Management

• Internal hot-swappable power supply included
• Supports dual power supplies for redundancy
• Operates within AC 115–240V range

Business Continuity Benefits

• Minimizes downtime with optional redundant power
• Ensures consistent operation in mission-critical environments

Deployment Advantages

• Stackable architecture for simplified scalability
• High-density design saves rack space
• Optimized for enterprise, campus, and data center networks
• Supports seamless integration into existing infrastructure

Meraki C9300X-48HX-M Cisco Catalyst 9300X Series

The Meraki C9300X-48HX-M Cisco Catalyst 9300X 48 Ports Network Essentials Switch Managed Rack-mountable represents a significant advancement in enterprise networking infrastructure, delivering high-performance switching capabilities designed to meet the demands of modern digital environments. This category of switches is engineered to support high-density connectivity, advanced security features, and scalable architecture, making it an ideal solution for organizations undergoing digital transformation. With 48 high-performance ports, this switch is optimized for handling bandwidth-intensive applications, including cloud computing, unified communications, and IoT deployments.

Advanced Switching Architecture for High-Density Networks

The Cisco Catalyst 9300X series introduces a robust switching architecture that supports high throughput and low latency, ensuring consistent performance across demanding network workloads. Built with enterprise-grade components, the switch provides reliable data transfer and seamless communication between connected devices. The architecture is designed to support multi-gigabit Ethernet speeds, allowing businesses to future-proof their networks against increasing bandwidth demands.

High-Speed Data Processing Capabilities

The switch is equipped with advanced ASIC technology that enables rapid packet processing and efficient data handling. This ensures minimal latency and maximum throughput, which is critical for applications such as video conferencing, real-time analytics, and virtualization. The enhanced processing capabilities also contribute to improved network responsiveness and reduced bottlenecks.

Scalable Infrastructure for Growing Enterprises

Scalability is a key feature of the Meraki C9300X-48HX-M switch, allowing businesses to expand their network infrastructure without compromising performance. The modular design supports stacking and expansion, enabling organizations to add additional switches as needed while maintaining centralized management and consistent performance across the network.

Cloud-Managed Networking with Cisco Meraki Integration

The integration of Meraki cloud management capabilities sets this switch apart from traditional networking solutions. Through a centralized dashboard, administrators can monitor, configure, and troubleshoot the network remotely, providing unparalleled visibility and control. This cloud-managed approach simplifies network operations and reduces the complexity associated with traditional on-premises management systems.

Centralized Dashboard Management

The intuitive Meraki dashboard provides a single pane of glass for managing the entire network infrastructure. Administrators can easily configure settings, monitor traffic patterns, and identify potential issues in real time. This centralized approach enhances operational efficiency and reduces the need for manual intervention.

Real-Time Monitoring and Analytics

Real-time analytics enable network administrators to gain insights into network performance, usage patterns, and potential security threats. The ability to visualize data traffic and identify anomalies ensures proactive network management and improved decision-making.

Remote Configuration and Troubleshooting

Remote management capabilities allow IT teams to configure and troubleshoot the network from any location. This flexibility is particularly beneficial for organizations with distributed operations, enabling faster response times and reduced downtime.

Enhanced Security Features for Modern Networks

Security is a critical component of any enterprise network, and the Meraki C9300X-48HX-M switch is designed with advanced security features to protect against evolving threats. The switch incorporates multiple layers of security, including network segmentation, access control, and threat detection, ensuring a secure and resilient network environment.

Integrated Network Segmentation

Network segmentation allows organizations to isolate different types of traffic, reducing the risk of unauthorized access and minimizing the impact of potential security breaches. This feature is particularly important for environments with sensitive data or regulatory compliance requirements.

Advanced Access Control Mechanisms

The switch supports robust access control policies, enabling administrators to define and enforce user permissions based on roles and responsibilities. This ensures that only authorized users have access to specific network resources, enhancing overall security.

Threat Detection and Mitigation

Built-in threat detection capabilities help identify and mitigate potential security risks in real time. By analyzing network traffic and identifying suspicious activity, the switch enables proactive security measures to prevent data breaches and unauthorized access.

High Availability and Reliability for Mission-Critical Operations

Reliability is essential for enterprise networks, and the Meraki C9300X-48HX-M switch is designed to deliver high availability and consistent performance. With redundant power supplies and advanced failover mechanisms, the switch ensures uninterrupted network operations even in the event of hardware failures.

Redundant Power Supply Support

Redundant power supply options provide an additional layer of reliability, ensuring that the switch remains operational in case of power supply failure. This feature is critical for maintaining continuous network connectivity in mission-critical environments.

Advanced Failover Mechanisms

Failover mechanisms enable seamless transition to backup systems in the event of a failure, minimizing downtime and ensuring uninterrupted service. This capability is essential for organizations that rely on continuous network availability.

Durable Hardware Design

The switch is built with high-quality components designed to withstand demanding operating conditions. The durable hardware design ensures long-term reliability and reduces the need for frequent maintenance or replacements.

Energy Efficiency and Sustainable Networking

Energy efficiency is an important consideration for modern enterprises, and the Meraki C9300X-48HX-M switch is designed to minimize power consumption without compromising performance. This contributes to reduced operational costs and supports sustainability initiatives.

Optimized Power Consumption

The switch incorporates energy-efficient technologies that optimize power usage based on network demand. This ensures efficient operation while reducing energy consumption and associated costs.

Intelligent Power Management

Intelligent power management features allow administrators to monitor and control power usage across the network. This enables organizations to implement energy-saving strategies and reduce their environmental impact.

Support for Green Networking Initiatives

The energy-efficient design aligns with green networking initiatives, helping organizations achieve sustainability goals while maintaining high-performance network operations.

Flexible Deployment Options for Diverse Environments

The Meraki C9300X-48HX-M switch offers flexible deployment options, making it suitable for a wide range of environments, including enterprise campuses, data centers, and branch offices. Its rack-mountable design ensures easy integration into existing infrastructure.

Rack-Mountable Design for Space Efficiency

The compact rack-mountable form factor allows for efficient use of space in data centers and network closets. This design simplifies installation and ensures compatibility with standard rack systems.

Support for Hybrid Network Environments

The switch is designed to support hybrid network environments, enabling seamless integration with both on-premises and cloud-based systems. This flexibility is essential for organizations adopting hybrid IT strategies.

Adaptability for Various Use Cases

From high-density office environments to distributed branch networks, the switch adapts to various use cases, providing consistent performance and reliability across different deployment scenarios.

Future-Ready Networking with Advanced Features

The Meraki C9300X-48HX-M Cisco Catalyst 9300X switch is built to support future networking requirements, incorporating advanced features that enable organizations to stay ahead of technological advancements. With support for emerging technologies such as IoT, AI-driven analytics, and edge computing, the switch provides a foundation for innovation and growth.

Support for IoT and Smart Devices

The switch is optimized for IoT deployments, providing the connectivity and performance needed to support a growing number of smart devices. This capability is essential for organizations implementing smart building technologies and connected systems.

Integration with AI-Driven Analytics

AI-driven analytics enhance network performance by providing insights into usage patterns and identifying potential issues before they impact operations. This proactive approach improves efficiency and reduces downtime.

Edge Computing Capabilities

Edge computing capabilities enable data processing closer to the source, reducing latency and improving performance for time-sensitive applications. This feature is particularly beneficial for industries such as manufacturing, healthcare, and retail.

Comprehensive Network Management and Automation

Automation plays a crucial role in modern network management, and the Meraki C9300X-48HX-M switch incorporates advanced automation features to streamline operations. By automating routine tasks, organizations can improve efficiency and reduce the risk of human error.

Automated Network Provisioning

Automated provisioning simplifies the deployment process, allowing new devices to be added to the network with minimal configuration. This reduces setup time and ensures consistent configurations across the network.

Policy-Based Automation

Policy-based automation enables administrators to define rules and policies that govern network behavior. This ensures consistent enforcement of security and performance standards.

Reduced Operational Complexity

By automating routine tasks and centralizing management, the switch reduces operational complexity, allowing IT teams to focus on strategic initiatives rather than manual maintenance tasks.
