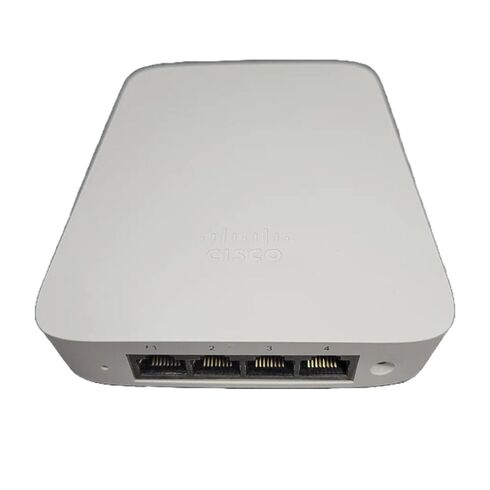

MR30H-HW Cisco Wireless Access Point 1.30 Gbit/s by Meraki

Cisco MR30H-HW Meraki Cloud-Managed Wireless Access Point

The MR30H-HW is a high-performance, wall-mountable cloud-managed wireless access point designed for modern enterprise environments, hospitality deployments, and high-density connectivity needs. Known for reliability and seamless management through the Meraki dashboard ecosystem, this unit delivers fast, stable, and secure wireless access with integrated switching capabilities.

This model, Cisco MR30H-HW, supports combined wireless throughput of up to 1.30 Gbit/s and integrates advanced RF optimization technologies, making it ideal for hotels, dormitories, and managed office spaces.

General Information

• Brand: Cisco
• Model Number: MR30H-HW
• Product Category: Wireless Access Point

Wireless Performance

• IEEE 802.11ac (Wave 2)
• IEEE 802.11n backward compatibility

Transmission Capabilities

• 2x2 MU-MIMO technology for simultaneous device connections
• SU-MIMO support for legacy client optimization
• Max data rate up to 1.30 Gbit/s combined throughput

Advanced RF Enhancements

• Beamforming for directional signal efficiency
• Maximal Ratio Combining (MRC)
• Packet aggregation for improved throughput efficiency
• 256-QAM modulation support on both bands

Frequency Bands and Radio Operation

Dual-Band Coverage

2.4 GHz Band

• Frequency Range: 2.412 – 2.484 GHz
• Optimized for extended range and compatibility

5 GHz Band

• UNII-1: 5.150 – 5.250 GHz
• UNII-2: 5.250 – 5.350 GHz
• UNII-2e: 5.470 – 5.725 GHz
• UNII-3: 5.725 – 5.825 GHz

Integrated Switching Design

• 1 × 10/100/1000 Base-T RJ-45 input port
• 1 × Gigabit Ethernet uplink with PoE (802.3af output support)
• 3 × additional Gigabit Ethernet RJ-45 output ports

Network Expansion Capability

Built-in LAN Distribution

• Supports local wired device connectivity
• Ideal for IPTV, VoIP phones, and endpoint devices
• Eliminates need for separate access switch in room deployments

Energy Delivery Standards

• IEEE 802.3at compatible power input (37–57V)
• Maximum power consumption: 25W
• 802.3af mode disables PoE pass-through output

Power Deployment Notes

• PoE injector not included (sold separately)
• Designed for centralized PoE switch environments

Integrated Antenna Design

• Built-in internal antennas
• 2.4 GHz gain: 3.7 dBi
• 5 GHz gain: 4.8 dBi

Coverage Optimization

• Designed for wall-mounted room-level coverage
• Balanced performance for multiple device environments

Enterprise and Hospitality Networks

• Hotel guest rooms and corridors
• Student dormitories and apartment units
• Office meeting rooms and shared spaces

Operational Benefits

• Centralized cloud management via Meraki Dashboard
• Simplified deployment with wall-mount design
• Reduced infrastructure complexity through integrated switching

Cisco Meraki MR30H-HW Wireless Access Point Overview

The Cisco Meraki MR30H-HW Wireless Access Point is a compact, high-performance networking device engineered for modern hospitality, enterprise, and multi-tenant environments where reliable Wi-Fi connectivity and flexible wired access are equally important. Developed under the advanced networking ecosystem of this cloud-managed access point integrates enterprise-grade wireless performance with intelligent management features, making it an ideal choice for hotels, dormitories, healthcare facilities, and managed office spaces.

Designed as part of the Cisco Meraki wireless portfolio, the MR30H-HW delivers an aggregate throughput of up to 1.30 Gbit/s, combining efficient dual-band Wi-Fi performance with built-in Ethernet switching capabilities. Its wall-plate form factor allows seamless deployment directly into standard electrical enclosures, reducing installation complexity while maintaining a clean and professional aesthetic suitable for guest-facing environments.

Advanced Cloud-Managed Networking Architecture

Intelligent Cloud Control System

The MR30H-HW operates through the Meraki cloud dashboard, a centralized management platform that enables full visibility and control over distributed wireless networks. Administrators can configure, monitor, and troubleshoot devices remotely without requiring on-site intervention. This cloud-native architecture enhances scalability and reduces operational overhead for IT teams managing multiple locations.

Automated Firmware and Security Updates

One of the key strengths of the Meraki platform is its automated update system. The MR30H-HW receives seamless firmware and security updates directly from the cloud, reducing vulnerability exposure and ensuring compliance with the latest networking standards without manual intervention.

High-Performance Wireless Capabilities

Dual-Band 802.11ac Wave 2 Technology

The Cisco Meraki MR30H-HW supports dual-band Wi-Fi operation, utilizing both 2.4 GHz and 5 GHz frequencies to maximize performance and minimize interference. With support for 802.11ac Wave 2 technology, the access point ensures improved throughput, better multi-user handling, and enhanced spectral efficiency in high-density environments.

Multi-User MIMO Efficiency

The inclusion of MU-MIMO (Multi-User Multiple Input Multiple Output) allows the MR30H-HW to communicate with multiple client devices simultaneously, improving network efficiency and reducing latency. This is especially beneficial in hospitality environments where multiple guests access the network at the same time using smartphones, laptops, and IoT devices.

Optimized Radio Frequency Management

The device continuously monitors the wireless environment and automatically adjusts channel selection and transmit power levels. This adaptive RF optimization reduces interference and ensures consistent connectivity even in densely populated or architecturally complex buildings.

Integrated Ethernet Switching for Hospitality Applications

Built-In Multi-Port Ethernet Design

A defining feature of the MR30H-HW is its integrated Ethernet switch functionality. Unlike traditional access points that only provide wireless connectivity, this model includes multiple Ethernet ports that enable wired device connections directly from the AP itself.

Support for In-Room Devices

This design is particularly beneficial in hospitality environments such as hotels and resorts, where guests often require wired connections for smart TVs, VoIP phones, or gaming consoles. The MR30H-HW eliminates the need for separate in-room switches, reducing infrastructure complexity.

Streamlined Network Deployment

By combining switching and wireless functions into a single device, the MR30H-HW reduces cabling requirements and lowers installation costs. This consolidation also simplifies maintenance and improves long-term network reliability.

Security and Access Control Features

Enterprise-Grade Network Protection

Security is a core component of the MR30H-HW design, leveraging advanced encryption protocols and integrated firewall capabilities to protect both user data and network infrastructure. Managed through Cisco’s secure cloud ecosystem, the access point ensures that sensitive information remains protected against unauthorized access.

Guest Isolation and Segmentation

The device supports client isolation and VLAN segmentation, enabling administrators to separate guest traffic from internal business networks. This ensures secure access control in shared environments such as hotels, offices, and educational institutions.

Layer 7 Application Visibility

The MR30H-HW provides deep packet inspection and application-layer visibility, allowing IT administrators to monitor application usage patterns and enforce policies based on application type. This enhances both security enforcement and bandwidth optimization.

Performance Optimization and Network Intelligence

Adaptive Band Steering Technology

The MR30H-HW intelligently directs dual-band clients to the most appropriate frequency band, ensuring optimal performance and reduced congestion. This band steering capability improves overall network efficiency and enhances user experience in high-density deployments.

Automatic Interference Mitigation

The access point continuously scans for interference sources and automatically adjusts its configuration to minimize performance degradation. This includes dynamic channel switching and power adjustments to maintain stable connections.

Use Cases and Industry Applications

Hospitality and Hotel Networks

The MR30H-HW is widely deployed in hotels and resorts where reliable guest connectivity is essential. Its ability to support both wired and wireless devices makes it an ideal solution for modern hospitality environments.

Multi-Dwelling Units and Student Housing

In dormitories and apartment complexes, the access point provides secure and scalable connectivity for multiple tenants, ensuring fair bandwidth distribution and strong isolation between users.

Healthcare and Clinical Environments

Healthcare facilities benefit from the MR30H-HW’s secure networking capabilities, enabling safe communication between medical devices, administrative systems, and guest networks without compromising compliance requirements.

Small and Branch Office Deployments

For branch offices and remote workspaces, the device offers a simplified networking solution that combines enterprise-grade Wi-Fi with integrated switching capabilities, reducing the need for additional networking hardware.

Scalability Through Cisco Meraki Ecosystem

Centralized Multi-Site Management

Managed through the Cisco Meraki cloud, the MR30H-HW integrates seamlessly into large-scale deployments. Organizations can manage thousands of access points across multiple geographic locations from a single dashboard.

Automated Configuration Templates

Administrators can apply standardized configuration templates across multiple devices, ensuring consistent network policies and reducing deployment time for new sites.

Seamless Device Provisioning

New devices can be added to the network with zero-touch provisioning, allowing rapid scaling without requiring on-site technical expertise.

Energy Efficiency and Hardware Optimization

Low Power Consumption Design

The MR30H-HW is engineered for energy efficiency, optimizing power usage based on network demand. This makes it suitable for large deployments where operational efficiency is a priority.

Smart Power Allocation

The system intelligently adjusts power distribution to wireless radios and Ethernet ports based on traffic load, ensuring efficient energy utilization without compromising performance.

Environmentally Conscious Networking

By reducing the need for multiple standalone devices, the MR30H-HW contributes to lower overall energy consumption and simplified infrastructure footprints.
