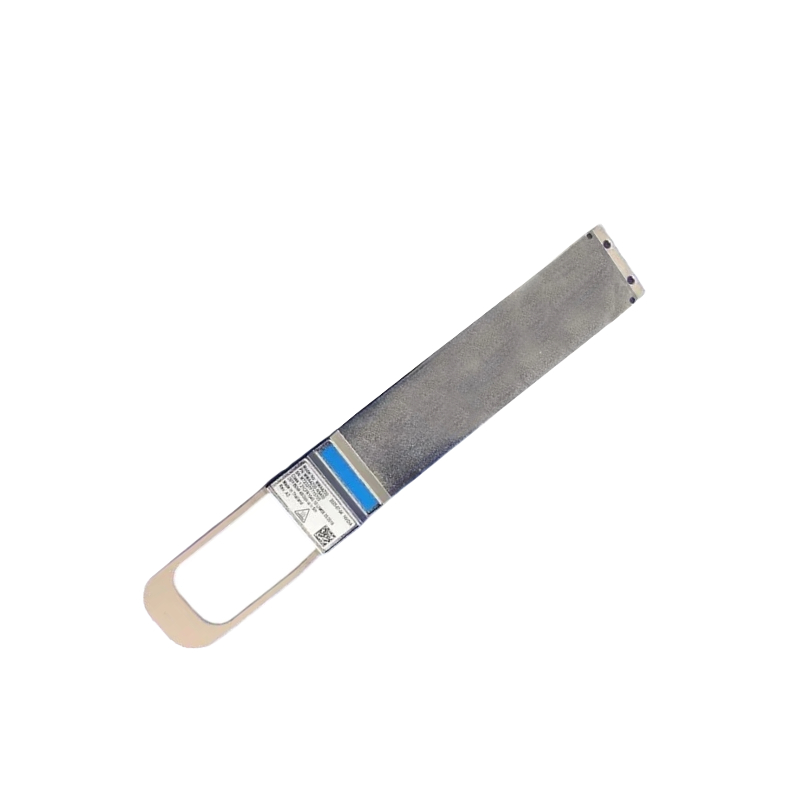

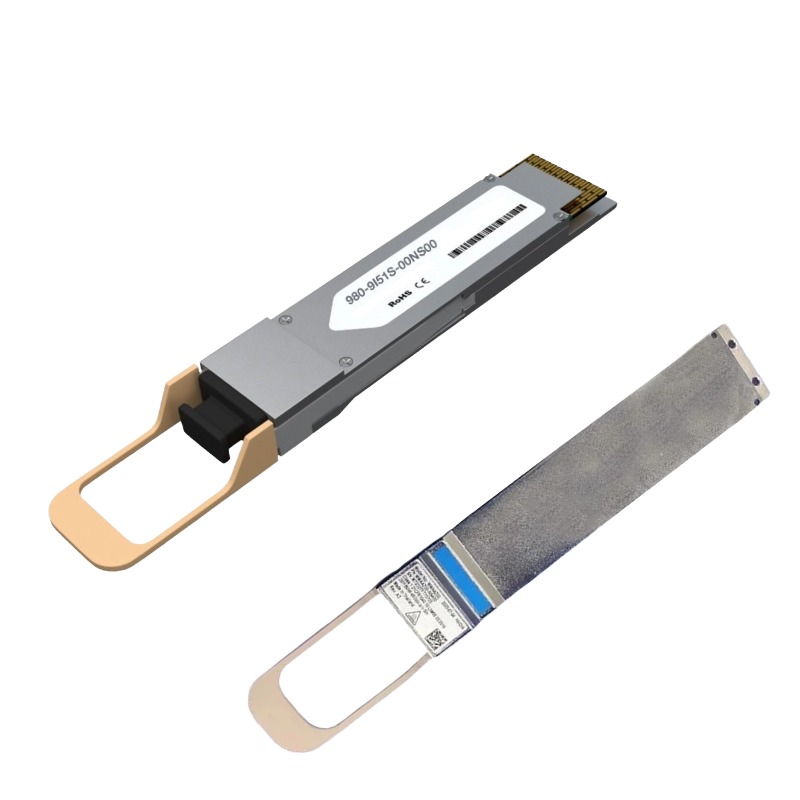

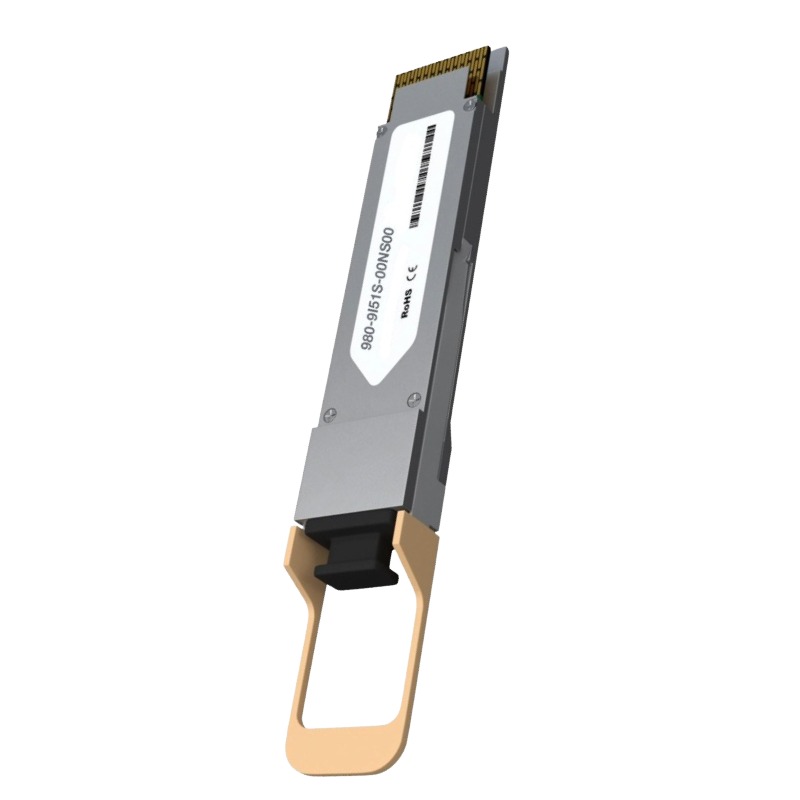

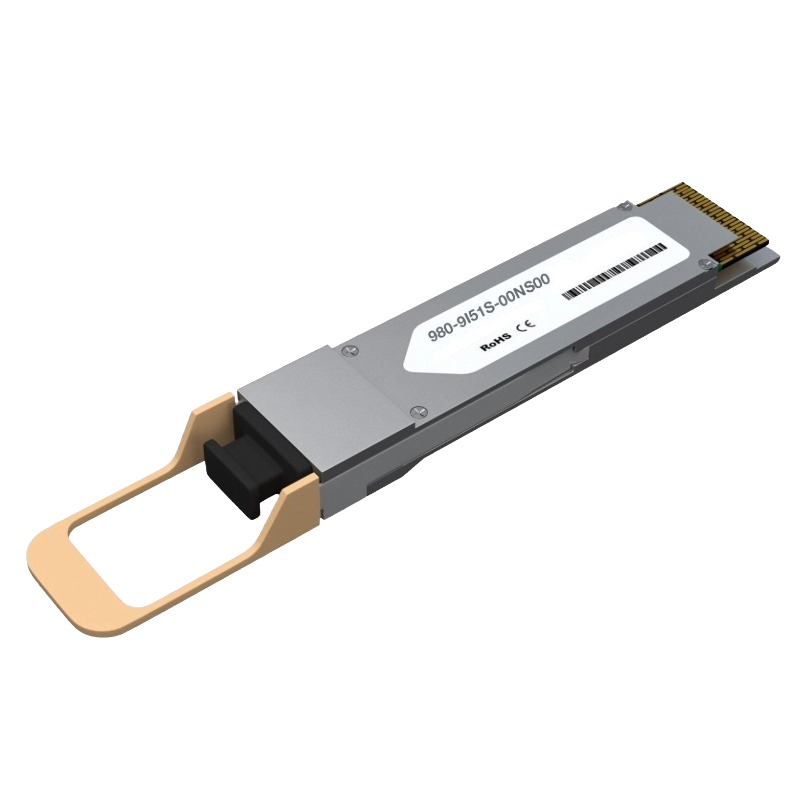

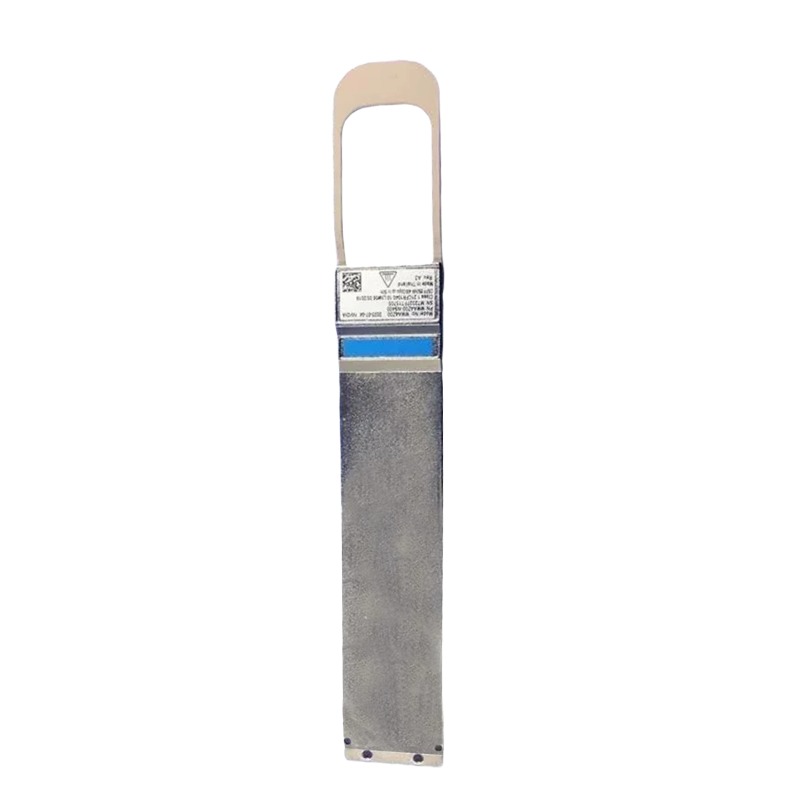

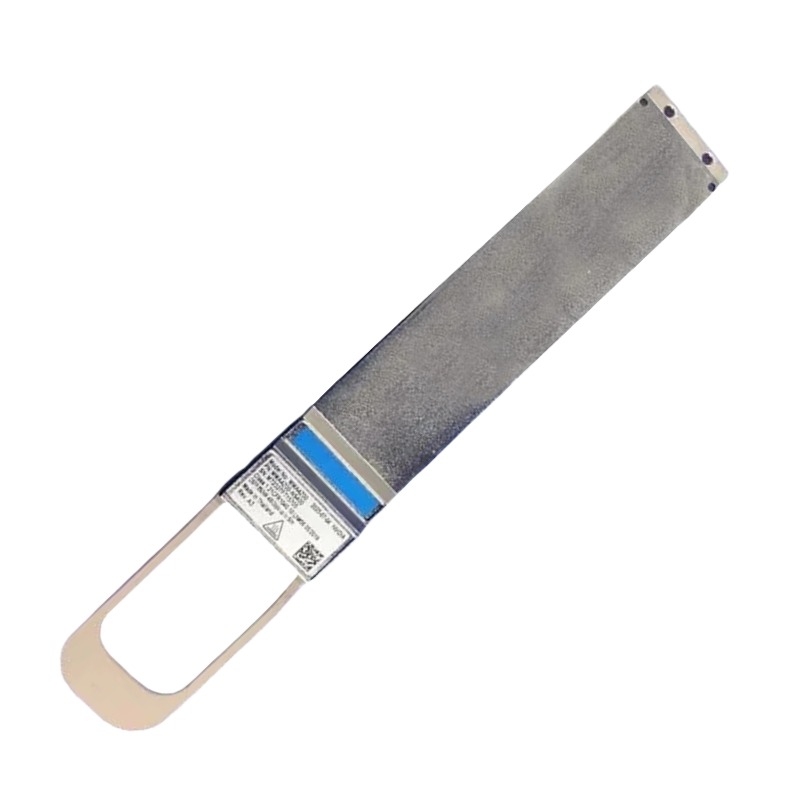

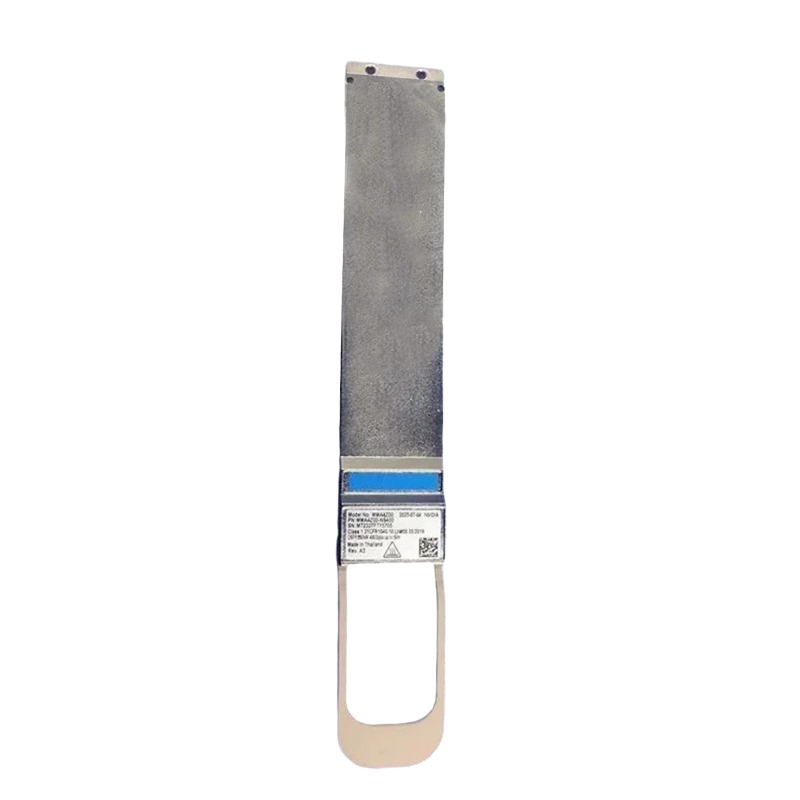

Nvidia 980-9I51S-00NS00 Twin Port 800GB Osfp Sr8 Multimode Transceiver

Overview NVIDIA 980-9I51S-00NS00 Twin Port 800GB OSFP SR8 Multimode Transceiver

The NVIDIA 980-9I51S-00NS00 Twin Port 800Gb/s OSFP SR8 Multimode Transceiver delivers exceptional performance with a speed of 800Gbps. Designed for high-speed data transmission, this transceiver supports 2xNDR and 2xMPO configurations, operating at 850nm wavelength and achieving a reach of up to 50 meters. Its finned top design ensures efficient heat dissipation, making it ideal for demanding networking environments.

Technical Specifications

Physical Dimensions

• Form Factor: OSFP
• Connector Type: MPO/MTP
• Length: Compact modular design

Performance Metrics

• Data Rate: 800GB
• Wavelength: 850nm
• Latency: Ultra-low

Power Efficiency

• Power Consumption: Optimized for low energy usage
• Temperature Range: 0°C to 70°C

Advanced Transceiver Technology

This transceiver leverages cutting-edge technology to support both InfiniBand (IB) and Ethernet (ETH) protocols. With a single-port OSFP SR4 multimode design, it utilizes a 4-channel MPO-12/APC optical connector. The 100G-PAM4 modulation ensures reliable data transfer, while the maximum fiber reach of 50 meters is achieved using OM4 multimode fiber, even with two optical patch panels in the link.

Key Specifications

• Dual Protocol Support: Compatible with both InfiniBand and Ethernet, automatically adapting to the connected switch protocol.
• High-Speed Performance: Operates at 400Gb/s with 4 channels of 100G-PAM4 modulation.
• Efficient Cooling: Flat-top OSFP shell with integrated cooling fins for optimal thermal management.
• Flexible Configuration: When paired with a 1:2 splitter fiber cable, it automatically reduces to 2 channels, operating at 200Gb/s while lowering power consumption.

Optical Design and Compatibility

The transceiver features a tan-colored pull tab and aqua-colored optical fiber, indicating its multimode optics. The green plastic shell on the MPO-12/APC connector signifies an angled polish, ensuring compatibility with specific fiber types while excluding ultra-flat polished connectors (UPC).

Performance and Durability

• Maximum Reach: 30 meters with OM3 fiber and 50 meters with OM4 fiber.
• Power Efficiency: Consumes a maximum of 9 watts with 4 channels and 6.5 watts with 2 channels.
• Single Power Supply: Operates on a single 3.3V power supply for simplified integration.
• Safety Compliance: Class 1 laser safety and RoHS compliance ensure safe and eco-friendly operation.

Industry Standards and Compliance

This transceiver adheres to stringent industry standards, including OSFP MSA and CMIS 4.0 compliance. Its hot-pluggable design allows for easy installation and maintenance, while the operating temperature range of 0°C to +70°C ensures reliability in various environments.

Applications and Use Cases

• Data Centers: Ideal for high-density data centers requiring fast and reliable data transfer.
• Enterprise Networks: Suitable for enterprise-level networking solutions with demanding performance requirements.
• Cloud Infrastructure: Enhances cloud computing environments by providing high-speed connectivity.

Additional Features

• Rigorous Testing: Each unit undergoes extensive production testing to ensure optimal performance and durability.
• End-to-End Compatibility: Guaranteed seamless operation within NVIDIA systems and customer networking solutions.
• User-Friendly Design: Hot-pluggable functionality simplifies installation and upgrades.
