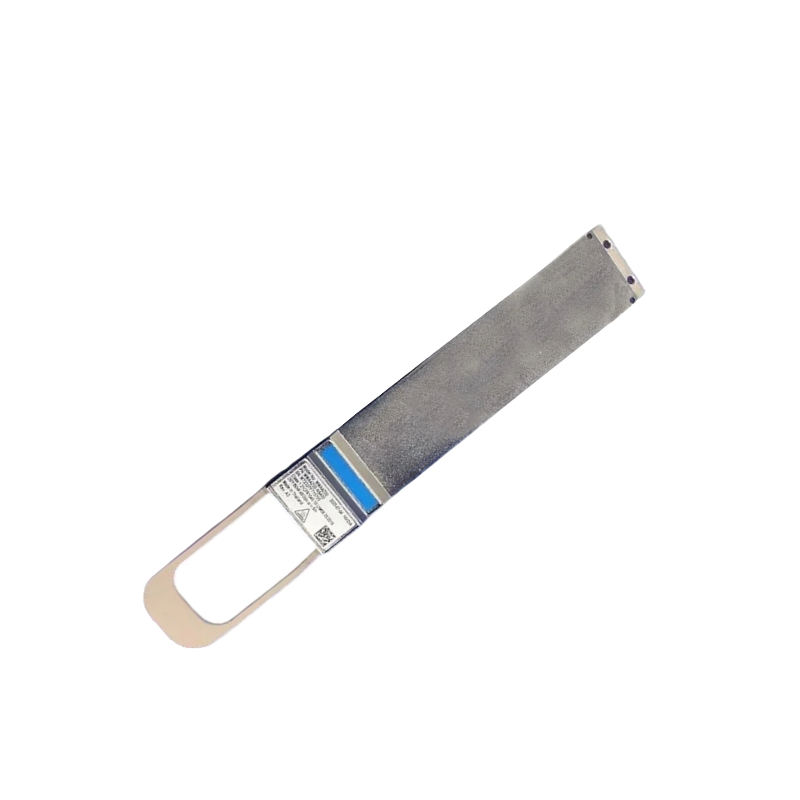

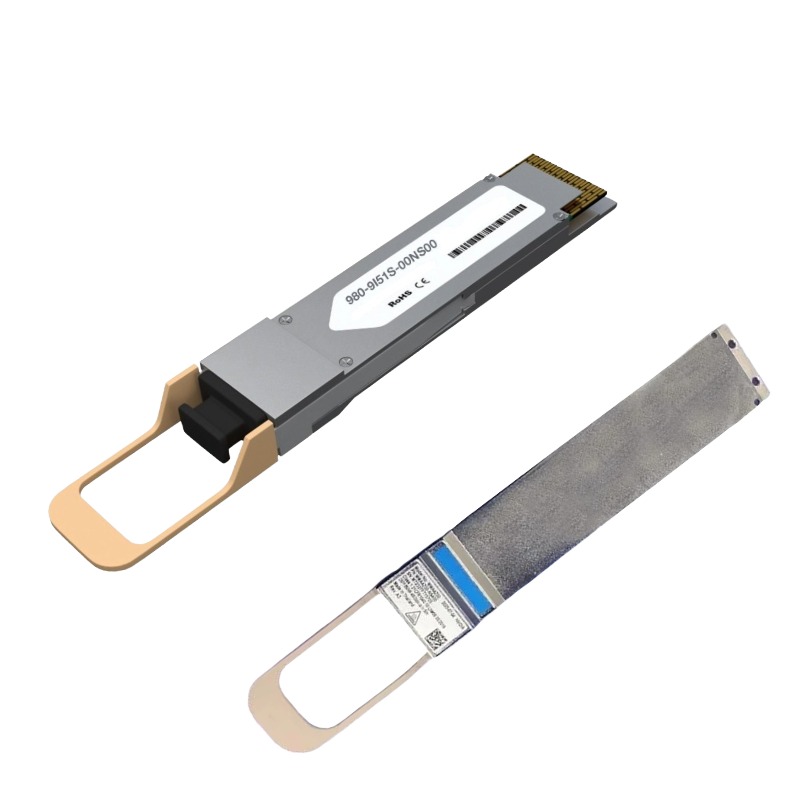

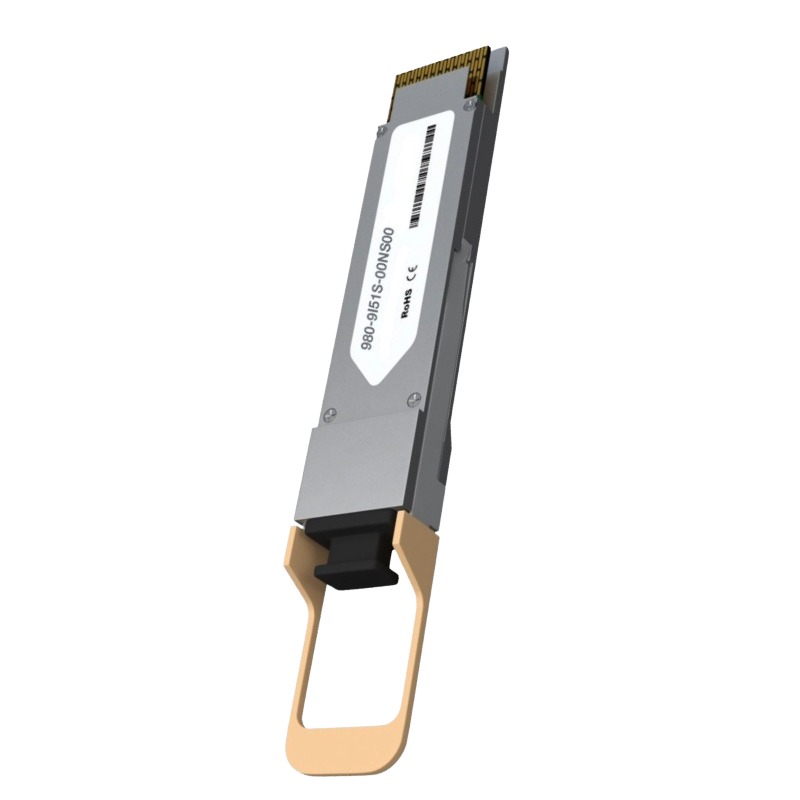

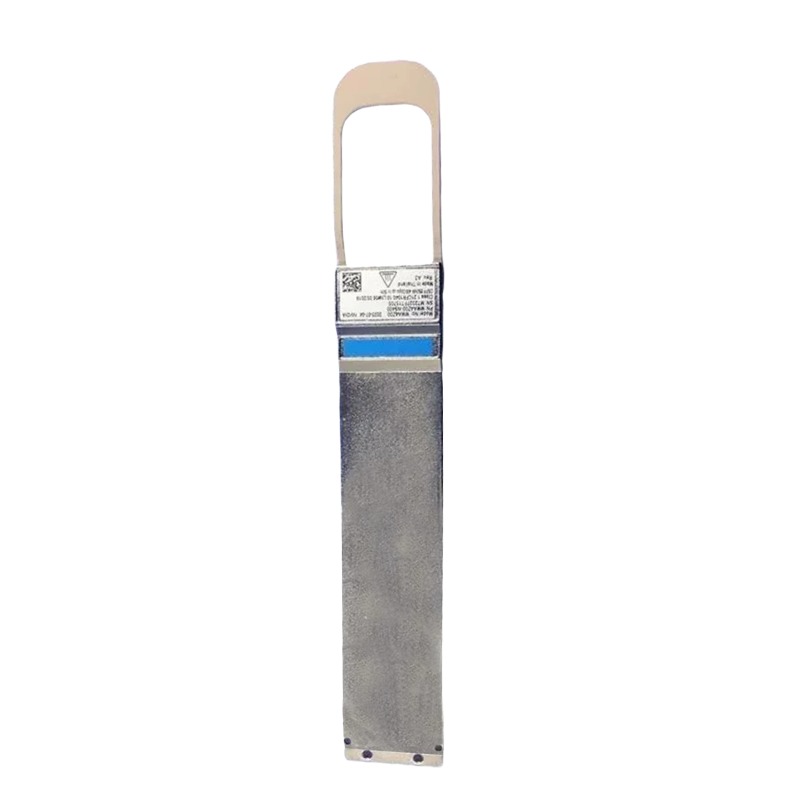

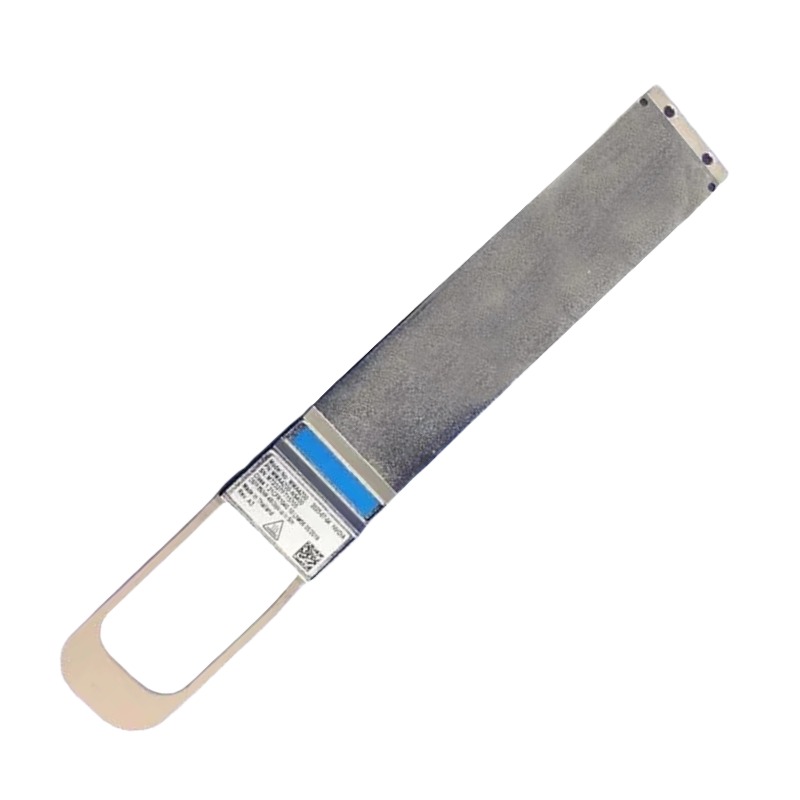

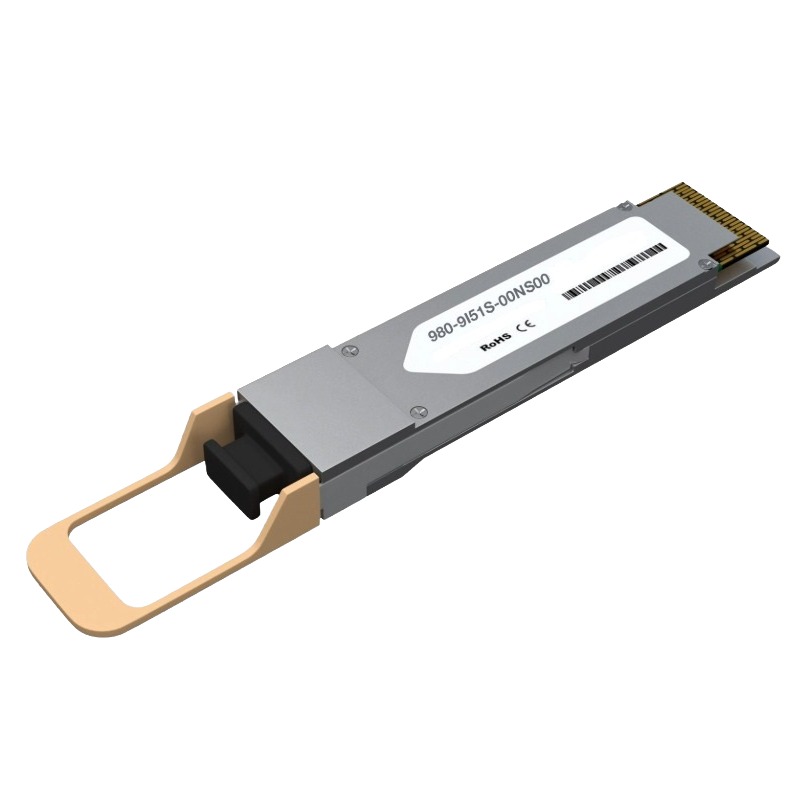

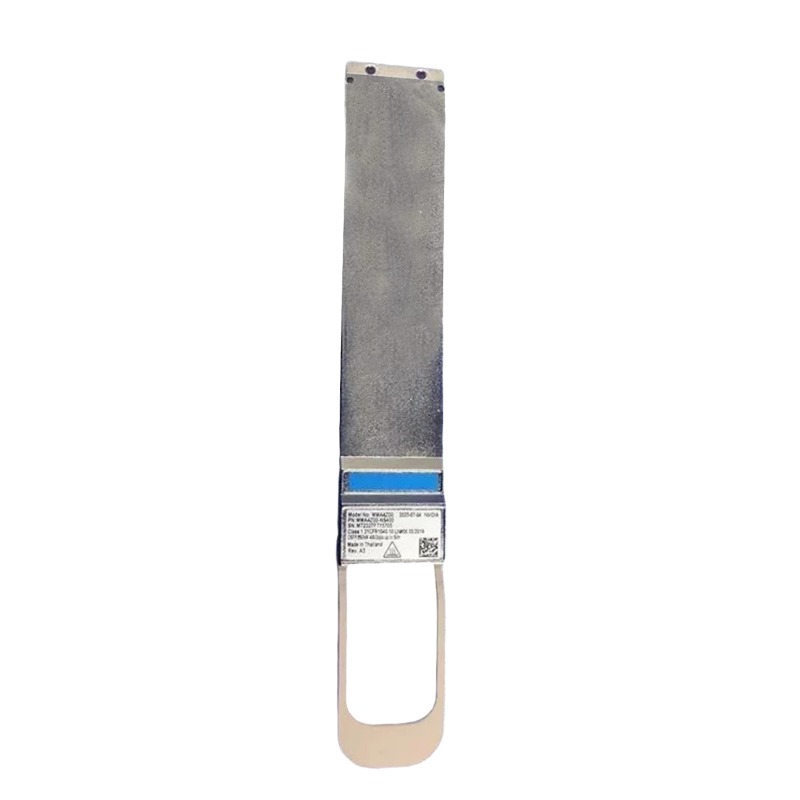

NVIDIA 980-9I51S-00NS00 OSFP SR8 Transceiver Overview

The NVIDIA 980-9I51S-00NS00 twin-port 800Gb OSFP SR8 multimode transceiver is engineered for ultra-high-speed data transmission in modern data center infrastructures. Designed to support both InfiniBand and Ethernet environments, this high-performance optical module ensures seamless connectivity, low latency, and superior bandwidth efficiency for enterprise networking, AI clusters, and cloud-scale deployments.

Core Product Specifications

• Manufacturer: NVIDIA
• Model Number: 980-9I51S-00NS00
• Device Type: Optical Transceiver Module
• Form Factor: OSFP (Octal Small Form-factor Pluggable)
• Interface: Twin Port

Enhanced Data Transmission Features

• Supports both InfiniBand (IB) and Ethernet (ETH) protocols
• Implements 400G SR4 multimode optical transmission
• Utilizes 4 independent channels of 100G-PAM4 modulation
• Ensures reliable signal integrity across high-speed links

Optimized Optical Performance

• 850nm VCSEL laser source for multimode fiber
• Designed for short-reach, high-bandwidth connections
• Supports MPO-12/APC optical interface for stable connectivity

Maximum Transmission Distance

• Up to 30 meters over OM3 multimode fiber
• Up to 50 meters over OM4 multimode fiber

Dual-Mode Functionality

• Functions as an 800Gbps transceiver in full configuration
• Can operate as a 200Gbps NDR200 transceiver using splitter cables
• Supports 2-fiber breakout configurations for scalable networking

Power Usage Details

• Maximum 9W power consumption in 4-channel operation
• Reduced to 6.5W in 2-channel mode
• Operates on a single 3.3V power supply

Robust Mechanical Design

• Flat-top OSFP connector shell for improved thermal performance
• Hot-pluggable design for easy installation and replacement
• Compact and durable form factor for dense networking environments

Compliance and Standards

• Compliant with OSFP MSA specifications
• Supports CMIS 4.0 interface management
• RoHS compliant for environmentally safe operation
• Class 1 laser safety certified

Thermal and Environmental Conditions

• Operating case temperature from 0°C to +70°C
• Efficient heat dissipation for consistent performance

Common Deployment Scenarios

• High-performance computing (HPC) clusters
• Artificial intelligence (AI) and machine learning workloads
• Cloud data centers and hyperscale environments
• Enterprise core and aggregation networks
• Storage area networks (SAN)

NVIDIA 980-9I51S-00NS00 800GB Transceiver Overview

The Nvidia 980-9I51S-00NS00 Twin Port 800GB OSFP SR8 multimode transceiver represents a cutting-edge advancement in high-speed optical networking technology designed to meet the growing demands of hyperscale data centers, enterprise infrastructures, and AI-driven environments. Engineered for ultra-fast data transmission, this transceiver module delivers exceptional bandwidth capacity, enabling seamless communication between high-performance servers, switches, and storage systems.

Built with precision engineering and high-quality optical components, the 800GB OSFP SR8 transceiver supports short-range multimode fiber connectivity, making it an ideal solution for data center interconnects where speed, reliability, and efficiency are paramount. With its twin-port design, this module enhances flexibility and scalability, allowing network architects to optimize port density and maximize throughput in modern networking environments.

High-Speed Data Transmission Capabilities

800 Gigabit Ethernet Performance

The Nvidia 980-9I51S-00NS00 transceiver supports 800GbE connectivity, delivering unmatched data transfer speeds that significantly improve network performance. This high-speed capability is essential for applications such as artificial intelligence workloads, machine learning clusters, cloud computing, and large-scale data analytics, where massive data volumes must be transmitted quickly and efficiently.

Optimized for Low Latency

Low latency is a critical requirement in high-performance networking environments. This OSFP SR8 transceiver is designed to minimize transmission delays, ensuring faster data processing and improved responsiveness for mission-critical applications. By reducing latency, organizations can achieve better performance in real-time analytics, financial trading systems, and high-frequency data processing scenarios.

Enhanced Signal Integrity

The advanced optical design ensures consistent signal quality across all channels, reducing errors and maintaining data integrity. This results in stable connections and reliable communication even under heavy network loads.

OSFP Form Factor Advantages

Compact and High-Density Design

The OSFP form factor provides a compact footprint while supporting higher power and bandwidth compared to traditional transceiver formats. This enables data centers to achieve greater port density without compromising performance or efficiency.

Thermal Efficiency and Heat Management

Efficient heat dissipation is essential for maintaining optimal performance in high-speed networking equipment. The Nvidia 980-9I51S-00NS00 transceiver is engineered with advanced thermal management features that help regulate temperature and ensure consistent operation in demanding environments.

Future-Proof Architecture

The OSFP design is aligned with future networking standards, making it a long-term investment for organizations looking to upgrade their infrastructure. It supports evolving technologies and provides compatibility with next-generation networking equipment.

SR8 Multimode Fiber Technology

Short-Range Connectivity Solutions

The SR8 multimode configuration is specifically designed for short-distance data transmission within data centers. It utilizes parallel optical channels to deliver high-speed connectivity over multimode fiber, making it ideal for rack-to-rack and row-to-row communication.

Cost-Effective Cabling Infrastructure

Multimode fiber solutions are generally more cost-effective than single-mode alternatives for short-range applications. The SR8 transceiver leverages this advantage, enabling organizations to deploy high-speed networks without incurring excessive infrastructure costs.

Reliable Data Transmission

The use of multiple parallel lanes enhances redundancy and reliability, ensuring consistent data delivery even in complex networking environments. This makes the SR8 transceiver a dependable choice for critical operations.

Twin Port Benefits

Increased Network Flexibility

The twin-port design allows for greater flexibility in network architecture. It enables multiple connections within a single module, reducing the need for additional hardware and simplifying network management.

Improved Scalability

As data demands continue to grow, scalability becomes a key consideration for network infrastructure. The twin port configuration supports easy expansion, allowing organizations to scale their networks without significant redesign or disruption.

Efficient Resource Utilization

By combining two ports into a single transceiver, this module optimizes resource utilization, reducing power consumption and saving valuable space within networking equipment.

Compatibility and Integration

Seamless Integration with Networking Equipment

The Nvidia 980-9I51S-00NS00 transceiver is designed for compatibility with a wide range of networking devices, including switches, routers, and servers. Its standardized OSFP interface ensures easy installation and integration into existing infrastructure.

Plug-and-Play Functionality

With plug-and-play capabilities, this transceiver simplifies deployment and reduces installation time. Network administrators can quickly integrate the module without requiring extensive configuration or technical expertise.

Interoperability with Multimode Fiber Systems

The SR8 design ensures compatibility with existing multimode fiber systems, allowing organizations to leverage their current infrastructure while upgrading to higher speeds.

Energy Efficiency and Sustainability

Reduced Power Consumption

Energy efficiency is a key consideration in modern data centers. The Nvidia 980-9I51S-00NS00 transceiver is designed to minimize power consumption while maintaining high performance, helping organizations reduce operational costs.

Environmentally Friendly Design

The use of energy-efficient components contributes to a lower carbon footprint, supporting sustainability initiatives and environmentally responsible operations.

Long-Term Cost Savings

By combining high performance with energy efficiency, this transceiver provides long-term cost savings through reduced power usage and improved operational efficiency.

Advanced Optical Engineering

Precision Manufacturing

The transceiver is manufactured using advanced optical engineering techniques, ensuring high reliability and consistent performance. Each component is carefully designed to meet stringent quality standards.

Robust Build Quality

The durable construction of the module ensures long-lasting performance, even in demanding environments. It is built to withstand the rigors of continuous operation in data centers.

Enhanced Durability

With a focus on durability, the Nvidia 980-9I51S-00NS00 transceiver offers resistance to environmental factors such as temperature fluctuations and mechanical stress.

Future Networking Trends and 800G Adoption

Transition to Higher Bandwidth Networks

The shift towards 800G networking is driven by the increasing demand for data-intensive applications. This transceiver plays a crucial role in enabling this transition, providing the necessary bandwidth to support next-generation technologies.

Support for Emerging Technologies

Emerging technologies such as edge computing, IoT, and 5G require high-speed connectivity to function effectively. The 800GB OSFP SR8 transceiver supports these technologies by delivering reliable and fast data transmission.

Scalable Infrastructure for Future Growth

As organizations continue to expand their digital capabilities, scalable infrastructure becomes essential. This transceiver provides a foundation for future growth, allowing networks to evolve without significant upgrades.
