MCX755106AS-HEAT Nvidia Hhhl Adapter Card QSFP112 Pcie 5.0 X16 Extension, 200GBE Ndr200 Ib

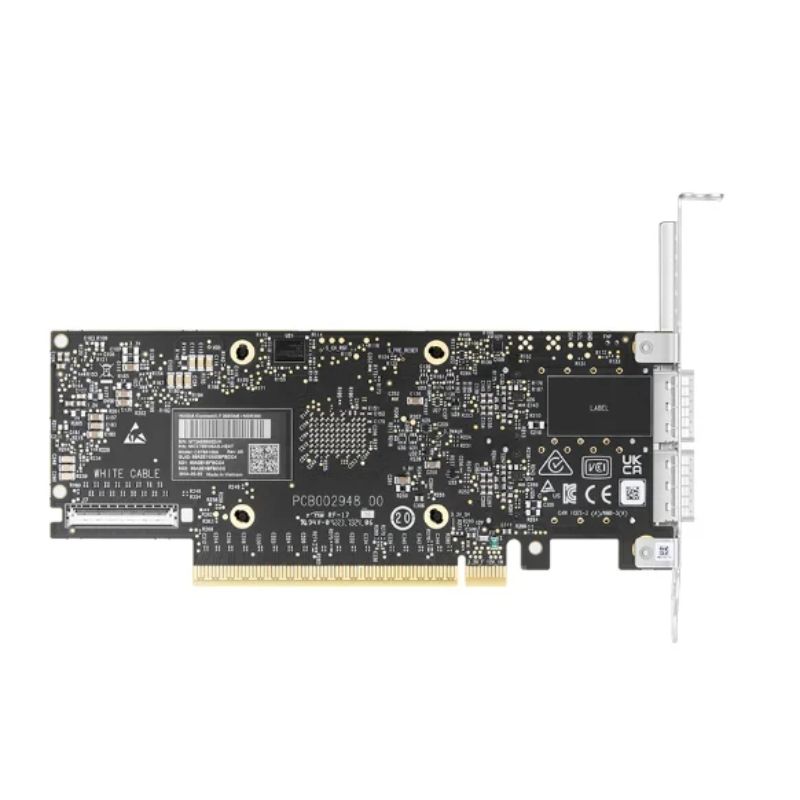

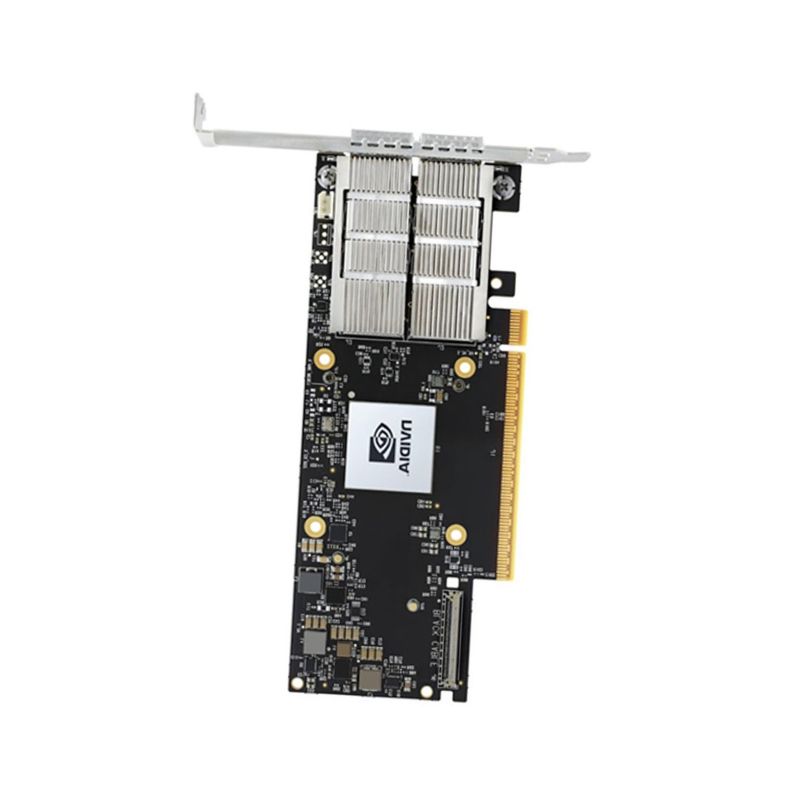

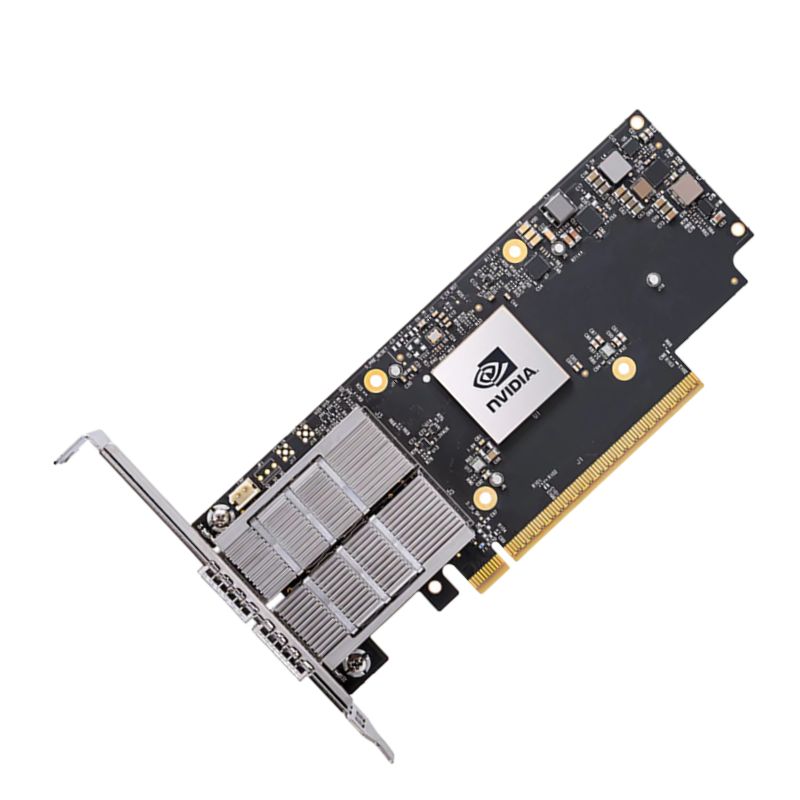

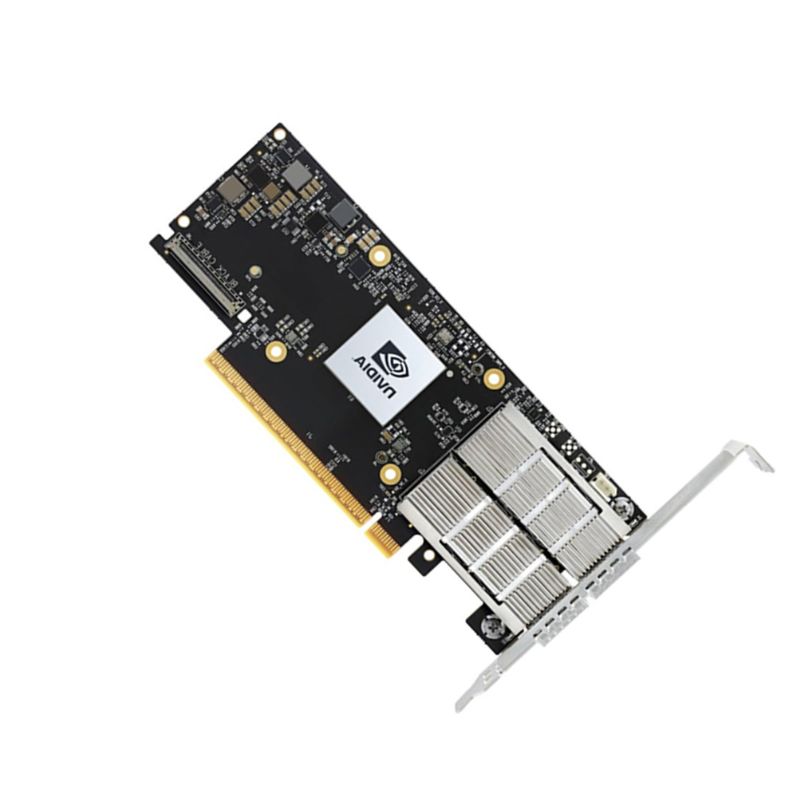

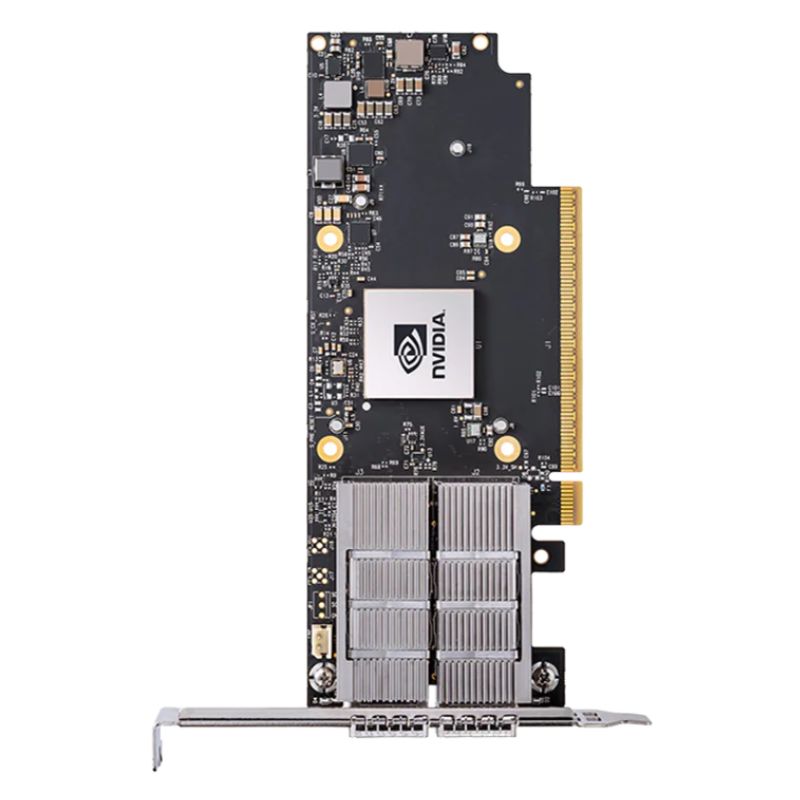

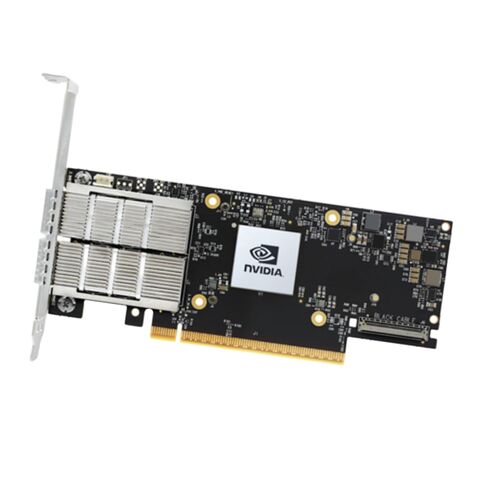

Nvidia MCX755106AS-HEAT HHHL Adapter Card Overview

The Nvidia MCX755106AS-HEAT HHHL Adapter Card with dual-port QSFP112 PCIe 5.0 x16 extension and 200GBE NDR200 InfiniBand represents a cutting-edge solution for enterprises and data centers seeking unparalleled bandwidth, scalability, and secure connectivity. This adapter card is engineered to deliver high-performance networking capabilities, optimized for next-generation workloads, artificial intelligence clusters, and high-throughput computing environments. Its half-height half-length (HHHL) form factor ensures compatibility with diverse server architectures, while the dual QSFP112 ports provide flexibility for both Ethernet and InfiniBand deployments.

PCIe 5.0 X16 Extension

The integration of PCIe 5.0 x16 extension in the MCX755106AS-HEAT adapter card ensures maximum throughput and reduced latency. PCIe 5.0 doubles the bandwidth compared to PCIe 4.0, enabling data-intensive applications to run seamlessly. This extension supports high-speed communication between the adapter card and the host system, ensuring that workloads such as deep learning, real-time analytics, and scientific simulations benefit from uninterrupted data flow. The PCIe 5.0 x16 interface also enhances scalability, allowing enterprises to expand their infrastructure without bottlenecks.

Performance Benefits of PCIe 5.0

PCIe 5.0 delivers up to 64 GB/s of bidirectional bandwidth, which is critical for applications requiring massive parallel processing. The MCX755106AS-HEAT adapter card leverages this capability to accelerate workloads across distributed systems. This performance boost is particularly beneficial for cloud-native environments, where microservices and containerized applications demand consistent and rapid data exchange.

Compatibility with Modern Servers

The HHHL design ensures that the adapter card fits seamlessly into modern server configurations. Enterprises deploying compact servers or blade systems can integrate the MCX755106AS-HEAT without compromising on performance. This compatibility extends to both rack-mounted and edge computing environments, making the card versatile for diverse deployment scenarios.

Dual-Port QSFP112 Connectivity

The dual-port QSFP112 configuration provides unmatched flexibility in connectivity. Each port supports up to 200Gbps, enabling a combined throughput of 400Gbps. This dual-port design allows enterprises to configure redundant paths for fault tolerance or aggregate bandwidth for high-performance clusters. QSFP112 technology ensures efficient signal integrity, reduced power consumption, and optimized thermal performance.

InfiniBand NDR200 Integration

InfiniBand NDR200 is the latest generation of InfiniBand technology, offering ultra-low latency and high bandwidth. The MCX755106AS-HEAT adapter card integrates NDR200 to support demanding workloads such as high-performance computing, machine learning, and large-scale simulations. InfiniBand’s advanced congestion control and adaptive routing ensure that data flows smoothly across complex topologies, minimizing bottlenecks and maximizing efficiency.

Ethernet and InfiniBand Flexibility

While optimized for InfiniBand, the adapter card also supports Ethernet connectivity, providing enterprises with the flexibility to deploy hybrid environments. This dual capability allows organizations to leverage InfiniBand for HPC workloads while maintaining Ethernet for traditional networking tasks. The result is a unified infrastructure that balances performance and compatibility.

High-Performance Data Center Applications

The Nvidia MCX755106AS-HEAT HHHL Adapter Card is designed for next-generation data centers that prioritize speed, scalability, and efficiency. Its dual-port QSFP112 and PCIe 5.0 x16 extension make it ideal for applications such as distributed AI training, real-time financial modeling, and genomic sequencing. These workloads require massive data transfers and minimal latency, both of which are delivered by the adapter card’s advanced architecture.

Artificial Intelligence and Machine Learning

AI and ML workloads demand high-bandwidth interconnects to facilitate rapid communication between GPUs and CPUs. The MCX755106AS-HEAT adapter card ensures that training models with billions of parameters can be executed efficiently. Its InfiniBand NDR200 integration reduces communication overhead, enabling faster convergence and improved accuracy in AI models.

Scientific Research and Simulations

Scientific simulations, such as climate modeling, molecular dynamics, and astrophysics, require vast computational resources. The adapter card’s ability to deliver 200Gbps per port ensures that these simulations run without interruption. Researchers benefit from reduced time-to-results, enabling faster discoveries and innovations.

Financial Services and Real-Time Analytics

In financial services, real-time analytics and algorithmic trading depend on ultra-low latency and high throughput. The MCX755106AS-HEAT adapter card provides the necessary infrastructure to process millions of transactions per second, ensuring that financial institutions remain competitive in fast-paced markets.

Security and Reliability Features

Security is a critical aspect of modern networking, and the MCX755106AS-HEAT adapter card incorporates advanced features to safeguard data. Secure boot ensures that only authenticated firmware is loaded, protecting against malicious attacks. Hardware-based encryption capabilities provide end-to-end data protection, ensuring compliance with industry standards.

Reliability in Enterprise

Enterprises require hardware that can operate continuously without failure. The MCX755106AS-HEAT adapter card is built with reliability in mind, incorporating redundant pathways and error-correction mechanisms. These features ensure that data integrity is maintained, even in the event of hardware faults or network congestion.

Scalability Across Clusters

Enterprises deploying large-scale clusters benefit from the adapter card’s scalability. Its dual-port design allows for seamless expansion, enabling organizations to connect thousands of nodes without compromising performance. This scalability is essential for industries such as healthcare, finance, and scientific research, where data-driven insights are critical.

Integration with Nvidia Ecosystem

The adapter card integrates seamlessly with the broader Nvidia ecosystem, including GPUs, software frameworks, and AI platforms. This integration ensures that enterprises can build end-to-end solutions optimized for performance and efficiency. Whether deploying AI clusters or HPC environments, the MCX755106AS-HEAT adapter card complements Nvidia’s hardware and software portfolio.
