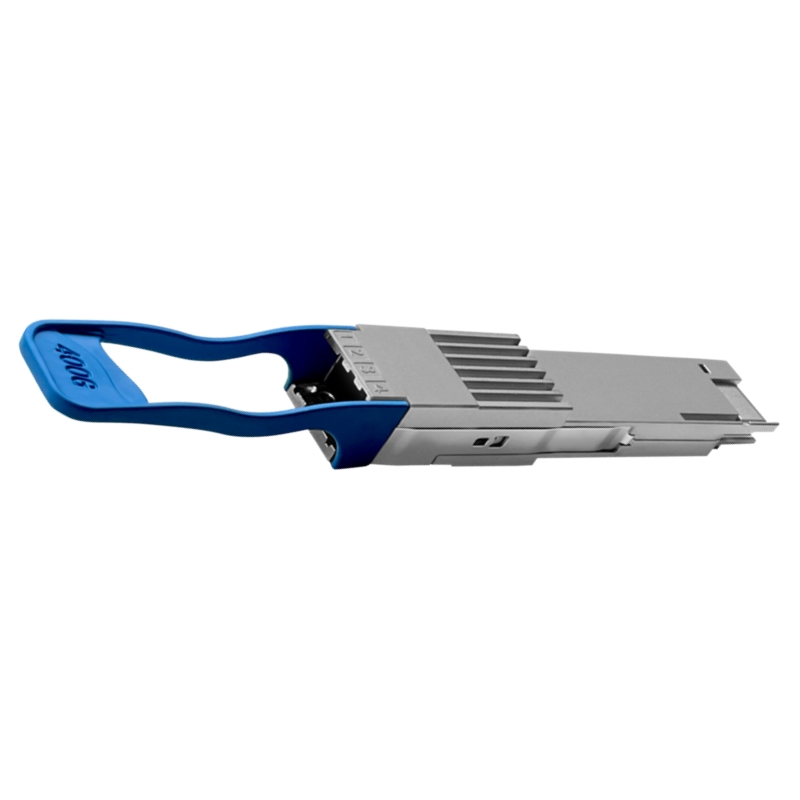

Q8J73-63001 HPE 100GBE QSFP Psm4 Transceiver

Detailed Breakdown of the HPE Q8J73-63001 100GbE QSFP28 1310nm PSM4 Optical Module

The HPE Q8J73-63001 QSFP28 100GbE transceiver is purpose-built to deliver ultra-fast and reliable data transmission across modern enterprise and data center environments. Designed with precision, this hot-swappable optical transceiver supports high-density, high-bandwidth network infrastructures while offering exceptional energy efficiency and flexibility.

Technical Specifications and Physical Characteristics

Manufacturer and Model Identification

• Manufacturer: HPE
• Part Identifier: Q8J73-63001
• Form Factor: QSFP28 (Quad Small Form-factor Pluggable 28)
• Hot-Swap Capability: Yes – easily insert/remove without powering down the system

Connectivity and Interface Type

Engineered with a compact yet powerful design, the module uses a high-speed LC/MPO interface to ensure seamless connectivity within fiber-optic networking systems. Supporting both single-mode and multi-mode fiber, this transceiver delivers adaptable deployment across a range of optical infrastructure types.

• Connector Configuration: LC/MPO
• Interface Details: 1 x 100GBASE-PSM4 optical port
• Transmission Wavelength: 1310nm
• Reach: Up to 500 meters over PSM4 fiber

Networking Protocols and Standards Support

High-Speed Ethernet Performance

The HPE Q8J73-63001 complies with 100 Gigabit Ethernet standards, enabling ultrafast data transfer rates necessary for intensive workloads such as virtualization, AI training, cloud applications, and hyperscale computing environments.

Network Compatibility and Media Support

• Ethernet Compatibility: 100GbE
• Network Standard: IEEE 802.3bm (100GBASE-PSM4)
• Media Type: Optical Fiber (supports SMF and MMF)
• Fiber Channeling Mode: Parallel Single Mode 4-lane (PSM4)

Single-mode and Multi-mode Operation

Flexibility is a cornerstone of the Q8J73-63001. By supporting both multi-mode fiber (MMF) for short-range deployments and single-mode fiber (SMF) for long-haul transmissions, this transceiver can serve diverse networking architectures within a single unified infrastructure.

Performance, Efficiency, and Reliability

Superior Data Throughput and Reliability

Supporting up to 100Gbps data rates, this transceiver ensures high-throughput operations with consistent performance across mission-critical applications. Its PSM4 standard enhances optical signal integrity, reducing bit error rates in high-density environments.

Power Consumption and Heat Efficiency

• Designed with low power draw to reduce overall energy costs
• Heat-efficient architecture ideal for rack-dense server installations
• Thermal performance optimized for continuous uptime

Built for Mission-Critical Environments

With hot-pluggable functionality, administrators can replace or install the transceiver without disrupting the network flow. This feature is especially critical for non-stop operational environments such as cloud data centers and large-scale enterprise backbones.

Deployment Scenarios and Practical Applications

Scalable Across Networking Environments

The HPE Q8J73-63001 is perfectly suited for high-capacity network aggregation layers, top-of-rack (ToR) switches, and core-switch links in data centers. It excels in scenarios requiring seamless scaling and high-speed uplinks.

Ideal Use Cases

• Data center interconnects (DCI)
• Enterprise LAN/WAN core distribution
• Cloud infrastructure and hyperscale networking
• High-throughput server-to-switch communications

Integration with HPE Switches and Routers

This transceiver is engineered for compatibility with HPE’s ecosystem of network switches and routers, ensuring seamless plug-and-play integration with Aruba and FlexNetwork infrastructure. It delivers end-to-end optical networking within HPE environments.

Compliance, Testing, and Manufacturing Standards

Certified for Enterprise-Grade Operations

Every HPE Q8J73-63001 transceiver undergoes stringent quality control and performance validation processes to meet enterprise-grade reliability. Backed by HPE’s rigorous testing, this module is fully compliant with international safety and environmental standards.

Certifications and Approvals

• RoHS Compliant (Restriction of Hazardous Substances)
• CE Marking for European deployment
• Class 1 Laser Product for safety compliance
• FCC regulations for electromagnetic interference (EMI)

Guaranteed Interoperability

Verified for cross-compatibility with other major industry-standard platforms, this QSFP28 module supports interoperability across multi-vendor networks, provided matching 100G PSM4 optics are used on both ends.

Key Advantages and Distinguishing Features

Compact Design, Maximum Impact

The hot-pluggable form factor allows for easy insertion into existing network hardware without the need for service downtime. Its minimal footprint maximizes port density on networking devices, enhancing scalability.

Why Choose the Q8J73-63001 Transceiver

• Optimized for high-density rack environments
• Compatible with HPE ProLiant and BladeSystem servers
• Ideal for environments requiring stable 100Gbps links over 500m
• Reduces infrastructure complexity through standard-based interoperability

Future-Ready Networking Solution

As enterprises adopt 100GbE and beyond, the Q8J73-63001 delivers a foundational building block for scalable infrastructure. Its compliance with open optical standards ensures adaptability in hybrid cloud and software-defined networks (SDN).

Interface Highlights and Media Handling

Connectivity Engineering

This transceiver integrates an MPO (Multi-Fiber Push-On) connector for fiber ribbon cabling, enabling simplified cable management and ease of installation in high-density fiber patch panels or switch enclosures.

Media Compatibility

• Supports both SMF and MMF deployments
• Optimized for parallel fiber optic communications
• Designed for transmission at the 1310nm wavelength
• Delivers clear signal transmission up to 500 meters

Optical Signal Stability

Utilizing 4-lane parallel optics, the transceiver splits 100Gbps into four 25Gbps lanes, offering enhanced optical clarity, reduced dispersion, and signal integrity that ensures consistent performance in data-heavy environments.

Q8J73-63001 HPE 100GbE QSFP28 500m 1310nm PSM4 Transceiver Overview

The Q8J73-63001 HPE 100GbE QSFP28 500m 1310nm PSM4 Transceiver is a high-speed optical module engineered for modern data center and enterprise networking environments. Designed to support 100 Gigabit Ethernet over parallel single-mode fiber (SMF), this transceiver utilizes PSM4 (Parallel Single-Mode 4-lane) technology to deliver superior performance, efficiency, and low latency over distances up to 500 meters. This makes it ideal for mid-range deployments between network switches, routers, and high-performance computing infrastructure within a data center.

Technology Behind QSFP28 and PSM4

Understanding QSFP28 Module Form Factor

QSFP28 (Quad Small Form-factor Pluggable 28) is a compact, hot-pluggable transceiver form factor designed for 100G data transmission. The "28" in QSFP28 refers to the maximum data rate of 28 Gbps per lane. The transceiver supports four lanes of 25 Gbps, typically running at 100Gbps total bandwidth. QSFP28 is backward compatible with QSFP+, allowing for simplified upgrades in modular networking environments. Its small footprint makes it well-suited for high-density data center installations.

Parallel Single-Mode 4-lane (PSM4) Explained

The PSM4 standard uses four parallel lanes over single-mode fiber (SMF), each transmitting and receiving 25 Gbps. PSM4 modules typically operate at a wavelength of 1310nm, and unlike WDM-based technologies that use multiple wavelengths, PSM4 simplifies design and lowers cost by using a single wavelength across all lanes. The result is reduced complexity in optical components and decreased power consumption.

Advantages of PSM4 Architecture

• Lower cost per bit for mid-range optical interconnects
• Support for simplified fiber infrastructure using parallel SMF
• Improved reliability due to simpler optical design
• High scalability potential for hyperscale data centers

High-Speed Data Transmission

Leveraging 100Gbps throughput across four parallel SMF lanes, the Q8J73-63001 transceiver ensures seamless data transmission for high-performance network environments. Its low latency and efficient power profile make it a compelling choice for latency-sensitive applications such as real-time analytics, virtualization, and cloud computing.

Reliability and Compatibility

Built and qualified by HPE, this transceiver is fully tested for compatibility with HPE ProLiant servers, HPE Synergy, HPE BladeSystem, and Aruba switches that support QSFP28 form factor. The component complies with rigorous industry standards, including IEEE 802.3bm and PSM4 MSA, ensuring interoperability across compliant platforms.

Applications and Use Cases in Modern Data Centers

Optimizing Inter-Switch Links (ISLs)

The Q8J73-63001 is commonly used for creating high-bandwidth inter-switch links in leaf-spine architectures. Its 500-meter range makes it perfect for connecting switches across large data halls or between separate cages in the same data center facility.

High-Performance Computing (HPC)

In HPC environments, rapid data movement between compute nodes and storage resources is critical. The transceiver supports ultra-fast, low-latency communication over single-mode fiber, optimizing performance for tasks such as scientific simulations, AI training, and data modeling.

Data Center Backbone Infrastructure

As organizations expand their infrastructure, the need for efficient and scalable backbones grows. This transceiver offers a cost-effective way to expand bandwidth while maintaining energy efficiency and consistent signal integrity.

Cloud Computing and Virtualization

Cloud service providers and virtualized environments benefit from the high throughput and low power characteristics of the Q8J73-63001. It reduces network bottlenecks and ensures high availability, critical for delivering Infrastructure as a Service (IaaS) and Platform as a Service (PaaS).

Storage Area Networks (SAN)

The module also supports fast, efficient storage network connections, suitable for NVMe-over-Fabrics and other high-performance storage systems. This supports enterprise-grade storage redundancy and performance.

Deployment and Installation Best Practices

Fiber Cabling Requirements

Installation of this transceiver requires MPO-12 APC-terminated single-mode fiber cables. Ensure clean and properly polished connectors to maintain optimal signal performance and avoid degradation over time. Use of proper fiber cleaning tools and inspection scopes is essential.

Environmental and Power Considerations

This transceiver is designed for environments operating within 0°C to 70°C. Proper airflow and power distribution must be ensured to maintain the component's longevity and reduce the risk of overheating or failure. The module typically consumes less than 3.5W, making it ideal for high-density deployments without imposing heavy cooling demands.

Insertion and Removal Process

QSFP28 modules are hot-swappable. To insert, gently align and push the module into the port until it clicks. To remove, pull the tab or lever (depending on the model) and slide the module out gently. Always ensure the module is disconnected from the fiber cable before removal to prevent damage.

Compatibility with HPE and Other Networking Equipment

Supported HPE Platforms

• HPE ProLiant Gen10 and Gen11 Servers
• HPE Synergy Interconnect Modules
• HPE BladeSystem Enclosures
• HPE FlexNetwork and FlexFabric Switches
• Aruba 8400 and 8320 Series Switches

Interoperability with Third-Party Devices

While optimized for HPE hardware, the Q8J73-63001 is compliant with industry standards and may function with non-HPE equipment that supports QSFP28 PSM4. However, cross-vendor compatibility should be validated through testing, as firmware restrictions may apply.

Software and Firmware Support

Ensure the latest firmware updates are applied to networking gear to enable optimal compatibility and performance. HPE periodically releases firmware packages that include transceiver support enhancements and bug fixes.

Comparing PSM4 with Other 100G Optical Technologies

PSM4 vs. CWDM4

CWDM4 uses Coarse Wavelength Division Multiplexing to send signals across four different wavelengths over a duplex pair of SMF fibers, typically supporting distances up to 2 km. PSM4, in contrast, uses eight fibers—four transmit and four receive—all operating at 1310nm. Though PSM4 requires more fiber strands, it is typically more cost-effective over short to mid-range deployments.

PSM4 vs. SR4 (Short Reach)

SR4 uses multimode fiber (MMF) and is limited to 70–100 meters, making it suitable for very short distances. PSM4, with its 500m reach on SMF, offers a broader deployment range and is better suited for large data centers and campus interconnects.

PSM4 vs. LR4 (Long Reach)

LR4 modules use WDM to transmit signals over four wavelengths and can reach up to 10 km. While PSM4 has shorter reach, it is significantly more affordable and simpler in design, ideal for use cases that do not require long-haul performance.

Power Efficiency and Thermal Performance

Low Power Consumption Benefits

Operating below 3.5W, the Q8J73-63001 helps reduce power draw in high-density switch and server environments. In large-scale deployments, this efficiency translates to measurable OPEX savings and reduced environmental impact.

Heat Dissipation and Cooling Requirements

Effective thermal design is critical for ensuring long-term performance. This transceiver incorporates built-in heat sinks to aid in thermal management. Data centers should use properly cooled enclosures with front-to-back airflow to maintain safe operating temperatures.

Why Choose the HPE Q8J73-63001 for Your Network?

Vendor Certification and Assurance

As an official HPE transceiver, the Q8J73-63001 provides peace of mind through guaranteed compatibility, full vendor support, and warranty coverage. This reduces risk associated with using third-party optics and ensures full integration with HPE Intelligent Management tools.

Scalability for Future-Proof Networks

With the rise of data-hungry applications and AI workloads, 100GbE networks are becoming the new standard. The Q8J73-63001 enables scalable infrastructure that can evolve toward 200G or 400G systems while maintaining backwards compatibility with QSFP28 ecosystems.

Total Cost of Ownership (TCO) Considerations

The blend of performance, efficiency, and vendor assurance makes the Q8J73-63001 a cost-effective solution over its lifecycle. Reduced power usage, lower cooling demands, and simplified installation all contribute to reduced TCO in both CapEx and OpEx.
