ST18000NM004J Seagate 18TB 7.2K RPM HDD SAS 12GBPS Internal Enterprise

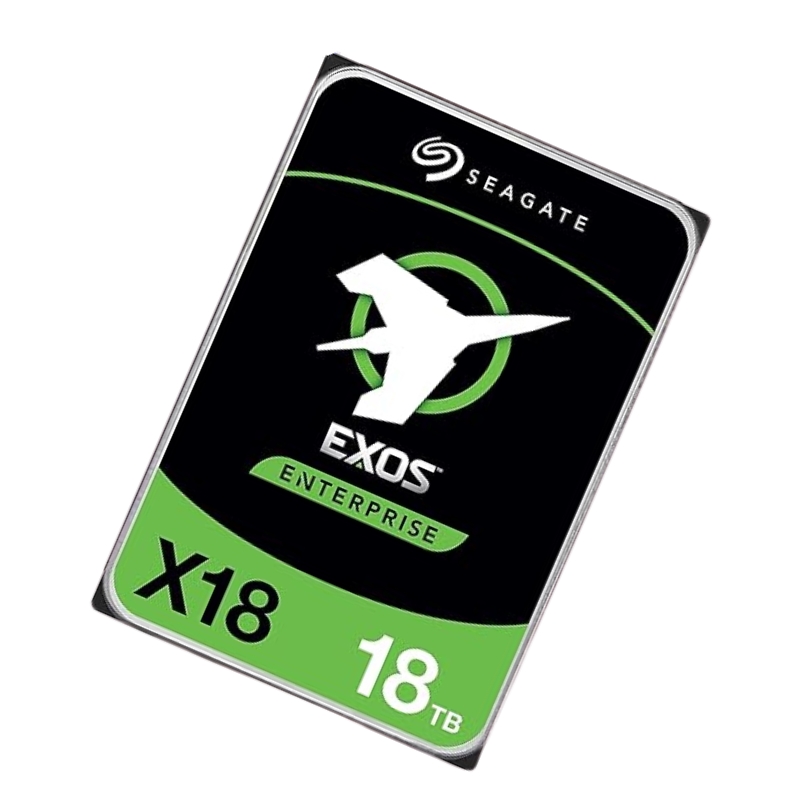

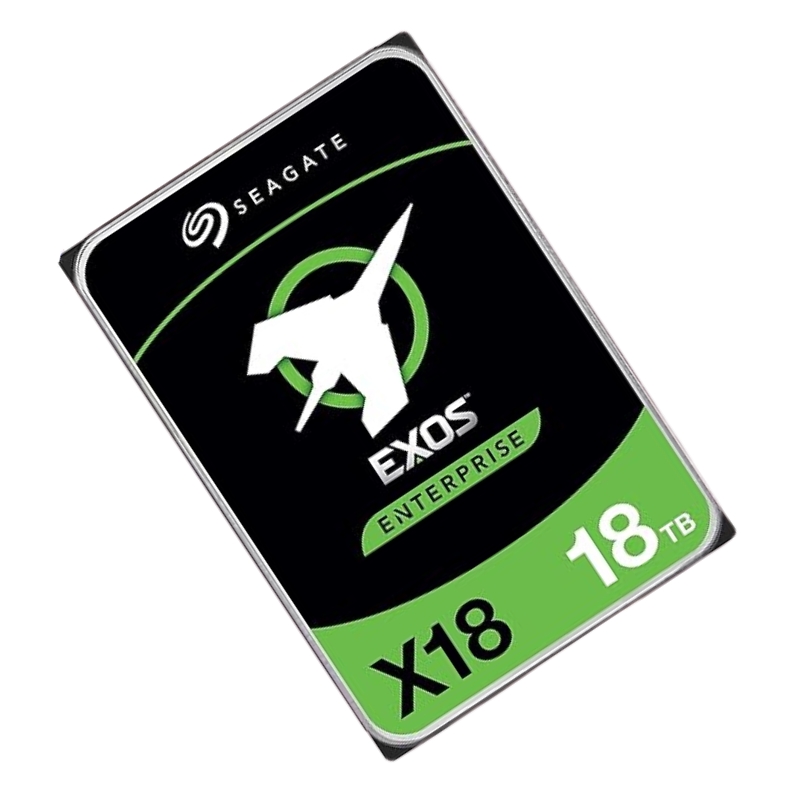

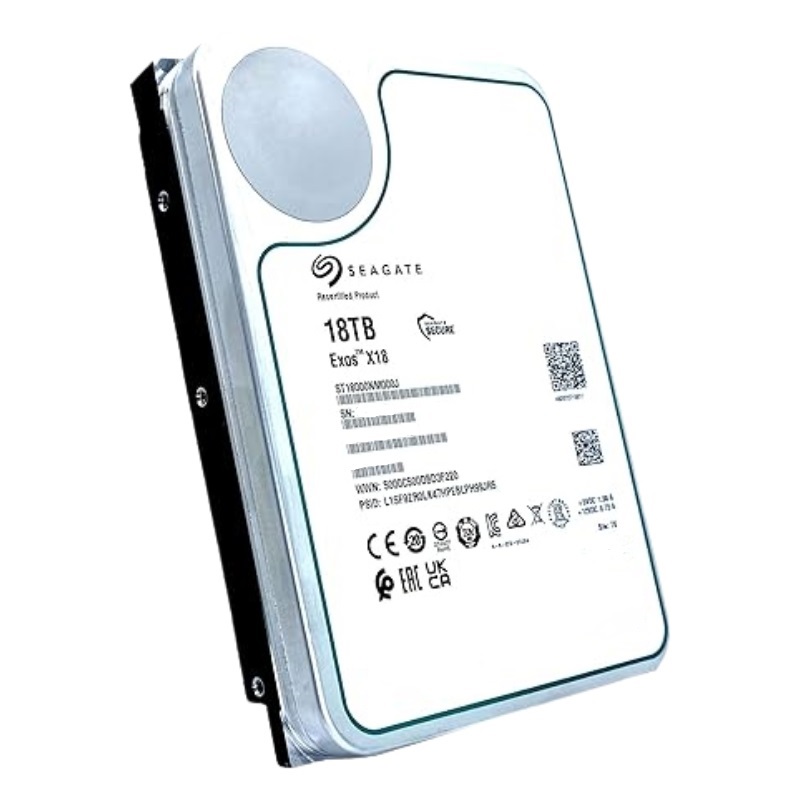

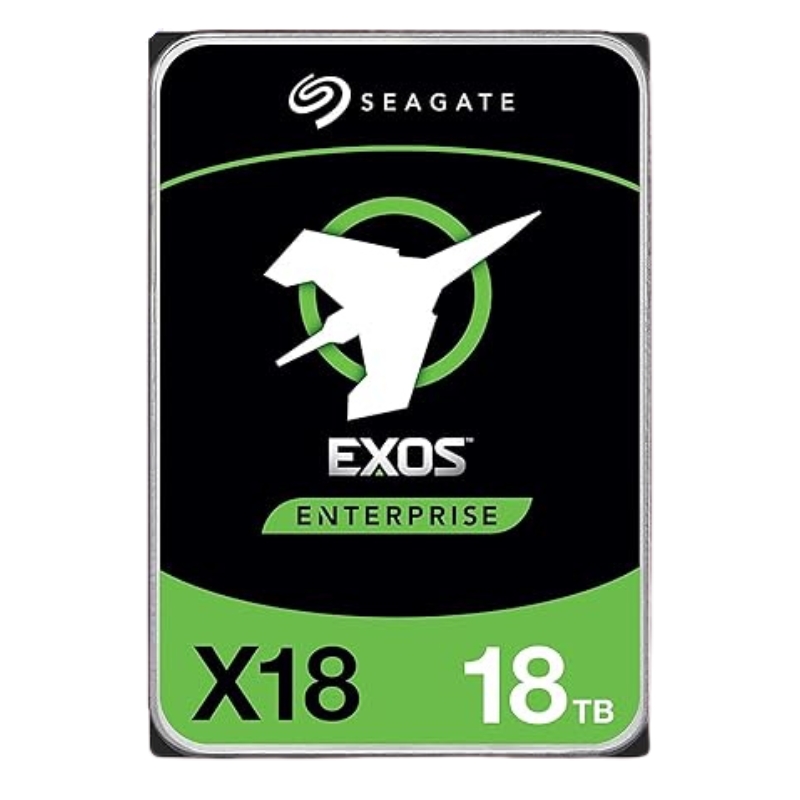

Overview of Seagate ST18000NM004J Exos X18 HDD

The Seagate Exos X18 (Model: ST18000NM004J) represents a next-generation enterprise hard drive engineered for extreme-scale storage environments. Designed to deliver ultra-high capacity, enhanced reliability, and consistent performance, this 18TB helium-sealed HDD is optimized for modern data-driven infrastructures requiring scalable and secure storage solutions.

General Information

• Manufacturer: Seagate
• Model Number: ST18000NM004J
• Product Series: Exos X18
• Drive Category: Enterprise SAS Hard Disk Drive

Technical Specifications

• Storage Capacity: 18TB ultra-large enterprise storage
• Form Factor: 3.5-inch internal drive
• Interface Type: SAS 12Gb/s high-speed connectivity
• Sector Formats: 512e and 4Kn advanced format support

Durability and Reliability Engineering

• MTBF (Mean Time Between Failures): 2.5 million hours
• Helium-sealed drive architecture for reduced friction and heat
• SuperParity technology for enhanced data integrity
• Low-halogen components for environmentally conscious design
• RSA 2048 firmware authentication for secure operation
• Organic solderability preservation for long-term stability

Data Transfer and Interface Speed

• Interface speeds: 12Gb/s, 6Gb/s, and 3Gb/s compatibility
• Sustained transfer rate (OD): up to 270 MB/s (outer diameter)
• Optimized read/write consistency under heavy workloads

IOPS and Latency Performance

• Random 4K performance (QD16): 170 read / 550 write IOPS
• Average latency: 4.16 ms for responsive access
• 256MB cache buffer for improved workload handling

Rotational and Mechanical Performance

• Spindle speed: 7200 RPM enterprise-grade rotation
• Dual-port SAS interface for redundancy and failover support

Physical Design and Mechanical Attributes

• Dimensions: 147.0 mm x 101.85 mm x 26.1 mm
• Weight: approximately 670 grams
• Standard 3.5-inch enterprise drive form factor

Compatibility and Integration Support

• Compatible with enterprise SAS storage controllers
• Supports RAID configurations (RAID 0, 1, 5, 6, 10 and more)
• Works with major server platforms and storage enclosures
• Optimized for cloud-scale and virtualization environments
• Supports distributed file systems and object storage platforms

Ideal Use Cases

• Scalable hyperscale/cloud storage solutions
• Large-scale data centers
• Big data processing applications
• High-capacity RAID storage systems
• Mainstream enterprise external storage arrays
• Distributed file systems (e.g., Hadoop, Ceph)
• Enterprise backup and restore solutions (D2D, virtual tape)
• Centralized surveillance systems

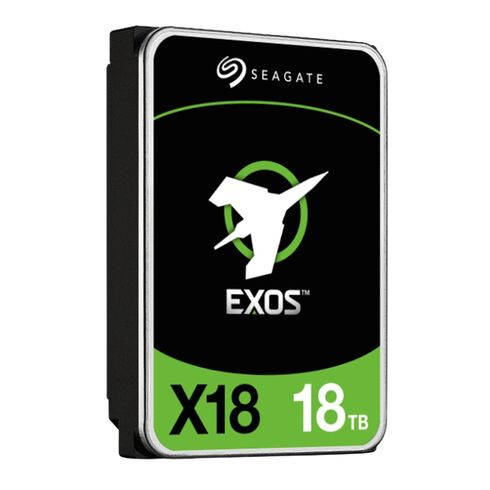

Seagate ST18000NM004J 18TB 7.2K RPM SAS 12GBPS HDD

The Seagate ST18000NM004J Internal Enterprise 18TB 7.2K RPM HDD SAS 12Gbps represents a high-performance data storage solution engineered for mission-critical enterprise environments that demand scalability, endurance, and consistent throughput. Built for hyperscale infrastructures, cloud service providers, and large-scale data repositories, this enterprise hard disk drive integrates advanced mechanical engineering with proven SAS interface technology to ensure reliable performance under continuous 24/7 workloads.

As data growth accelerates across industries such as finance, healthcare, artificial intelligence, and media archiving, the demand for high-capacity nearline storage has become increasingly essential. This 18TB enterprise HDD is positioned within the premium storage segment, where durability, workload optimization, and data integrity are prioritized alongside storage density and cost efficiency.

Seagate Enterprise Storage

The Seagate ST18000NM004J is designed using Seagate’s long-standing enterprise storage architecture, which focuses on delivering predictable performance in highly demanding server environments. The drive incorporates precision-balanced mechanical components, vibration-resistant housing, and firmware-level optimizations that support consistent read and write operations across sustained workloads.

Unlike consumer-grade hard drives, enterprise-class drives are constructed to endure significantly higher annual workload ratings, often exceeding hundreds of terabytes per year. This model is optimized specifically for large-scale data centers where multiple drives operate simultaneously in dense configurations, requiring stable performance even under continuous random and sequential access patterns.

7.2K RPM Speed

The 7,200 RPM spindle speed is carefully tuned to provide a balance between energy efficiency and high-capacity data throughput. In enterprise storage environments, rotational stability is a critical factor that directly influences latency and data access consistency. The ST18000NM004J integrates enhanced actuator control systems that minimize seek errors and reduce positional inaccuracies during rapid read/write cycles.

Mechanical precision is further reinforced through vibration dampening technologies that help mitigate the effects of multi-drive enclosure environments. This ensures consistent operation even when deployed in high-density rack-mounted server systems where airflow turbulence and mechanical resonance are common challenges.

SAS 12Gbps Interface for High-Speed Enterprise

The inclusion of a 12Gbps Serial Attached SCSI (SAS) interface significantly enhances the drive’s ability to integrate into high-performance enterprise storage networks. SAS technology is widely recognized for its superior reliability, full-duplex communication capabilities, and robust error correction features compared to traditional SATA interfaces.

The SAS 12Gbps interface enables efficient data transfer between storage arrays and server systems, ensuring minimal bottlenecks in data-intensive environments. This makes the ST18000NM004J particularly suitable for storage area networks (SAN), enterprise backup systems, and distributed cloud storage infrastructures.

Enterprise-Level Data Integrity and Signal Reliability

SAS architecture incorporates advanced signal integrity protocols that reduce data corruption risks during transmission. The ST18000NM004J benefits from these features by maintaining stable communication even under high-load conditions. This reliability is crucial for applications where data loss or corruption can result in significant operational disruptions or financial consequences.

The drive also supports dual-port connectivity, allowing redundant data paths that improve system availability and fault tolerance. In enterprise deployments, this redundancy ensures continuous data access even in the event of a path failure within the storage network.

Seamless Integration with Enterprise RAID Configurations

The ST18000NM004J is fully compatible with RAID-based storage architectures, including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 configurations. Its stable performance characteristics and predictable latency behavior make it an ideal choice for RAID arrays designed for redundancy, performance optimization, or a combination of both.

In large-scale enterprise environments, RAID systems rely heavily on consistent drive behavior to maintain data integrity and rebuild efficiency. The SAS interface ensures that rebuild processes are executed efficiently without introducing significant performance degradation across the storage array.

Massive 18TB Storage Capacity

With a storage capacity of 18 terabytes, this enterprise HDD is designed to support large-scale data retention requirements. Organizations dealing with big data analytics, cloud storage provisioning, and archival systems benefit significantly from the high-density storage capabilities of this drive.

The increasing demand for long-term data storage solutions has made high-capacity HDDs a foundational component of modern data infrastructure. The ST18000NM004J enables enterprises to consolidate storage resources, reduce physical footprint, and optimize total cost of ownership while maintaining high reliability standards.

Data consolidation is a critical strategy in modern IT environments where managing multiple smaller drives becomes inefficient and costly. The 18TB capacity allows organizations to reduce the number of physical drives required for large datasets, thereby lowering power consumption, cooling requirements, and maintenance overhead.

This consolidation also improves storage management efficiency, enabling administrators to simplify data distribution across enterprise storage arrays. As a result, system complexity is reduced while scalability is enhanced.

Performance Efficiency and Workload Optimization

The Seagate ST18000NM004J is engineered to handle enterprise workloads with consistent performance metrics. Workload optimization is achieved through firmware tuning that prioritizes balanced input/output operations, ensuring that both sequential and random access tasks are handled efficiently.

In enterprise environments where multiple applications may access storage simultaneously, maintaining balanced throughput is essential. This drive is designed to minimize performance variability, ensuring predictable behavior across diverse workloads.

Thermal Efficiency and Power Management

Thermal control is a critical factor in large-scale storage deployments. The ST18000NM004J incorporates advanced power management features that help regulate energy consumption and reduce heat output. This is particularly important in densely populated server racks where airflow and cooling efficiency must be optimized.

By maintaining lower operational temperatures, the drive enhances system reliability and extends overall service life. Efficient thermal management also contributes to reduced operational costs in data center environments.

Enterprise storage systems often operate in controlled environments where acoustic performance is a secondary but relevant consideration. The mechanical design of the ST18000NM004J ensures reduced vibration noise, making it suitable for large-scale deployments where hundreds or thousands of drives may operate simultaneously.

Reliability

Reliability is a core attribute of the Seagate ST18000NM004J, which is built to meet stringent enterprise lifecycle expectations. Designed for continuous operation, the drive undergoes rigorous testing to ensure durability under extended usage scenarios.

The enterprise-grade construction ensures resistance to mechanical wear, vibration stress, and thermal fluctuations. These factors collectively contribute to a longer operational lifespan, making the drive a dependable choice for long-term deployment strategies.

Data Protection and Integrity

Data integrity is maintained through advanced error detection and correction systems that operate at both hardware and firmware levels. These mechanisms help ensure that stored data remains accurate and accessible, even in the presence of minor physical or electrical disruptions.

In mission-critical environments, maintaining data consistency is essential for operational continuity. The ST18000NM004J is engineered to minimize risks associated with data corruption, ensuring enterprise-grade protection standards are upheld.
