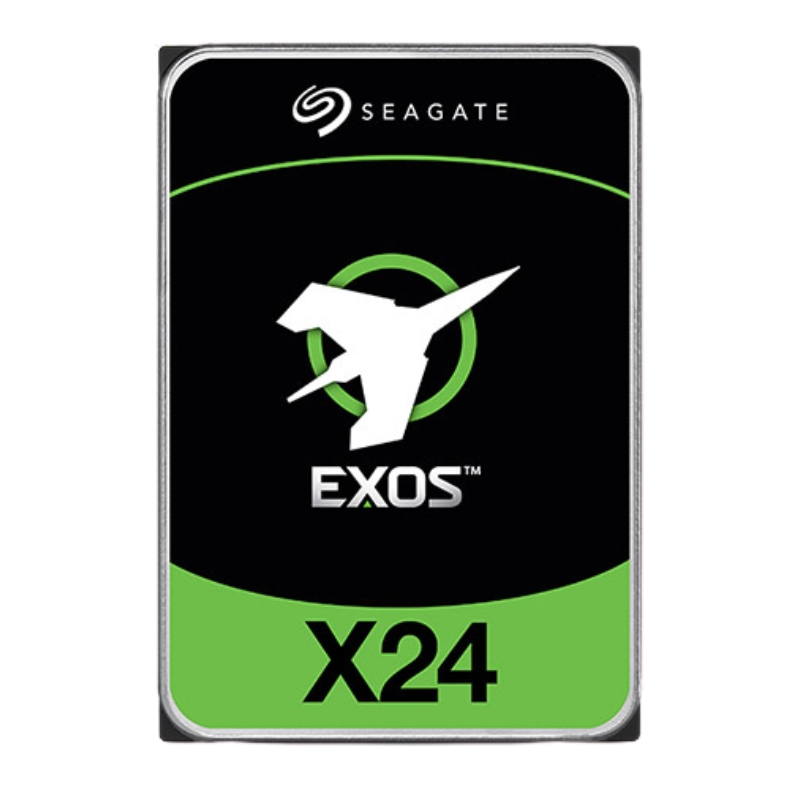

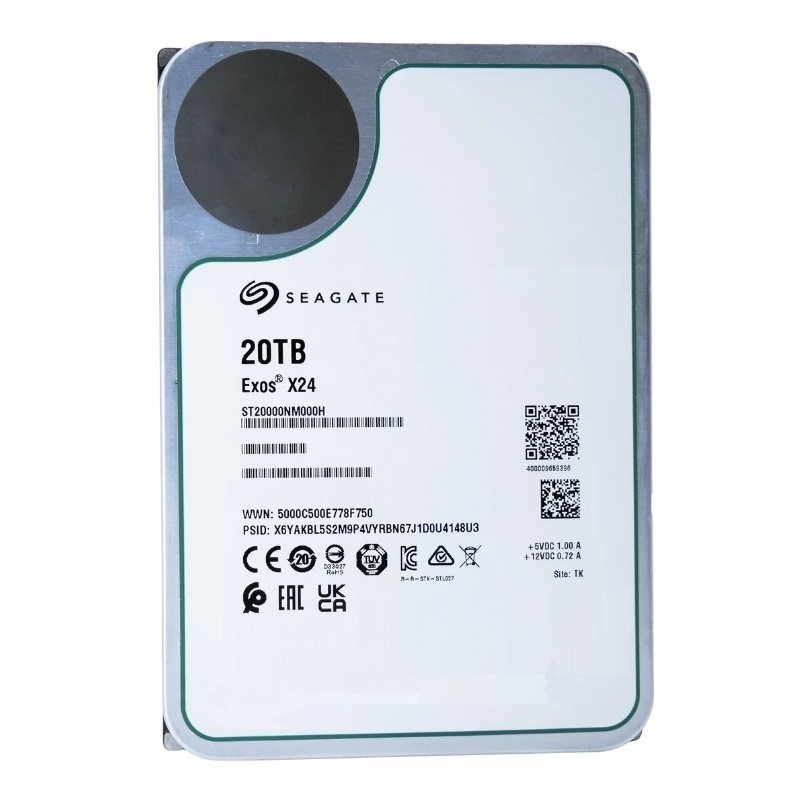

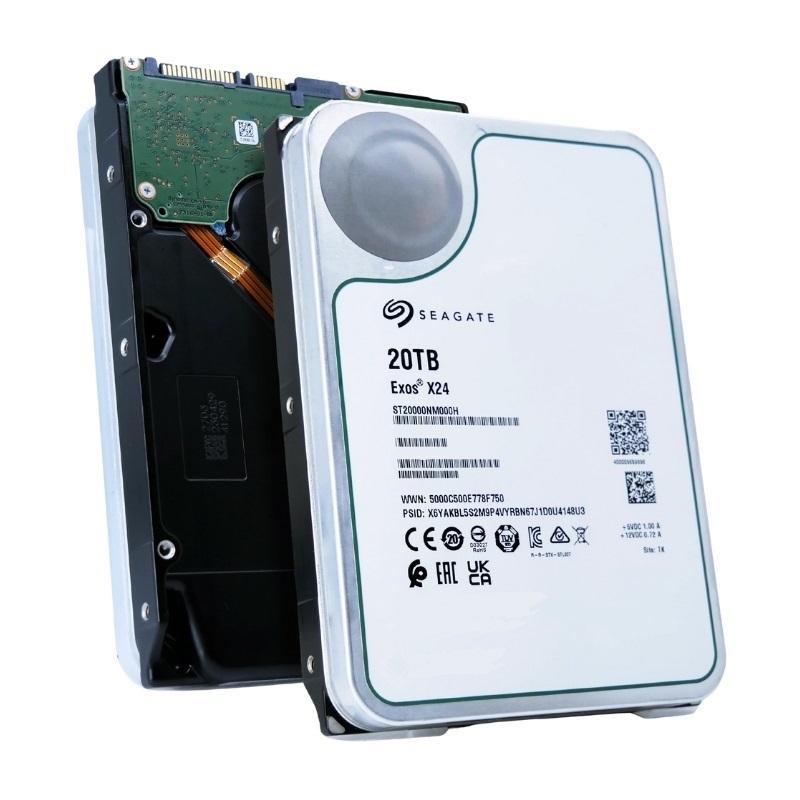

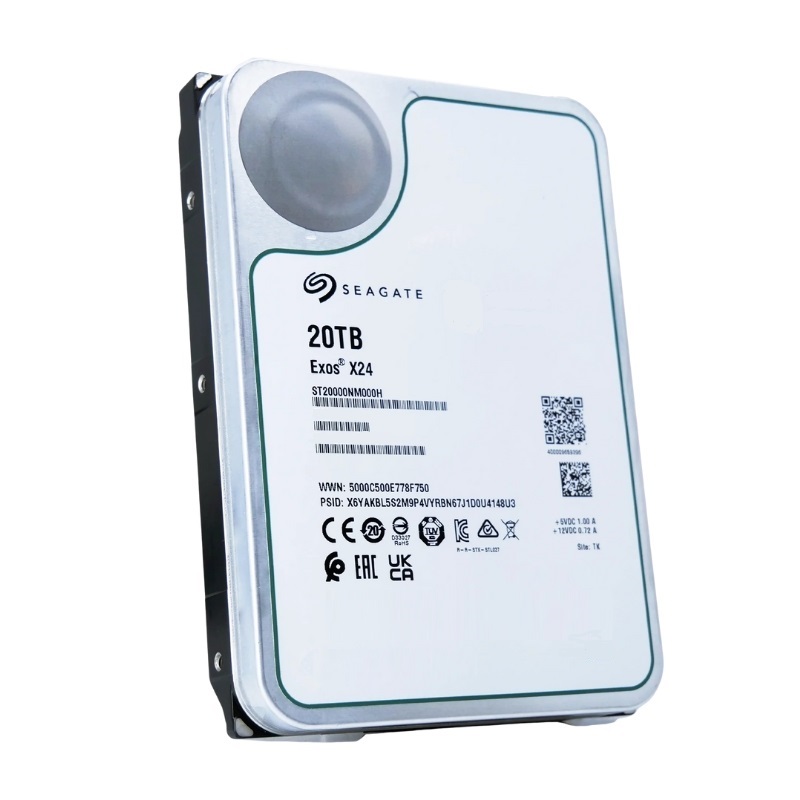

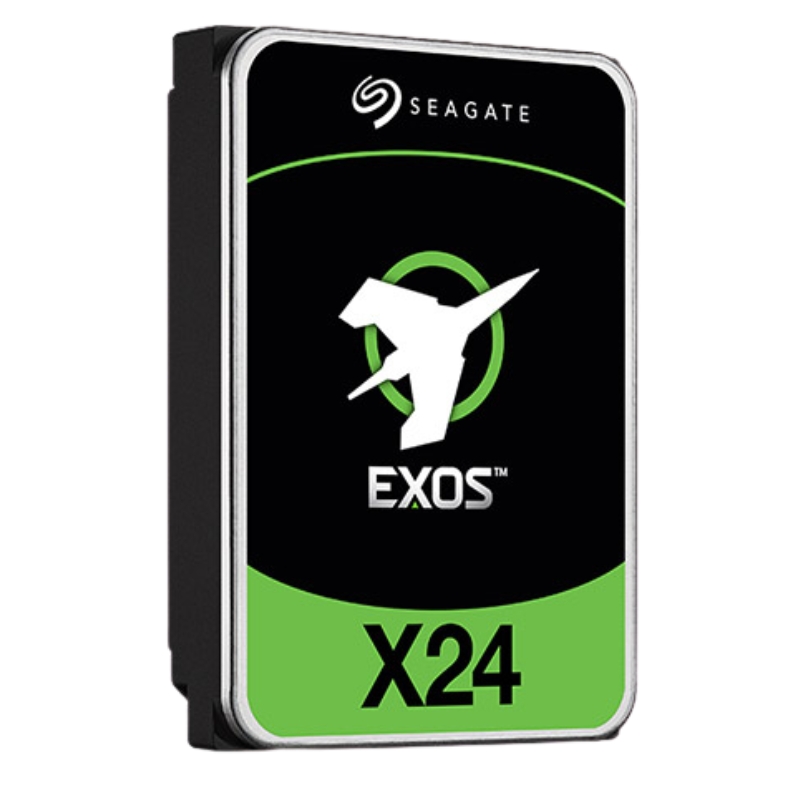

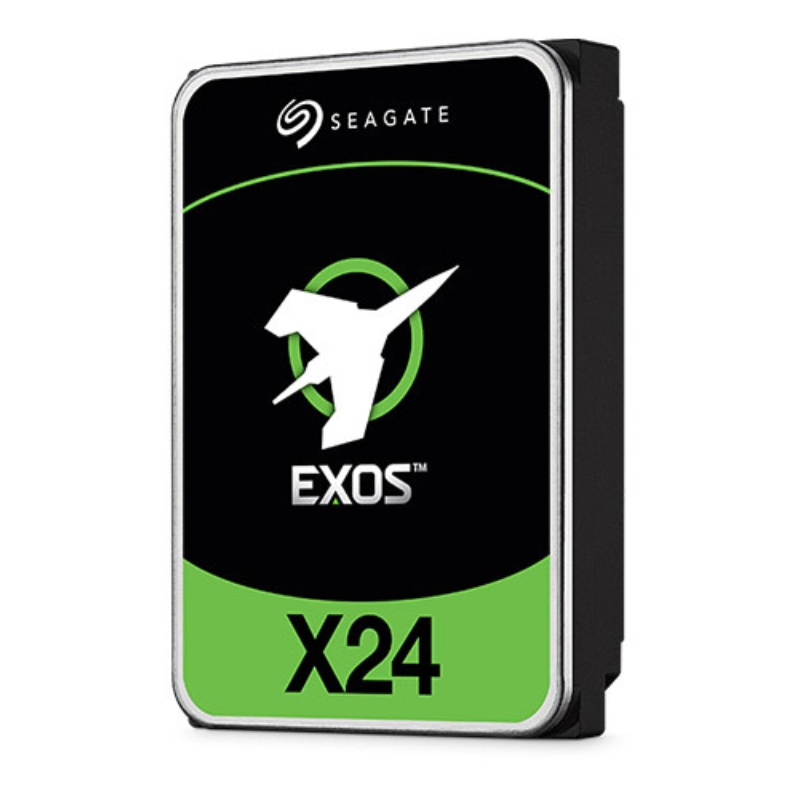

ST20000NM007H SEAGATE Exos X24 20TB 7200RPM SAS-12GBPS Enterprise HDD.

Seagate 20TB SAS-12GBPS HDD

The Seagate ST20000NM007H Exos X24 SAS 12Gb/s 20TB 7200RPM 3.5-inch Enterprise Hard Drive is a powerful storage solution designed for hyperscale data centers, cloud infrastructures, and mission-critical enterprise workloads requiring durability, scalability, and efficiency.

General Information

• Manufacturer: Seagate
• Part Number: ST20000NM007H
• Device Type: Internal Hard Drive

Best-fit Applications

Enterprise and Cloud Environments

• Scalable hyperscale applications and cloud data centers
• Massive scale-out data centers
• Big data analytics and processing

Storage Solutions

• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems including Hadoop and Ceph

Data Protection & Surveillance

• Enterprise backup and restore (D2D, virtual tape)
• Centralized surveillance systems

Key Features

Core Attributes

• Storage Capacity: 20 TB
• Enclosure: Internal
• Interface: SAS 12Gb/s
• 512e Sector Size: 512 bytes per sector
• 4Kn Sector Size: 4096 bytes per sector
• Drive Dimensions: 3.5-inch
• MTBF: 2.5 million hours
• Helium Sealed-drive Design: Yes
• Conventional Magnetic Recording (CMR): Yes
• Superparity: Yes
• Low Halogen: Yes
• PowerChoice™ Idle Power Technology: Yes
• PowerChoice™ Performance Technology: Yes
• Hot-plug Support: Yes
• Organic Solderability Preservative: Yes
• RSA 3072 Firmware Verification: Yes

Drive Performance

• Interface Access Speed: 12.0 Gb/s, 6.0 Gb/s, 3.0 Gb/s
• Sustained Data Transfer Rate (OD Max): 285/272 MB/s
• Random Read/Write 4K QD16 WCD (IOPS): 168/550
• Average Latency: 4.16 ms
• Interface Ports: Dual
• Buffer: 512 MB
• Rotational Speed: 7200 RPM

Physical Specifications

• Dimensions (L x W x H): 147.0 x 101.85 x 26.1 mm
• Weight: 685 g

Seagate ST20000NM007H Exos X24 20TB LFF HDD Overview

The Seagate ST20000NM007H Exos X24 20TB 7200RPM SAS-12Gbps enterprise hard drive represents a high-capacity, performance-driven storage solution engineered for modern data center environments. This category of enterprise-grade hard disk drives is designed to meet the increasing demands of hyperscale infrastructure, cloud storage platforms, and mission-critical applications. With its massive 20TB storage capacity and advanced SAS interface, the Exos X24 series addresses the need for scalable, reliable, and efficient data storage systems that can operate continuously under heavy workloads.

Enterprise Storage Evolution and Capacity Expansion

The exponential growth of data across industries has driven the need for higher-capacity storage solutions that do not compromise on reliability or performance. The Exos X24 20TB HDD category fits into this evolution by offering cutting-edge areal density and helium-sealed technology that allows for more platters within the same 3.5-inch form factor. This increase in capacity per drive significantly reduces the total cost of ownership by minimizing the physical footprint, power consumption, and cooling requirements in large-scale deployments.

Helium-Sealed Drive Technology

Helium-sealed technology plays a critical role in enabling higher storage densities. By replacing air with helium inside the drive enclosure, internal turbulence is reduced, allowing for smoother platter rotation and closer spacing of components. This innovation enhances both energy efficiency and reliability, making it ideal for enterprise applications that demand continuous operation and minimal downtime.

Benefits of Reduced Friction and Power Efficiency

The use of helium not only improves performance but also reduces power consumption significantly. Lower friction results in less mechanical stress on internal components, extending the lifespan of the drive. This makes the Exos X24 series a preferred choice for organizations looking to optimize operational costs while maintaining high-performance standards.

SAS 12Gbps Interface and Data Throughput

The SAS-12Gbps interface is a defining feature of this enterprise HDD category. Unlike SATA interfaces, SAS provides dual-port connectivity, enhanced error detection, and faster data transfer rates. These capabilities are essential for enterprise environments where data integrity and high availability are paramount. The 12Gbps bandwidth ensures rapid data access, making the drive suitable for data-intensive workloads such as analytics, virtualization, and large-scale databases.

Dual-Port Redundancy and High Availability

Dual-port functionality allows the drive to connect to two separate controllers simultaneously, ensuring continuous data access even if one path fails. This redundancy is critical for maintaining uptime in mission-critical systems and aligns with enterprise requirements for fault tolerance and reliability.

Advanced Error Correction Mechanisms

The SAS interface incorporates advanced error correction technologies that enhance data integrity. These mechanisms detect and correct errors in real time, reducing the risk of data loss and ensuring consistent performance across various workloads.

7200RPM Performance Optimization

The 7200RPM rotational speed of the Exos X24 drive strikes a balance between performance and energy efficiency. While faster speeds may offer marginally improved access times, the 7200RPM configuration is optimized for enterprise workloads that prioritize reliability and sustained throughput over short bursts of speed.

Consistent Data Access and Reliability

Maintaining consistent rotational speed ensures stable data access patterns, which is crucial for applications such as cloud storage and backup systems. The drive is designed to handle high workloads with minimal latency variations, ensuring predictable performance.

Workload Optimization for Data Centers

Enterprise data centers often require drives that can handle heavy read and write operations continuously. The Exos X24 category is engineered to support high workload ratings, making it suitable for environments where data is constantly being accessed, modified, and stored.

512MB Cache Buffer and Performance Enhancement

The 512MB buffer cache significantly improves the drive’s ability to manage data efficiently. This large cache size allows for better handling of read and write operations by temporarily storing frequently accessed data. It reduces latency and improves overall system responsiveness, especially in environments with high I/O demands.

Intelligent Caching Algorithms

Advanced caching algorithms dynamically adjust how data is stored and retrieved within the buffer. These algorithms prioritize frequently accessed data, ensuring faster retrieval times and improved performance across various applications.

Reduced Latency in High-Demand Workloads

By utilizing a large buffer, the drive minimizes delays associated with data access. This is particularly beneficial for applications such as real-time analytics and transactional databases where speed is critical.

Enhanced Multi-User Performance

In environments with multiple users accessing data simultaneously, the cache buffer helps distribute workloads efficiently. This ensures smooth operation without bottlenecks, even during peak usage periods.

ISE Technology and Data Security

Instant Secure Erase technology is a vital feature within this enterprise HDD category. It enables rapid and secure deletion of data by instantly rendering it unreadable. This capability is essential for organizations that handle sensitive information and must comply with data protection regulations.

Data Protection and Compliance

ISE technology ensures that data can be securely erased without the need for time-consuming overwrite processes. This helps organizations meet compliance requirements for data security and privacy.

Enhanced Security for Enterprise Environments

In addition to ISE, the drive includes features designed to protect against unauthorized access and data breaches. These security measures are crucial for maintaining trust and safeguarding critical information.

3.5-Inch Form Factor and Infrastructure Compatibility

The standard 3.5-inch form factor ensures compatibility with a wide range of enterprise storage systems. This makes the Exos X24 category easy to integrate into existing infrastructures without requiring significant modifications.

Seamless Integration with Existing Systems

Organizations can deploy these drives within their current setups without the need for specialized hardware. This simplifies the upgrade process and reduces implementation costs.

Optimized Space Utilization

The high capacity of each drive allows for fewer units to achieve the same storage goals. This leads to better space utilization within data centers, freeing up room for additional infrastructure.

Scalability for Future Expansion

The modular nature of enterprise storage systems allows for easy scalability. As data requirements grow, additional drives can be added without disrupting existing operations.

Use Cases and Application Scenarios

The Seagate Exos X24 20TB HDD category is suitable for a wide range of enterprise applications. Its combination of high capacity, performance, and reliability makes it ideal for data centers, cloud storage providers, and large-scale IT infrastructures.

Cloud Storage and Hyperscale Deployments

Cloud service providers benefit from the drive’s ability to store vast amounts of data efficiently. Its scalability and reliability support the dynamic nature of cloud environments.

Big Data Analytics and AI Workloads

Data-intensive applications such as analytics and artificial intelligence require fast and reliable access to large datasets. The Exos X24 category meets these demands with consistent performance.

Backup and Archival Storage

For organizations that need to store data long-term, the drive offers a cost-effective solution with high capacity and dependable performance.
