SFP25-SR-SP Qlogic 25GE 850nm SW Transceiver Module

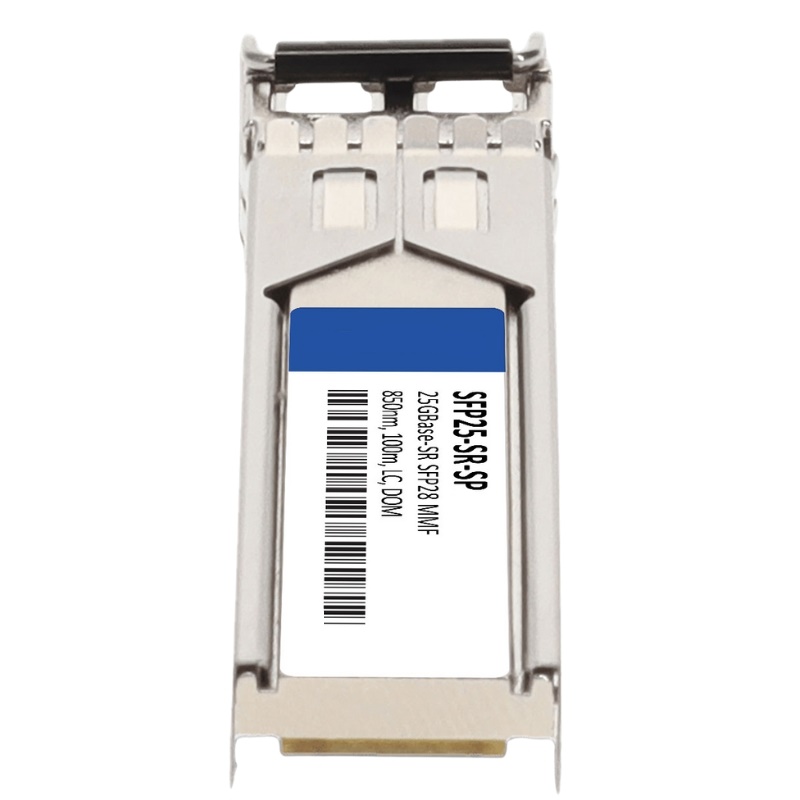

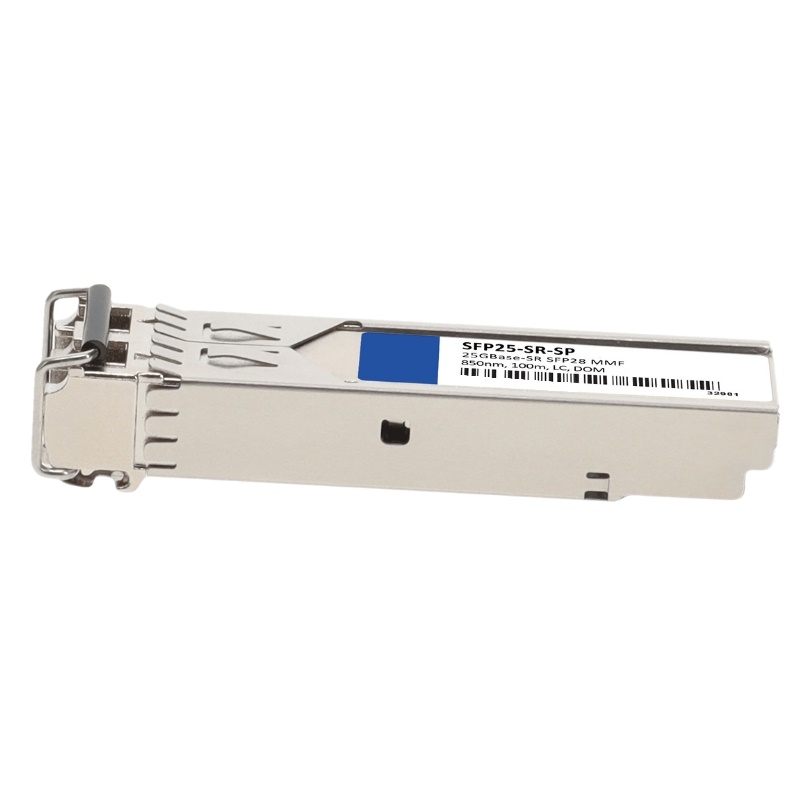

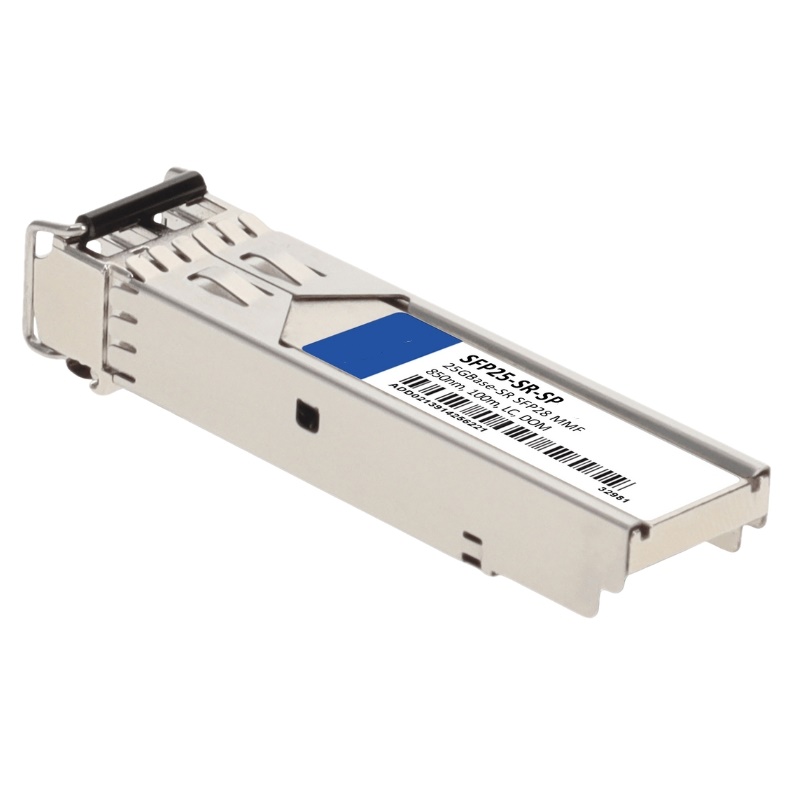

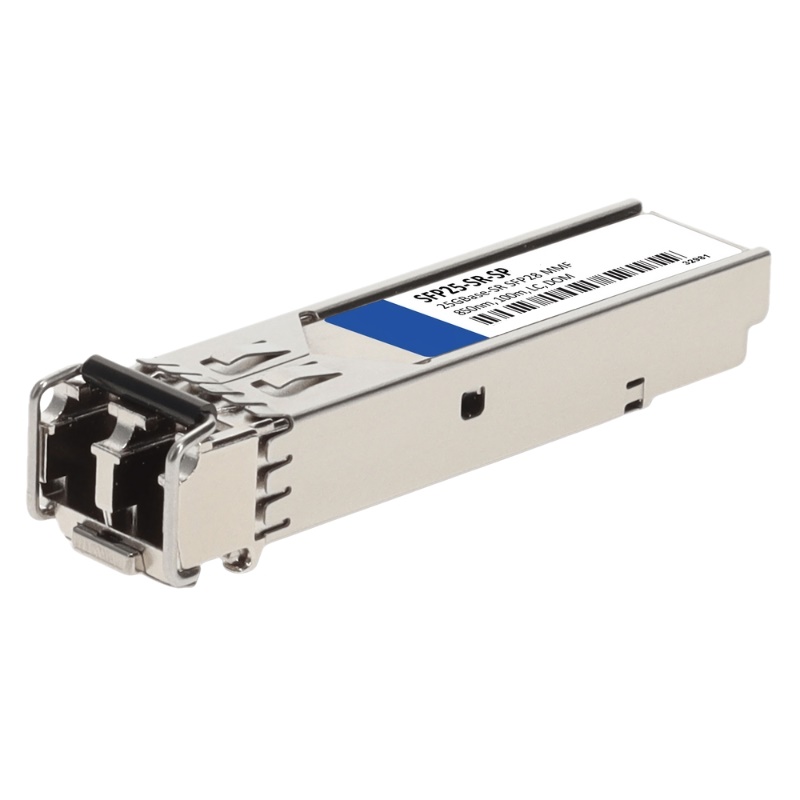

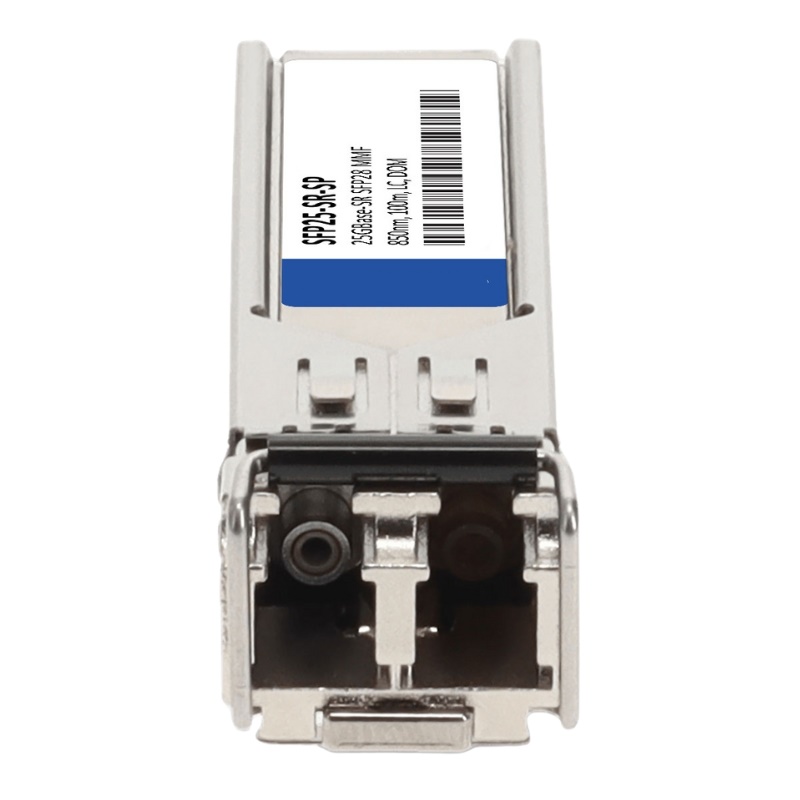

QLogic SFP25-SR-SP 25GE 850nm Short Transceiver Module

The QLogic SFP25-SR-SP 25GE 850nm Short Wavelength Transceiver Module represents a high-performance optical networking solution designed for modern enterprise and data center environments requiring ultra-fast, low-latency data transmission. Built to support 25 Gigabit Ethernet (25GbE) standards, this optical module delivers exceptional throughput while maintaining energy efficiency and reliable signal integrity over multimode fiber infrastructure. It is engineered for high-density switching platforms, cloud computing systems, storage area networks, and hyperscale architectures where bandwidth demand continues to increase rapidly.

As part of the SFP28 form factor family, this transceiver enables seamless integration into existing networking equipment that supports enhanced small form-factor pluggable interfaces. Its 850nm short wavelength laser design ensures compatibility with multimode fiber (MMF) cabling, making it a cost-effective solution for short-range connectivity within racks, across adjacent racks, or within the same data center row.

Technical Architecture of QLogic SFP25-SR-SP Transceiver

Optimized Electrical and Optical Signal Conversion System

Integrated Serializer/Deserializer (SerDes) Technology

At the core of the QLogic SFP25-SR-SP module lies a sophisticated electrical-to-optical conversion system that ensures high-speed data transmission without degradation. The integrated SerDes architecture converts parallel electrical signals into high-speed serial optical signals, enabling efficient 25Gbps communication per channel. This architecture reduces signal distortion, minimizes jitter, and enhances overall transmission stability in demanding network environments.

850nm VCSEL Laser Implementation

The module utilizes Vertical Cavity Surface Emitting Laser (VCSEL) technology operating at 850nm wavelength, specifically optimized for multimode fiber transmission. VCSEL technology is widely recognized for its energy efficiency, low production cost, and stable optical performance. It supports high-speed modulation required for 25GE applications while maintaining low power consumption compared to longer wavelength alternatives.

Digital Diagnostics Monitoring Interface

Advanced Digital Diagnostics Monitoring (DDM) capabilities allow real-time tracking of key operating parameters such as temperature, voltage, laser bias current, and optical output power. This feature enhances network reliability by enabling proactive maintenance and early detection of potential issues, reducing downtime in mission-critical environments.

Optical Performance and Signal Characteristics

Short Range Multimode Fiber Transmission Capabilities

850nm Wavelength Efficiency and Stability

Operating at an 850nm wavelength, the QLogic SFP25-SR-SP module is specifically designed for short-range optical communication over multimode fiber types such as OM3 and OM4. The short wavelength allows for efficient light propagation through the core of the fiber, minimizing modal dispersion and ensuring high-quality signal delivery over distances typically used within data centers.

High Bandwidth Density and Low Latency Operation

The module supports 25Gbps per lane transmission, making it suitable for high-density networking environments where latency and throughput are critical. This level of performance ensures smooth handling of cloud workloads, virtualization traffic, and storage replication processes, where consistent high-speed communication is essential.

Enhanced Optical Power Budget Efficiency

The optical power budget of the module is carefully engineered to balance transmission distance, signal attenuation, and receiver sensitivity. This ensures reliable data delivery across supported multimode fiber distances without compromising link stability or introducing packet loss.

Compatibility with Networking Infrastructure

Integration with Modern SFP28 Ports

Switch and Router Compatibility Across Enterprise Systems

The QLogic SFP25-SR-SP module is compatible with a wide range of networking equipment featuring SFP28 ports, including high-performance Ethernet switches, modular routers, and top-of-rack (ToR) data center switches. Its standardized form factor allows for plug-and-play installation in supported devices without requiring additional configuration.

Backward and Forward Compatibility Considerations

Although designed for 25GbE environments, the module is often compatible with multi-rate networking hardware that supports 10GbE or 40GbE via breakout configurations. This flexibility makes it a strategic choice for scalable network upgrades, allowing organizations to transition gradually from legacy systems to higher-speed architectures.

Fiber Cabling and Infrastructure Requirements

Multimode Fiber Optimization for Data Centers

OM3 and OM4 Fiber Cable Support

This transceiver is optimized for use with OM3 and OM4 multimode fiber cables, which are commonly deployed in modern data centers. These fiber types offer improved bandwidth-distance performance compared to older OM1 and OM2 standards, enabling reliable 25Gbps transmission over practical distances.

LC Duplex Connector Standardization

The module typically uses LC duplex connectors, which are widely adopted in enterprise networking environments due to their compact size and high reliability. These connectors ensure secure optical alignment and minimize insertion loss during signal transmission.

Structured Cabling in High-Density Environments

In high-density rack environments, structured cabling plays a crucial role in maintaining airflow, reducing cable congestion, and ensuring efficient maintenance. The SFP25-SR-SP module integrates seamlessly into structured cabling systems designed for hyperscale and enterprise data centers.

Enterprise and Data Center Applications

High-Performance Computing and Cloud Infrastructure

Support for Virtualized Network Environments

The QLogic SFP25-SR-SP transceiver is widely used in virtualized computing environments where rapid data exchange between servers, storage systems, and network devices is required. It supports virtualization technologies by ensuring consistent bandwidth availability and low latency communication between virtual machines and hypervisors.

Cloud Data Center Scalability

Cloud service providers rely on 25GbE connectivity to scale their infrastructure efficiently. This transceiver supports scalable network topologies that allow seamless expansion of compute and storage resources without compromising performance.

Storage Area Network Optimization

In Storage Area Networks (SANs), high-speed optical connectivity is essential for maintaining data integrity and reducing access latency. The SFP25-SR-SP module enhances SAN performance by enabling rapid data replication, backup operations, and distributed storage synchronization.

Signal Integrity and Network Reliability

Low Bit Error Rate Transmission Design

Advanced Error Reduction Mechanisms

The module is engineered to maintain a very low bit error rate (BER), ensuring that data transmission remains accurate even in high-traffic network environments. This is achieved through precise optical alignment, high-quality laser components, and optimized electrical signal processing.

Thermal Stability and Operational Consistency

Thermal management is critical in optical transceivers, especially in dense deployments. The QLogic SFP25-SR-SP is designed to operate efficiently within standard data center temperature ranges, maintaining stable performance even under continuous load conditions.

Jitter Reduction and Timing Accuracy

Minimizing jitter is essential for maintaining synchronization in high-speed networks. The internal circuitry of this transceiver ensures precise timing alignment, reducing data packet delay variation and improving overall network quality.

Automatic Link Detection and Configuration

Once installed, the module automatically detects link parameters and negotiates appropriate transmission settings with connected devices. This simplifies deployment and reduces configuration complexity in large-scale networks.

Best Practices for Deployment Stability

Proper handling, correct fiber insertion, and dust-free environments contribute to optimal performance. Ensuring clean optical interfaces and secure connections enhances long-term stability and minimizes signal loss.

Data Center Optimization and Scalability

High-Density Networking Architecture Support

Rack-Level Connectivity Enhancement

The module plays a critical role in rack-level connectivity, enabling efficient communication between servers and top-of-rack switches. This reduces bottlenecks and improves overall system throughput.

Energy Efficient Networking Infrastructure

Energy efficiency is a key consideration in modern data centers. The QLogic SFP25-SR-SP module consumes relatively low power compared to higher-wavelength long-range optics, contributing to reduced operational costs and improved sustainability.

Scalable Network Growth Strategy

Organizations can scale their networks incrementally using 25GbE optics, allowing for gradual upgrades from 10GbE infrastructures. This ensures cost-effective expansion while maintaining performance consistency.

Advantages of QLogic SFP25-SR-SP Transceiver Module

Performance Efficiency and Reliability Benefits

Consistent High-Speed Data Delivery

The module ensures consistent 25Gbps data transmission, making it ideal for environments requiring predictable network performance. Its robust optical design ensures minimal packet loss and stable connectivity under heavy workloads.

Reduced Latency for Time-Sensitive Applications

Applications such as financial trading platforms, real-time analytics systems, and distributed computing environments benefit from the ultra-low latency characteristics of this transceiver module.

Durability in Continuous Operation Environments

Designed for 24/7 operation, the QLogic SFP25-SR-SP module is built to withstand continuous network traffic loads common in enterprise and cloud infrastructures.
