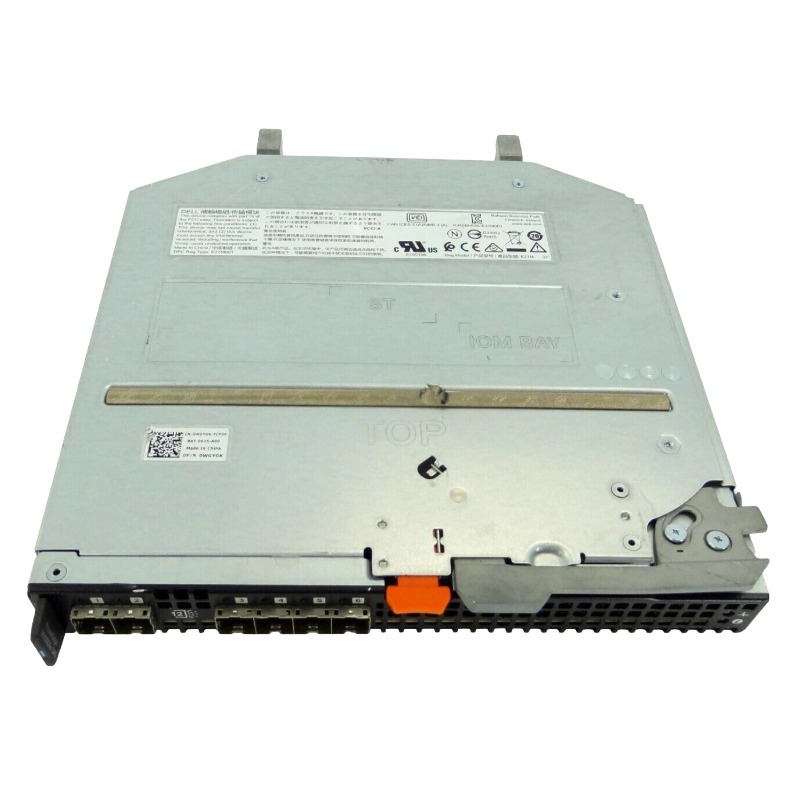

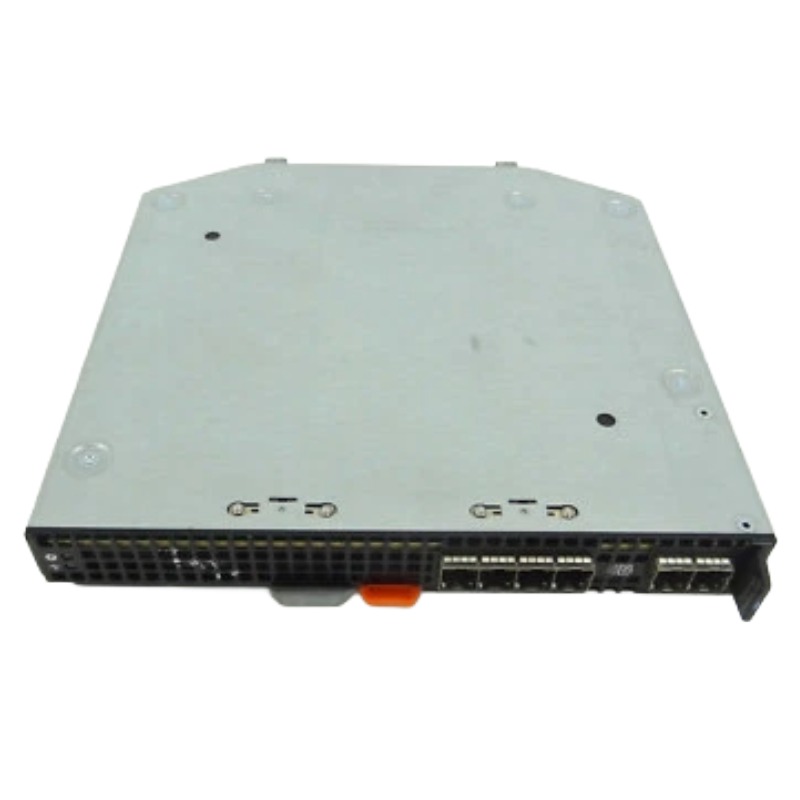

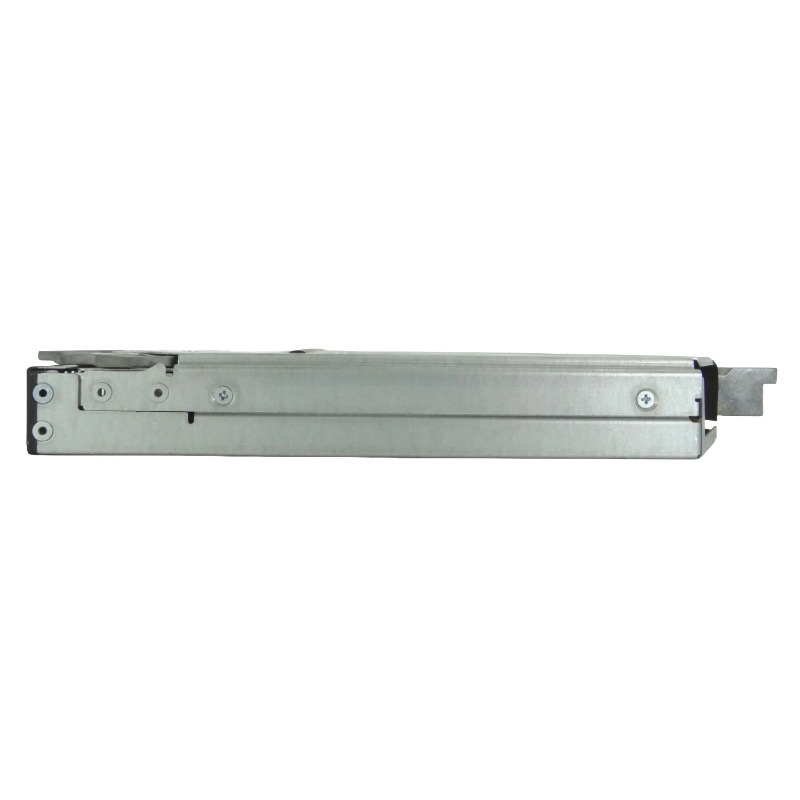

544-BBCJ Dell SAS 12GBPS Hot-swap Iom I/o Module

Dell 544-BBCJ SAS 12Gbps Hot-Swap I/O Module Overview

High-Performance Storage Connectivity Expansion Module

The Dell 544-BBCJ SAS 12Gbps Hot-Swap I/O Module is engineered to enhance enterprise storage performance by enabling high-speed SAS connectivity and flexible system expansion. Designed for PowerVault environments, this expansion component improves data throughput, scalability, and system reliability in demanding storage infrastructures.

Core Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 544-BBCJ
• Product Category: Expansion / I/O Module
• Deployment Type: Hot-swappable design for seamless replacement

Advanced SAS 3.0 Architecture

Next-Generation Data Transfer Capability

Built on SAS 3.0 technology, this module supports a robust 12 Gb/s signaling rate, ensuring rapid and efficient communication between storage components. It is optimized for high-density data centers where speed and stability are critical.

Technical Advantages

• SAS Version: SAS 3.0 compliant
• Maximum Transfer Rate: Up to 12 Gb/s per lane
• Enhanced throughput for enterprise storage arrays
• Improved data integrity and signal reliability

Scalable Connectivity Architecture

Flexible SAS Link Configuration

The Dell 544-BBCJ module provides a structured SAS link architecture that enables scalable storage expansion and efficient data routing across connected systems. Its balanced design supports both internal and external connectivity requirements.

Link Specifications

• SAS Link Width: x4 high-speed channel configuration
• Internal SAS Links: 8 integrated internal connections
• External SAS Links: 6 external connectivity ports

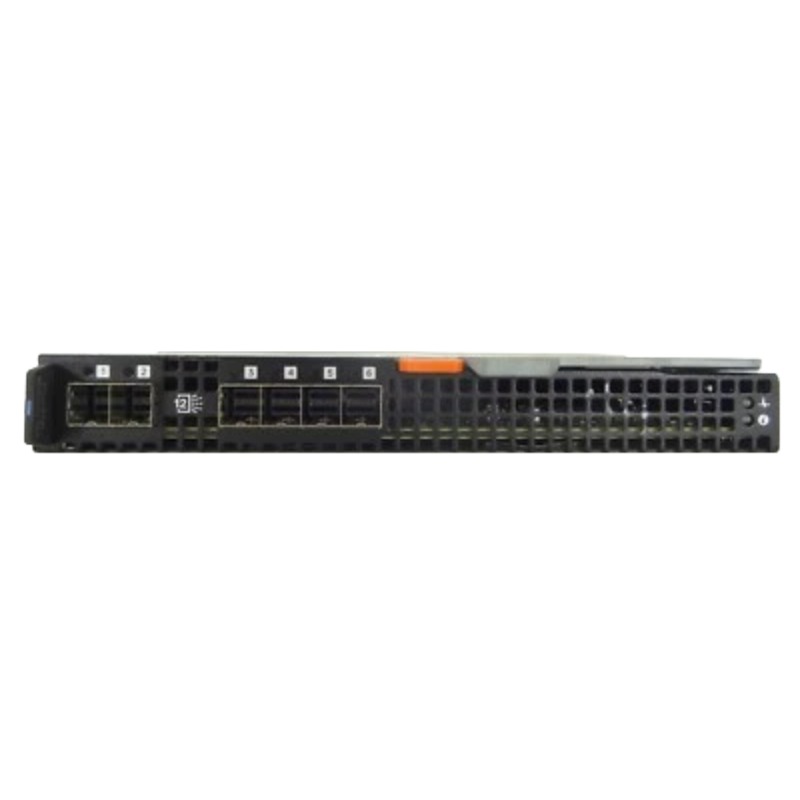

External Interface Design

Featuring x4 external mini-SAS HD connectors, this module ensures reliable external device attachment and high-bandwidth communication between storage enclosures, making it suitable for modular enterprise deployments.

PowerVault System Integration

Optimized Compatibility and Deployment

Specifically designed for Dell PowerVault systems, this I/O module integrates seamlessly into supported infrastructure, enhancing storage expansion capabilities without requiring complex configuration changes.

Integration Benefits

• Native compatibility with PowerVault storage environments
• Hot-swap functionality for minimal downtime
• Streamlined installation and maintenance process
• Supports continuous system operation during upgrades

Enterprise-Level Performance Benefits

Reliability and High Availability

The Dell 544-BBCJ module is built for mission-critical environments where uptime and performance consistency are essential. Its hot-swappable architecture reduces service interruptions and enhances operational efficiency.

Operational Advantages

• Reduced system downtime through hot-swap capability
• Stable high-speed SAS communication channels
• Optimized for data-intensive workloads
• Supports scalable enterprise storage expansion

Use Cases in Modern Data Infrastructure

Ideal Applications

This SAS expansion module is widely used in enterprise storage arrays, data centers, virtualization environments, and high-performance computing setups where fast and reliable storage interconnects are required.

Typical Deployment Scenarios

• Enterprise SAN (Storage Area Network) expansion
• Data center storage scaling solutions
• High-availability server storage systems
• Backup and archival storage infrastructures

Dell 544-BBCJ SAS 12Gbps Hot-swap IOM I/O Module

The Dell 544-BBCJ SAS 12Gbps Hot-swap IOM I/O Module is a high-performance storage interconnect component designed for enterprise-grade Dell server environments. It plays a crucial role in managing data flow between storage enclosures and server nodes, particularly within Dell PowerEdge modular and blade infrastructure systems. Built to support 12Gbps SAS (Serial Attached SCSI) technology, this I/O module ensures high-speed, low-latency communication for demanding workloads, including virtualization, database management, cloud computing, and high-availability enterprise applications. Its hot-swap capability allows for seamless replacement without shutting down the system, ensuring uninterrupted service continuity in mission-critical operations.

Core Architecture and Engineering Design

Advanced Modular Design Structure

The Dell 544-BBCJ SAS 12Gbps Hot-swap IOM I/O Module is engineered with a compact yet robust modular architecture that integrates smoothly into Dell enclosure systems. Its design emphasizes high-density connectivity, enabling multiple storage channels to be efficiently managed through a single module. The internal architecture is optimized for signal integrity and minimal latency, ensuring stable communication between disk arrays and server compute nodes.

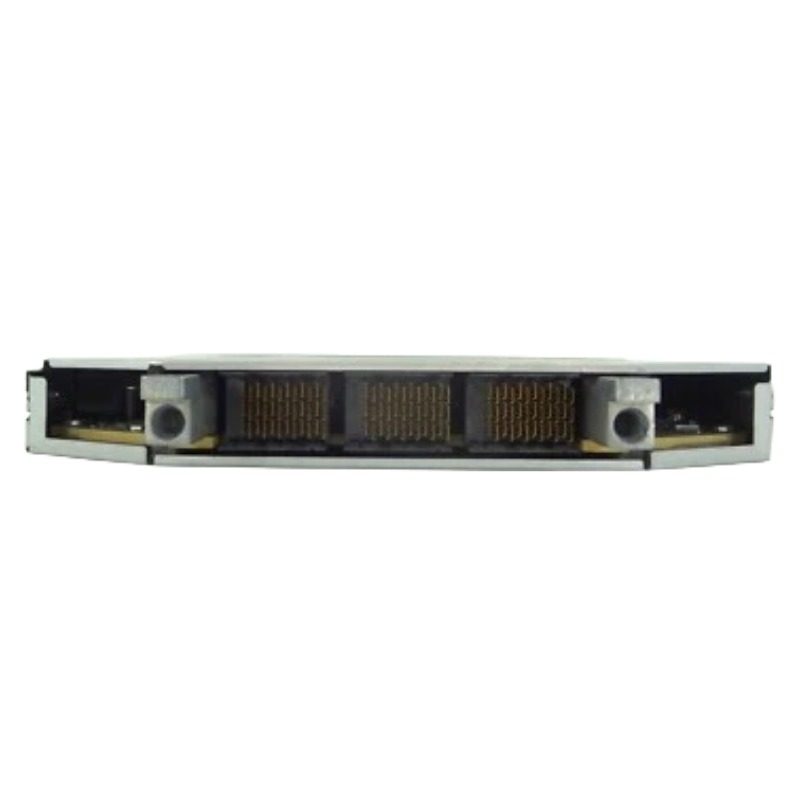

Backplane Integration and Signal Routing

This I/O module is tightly integrated with the storage backplane, allowing it to route SAS signals efficiently across multiple drives and enclosures. The backplane interaction reduces cable complexity while improving airflow and thermal performance inside the chassis. Signal routing is optimized to maintain 12Gbps throughput consistency, even under heavy data loads or multi-user environments.

Thermal and Power Efficiency Design

Thermal management is a critical component of the Dell 544-BBCJ module. It incorporates optimized heat dissipation pathways and energy-efficient circuitry that reduces overall power consumption. This ensures stable performance in high-temperature data center environments while maintaining consistent operational reliability. The module is designed to align with Dell’s enterprise thermal zoning strategy to minimize overheating risks.

SAS 12Gbps Technology Implementation

High-Speed Data Transfer Capabilities

The SAS 12Gbps interface provides double the throughput of the previous 6Gbps generation, enabling faster data movement across storage arrays and compute nodes. This improvement significantly reduces bottlenecks in large-scale storage environments where high-volume data transactions occur continuously. The Dell 544-BBCJ module leverages this bandwidth to support enterprise workloads requiring rapid disk access and real-time processing.

Full-Duplex Communication Model

One of the defining characteristics of SAS technology in this module is its full-duplex communication capability. This allows simultaneous read and write operations, enhancing system efficiency and reducing latency in data-heavy applications. It is especially beneficial in virtualization environments where multiple virtual machines access shared storage resources concurrently.

Backward Compatibility Features

Despite being a 12Gbps module, the Dell 544-BBCJ maintains backward compatibility with 6Gbps and 3Gbps SAS devices. This ensures seamless integration into hybrid storage environments where legacy drives coexist with newer high-speed SSDs or HDDs. The compatibility layer automatically negotiates optimal transfer speeds without manual configuration.

Hot-Swap Functionality and System Continuity

Non-Disruptive Maintenance Capability

The hot-swap functionality of the Dell 544-BBCJ SAS 12Gbps Hot-swap IOM I/O Module allows administrators to replace or upgrade the module without powering down the system. This is essential in enterprise environments where downtime can result in significant operational losses. The module can be safely removed and inserted while the system remains active, maintaining data integrity throughout the process.

Fault Isolation and Failover Support

In the event of a module failure, the system is designed to isolate faults and redirect data traffic through redundant pathways. This ensures continuous availability and minimizes the risk of data loss or service interruption. The redundancy architecture works in conjunction with Dell’s storage controllers to provide resilient failover mechanisms.

Operational Safety Mechanisms

The module includes built-in safeguards that prevent electrical surges or data corruption during insertion or removal. These mechanisms ensure that both hardware and firmware components remain protected during hot-swapping operations. Status indicators provide real-time feedback to administrators regarding module health and readiness.

Performance Optimization and Data Throughput

Low-Latency Data Processing

The Dell 544-BBCJ module is engineered to minimize latency in data transfer operations. By optimizing internal signal pathways and leveraging SAS 12Gbps bandwidth, it ensures rapid access to stored data, which is essential for real-time applications such as analytics, virtualization, and transactional databases.

Scalability in High-Demand Environments

This module supports scalable storage expansion, allowing organizations to increase storage capacity without compromising performance. As additional drives or enclosures are added, the module maintains consistent throughput, ensuring that system performance remains stable under increasing workloads.

Workload Balancing Capabilities

The system distributes data traffic efficiently across multiple channels, preventing congestion and ensuring balanced resource utilization. This is particularly important in environments running mixed workloads, where different applications compete for storage resources simultaneously.
