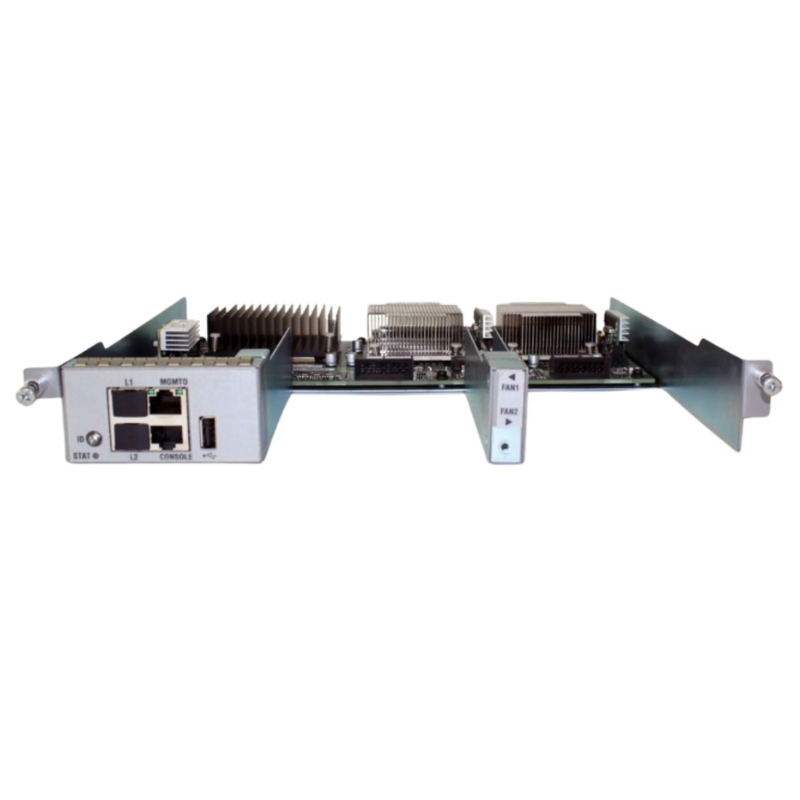

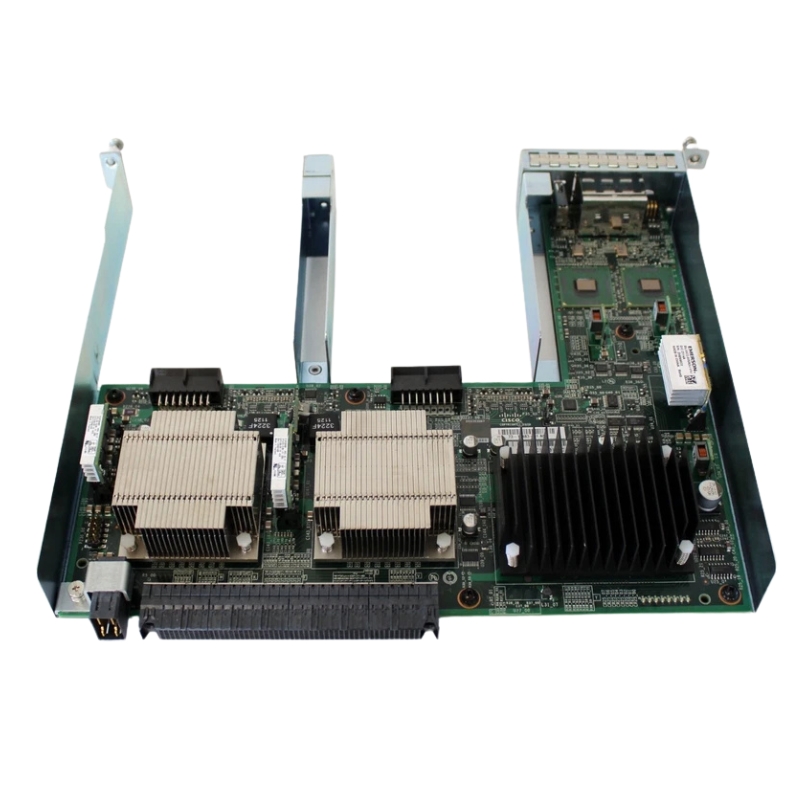

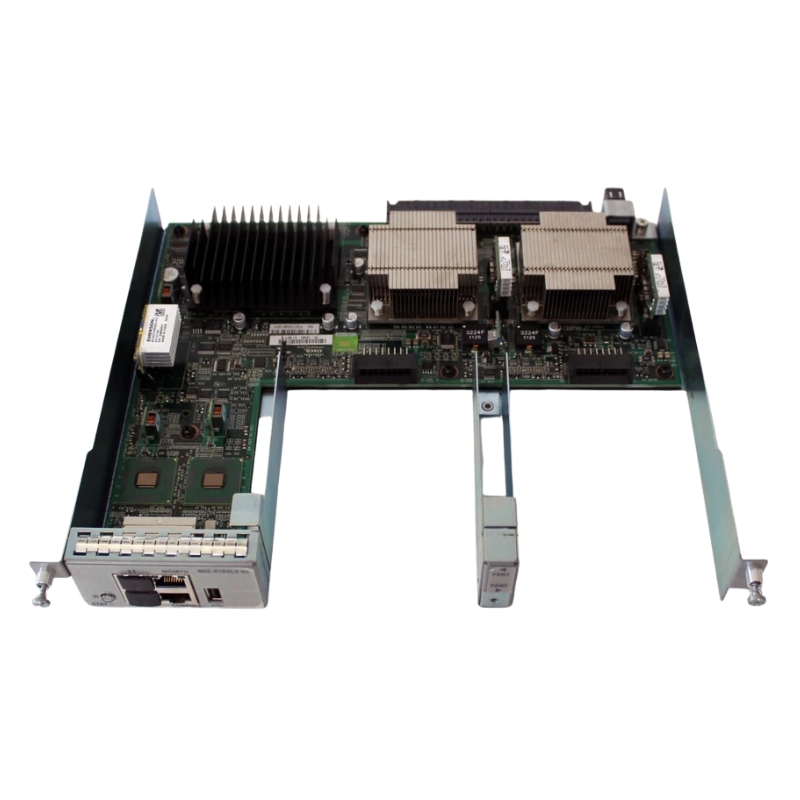

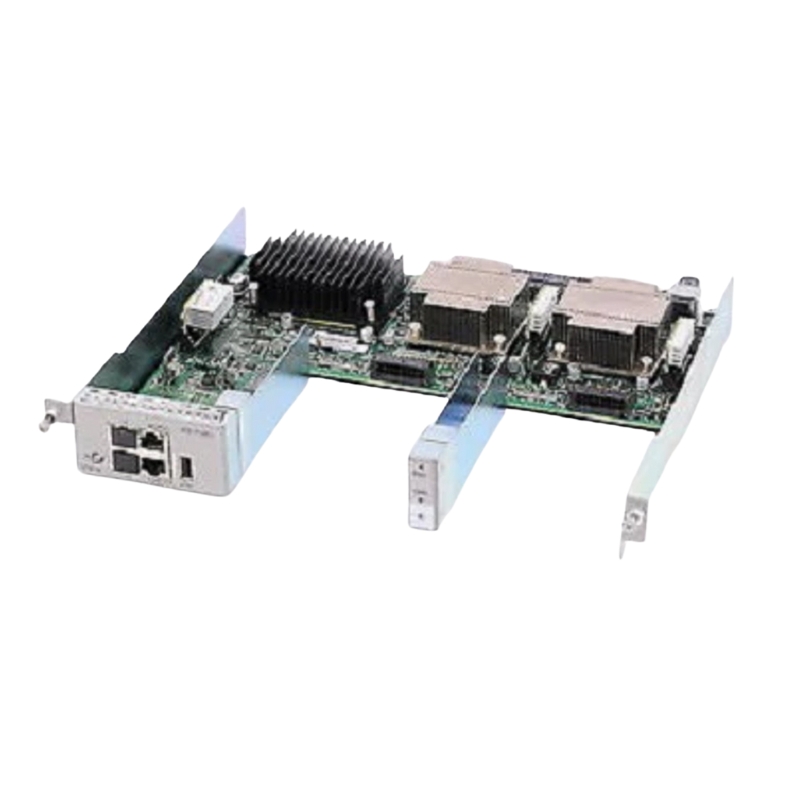

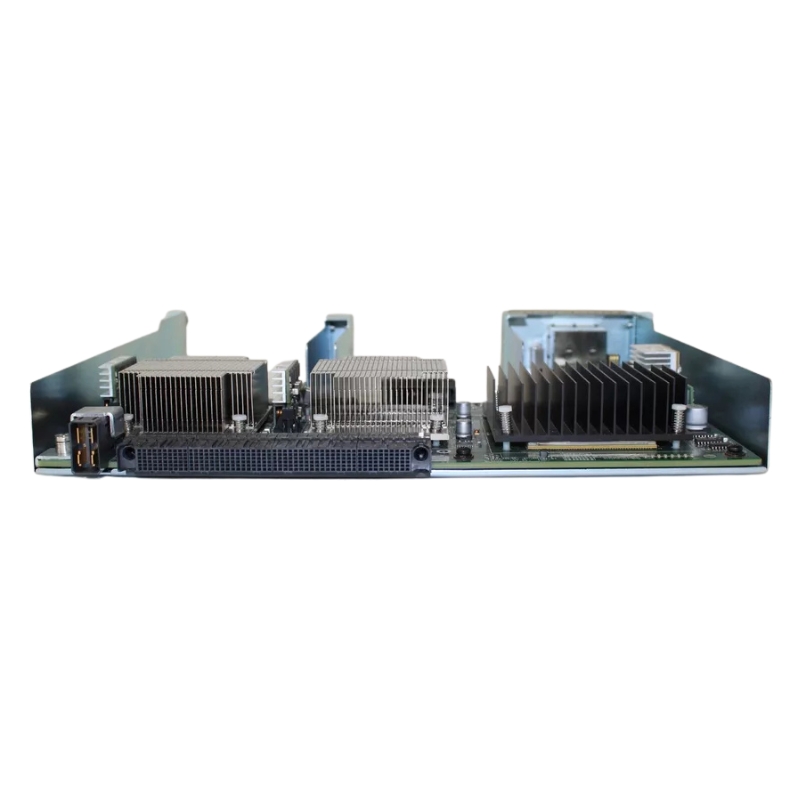

N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module

Overview of Cisco Daughter Card Expansion Module

The N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module represents a critical hardware enhancement component designed to extend the Layer 2 switching capabilities of the Cisco Nexus 5548 platform. Built for high-density data center environments, this daughter card is engineered to deliver scalable, efficient, and resilient network expansion while maintaining the performance integrity expected from Cisco Nexus architecture. As modern enterprises continue to demand greater throughput, lower latency, and simplified network architectures, this expansion module plays a vital role in optimizing switch functionality without requiring a full chassis upgrade.

General Specifications

• Produced by: Cisco Systems
• Part Number: N55-DL2
• Product Type: Expansion Module

Key Features

• Device Type: Layer 2 daughter card.
• Form Factor: Front-facing plug-in module.
• Forwarding Capacity: Up to 160 Gbps.
• Connection Interface: Internal PCI-Express.
• Connectivity Tech: High-speed wired switching.
• Installation: Field-upgradable component.
• Hot-Swappable: Supports live hot-swapping.
• Operational Mode: Standard Layer 2 only.
• Identification: Lacks external part numbers.

Compatibility

• Primary Switch: Cisco Nexus 5548P.
• Slot Allocation: Occupies dedicated front slot.
• Rear Space: Consumes no rear expansion slots.
• Bandwidth Allocation: Performance is shared by 48 ports.
• Upgrade Path: Replaced by Layer 3 module.
• Replacement Target: Swap for card N55-D160L3.
• Incompatible Switches: Cannot fit Nexus 5596 switches.
• Chassis Constraint: One card required per chassis.

The Nexus 5548 L2 Daughter Card Architecture

The Cisco Nexus 5548 series is widely recognized for its compact form factor and high-performance switching capabilities. The N55-DL2 L2 Daughter Card Expansion Module is an internal hardware extension that enhances the base switch by enabling additional Layer 2 forwarding resources. This allows the system to handle increased traffic loads and complex network segmentation requirements without degrading performance.

Designed with data center scalability in mind, the module integrates directly into the switch backplane architecture. This ensures low-latency communication between the daughter card and the main switching fabric. The result is a unified, high-speed switching environment optimized for east-west traffic, which is increasingly dominant in virtualized and cloud-based infrastructures.

High-Performance Layer 2 Switching Capabilities

The N55-DL2 expansion module significantly boosts Layer 2 forwarding performance, allowing the Cisco Nexus 5548 switch to handle larger MAC address tables, increased VLAN segmentation, and higher packet processing rates. This is essential for enterprise networks that require consistent uptime and predictable performance under heavy workloads.

In virtualized environments where multiple virtual machines communicate across the same physical infrastructure, the demand for efficient Layer 2 switching becomes even more critical. The daughter card ensures that traffic flows smoothly between endpoints, minimizing congestion and reducing latency spikes that could impact application performance.

Enterprise Use Cases and Deployment Scenarios

The N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module is widely deployed across various enterprise environments where scalability and performance are essential. Its ability to enhance existing infrastructure without requiring a full system replacement makes it a cost-effective solution for growing organizations.

Data Center Networks

In modern data centers, where virtualization and cloud computing dominate, the need for efficient Layer 2 connectivity is paramount. The module supports dense server-to-server communication, enabling smooth east-west traffic flow and reducing bottlenecks in high-performance computing environments.

Virtualization Environments

Virtual machine workloads rely heavily on fast and reliable network switching. The N55-DL2 module ensures that hypervisor-based systems can communicate efficiently, improving workload distribution and reducing network latency between virtual instances.

Enterprise Campus Networks

Large enterprise campuses benefit from the enhanced VLAN segmentation and MAC learning capabilities provided by this expansion module. It enables better traffic isolation, improved security policies, and more efficient network segmentation strategies.

Seamless Integration with Cisco Nexus 5548 Systems

One of the defining features of the N55-DL2 expansion module is its tight integration with the Cisco Nexus 5548 switch platform. The module is designed to fit internally within the switch chassis, leveraging the existing architecture to maximize performance without requiring additional external hardware.

This integration ensures minimal configuration overhead. Network administrators can deploy the module with minimal disruption to existing services, making it ideal for environments that require continuous uptime and zero-downtime upgrades.

Scalability and Future-Ready Network Expansion

As enterprise networks evolve, scalability becomes a key requirement. The N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module is engineered to support growing network demands without requiring major infrastructure redesigns. This makes it an ideal investment for organizations planning long-term network expansion strategies.

The module allows IT teams to extend switching capabilities while preserving existing hardware investments. This reduces capital expenditure and simplifies upgrade cycles, making it a strategic choice for cost-conscious enterprises.

Reliability and Data Center Stability

Reliability is a core requirement in any enterprise network deployment. The N55-DL2 module enhances the overall stability of the Cisco Nexus 5548 platform by ensuring consistent Layer 2 performance under varying network loads.

Built with enterprise-grade hardware standards, the module is designed to operate continuously in mission-critical environments. It supports redundancy mechanisms and integrates with Cisco’s robust networking protocols to ensure uninterrupted service delivery.

Technical Advantages of N55-DL2 Module

The technical design of the N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module focuses on maximizing efficiency while minimizing complexity. Its architecture is optimized for high-speed switching and low-latency communication between network endpoints.

Enterprise Value of Layer 2 Expansion

The N55-DL2 Cisco Nexus 5548 L2 Daughter Card Expansion Module delivers a powerful combination of scalability, performance, and reliability for modern enterprise networks. By enhancing Layer 2 switching capabilities within an existing Cisco Nexus 5548 infrastructure, it enables organizations to meet evolving data center demands efficiently and cost-effectively.
