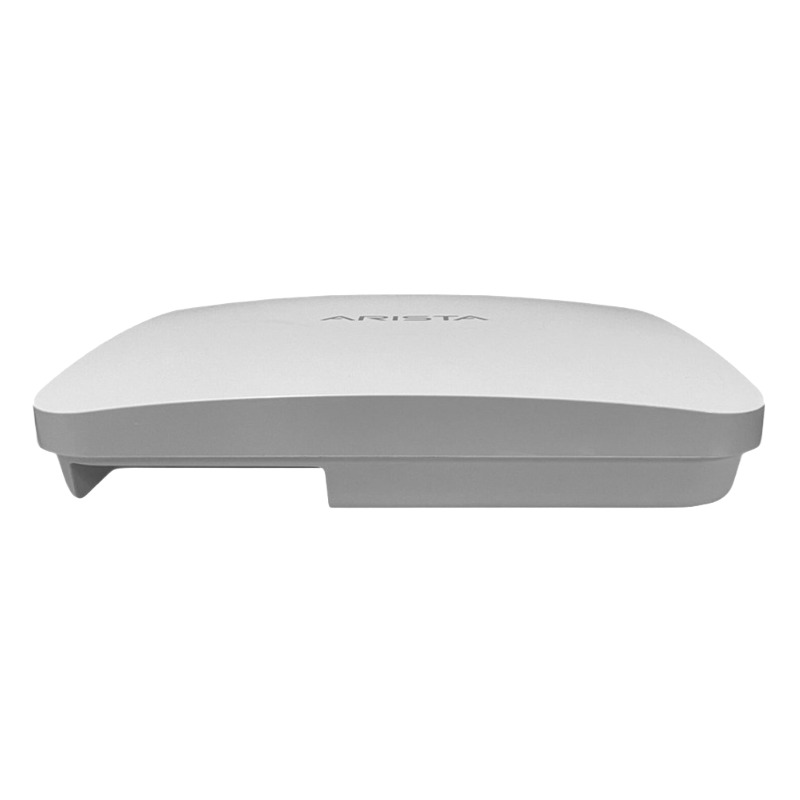

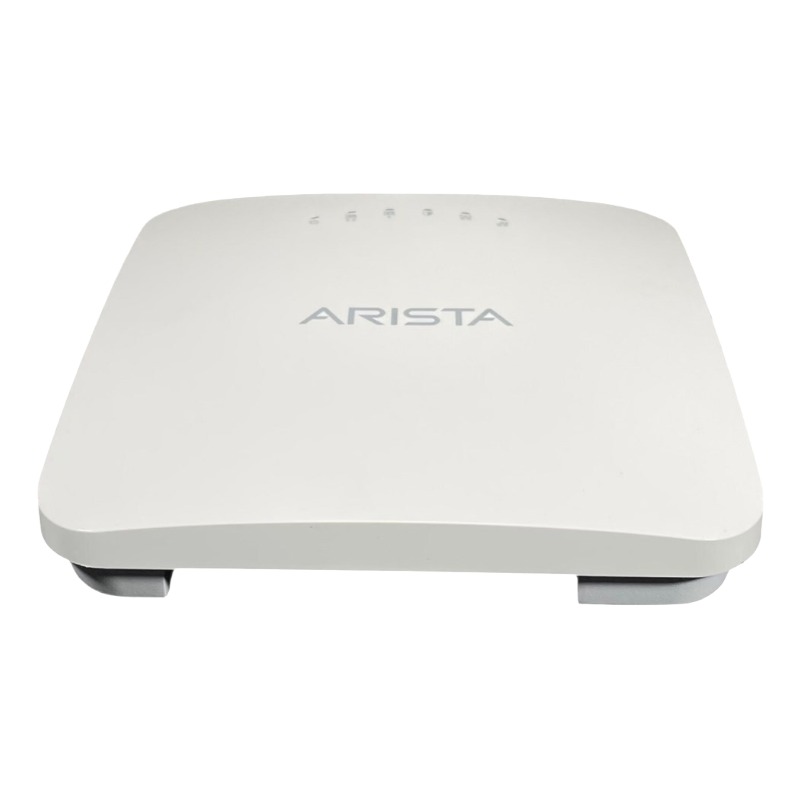

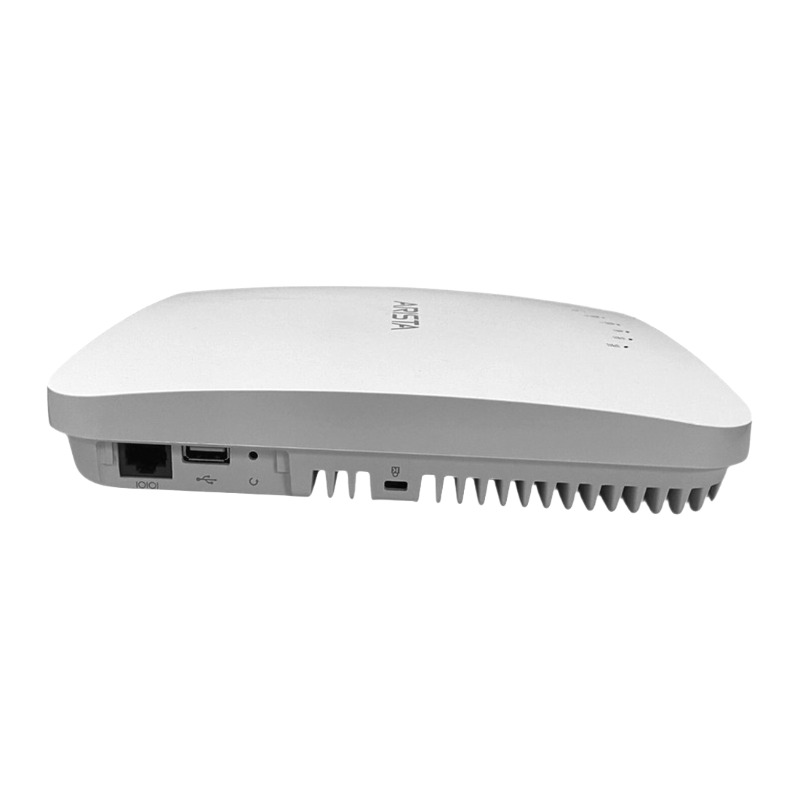

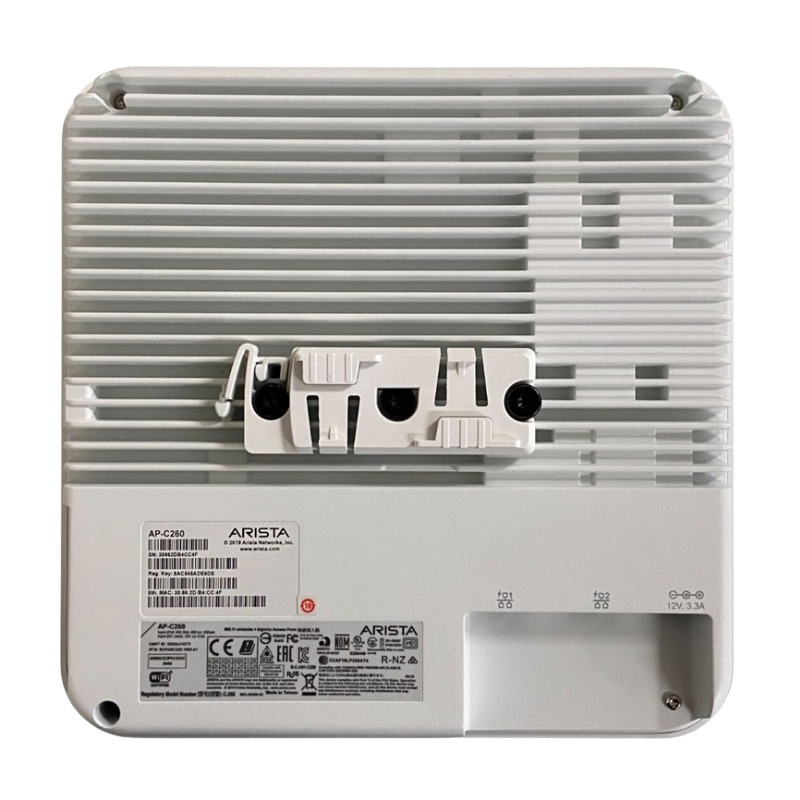

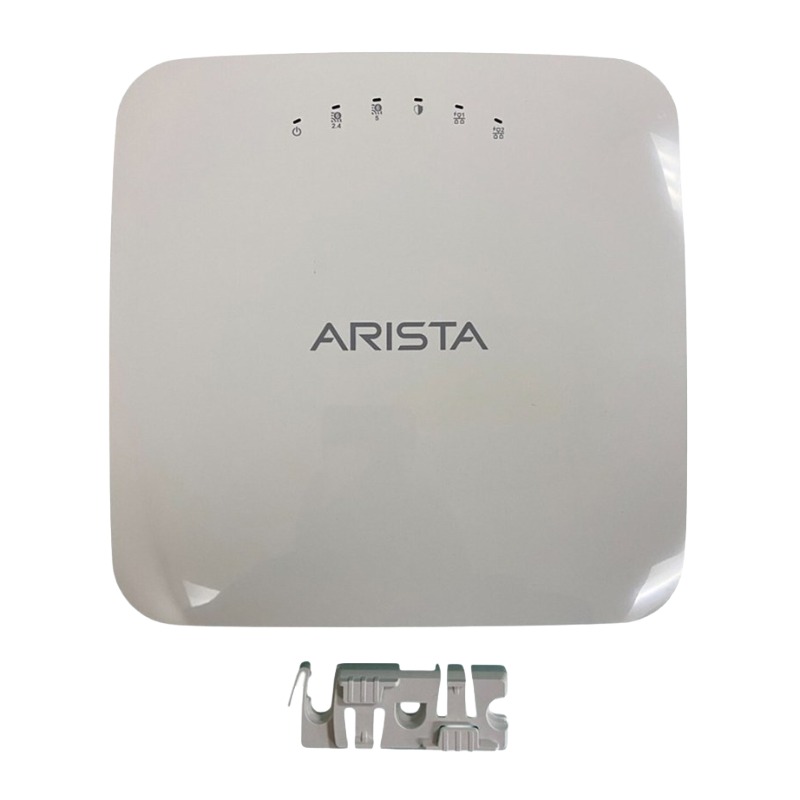

AP-C260 Arista Tri radio 8X8 5GHz 4X4 2.4GHz 2x2 Wi-Fi 6 Access Point.

Arista AP-C260 Wi-Fi 6 Wireless Access Point Overview

The Arista AP-C260 is a high-performance, enterprise-grade wireless access point designed for modern high-density environments. Built on Wi-Fi 6 technology, it delivers ultra-fast connectivity, improved spectrum efficiency, and advanced RF optimization for demanding business networks.

Key Product Details of Arista AP-C260

Manufacturer & Identification

• Brand: Arista Networks
• Model / SKU: AP-C260
• Device Category: Enterprise Wireless Access Point
• Connectivity Class: High-speed dual-band Wi-Fi solution

Core Wireless Architecture

• Advanced Wi-Fi 6 (802.11ax) technology for optimized performance
• Powerful 12-stream design for multi-device efficiency
• Tri-radio system with dedicated scanning capabilities
• Engineered for high-density enterprise and campus deployments

Radio Configuration & Performance Capabilities

5GHz High-Capacity Radio System

• 8x8:8 spatial stream architecture
• Maximum throughput up to 9.6 Gbps
• Supports channel bandwidths of 20/40/80/160 MHz
• Optimized for high-speed data-intensive applications

2.4GHz Coverage Optimization

• 4x4:4 radio configuration for expanded coverage
• Throughput capability reaching up to 1.1 Gbps
• Enhanced signal stability in congested environments
• Ideal for legacy and IoT device support

Dedicated Dual-Band Scan Radio

• 2x2 radio dedicated to RF monitoring and WIPS scanning
• Continuous security and interference detection
• Improves network visibility and threat mitigation

Advanced Wireless Features

Next-Generation Efficiency Technologies

• Supports UL/DL MU-MIMO for simultaneous multi-user communication
• Includes UL/DL OFDMA for improved spectrum utilization
• Designed to reduce latency and enhance network responsiveness

Antenna & RF Design

• Integrated omni-directional antennas for balanced coverage
• Optimized signal distribution for indoor environments
• Improved roaming experience across access zones

Connectivity & Power Options

High-Speed Network Interfaces

• Dual 5 Gigabit Ethernet ports for high-throughput backhaul
• Flexible wired connectivity for enterprise networks

Power Supply Flexibility

• Full PoE++ (Power over Ethernet Plus Plus) support
• PoE+ compatibility with reduced feature operation
• Efficient deployment without additional power infrastructure

Deployment & Installation Flexibility

Mounting Options

• Suitable for both wall and ceiling installations
• Designed for flexible enterprise deployment scenarios
• Sleek form factor for modern office environments

Integrated Smart Features

• Built-in BLE (Bluetooth Low Energy) support
• Enhanced location-based services and IoT integration
• Optimized for smart building ecosystems

Performance Advantages of Arista AP-C260

Enterprise-Level Efficiency

• Handles high device density with stable performance
• Reduces congestion in busy network environments
• Improves overall user experience in corporate networks

Optimized Network Intelligence

• Advanced RF scanning ensures proactive interference detection
• Balanced load distribution across multiple clients
• Enhanced wireless reliability for mission-critical operations

Arista AP-C260 Tri-Radio Wi-Fi 6 Access Point Category

The Arista AP-C260 Tri-Radio 8x8 5GHz, 4x4 2.4GHz, and 2x2 Dual-band Scan Radio Wi-Fi 6 Wireless Access Point represents a high-performance enterprise wireless networking category designed for dense, mission-critical environments. Built within the advanced wireless portfolio of Arista Networks, this class of access point is engineered to deliver ultra-high throughput, intelligent RF management, and seamless scalability for modern digital infrastructures. It is designed for organizations requiring robust connectivity across high-density client environments, including enterprise campuses, universities, hospitals, hospitality networks, and smart buildings.

Enterprise-Class Wi-Fi 6 Architecture and Design Philosophy

The AP-C260 category is centered around Wi-Fi 6 (802.11ax) technology, which fundamentally improves efficiency, latency, and spectral utilization compared to previous wireless generations. Unlike legacy dual-radio access points, the tri-radio architecture introduces a dedicated scanning radio in addition to simultaneous 2.4 GHz and 5 GHz data radios. This design enables continuous RF monitoring without sacrificing client-serving capacity, ensuring uninterrupted optimization of the wireless environment.

Tri-Radio Structure and Functional Separation

The tri-radio system is a defining feature of this category. The 8x8 5 GHz radio is optimized for high-capacity client throughput, supporting a large number of spatial streams for dense deployments. The 4x4 2.4 GHz radio ensures backward compatibility and extended coverage for legacy devices. Meanwhile, the dedicated 2x2 scanning radio continuously analyzes the RF spectrum, detecting interference, rogue access points, and channel utilization patterns without impacting client performance.

8x8 5 GHz High-Density Performance Layer

The 8x8 MU-MIMO 5 GHz radio layer provides exceptional spatial stream density, allowing simultaneous communication with multiple Wi-Fi 6 clients. This is especially important in high-density environments such as auditoriums, stadiums, and corporate headquarters where thousands of devices may compete for bandwidth. The increased spatial streams enhance spectral efficiency and reduce contention, resulting in smoother application performance for latency-sensitive workloads such as video conferencing and cloud collaboration tools.

4x4 2.4 GHz Coverage Optimization Layer

The 2.4 GHz 4x4 radio layer ensures maximum compatibility and extended reach, particularly for IoT devices, sensors, and older mobile hardware. While 2.4 GHz is typically more congested, the AP-C260 category applies advanced interference mitigation techniques and intelligent channel management to maintain stable performance. This layer ensures consistent connectivity across legacy infrastructure while still benefiting from Wi-Fi 6 enhancements.

Dedicated 2x2 Scan Radio Intelligence Layer

The scanning radio is a key differentiator in this category. Operating independently from client-serving radios, it continuously performs spectrum analysis, intrusion detection, and RF optimization tasks. This allows real-time adaptation to environmental changes such as microwave interference, neighboring network congestion, or physical obstructions. The result is a self-optimizing wireless system that improves over time without manual intervention.

Wi-Fi 6 Capabilities and Advanced Wireless Efficiency

Wi-Fi 6 introduces multiple innovations that significantly enhance the performance of AP-C260 class devices. These include OFDMA (Orthogonal Frequency Division Multiple Access), MU-MIMO enhancements, Target Wake Time (TWT), and improved modulation through 1024-QAM. Together, these features allow the access point to serve more devices simultaneously while maintaining lower latency and higher efficiency.

OFDMA for Multi-User Efficiency

OFDMA enables the access point to divide a single channel into multiple resource units, allowing simultaneous data transmission to multiple clients. This is especially useful in environments with a high density of low-bandwidth devices such as IoT sensors, handheld scanners, and smart building systems. By reducing contention and improving scheduling efficiency, OFDMA significantly improves overall network responsiveness.

MU-MIMO Enhancements for Spatial Stream Optimization

Multi-User Multiple Input Multiple Output (MU-MIMO) technology allows simultaneous communication with multiple clients using spatial streams. The AP-C260 category leverages advanced MU-MIMO capabilities across both 5 GHz and 2.4 GHz radios, ensuring efficient utilization of available spectrum. This reduces wait times and improves throughput consistency in crowded environments.

Target Wake Time for Power Efficiency

Target Wake Time (TWT) enables scheduled communication between the access point and connected devices. This reduces unnecessary wireless activity, conserving battery life for mobile devices while reducing channel congestion. In enterprise environments, this translates into improved device longevity and reduced RF noise.

High-Density Deployment Scenarios and Use Cases

The AP-C260 category is designed specifically for high-density deployments where traditional access points struggle to maintain performance. These environments require not only high throughput but also intelligent load distribution and adaptive RF control.

Enterprise Campus Networks

In large corporate campuses, thousands of employees rely on stable wireless connectivity for daily operations. The AP-C260 architecture supports seamless roaming, high concurrency, and reliable application performance for cloud-based services, unified communications, and enterprise SaaS platforms.

Education and Smart Learning Environments

Universities and educational institutions benefit significantly from the high client density support of this category. Lecture halls, libraries, and dormitories require consistent connectivity for thousands of students simultaneously accessing learning platforms, video lectures, and collaboration tools.

Healthcare Infrastructure Connectivity

Hospitals and healthcare facilities require ultra-reliable wireless connectivity for medical devices, patient monitoring systems, and electronic health record (EHR) platforms. The AP-C260 category ensures minimal downtime and interference-resistant connectivity, supporting mission-critical applications.

Hospitality and Public Venue Networks

Hotels, airports, and convention centers require scalable guest Wi-Fi networks capable of handling fluctuating user loads. The tri-radio architecture ensures consistent performance even during peak usage periods, such as events or conferences.

RF Engineering and Intelligent Spectrum Management

Advanced RF engineering is central to the AP-C260 category. The integration of scanning radios and adaptive channel selection allows the system to dynamically respond to environmental conditions. This reduces interference, optimizes coverage, and improves overall network stability.

Dynamic Channel Allocation

The system continuously evaluates channel utilization across both 2.4 GHz and 5 GHz bands, automatically shifting clients to optimal channels. This reduces congestion and improves fairness across connected devices.

Interference Detection and Mitigation

The scanning radio identifies both co-channel and adjacent-channel interference sources. It can detect external RF noise sources such as Bluetooth devices, microwaves, and neighboring Wi-Fi networks, allowing proactive mitigation strategies.

Band Steering and Load Distribution

Band steering intelligently directs dual-band capable clients toward the 5 GHz band, freeing up 2.4 GHz spectrum for legacy devices and IoT systems. Load balancing ensures that no single access point becomes overwhelmed in dense deployments.

Security Architecture and Enterprise Protection

Security is a core component of the AP-C260 category. It includes enterprise-grade encryption, authentication protocols, and intrusion detection mechanisms designed to protect sensitive data and network integrity.

WPA3 and Advanced Encryption Standards

The access point supports WPA3 security protocols, ensuring stronger encryption and protection against brute-force attacks. Combined with enterprise authentication methods such as 802.1X, it provides robust identity-based access control.

Rogue Access Point Detection

The scanning radio continuously monitors for unauthorized access points, helping administrators identify potential security threats within the RF environment. This ensures compliance with enterprise security policies.

Secure Guest Access Segmentation

Guest networks can be isolated from corporate infrastructure through VLAN segmentation and policy enforcement. This prevents unauthorized access to sensitive systems while maintaining seamless guest connectivity.

Cloud Management and Network Intelligence

Integration with cloud-based management platforms allows centralized configuration, monitoring, and optimization of large-scale deployments. Administrators can manage thousands of access points from a single interface, reducing operational complexity.

Real-Time Analytics and Telemetry

The system collects detailed performance metrics, including client distribution, bandwidth utilization, RF interference levels, and latency statistics. These insights enable proactive troubleshooting and capacity planning.

Automated Firmware and Lifecycle Management

Firmware updates and configuration changes can be deployed centrally, ensuring consistent performance across all access points. This reduces manual maintenance and improves system reliability.

Integration with Wired Infrastructure and Switching Ecosystem

The AP-C260 category is designed to integrate seamlessly with enterprise switching solutions, particularly within ecosystems developed by Arista Networks. This ensures end-to-end visibility and performance optimization across both wired and wireless networks.

High-Speed Ethernet Backhaul

The access point supports high-speed Ethernet uplinks, ensuring that wireless throughput is not bottlenecked by wired infrastructure. This is essential for supporting multi-gigabit Wi-Fi 6 performance.

Network Automation and Policy Synchronization

Integration with switching infrastructure enables automated policy enforcement across the network. VLAN assignments, QoS rules, and security policies can be synchronized across wired and wireless domains.
