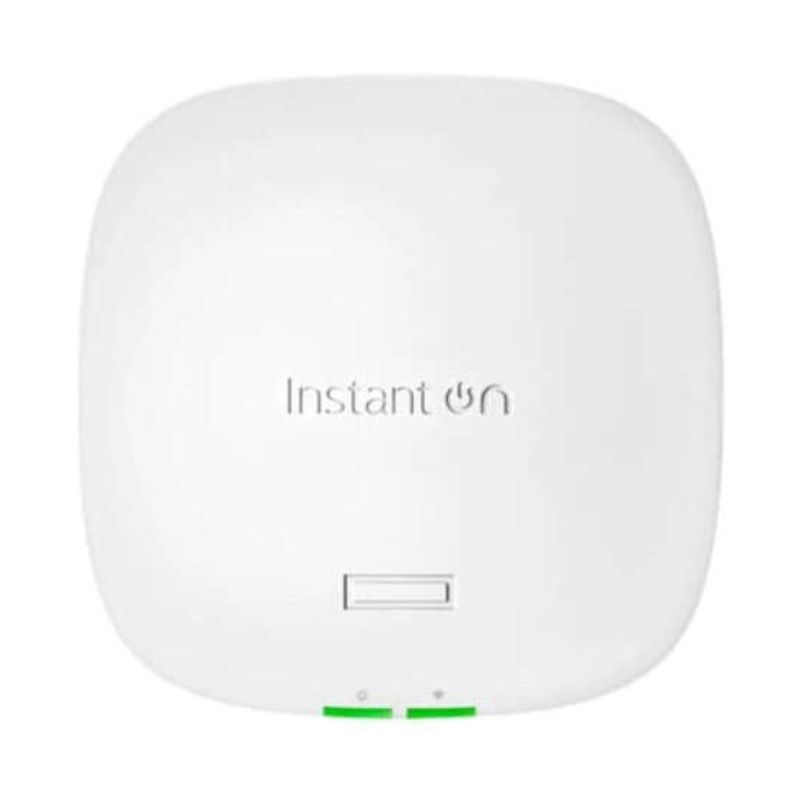

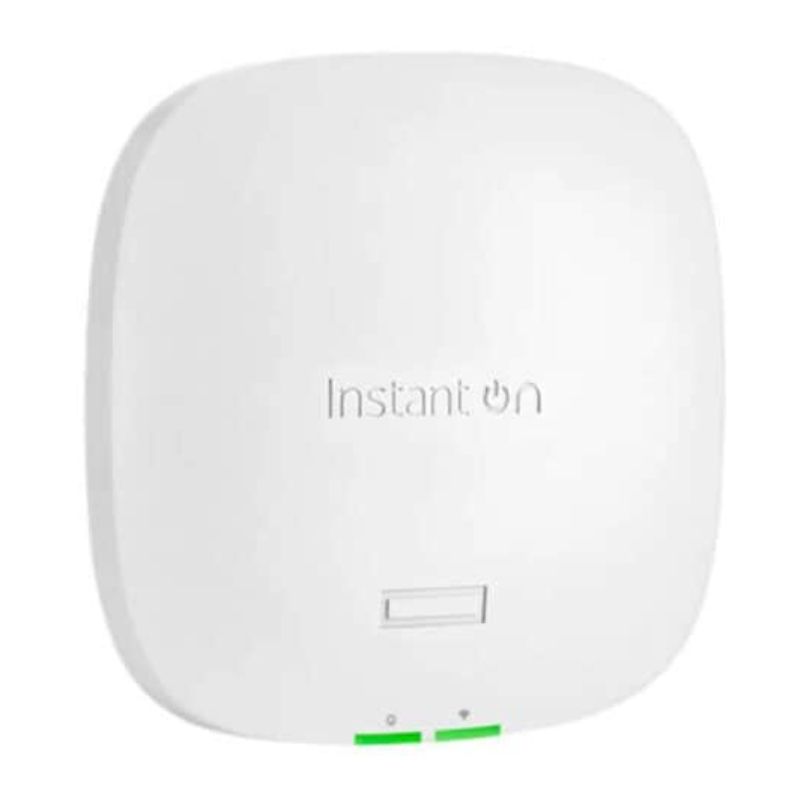

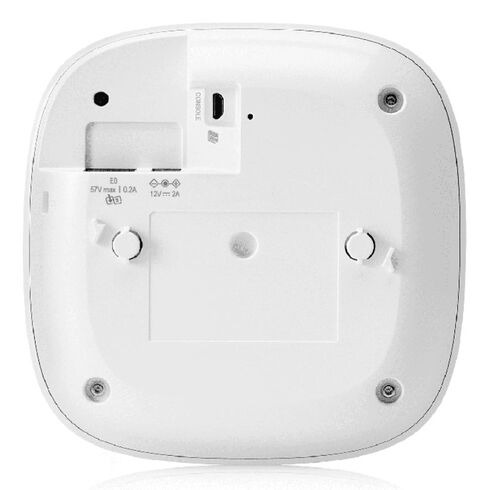

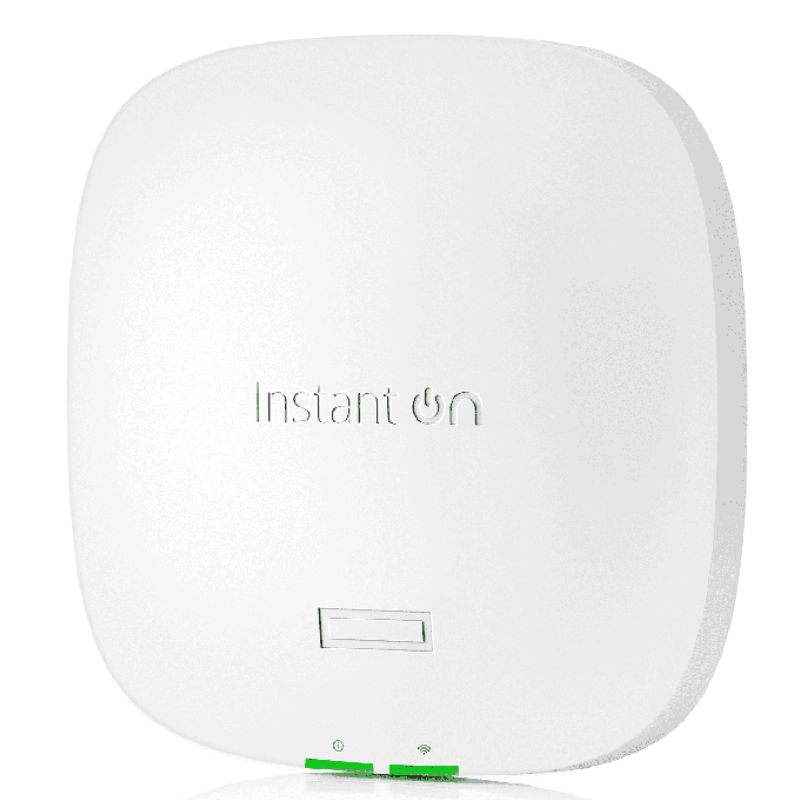

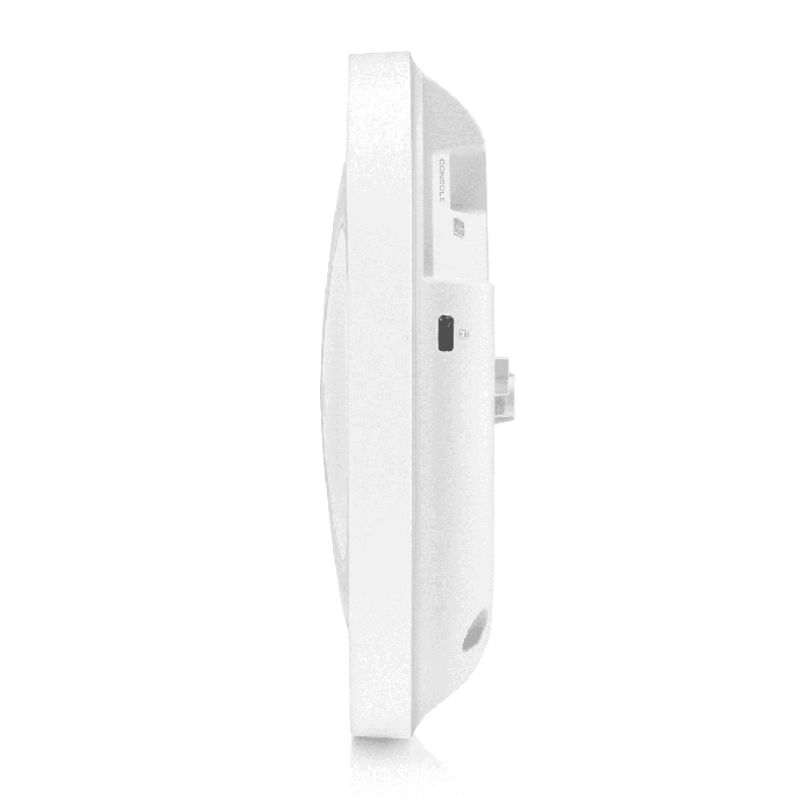

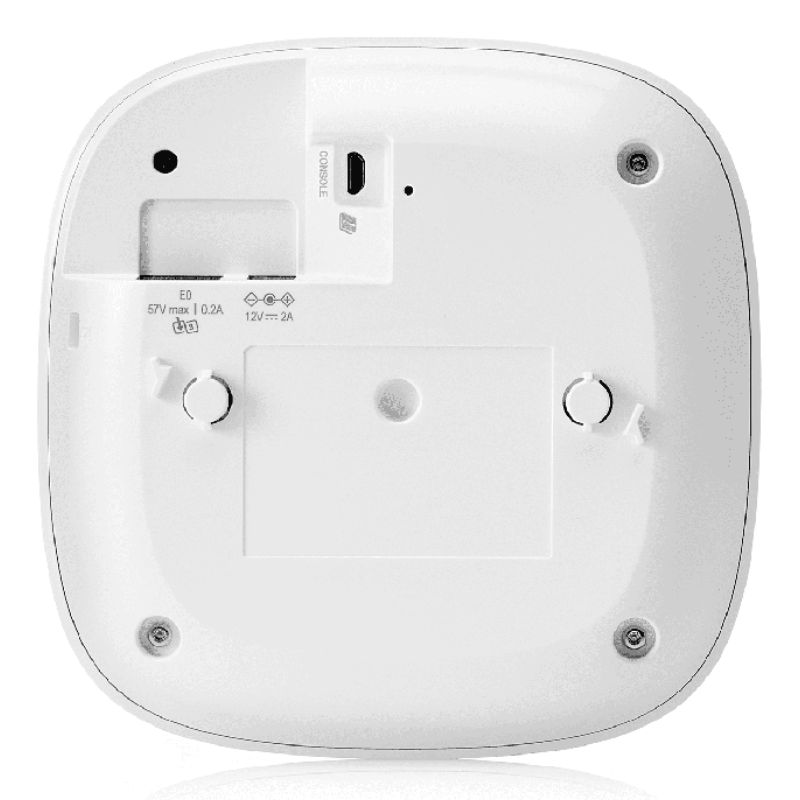

S1T22-61001 HPE Networking Instant On 2x2 Wi-Fi 6E US AP32 Access Point

Overview of the Wireless Access Point

The HPE S1T22-61001 Networking Instant On 2x2 Wi-Fi 6E US AP32 Access Point is designed to deliver next-generation wireless connectivity for modern businesses, offices, retail environments, educational institutions, hospitality venues, and high-density deployments. Built with advanced Wi-Fi 6E technology, this access point provides superior performance, reduced latency, improved efficiency, and enhanced security while supporting a growing number of connected devices.

General Information

• Manufacturer: HPE
• Model Number: S1T22-61001
• Product Type: Wireless Access Point

Technical Features

• Wireless Standard: Wi-Fi Certified 6E (802.11ax).
• Antenna Design: Internal dual omnidirectional 2x2 MIMO.
• Ethernet Port: One 2.5 Gigabit Ethernet uplink.
• Power Source: 802.3at Class 4 PoE or 12V DC adapter.
• Power Draw: Maximum 12.9W via PoE or 11W via DC.
• Form Factor: Sleek 160mm x 160mm low-profile enclosure.

Core Performance Features

• Smart Mesh: Extends wireless coverage without running physical cables.
• OFDMA Support: Efficiently manages multi-user traffic to reduce latency.
• Target Wake Time: Minimizes power consumption for connected IoT devices.
• WPA3 Security: Strong, out-of-the-box data encryption and authentication.
• Captive Portal: Built-in guest onboarding page for custom business terms.
• Free Cloud Management: App and web portal administration with zero licensing fees.

Compatibility

• Power over Ethernet (PoE): Compatible with 802.3at (Class 4) or 802.3bt (Class 6) standards. Requires a 30W PoE injector or any standard PoE switch.
• DC Local Power: Compatible with a 12V DC power adapter (HPE
• Wi-Fi Standards: Operates on 2.4 GHz, 5 GHz, and 6 GHz bands (Tri-band, dual-radio)
• Wi-Fi 6E Support: Offers a dedicated 6 GHz channel specifically for modern Wi-Fi 6E-enabled laptops, flagship smartphones, and VR headsets
• Backward Compatibility: Fully compatible with all legacy wireless hardware utilizing 802.11a/b/g/n/ac standards
• Device Capacity: Recommended to support up to 75 simultaneous client devices smoothly.
• Wired Backhaul: Equipped with a single 2.5 GbE Base-T uplink port. It connects to multi-gigabit switches to eliminate bandwidth bottlenecks.

HPE S1T22-61001 Instant On 2x2 Wi-Fi 6E AP32 Access Point

As wireless requirements continue to evolve, organizations need infrastructure capable of handling bandwidth-intensive applications, video conferencing, cloud services, IoT devices, and hybrid work environments. The Instant On AP32 addresses these requirements through tri-band connectivity, efficient spectrum utilization, and enterprise-class reliability. Its 2x2 MIMO architecture ensures optimized performance while maintaining exceptional coverage and throughput.

The HPE Instant On AP32 series has been developed for businesses seeking simplified deployment and centralized management without sacrificing performance. Whether deployed in small businesses or expanding enterprise environments, this wireless access point provides scalable networking capabilities and dependable connectivity.

Advanced Wi-Fi 6E Connectivity

Wi-Fi 6E introduces access to the newly available 6 GHz frequency band, creating additional channels and minimizing congestion associated with traditional wireless networks. The HPE S1T22-61001 AP32 leverages this expanded spectrum to provide cleaner wireless communication and improved performance for demanding applications. Businesses adopting Wi-Fi 6E gain access to improved wireless experiences for video conferencing, streaming, virtual collaboration, cloud applications, and mission-critical services.

Tri-Band Wireless Architecture

The AP32 access point incorporates tri-band operation, utilizing 2.4 GHz, 5 GHz, and 6 GHz frequencies to optimize traffic distribution and maximize network performance. This architecture enables users to experience faster wireless communication while reducing network congestion.

2.4 GHz Coverage

The 2.4 GHz band offers extended coverage and compatibility with legacy wireless devices. It supports IoT equipment, printers, scanners, and devices requiring longer-range communication.

5 GHz High-Speed Connectivity

The 5 GHz spectrum provides higher throughput and reduced interference, making it ideal for video streaming, business applications, and everyday wireless access requirements.

6 GHz Ultra-Clean Spectrum

The newly introduced 6 GHz band delivers exceptional bandwidth, lower latency, and significantly reduced congestion, supporting modern high-performance applications and future networking requirements.

2x2 MIMO Technology for Efficient Performance

The HPE S1T22-61001 Instant On AP32 utilizes 2x2 Multiple Input Multiple Output technology, allowing multiple streams of data to be transmitted simultaneously. This architecture enhances signal quality and increases overall network efficiency. These capabilities make the AP32 suitable for organizations that rely on uninterrupted connectivity throughout the day.

Optimized for High-Density Environments

Modern workplaces often contain dozens or even hundreds of simultaneously connected devices. Smartphones, laptops, tablets, security systems, VoIP phones, and IoT devices all compete for network resources.

The HPE Instant On AP32 is engineered to perform efficiently in high-density environments by intelligently managing wireless traffic and distributing devices across available frequency bands. This ensures users experience consistent speeds and reliable connectivity even during peak usage periods.

Modern Business Networks

The AP32 access point has been developed with the needs of modern organizations in mind. Businesses increasingly depend on cloud platforms, unified communications, remote collaboration tools, and software-as-a-service applications. Reliable wireless infrastructure is essential for maintaining productivity and ensuring smooth operations.

Enhanced Security Capabilities

Cybersecurity remains one of the highest priorities for businesses operating wireless networks. The HPE Instant On AP32 incorporates advanced security mechanisms that help safeguard users, applications, and sensitive information. Security features contribute to protecting the network against unauthorized access and emerging threats. Businesses benefit from secure wireless communications while maintaining convenient access for authorized users. These capabilities help organizations maintain secure connectivity across various operational environments.

Use Cases

The HPE Instant On AP32 category serves diverse industries and deployment scenarios. Its combination of speed, efficiency, security, and scalability makes it suitable for organizations of varying sizes.

Corporate Offices

Employees require uninterrupted access to cloud applications, communication platforms, and collaboration tools. The AP32 supports these workloads while maintaining stable wireless connectivity.

Retail Environments

Retail businesses rely on wireless point-of-sale systems, inventory management devices, and customer Wi-Fi services. The AP32 helps maintain efficient operations and positive customer experiences.

Educational Institutions

Schools and universities support numerous connected devices and digital learning applications. The access point delivers the performance necessary for modern educational environments.

Hospitality Industry

Hotels, restaurants, and entertainment venues demand reliable guest connectivity. The AP32 provides consistent wireless performance for guests and operational systems.

Healthcare Facilities

Medical environments depend on secure and stable communication systems. Wireless connectivity supports administrative operations, medical devices, and staff collaboration.

Scalable Infrastructure for Future Growth

Organizations require networking solutions capable of evolving alongside changing demands. The HPE S1T22-61001 Networking Instant On 2x2 Wi-Fi 6E US AP32 Access Point supports scalable growth, allowing businesses to expand wireless coverage as requirements increase. Its advanced architecture ensures readiness for future devices and applications while providing long-term investment value. As bandwidth demands continue to grow, Wi-Fi 6E technology enables businesses to maintain competitive and efficient operations.

Energy Efficiency and Reliability

The AP32 access point is engineered for continuous operation and dependable performance. Businesses require networking equipment that delivers stability while maintaining energy-efficient operation. Reliable hardware design helps minimize downtime and ensures consistent connectivity for mission-critical applications. This contributes to increased productivity and improved user satisfaction across business environments. By combining Wi-Fi 6E innovation, tri-band architecture, 2x2 MIMO technology, advanced security, centralized management, and scalable deployment capabilities, the HPE S1T22-61001 Networking Instant On 2x2 Wi-Fi 6E US AP32 Access Point represents a powerful wireless networking solution for organizations seeking high-performance connectivity and long-term network efficiency.
