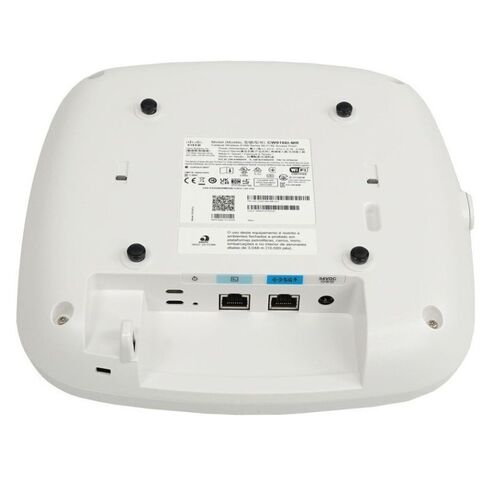

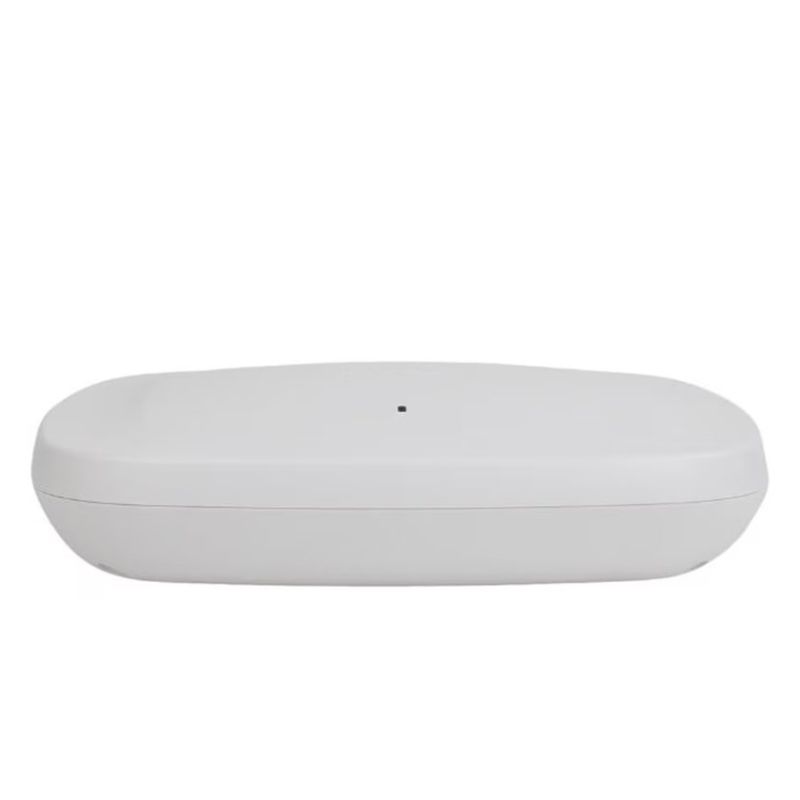

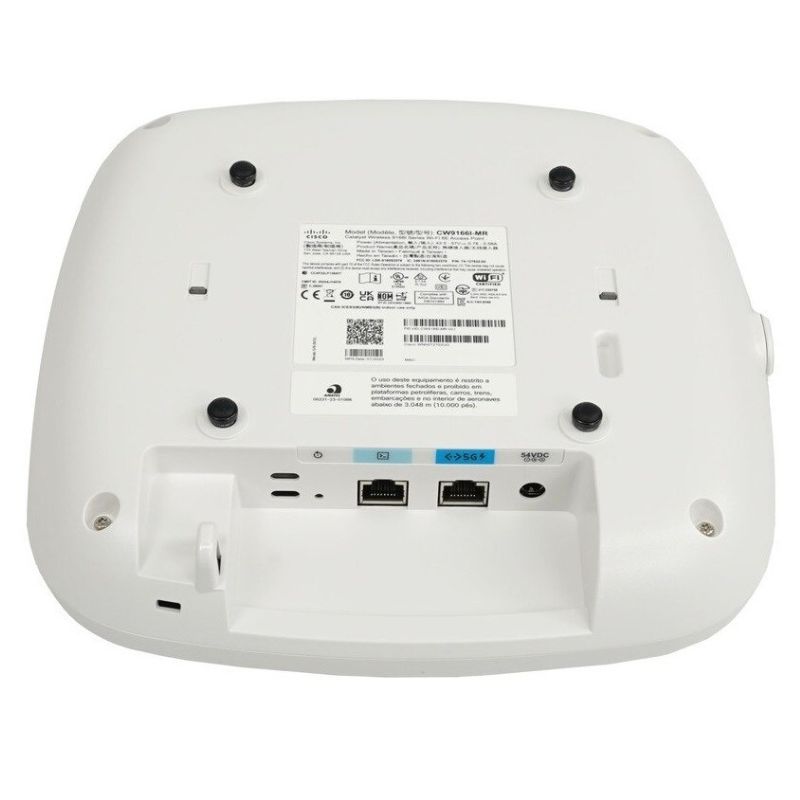

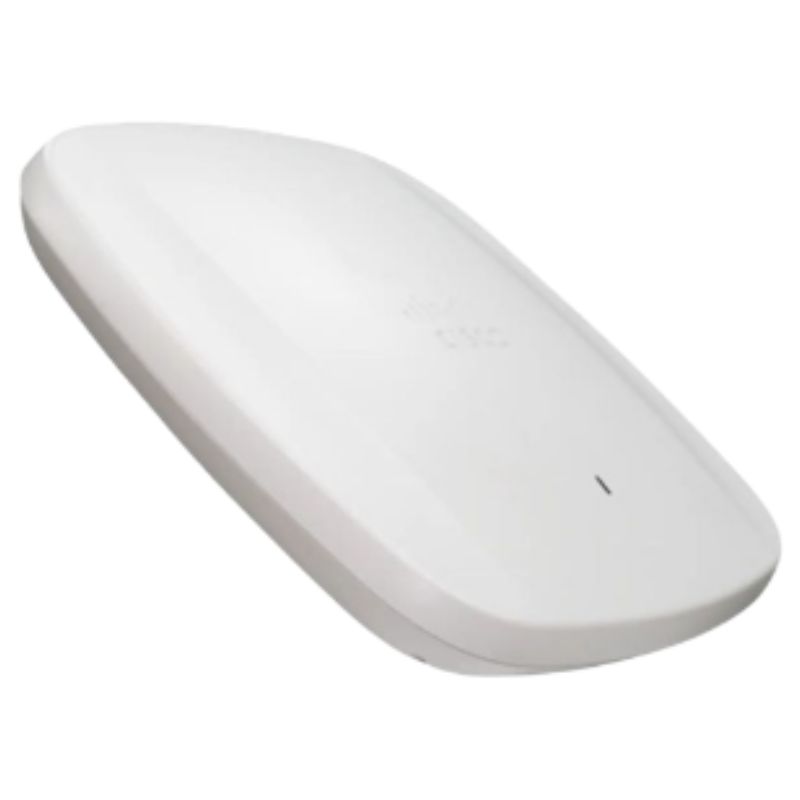

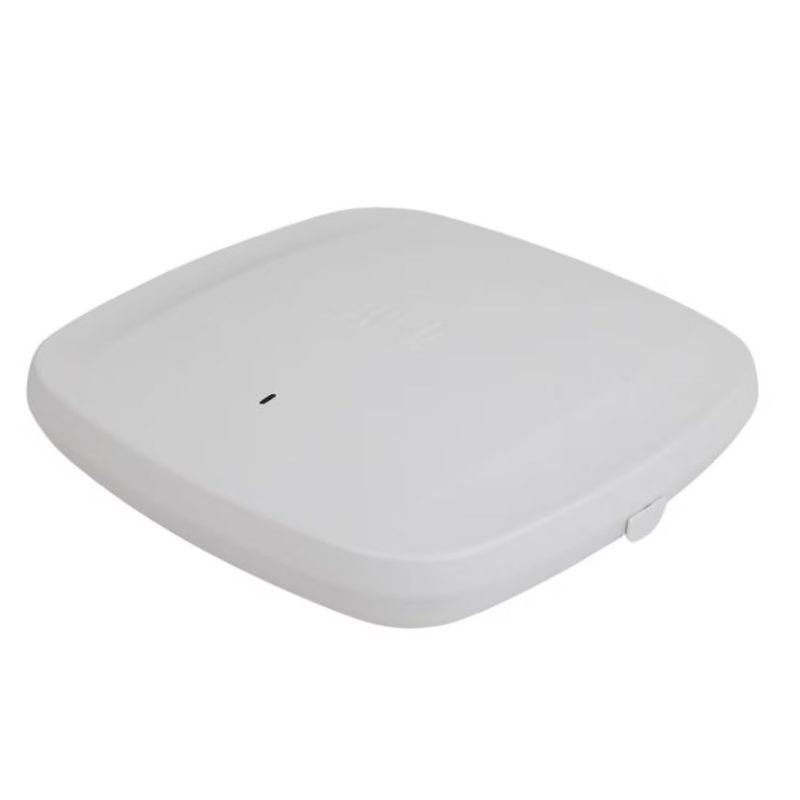

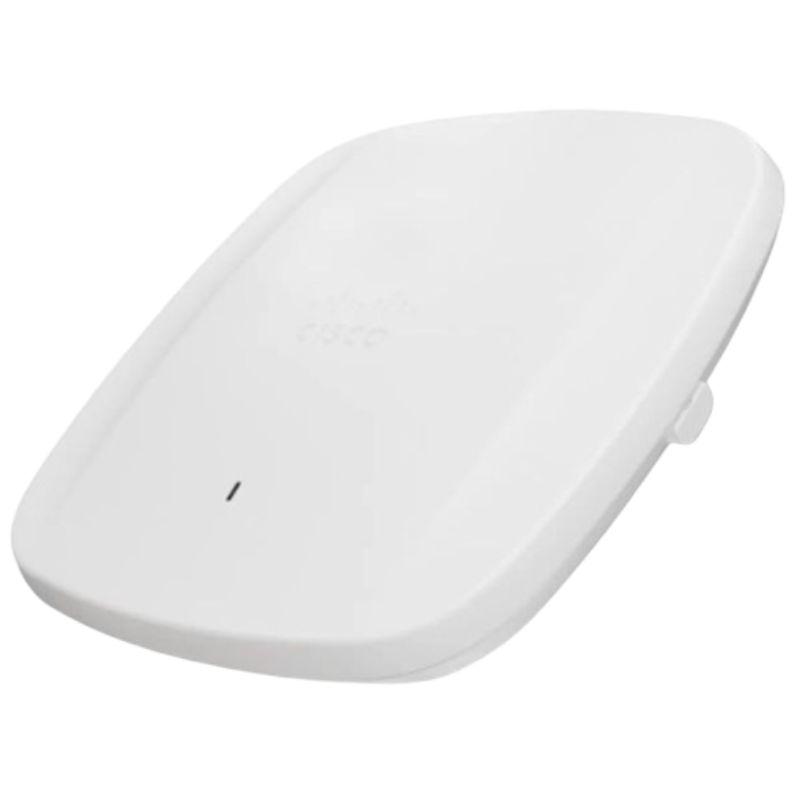

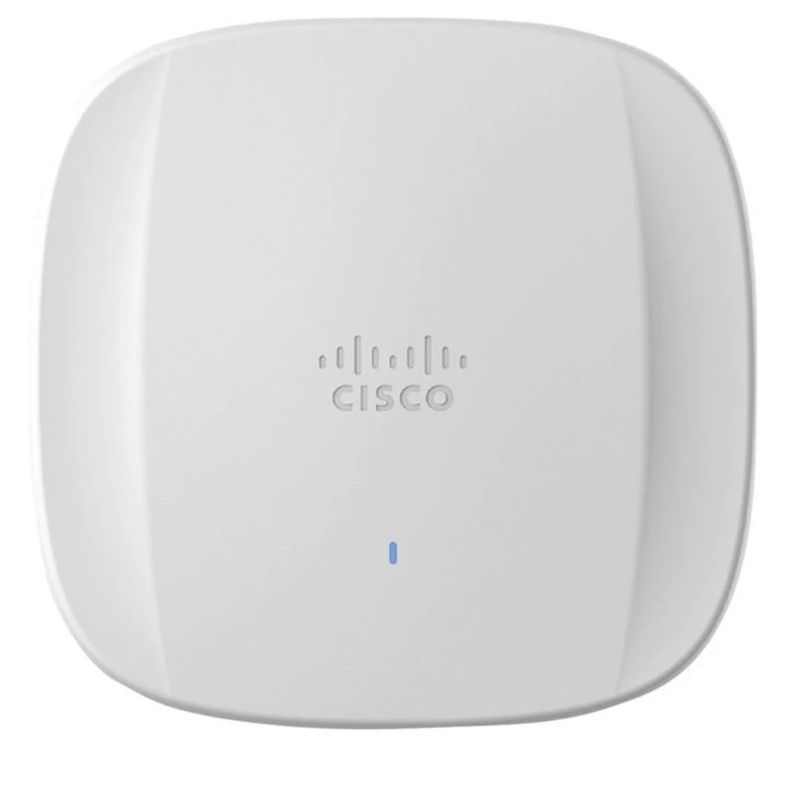

CW9166D1-B Cisco Catalyst 9166D1 Wi-fi 6e Wireless AP

Cisco Catalyst 9166D1 Wi-fi 6e Wireless AP

The Cisco Catalyst 9166D1 Wi-Fi 6E Wireless Access Point (Part Number: CW9166D1-B) is engineered to deliver superior connectivity, optimized performance, and advanced security for modern enterprises.

Main Information

• Manufacturer: Cisco
• Model Number: CW9166D1-B
• Device Category: Wireless Access Point

Technical Specifications

• Design: Ceiling-mountable
• Antenna Type: Internal
• Network Band: Tri-Band
• Transmission Speed: Up to 7.78 Gbit/s
• Frequency Ranges: 2.40 GHz, 5 GHz, 6 GHz
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/d/h
• Bluetooth Version: 5.1

Security & Encryption

• Encryption Protocols: WPA3, WPA2, AES (128-bit & 256-bit), AES-CCMP, AES-GCMP
• Authentication Methods: EAP-GTC, PEAPv1, PEAPv0, EAP-FAST, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2
• Data Encryption: Supported

Performance Enhancements

• MIMO Technology: Yes
• Beamforming: Supported
• Deployment: Indoor

Interfaces & Connectivity

• Ethernet Technology: 5 Gigabit Ethernet
• RJ-45 Ports: 1
• PoE PD Port: Available
• Management Port: Yes

USB Support

• USB Availability: Yes
• USB Standard: USB 2.0

Cisco CW9166D1-B Catalyst 9166d1 Wi-Fi 6E WAP Overview

The Cisco CW9166D1-B Catalyst 9166d1 Indoor Tri-Band Wi-Fi 6E Wireless Access Point is designed to deliver advanced wireless connectivity for enterprise-grade networking environments that require exceptional speed, low latency, high-density device handling, and dependable wireless coverage. Built with support for 2.40 GHz, 5 GHz, and 6 GHz radio bands, this ceiling mountable wireless access point provides next-generation connectivity for organizations transitioning to modern Wi-Fi 6E infrastructure.

Enterprises deploying digital transformation strategies require wireless solutions capable of supporting bandwidth-intensive workloads, real-time collaboration, cloud applications, video conferencing, IoT communications, and mobile-first operations. The Cisco CW9166D1-B wireless access point is engineered to satisfy these requirements while maintaining strong network stability, scalable architecture, and optimized wireless spectrum utilization.

The tri-band radio architecture enables simultaneous communication across multiple frequency ranges, improving wireless efficiency and reducing congestion in high-density environments. Organizations operating campuses, educational institutions, hospitals, hospitality environments, smart offices, retail stores, manufacturing facilities, and enterprise workspaces can benefit from the advanced wireless capabilities integrated into this Cisco Catalyst wireless access point platform.

Wi-Fi 6E Technology and Enhanced Spectrum Availability

Wi-Fi 6E technology expands wireless operations into the 6 GHz spectrum, providing substantially more channels and cleaner wireless communication paths compared to traditional Wi-Fi deployments. The Cisco CW9166D1-B utilizes this additional spectrum to reduce interference, increase throughput, and support more simultaneous wireless clients with improved performance consistency.

The inclusion of 6 GHz operation enables organizations to deploy high-performance wireless networks that support augmented reality applications, ultra-high-definition video streaming, cloud collaboration systems, virtual desktop infrastructure, and advanced IoT communication frameworks. The wider channel availability in the 6 GHz spectrum improves wireless traffic distribution and minimizes channel overlap issues commonly found in dense deployments.

Wi-Fi 6E also improves deterministic performance by providing low-latency communication pathways suitable for business-critical applications. Enterprises adopting digital workspaces and hybrid collaboration environments require stable wireless communication that maintains performance under heavy traffic loads. The Cisco Catalyst 9166d1 platform addresses these demands with intelligent spectrum utilization and optimized radio resource management.

Tri-Band Wireless Operation for Modern Enterprise Connectivity

The tri-band design of the Cisco CW9166D1-B allows simultaneous operation across 2.40 GHz, 5 GHz, and 6 GHz frequencies. This architecture supports intelligent client distribution and optimized bandwidth allocation. Legacy devices can continue operating on 2.40 GHz while modern high-performance devices utilize the cleaner and faster 5 GHz and 6 GHz bands.

The 2.40 GHz spectrum provides broad coverage and compatibility for legacy wireless devices, IoT systems, barcode scanners, wireless sensors, and low-bandwidth operational equipment. The 5 GHz band delivers higher throughput and improved performance for laptops, smartphones, tablets, and business productivity applications. The 6 GHz spectrum further enhances wireless capacity by enabling next-generation device communication with reduced interference.

By combining all three frequency ranges within a unified wireless platform, organizations can maximize network efficiency while supporting diverse device ecosystems. This flexibility is especially important in enterprises undergoing gradual migration toward Wi-Fi 6E-compatible endpoints.

Advanced Enterprise Wireless Performance Capabilities

High-Speed Wireless Data Transmission

The Cisco CW9166D1-B wireless access point is engineered to support high-throughput wireless communication for demanding enterprise applications. Businesses increasingly rely on cloud computing platforms, remote collaboration tools, and real-time communication systems that require stable high-speed wireless infrastructure.

With support for Wi-Fi 6E standards, the access point improves spectral efficiency and overall wireless performance through technologies such as Orthogonal Frequency Division Multiple Access, multi-user communication enhancements, improved beamforming, and advanced modulation techniques. These features help maximize wireless capacity while improving client responsiveness.

Organizations implementing large-scale wireless deployments often face congestion challenges caused by growing device counts and increasing data consumption. The Cisco Catalyst 9166d1 helps mitigate these challenges through intelligent radio management and advanced traffic optimization capabilities.

Optimized Low-Latency Wireless Communication

Low-latency wireless performance has become essential for modern digital workplaces. Applications such as video conferencing, voice communications, virtual collaboration, remote healthcare systems, online education platforms, and cloud-hosted applications require responsive wireless connectivity with minimal delays.

The Cisco CW9166D1-B supports low-latency communication by leveraging the benefits of Wi-Fi 6E spectrum expansion and advanced wireless scheduling technologies. Reduced contention within the 6 GHz band allows enterprise users to experience smoother real-time application performance.

Businesses deploying unified communications platforms benefit from stable wireless voice and video sessions that maintain quality during peak usage periods. The access point’s optimized wireless intelligence helps prioritize traffic flows while reducing network bottlenecks.

High-Density Client Support

Modern organizations frequently operate environments where hundreds or thousands of wireless devices connect simultaneously. Educational campuses, conference facilities, stadiums, hospitals, airports, and corporate offices require wireless infrastructure capable of supporting large client populations without compromising performance.

The Cisco Catalyst CW9166D1-B is engineered for high-density wireless deployments. Advanced client management technologies help distribute wireless resources efficiently while maintaining reliable connectivity for connected users and devices.

The access point’s tri-band operation contributes significantly to improved client distribution by separating traffic across multiple frequency ranges. This architecture minimizes congestion and enhances wireless stability in demanding environments.

Internal Antenna Design and Ceiling Deployment Flexibility

Integrated Internal Antenna Architecture

The Cisco CW9166D1-B features an internal antenna design that simplifies deployment while maintaining strong wireless coverage characteristics. Integrated antennas eliminate the need for external antenna attachments and create a streamlined appearance suitable for professional indoor environments.

Internal antenna architecture also supports simplified installation processes by reducing configuration complexity and minimizing deployment variables. Enterprises seeking consistent wireless performance across distributed locations can benefit from the predictable coverage characteristics offered by integrated antenna systems.

The wireless access point is engineered to provide balanced signal propagation suitable for office floors, classrooms, meeting rooms, healthcare facilities, and commercial indoor spaces. Intelligent radio optimization technologies further enhance coverage consistency across the deployment environment.

Ceiling Mountable Enterprise Deployment

The ceiling mountable design of the Cisco Catalyst 9166d1 access point supports optimal wireless coverage placement. Ceiling-mounted access points typically provide superior signal distribution because they reduce physical obstructions and improve propagation patterns throughout indoor environments.

Organizations implementing enterprise wireless infrastructure often prefer ceiling-mounted wireless equipment because it improves aesthetic integration while protecting networking hardware from accidental interference or tampering. The Cisco CW9166D1-B accommodates these deployment preferences through its professional mounting design.

Ceiling installations are especially beneficial in open office layouts, educational facilities, retail environments, hospitality venues, and healthcare spaces where centralized wireless coverage is essential. Proper ceiling placement can significantly improve roaming performance and reduce dead zones.

Deployment Efficiency in Enterprise Facilities

Efficient deployment processes are critical for organizations managing large-scale wireless rollouts. The Cisco CW9166D1-B simplifies installation through enterprise-focused mounting capabilities and centralized management integration.

IT administrators can deploy multiple wireless access points throughout facilities while maintaining consistent configuration standards and operational efficiency. This approach reduces installation complexity and accelerates wireless infrastructure expansion projects.

5 Gigabit Ethernet Connectivity and Wired Network Integration

High-Speed 5 Gigabit Ethernet Uplink Support

The Cisco CW9166D1-B includes 5 Gigabit Ethernet connectivity to support the increased throughput demands associated with Wi-Fi 6E wireless traffic. Traditional Gigabit Ethernet uplinks may become bottlenecks in high-performance wireless environments, especially when multiple high-speed clients communicate simultaneously.

By incorporating 5 Gigabit Ethernet support, the access point enables organizations to maximize wireless throughput while maintaining strong wired network integration. Multi-gigabit connectivity ensures that wireless performance improvements are not restricted by insufficient uplink bandwidth.

Enterprises deploying modern switching infrastructure can fully leverage the capabilities of Wi-Fi 6E technology by pairing the Cisco Catalyst access point with compatible multi-gigabit switching platforms. This combination creates a high-performance end-to-end networking environment suitable for demanding enterprise workloads.

Enhanced Network Backbone Integration

Enterprise wireless access points function as critical components within broader network architectures. The Cisco CW9166D1-B integrates effectively with enterprise network backbones by supporting high-capacity wired connectivity and intelligent traffic management.

Organizations implementing software-defined networking strategies and cloud-managed networking environments benefit from access points capable of supporting centralized policy enforcement, visibility, and network optimization.

The integration of multi-gigabit Ethernet connectivity also supports future scalability requirements by accommodating growing wireless traffic volumes over time. Businesses investing in next-generation wireless infrastructure require solutions capable of adapting to increasing data demands.

Bluetooth 5.1 Integration and IoT Connectivity

Advanced Bluetooth 5.1 Capabilities

The Cisco CW9166D1-B incorporates Bluetooth 5.1 functionality to support location services, IoT device communication, asset tracking, and proximity-based enterprise applications. Bluetooth integration enhances the access point’s role beyond traditional wireless networking by enabling additional smart building and operational capabilities.

Bluetooth 5.1 technology improves positioning accuracy, signal reliability, and communication efficiency compared to earlier Bluetooth standards. Organizations implementing indoor navigation systems, smart workplace technologies, and IoT automation platforms can leverage these capabilities to improve operational efficiency.

The integration of Bluetooth functionality within the wireless access point eliminates the need for separate Bluetooth infrastructure components, simplifying deployment and reducing hardware complexity.

IoT Device Connectivity and Smart Infrastructure

Modern enterprises increasingly deploy IoT devices for environmental monitoring, security systems, occupancy analytics, energy management, asset tracking, and operational automation. The Cisco Catalyst CW9166D1-B supports these evolving requirements by providing integrated wireless communication capabilities suitable for connected environments.

Smart building initiatives often require scalable wireless infrastructure capable of supporting both traditional user devices and specialized IoT equipment. The tri-band wireless design and Bluetooth integration enable organizations to support diverse connectivity requirements within a unified networking platform.

As IoT ecosystems continue expanding, enterprises require wireless access points capable of supporting growing device densities while maintaining security and operational stability. Cisco’s enterprise networking expertise contributes to dependable performance across complex connected environments.

Enterprise Security and Network Protection Features

Security remains a critical consideration for enterprise wireless infrastructure. The Cisco CW9166D1-B is designed to support advanced wireless security frameworks that protect organizational data, user communications, and connected devices.

Modern enterprises face increasingly sophisticated cybersecurity threats targeting wireless networks. Secure authentication mechanisms, encryption technologies, segmentation capabilities, and centralized policy management help organizations maintain strong security postures.

The Cisco Catalyst wireless platform supports enterprise-grade security integration suitable for industries with strict compliance requirements, including healthcare, finance, education, and government environments.

Secure User Authentication and Access Control

Enterprise wireless networks must support secure user authentication while maintaining convenient connectivity for employees, contractors, guests, and IoT devices. The Cisco CW9166D1-B supports flexible authentication frameworks that help organizations implement granular access control policies.

Role-based access management allows administrators to define network permissions based on user identity, device classification, and organizational policies. This approach improves security while supporting operational flexibility across diverse enterprise environments.

Centralized wireless management platforms further enhance security visibility by enabling continuous monitoring, threat detection, and policy enforcement across distributed deployments.

Network Segmentation and Traffic Isolation

Organizations frequently require separate wireless networks for employees, guests, operational systems, and IoT devices. The Cisco Catalyst 9166d1 supports segmentation strategies that help isolate traffic and reduce security exposure.

Traffic segmentation enhances network organization while improving performance predictability and compliance management. Businesses can create dedicated wireless environments tailored to specific operational requirements without deploying separate physical infrastructure.

Cloud Management and Cisco Catalyst Ecosystem Integration

Cisco Catalyst Networking Ecosystem Compatibility

The Cisco CW9166D1-B integrates within the broader Cisco Catalyst networking ecosystem, enabling organizations to manage wireless and wired infrastructure through unified operational frameworks. Enterprise IT teams benefit from centralized visibility, policy management, automation, and analytics capabilities.

Cisco Catalyst infrastructure solutions are widely deployed across enterprise environments due to their scalability, reliability, and advanced feature sets. Integrating wireless access points within the Catalyst ecosystem simplifies network administration and enhances operational consistency.

Unified management platforms improve troubleshooting efficiency, deployment standardization, and network optimization across distributed enterprise environments.

Cloud-Based Wireless Management

Cloud-managed networking platforms provide organizations with flexible operational models for monitoring and administering wireless infrastructure. The Cisco CW9166D1-B supports modern management approaches that reduce administrative overhead while improving visibility.

Cloud-based management enables remote monitoring, firmware updates, analytics review, configuration management, and policy enforcement across geographically distributed deployments. This capability is particularly valuable for organizations operating multiple branch offices, campuses, or retail locations.

Centralized management also improves scalability by allowing administrators to provision and maintain large wireless environments efficiently. Automation capabilities reduce manual configuration tasks while improving deployment consistency.

Analytics and Network Visibility

Comprehensive network analytics help organizations understand wireless usage patterns, client behavior, application performance, and infrastructure health. The Cisco Catalyst 9166d1 provides visibility capabilities that support proactive network optimization and troubleshooting.

Analytics-driven insights enable IT teams to identify congestion areas, optimize access point placement, and improve wireless service quality. Businesses increasingly rely on data-driven networking strategies to maintain optimal user experiences and operational efficiency.

Enterprise Deployment Scenarios

Modern corporate offices require high-performance wireless connectivity capable of supporting hybrid work environments, cloud applications, video conferencing platforms, and collaborative workspaces. The Cisco CW9166D1-B delivers enterprise-grade wireless performance suitable for these dynamic environments.

Employees increasingly rely on wireless devices as primary productivity tools. Reliable Wi-Fi connectivity is essential for maintaining operational continuity and supporting business-critical workflows. The tri-band architecture helps ensure stable performance even during periods of high network utilization.

Ceiling-mounted deployment flexibility also supports clean and professional office aesthetics while maximizing wireless coverage efficiency across open workspaces and conference rooms.

Educational Institution Deployments

Educational institutions often support thousands of simultaneously connected devices across classrooms, lecture halls, libraries, dormitories, and administrative facilities. The Cisco Catalyst CW9166D1-B is well suited for these high-density wireless environments.

Students and faculty increasingly depend on digital learning platforms, cloud applications, online testing systems, and streaming educational content. Wi-Fi 6E capabilities improve wireless capacity and responsiveness while reducing congestion.

Educational environments also benefit from advanced security and segmentation features that help separate student traffic, administrative systems, and IoT infrastructure.
