ASA5525-FPWR-K9 Cisco ASA 5525-X Security Appliance with Firepower Services

Overview of the Cisco ASA 5525-X Series Security Appliance

The Cisco ASA5525-FPWR-K9, part of the ASA 5525-X series enhanced with Firepower services, is a high-performance rack-mounted security solution designed to deliver advanced network protection for modern enterprise environments. It integrates next-generation firewall capabilities with scalable VPN support and intelligent threat defense, making it suitable for securing branch offices, data centers, and mid-sized business networks requiring strong perimeter defense and deep packet inspection.

General Information

• Manufacturer: Cisco Systems
• Model Identifier: ASA5525-FPWR-K9
• Device Category: Advanced Security Appliance / Firewall

Technical Specifications

• Rack Unit Size: 1U compact chassis
• Pre-installed Services: Power-optimized security services enabled
• Memory Capacity: 8 GB RAM
• Flash Storage: 8 GB onboard flash
• Storage Type: Integrated SSD module

Networking Capabilities

• Installation Type: Rack-mount compatible design
• Total Ports: 8 high-speed interfaces
• Connectivity: Fully wired network infrastructure support
• Data Link Standard: Gigabit Ethernet (10/100/1000 Mbps)
• Supported Protocols: IPsec secure tunneling

Performance Metrics

• Firewall Throughput: Up to 2 Gbps
• VPN Throughput (3DES/AES): 300 Mbps optimized encryption handling
• Session Establishment Rate: 20,000 connections per second
• Firewall + IPS Performance: Up to 600 Mbps inspection throughput

Capacity

• IPsec VPN Peers Supported: 750 secure tunnels
• SSL VPN Users: 2 concurrent sessions
• Maximum Concurrent Sessions: 500,000 active connections
• Virtual Networks (VLANs): Up to 200 segmented networks
• Security Contexts: Dual-context operation support

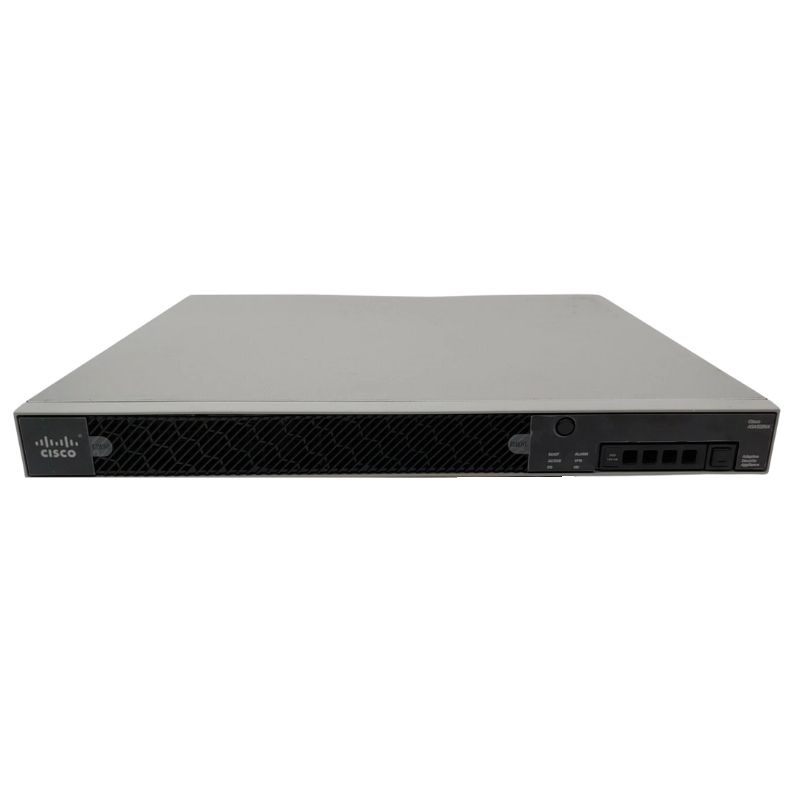

Status Indicators

• Power status monitoring
• Boot sequence indicator
• Storage activity (HDD/SSD) status
• Operational activity LED
• System alarm notifications
• VPN activity status

Security Features

• Advanced firewall protection for threat prevention
• Secure VPN connectivity for remote access
• VLAN segmentation for network isolation
• High availability configuration support
• Strong encryption standards including DES, 3DES, and AES

Expansion and Connectivity

• Expansion Slots: 1 total slot available
• Upgradeable Capacity: 1 free expansion slot for future enhancements

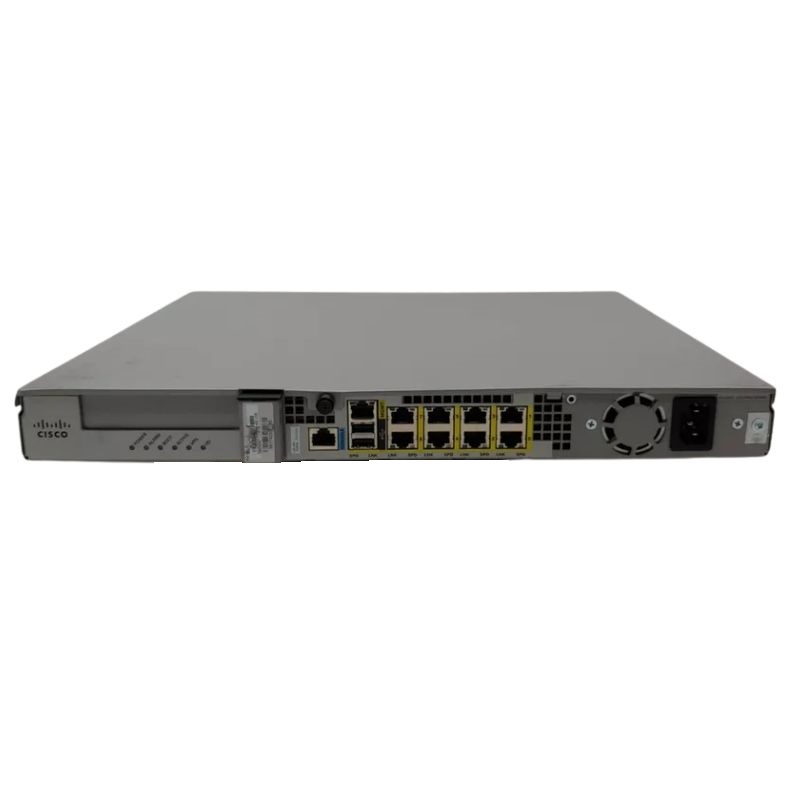

Interface Options

• 8 × 1000Base-T RJ-45 Ethernet ports
• 1 × dedicated Gigabit management port (RJ-45)
• 1 × additional management interface (RJ-45)
• 2 × USB 2.0 Type-A ports for peripheral support

Power

• Power Supply Type: Internal integrated PSU
• Installed Unit: Single power supply included
• Maximum Supported: Single PSU configuration
• Input Voltage: 120/230V AC (50/60 Hz)
• Power Output: 400 Watt capacity

Compatibility

• Compatible with Cisco Firepower Management Center (FMC) for centralized policy control
• Supports Cisco ASA operating environments and Firepower Threat Defense (FTD) integration
• Works with standard Gigabit Ethernet network infrastructures
• Supports enterprise VPN architectures including site-to-site and remote-access deployments
• Integrates with VLAN-based segmented networks and multi-zone security setups
• Compatible with Cisco SecureX ecosystem for enhanced threat visibility

Cisco ASA5525-FPWR-K9 ASA Security Appliance 5525-X

The Cisco ASA5525-FPWR-K9 ASA Security Appliance 5525-X with Firepower Services Rack-mountable represents a high-performance network security solution designed for modern enterprise environments that require advanced threat protection, deep packet inspection, and scalable firewall capabilities. Built on Cisco’s Adaptive Security Appliance architecture, this model integrates traditional firewall functionality with next-generation security intelligence through Firepower Services. The system is engineered to provide strong perimeter defense, internal segmentation security, and advanced threat mitigation for complex network infrastructures.

This category of security appliance is designed for organizations that demand reliability, high throughput, and advanced policy enforcement. The hardware platform is optimized for rack-mount deployment, making it suitable for data centers, enterprise network closets, and managed service provider environments. Its modular architecture ensures that organizations can adapt security policies dynamically as network demands evolve without requiring complete infrastructure replacement.

At its core, the ASA5525-X series is built to support both stateful inspection firewall capabilities and next-generation intrusion prevention systems. This dual-layer security approach allows organizations to maintain traditional perimeter security while also gaining visibility into application-level threats and malicious behavior patterns that often bypass conventional firewall rules.

Firepower Services Integration

The integration of Firepower Services within the Cisco ASA5525-FPWR-K9 significantly enhances its security capabilities beyond standard firewall operations. Firepower brings contextual awareness to network traffic, enabling administrators to analyze application behavior, user identity, and threat intelligence in real time. This transformation from simple packet filtering to intelligent security analysis makes the appliance a critical component in modern cybersecurity frameworks.

Firepower Services enable advanced intrusion prevention, malware detection, and file reputation analysis. These capabilities allow the appliance to detect known and unknown threats by analyzing behavioral patterns rather than relying solely on signature-based detection. As a result, enterprises benefit from proactive threat mitigation that reduces the risk of data breaches, ransomware attacks, and unauthorized access attempts.

The security intelligence engine continuously updates threat data, ensuring that the appliance remains effective against emerging cyber threats. This dynamic update mechanism is essential in environments where attack vectors evolve rapidly and traditional static firewall rules are insufficient.

Firewall Capabilities Performance

The ASA5525-FPWR-K9 provides robust stateful inspection firewall capabilities that monitor active connections and evaluate traffic based on predefined security policies. This allows the system to maintain awareness of session states and enforce granular control over network communications.

The firewall engine is capable of processing high volumes of concurrent connections, making it suitable for medium to large enterprise deployments. It ensures that legitimate traffic flows without interruption while blocking unauthorized or suspicious activity at the network boundary. The performance optimization of the hardware ensures low latency and consistent throughput even under heavy network loads.

In addition to basic firewall functions, the appliance supports advanced policy-based routing, access control lists, and dynamic packet filtering. These features enable organizations to design highly customized security policies that align with their operational requirements and compliance obligations.

Intrusion Prevention System

The integrated intrusion prevention system (IPS) within the ASA5525-FPWR-K9 is designed to analyze network traffic in real time and identify malicious patterns that may indicate cyberattacks. This includes detection of exploit attempts, reconnaissance activities, and command-and-control communications commonly associated with advanced persistent threats.

The IPS engine leverages both signature-based detection and anomaly-based detection techniques. Signature-based detection allows the system to recognize known attack patterns, while anomaly detection identifies deviations from normal network behavior. This dual approach ensures comprehensive coverage against both known and emerging threats.

The appliance also supports automatic threat mitigation responses, including traffic blocking, session termination, and alert generation. These automated responses help reduce the response time to security incidents and minimize potential damage to network resources.

Rack-Mount Configuration and Physical Deployment

The Cisco ASA5525-FPWR-K9 is designed as a rack-mountable appliance, making it suitable for structured data center environments and enterprise network infrastructure setups. Its compact form factor allows it to be installed efficiently in standard server racks while maintaining optimal airflow and thermal management.

The hardware design emphasizes durability and long-term operational stability. It is built to handle continuous workloads in demanding environments where uptime and reliability are critical. The internal components are optimized for performance, ensuring that the appliance can manage high-speed data processing without bottlenecks.

Cooling efficiency and power management are also key aspects of the design. The system is engineered to maintain stable performance under varying environmental conditions, making it suitable for both controlled data center environments and distributed enterprise locations.

Network Connectivity Flexible

The appliance supports multiple network interfaces that enable flexible connectivity options for enterprise network architectures. These interfaces allow the device to be integrated into complex topologies involving multiple network segments, VLANs, and security zones.

High throughput performance is a defining characteristic of the ASA5525-FPWR-K9. The system is optimized to handle large volumes of encrypted and unencrypted traffic while maintaining low latency. This makes it suitable for organizations with demanding bandwidth requirements, such as cloud service providers, financial institutions, and large corporate networks.

The interface architecture is designed to support segmentation of traffic flows, enabling administrators to isolate sensitive systems and enforce strict access control policies. This segmentation enhances overall security posture by reducing the attack surface within the internal network.

VPN Capabilities and Secure Remote Access Infrastructure

The Cisco ASA5525-FPWR-K9 supports advanced virtual private network (VPN) technologies that enable secure remote access and site-to-site connectivity. These VPN capabilities ensure that data transmitted over public networks remains encrypted and protected from interception.

Remote access VPN functionality allows employees and administrators to securely connect to corporate resources from remote locations. This is particularly important in modern hybrid work environments where secure access to internal systems is required from multiple geographic locations.

Site-to-site VPN support enables secure communication between branch offices and central data centers. This ensures that distributed enterprise networks can operate as a unified infrastructure while maintaining strict security standards.

Security Policy Administrative Control

The management framework of the ASA5525-FPWR-K9 provides administrators with comprehensive control over security policies, network configurations, and traffic monitoring. The system supports centralized management interfaces that simplify configuration and ongoing maintenance.

Administrators can define detailed access control policies that govern how traffic flows between different network segments. These policies can be based on user identity, application type, protocol, or geographic location, allowing for highly granular security enforcement.

The appliance also supports logging and reporting features that provide visibility into network activity. These insights are essential for compliance reporting, forensic analysis, and proactive security monitoring.

Enterprise Use Cases and Deployment Scenarios

The Cisco ASA5525-FPWR-K9 is widely used in enterprise environments that require robust perimeter security combined with advanced threat detection capabilities. Common deployment scenarios include corporate headquarters, data centers, financial institutions, healthcare networks, and government infrastructure.

In enterprise branch environments, the appliance serves as a centralized security enforcement point that manages inbound and outbound traffic while ensuring compliance with organizational policies. In data center environments, it functions as a critical security layer that protects sensitive workloads and applications.

Service providers also deploy this appliance in managed security service offerings where consistent performance and scalable security features are required to support multiple clients simultaneously.

Firepower Analytics and Visibility

Firepower analytics provide deep visibility into network traffic patterns and security events. This visibility enables organizations to identify potential vulnerabilities, track suspicious behavior, and respond to incidents with precision.

The monitoring system aggregates security data and presents it in a structured format that allows administrators to quickly assess network health and threat levels. This real-time visibility is essential for maintaining strong cybersecurity posture in dynamic network environments.

Threat intelligence integration ensures that the appliance is continuously updated with the latest information about emerging cyber threats. This allows organizations to stay ahead of attackers and implement proactive defense strategies.

Performance Efficiency and Deployment Security

The ASA5525-FPWR-K9 is designed with scalability in mind, allowing organizations to expand their security infrastructure without replacing existing hardware. Its architecture supports incremental upgrades and configuration enhancements that align with evolving business requirements.

Performance efficiency is achieved through optimized hardware acceleration and intelligent traffic processing. This ensures that even as network traffic increases, the appliance continues to deliver consistent performance without degradation.

The long-term deployment value of this category of security appliance is significant due to its ability to adapt to changing threat landscapes and network architectures. Organizations benefit from extended lifecycle usability and reduced total cost of ownership.

Compliance Security Standards and Enterprise

The Cisco ASA5525-FPWR-K9 supports compliance with various industry security standards and regulatory requirements. These include frameworks related to data protection, access control, and network security governance.

Organizations operating in regulated industries rely on the appliance to enforce strict security policies that align with compliance mandates. This includes logging capabilities, audit trails, and policy enforcement mechanisms that support regulatory reporting requirements.
