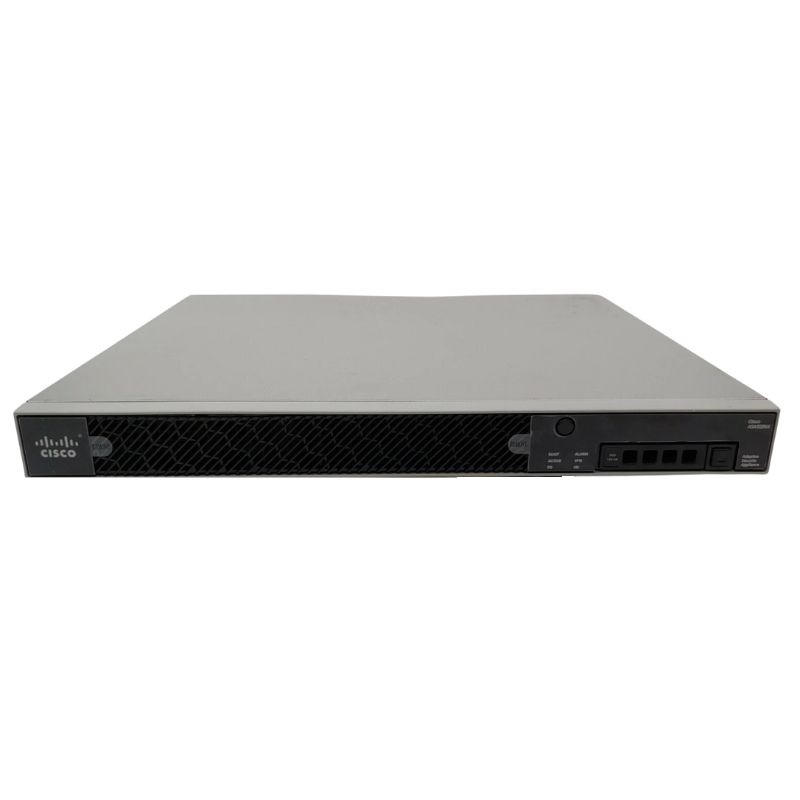

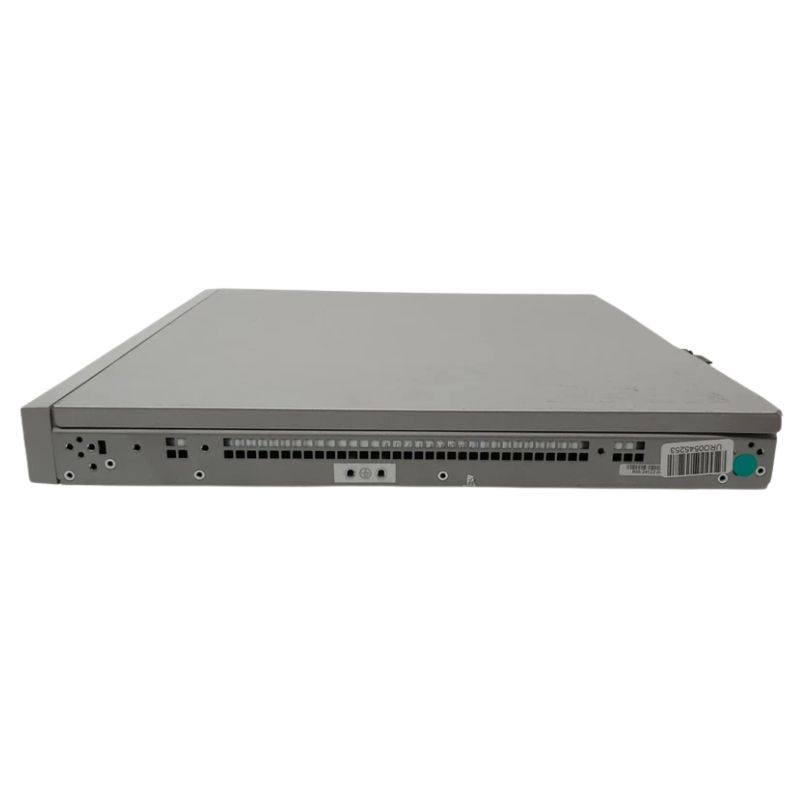

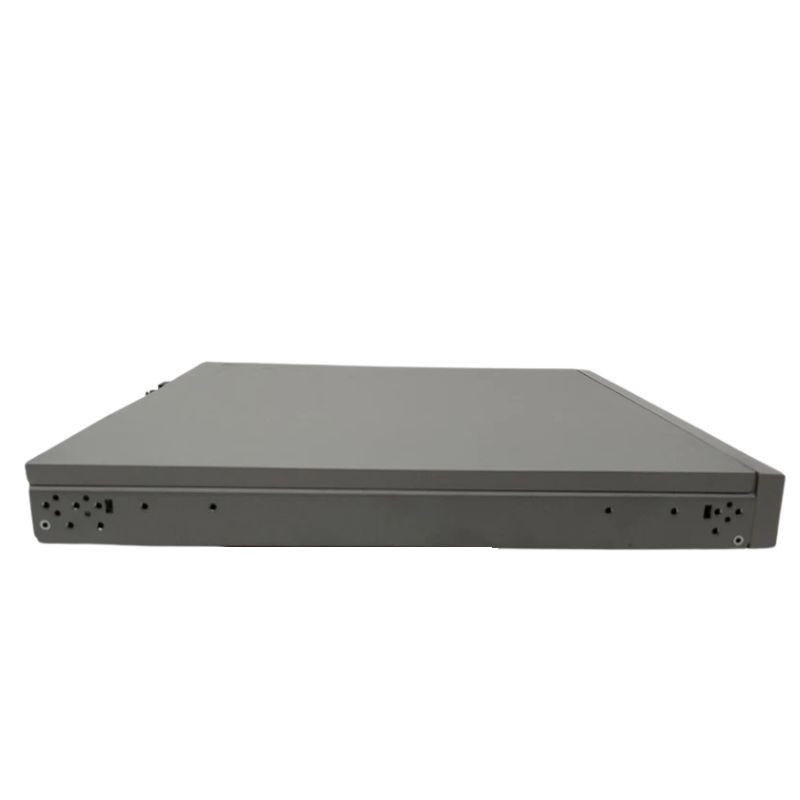

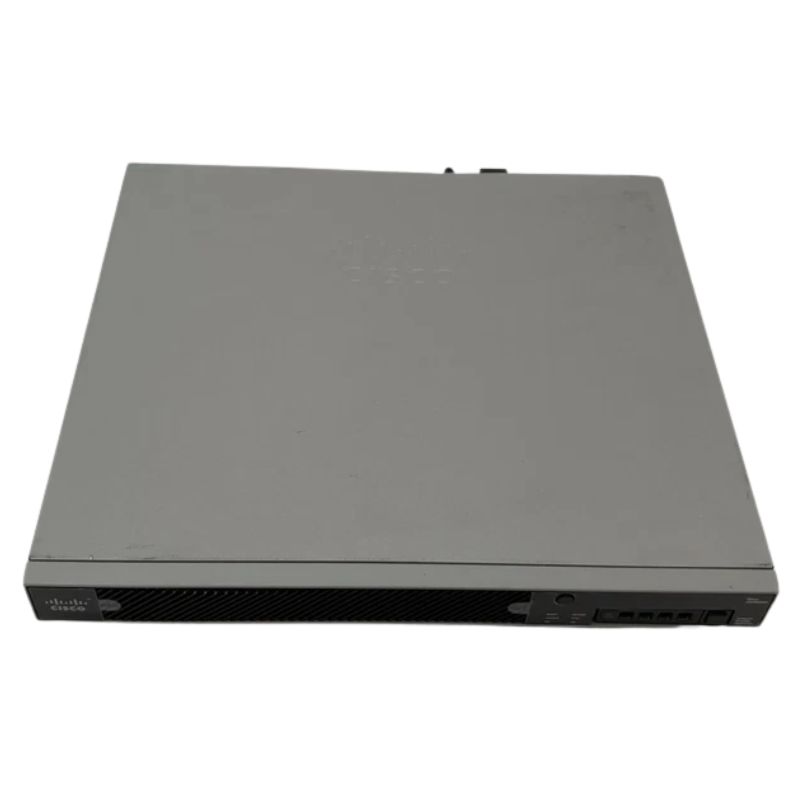

ASA5525-FPWR-K9 Cisco Security Appliance 5525-X with Firepower Services

Product Overview of the 5500-X Network Security Appliance

The Cisco ASA5525-FPWR-K9 is a high-performance next-generation security appliance from the ASA 5500-X series, designed to deliver advanced firewall protection combined with Firepower services. Built for enterprise-level network environments, this rack-mountable 1U device ensures robust defense mechanisms, reliable connectivity, and scalable security management. It is engineered to support modern cybersecurity demands such as VPN encryption, intrusion prevention, and high-volume traffic handling, making it suitable for data centers and corporate networks requiring strong perimeter security.

General Information

• Manufacturer: Cisco Systems
• Model Number: ASA5525-FPWR-K9
• Device Category: Network Security Appliance / Firewall

Technical Specifications

• Rack Unit Size: 1U compact chassis
• Pre-installed Services: Firepower Security Services enabled
• Memory Capacity: 8 GB RAM for efficient processing
• Flash Storage: 8 GB onboard flash memory
• Storage Type: Integrated SSD module

Networking Capabilities

• Installation Type: Standard rack-mount design
• Ethernet Ports: 8 x Gigabit RJ-45 interfaces
• Connectivity Mode: Wired network infrastructure support
• Protocol Support: IPsec for secure tunneling
• Network Speed Standard: Gigabit Ethernet transmission

Performance Metrics

• Firewall Processing Speed: Up to 2 Gbps throughput
• VPN Encryption Performance: Around 300 Mbps (3DES/AES)
• New Connections Rate: 20,000 connections per second
• Combined Firewall + IPS Throughput: 600 Mbps performance level

Capacity

• IPsec VPN Support: Up to 750 peers
• SSL VPN Sessions: 2 concurrent users
• Concurrent Active Sessions: 500,000 sessions capacity
• VLAN Support: Up to 200 virtual interfaces
• Security Contexts: 2 independent security zones

Status Indicators

• Power status monitoring light
• System boot and initialization indicator
• Hard drive / storage activity alert
• Active operation LED status
• Alarm and fault warning signal
• VPN operational status indicator

Key Features

• Advanced firewall protection for enterprise networks
• Secure VPN tunneling for remote connectivity
• VLAN segmentation for structured network management
• High availability architecture for continuous uptime
• Strong encryption algorithms including DES, 3DES, and AES

Expansion and Connectivity

• Expansion Slot Count: 1 total slot available
• Used Slots: 0 (fully available for expansion)
• Upgrade Flexibility: Modular expansion support for future scaling

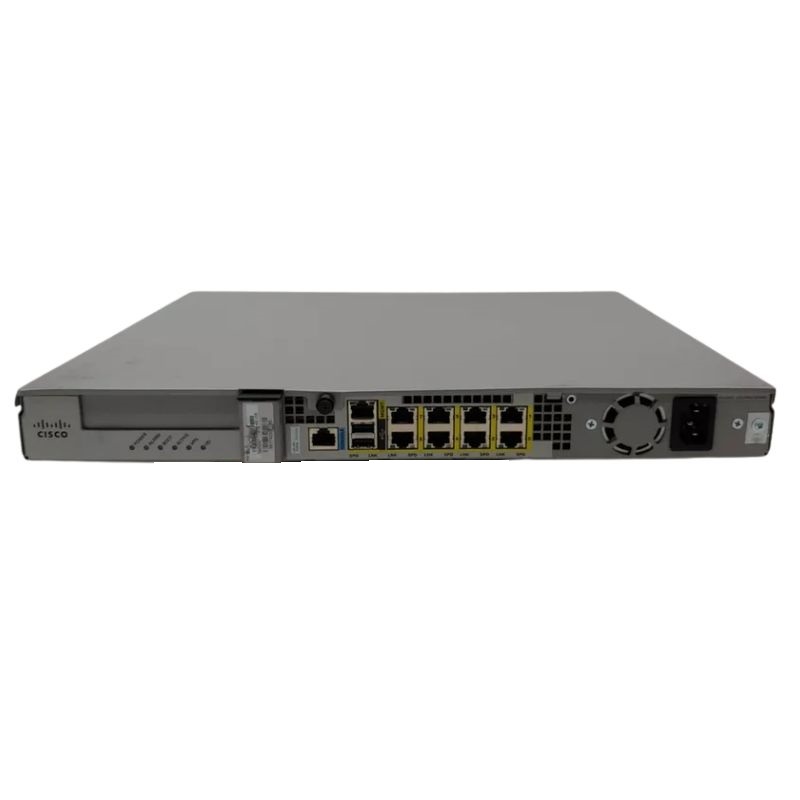

Interfaces

• 8 x 10/100/1000 Base-T Ethernet (RJ-45)
• 1 x Dedicated Management Port (RJ-45)
• Additional console/management RJ-45 interface
• 2 x USB 2.0 Type-A ports for external access

Power

• Power Supply Type: Internal integrated PSU
• Installed Units: 1 active power module
• Maximum Support: 1 power supply unit
• Input Voltage Range: AC 120–230V, 50/60 Hz
• Power Output: 400 Watts efficient delivery

Compatibility

• Compatible with Cisco Firepower Management Center (FMC) for centralized security control
• Supports Cisco ASA OS environments and hybrid Firepower software integration
• Works seamlessly with enterprise LAN/WAN infrastructures and Gigabit Ethernet switches
• Supports IPsec-based VPN clients and remote access solutions
• Fully compatible with 19-inch standard rack server cabinets
• Integrates with VLAN-based segmented network architectures
• Supports Cisco AnyConnect Secure Mobility Client for secure remote connectivity

Cisco ASA5525-FPWR-K9 ASA 5525-X with Firepower Services

The Cisco ASA5525-FPWR-K9 ASA Security Appliance 5525-X with Firepower Services Rack-mountable belongs to a high-performance enterprise network security appliance category designed to deliver advanced threat protection, scalable firewall capabilities, and integrated intrusion prevention within modern enterprise infrastructures. This category focuses on delivering unified security enforcement at the network edge, data center boundaries, and distributed branch environments where secure communication, encrypted traffic inspection, and threat intelligence are essential for business continuity.

This category of security appliances is widely deployed in environments that demand reliable perimeter defense, deep packet inspection, application visibility, and adaptive security policies. The Cisco ASA5525-X series with Firepower Services enhances traditional firewall capabilities by integrating next-generation security intelligence, allowing organizations to identify, analyze, and mitigate sophisticated cyber threats in real time.

Cisco ASA5525-X Hardware Architecture

The Cisco ASA5525-X platform is engineered with a modular and scalable architecture that supports high-throughput security processing and advanced service integration. Its rack-mountable design allows seamless integration into standardized server racks commonly found in enterprise data centers, colocation facilities, and enterprise network closets.

At its core, this appliance is optimized for balancing performance and security efficiency. The hardware architecture is designed to support concurrent security services such as stateful firewalling, VPN encryption, intrusion prevention, and application-layer inspection without degrading network performance. This ensures that even under heavy traffic loads, the system maintains consistent throughput and low latency.

The platform is built to handle complex traffic environments where multiple security policies are enforced simultaneously. Its processing capabilities are designed to support encrypted traffic inspection, allowing organizations to maintain secure communications without sacrificing visibility into potential threats hidden within encrypted tunnels.

Firepower Services Integration

A defining characteristic of this category is the integration of Cisco Firepower Services, which transforms the traditional ASA firewall into a next-generation security platform. Firepower Services introduces advanced intrusion prevention, application control, and threat intelligence correlation capabilities that significantly enhance network defense strategies.

The Firepower-enabled system provides continuous monitoring of network traffic, identifying anomalies and malicious patterns using behavior-based detection methods. This allows the appliance to respond dynamically to evolving cyber threats rather than relying solely on static rule-based filtering.

Firepower Services also incorporates contextual awareness, enabling administrators to understand which applications, users, and devices are generating network traffic. This level of visibility is essential for enforcing granular security policies and ensuring compliance with organizational security standards.

Firewall Security Capabilities

The Cisco ASA5525-FPWR-K9 category emphasizes robust firewall capabilities that enforce strict access control policies at the network boundary. Stateful inspection technology ensures that each packet entering or leaving the network is evaluated within the context of established communication sessions.

Policy enforcement within this category is highly granular, allowing administrators to define rules based on IP addresses, application types, user identities, and time-based conditions. This flexibility enables organizations to implement security frameworks aligned with modern zero-trust principles, where access is continuously verified rather than implicitly trusted.

The firewall engine is designed to operate efficiently under high traffic conditions, ensuring that security enforcement does not introduce bottlenecks in network performance. This balance between security rigor and operational efficiency is critical in enterprise environments where uptime and responsiveness are essential.

VPN Connectivity and Secure Remote Access

Another significant aspect of this category is its support for secure VPN connectivity, enabling encrypted communication between remote users, branch offices, and central data centers. The appliance supports both site-to-site VPNs and remote access VPNs, ensuring secure data transmission across public and private networks.

VPN encryption mechanisms are optimized to maintain high throughput while preserving strong cryptographic security. This ensures that remote users can access corporate resources without exposing sensitive data to interception or unauthorized access.

In distributed enterprise environments, this capability is essential for maintaining operational continuity, especially in scenarios involving remote workforces and geographically dispersed infrastructure.

Visibility and Control

This category of security appliance provides deep application visibility, allowing administrators to identify and control applications traversing the network regardless of port or protocol usage. This is essential in modern environments where applications often use dynamic ports and encrypted channels.

Application control enables organizations to enforce usage policies, prioritize critical business applications, and restrict non-essential or risky applications. This improves both security posture and network performance by ensuring that bandwidth is allocated efficiently.

The visibility layer also contributes to security analytics by providing insights into user behavior and application trends, helping organizations make informed decisions about network optimization and security enforcement.

Rack-Mountable and Enterprise Deployment

The rack-mountable form factor of the Cisco ASA5525-FPWR-K9 appliance is specifically designed for enterprise-scale deployment. It fits seamlessly into standardized rack environments, allowing efficient use of physical space in data centers and network facilities.

This design ensures that the appliance can be integrated into existing infrastructure without requiring specialized installation configurations. It supports structured cabling systems and centralized management approaches commonly used in enterprise IT environments.

The physical design also contributes to thermal efficiency and system reliability, ensuring stable operation under continuous workloads in mission-critical environments.

Performance Optimization

Performance optimization is a key characteristic of this category, with the Cisco ASA5525-X engineered to handle high volumes of network traffic without compromising security inspection depth. The system is designed to distribute processing loads efficiently across its hardware resources.

This ensures that security services such as firewalling, VPN encryption, and intrusion prevention operate simultaneously without causing performance degradation. The architecture is optimized for environments with high transaction rates, such as financial systems, enterprise applications, and cloud-connected infrastructures.

Throughput efficiency is maintained through intelligent traffic management mechanisms that prioritize critical network flows while ensuring comprehensive inspection of all incoming and outgoing data.

Use Cases and Deployment Scenarios

The Cisco ASA5525-FPWR-K9 category is widely used across various enterprise deployment scenarios. In data center environments, it serves as a perimeter security gateway, protecting sensitive servers and applications from external threats. In branch office deployments, it provides secure connectivity to centralized resources while maintaining local security enforcement.

In hybrid cloud architectures, this appliance plays a crucial role in securing communication between on-premises infrastructure and cloud environments. It ensures consistent policy enforcement across distributed networks, reducing security gaps that may arise from complex multi-cloud deployments.

Organizations in finance, healthcare, government, and telecommunications often rely on this category of security appliance due to its ability to meet strict regulatory compliance requirements and protect sensitive data.

Scalability and Future-Ready Security

The Cisco ASA5525-FPWR-K9 category is designed with scalability in mind, allowing organizations to expand their security infrastructure as network demands grow. This scalability is essential in dynamic enterprise environments where traffic volumes and security requirements continuously evolve.

The integration of Firepower Services ensures that the platform remains future-ready by supporting ongoing updates to threat intelligence, security signatures, and application recognition capabilities.

This adaptability allows organizations to maintain long-term investment value while ensuring continuous protection against emerging cyber threats.
