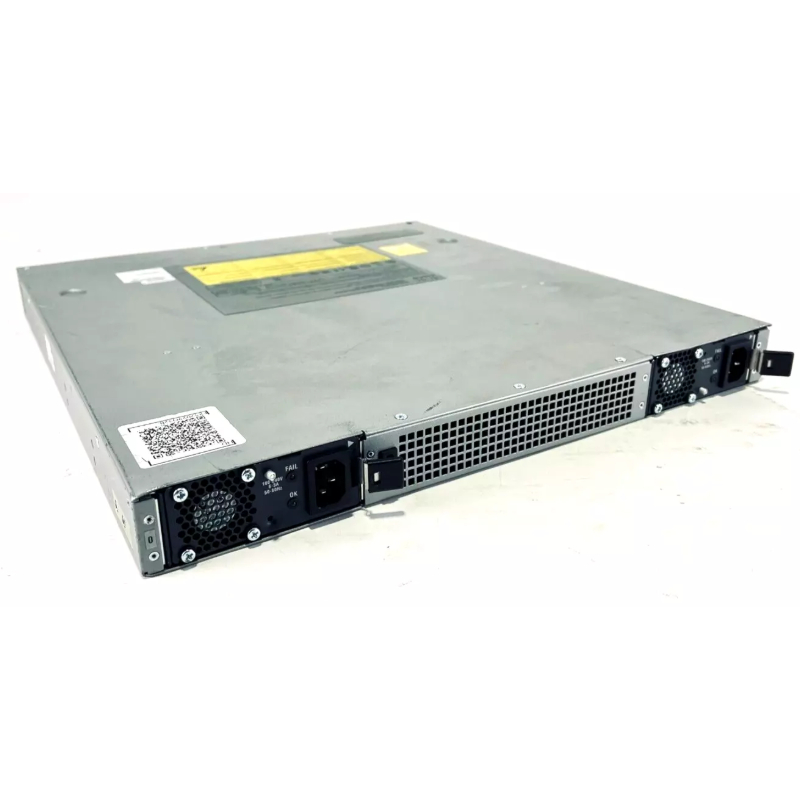

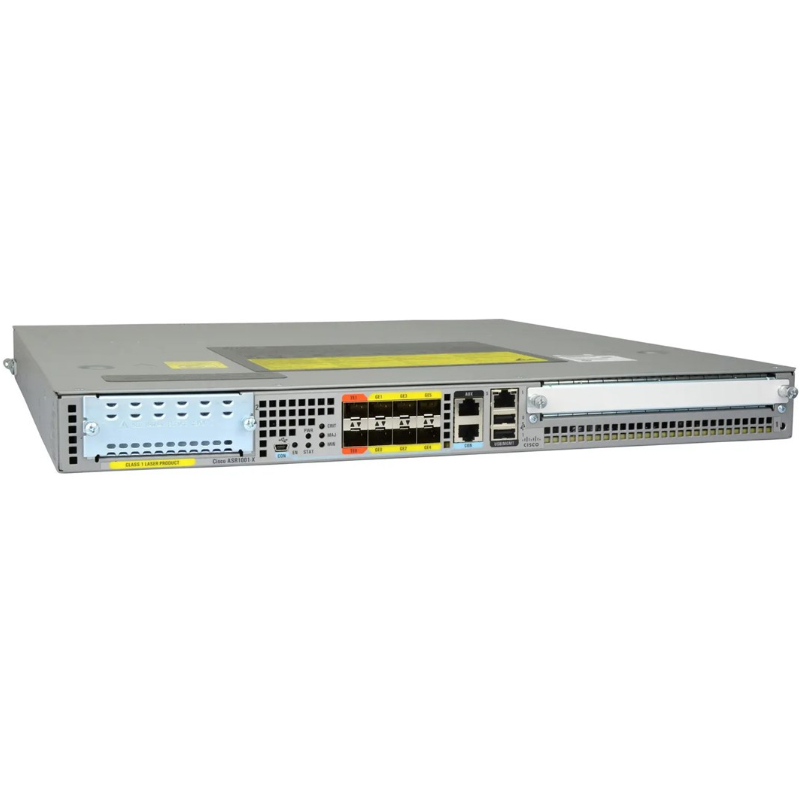

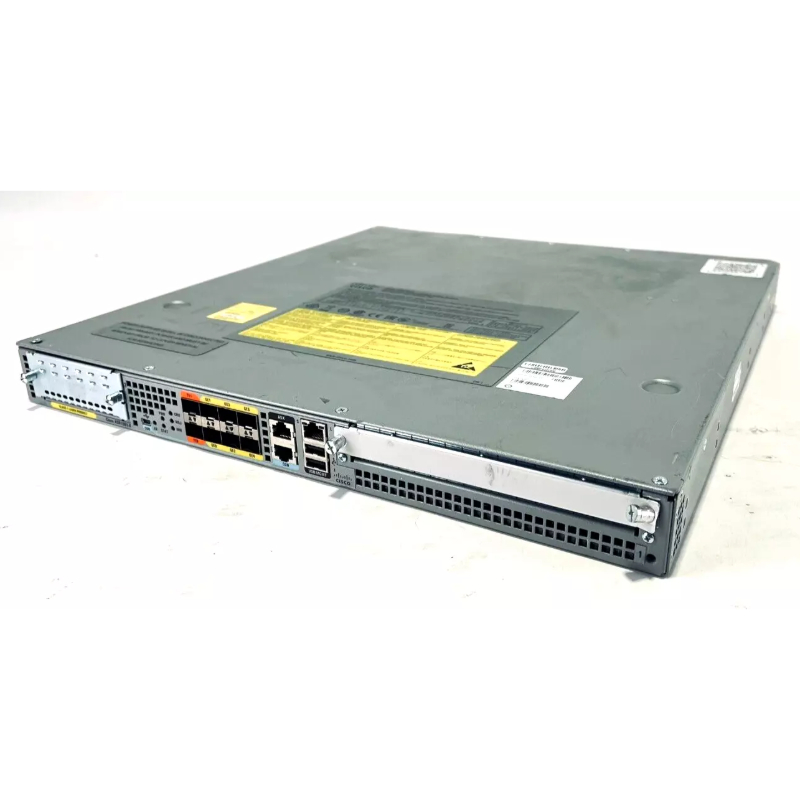

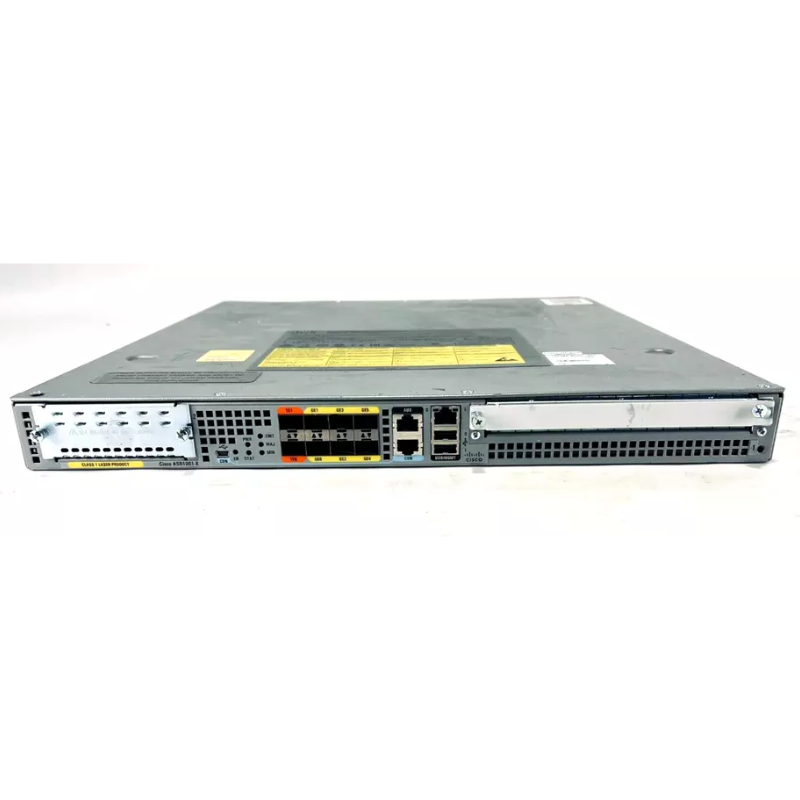

ASR1001X-10G-K9 Cisco 8-Slot 10G Ethernet Router

Highlights of Cisco 8 Slots Ethernet Router

The Cisco ASR1001X-10G-K9 Aggregation Services Router is a high-performance, enterprise-grade networking solution designed for modern data centers and service provider environments. Built with scalability, reliability, and advanced routing capabilities in mind, this rack-mountable router delivers exceptional throughput and flexible connectivity options. It is ideal for businesses seeking a powerful and future-ready routing platform.

General Information

• Brand: Cisco
• Model Number: ASR1001X-10G-K9
• Product Type: Enterprise Router
• Deployment: Rack-Mountable (1RU)

Core Performance Features

• System Throughput: Default 10 Gbps performance with upgrade capability up to 20 Gbps via licensing
• Processor: Integrated quad-core 2.13 GHz route processor for efficient data handling
• Forwarding Engine: Embedded Services Processor (ESP) powered by Cisco QuantumFlow technology

Memory & Storage Configuration

• DRAM: 8 GB standard memory, expandable up to 16 GB
• Flash Storage: 8 GB internal eUSB bootflash for reliable system operations

Flexible Port Configuration & Connectivity

Built-in Network Ports

• 6 × 1 Gigabit Ethernet SFP ports for standard network connections
• 2 × 10 Gigabit Ethernet SFP+ ports for high-speed data transfer

Important Port Notes

• 10G SFP+ ports operate exclusively at 10 Gbps speed
• Backward compatibility to 1 Gbps is not supported on SFP+ ports

Expansion & Module Slots

• 1 × Shared Port Adapter (SPA) slot (single-height)
• 1 × Network Interface Module (NIM) slot for additional expansion

Management & Console Interfaces

• 1 × RJ-45 10/100/1000 management port
• 1 × RJ-45 console port
• 1 × Mini USB console port
• 2 × USB Type-A ports for external connectivity

Physical Specifications & Design

Dimensions & Weight

• Height: 1.71 inches
• Width: 17.3 inches
• Depth: 18.17 inches
• Weight: Approximately 25 lbs (11.35 kg) when fully configured

Form Factor Advantages

• Space-saving rack-mount design
• Easy installation and maintenance
• Suitable for enterprise data centers and network closets

Power Supply & Energy Efficiency

Power Features

• Dual hot-swappable power supplies (AC or DC supported)
• Redundant power configuration included in standard bundle

Power Consumption

• Maximum typical load: 250W (AC)
• Maximum typical load: 242W (DC)

Overview of Cisco ASR1001X-10G-K9 Rack-mountable Router

The Cisco ASR1001X-10G-K9 rack-mountable router represents a high-performance networking solution engineered to support modern enterprise, service provider, and data center infrastructures. This category focuses on advanced aggregation services routers designed to deliver exceptional throughput, scalability, and reliability. Built to accommodate demanding workloads, this router category enables seamless integration of high-speed connectivity, virtualization capabilities, and robust security features into a compact form factor suitable for rack deployment.

Advanced Architectural Design for High-Performance Networking

The architecture of the Cisco ASR1001X-10G-K9 is centered around optimized data forwarding and control plane separation, ensuring that network traffic is processed efficiently without compromising system stability. The router is equipped with a powerful embedded processor and dedicated hardware acceleration modules that enable consistent performance even under heavy traffic loads. This category of routers leverages innovative forwarding engines and programmable interfaces, allowing organizations to adapt to evolving network requirements without replacing core infrastructure.

Embedded Services Processor and Forwarding Capabilities

The embedded services processor plays a crucial role in delivering consistent throughput across multiple interfaces. It supports advanced packet processing, enabling the router to handle complex routing protocols, deep packet inspection, and traffic shaping simultaneously. This ensures that network administrators can maintain optimal performance while implementing granular traffic policies.

Scalable Throughput and Bandwidth Optimization

Scalability is a defining feature of this router category. The Cisco ASR1001X-10G-K9 supports incremental throughput upgrades, allowing organizations to expand network capacity without significant hardware changes. This flexibility makes it an ideal choice for growing enterprises that require adaptable infrastructure to meet increasing bandwidth demands.

10 Gigabit Ethernet Connectivity and Multi-Interface Support

The integration of 10 Gigabit Ethernet interfaces enables ultra-fast data transmission across networks. This router category is specifically designed to support high-speed WAN and LAN connectivity, ensuring minimal latency and maximum data transfer efficiency. With multiple interface options, including T-carrier and E-carrier support, the Cisco ASR1001X-10G-K9 can seamlessly connect to diverse network environments.

Flexible Interface Configuration

The router supports a wide range of interface modules, allowing network engineers to customize connectivity based on specific deployment requirements. This flexibility ensures compatibility with both legacy and modern network infrastructures, enabling smooth transitions during upgrades or expansions.

Integration with Legacy T-carrier and E-carrier Systems

Support for T-carrier and E-carrier technologies ensures that organizations can maintain connectivity with existing telecommunication systems while transitioning to high-speed Ethernet solutions. This hybrid capability reduces operational disruptions and provides a cost-effective pathway for modernization.

Optimized Data Transfer for Enterprise Applications

The high-speed interfaces are optimized for bandwidth-intensive applications such as cloud computing, video conferencing, and large-scale data transfers. By reducing bottlenecks and ensuring consistent data flow, the router enhances overall application performance and user experience.

Eight Slot Modular Expansion for Enhanced Flexibility

The eight-slot modular design is a key feature that distinguishes this router category. It allows organizations to expand functionality by adding interface cards, service modules, and other components as needed. This modularity ensures that the router can adapt to changing business requirements without requiring complete system replacement.

Customizable Network Deployment

The modular slots enable tailored configurations for specific use cases, including enterprise branch connectivity, service provider edge routing, and data center aggregation. This customization ensures that organizations can optimize their network infrastructure to meet unique operational needs.

Future-Proof Infrastructure Design

By supporting a wide range of modules, the Cisco ASR1001X-10G-K9 ensures long-term viability. Organizations can upgrade individual components rather than replacing the entire router, reducing capital expenditure and extending the lifecycle of their networking equipment.

Hot-Swappable Components for Minimal Downtime

The ability to replace or upgrade modules without shutting down the system ensures continuous operation. This feature is particularly valuable in mission-critical environments where network downtime can result in significant financial losses.

Enterprise-Grade Security and Data Protection

Security is a critical aspect of modern networking, and this router category incorporates advanced features to protect sensitive data and ensure secure communication. The Cisco ASR1001X-10G-K9 includes integrated security mechanisms that safeguard against a wide range of cyber threats.

Integrated Firewall and VPN Capabilities

The router supports robust firewall functionalities and virtual private network configurations, enabling secure remote access and data encryption. These features ensure that organizations can maintain secure connections across distributed networks.

Advanced Threat Detection and Mitigation

With built-in threat detection mechanisms, the router can identify and mitigate potential security risks in real time. This proactive approach minimizes vulnerabilities and enhances overall network resilience.

Secure Segmentation and Access Control

The ability to segment network traffic and enforce access control policies ensures that sensitive data is protected from unauthorized access. This feature is essential for organizations that handle confidential information and require strict compliance with security standards.

High Availability and Reliability for Mission-Critical Environments

The Cisco ASR1001X-10G-K9 router category is designed to deliver consistent performance and reliability in demanding environments. High availability features ensure uninterrupted network operation, even in the event of hardware or software failures.

Redundant Power Supplies and Cooling Systems

Redundant power and cooling mechanisms provide an additional layer of reliability, ensuring that the router continues to function under varying conditions. These features are essential for maintaining uptime in critical applications.

Failover and Load Balancing Capabilities

Automatic failover mechanisms ensure seamless transition to backup systems in case of failure. Load balancing features distribute traffic efficiently, preventing congestion and optimizing network performance.

Continuous Monitoring and Diagnostics

Advanced monitoring tools provide real-time insights into network performance, enabling administrators to identify and resolve issues This proactive approach reduces downtime and enhances operational efficiency.

Virtualization and Cloud Integration Capabilities

Modern network infrastructures increasingly rely on virtualization and cloud technologies. This router category supports advanced virtualization features, enabling seamless integration with cloud environments and virtualized data centers.

Support for Virtual Routing and Forwarding

Virtual routing and forwarding capabilities allow multiple virtual networks to coexist on a single physical router. This feature is particularly beneficial for service providers and large enterprises that require multi-tenant environments.

Cloud Connectivity and Hybrid Deployment

The router enables secure and efficient connectivity to cloud platforms, supporting hybrid deployment models. This flexibility allows organizations to leverage cloud resources while maintaining control over on-premises infrastructure.

Optimized Performance for Virtual Workloads

The router is designed to handle the dynamic nature of virtualized workloads, ensuring consistent performance and minimal latency. This capability is essential for applications that rely on real-time data processing.

Quality of Service and Traffic Management

Effective traffic management is crucial for maintaining optimal network performance. The Cisco ASR1001X-10G-K9 router category includes advanced quality of service features that prioritize critical applications and ensure efficient bandwidth utilization.

Traffic Prioritization and Classification

The router can classify and prioritize traffic based on predefined policies, ensuring that high-priority applications receive the necessary bandwidth. This feature is essential for maintaining performance in environments with diverse workloads.

Bandwidth Allocation and Rate Limiting

Bandwidth allocation mechanisms allow administrators to control the distribution of network resources, preventing congestion and ensuring fair usage. Rate limiting features further enhance control over traffic flow.

Application-Aware Networking

The ability to identify and manage traffic based on application type ensures that critical services are not affected by less important traffic. This approach enhances overall network efficiency and user experience.

Energy Efficiency and Compact Rack-Mount Design

The Cisco ASR1001X-10G-K9 is designed with energy efficiency in mind, making it suitable for organizations that prioritize sustainability and cost reduction. Its compact rack-mount form factor allows for efficient use of space in data centers and network closets.

Optimized Power Consumption

The router incorporates energy-efficient components that reduce power consumption without compromising performance. This feature helps organizations lower operational costs and minimize environmental impact.

Space-Saving Design for Modern Data Centers

The compact design allows for easy integration into standard rack environments, maximizing available space. This is particularly beneficial for data centers with limited capacity.

Thermal Management and Cooling Efficiency

Advanced cooling mechanisms ensure that the router operates within optimal temperature ranges, enhancing reliability and longevity. Efficient thermal management also contributes to reduced energy consumption.

Software Integration and Network Automation

The Cisco ASR1001X-10G-K9 router category supports advanced software features that enable network automation and simplified management. These capabilities enhance operational efficiency and reduce the complexity of network administration.

Support for Advanced Routing Protocols

The router supports a wide range of routing protocols, enabling seamless integration with existing network infrastructures. This ensures compatibility and flexibility in diverse environments.

Automation and Programmability

Programmable interfaces and automation tools allow administrators to streamline network operations, reducing manual intervention and minimizing errors. This approach enhances efficiency and scalability.

Centralized Management and Monitoring

Centralized management platforms provide a unified view of network performance, enabling administrators to monitor and control multiple devices. This feature simplifies network management and improves overall efficiency.
