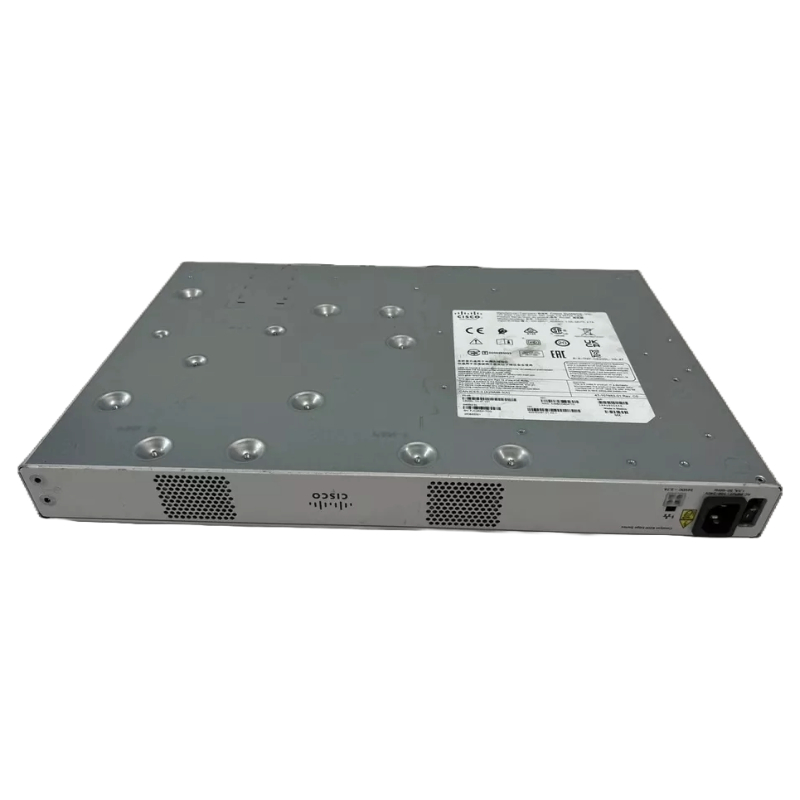

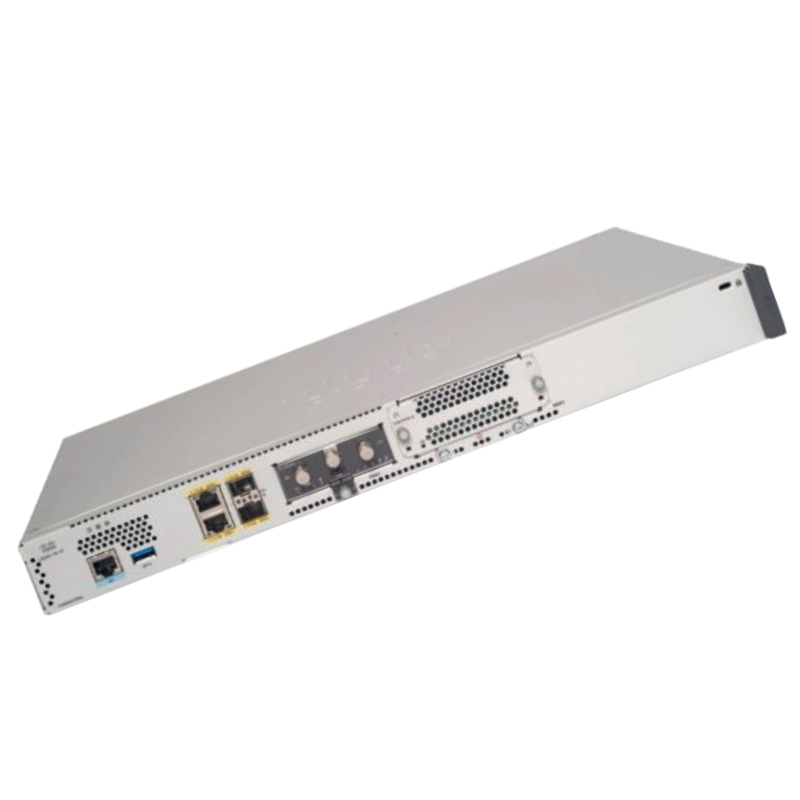

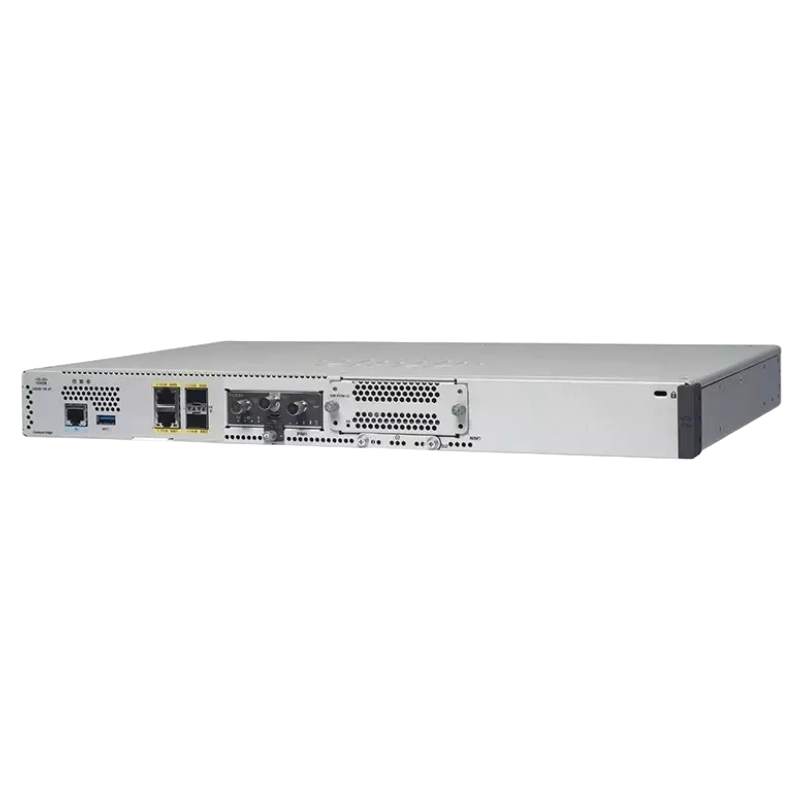

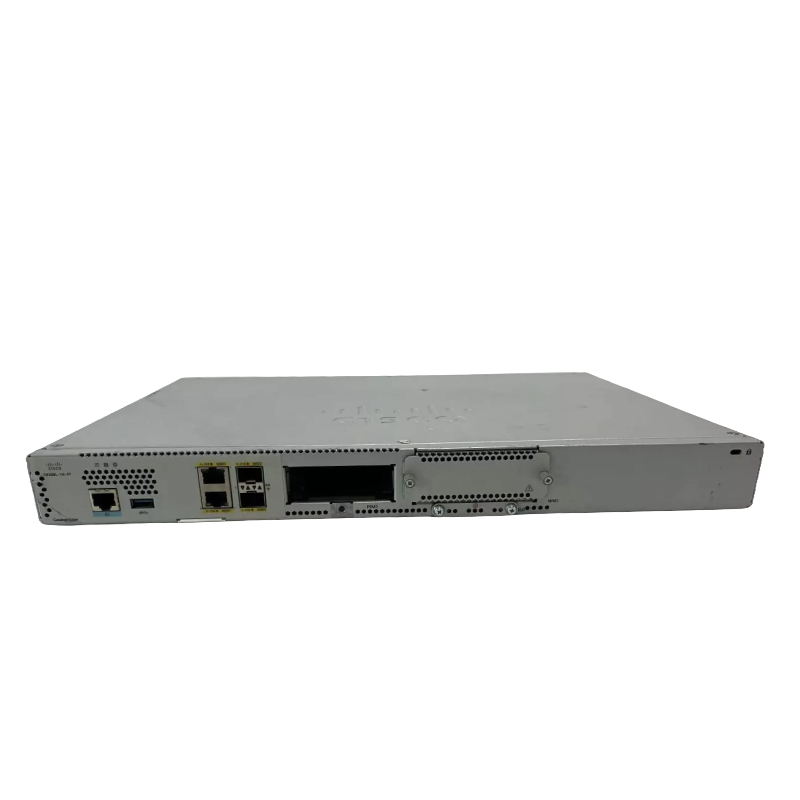

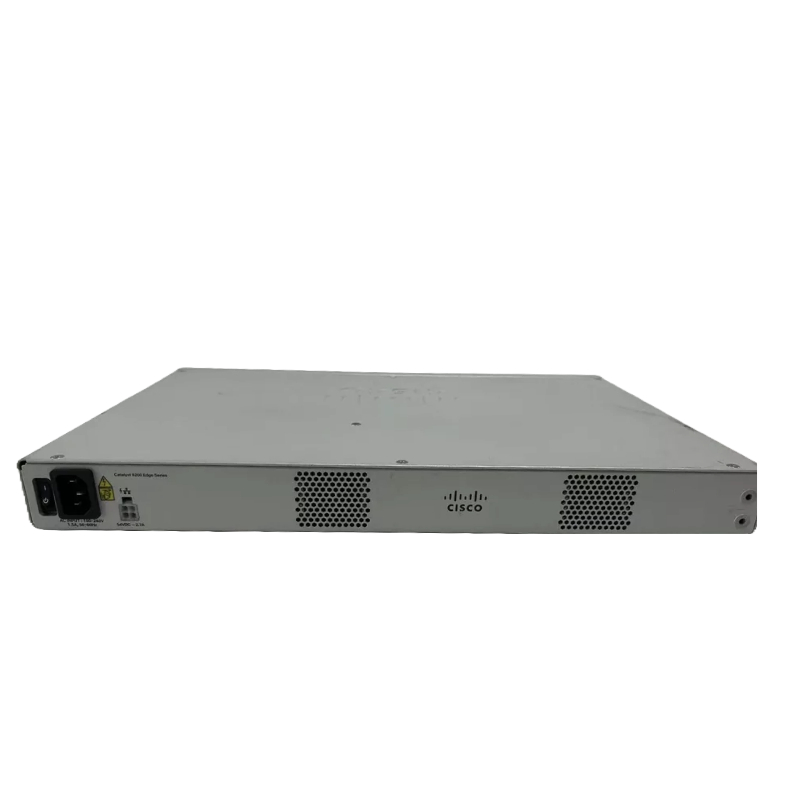

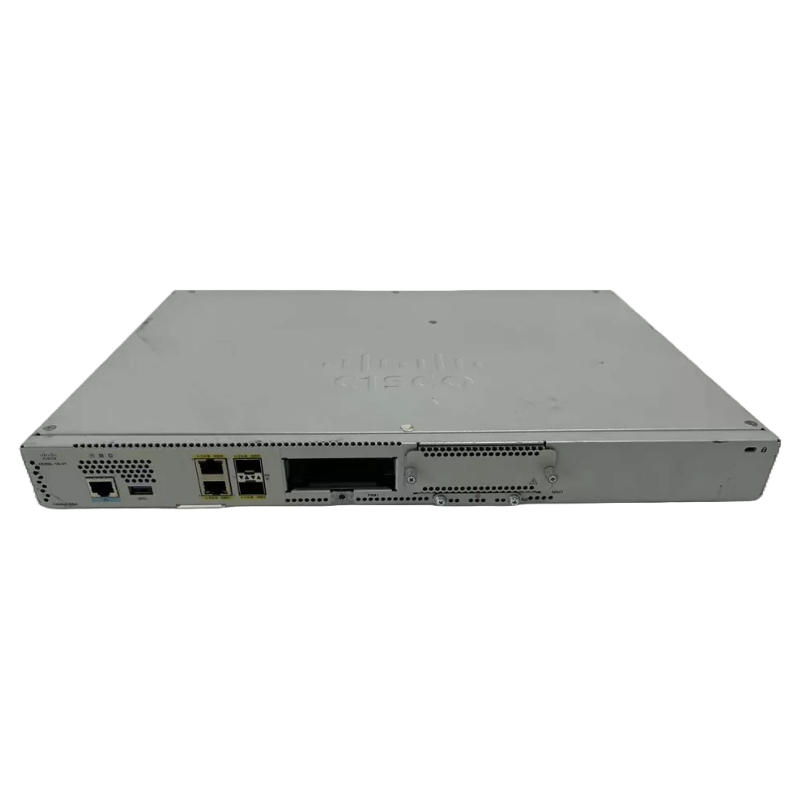

C8200L-1N-4T Cisco 4 Ports Ethernet Router

Cisco C8200L-1N-4T 4-Port Ethernet Router Overview

The Cisco C8200L-1N-4T is a high-performance 4-port router designed for modern enterprise networks, delivering robust connectivity, security, and SD-WAN capabilities. Ideal for both small and large-scale deployments, this rack-mountable 1U router provides exceptional throughput and advanced features.

Key Product Details

• Manufacturer: Cisco
• Model / SKU: C8200L-1N-4T
• Product Type: Router
• Port Configuration: 4 Ethernet ports

Technical Specifications

Performance & Capacity

• SD-WAN IPsec Throughput (1400-byte packets, clear text): 500 Mbps
• SD-WAN IPsec Throughput (IMIX, clear text): 400 Mbps
• IPv4 Forwarding Throughput (1400-byte packet size): 3.8 Gbps
• SD-WAN Overlay Tunnels: 1500
• IPsec SVTI Tunnels: 1500
• Access Control Entries (IPv4): 72,000
• IPv4 / IPv6 Routes: 800,000 each
• Firewall Sessions: 512,000
• NAT Sessions: 600,000
• Virtual Routing & Forwarding (VRF) Entries: 2000
• Queues: 16,000
• ACLs per system: 4,000

Connectivity & Networking Protocols

• Connectivity Technology: Wired Gigabit Ethernet
• Network Protocols: RSVP, NTP, IPsec, PPPoE, DHCP, DNS, L2TPv3, RTCP
• Routing Protocols: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, VRRP, DVMRP, IGMPv3, GRE, OSPFv3, PBR, MPLS, BFD
• Remote Management: SNMP, SCP, OMP

Security & Encryption

• Encryption Algorithms: DES, 3DES, MD5, IKE, TLS, SHA-1, SHA-2, AES 128/256-bit, RSA 1024/2048/748-bit, ECDSA 256/384-bit, HMAC, ESP
• Authentication: Secure Shell (SSH), RADIUS
• Advanced Security Features: URL filtering, AAA, DTLS, SUDI, Application Visibility & Control (AVC)

Advanced Features

• Quality of Service (QoS), Hierarchical QoS (HQoS)
• NAT & PAT support, DHCP server & client
• Bidirectional Forwarding Detection (BFD)
• Forward Error Correction (FEC)
• Flexible NetFlow (FNF)
• Encapsulated Remote SPAN (ERSPAN)
• Application-Aware Routing (AAR) & Network-based Application Recognition (NBAR)
• Service Advertisement Framework (SAF) & Interactive Voice Response (IVR)

Compliance & Standards

• IEEE Standards: 802.1q, 802.3ah, 802.1ag
• Regulatory Compliance: EN 61000-3-2, IEC 61000-3-2, EN55024, AS/NZS 60950-1, FCC CFR47 Part 15A, UL 60950-1
• Electromagnetic & Safety Standards: ICES-003 Class A, CNS 13438 Class A, IEC/EN 61000-4 series

Hardware Specifications

Processor & Memory

• CPU: Intel processor
• RAM: 4 GB (expandable up to 32 GB)
• Flash Storage: 8 GB
• Built-in SSD: 16 GB

Interfaces & Expansion

• WAN Ports: 2 × Gigabit Ethernet SFP, 2 × Gigabit Ethernet RJ-45
• Expansion Slots: 1 × NIM, 1 × Pluggable Interface Module (PIM)
• Installed Modules: 0 (supports up to 2)

Power & Environmental

• Power Supply: Internal 100W AC (120/230V, 50/60 Hz)
• Installed Units: 1 (max supported: 1)

IP Telephony & VoIP Support

• VoIP Protocol: SRTP for secure voice communication

Cisco C8200L-1N-4T Architecture and Design Philosophy

The Cisco C8200L-1N-4T 4 Ports Ethernet Router is engineered as part of a modern enterprise WAN edge architecture that prioritizes performance, security, and scalability in distributed networking environments. Built to support branch transformation and cloud-first connectivity models, this router integrates advanced routing intelligence with a compact yet powerful hardware footprint. The design philosophy focuses on delivering enterprise-grade routing capabilities while maintaining operational simplicity for IT teams managing multiple branch locations and hybrid infrastructures.

The hardware architecture of the Cisco C8200L-1N-4T is optimized for deterministic performance in demanding network conditions. It is designed to handle converged traffic flows including voice, video, and data with consistent reliability. By leveraging a highly efficient processing engine and modular software-defined capabilities, this router ensures that enterprises can scale their network operations without compromising throughput or latency. The system is particularly well-suited for organizations undergoing digital transformation where edge computing and cloud connectivity are critical components of network strategy.

Hardware Overview

The Cisco C8200L-1N-4T integrates a streamlined hardware configuration that emphasizes efficiency and performance density. It includes four Ethernet ports that provide flexible connectivity options for both WAN and LAN deployment scenarios. These ports are engineered to support high-speed data transfer and stable connectivity, enabling seamless communication between branch offices and centralized data centers.

The internal architecture is optimized for low power consumption while maintaining high processing efficiency. This balance is essential for enterprises that deploy routers across multiple locations where energy efficiency and operational cost control are important considerations. The hardware also supports advanced hardware acceleration techniques that improve packet forwarding efficiency and reduce CPU load during peak traffic conditions.

Processing and Throughput Capabilities

The processing capabilities of the Cisco C8200L-1N-4T are designed to handle modern enterprise workloads that require consistent throughput and low latency. It supports high-performance routing operations that enable efficient handling of encrypted traffic, application-aware routing, and cloud-based service integration. The system is capable of managing multiple concurrent sessions without degradation in performance, making it suitable for distributed enterprise environments.

Throughput optimization is achieved through a combination of hardware acceleration and Cisco IOS XE software intelligence. This allows the router to dynamically allocate resources based on traffic demand, ensuring that critical applications receive priority handling while maintaining overall network stability. The result is a highly responsive networking environment capable of supporting mission-critical operations across multiple branch sites.

Optimized Branch Performance

The Cisco C8200L-1N-4T is specifically optimized for branch-level deployments where consistent performance is essential. It ensures that remote offices experience the same level of network reliability as central headquarters, enabling seamless collaboration and data access across geographically distributed teams. The router’s ability to prioritize application traffic enhances user experience for cloud-based applications and real-time communication tools.

By intelligently managing bandwidth allocation and routing decisions, the device reduces congestion and minimizes packet loss. This optimization is particularly beneficial for enterprises adopting SaaS applications and hybrid cloud infrastructures, where performance consistency directly impacts productivity and service delivery.

Enterprise WAN Edge and SD-WAN Integration

The Cisco C8200L-1N-4T plays a critical role in enterprise WAN edge architecture by enabling secure and efficient connectivity between branch networks and cloud environments. It is designed to support Software-Defined Wide Area Networking (SD-WAN), allowing organizations to centrally manage network traffic and optimize application delivery across multiple sites. This integration simplifies network operations while improving overall agility and responsiveness.

SD-WAN capabilities built into the Cisco C8200L-1N-4T allow dynamic path selection based on real-time network conditions. This ensures that traffic is automatically routed through the most efficient path, reducing latency and improving application performance. Enterprises benefit from increased flexibility in managing hybrid networks that combine MPLS, broadband, and LTE connectivity options.

Cloud-managed Networking

The router is designed to integrate seamlessly with cloud-based network management platforms, enabling centralized visibility and control over distributed infrastructure. Cloud-managed networking simplifies configuration, monitoring, and troubleshooting processes, allowing IT teams to manage large-scale deployments with greater efficiency. This approach reduces operational complexity and improves responsiveness to network issues.

Through cloud integration, the Cisco C8200L-1N-4T enables real-time analytics and performance monitoring, providing actionable insights into network behavior. These insights help organizations optimize bandwidth usage, identify performance bottlenecks, and improve overall network efficiency across all connected sites.

Secure SD-WAN Connectivity

Security is a foundational component of SD-WAN implementation in the Cisco C8200L-1N-4T. The router ensures that all WAN traffic is encrypted and protected against unauthorized access. It supports secure tunneling protocols that safeguard data in transit between branch offices and cloud environments.

The integration of secure SD-WAN capabilities allows enterprises to consolidate security and networking functions into a single platform. This reduces the need for separate security appliances at each branch location while maintaining strong protection against cyber threats. The result is a simplified yet highly secure WAN architecture.

Traffic Optimization

Traffic optimization within the Cisco C8200L-1N-4T is achieved through intelligent application recognition and dynamic routing policies. The router continuously analyzes traffic patterns and adjusts routing decisions to ensure optimal performance for critical applications. This includes prioritization of real-time communication services such as VoIP and video conferencing.

By leveraging deep packet inspection and policy-based routing, the system ensures that bandwidth is allocated efficiently across all applications. This reduces network congestion and improves user experience in environments with high traffic variability.

Connectivity and Port Configuration of Cisco C8200L-1N-4T

The Cisco C8200L-1N-4T is equipped with four Ethernet ports that provide flexible connectivity options for enterprise networking environments. These ports are designed to support both WAN and LAN configurations, enabling versatile deployment across different network topologies. The port architecture ensures high-speed connectivity and stable data transfer across all interfaces.

This flexible port configuration allows organizations to design network architectures that meet specific operational requirements. Whether deployed in branch offices, remote sites, or distributed enterprise environments, the router provides consistent connectivity performance.

WAN and LAN Flexibility

The router’s Ethernet ports can be configured dynamically to function as WAN or LAN interfaces depending on deployment needs. This flexibility allows network administrators to adapt the device to different infrastructure requirements without hardware modifications. It supports hybrid networking environments where multiple connectivity types are required.

This adaptability enhances the usability of the Cisco C8200L-1N-4T in complex enterprise environments where network demands vary across locations. It ensures seamless integration with existing infrastructure while supporting future scalability.

Redundancy and Failover Behavior

The Cisco C8200L-1N-4T is designed with redundancy capabilities that enhance network reliability. In the event of a connection failure, the router can automatically reroute traffic through alternative paths, ensuring uninterrupted network service. This failover mechanism is critical for maintaining business continuity in distributed environments.

Redundancy features also improve resilience against network disruptions caused by hardware failures or external connectivity issues. This ensures that enterprise operations remain stable even under adverse network conditions.

Deployment Scenarios in Enterprise Environments

The Cisco C8200L-1N-4T is widely used in enterprise environments that require reliable and scalable branch connectivity. It is particularly well-suited for organizations with multiple distributed offices that require consistent access to centralized resources and cloud applications.

Its versatility allows it to be deployed in various scenarios including corporate branch networks, retail environments, and remote operational sites. In each case, it provides stable connectivity, secure communication, and efficient traffic management.

Branch Office Networking Applications

The Cisco C8200L-1N-4T is optimized for branch office networking where reliable connectivity and centralized management are essential. It enables seamless integration between branch locations and headquarters, ensuring that all users have access to the same network resources and applications.

This capability supports modern distributed work environments where employees rely heavily on cloud-based services and real-time collaboration tools. The router ensures that branch offices operate as fully integrated components of the enterprise network.

Retail and Distributed Networks

In retail and distributed environments, the Cisco C8200L-1N-4T provides stable connectivity for point-of-sale systems, inventory management applications, and customer engagement platforms. Its ability to maintain consistent performance across multiple locations makes it ideal for businesses with geographically dispersed operations.

The router ensures that transactional data is transmitted securely and efficiently, supporting real-time business operations across all retail locations.

Remote Workforce Connectivity

The Cisco C8200L-1N-4T supports secure remote workforce connectivity by enabling encrypted access to corporate resources. This ensures that employees working from remote locations can maintain secure and reliable access to enterprise applications.

It enhances productivity by providing consistent network performance regardless of user location, making it an essential component of modern hybrid work environments.

Performance Optimization and Scalability

The Cisco C8200L-1N-4T is engineered for scalable performance that adapts to growing enterprise demands. It supports dynamic resource allocation that allows the router to efficiently manage increasing traffic loads without performance degradation.

This scalability ensures that organizations can expand their network infrastructure without requiring significant hardware changes, reducing operational costs and complexity.

Traffic Handling and QoS

Quality of Service mechanisms within the Cisco C8200L-1N-4T ensure that critical applications receive prioritized bandwidth allocation. This guarantees optimal performance for latency-sensitive applications such as video conferencing and cloud computing services.

Traffic handling capabilities are designed to manage high volumes of concurrent connections while maintaining stable performance across all network segments.

Application Prioritization

The router uses intelligent application recognition to prioritize traffic based on business importance. This ensures that essential services receive the necessary network resources even during peak usage periods.

Application prioritization enhances overall network efficiency and improves user experience across distributed enterprise environments.

Scaling Branch Operations

The Cisco C8200L-1N-4T supports scalable branch operations by enabling seamless integration of additional network services and users. Its flexible architecture allows enterprises to expand their network footprint without compromising performance or security.

This scalability makes it a strategic choice for organizations planning long-term digital transformation initiatives and network modernization projects.

Reliability, Resiliency and Hardware Durability

The Cisco C8200L-1N-4T is designed with a strong focus on reliability and long-term durability. It ensures consistent performance in demanding enterprise environments where network uptime is critical.

The hardware is engineered to withstand continuous operation while maintaining stable performance under varying workload conditions.

High Availability Design

The router incorporates high availability features that ensure continuous network operation even in the event of partial system failures. These features minimize downtime and enhance business continuity.

High availability design principles ensure that the device can sustain critical network functions under adverse conditions.

Fault Tolerance Mechanisms

Fault tolerance mechanisms within the Cisco C8200L-1N-4T allow it to detect and respond to system anomalies automatically. This reduces the risk of service interruptions and maintains network stability.

These mechanisms contribute to a resilient network architecture capable of supporting mission-critical operations.

Long-term Operational Stability

The Cisco C8200L-1N-4T is built for long-term operational stability, ensuring consistent performance over extended deployment periods. Its durable hardware design and optimized software integration reduce maintenance requirements and enhance reliability.

This makes it a dependable choice for enterprises seeking stable and efficient branch networking solutions.

Integration with Modern Enterprise Infrastructure

The Cisco C8200L-1N-4T integrates seamlessly with modern enterprise infrastructure, supporting hybrid cloud environments and multi-site networking architectures. It is designed to align with contemporary IT strategies that emphasize flexibility and scalability.

This integration capability ensures that organizations can modernize their network infrastructure without disrupting existing systems.

Cloud and Hybrid Integration

The router supports hybrid cloud environments where on-premises infrastructure is combined with cloud-based services. This allows organizations to optimize resource utilization and improve operational efficiency.

Cloud integration enables seamless connectivity between distributed applications and centralized services, enhancing overall network agility.

Multi-site Networking

The Cisco C8200L-1N-4T is well-suited for multi-site networking environments where consistent connectivity between locations is essential. It ensures that all sites remain synchronized and connected to centralized resources.

This capability supports global enterprise operations that require unified network performance across multiple geographic regions.

Legacy System Compatibility

The router is designed to maintain compatibility with legacy networking systems, ensuring smooth transitions during infrastructure upgrades. This allows organizations to modernize their networks gradually without disrupting existing operations.

Legacy compatibility ensures that the Cisco C8200L-1N-4T can be deployed in diverse environments with varying levels of technological maturity.
