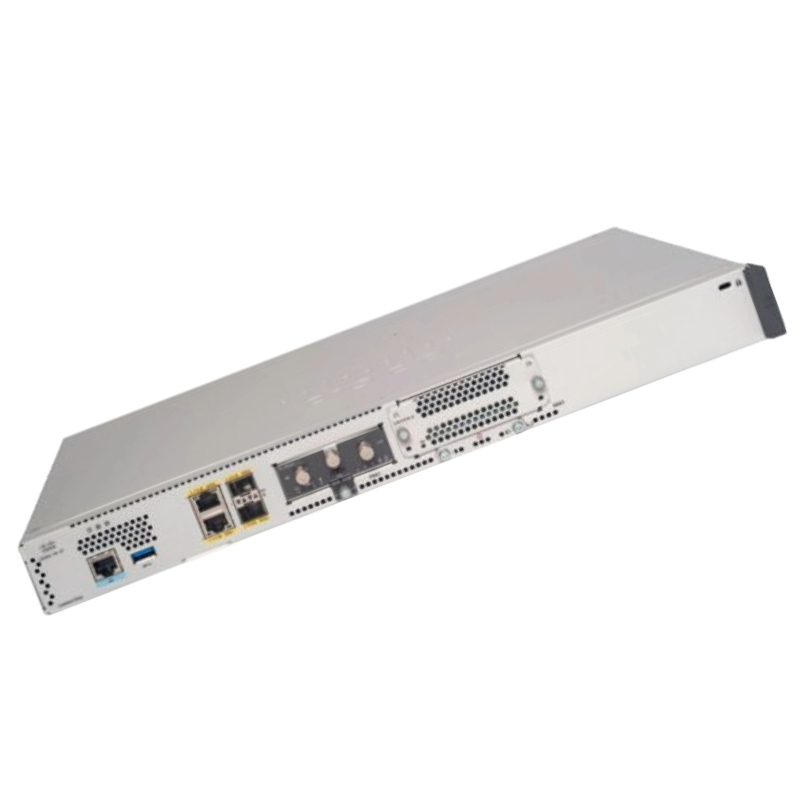

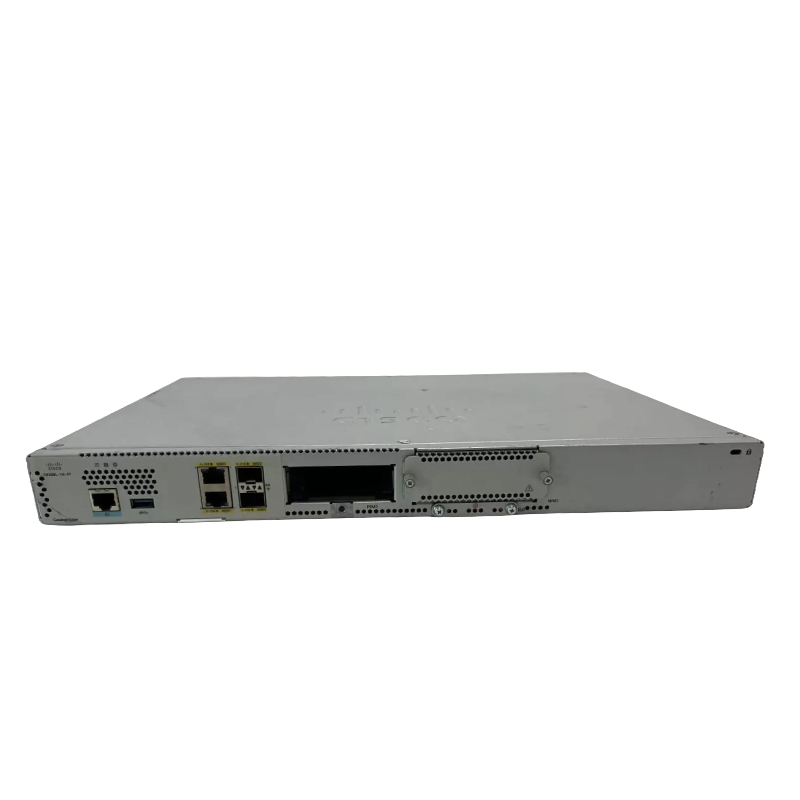

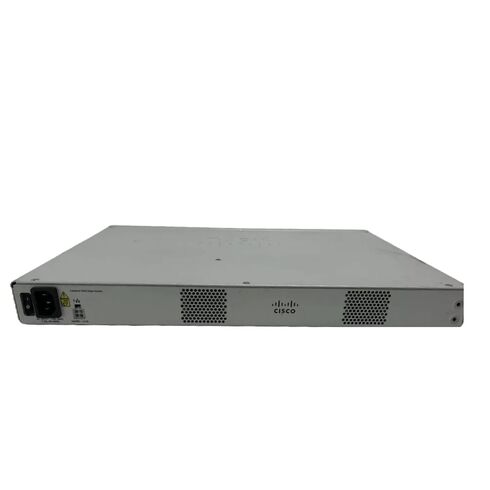

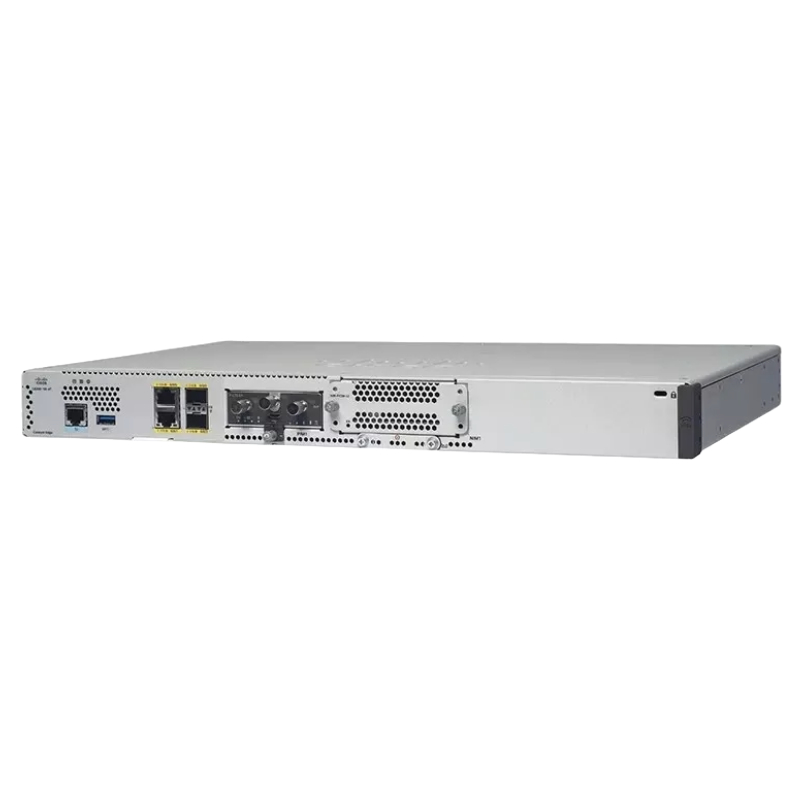

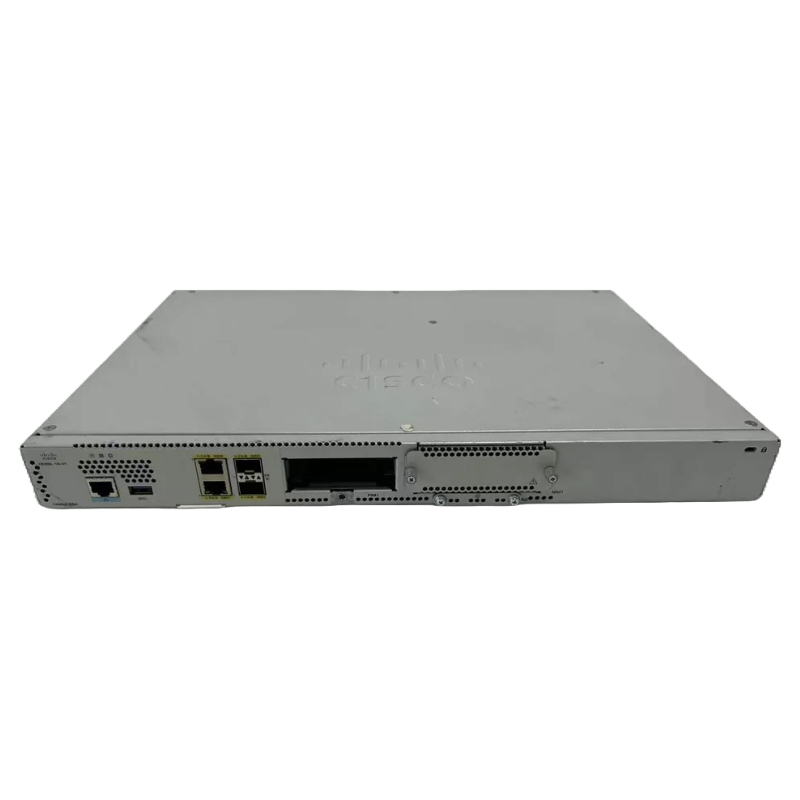

C8200L-1N-4T Cisco 4 Ports Ethernet Router

Cisco C8200L-1N-4T 4 Ports Router Overview

The Cisco C8200L-1N-4T is a high-performance 4-port Ethernet router designed for modern enterprise networks. Built by Cisco, this router ensures reliable connectivity, robust security, and advanced traffic management capabilities.

Key Product Details

• Manufacturer: Cisco
• Part Number / SKU: C8200L-1N-4T
• Device Type: Router
• Port Configuration: 4 Ethernet ports

Technical Specifications

Form Factor & Connectivity

• Enclosure Type: 1U rack-mountable
• Connectivity Technology: Wired
• Data Link Protocol: Gigabit Ethernet

Performance & Throughput

• SD-WAN IPsec Throughput (1400 bytes, clear text): 500 Mbps
• SD-WAN IPsec Throughput (IMIX, clear text): 400 Mbps
• IPv4 Forwarding Throughput (1400-byte packets): 3.8 Gbps
• IPsec Throughput (1400 bytes, clear text): 500 Mbps

Capacity & Scaling

• SD-WAN Overlay Tunnels: 1500
• IPsec SVTI Tunnels: 1500
• Access Control Entries (ACEs) per system (IPv4): 72,000
• IPv4 / IPv6 Routes: 800,000 each
• Queues: 16,000
• NAT Sessions: 600,000
• Firewall Sessions: 512,000
• Virtual Routing and Forwarding (VRF) Entries: 2000
• ACLs per system: 4,000

Supported Protocols

• Network / Transport: RSVP, NTP, IPsec, PPPoE, DHCP, DNS, L2TPv3, RTCP
• Routing: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, PBR, MPLS, BFD
• Remote Management: SNMP, SCP, OMP

Encryption & Authentication

• Encryption: DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, AES (128/256-bit), RSA (1024/2048/748-bit), ECDSA, HMAC
• Authentication: SSH, RADIUS

Advanced Features

• NAT and PAT support
• Syslog and URL filtering
• Class-based Weighted Fair Queuing (CBWFQ) and Weighted Random Early Detection (WRED)
• ACL support, QoS, DHCP server & client
• Bidirectional Forwarding Detection (BFD), Forward Error Correction (FEC)
• Application Visibility and Control (AVC), Flexible NetFlow (FNF)
• Hierarchical QoS (HQoS), Encapsulated Remote SPAN (ERSPAN)
• Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC)
• Secure Unique Device Identification (SUDI), Network-based Application Recognition (NBAR)
• Point-to-Point Protocol (PPP), Multilink PPP (MLPPP), HDLC, Application-Aware Routing (AAR)

Compliance Standards

• IEEE 802.1Q, 802.3ah, 802.1ag
• EN, IEC, UL, FCC, CNS, KN, VCCI certifications
• FDA and related regional compliance for safety and EMC

Hardware & Memory

• Processor: Intel
• RAM: 4 GB installed, expandable up to 32 GB
• Flash Memory: 8 GB
• Built-in SSD: 16 GB

IP Telephony Support

• VoIP Protocols: SRTP (Secure Real-time Transport Protocol)

Expansion & Interfaces

• WAN Interfaces: 2x 1000 Mbps SFP (mini-GBIC), 2x 1000 Mbps RJ-45 Ethernet
• Expansion Slots: 1 NIM slot, 1 Pluggable Interface Module (PIM)
• Installed Modules: 0 (supports up to 2)

Power & Energy Requirements

• Power Supply: Internal, 100 Watt
• Installed Quantity: 1 (max)
• Voltage: AC 120/230 V, 50/60 Hz

Cisco C8200L-1N-4T 4 Ports Ethernet Router Category

The Cisco C8200L-1N-4T 4 Ports Ethernet Router represents a new generation of enterprise-grade networking solutions designed to meet the growing demands of modern digital infrastructure. Built on advanced routing architecture, this category of routers is engineered to deliver high-performance connectivity, enhanced security, and flexible deployment options suitable for small to mid-sized enterprises, branch offices, and distributed network environments. The Cisco Catalyst 8200 Series Edge Platforms, including the C8200L-1N-4T model, provide seamless integration of routing, security, and SD-WAN capabilities, enabling organizations to optimize network performance while maintaining scalability and reliability.

Advanced Architecture and Performance Capabilities

The architecture of the Cisco C8200L-1N-4T router is designed with a focus on performance optimization and operational efficiency. It leverages modern CPU processing capabilities and advanced forwarding technologies to ensure consistent throughput across all Ethernet ports. The four integrated Ethernet ports allow organizations to establish multiple high-speed connections, making it ideal for branch deployments where redundancy and performance are critical. The router supports high data transfer rates and low latency, ensuring smooth application performance even in environments with heavy traffic loads.

High-Speed Connectivity and Throughput Optimization

The router’s ability to deliver consistent throughput is essential for organizations that rely on cloud applications, video conferencing, and real-time data processing. The Cisco C8200L-1N-4T is designed to handle demanding workloads while maintaining network stability. Its architecture ensures that bandwidth is utilized efficiently, reducing congestion and improving overall network responsiveness. This makes it suitable for environments where performance consistency is a top priority.

Hardware Acceleration and Processing Efficiency

The inclusion of hardware acceleration features enhances the router’s performance by offloading intensive processing tasks from the CPU. This results in improved efficiency and reduced latency for critical network functions. Hardware-based encryption and forwarding mechanisms ensure that the router can handle secure communications without compromising speed, making it an ideal choice for businesses that require both performance and security.

Enterprise-Grade Security Features

Security is a fundamental aspect of the Cisco C8200L-1N-4T router category, with integrated features designed to protect networks from evolving cyber threats. The router incorporates advanced security protocols and built-in encryption mechanisms to safeguard sensitive data and maintain network integrity. It supports secure connectivity across multiple endpoints, ensuring that data remains protected during transmission.

Integrated Threat Defense and Encryption

The router includes robust encryption capabilities that secure data traffic across the network. These features are essential for organizations that handle confidential information and require compliance with industry regulations. Integrated threat defense mechanisms provide real-time monitoring and protection against potential attacks, ensuring that network operations remain uninterrupted.

Secure Access and Identity Management

Secure access control is a key component of the Cisco C8200L-1N-4T router, enabling administrators to manage user authentication and authorization effectively. The router supports advanced identity management protocols that ensure only authorized users can access network resources. This enhances overall network security and reduces the risk of unauthorized access.

End-to-End Data Protection Strategies

End-to-end data protection is achieved through a combination of encryption, authentication, and secure routing protocols. The router ensures that data remains protected throughout its journey, from source to destination. This level of security is critical for organizations that rely on secure communication channels for their operations.

Scalability and Flexibility for Growing Networks

The Cisco C8200L-1N-4T router is designed to adapt to the evolving needs of modern businesses. Its scalable architecture allows organizations to expand their network infrastructure without significant hardware changes. This flexibility makes it a cost-effective solution for businesses planning future growth.

Modular Design and Expansion Capabilities

The modular design of the router enables easy upgrades and expansions. Organizations can add new features and capabilities as their network requirements grow, ensuring that the router remains relevant over time. This adaptability reduces the need for frequent hardware replacements, resulting in long-term cost savings.

Support for Hybrid and Cloud Environments

The router is optimized for hybrid and cloud-based environments, providing seamless connectivity between on-premises infrastructure and cloud services. This capability is essential for organizations that rely on cloud applications and require reliable connectivity across multiple platforms.

Future-Ready Networking Infrastructure

The Cisco C8200L-1N-4T router is built with future-ready technologies that ensure compatibility with emerging networking trends. Its ability to support advanced protocols and integration with modern network management tools makes it a valuable asset for organizations preparing for digital transformation.

SD-WAN Integration and Intelligent Traffic Management

One of the key features of the Cisco C8200L-1N-4T router is its integration with SD-WAN technology. This enables organizations to manage network traffic intelligently and optimize application performance. SD-WAN capabilities allow for dynamic path selection, ensuring that data is routed through the most efficient paths.

Dynamic Path Selection and Application Awareness

The router uses application-aware routing to prioritize critical traffic and ensure optimal performance. This feature is particularly useful for organizations that rely on real-time applications such as video conferencing and VoIP services. By dynamically selecting the best path for data transmission, the router enhances overall network efficiency.

Centralized Network Management

Centralized management capabilities simplify network administration by providing a unified interface for monitoring and controlling network operations. Administrators can easily configure settings, monitor performance, and troubleshoot issues from a single platform, reducing operational complexity.

Enhanced User Experience and Reliability

The integration of SD-WAN technology improves the overall user experience by ensuring consistent connectivity and minimal downtime. This is achieved through intelligent traffic management and real-time monitoring, which help maintain network reliability even under heavy loads.

Deployment Scenarios and Use Cases

The Cisco C8200L-1N-4T router is suitable for a wide range of deployment scenarios, including branch offices, remote work environments, and enterprise networks. Its versatility makes it an ideal choice for organizations with diverse networking needs.

Branch Office Connectivity

In branch office environments, the router provides reliable connectivity and secure communication channels. Its compact design and high performance make it suitable for locations with limited space and high networking demands.

Remote Workforce Enablement

The router supports secure remote access, enabling employees to connect to the corporate network from anywhere. This capability is essential for organizations with distributed workforces and remote operations.

Enterprise Network Integration

For large enterprises, the Cisco C8200L-1N-4T router serves as a critical component of the overall network infrastructure. It integrates seamlessly with existing systems and supports advanced networking features that enhance performance and security.

Energy Efficiency and Sustainability

Energy efficiency is an important consideration for modern networking solutions, and the Cisco C8200L-1N-4T router is designed with sustainability in mind. It incorporates energy-saving features that reduce power consumption without compromising performance.

Optimized Power Usage

The router’s design ensures efficient power usage, making it suitable for organizations looking to reduce their environmental impact. This is achieved through advanced power management technologies that optimize energy consumption based on network activity.

Reduced Operational Costs

By minimizing power consumption, the router helps organizations reduce operational costs. This makes it a cost-effective solution for businesses seeking to balance performance and sustainability.

Eco-Friendly Networking Solutions

The Cisco C8200L-1N-4T router aligns with eco-friendly initiatives by incorporating sustainable design principles. This ensures that organizations can achieve their sustainability goals while maintaining high-performance network operations.

Compatibility and Integration with Existing Systems

The Cisco C8200L-1N-4T router is designed to integrate seamlessly with existing network infrastructure. Its compatibility with a wide range of networking protocols and devices ensures smooth deployment and operation.

Support for Industry Standards

The router supports industry-standard protocols, ensuring interoperability with various networking devices. This makes it easy to integrate into existing networks without compatibility issues.

Integration with Cisco Ecosystem

As part of the Cisco ecosystem, the router works seamlessly with other Cisco products and solutions. This integration enhances overall network performance and simplifies management.

Flexible Deployment Options

The router offers flexible deployment options, allowing organizations to choose the configuration that best suits their needs. This adaptability ensures that the router can be used in a variety of networking environments.
