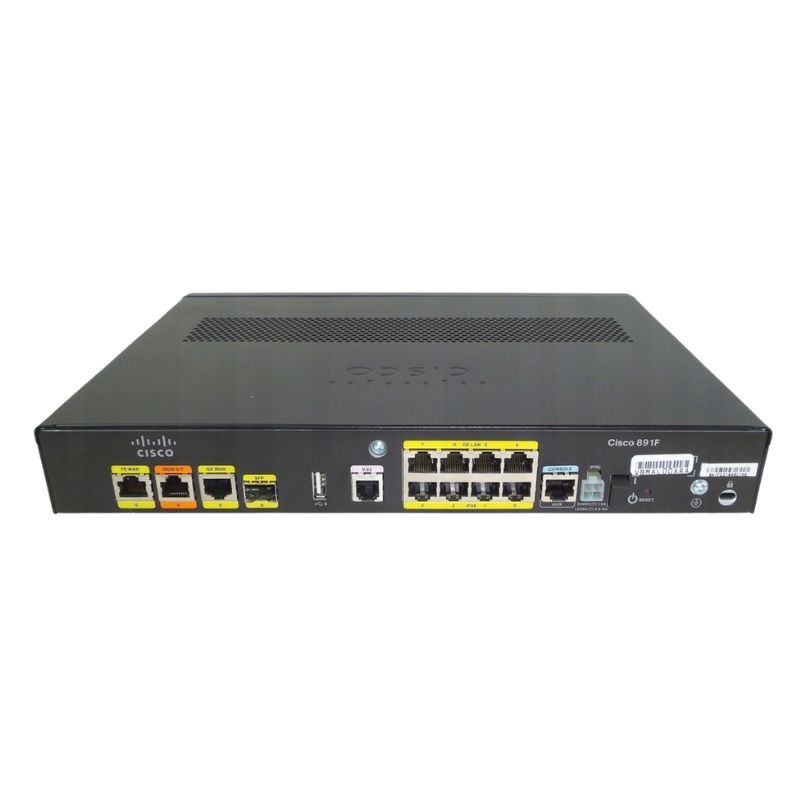

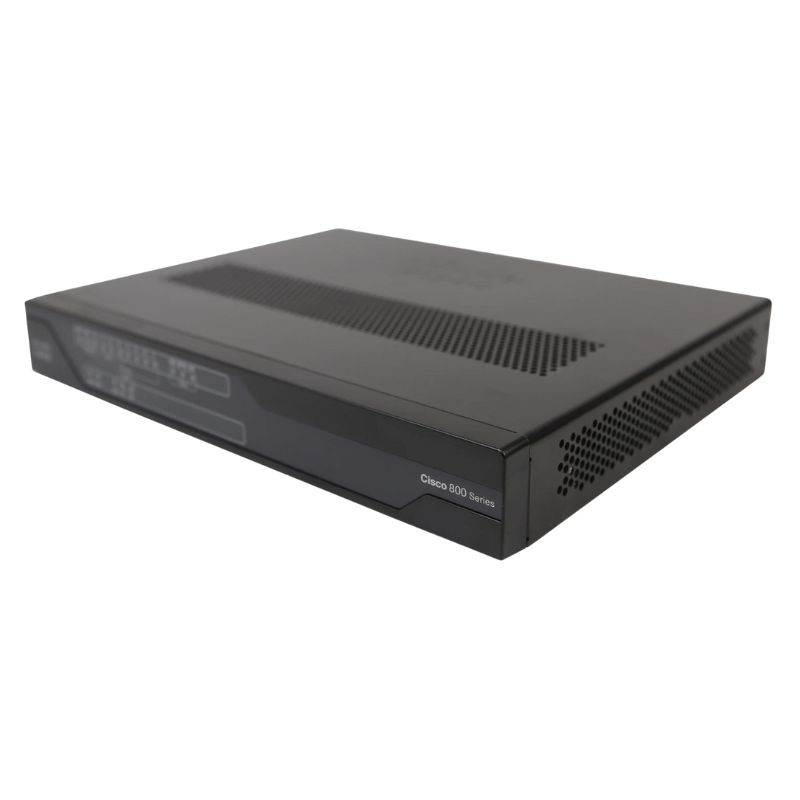

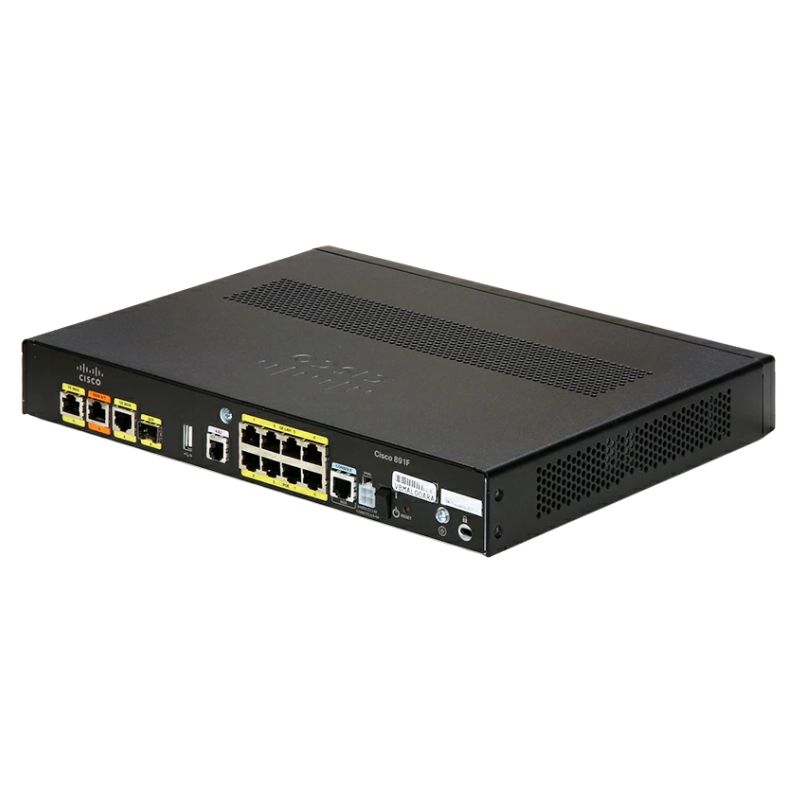

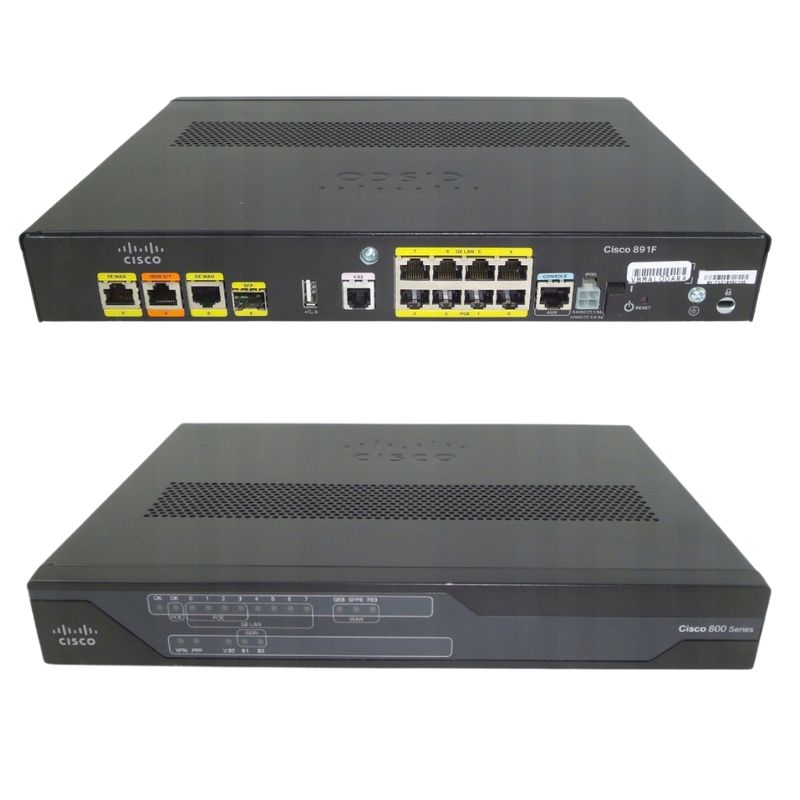

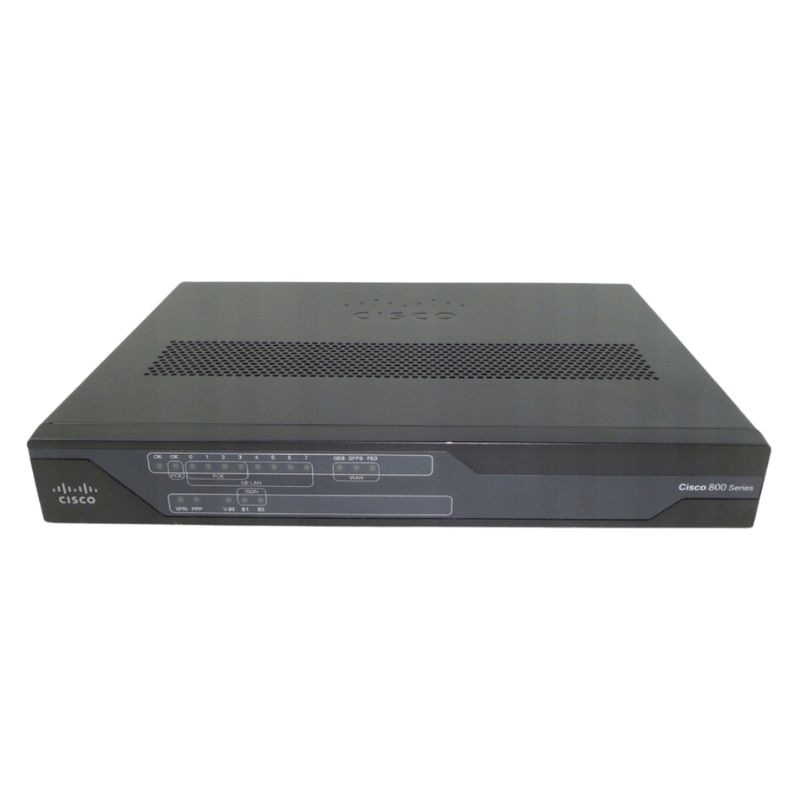

C891F-K9 Cisco Router Gigabit Ethernet Security 8 Ports With SFP Slot

Cisco C891F-K9 891F 8Ports Ethernet Router Overview

The Cisco C891F-K9 891F is an 8-port Gigabit router integrated with Ethernet switching capabilities and an SFP expansion slot, designed to deliver reliable connectivity and advanced networking for small to medium-sized businesses.

General Information

• Manufacturer: Cisco
• Model: 891F
• Part Number / SKU: C891F-K9
• Device Type: Router with integrated switch
• Ports: 8 Ethernet ports
• Series: 890

Hardware Specifications

Port Configuration

• 8 RJ-45 network ports
• 2 broadband RJ-45 ports
• 1 RJ-11 port
• 1 SFP expansion slot
• Management port and USB ports included

Form Factor & Environment

• Desktop or rack-mountable (1U rack height)
• Operating temperature: 32 °F – 104 °F
• Humidity tolerance: 10% – 85% (non-condensing)
• Fanless design for quiet operation

Networking & Connectivity

Supported Standards & Protocols

• Network Standards: 10/100Base-TX, 10/100/1000Base-T
• Ethernet Types: Ethernet, Fast Ethernet, Gigabit Ethernet
• Routing Protocols: BGP, BGP-4+, EIGRP, OSPF, OSPFv3, RIP-1, RIP-2, VRRP, HSRP, NHRP
• VPN & Security Protocols: IPSec, L2TP, L2TPv3, DMVPN, GRE, RSVP
• Other Protocols: DHCP, DNS, DDNS, ICMP/IP, FTP, RTP, WCCP

Switch Capabilities

• Integrated 8-port Ethernet switch
• Auto-uplink (MDI/MDI-X)
• VLAN support and Quality of Service (QoS)
• PoE support for connected devices
• IGMP snooping and traffic shaping

Advanced Features

Security & Firewall

• Cisco IOS Firewall and Zone-Based Policy Firewall
• Stateful Inspection Transparent Firewall
• IPSec VPN, SSH, SSL, and DMVPN support
• Encryption algorithms: DES, 3DES, AES (128/192/256-bit)
• MAC address filtering and NAT
• Intrusion Prevention System (IPS) and threat protection

Performance & Traffic Management

• Low-latency queuing (LLQ) and Weighted Fair Queuing (WFQ)
• Class-Based Weighted Fair Queuing (CBWFQ) and DiffServ / DSCP
• Flexible NetFlow (FNF) monitoring
• Link Fragmentation and Interleaving (LFI)
• Storm Control and traffic prioritization

Memory & Power

Memory Configuration

• Standard DRAM: 512 MB
• Maximum memory: 768 MB
• Flash memory: 256 MB

Power Specifications

• Power Output: 60 W
• AC Voltage: 120/230 V, 50/60 Hz

Compliance & Certifications

• CISPR 22, CISPR 24
• EN 300386, EN 61000-3-2/3, EN 61000-6-1, EN50082-1
• EN55022, EN55024, ICES-003, KN22
• Authentication: RADIUS, TACACS+
• Color: Gray

Cisco C891F-K9 Integrated Gigabit Router

The enterprise networking ecosystem includes a wide range of integrated routing and switching solutions designed for branch offices, small enterprises, and secure edge deployments. Within this portfolio, the Cisco C891F-K9 stands out as a compact yet powerful integrated services router that combines Gigabit Ethernet switching, advanced routing capabilities, and enhanced security functions in a single device. The Cisco C891F-K9 is engineered to deliver reliable connectivity, secure WAN access, and efficient network segmentation for modern business environments requiring high-performance networking at the edge.

Enterprise-Class Design and Hardware Architecture

Compact Form Factor with Industrial Reliability

The Cisco C891F-K9 is designed with a compact chassis that enables deployment in space-constrained environments such as branch offices, retail outlets, and small enterprise server rooms. Despite its small footprint, the device incorporates enterprise-grade hardware components that ensure stability, durability, and continuous operation under demanding network loads. Its architecture is optimized for consistent throughput performance while maintaining low power consumption, making it suitable for always-on networking scenarios.

Integrated Gigabit Switching Fabric

At the core of the device is an integrated Gigabit Ethernet switching system that supports multiple LAN ports for connecting end-user devices, servers, and network peripherals. The switching fabric is engineered to provide low-latency packet forwarding and efficient bandwidth utilization across connected endpoints. This integration eliminates the need for separate standalone switches in many small-scale deployments, reducing operational complexity and infrastructure costs.

SFP Expansion Slot for Flexible Uplink Connectivity

A key feature of the Cisco C891F-K9 is its Small Form-Factor Pluggable (SFP) slot, which enables fiber uplink connectivity for high-speed WAN or backbone integration. This flexibility allows organizations to connect to fiber-based internet services, metro Ethernet networks, or upstream aggregation switches. The SFP interface enhances scalability by allowing administrators to select appropriate transceiver modules based on distance and bandwidth requirements.

Routing Capabilities and Network Intelligence

Advanced Layer 3 Routing Functions

The device supports robust Layer 3 routing capabilities, including static routing and dynamic routing protocols. These functions enable efficient path selection across multiple network segments, ensuring optimized traffic flow and reduced latency. The routing engine is designed to handle enterprise-grade traffic patterns while maintaining consistent performance across multiple VLANs and subnets.

Dynamic WAN Optimization and Traffic Handling

The Cisco C891F-K9 is engineered to manage WAN traffic intelligently by prioritizing critical business applications and ensuring bandwidth availability for essential services. It can differentiate traffic types and allocate network resources dynamically, improving overall application performance across distributed environments. This capability is particularly useful for organizations relying heavily on cloud applications and remote connectivity.

Multi-Protocol Support for Enterprise Environments

The router supports a wide range of networking protocols that facilitate interoperability across complex infrastructures. These include routing protocols for scalable network design, as well as encapsulation and tunneling mechanisms for secure data transmission across untrusted networks. This ensures compatibility with legacy systems as well as modern cloud-integrated architectures.

Security Features and Network Protection

Integrated Firewall and Access Control Mechanisms

Security is a core component of the Cisco C891F-K9 design. It includes integrated firewall capabilities that allow administrators to define granular access control policies for inbound and outbound traffic. These controls help protect sensitive business data and prevent unauthorized access to internal network resources. The firewall operates at multiple layers of the network stack, ensuring comprehensive protection.

Secure VPN Connectivity for Remote Access

The device supports secure Virtual Private Network (VPN) technologies that enable encrypted communication between remote users and corporate networks. This functionality is essential for organizations with distributed workforces or multiple branch locations. By encrypting data traffic, the Cisco C891F-K9 ensures confidentiality and integrity across public internet connections.

Performance Optimization and Quality of Service

Advanced QoS Configuration

Quality of Service (QoS) is a fundamental feature of the Cisco C891F-K9, enabling prioritization of critical network traffic such as voice, video conferencing, and real-time applications. By assigning priority levels to different traffic types, the device ensures that latency-sensitive applications maintain optimal performance even during periods of high network utilization.

Bandwidth Management and Traffic Shaping

The system includes sophisticated bandwidth management tools that allow administrators to allocate network resources efficiently. Traffic shaping mechanisms help prevent congestion by controlling data flow rates and ensuring fair distribution of available bandwidth among users and applications. This contributes to a more stable and predictable network environment.

Low Latency Processing for Real-Time Applications

The hardware and software architecture of the Cisco C891F-K9 are optimized for low-latency processing, which is essential for real-time communication systems. Applications such as VoIP, video conferencing, and cloud-based collaboration platforms benefit significantly from this optimization, resulting in improved user experience and reduced packet delay variation.

Deployment Scenarios and Use Cases

Branch Office Connectivity Solutions

The Cisco C891F-K9 is widely deployed in branch office environments where secure and reliable connectivity to headquarters or cloud services is required. Its integrated routing and switching capabilities reduce infrastructure complexity while maintaining enterprise-grade performance. This makes it an ideal choice for distributed organizations seeking centralized network management.

Small and Medium Business Network Infrastructure

For small and medium-sized businesses, the device provides a cost-effective networking solution that combines multiple functionalities in a single platform. It eliminates the need for separate routers and switches, thereby reducing capital expenditure and simplifying network maintenance. Its scalability ensures that businesses can expand their network infrastructure as they grow.

Retail and Point-of-Sale Networks

Retail environments benefit from the device’s ability to support secure transactions and reliable connectivity for point-of-sale systems. Its security features help protect sensitive customer data, while its switching capabilities ensure smooth operation of connected devices such as payment terminals, inventory systems, and digital signage.

Network Management and Configuration Flexibility

Centralized Management Support

The Cisco C891F-K9 can be integrated into centralized network management systems, enabling administrators to monitor and configure multiple devices from a single interface. This simplifies operational workflows and enhances visibility across distributed network environments.

Command-Line and Automated Configuration Options

Network administrators can configure the device using command-line interfaces that provide granular control over system settings. Additionally, automation capabilities allow for streamlined deployment and configuration replication across multiple devices, reducing manual effort and minimizing configuration errors.

Firmware Upgrades and Lifecycle Management

The device supports firmware upgrades that ensure ongoing performance improvements, security patches, and feature enhancements. Lifecycle management tools help organizations maintain consistent software versions across their network infrastructure, improving stability and security compliance.

Scalability and Future-Proof Networking

Expandable Network Architecture

The Cisco C891F-K9 is designed to support scalable network architectures that evolve with business needs. Its modular connectivity options and routing flexibility allow it to adapt to increasing bandwidth demands and expanding network topologies without requiring major hardware replacements.

Support for Modern Cloud Integration

As organizations increasingly adopt cloud-based services, the device provides seamless integration with cloud platforms. It supports secure and efficient data exchange between on-premises infrastructure and cloud environments, ensuring consistent application performance and accessibility.

Long-Term Operational Efficiency

The energy-efficient design and durable hardware components contribute to reduced operational costs over time. Organizations benefit from lower power consumption, reduced maintenance requirements, and improved system longevity, making it a sustainable choice for long-term deployment.

Reliability, Redundancy, and Business Continuity

High Availability Networking Design

The Cisco C891F-K9 is built to support high availability configurations that minimize downtime and ensure continuous network operation. Its design allows for redundant connectivity paths, which help maintain service availability in the event of link failures or network disruptions.

Fault Tolerance and System Stability

The device incorporates mechanisms that enhance fault tolerance, ensuring stable performance even under heavy network load or partial system failure conditions. This reliability is critical for mission-critical business applications that require uninterrupted connectivity.

Continuous Operation in Enterprise Environments

Engineered for continuous operation, the platform is suitable for environments where network downtime is unacceptable. Its robust hardware and optimized software stack ensure consistent performance across extended operational cycles.
