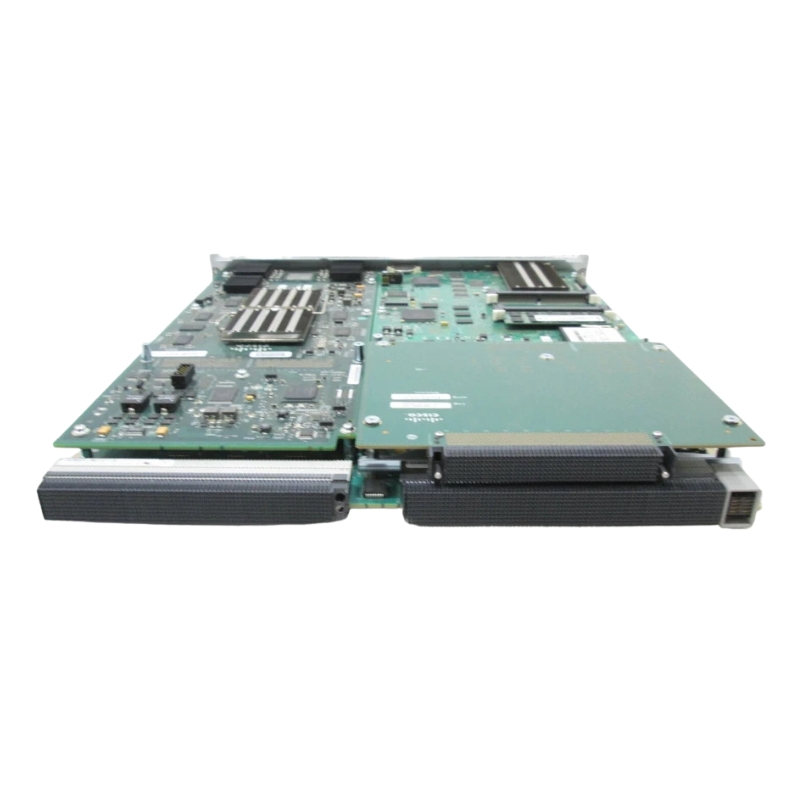

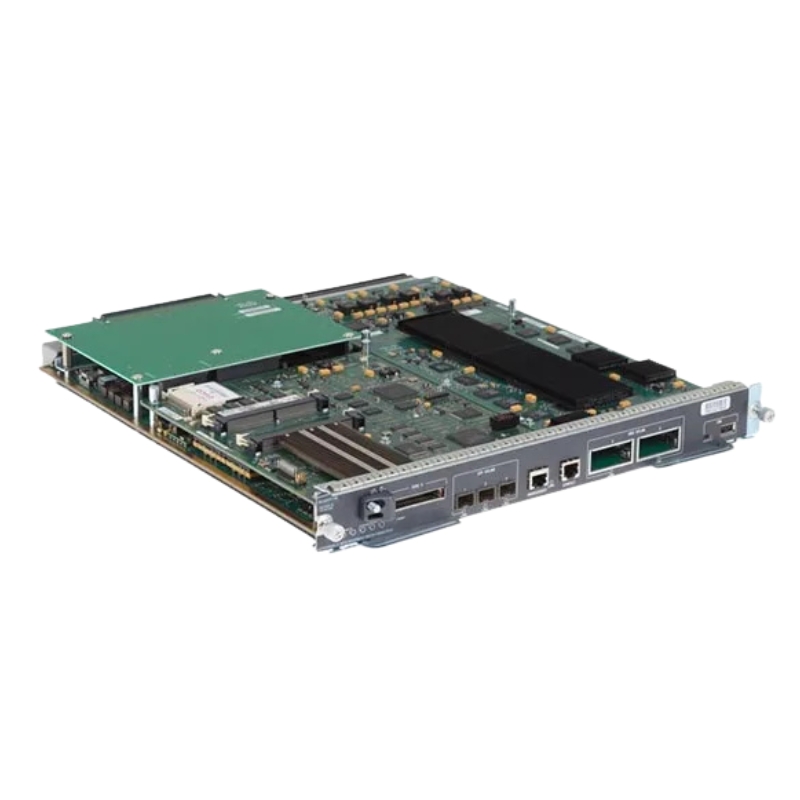

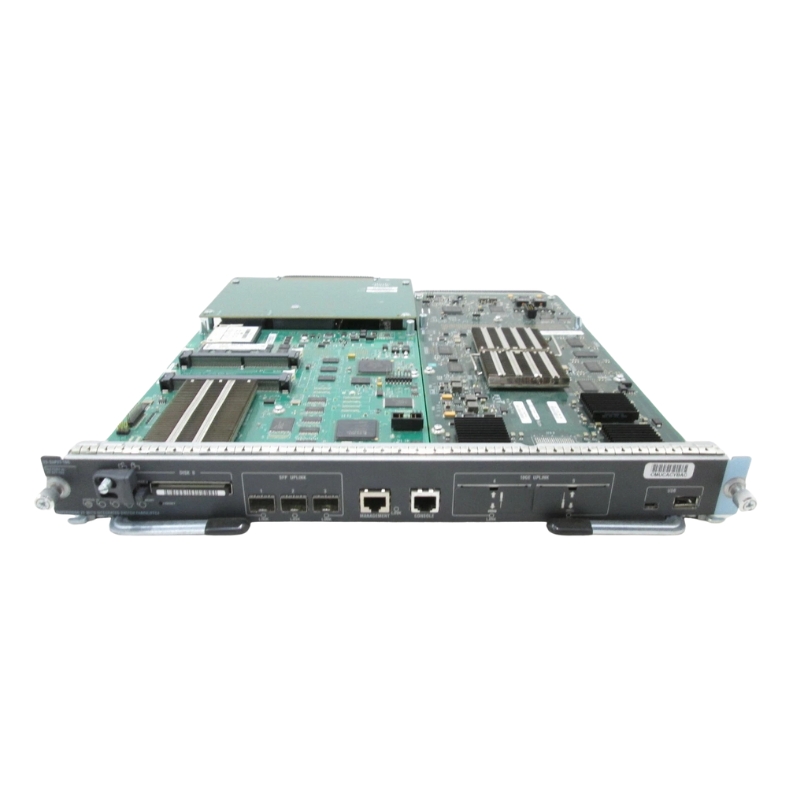

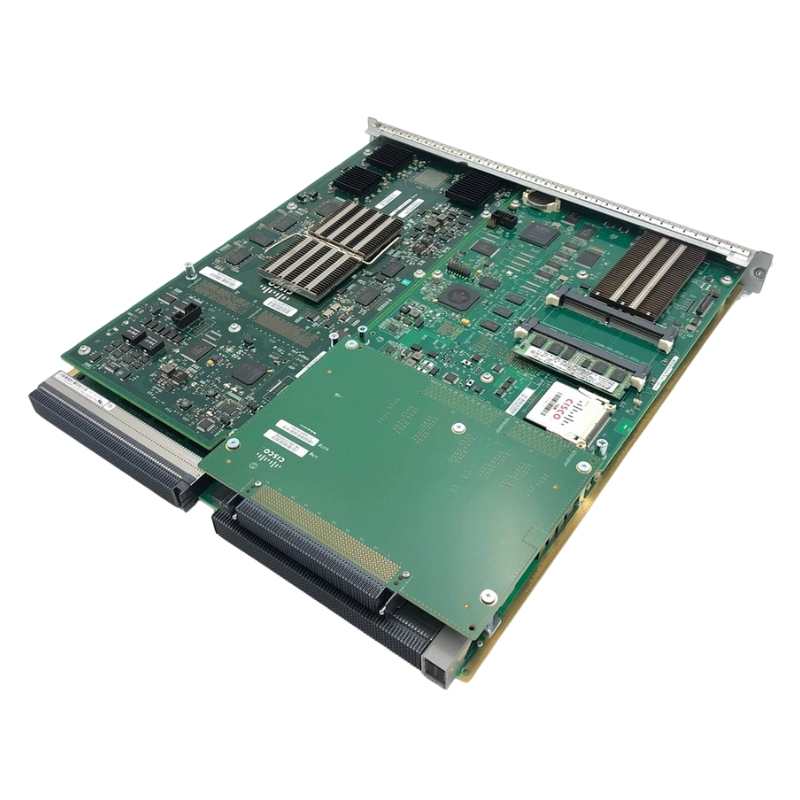

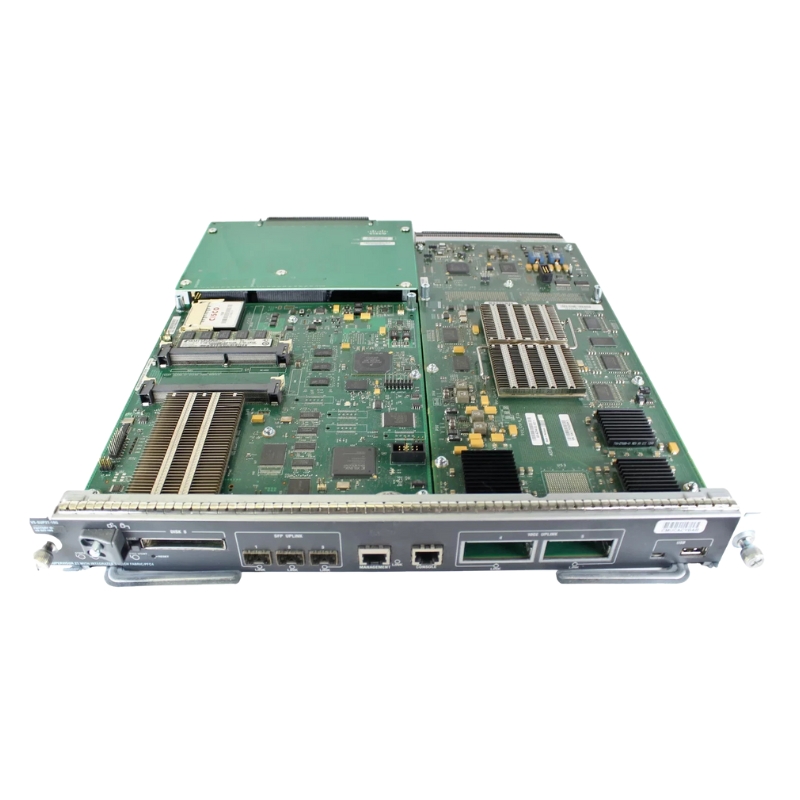

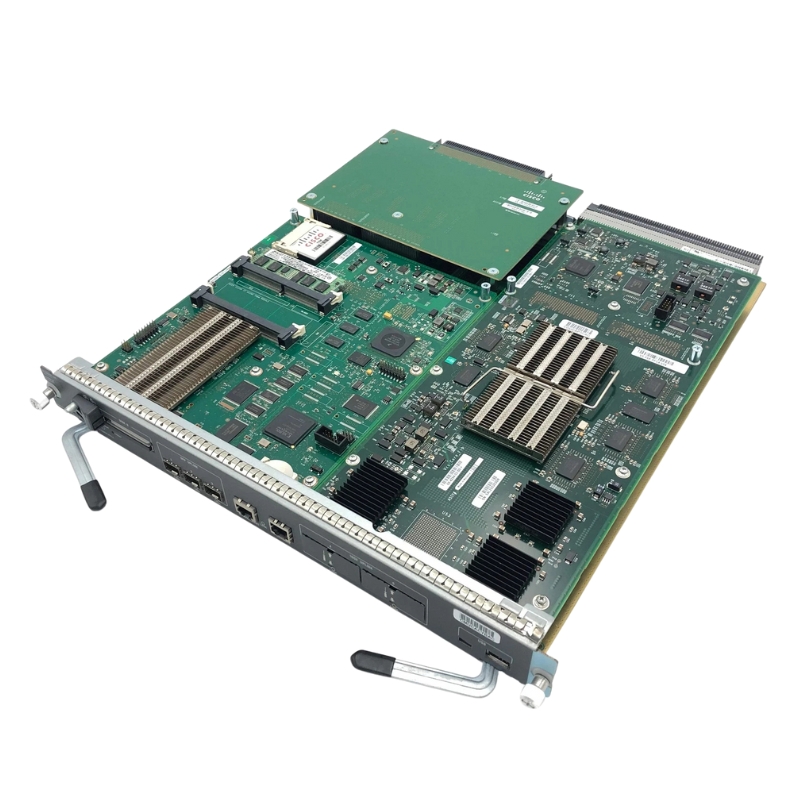

VS-S2T-10G-XL Cisco Catalyst 6500 Series Ethernet Control Processor 2T XL

Cisco VS-S2T-10G-XL 2  Ports Control Processor

The Cisco VS-S2T-10G-XL Control Processor 2T XL is a high-performance supervisor engine module designed for Cisco Catalyst 6500 Series Ethernet switches. It delivers exceptional routing performance, advanced Layer 2 and Layer 3 services, and enterprise-class scalability for modern campus, data center, and service provider networks. Equipped with dual 10 Gigabit Ethernet interfaces, extensive routing capacity, and enhanced memory resources, this control processor provides reliable network management and seamless traffic forwarding for demanding business environments.

Product Overview

• Manufacturer: Cisco
• Part Number: VS-S2T-10G-XL
• Product Category: Control Processor
• Module Type: Plug-in Module
• Integrated Ports: 2 x 10 Gigabit Ethernet
• Platform Compatibility: Cisco Catalyst 6500 Series

Advanced Hardware Specifications

Hardware Configuration

• Device Type: Control Processor
• Form Factor: Plug-in Module
• Installed RAM: 4 GB
• Installed Flash Memory: 1 GB
• Total Network Ports: 2
• Network Interface: 10 Gigabit Ethernet

Exceptional Routing Performance

High-Speed Packet Processing

Designed for mission-critical applications, the VS-S2T-10G-XL delivers outstanding routing throughput to efficiently manage large volumes of network traffic while maintaining low latency and consistent performance.

Routing Performance Metrics

• IPv4 Routing Performance: Up to 720 Million Packets Per Second (Mpps)
• IPv6 Routing Performance: Up to 390 Million Packets Per Second (Mpps)

Enterprise-Grade Network Scalability

Large Routing and Address Tables

This Cisco control processor is built for growing enterprise infrastructures by supporting extensive routing databases and MAC address capacity, making it suitable for complex network deployments.

Scalability Specifications

• Maximum MAC Address Table: 128,000 Entries
• IPv4 Routing Table Capacity: 1,024,000 Routes
• IPv6 Routing Table Capacity: 512,000 Routes
• NetFlow Entries: Up to 1,024,000

Integrated Enterprise Networking Features

Supported Technologies

• Network Address Translation (NAT)
• Multiprotocol Label Switching (MPLS)
• MPLS VPN Support
• Internet Group Management Protocol (IGMP) Snooping
• Native IPv6 Support
• Access Control List (ACL) Functionality
• Quality of Service (QoS) Traffic Prioritization

Benefits of Cisco VS-S2T-10G-XL

Reliable Enterprise Networking

• Optimized for Cisco Catalyst 6500 Series switches
• Supports high-density enterprise environments
• Accelerates Layer 2 and Layer 3 packet forwarding
• Improves network reliability and uptime
• Handles large-scale routing and switching workloads
• Enables efficient traffic monitoring with extensive NetFlow support
• Provides advanced security and policy enforcement capabilities

Ideal Deployment Scenarios

Recommended Network Environments

• Enterprise campus networks
• Large corporate headquarters
• Government organizations
• Educational institutions
• Healthcare facilities
• Financial service providers
• Data center aggregation layers
• Service provider infrastructures

Cisco VS-S2T-10G-XL Control Processor 2T XL Catalyst 6500

The Cisco VS-S2T-10G-XL Control Processor 2T XL is an enterprise-class supervisor engine developed for the Cisco Catalyst 6500 Series Ethernet platform. Designed for organizations that demand exceptional network scalability, high availability, and advanced Layer 2 and Layer 3 capabilities, this control processor enables mission-critical infrastructures to support growing data traffic without compromising performance or reliability. Businesses operating large campus networks, service provider environments, educational institutions, healthcare organizations, financial institutions, and government agencies continue to rely on the Catalyst 6500 platform because of its proven stability and enterprise-grade architecture.

As organizations expand digital transformation initiatives, network infrastructures must efficiently accommodate increasing bandwidth demands, virtualization technologies, cloud connectivity, unified communications, and high-density endpoint deployments. The Cisco VS-S2T-10G-XL addresses these challenges through an advanced forwarding architecture, integrated 10 Gigabit Ethernet uplinks, enhanced routing capabilities, and substantial forwarding capacity that supports demanding enterprise workloads.

This category includes Cisco VS-S2T-10G-XL supervisor modules, replacement control processors, enterprise networking upgrades, compatible Catalyst 6500 components, spare hardware, refurbished enterprise equipment, and deployment solutions designed for extending the lifecycle of Cisco enterprise networking infrastructures.

Enterprise-Class Supervisor Engine Architecture

The VS-S2T-10G-XL serves as the intelligent processing core of supported Cisco Catalyst 6500 Series chassis. Unlike traditional line cards that primarily provide physical connectivity, the supervisor engine manages packet forwarding, routing decisions, switching operations, hardware redundancy, system management, security enforcement, and communication between installed modules.

Its architecture integrates control plane processing and forwarding plane capabilities into a highly optimized solution capable of supporting extremely large enterprise environments. This centralized intelligence enables administrators to simplify network management while maintaining exceptional throughput across numerous access, aggregation, and core switching deployments.

Centralized Network Intelligence

Modern enterprise networks require centralized policy enforcement, intelligent routing, and comprehensive traffic management. The VS-S2T-10G-XL delivers these capabilities through dedicated hardware acceleration that minimizes latency while maximizing forwarding efficiency.

The supervisor engine continuously monitors system health, routing tables, VLAN databases, spanning tree operations, multicast forwarding, Quality of Service policies, and security configurations to ensure uninterrupted network availability.

Scalable Processing Resources

Large enterprise deployments generate enormous volumes of routing updates, switching operations, security policies, and management tasks. The Cisco VS-S2T-10G-XL includes enhanced processing resources capable of supporting extensive routing tables, complex access control lists, virtualization technologies, and demanding enterprise applications.

Optimized for Cisco Catalyst 6500 Series

The Cisco Catalyst 6500 Series remains one of the most widely deployed modular enterprise switching platforms. Organizations worldwide continue to utilize these chassis because of their modular flexibility, extensive interface options, investment protection, and long operational lifespan.

The VS-S2T-10G-XL integrates seamlessly into compatible Catalyst 6500 chassis while enabling organizations to modernize network capabilities without replacing their entire switching infrastructure.

Modular Expansion

The modular architecture allows organizations to install multiple interface modules, service modules, security appliances, wireless controllers, and specialized networking hardware within the same chassis. This flexibility simplifies expansion as network requirements evolve.

Investment Protection

Many enterprises have invested significantly in Catalyst 6500 infrastructures. Replacing only the supervisor engine instead of the entire chassis provides a cost-effective upgrade strategy while preserving existing network investments and minimizing deployment complexity.

Advanced Switching Performance

Enterprise switching environments require high-speed packet forwarding capable of handling thousands of simultaneous users, applications, and connected devices. The VS-S2T-10G-XL delivers substantial forwarding performance suitable for data-intensive business environments.

High-Speed Packet Processing

Hardware-assisted forwarding significantly reduces CPU utilization while maintaining consistent forwarding rates. This allows the supervisor engine to efficiently manage high traffic volumes generated by virtualization, cloud applications, video conferencing, enterprise collaboration, and storage networking.

Reduced Network Latency

Low latency is essential for voice communications, financial transactions, industrial automation, healthcare systems, and real-time collaboration. Hardware forwarding minimizes packet delays while ensuring predictable network behavior.

Large Forwarding Capacity

Growing organizations often experience rapidly increasing traffic loads. The enhanced forwarding architecture supports expanding bandwidth requirements without requiring fundamental infrastructure redesigns.

Integrated 10 Gigabit Ethernet Connectivity

The integrated 10 Gigabit Ethernet uplinks simplify deployment by providing high-bandwidth connections for aggregation, core switching, and data center interconnects. These interfaces reduce bottlenecks while supporting modern enterprise applications that consume significant network resources.

Backbone Connectivity

High-speed backbone connections enable efficient communication between distribution switches, core switches, storage environments, virtualization platforms, and enterprise servers.

Aggregation Deployments

Organizations can utilize integrated uplinks to aggregate traffic from numerous access switches while maintaining consistent throughput across the enterprise network.

Layer 2 Switching Features

The VS-S2T-10G-XL supports comprehensive Layer 2 functionality necessary for enterprise campus environments. These capabilities help administrators optimize switching efficiency while maintaining secure and reliable network segmentation.

VLAN Support

Virtual LAN technologies improve security, simplify network organization, reduce broadcast domains, and enable efficient traffic separation for departments, applications, and services.

Spanning Tree Optimization

Redundant network links improve availability but require intelligent loop prevention mechanisms. Advanced spanning tree protocols ensure stable Layer 2 operation while enabling rapid recovery from network failures.

Link Aggregation

Multiple physical connections can be combined into logical links to increase bandwidth while providing redundancy and fault tolerance between networking devices.

Comprehensive Layer 3 Routing

Enterprise routing capabilities enable communication between networks while supporting dynamic routing protocols, policy enforcement, and intelligent path selection.

Dynamic Routing Protocols

The supervisor engine supports enterprise routing environments utilizing dynamic routing technologies for efficient route distribution and automatic convergence during topology changes.

IPv4 and IPv6 Support

Modern enterprise infrastructures frequently operate dual-stack environments that support both IPv4 and IPv6 addressing schemes. The VS-S2T-10G-XL facilitates migration strategies while maintaining compatibility with existing deployments.

Policy-Based Routing

Administrators can implement advanced routing policies based on security requirements, traffic engineering objectives, application priorities, and organizational network designs.

High Availability and Network Resilience

Enterprise organizations require continuous network availability to support mission-critical business operations. Downtime may impact productivity, customer services, financial transactions, manufacturing operations, healthcare systems, and communication platforms.

Supervisor Redundancy

Supported Catalyst 6500 deployments may utilize redundant supervisor engines that provide automatic failover capabilities. Redundancy minimizes service interruptions while maintaining operational continuity.

State Synchronization

Redundant supervisors synchronize operational information, enabling rapid recovery during hardware failures and reducing service disruption.

Fault Tolerance

Enterprise-class hardware incorporates mechanisms designed to improve system reliability under demanding production environments.

Quality of Service Capabilities

Quality of Service technologies prioritize network traffic according to business requirements. This ensures latency-sensitive applications receive appropriate bandwidth during periods of network congestion.

Voice Prioritization

Voice over IP deployments benefit from traffic prioritization that minimizes latency, jitter, and packet loss while maintaining call quality.

Video Optimization

Video conferencing, surveillance systems, and streaming applications receive appropriate treatment to maintain consistent performance across enterprise infrastructures.

Application-Aware Policies

Network administrators can implement differentiated service policies for critical business applications while controlling lower-priority traffic.

Enterprise Security Features

Security remains a fundamental component of enterprise networking. The Cisco VS-S2T-10G-XL supports multiple technologies that help protect infrastructure from unauthorized access and malicious activity.

Access Control Lists

ACLs enable granular filtering of network traffic according to IP addresses, protocols, applications, and organizational security policies.

Network Segmentation

Logical separation of users, departments, servers, and applications reduces security risks while simplifying compliance requirements.

Control Plane Protection

Protection mechanisms safeguard critical control processes from excessive traffic and malicious attacks that could impact network stability.

Virtualization Support

Enterprise data centers increasingly rely on server virtualization, private cloud infrastructures, and software-defined workloads. The supervisor engine provides networking capabilities that complement virtualized environments.

Virtual Machine Connectivity

High-performance switching enables efficient communication between physical servers and virtual machines across enterprise infrastructures.

Scalable Infrastructure

As virtualization densities increase, network capacity must expand accordingly. The VS-S2T-10G-XL supports growing virtual workloads while maintaining forwarding efficiency.
